Arrays and structures

CHAPTER 2

ARRAYS AND STRUCTURES

All the programs in this file are selected from
Ellis Horowitz, Sartaj Sahni, and Susan Anderson-Freed
“Fundamentals of Data Structures in C”,
Computer Science Press

CHAPTER 2 1

Arrays
Array( 数组 ): a set of index( 索引 ) and value( 值 )
Array:=<index, value>

data structure
For each index, there is a value associated
with
that index.

representation (possible)
implemented by using consecutive memory.

CHAPTER 2 2

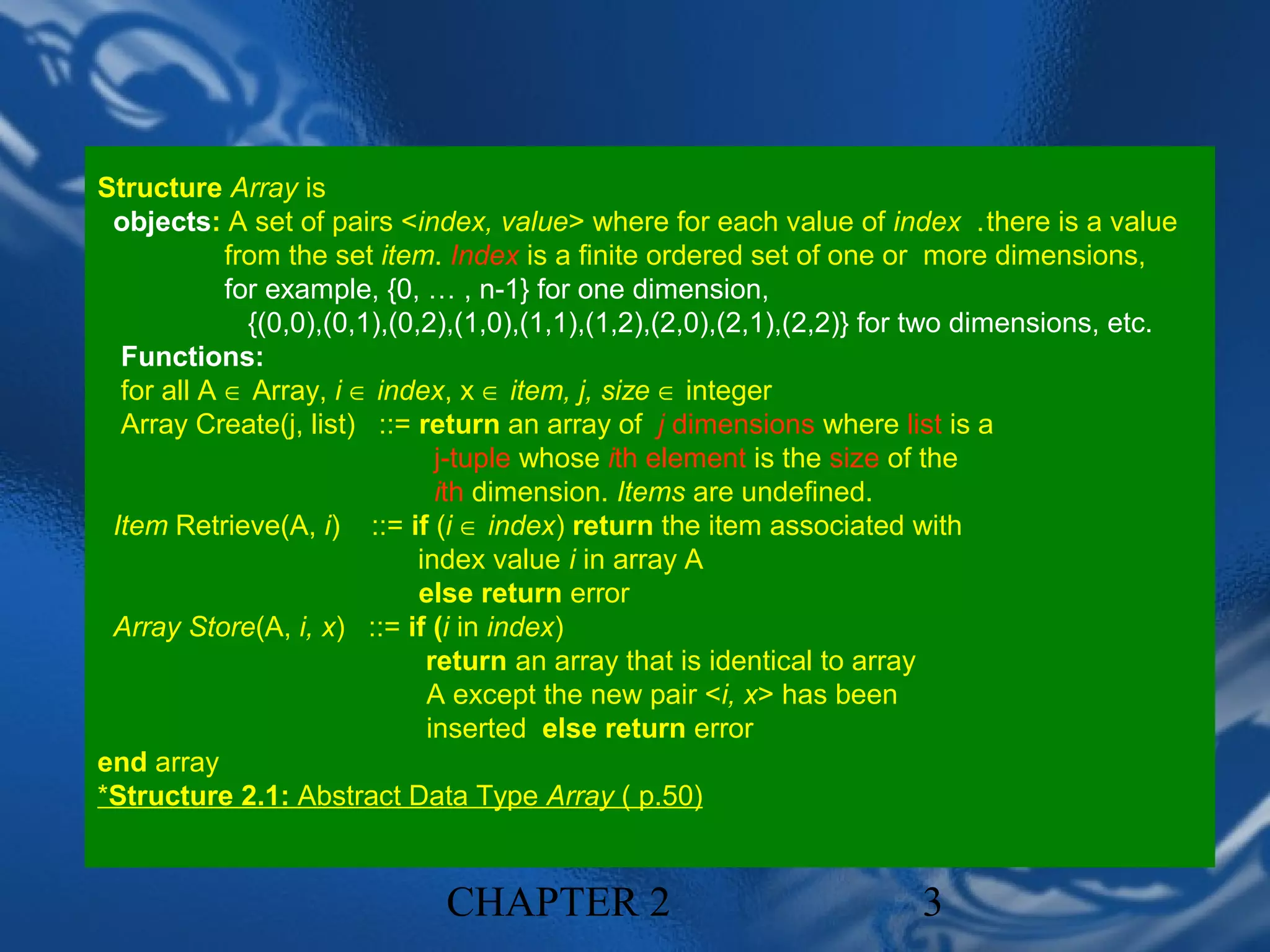

Structure Array is
objects: A set of pairs <index, value> where for each value of index .there is a value
from the set item. Index is a finite ordered set of one or more dimensions,
for example, {0, … , n-1} for one dimension,
{(0,0),(0,1),(0,2),(1,0),(1,1),(1,2),(2,0),(2,1),(2,2)} for two dimensions, etc.
Functions:
for all A ∈ Array, i ∈ index, x ∈ item, j, size ∈ integer
Array Create(j, list) ::= return an array of j dimensions where list is a
j-tuple whose ith element is the size of the
ith dimension. Items are undefined.
Item Retrieve(A, i) ::= if (i ∈ index) return the item associated with
index value i in array A
else return error
Array Store(A, i, x) ::= if (i in index)
return an array that is identical to array
A except the new pair <i, x> has been
inserted else return error
end array
*Structure 2.1: Abstract Data Type Array ( p.50)

CHAPTER 2 3

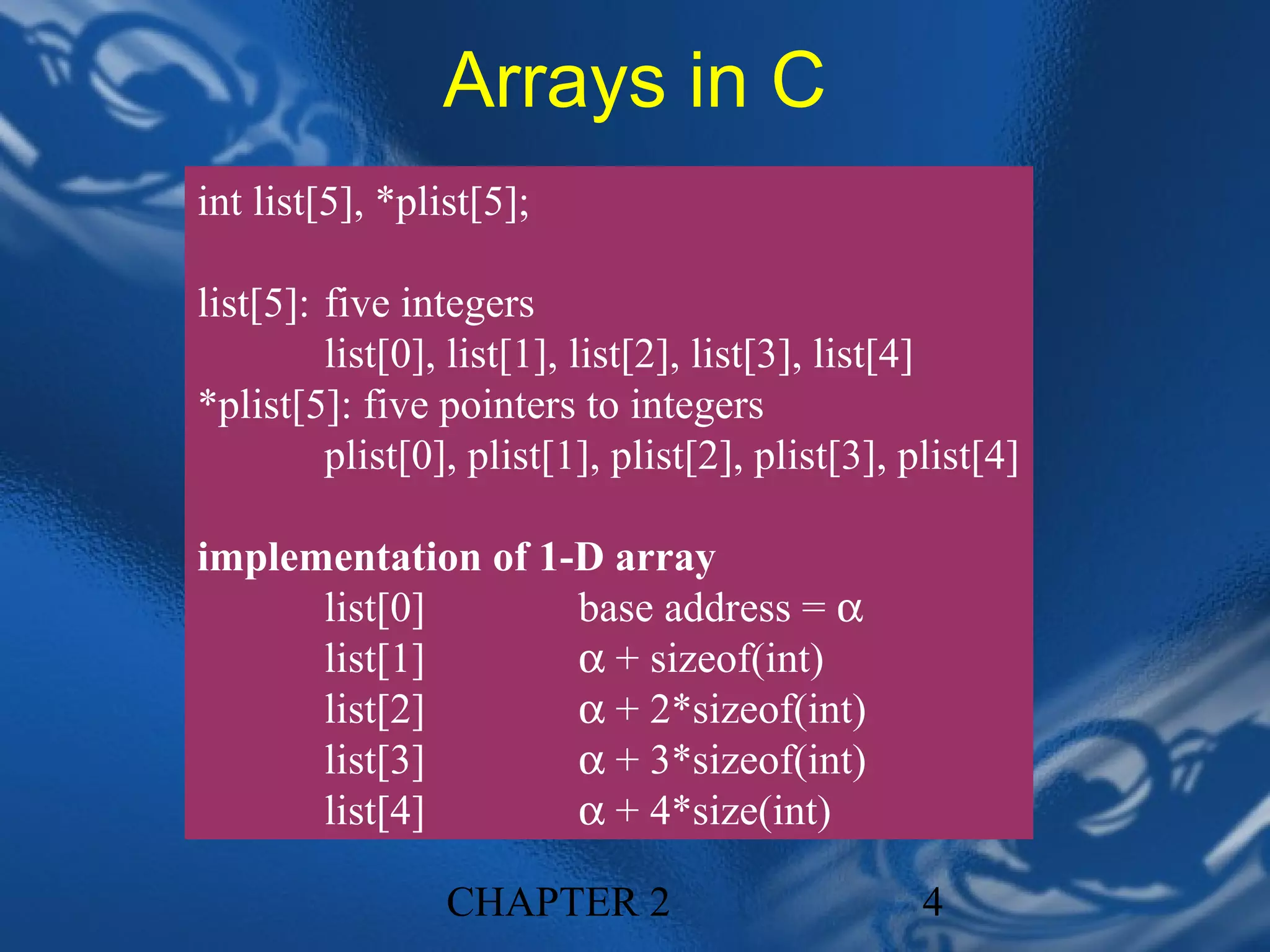

Arrays in C
int list[5], *plist[5];

list[5]: five integers
list[0], list[1], list[2], list[3], list[4]
*plist[5]: five pointers to integers
plist[0], plist[1], plist[2], plist[3], plist[4]

implementation of 1-D array
list[0] base address = α
list[1] α + sizeof(int)
list[2] α + 2*sizeof(int)
list[3] α + 3*sizeof(int)
list[4] α + 4*size(int)

CHAPTER 2 4

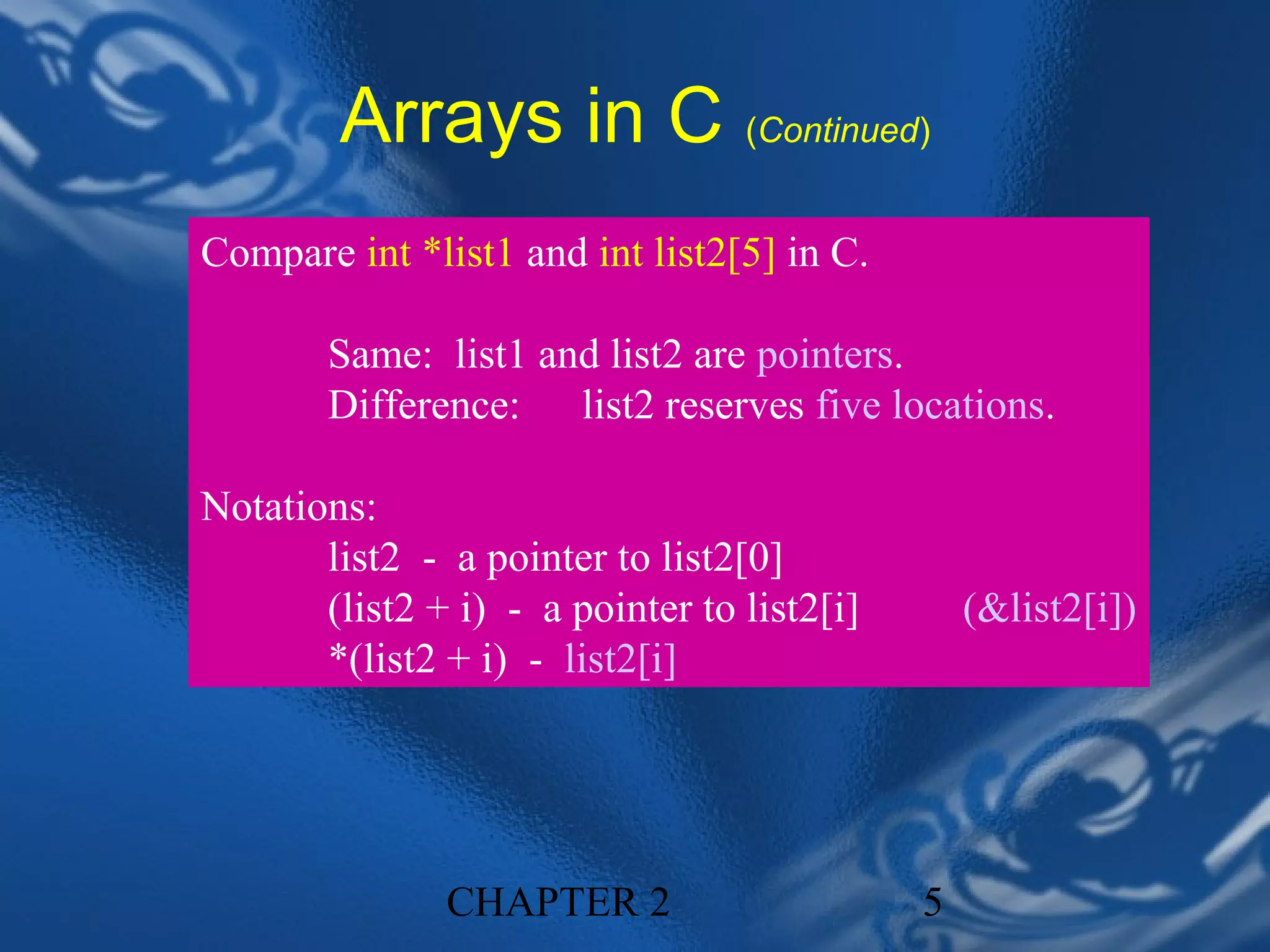

Arrays in C (Continued)
Compare int *list1 and int list2[5] in C.

Same: list1 and list2 are pointers.
Difference: list2 reserves five locations.

Notations:
list2 - a pointer to list2[0]
(list2 + i) - a pointer to list2[i] (&list2[i])
*(list2 + i) - list2[i]

CHAPTER 2 5

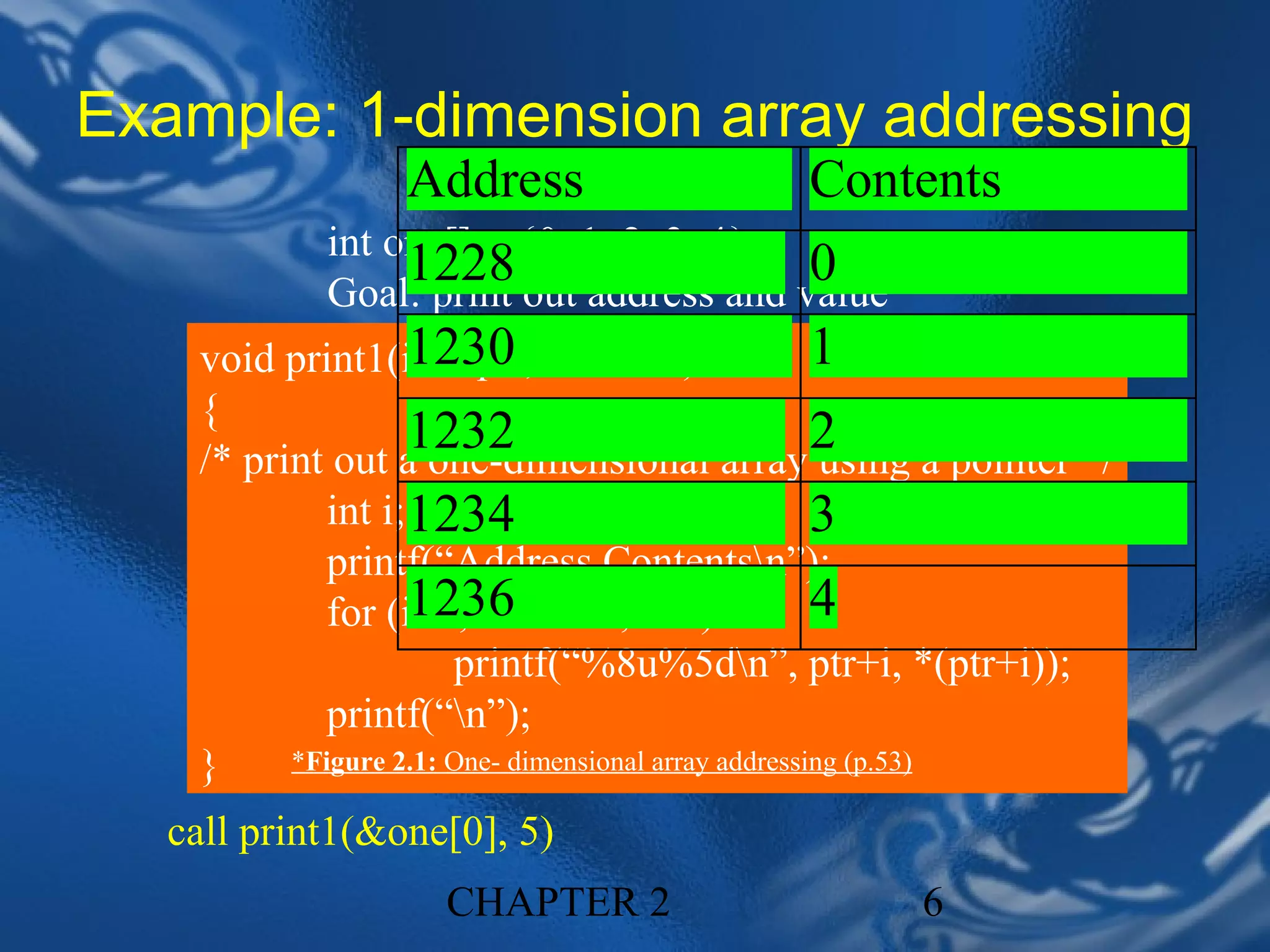

Example: 1-dimension array addressing
Address Contents
int one[] = {0, 1, 2, 3, 4};
1228 out address and value
Goal: print
0
1230
void print1(int *ptr, int rows) 1
{
1232 2
/* print out a one-dimensional array using a pointer */
int i; 1234 3
printf(“Address Contentsn”);
1236
for (i=0; i < rows; i++) 4
printf(“%8u%5dn”, ptr+i, *(ptr+i));
printf(“n”);
} *Figure 2.1: One- dimensional array addressing (p.53)

call print1(&one[0], 5)
CHAPTER 2 6

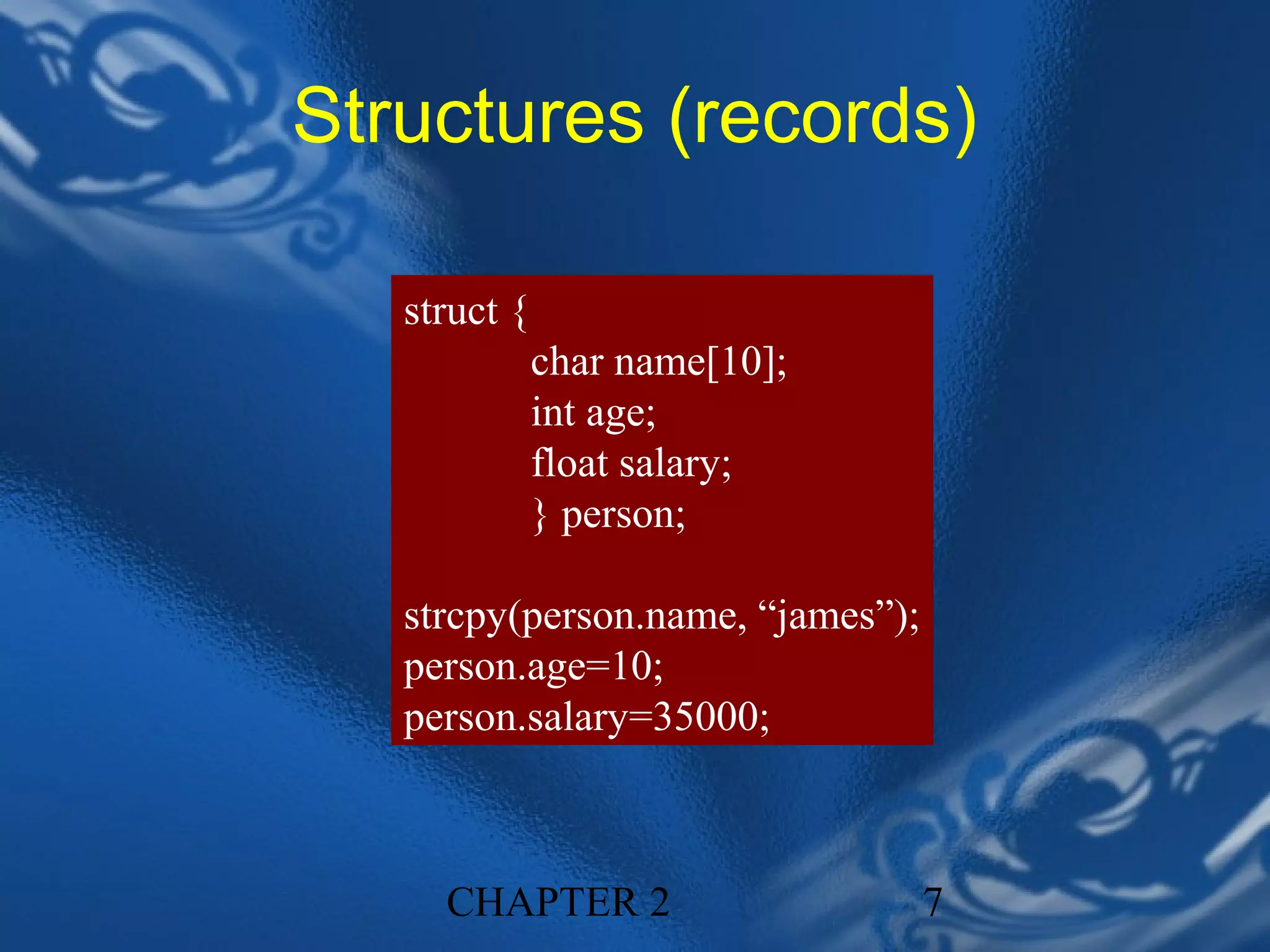

Structures (records)

struct {
char name[10];
int age;
float salary;
} person;

strcpy(person.name, “james”);
person.age=10;
person.salary=35000;

CHAPTER 2 7

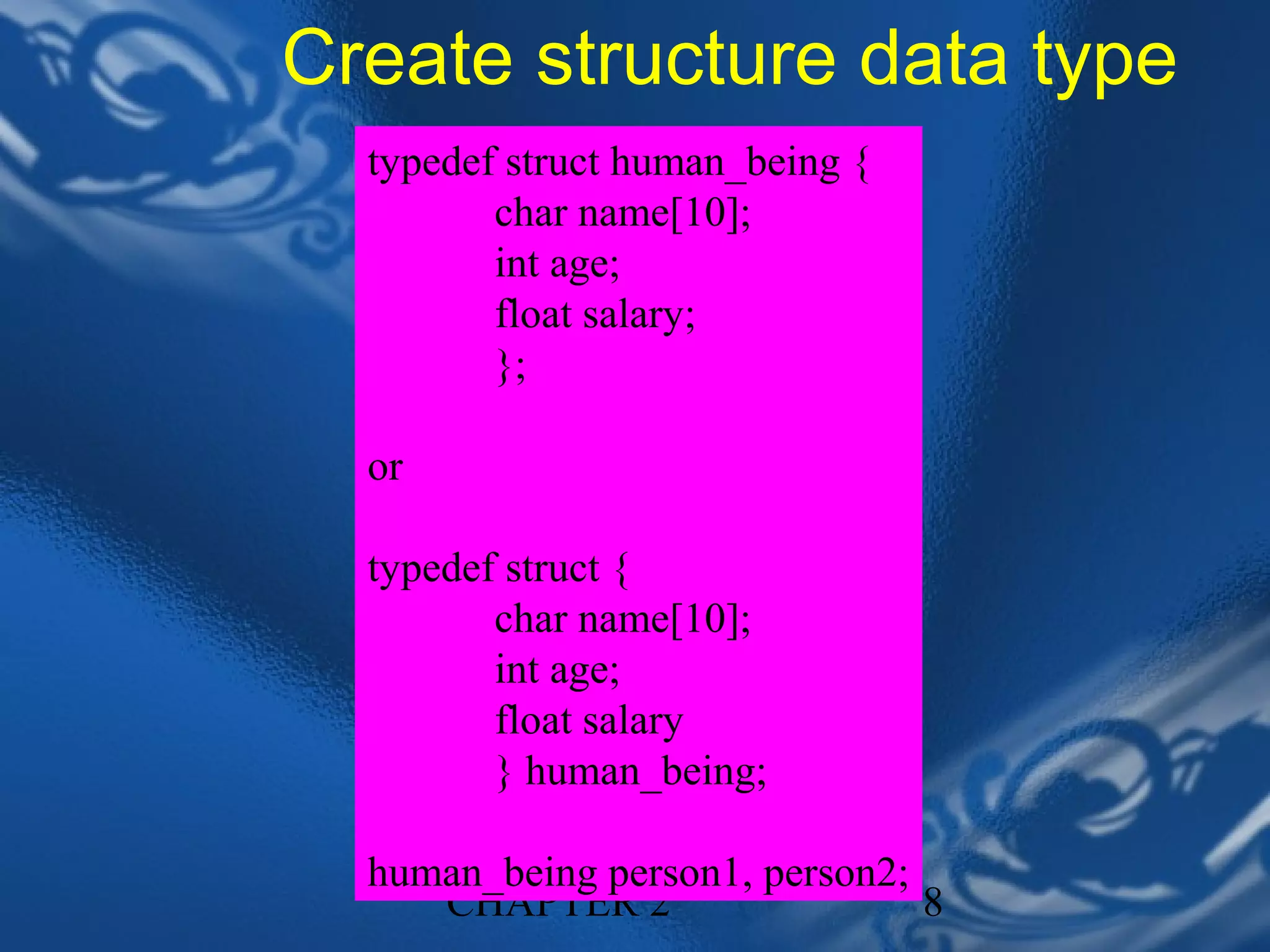

Create structure data type
typedef struct human_being {
char name[10];
int age;
float salary;
};

or

typedef struct {
char name[10];
int age;
float salary
} human_being;

human_being person1, person2;
CHAPTER 2 8

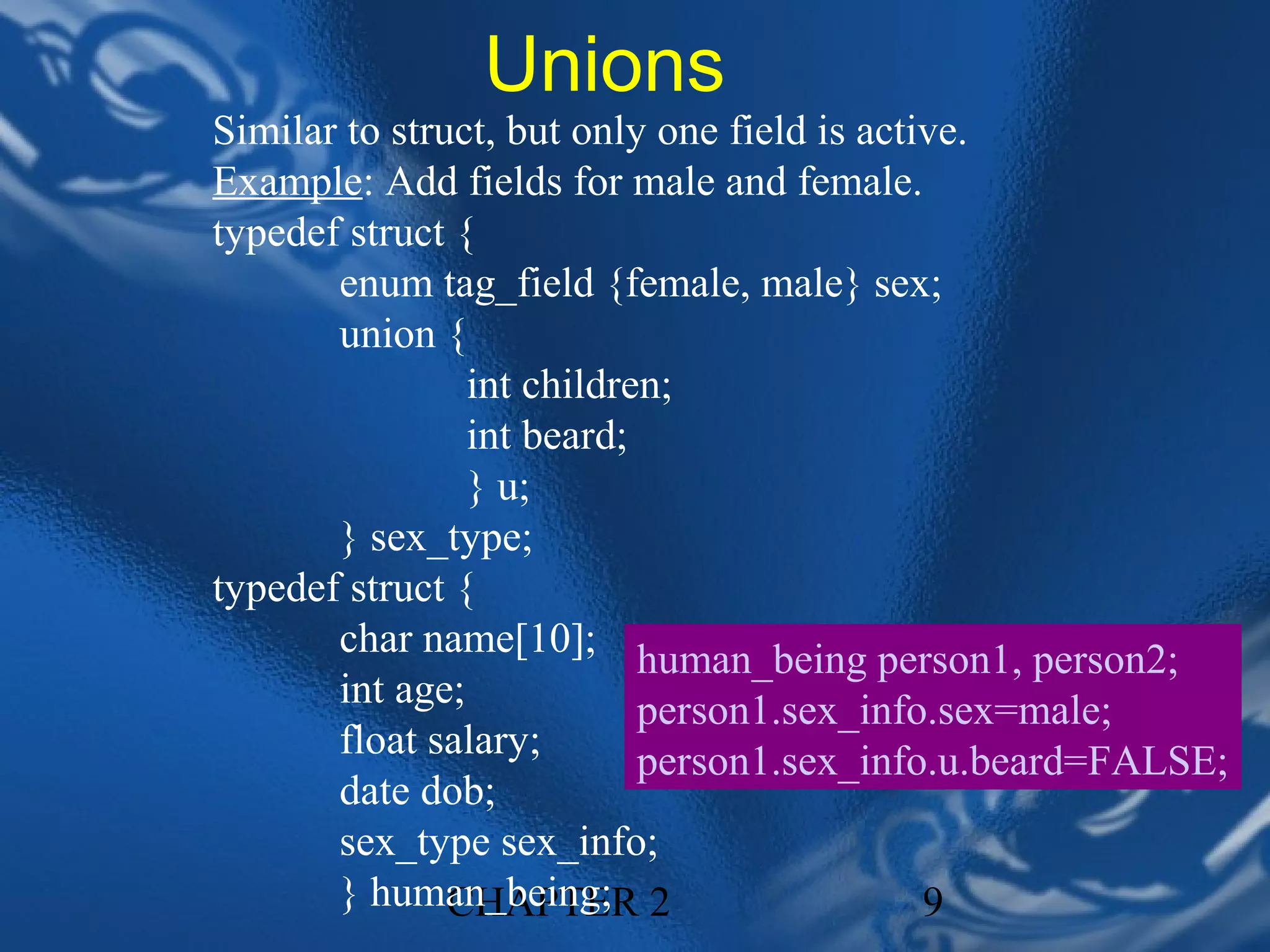

Unions
Similar to struct, but only one field is active.
Example: Add fields for male and female.
typedef struct {
enum tag_field {female, male} sex;
union {
int children;
int beard;
} u;
} sex_type;
typedef struct {
char name[10]; human_being person1, person2;
int age; person1.sex_info.sex=male;
float salary; person1.sex_info.u.beard=FALSE;
date dob;
sex_type sex_info;
} human_being; 2
CHAPTER 9

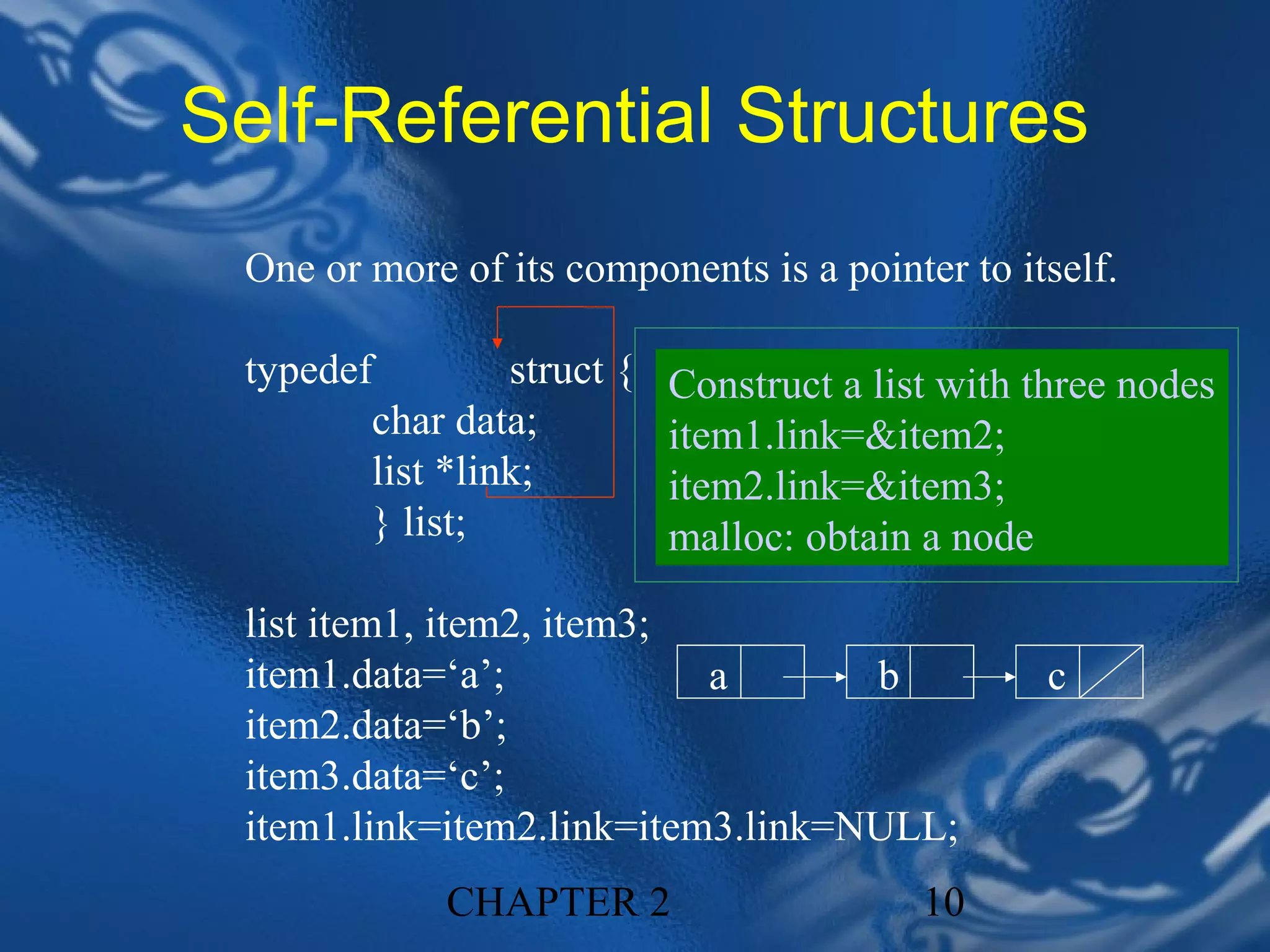

Self-Referential Structures
One or more of its components is a pointer to itself.

typedef struct { Construct a list with three nodes
char data; item1.link=&item2;
list *link; item2.link=&item3;
} list; malloc: obtain a node

list item1, item2, item3;
item1.data=‘a’; a b c
item2.data=‘b’;
item3.data=‘c’;
item1.link=item2.link=item3.link=NULL;
CHAPTER 2 10

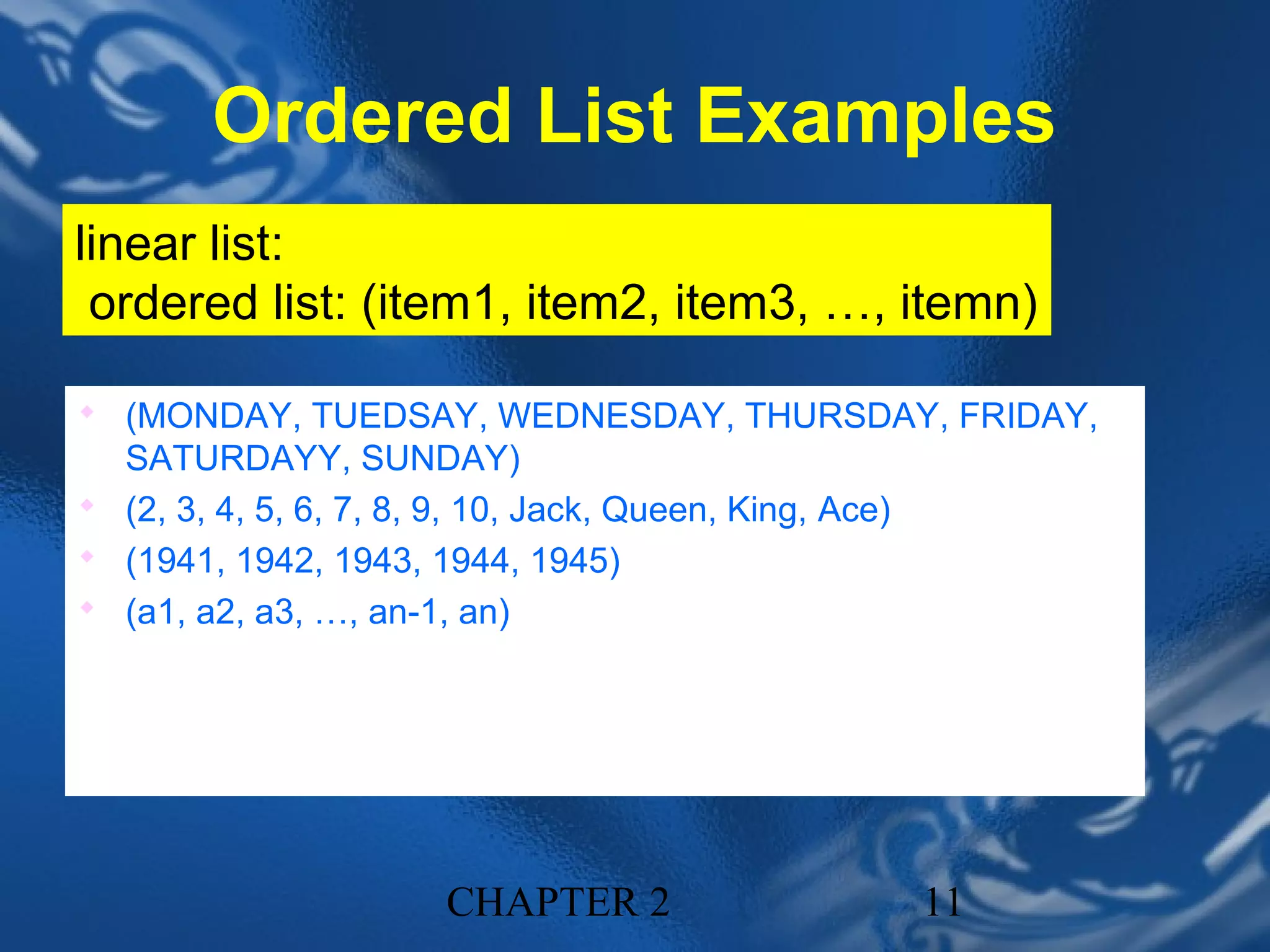

Ordered List Examples
linear list:
ordered list: (item1, item2, item3, …, itemn)

 (MONDAY, TUEDSAY, WEDNESDAY, THURSDAY, FRIDAY,
SATURDAYY, SUNDAY)
 (2, 3, 4, 5, 6, 7, 8, 9, 10, Jack, Queen, King, Ace)
 (1941, 1942, 1943, 1944, 1945)
 (a1, a2, a3, …, an-1, an)

CHAPTER 2 11

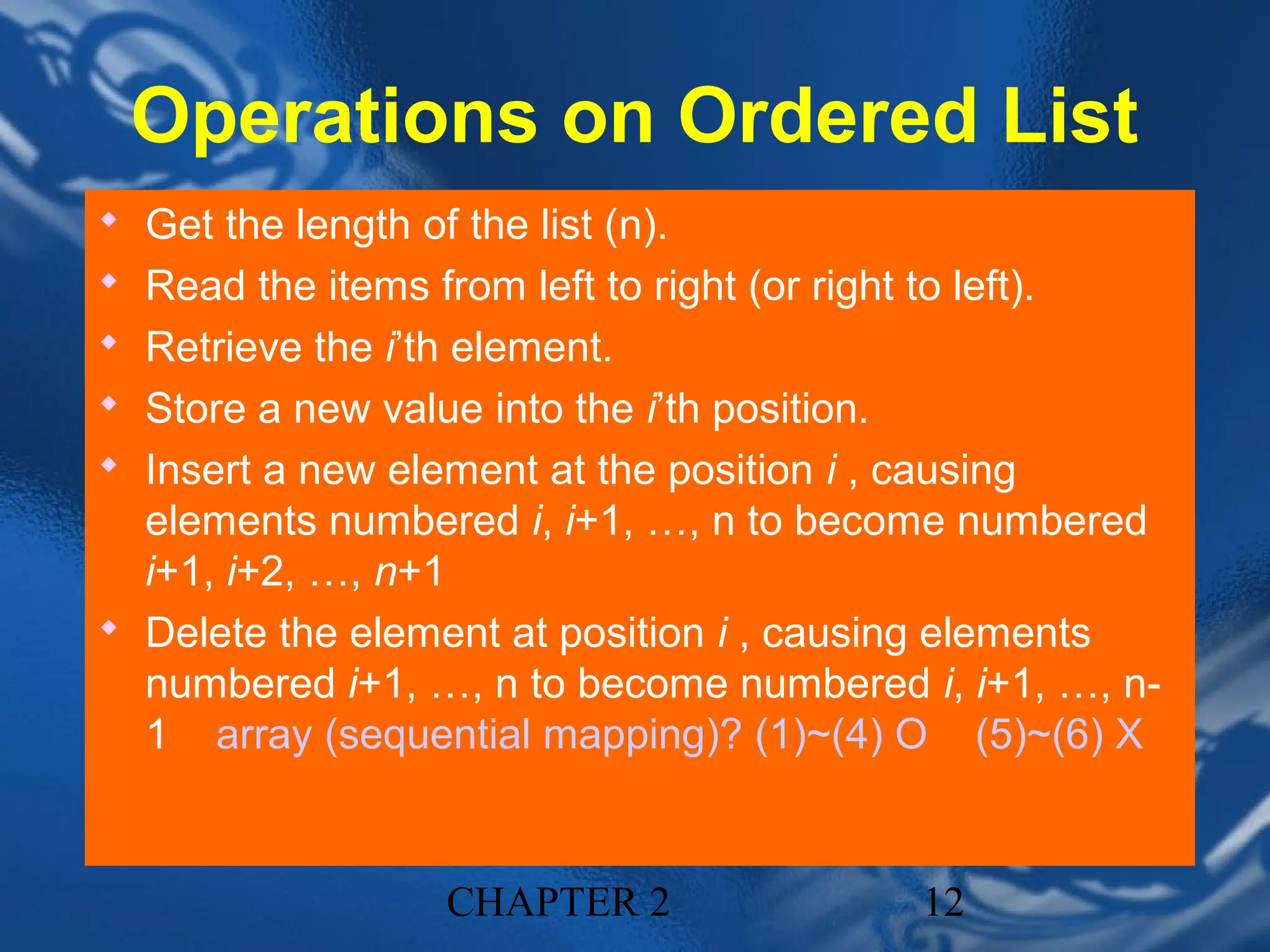

Operations on Ordered List
 Get the length of the list (n).
 Read the items from left to right (or right to left).
 Retrieve the i’th element.
 Store a new value into the i’th position.
 Insert a new element at the position i , causing
elements numbered i, i+1, …, n to become numbered
i+1, i+2, …, n+1
 Delete the element at position i , causing elements
numbered i+1, …, n to become numbered i, i+1, …, n-
1 array (sequential mapping)? (1)~(4) O (5)~(6) X

CHAPTER 2 12

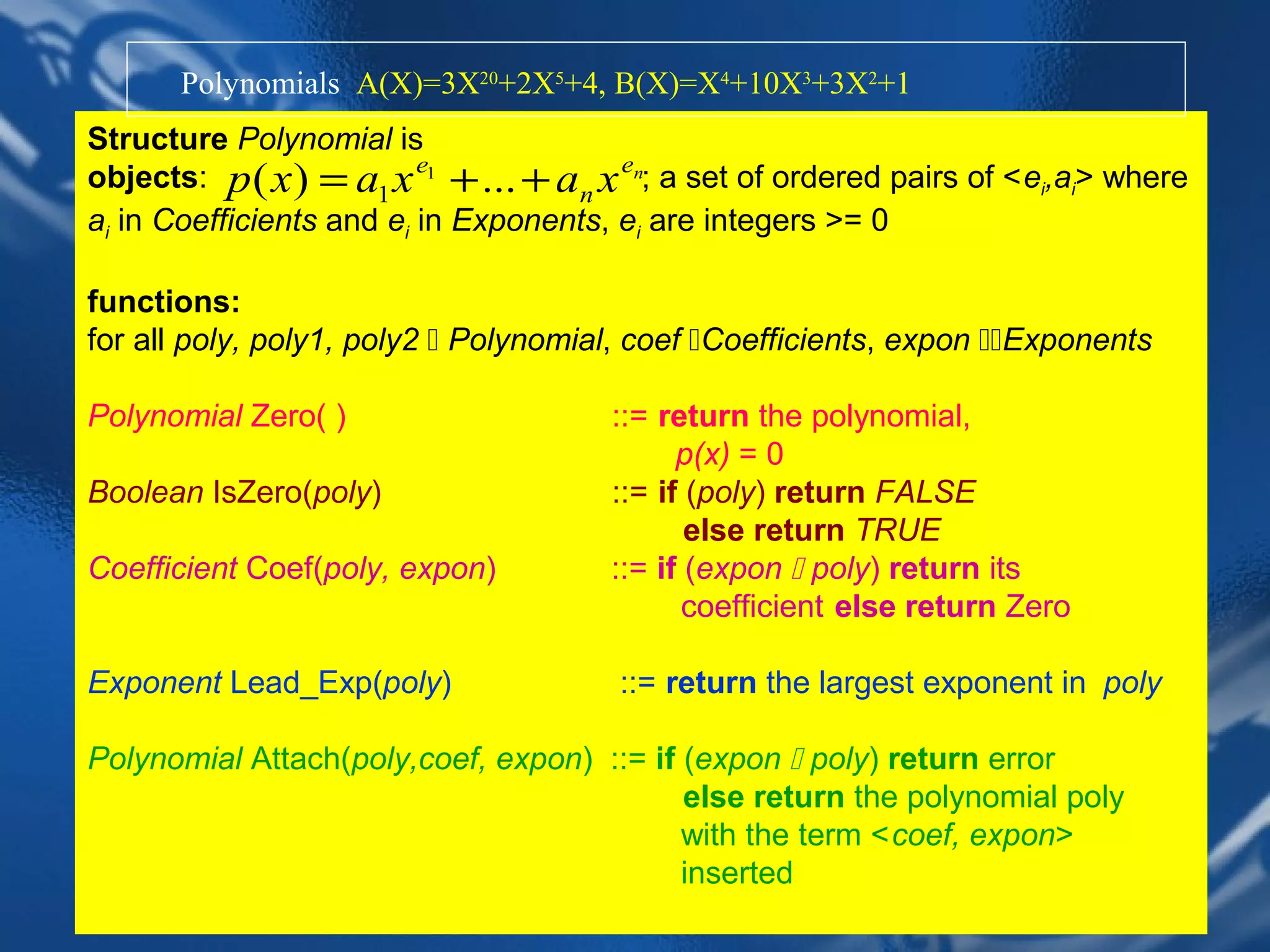

Polynomials A(X)=3X20+2X5+4, B(X)=X4+10X3+3X2+1
Structure Polynomial is
objects: p ( x ) = a1 x e1 + ... + an x en; a set of ordered pairs of <ei,ai> where
ai in Coefficients and ei in Exponents, ei are integers >= 0

functions:
for all poly, poly1, poly2  Polynomial, coef Coefficients, expon Exponents

Polynomial Zero( ) ::= return the polynomial,
p(x) = 0
Boolean IsZero(poly) ::= if (poly) return FALSE
else return TRUE
Coefficient Coef(poly, expon) ::= if (expon  poly) return its
coefficient else return Zero

Exponent Lead_Exp(poly) ::= return the largest exponent in poly

Polynomial Attach(poly,coef, expon) ::= if (expon  poly) return error
else return the polynomial poly
with the term <coef, expon>
inserted
CHAPTER 2 13

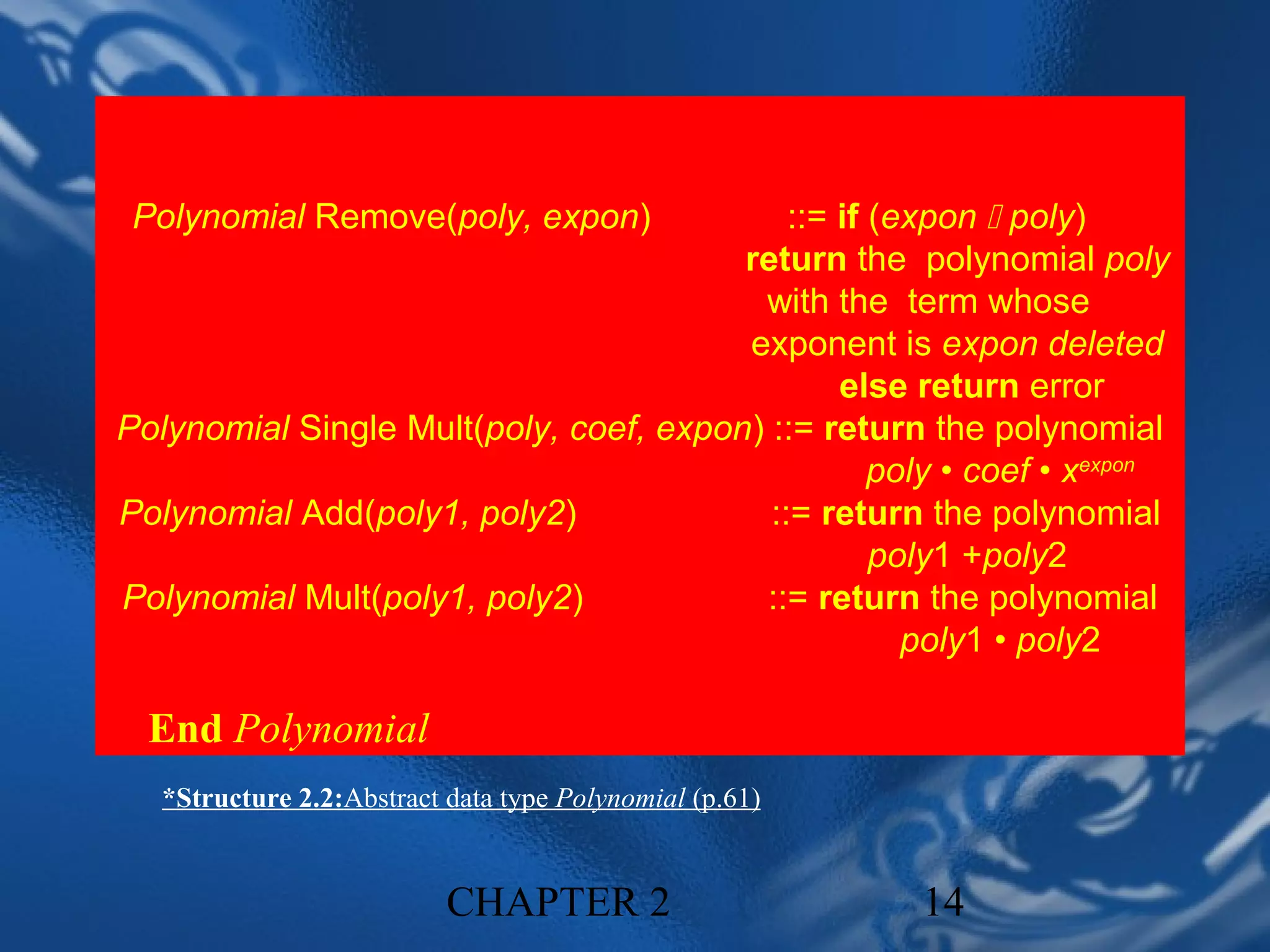

Polynomial Remove(poly, expon) ::= if (expon  poly)
return the polynomial poly
with the term whose
exponent is expon deleted
else return error
Polynomial Single Mult(poly, coef, expon) ::= return the polynomial
poly • coef • xexpon
Polynomial Add(poly1, poly2) ::= return the polynomial
poly1 +poly2
Polynomial Mult(poly1, poly2) ::= return the polynomial
poly1 • poly2

End Polynomial
*Structure 2.2:Abstract data type Polynomial (p.61)

CHAPTER 2 14

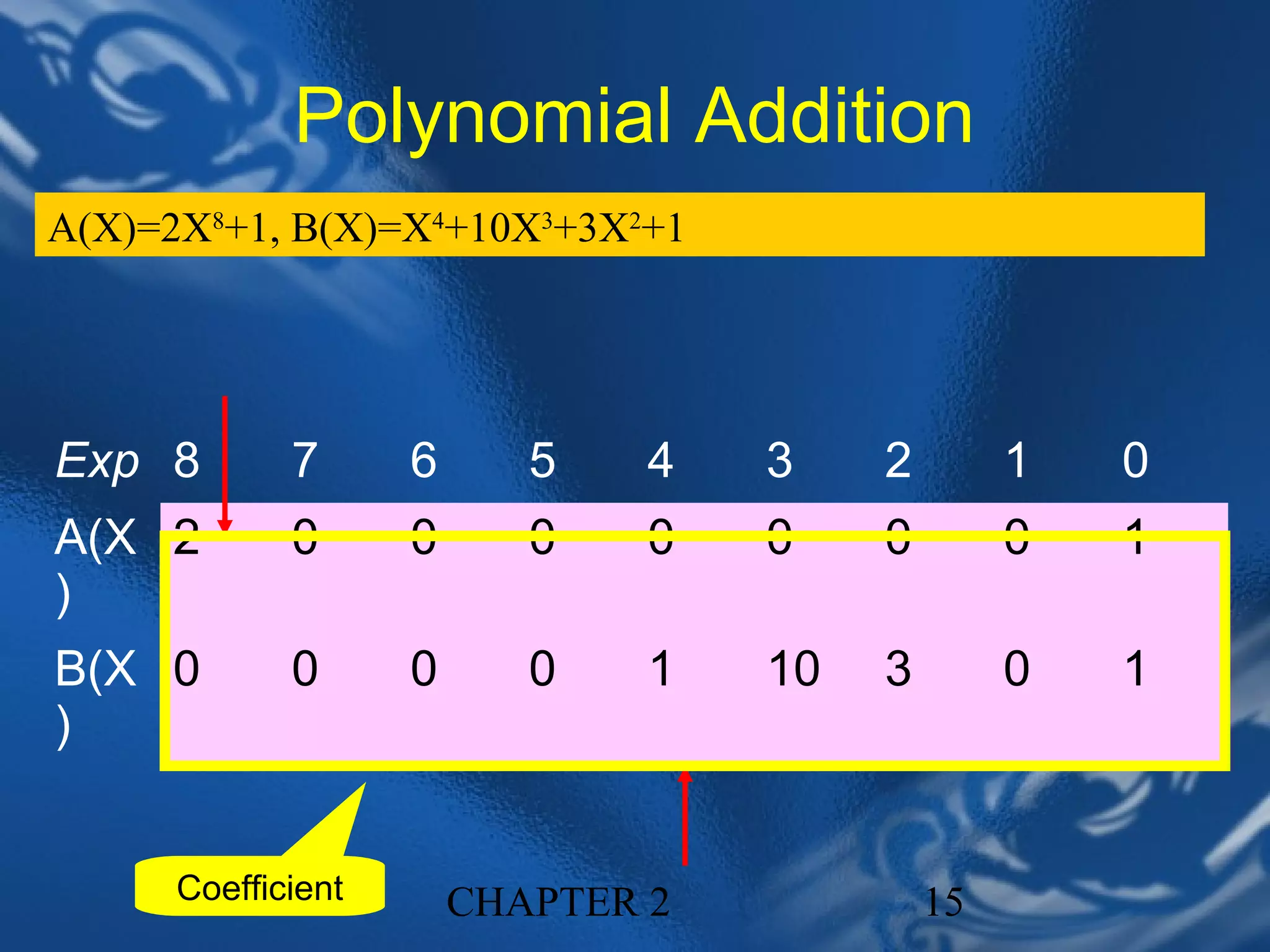

Polynomial Addition
A(X)=2X8+1, B(X)=X4+10X3+3X2+1

Exp 8 7 6 5 4 3 2 1 0
A(X 2 0 0 0 0 0 0 0 1
)
B(X 0 0 0 0 1 10 3 0 1
)

Coefficient CHAPTER 2 15

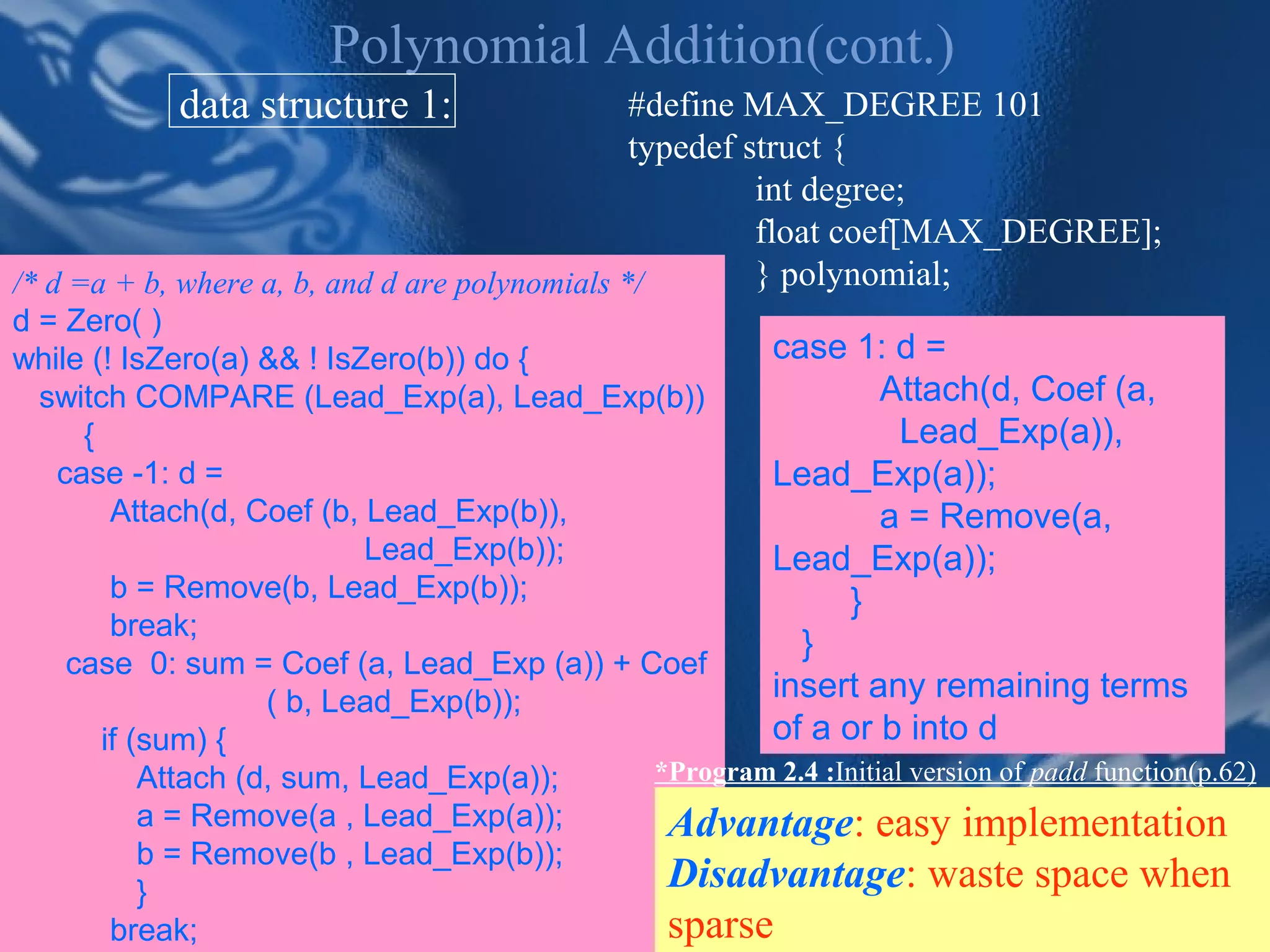

Polynomial Addition(cont.)
data structure 1: #define MAX_DEGREE 101
typedef struct {
int degree;
float coef[MAX_DEGREE];
/* d =a + b, where a, b, and d are polynomials */ } polynomial;
d = Zero( )
while (! IsZero(a) && ! IsZero(b)) do { case 1: d =
switch COMPARE (Lead_Exp(a), Lead_Exp(b)) Attach(d, Coef (a,
{ Lead_Exp(a)),
case -1: d = Lead_Exp(a));
Attach(d, Coef (b, Lead_Exp(b)), a = Remove(a,
Lead_Exp(b)); Lead_Exp(a));
b = Remove(b, Lead_Exp(b)); }
break;
}
case 0: sum = Coef (a, Lead_Exp (a)) + Coef
( b, Lead_Exp(b)); insert any remaining terms
if (sum) { of a or b into d
Attach (d, sum, Lead_Exp(a)); *Program 2.4 :Initial version of padd function(p.62)
a = Remove(a , Lead_Exp(a)); Advantage: easy implementation
b = Remove(b , Lead_Exp(b));
} Disadvantage: waste space when
CHAPTER 2 16
break; sparse

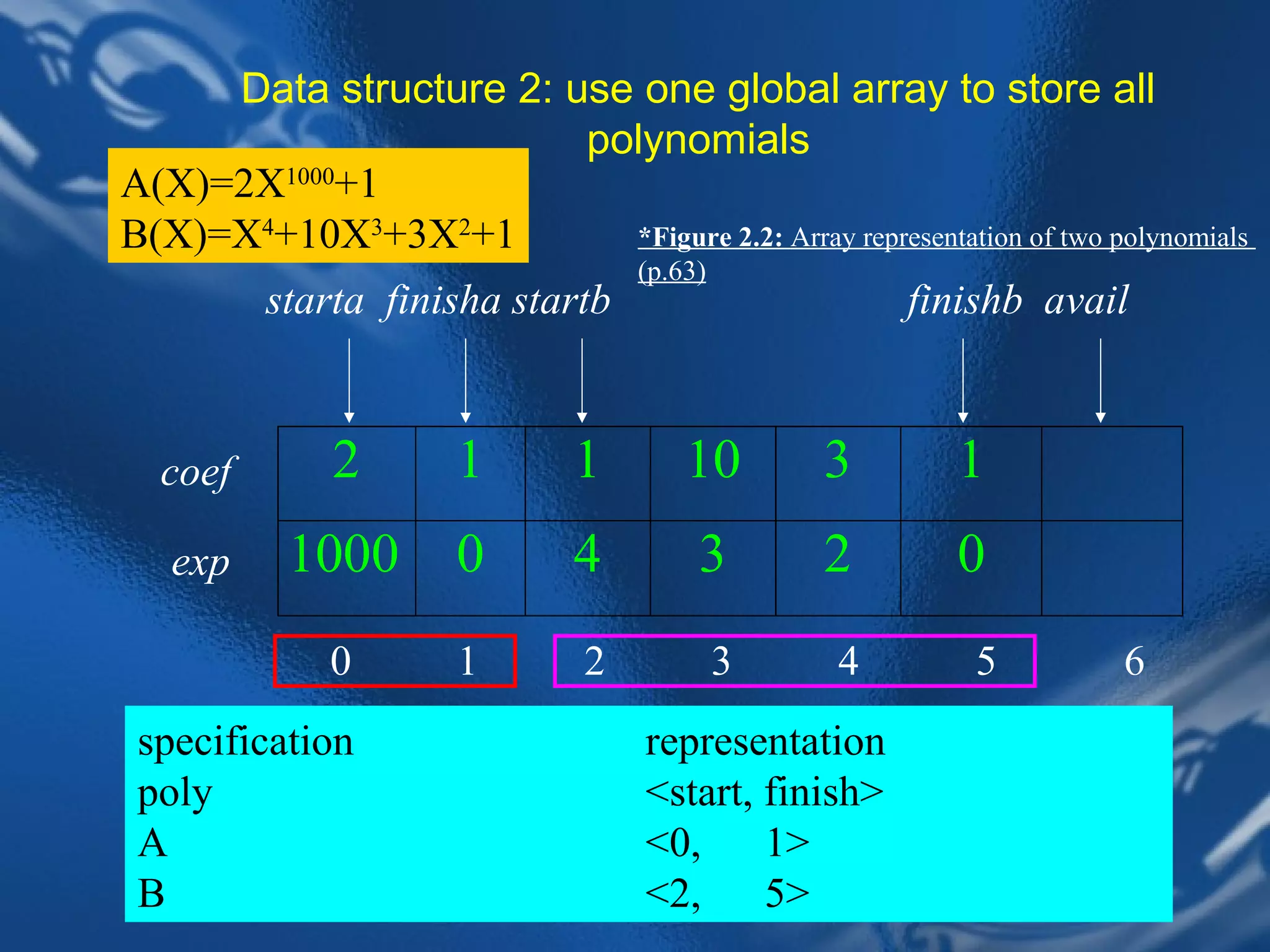

Data structure 2: use one global array to store all
polynomials
A(X)=2X1000+1
B(X)=X4+10X3+3X2+1 *Figure 2.2: Array representation of two polynomials
(p.63)
starta finisha startb finishb avail

coef 2 1 1 10 3 1
exp 1000 0 4 3 2 0
0 1 2 3 4 5 6
specification representation
poly <start, finish>
A <0, 1>
B CHAPTER <2,
2 5> 17

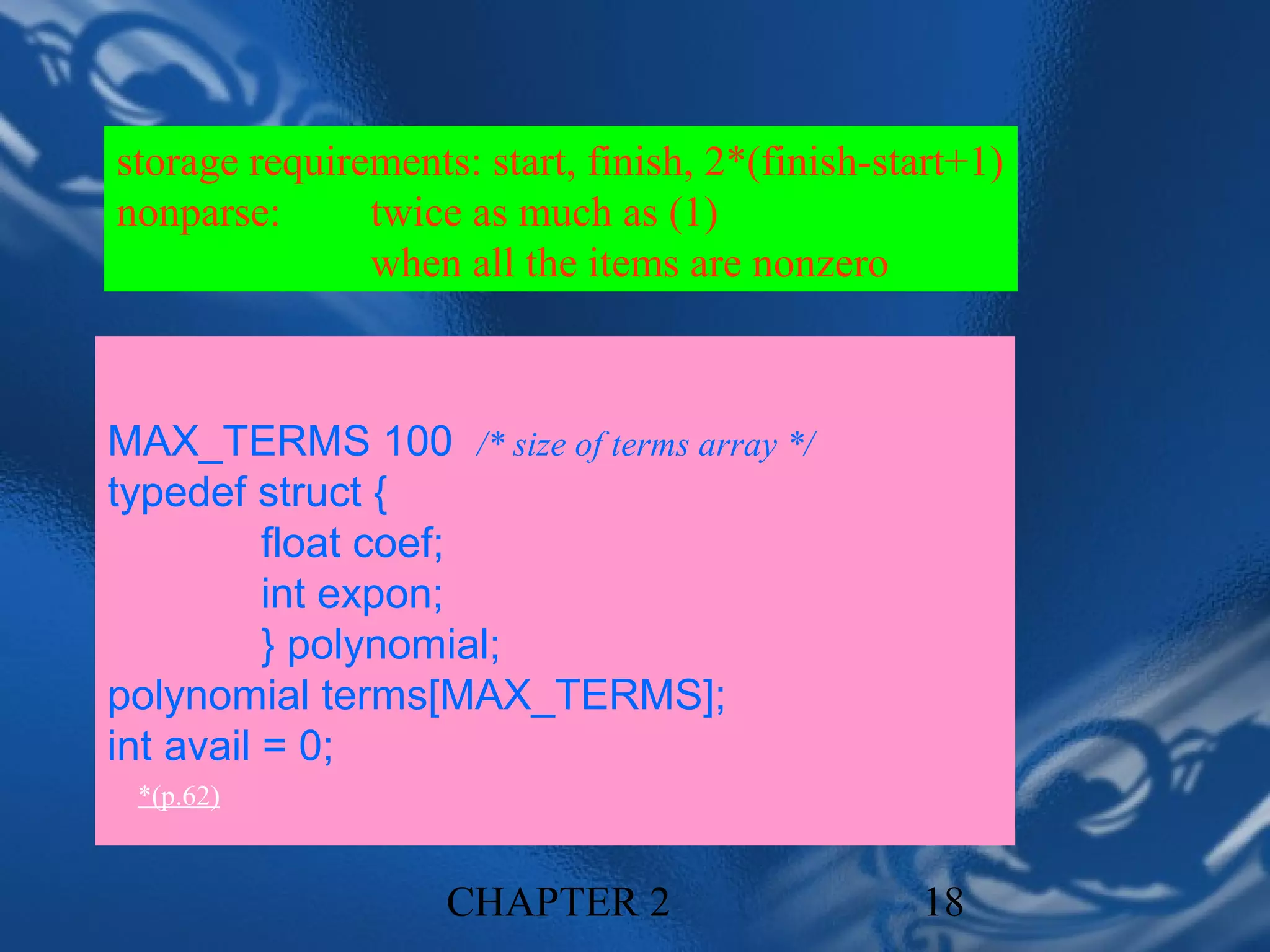

storage requirements: start, finish, 2*(finish-start+1)
nonparse: twice as much as (1)
when all the items are nonzero

MAX_TERMS 100 /* size of terms array */
typedef struct {
float coef;
int expon;
} polynomial;
polynomial terms[MAX_TERMS];
int avail = 0;
*(p.62)

CHAPTER 2 18

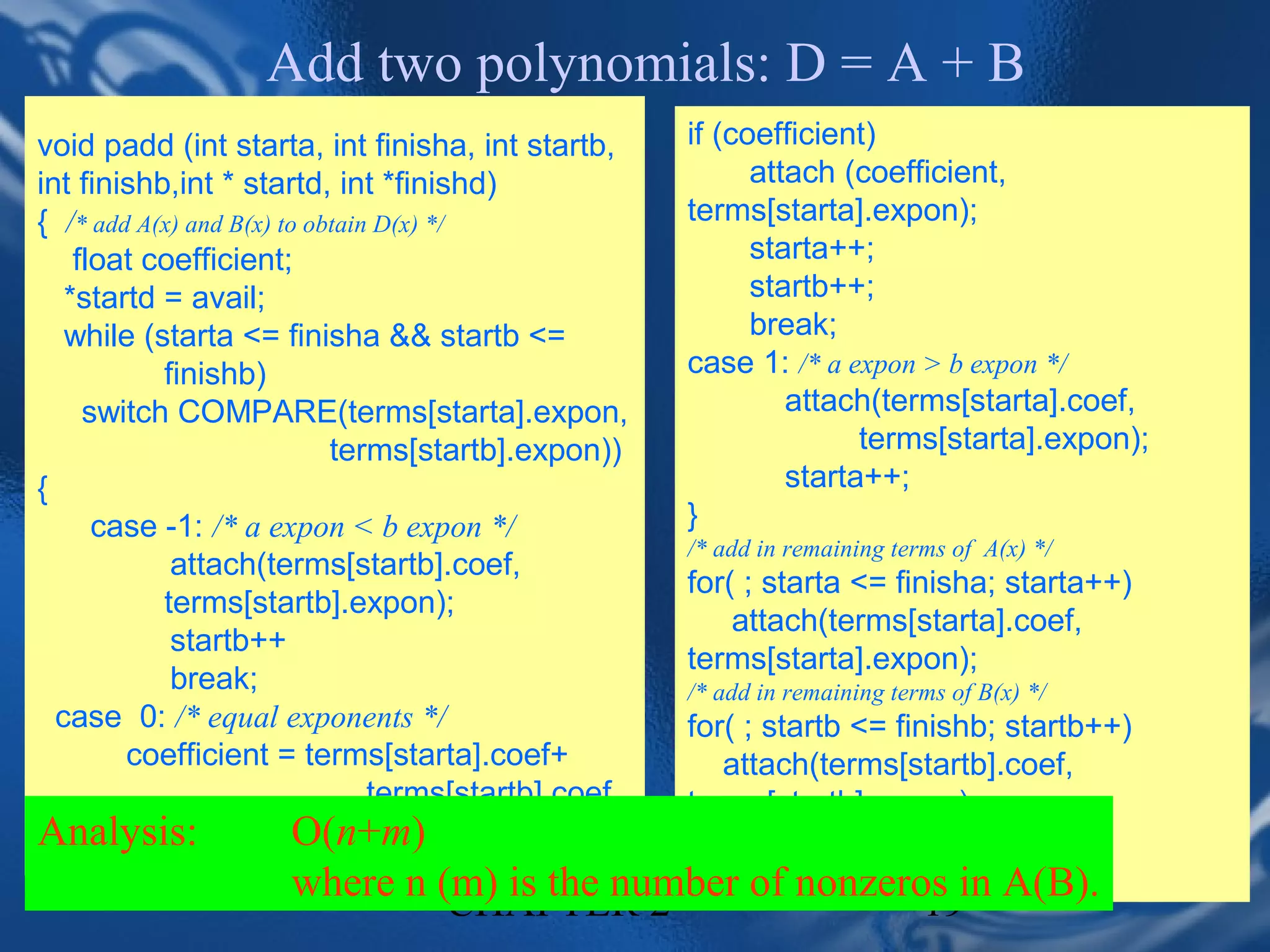

Add two polynomials: D = A + B
void padd (int starta, int finisha, int startb, if (coefficient)
int finishb,int * startd, int *finishd) attach (coefficient,
{ /* add A(x) and B(x) to obtain D(x) */ terms[starta].expon);
float coefficient; starta++;
*startd = avail; startb++;
while (starta <= finisha && startb <= break;
finishb) case 1: /* a expon > b expon */
switch COMPARE(terms[starta].expon, attach(terms[starta].coef,
terms[startb].expon)) terms[starta].expon);
{ starta++;
case -1: /* a expon < b expon */ }
/* add in remaining terms of A(x) */
attach(terms[startb].coef,
for( ; starta <= finisha; starta++)
terms[startb].expon);
attach(terms[starta].coef,
startb++
terms[starta].expon);
break; /* add in remaining terms of B(x) */
case 0: /* equal exponents */ for( ; startb <= finishb; startb++)
coefficient = terms[starta].coef+ attach(terms[startb].coef,
terms[startb].coef terms[startb].expon);
Analysis: O(n+m) *finishd =avail -1;
where n (m) is the 2
CHAPTER number of nonzeros in A(B).
}
19

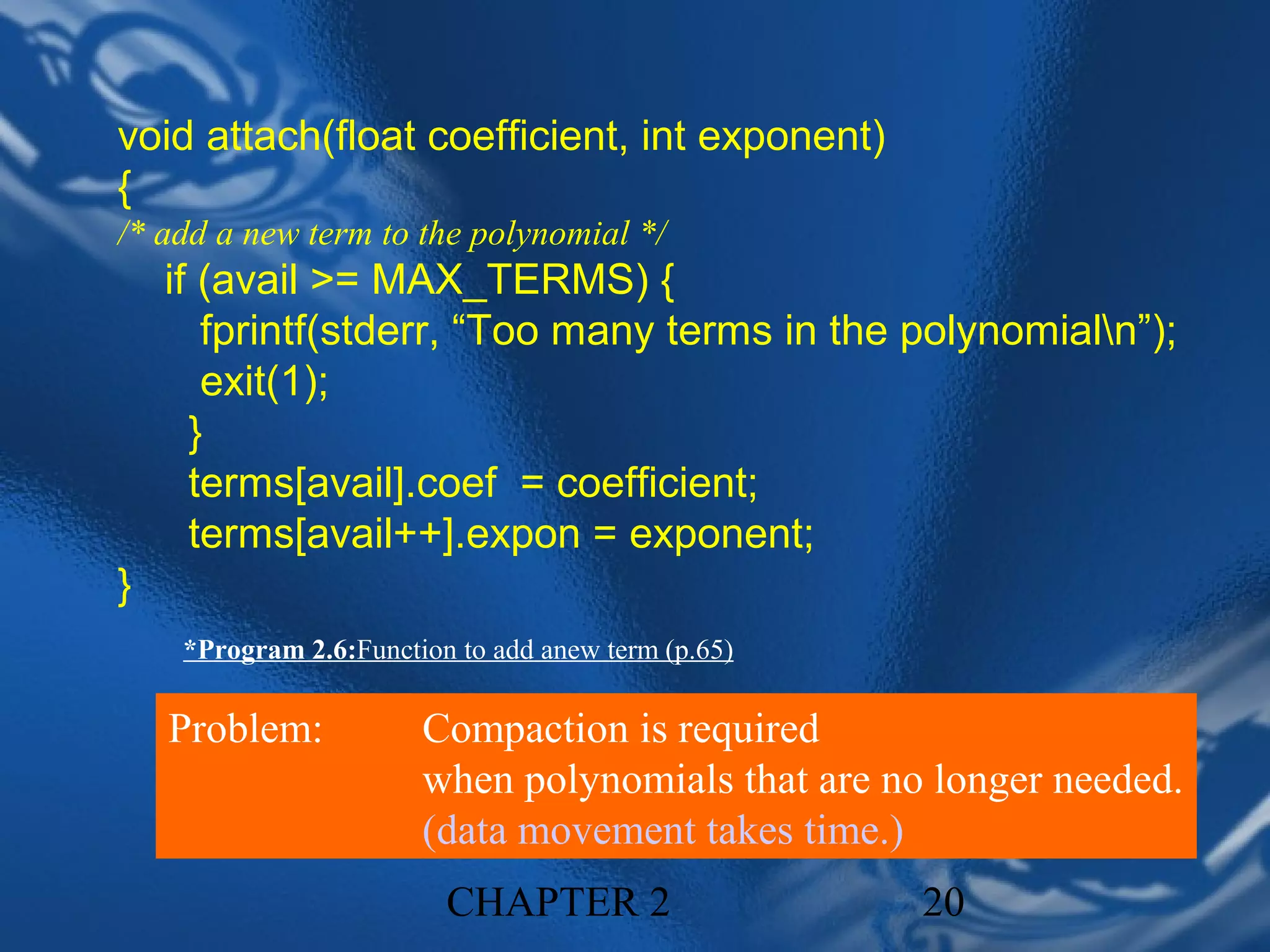

void attach(float coefficient, int exponent)
{
/* add a new term to the polynomial */
if (avail >= MAX_TERMS) {
fprintf(stderr, “Too many terms in the polynomialn”);
exit(1);
}
terms[avail].coef = coefficient;
terms[avail++].expon = exponent;
}
*Program 2.6:Function to add anew term (p.65)

Problem: Compaction is required
when polynomials that are no longer needed.
(data movement takes time.)
CHAPTER 2 20

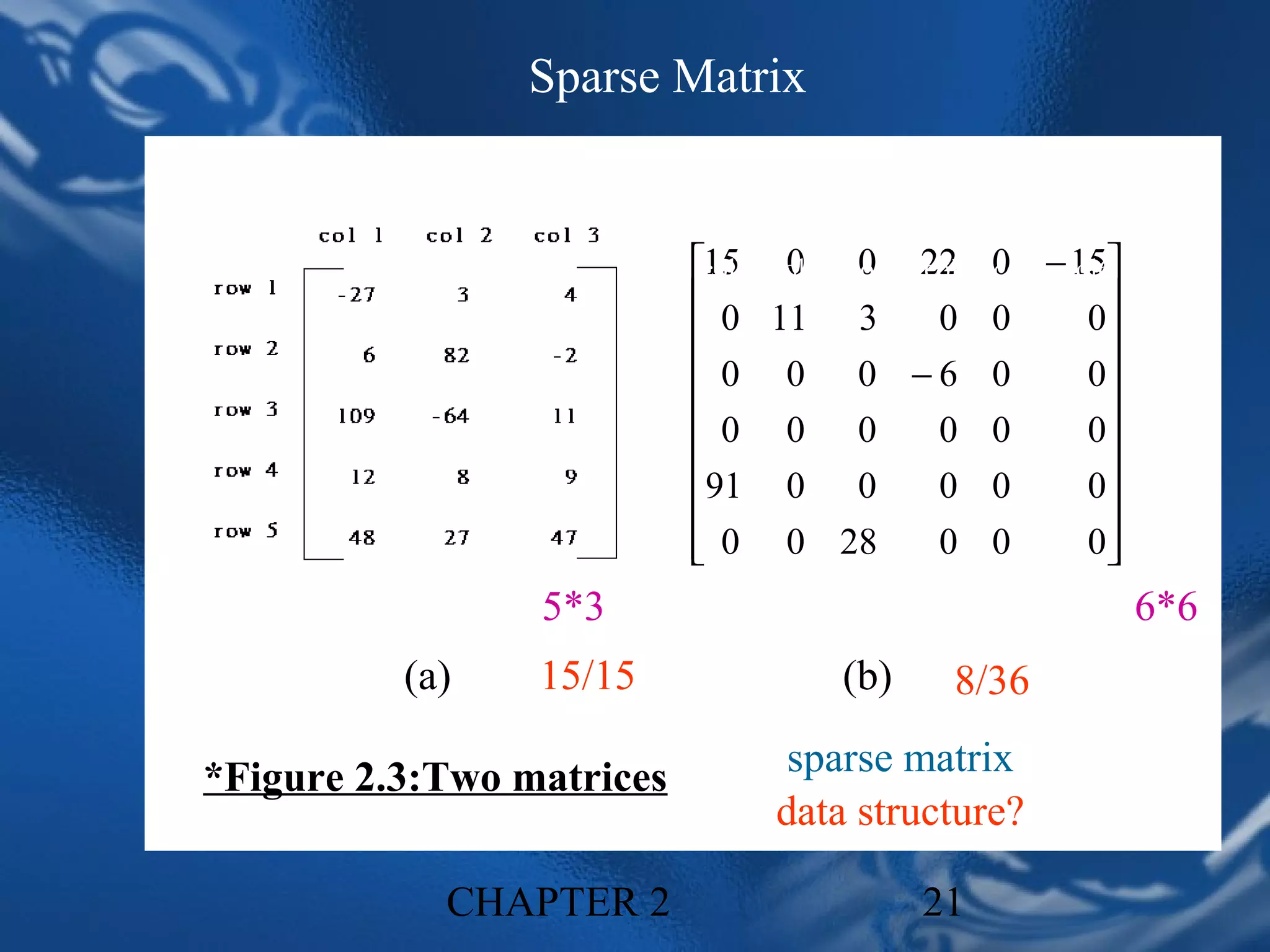

Sparse Matrix

col1
15 col2 col3 22 0 −col6
0 0 col4 col5 15
row0  0 11 3 0 0 0
row1
 
 0 0 0 −6 0 0
row2  
 0 0 0 0 0 0
row3 91 0 0 0 0 0
 
row4
 0
 0 28 0 0 0

row5
5*3 6*6
(a) 15/15 (b) 8/36

*Figure 2.3:Two matrices sparse matrix
data structure?

CHAPTER 2 21

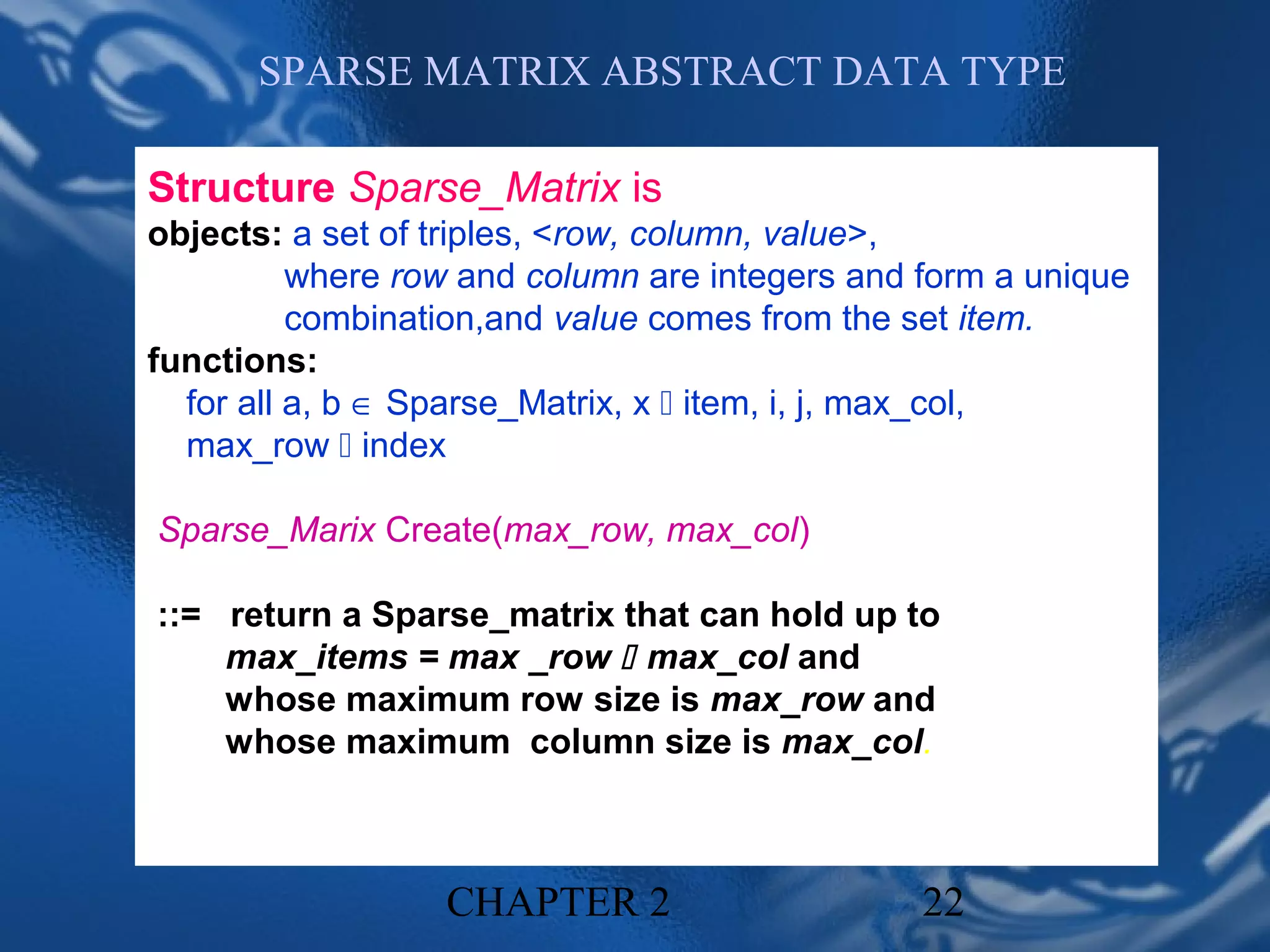

SPARSE MATRIX ABSTRACT DATA TYPE

Structure Sparse_Matrix is
objects: a set of triples, <row, column, value>,
where row and column are integers and form a unique
combination,and value comes from the set item.
functions:
for all a, b ∈ Sparse_Matrix, x  item, i, j, max_col,
max_row  index

Sparse_Marix Create(max_row, max_col)

::= return a Sparse_matrix that can hold up to
max_items = max _row  max_col and
whose maximum row size is max_row and
whose maximum column size is max_col.

CHAPTER 2 22

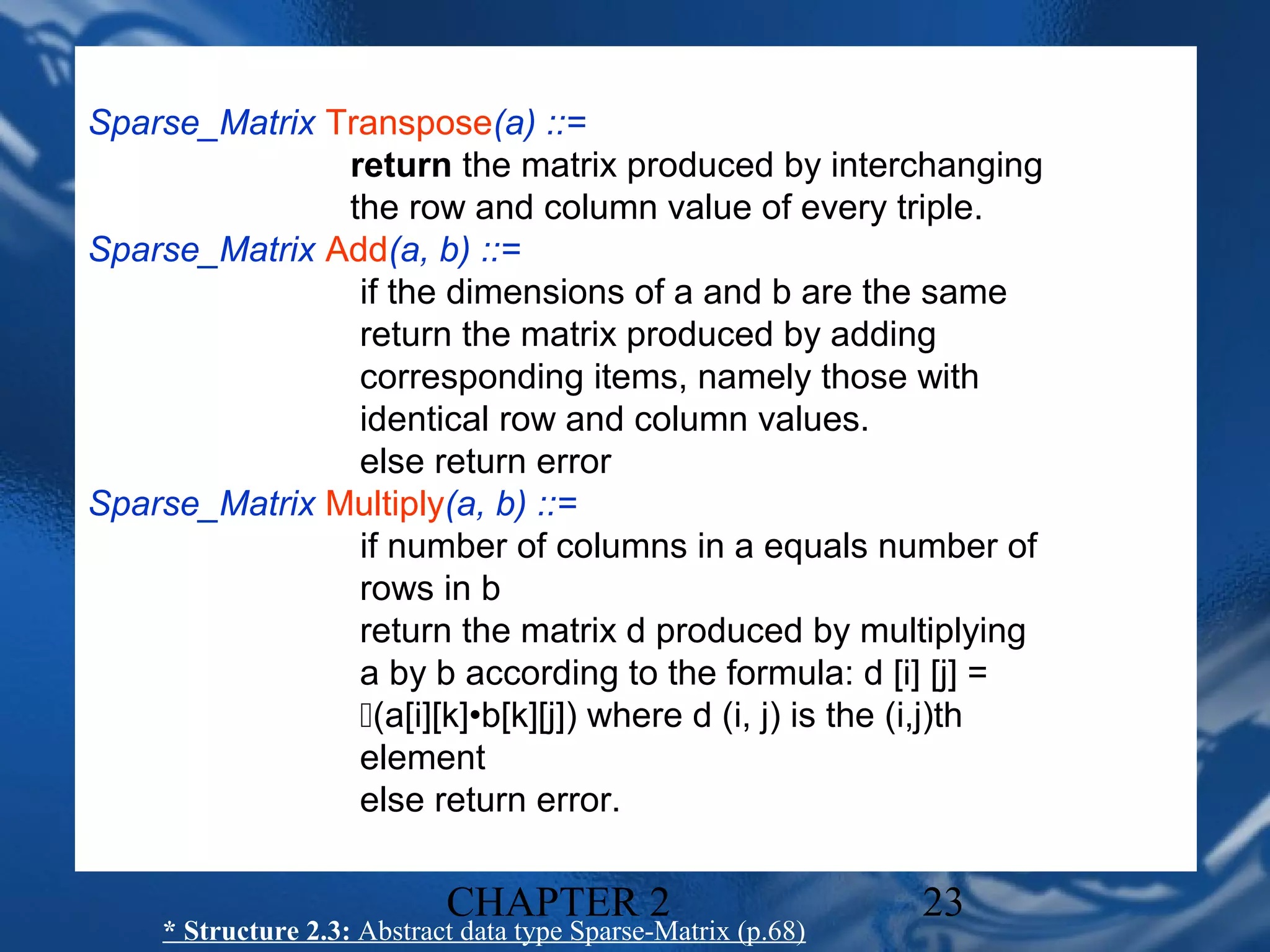

Sparse_Matrix Transpose(a) ::=
return the matrix produced by interchanging
the row and column value of every triple.
Sparse_Matrix Add(a, b) ::=
if the dimensions of a and b are the same
return the matrix produced by adding
corresponding items, namely those with
identical row and column values.
else return error
Sparse_Matrix Multiply(a, b) ::=
if number of columns in a equals number of
rows in b
return the matrix d produced by multiplying
a by b according to the formula: d [i] [j] =
(a[i][k]•b[k][j]) where d (i, j) is the (i,j)th
element
else return error.

CHAPTER 2 23
* Structure 2.3: Abstract data type Sparse-Matrix (p.68)

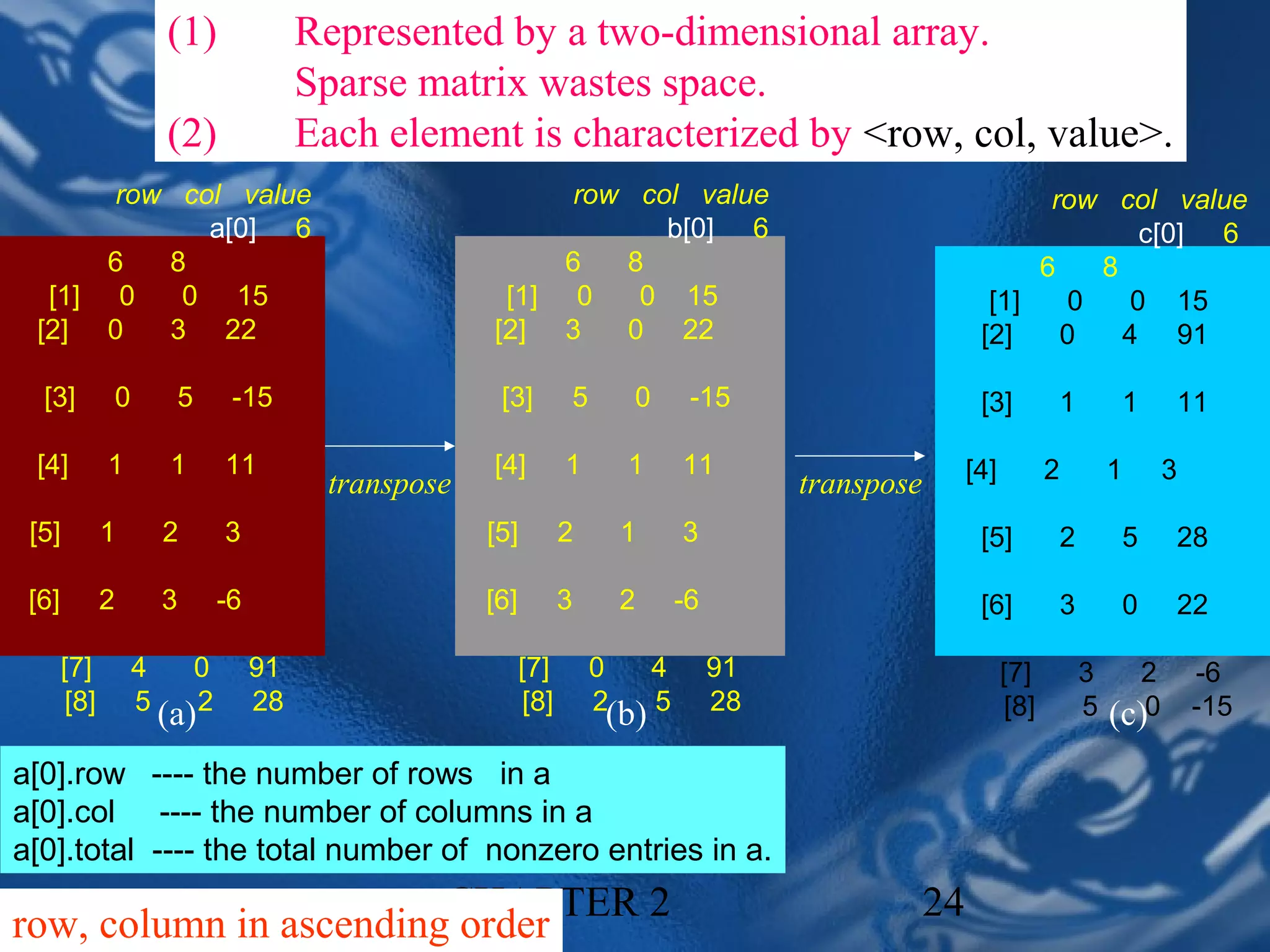

(1) Represented by a two-dimensional array.
Sparse matrix wastes space.
(2) Each element is characterized by <row, col, value>.
row col value row col value row col value
a[0] 6 b[0] 6 c[0] 6
6 8 6 8 6 8
[1] 0 0 15 [1] 0 0 15 [1] 0 0 15
[2] 0 3 22 [2] 3 0 22 [2] 0 4 91

[3] 0 5 -15 [3] 5 0 -15 [3] 1 1 11

[4] 1 1 11 [4] 1 1 11 [4] 2 1 3
transpose transpose
[5] 1 2 3 [5] 2 1 3 [5] 2 5 28

[6] 2 3 -6 [6] 3 2 -6 [6] 3 0 22

[7] 4 0 91 [7] 0 4 91 [7] 3 2 -6
[8] 5 (a) 2 28 [8] 2(b) 5 28 [8] 5 (c)0 -15

a[0].row ---- the number of rows in a
a[0].col ---- the number of columns in a
a[0].total ---- the total number of nonzero entries in a.
CHAPTER 2 24
row, column in ascending order

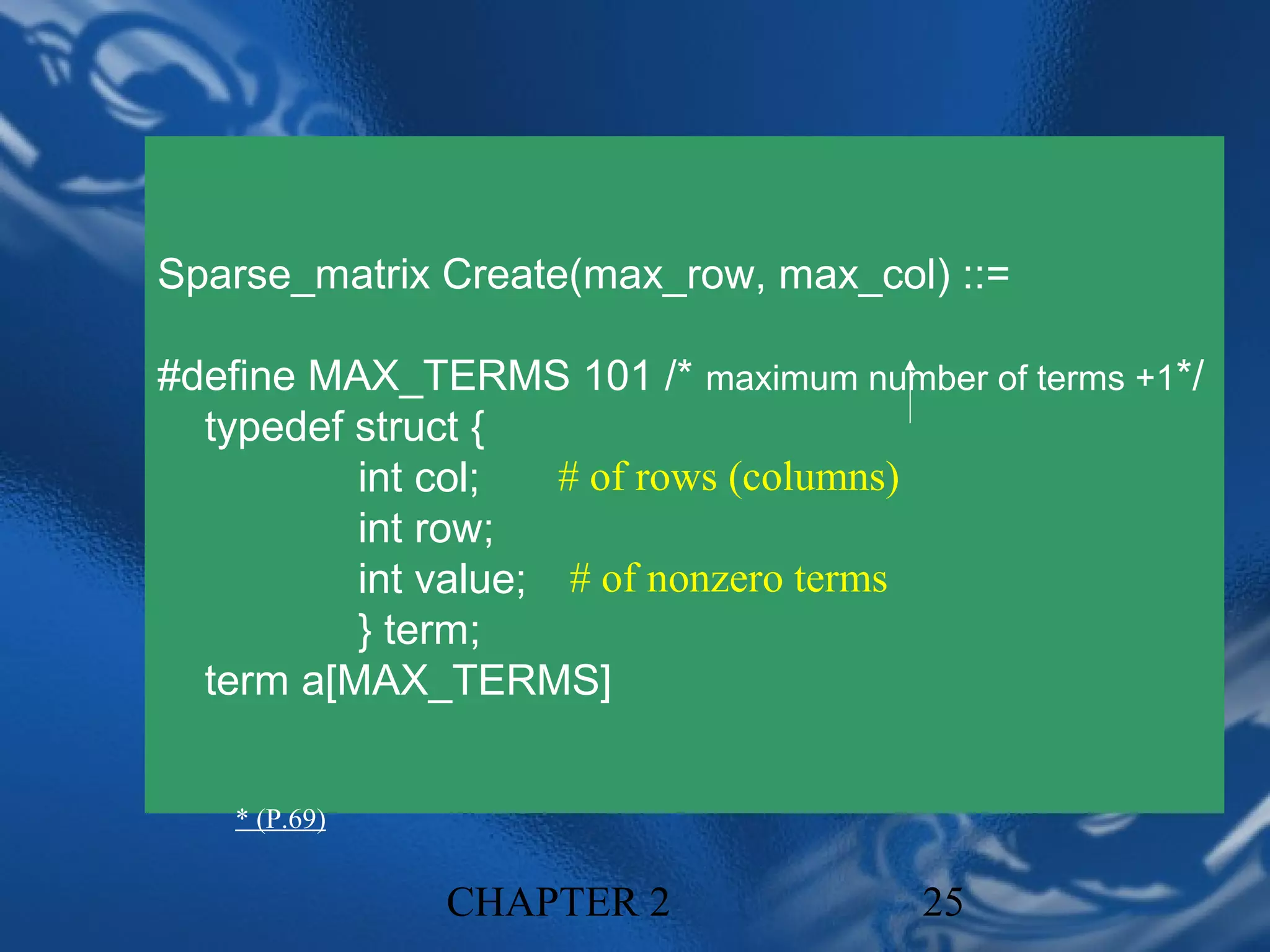

Sparse_matrix Create(max_row, max_col) ::=

#define MAX_TERMS 101 /* maximum number of terms +1*/
typedef struct {
int col; # of rows (columns)
int row;
int value; # of nonzero terms
} term;
term a[MAX_TERMS]

* (P.69)

CHAPTER 2 25

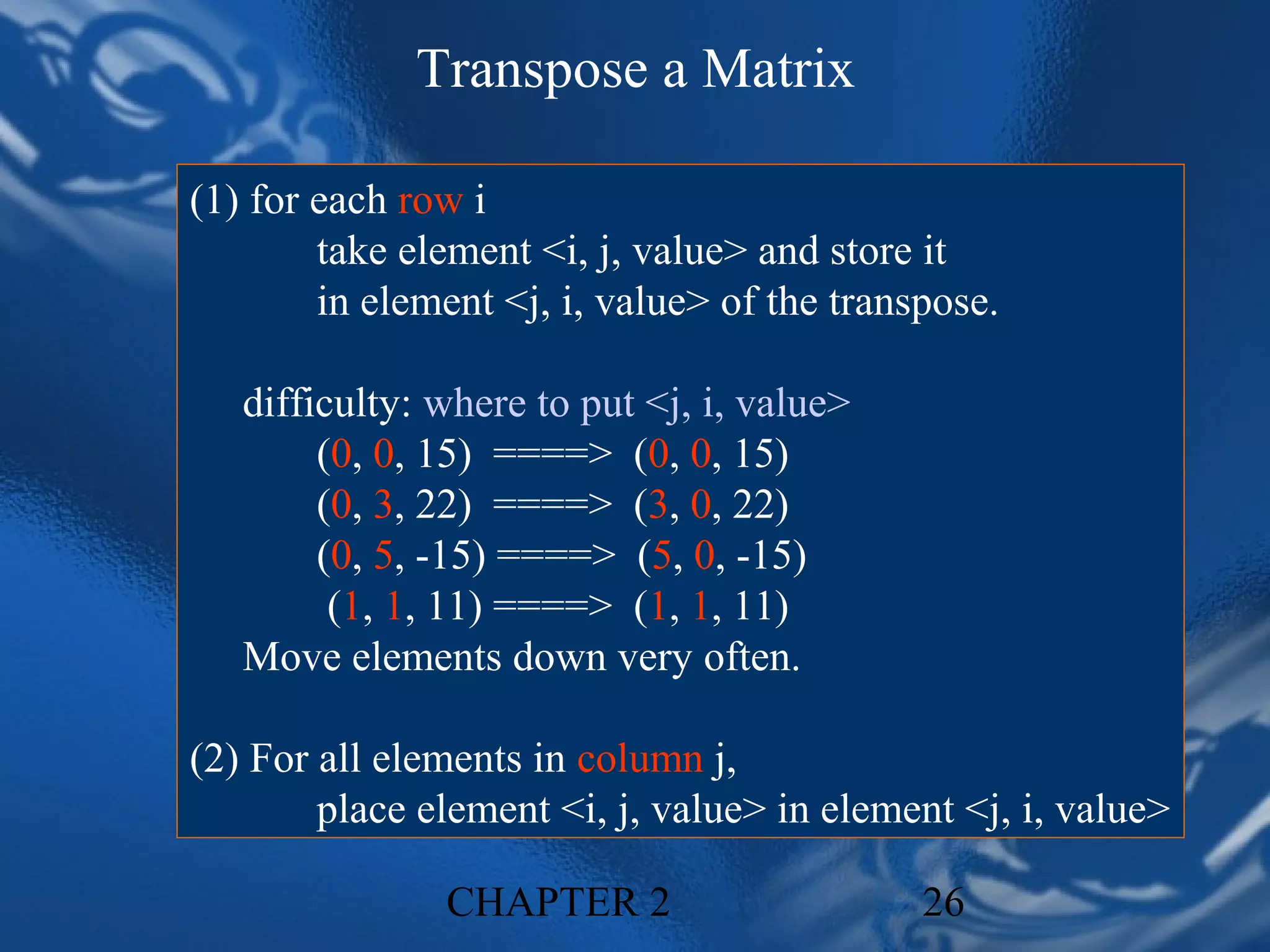

Transpose a Matrix

(1) for each row i
take element <i, j, value> and store it
in element <j, i, value> of the transpose.

difficulty: where to put <j, i, value>
(0, 0, 15) ====> (0, 0, 15)
(0, 3, 22) ====> (3, 0, 22)
(0, 5, -15) ====> (5, 0, -15)
(1, 1, 11) ====> (1, 1, 11)
Move elements down very often.

(2) For all elements in column j,
place element <i, j, value> in element <j, i, value>

CHAPTER 2 26

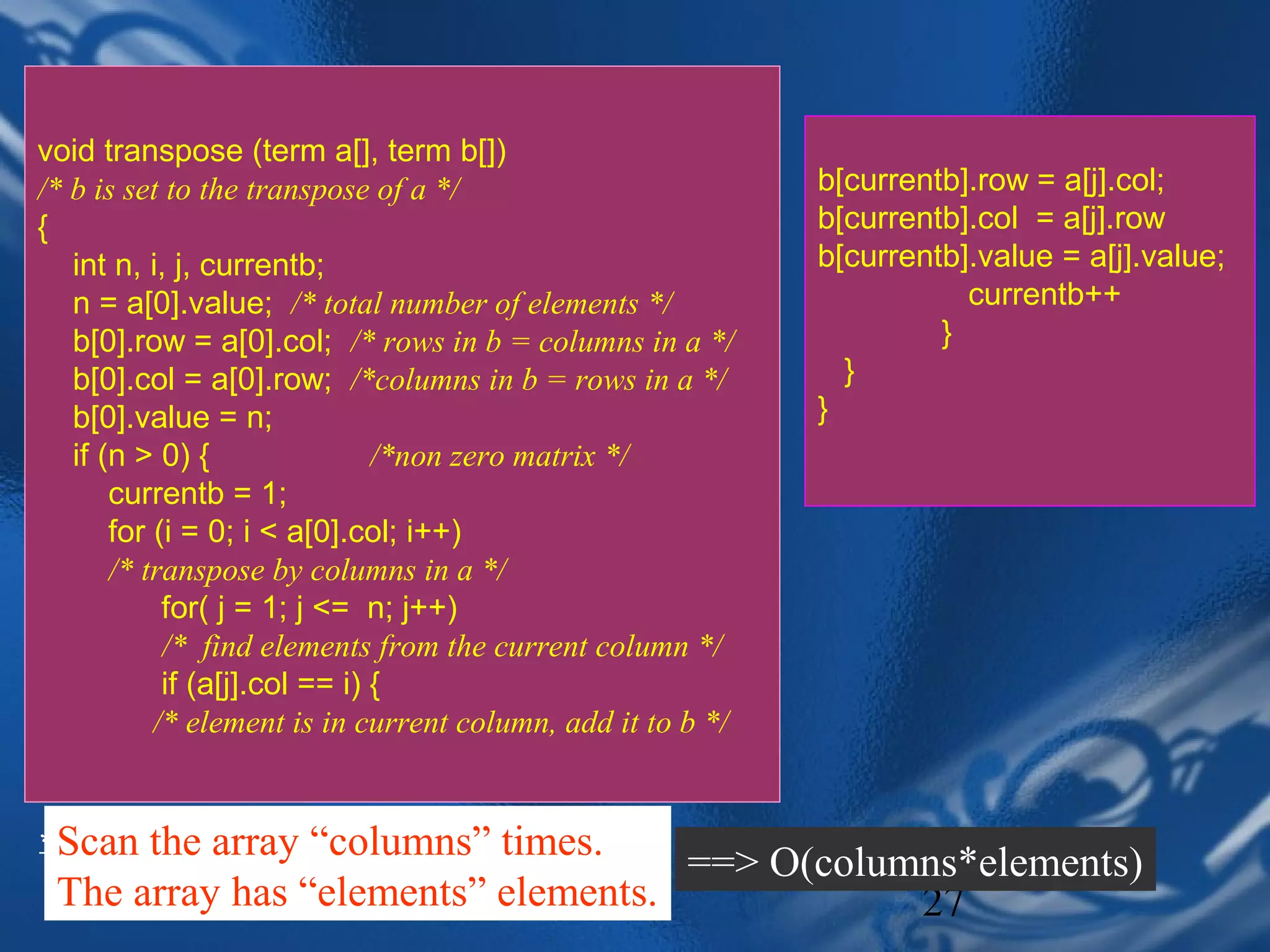

void transpose (term a[], term b[])
/* b is set to the transpose of a */ b[currentb].row = a[j].col;
{ b[currentb].col = a[j].row
int n, i, j, currentb; b[currentb].value = a[j].value;
n = a[0].value; /* total number of elements */ currentb++
b[0].row = a[0].col; /* rows in b = columns in a */ }
b[0].col = a[0].row; /*columns in b = rows in a */ }
b[0].value = n; }
if (n > 0) { /*non zero matrix */
currentb = 1;
for (i = 0; i < a[0].col; i++)
/* transpose by columns in a */
for( j = 1; j <= n; j++)
/* find elements from the current column */
if (a[j].col == i) {
/* element is in current column, add it to b */

* Scan the array “columns” times.
Program 2.7: Transpose of a sparse matrix (p.71)
==> O(columns*elements)
The array has “elements” elements.2
CHAPTER 27

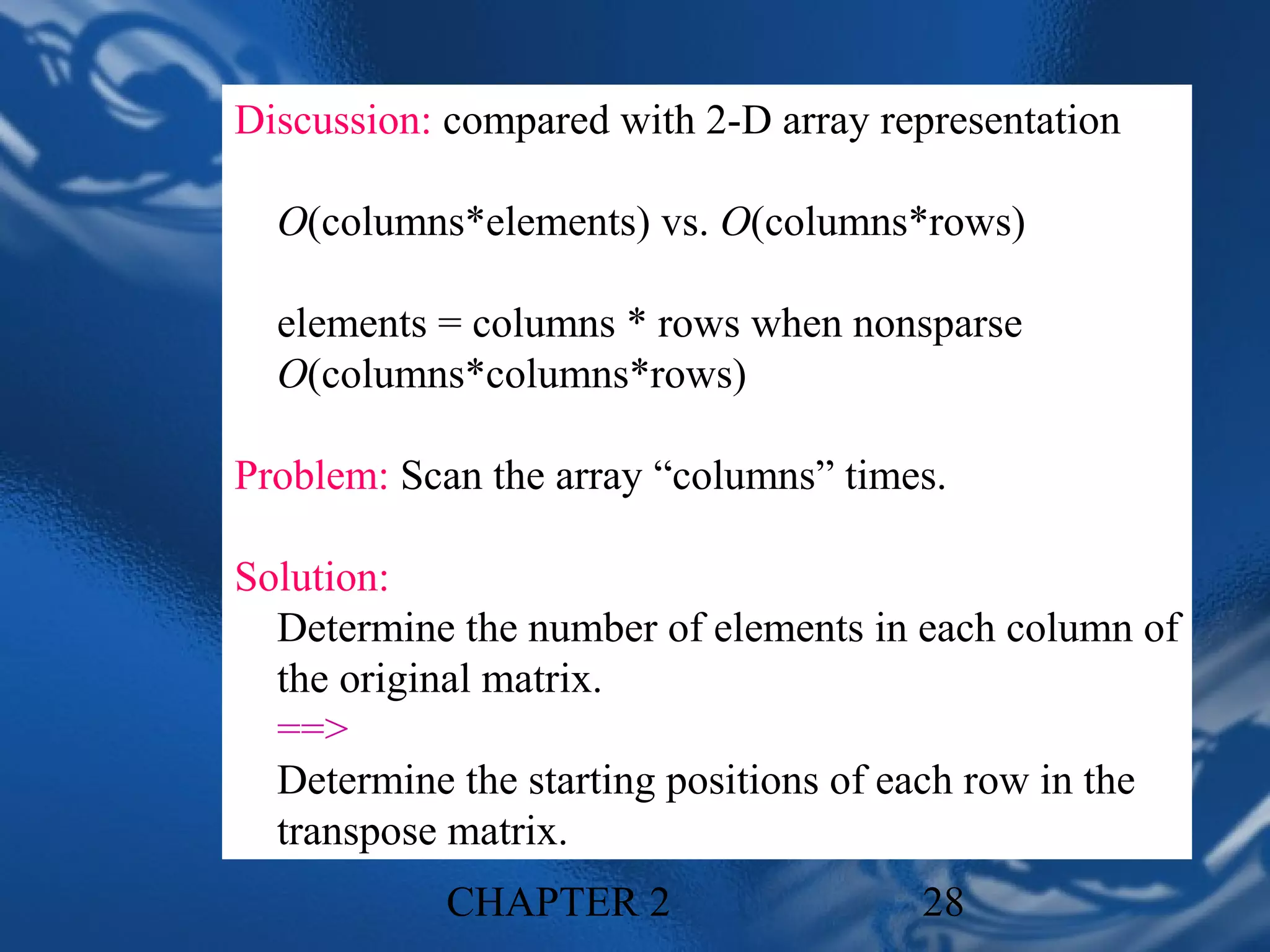

Discussion: compared with 2-D array representation

O(columns*elements) vs. O(columns*rows)

elements = columns * rows when nonsparse
O(columns*columns*rows)

Problem: Scan the array “columns” times.

Solution:
Determine the number of elements in each column of
the original matrix.
==>
Determine the starting positions of each row in the
transpose matrix.
CHAPTER 2 28

Row Col Value Row Col Value

a[0] 6 6 8 b[0] 6 6 8
a[1] 0 0 15 b[1] 0 0 15
a[2] 0 3 22 b[2] 0 4 91
a[3] 0 5 -15 b[3] 1 1 11
a[4] 1 1 11 b[4] 2 1 3
a[5] 1 2 3 b[5] 2 5 28
a[6] 2 3 -6 b[6] 3 0 22
a[7] 4 0 91 b[7] 3 2 -6
a[8] 5 2 28 b[8] 5 0 -15
Matrix Transposed matrix

[0] [1] [2] [3] [4] [5]
row_terms = 2 1 2 2 0 1
starting_pos = 1 3 4 6 8 8
CHAPTER 2 29

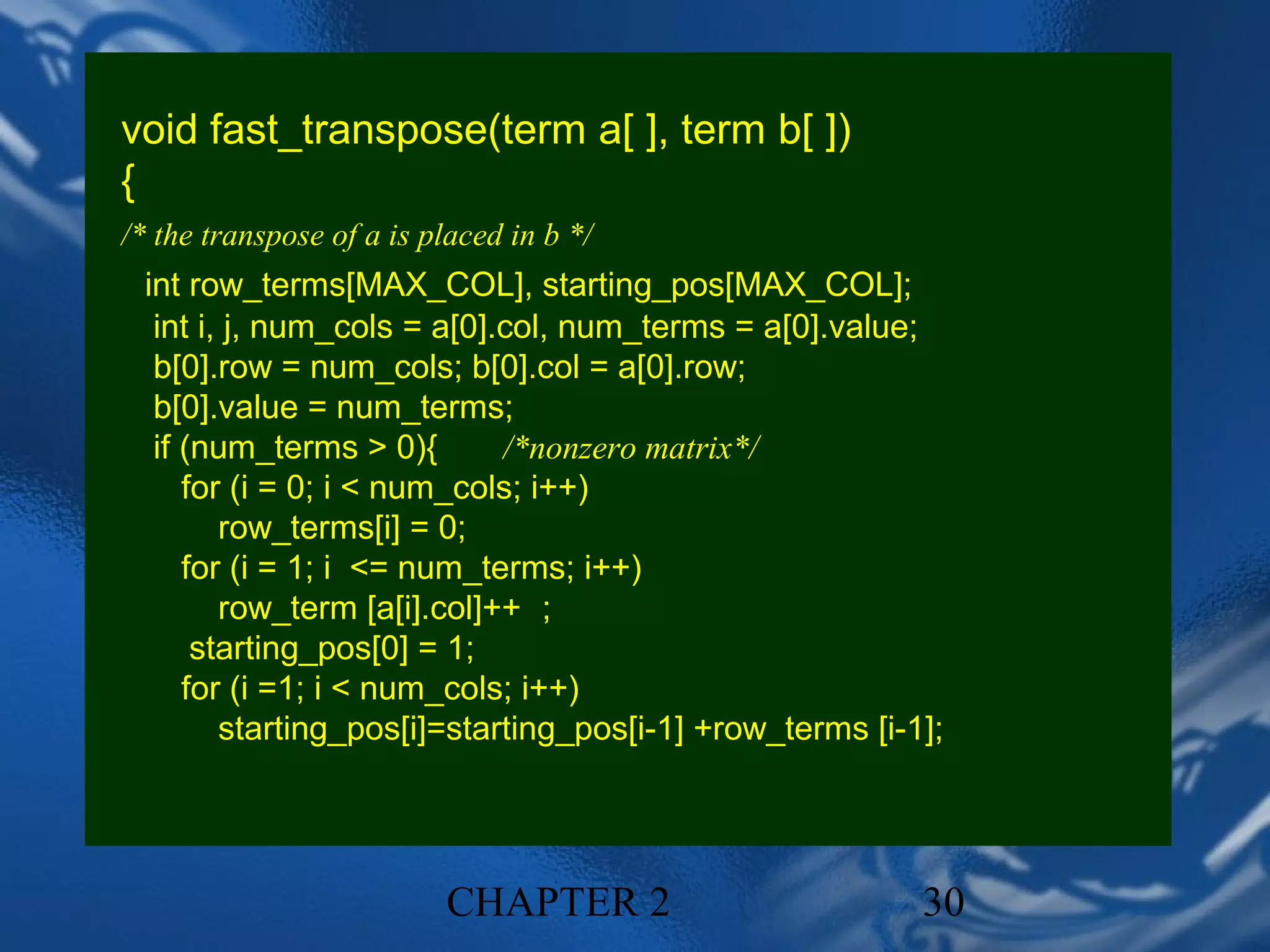

void fast_transpose(term a[ ], term b[ ])
{
/* the transpose of a is placed in b */
int row_terms[MAX_COL], starting_pos[MAX_COL];
int i, j, num_cols = a[0].col, num_terms = a[0].value;
b[0].row = num_cols; b[0].col = a[0].row;
b[0].value = num_terms;
if (num_terms > 0){ /*nonzero matrix*/
for (i = 0; i < num_cols; i++)
row_terms[i] = 0;
for (i = 1; i <= num_terms; i++)
row_term [a[i].col]++ ；
starting_pos[0] = 1;
for (i =1; i < num_cols; i++)
starting_pos[i]=starting_pos[i-1] +row_terms [i-1];

CHAPTER 2 30

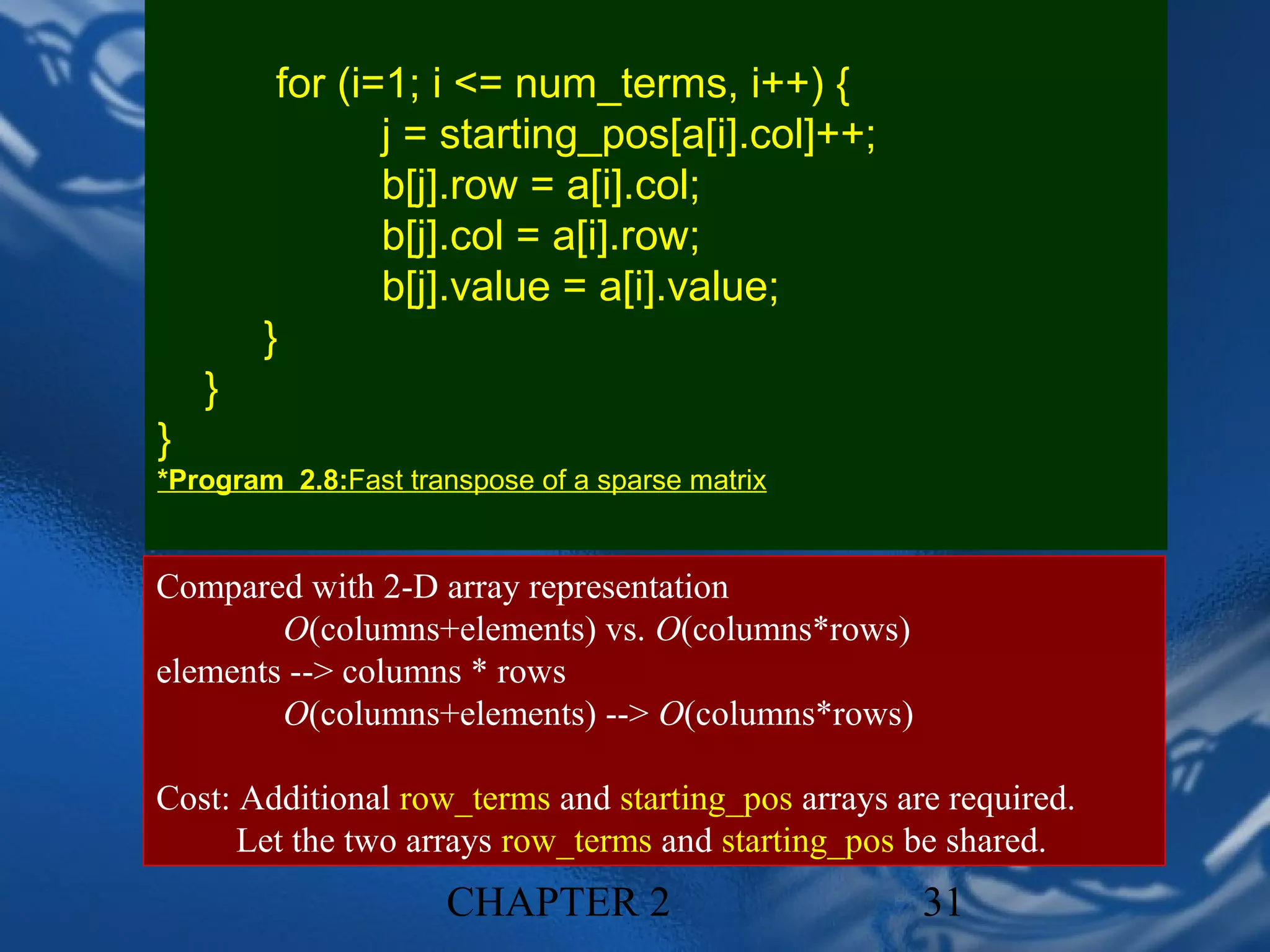

for (i=1; i <= num_terms, i++) {
j = starting_pos[a[i].col]++;
b[j].row = a[i].col;
b[j].col = a[i].row;
b[j].value = a[i].value;
}
}
}
*Program 2.8:Fast transpose of a sparse matrix

Compared with 2-D array representation
O(columns+elements) vs. O(columns*rows)
elements --> columns * rows
O(columns+elements) --> O(columns*rows)

Cost: Additional row_terms and starting_pos arrays are required.
Let the two arrays row_terms and starting_pos be shared.
CHAPTER 2 31

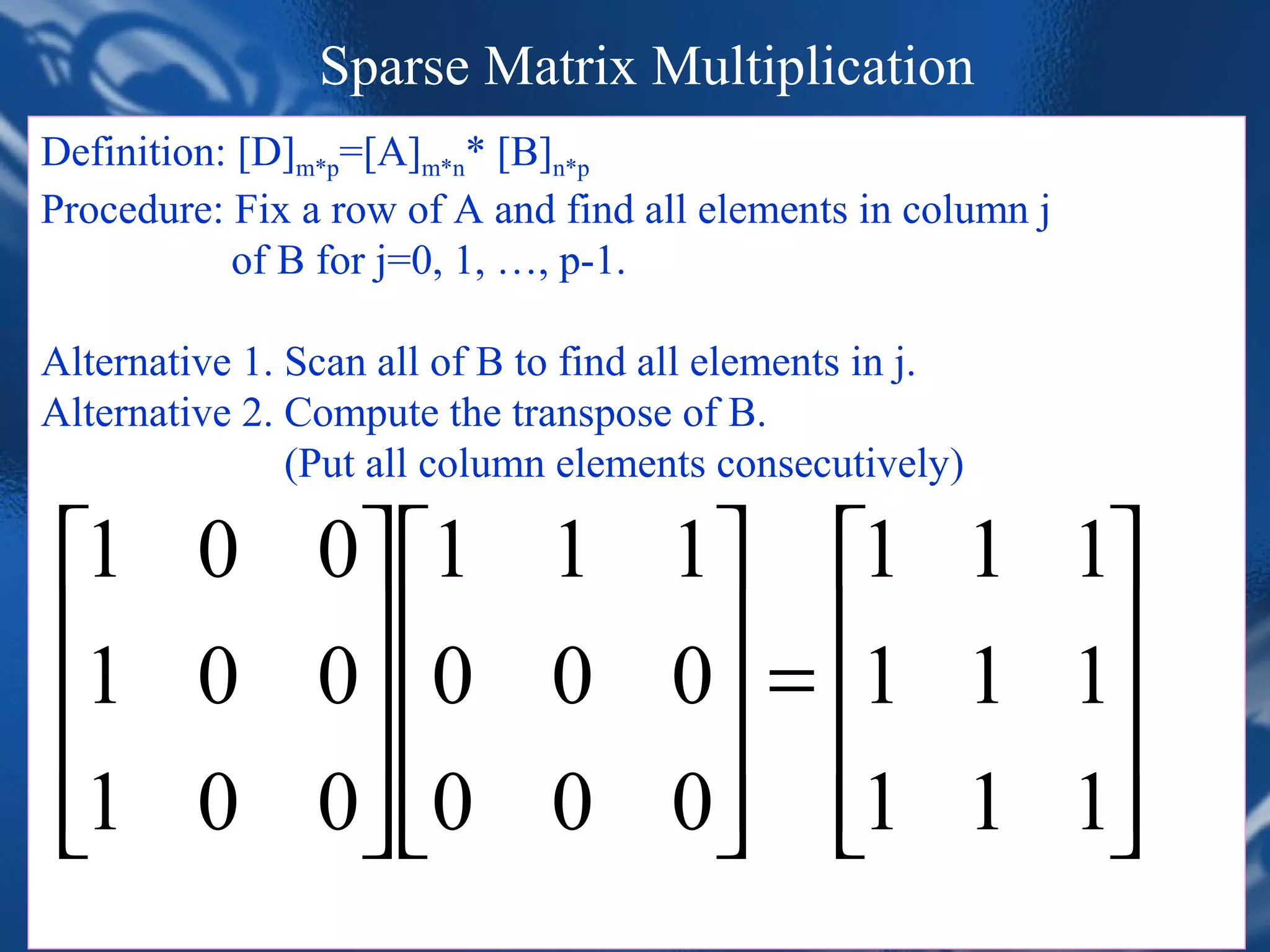

Sparse Matrix Multiplication
Definition: [D]m*p=[A]m*n* [B]n*p
Procedure: Fix a row of A and find all elements in column j
of B for j=0, 1, …, p-1.

Alternative 1. Scan all of B to find all elements in j.
Alternative 2. Compute the transpose of B.
(Put all column elements consecutively)

1 0 0 1 1 1 1 1 1
1 0 0 0 0 0 = 1 1 1
    
1 0 0 0 0 0 1 1 1
    
CHAPTER 2 32
*Figure 2.5:Multiplication of two sparse matrices (p.73)

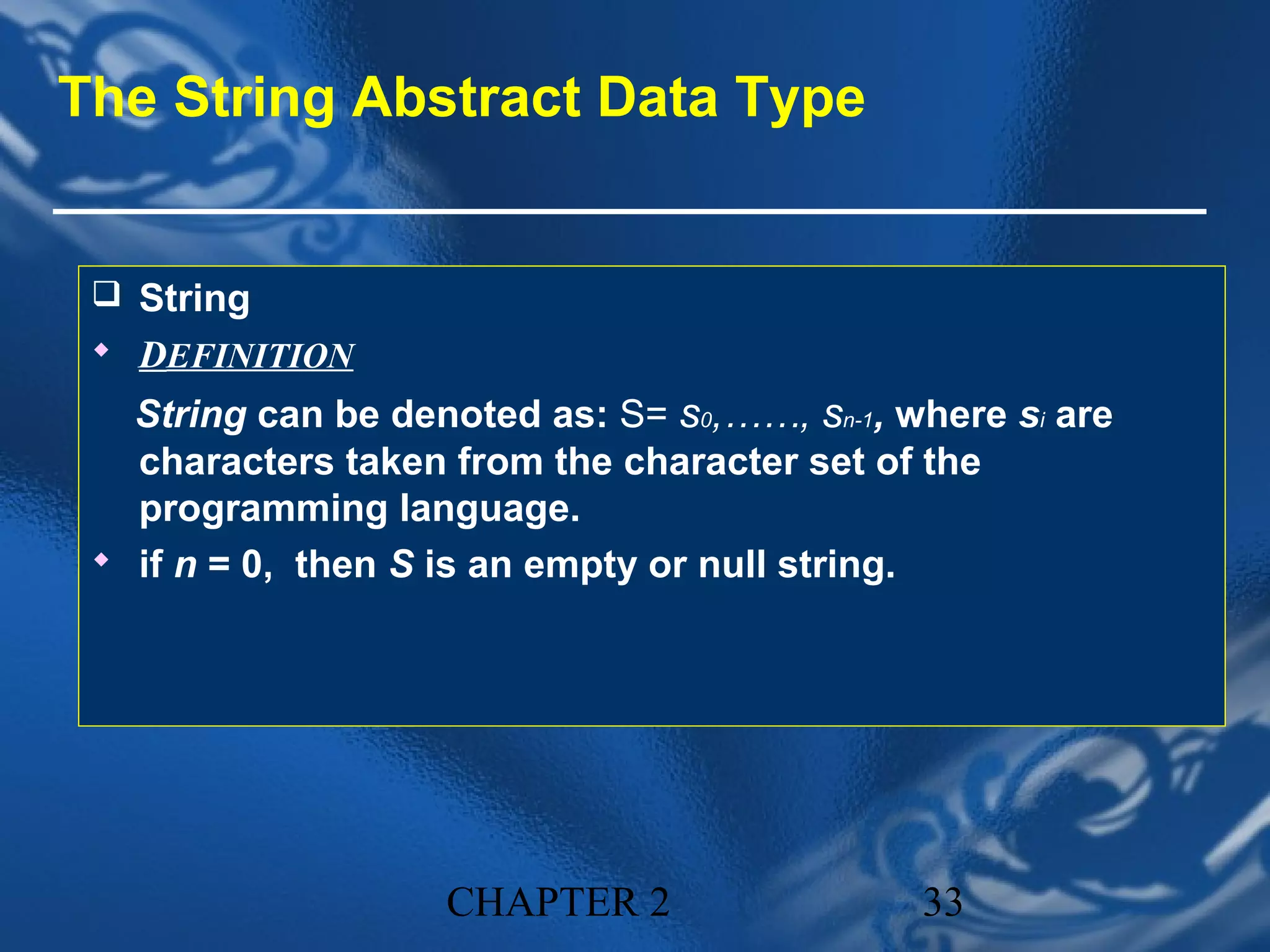

The String Abstract Data Type

 String
 DEFINITION
String can be denoted as: S= s0,……, sn-1, where si are
characters taken from the character set of the
programming language.
 if n = 0, then S is an empty or null string.

CHAPTER 2 33

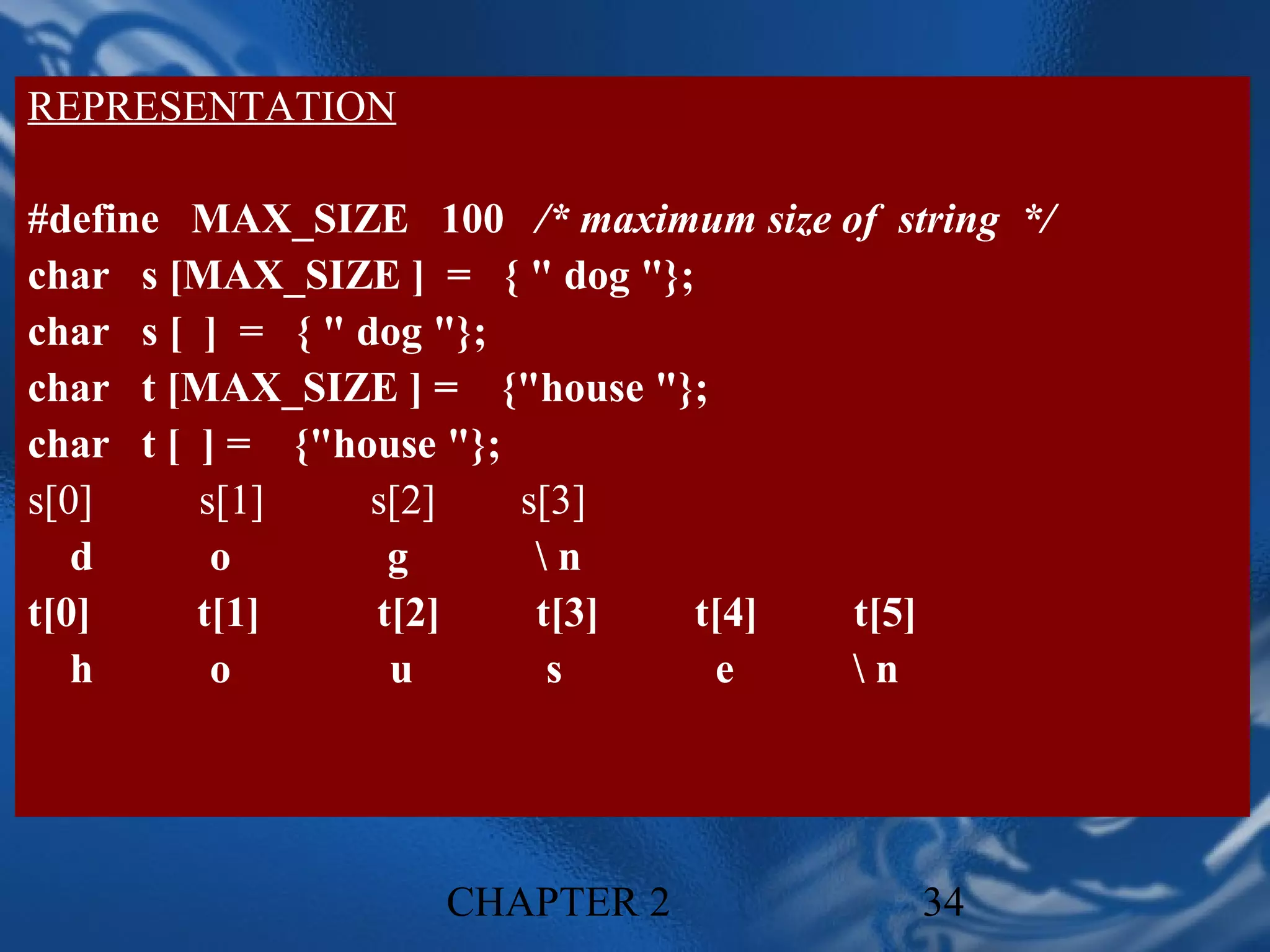

REPRESENTATION

#define MAX_SIZE 100 /* maximum size of string */
char s [MAX_SIZE ] = { " dog "};
char s [ ] = { " dog "};
char t [MAX_SIZE ] = {"house "};
char t [ ] = {"house "};
s[0] s[1] s[2] s[3]
d o g n
t[0] t[1] t[2] t[3] t[4] t[5]
h o u s e n

CHAPTER 2 34

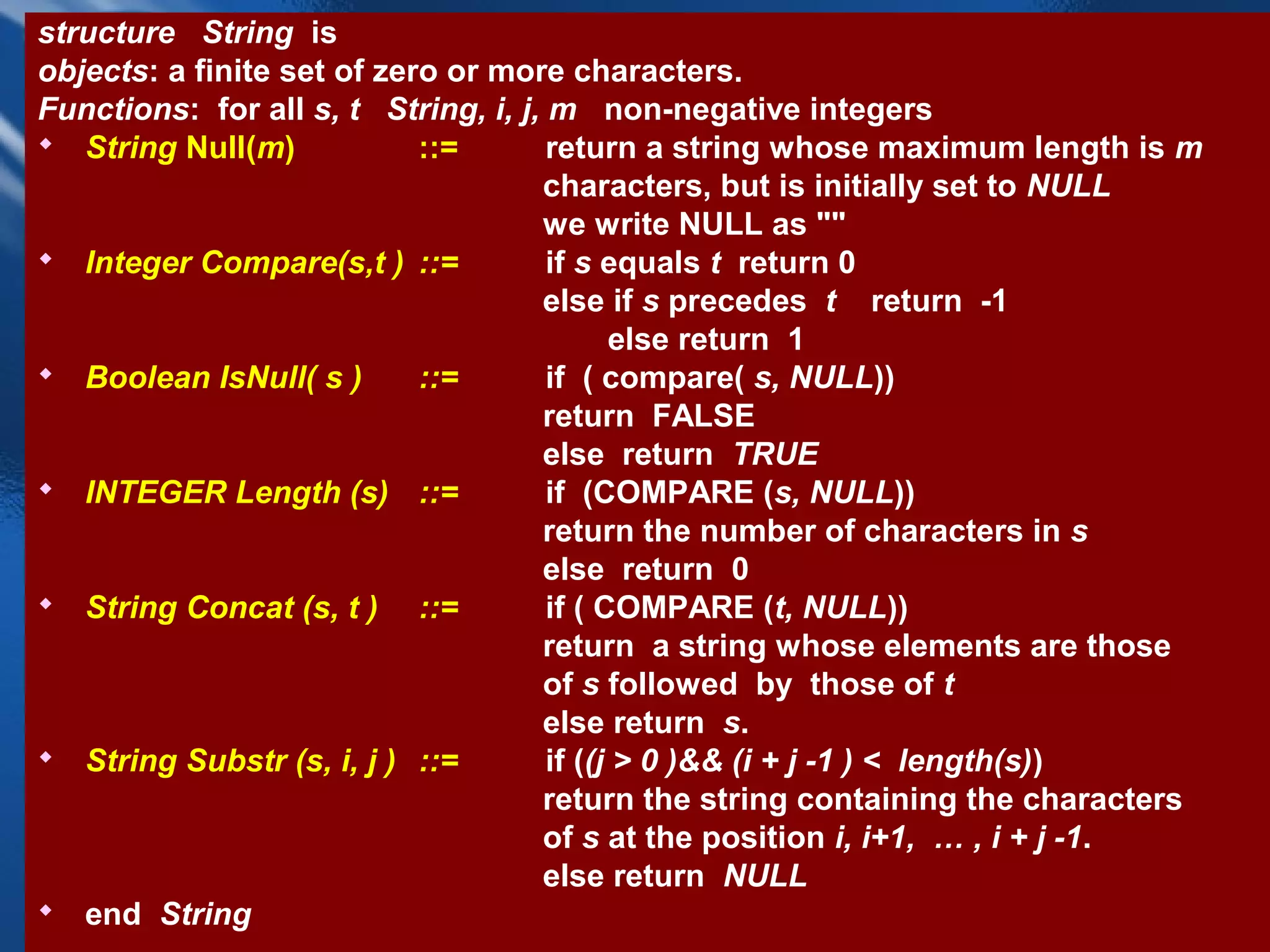

structure String is
objects: a finite set of zero or more characters.
Functions: for all s, t String, i, j, m non-negative integers
 String Null(m) ::= return a string whose maximum length is m
characters, but is initially set to NULL
we write NULL as ""
 Integer Compare(s,t ) ::= if s equals t return 0
else if s precedes t return -1
else return 1
 Boolean IsNull( s ) ::= if ( compare( s, NULL))
return FALSE
else return TRUE
 INTEGER Length (s) ::= if (COMPARE (s, NULL))
return the number of characters in s
else return 0
 String Concat (s, t ) ::= if ( COMPARE (t, NULL))
return a string whose elements are those
of s followed by those of t
else return s.
 String Substr (s, i, j ) ::= if ((j > 0 )&& (i + j -1 ) < length(s))
return the string containing the characters
of s at the position i, i+1, … , i + j -1.
else return NULL
 end String CHAPTER 2 35

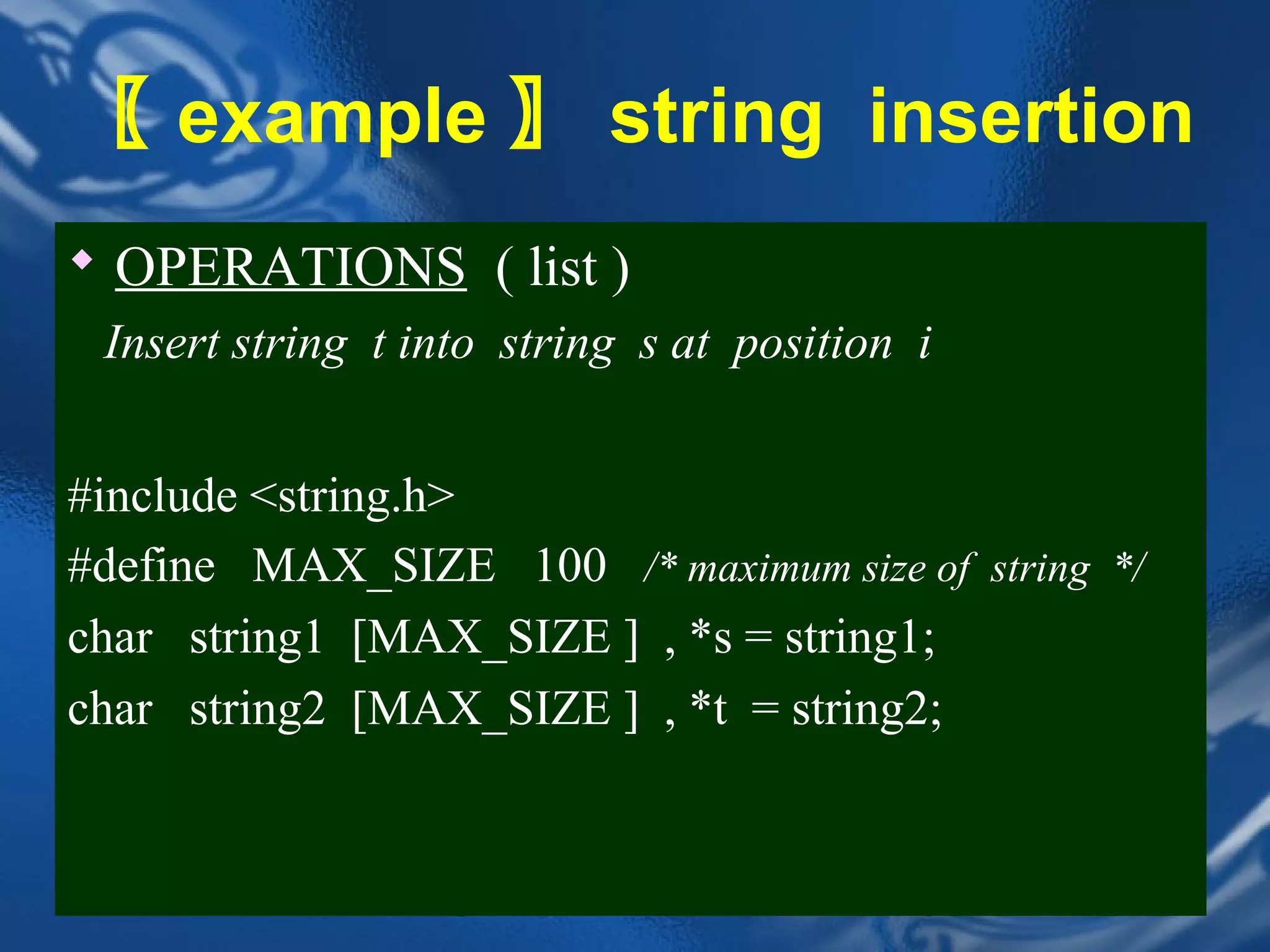

〖 example 〗 string insertion
 OPERATIONS ( list )
Insert string t into string s at position i

#include <string.h>
#define MAX_SIZE 100 /* maximum size of string */
char string1 [MAX_SIZE ] , *s = string1;
char string2 [MAX_SIZE ] , *t = string2;

CHAPTER 2 36

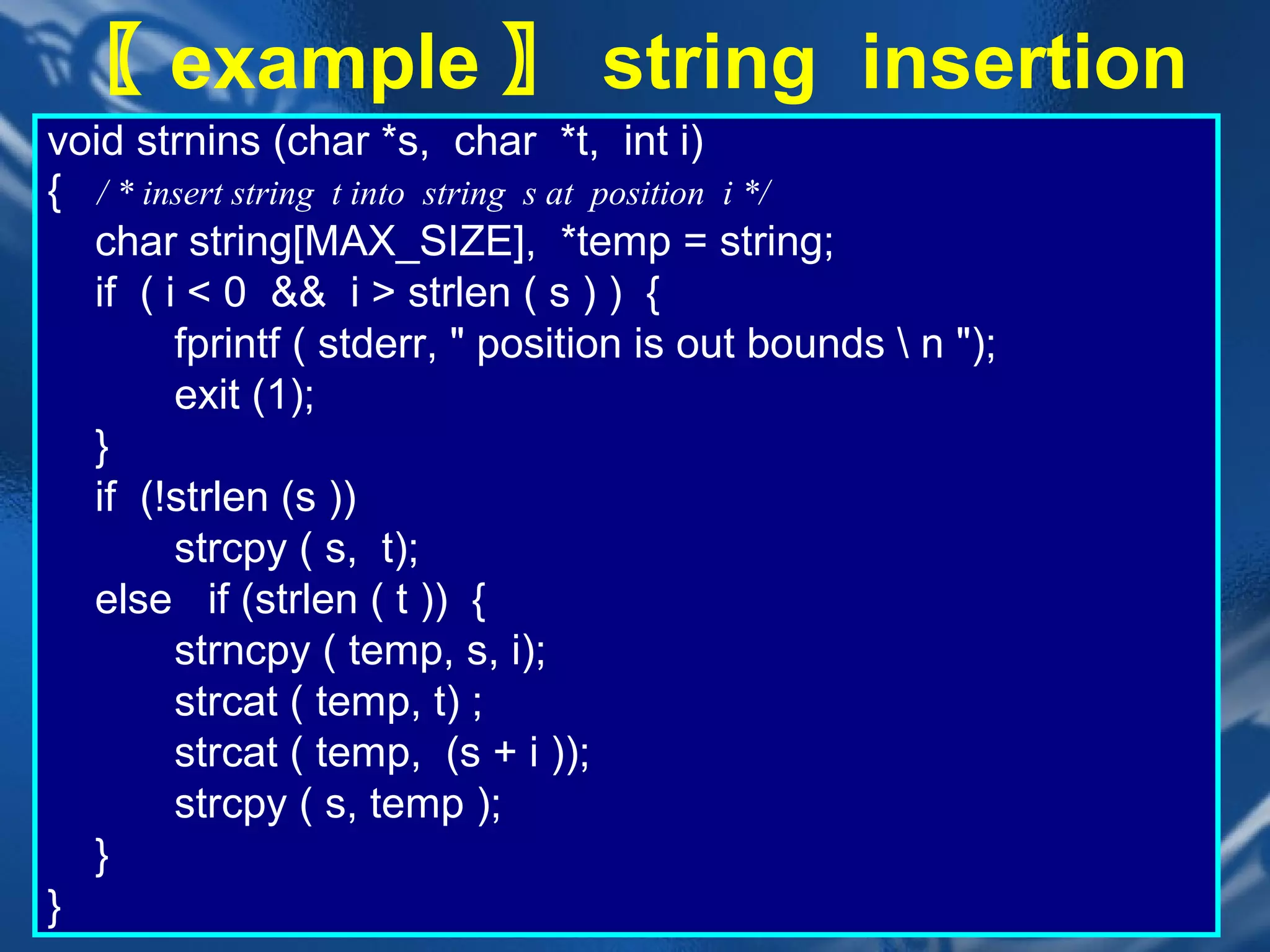

void strnins (char *s, char *t, int i)
{ / * insert string t into string s at position i */
char string[MAX_SIZE], *temp = string;
if ( i < 0 && i > strlen ( s ) ) {
fprintf ( stderr, " position is out bounds n ");
exit (1);
}
if (!strlen (s ))
strcpy ( s, t);
else if (strlen ( t )) {
strncpy ( temp, s, i);
strcat ( temp, t) ;
strcat ( temp, (s + i ));
strcpy ( s, temp );
}
} CHAPTER 2 37

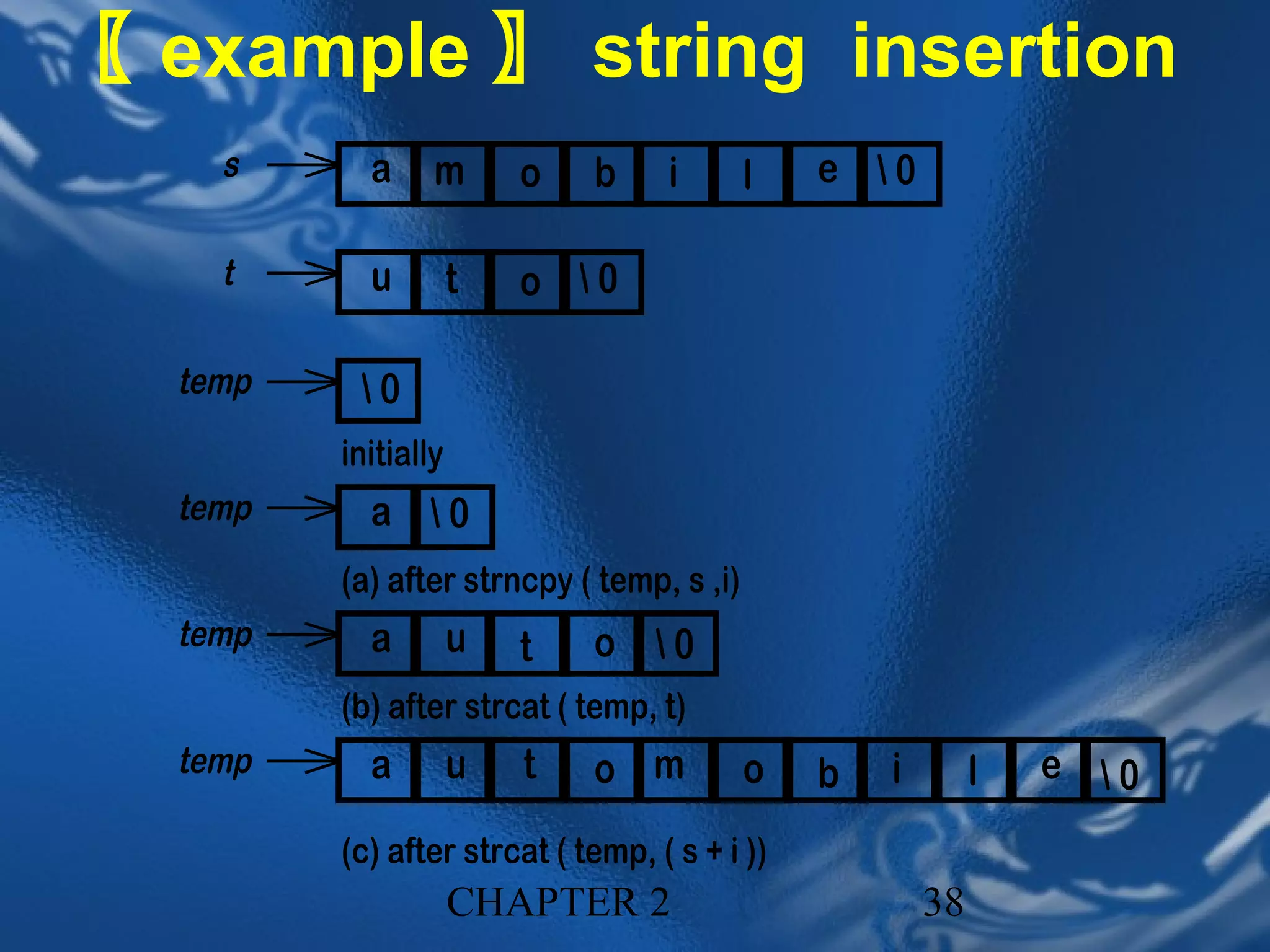

s a m o b i l e 0

t u t o 0

temp 0
initially
temp a 0
(a) after strncpy ( temp, s ,i)
temp a u t o 0
(b) after strcat ( temp, t)
temp a u t o m o b i l e 0

(c) after strcat ( temp, ( s + i ))
CHAPTER 2 38

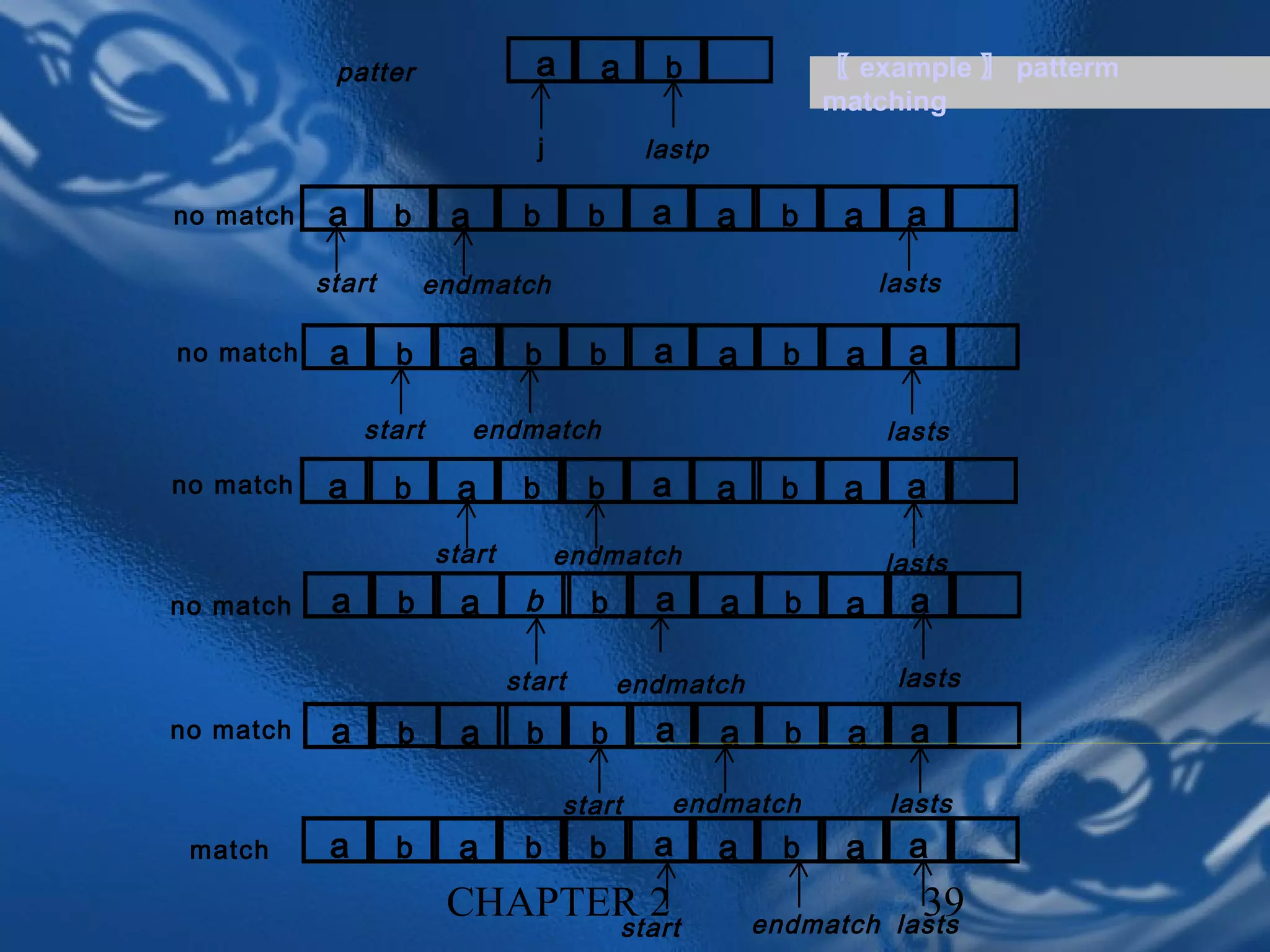

patter a a b 〖 example 〗 patterm
matching
j lastp

no match a b a b b a a b a a
start endmatch lasts





match a b a b b a a b a a
CHAPTER 2
39

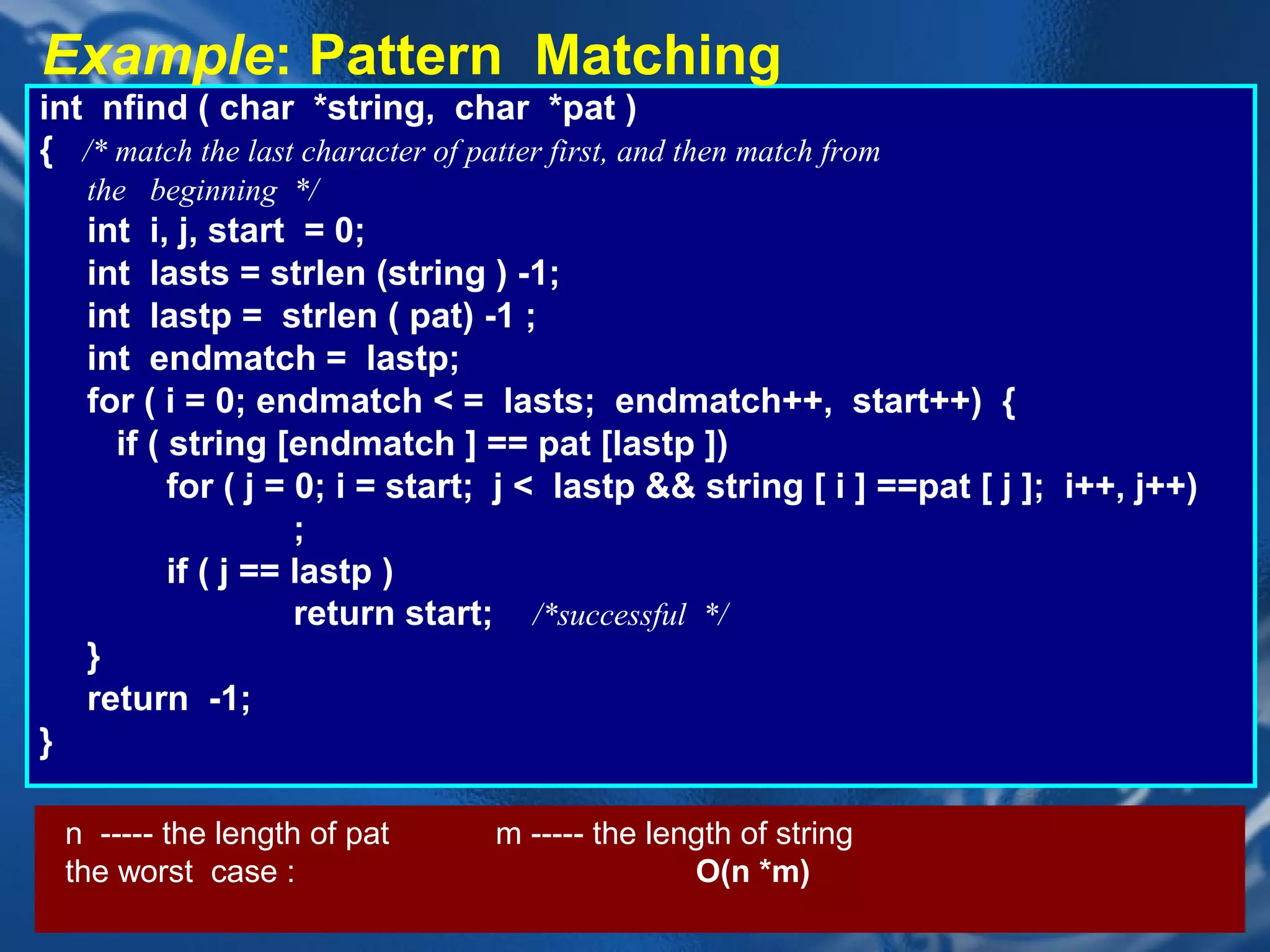

Example: Pattern Matching
int nfind ( char *string, char *pat )
{ /* match the last character of patter first, and then match from
the beginning */
int i, j, start = 0;
int lasts = strlen (string ) -1;
int lastp = strlen ( pat) -1 ;
int endmatch = lastp;
for ( i = 0; endmatch < = lasts; endmatch++, start++) {
if ( string [endmatch ] == pat [lastp ])
for ( j = 0; i = start; j < lastp && string [ i ] ==pat [ j ]; i++, j++)
;
if ( j == lastp )
return start; /*successful */
}
return -1;
}

n ----- the length of pat m ----- the length of string
the worst case : O(n *m)
CHAPTER 2 40

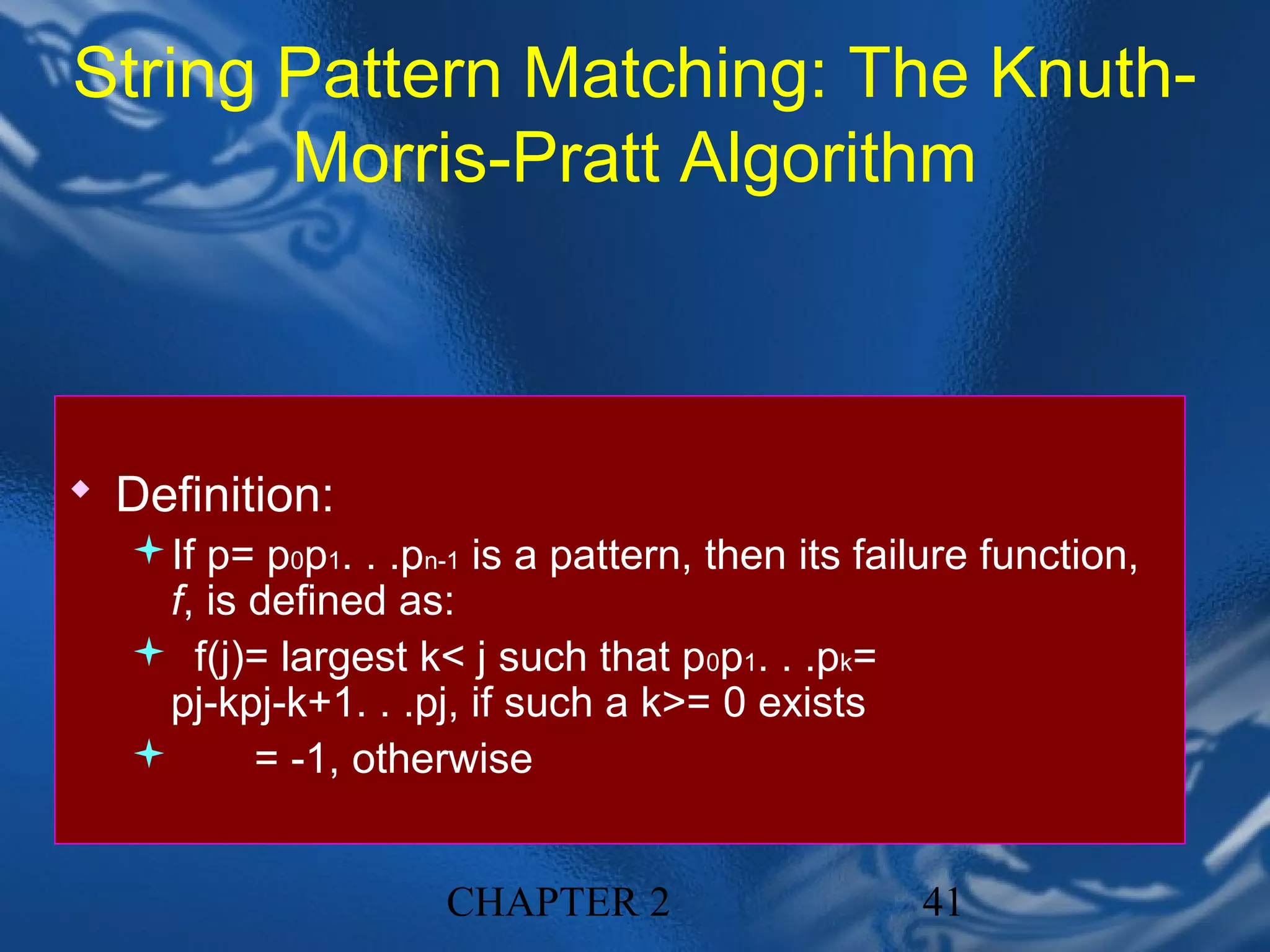

String Pattern Matching: The Knuth-
Morris-Pratt Algorithm

 Definition:
If p= p0p1. . .pn-1 is a pattern, then its failure function,
f, is defined as:
 f(j)= largest k< j such that p0p1. . .pk=
pj-kpj-k+1. . .pj, if such a k>= 0 exists
 = -1, otherwise

CHAPTER 2 41

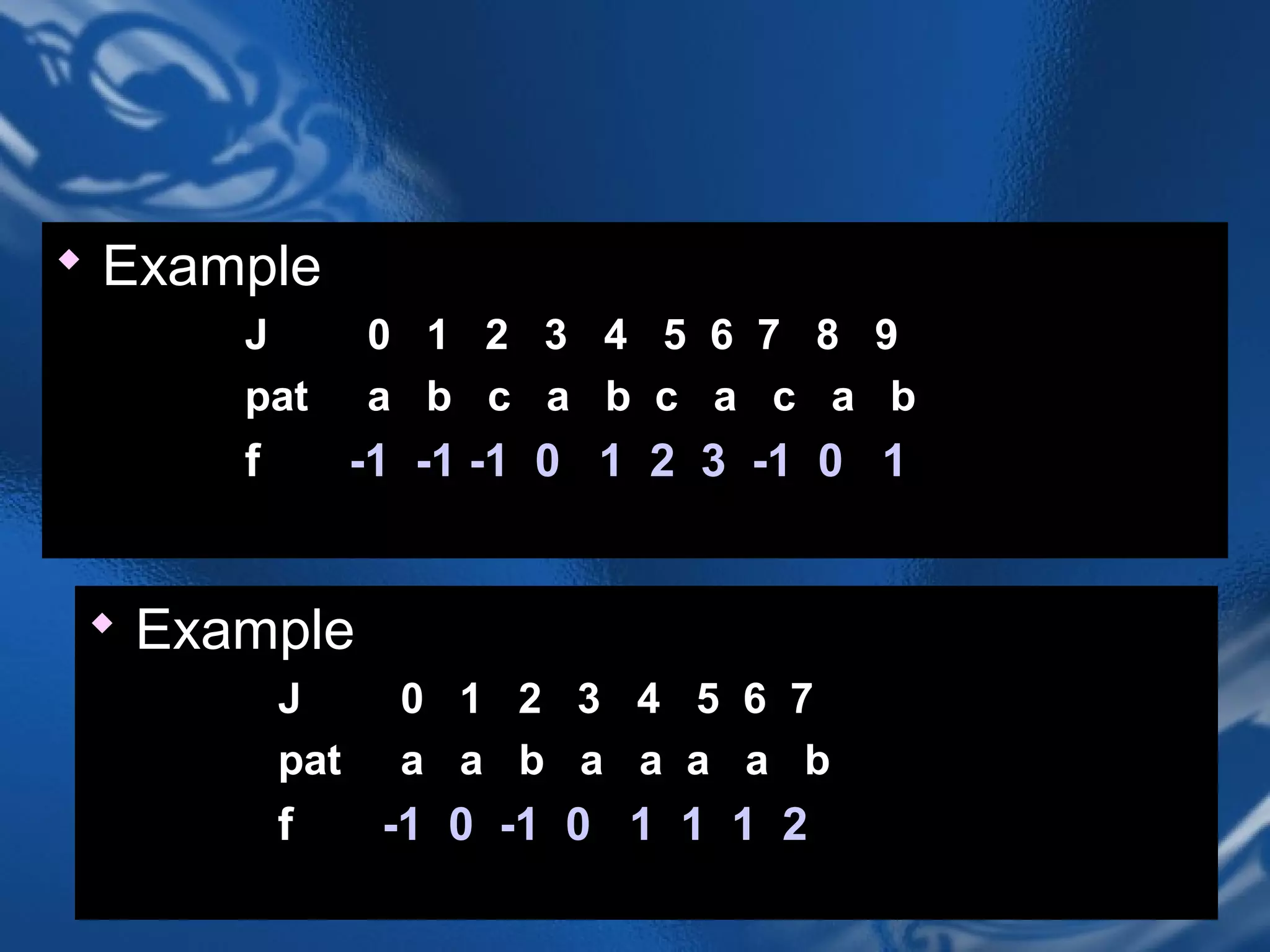

 Example
J 0 1 2 3 4 5 6 7 8 9
pat a b c a b c a c a b
f -1 -1 -1 0 1 2 3 -1 0 1

 Example
J 0 1 2 3 4 5 6 7
pat a a b a a a a b
f -1 0 -1 0 1 1 1 2
CHAPTER 2 42

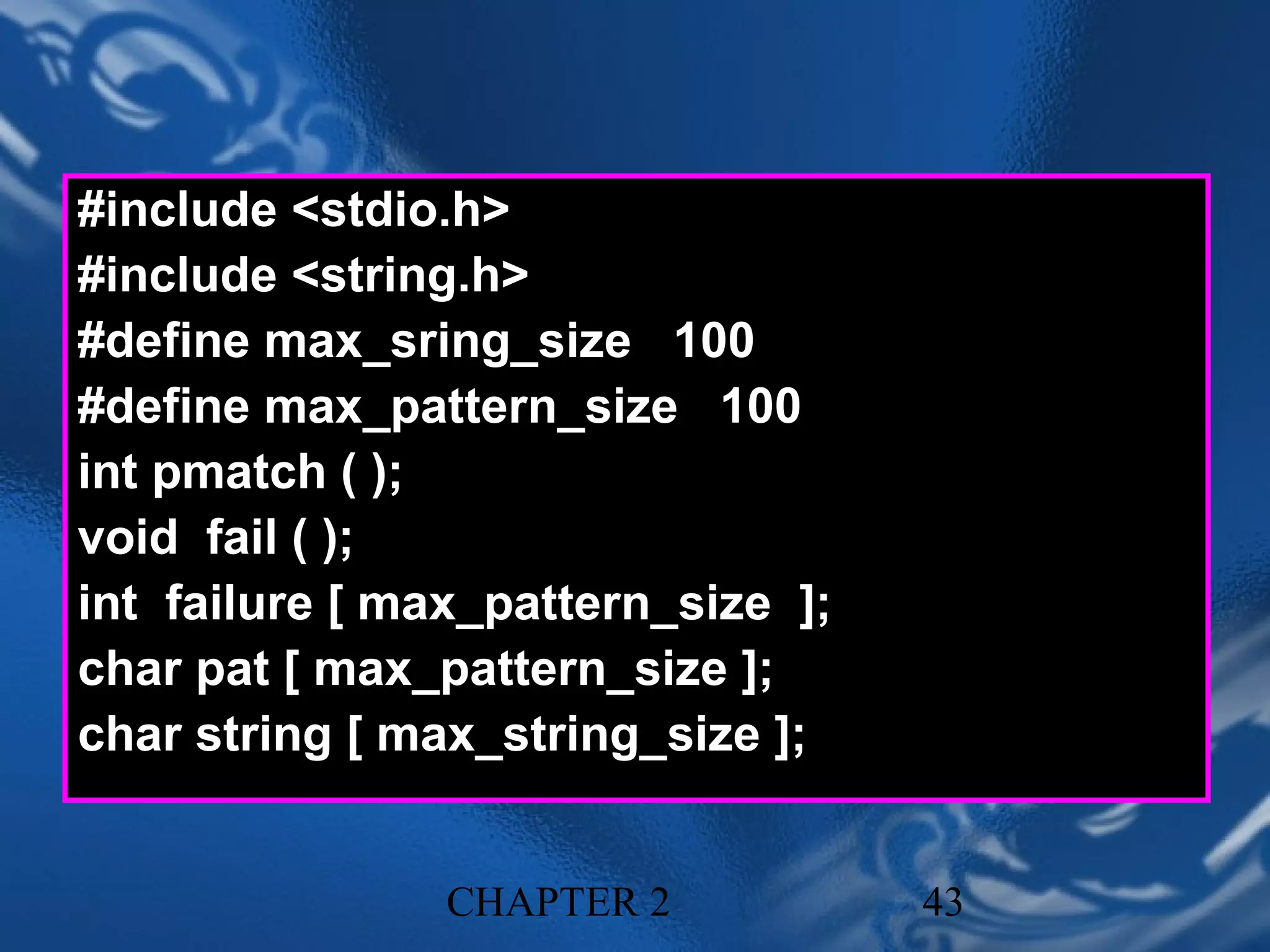

#include <stdio.h>
#include <string.h>
#define max_sring_size 100
#define max_pattern_size 100
int pmatch ( );
void fail ( );
int failure [ max_pattern_size ];
char pat [ max_pattern_size ];
char string [ max_string_size ];

CHAPTER 2 43

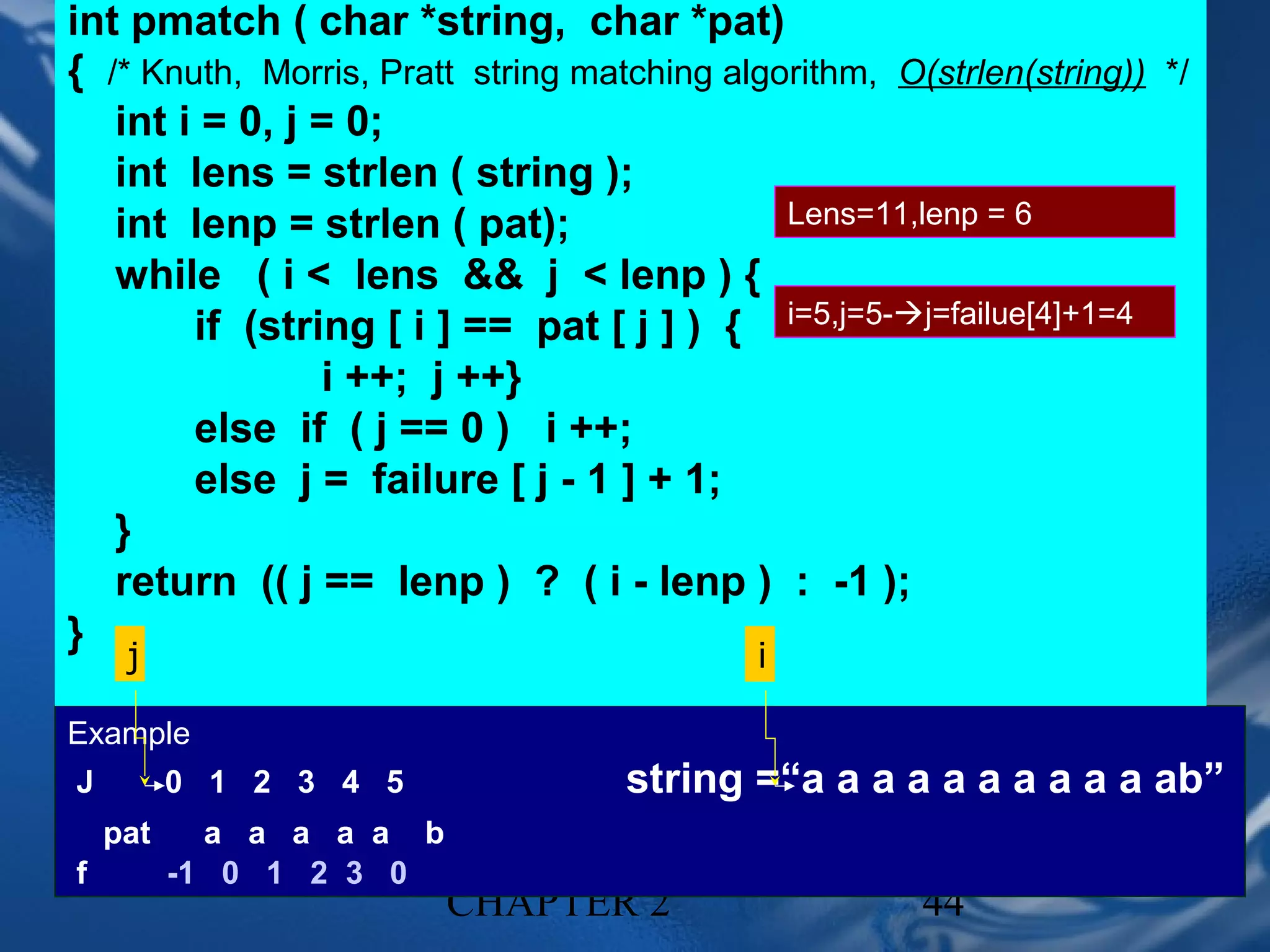

int pmatch ( char *string, char *pat)
{ /* Knuth, Morris, Pratt string matching algorithm, O(strlen(string)) */
int i = 0, j = 0;
int lens = strlen ( string );
int lenp = strlen ( pat); Lens=11,lenp = 6

while ( i < lens && j < lenp ) {
if (string [ i ] == pat [ j ] ) { i=5,j=5-j=failue[4]+1=4
i ++; j ++}
else if ( j == 0 ) i ++;
else j = failure [ j - 1 ] + 1;
}
return (( j == lenp ) ? ( i - lenp ) : -1 );
} j
i

Example
J 0 1 2 3 4 5 string =“a a a a a a a a a a ab”
pat a a a a a b
f -1 0 1 2 3 0
CHAPTER 2 44

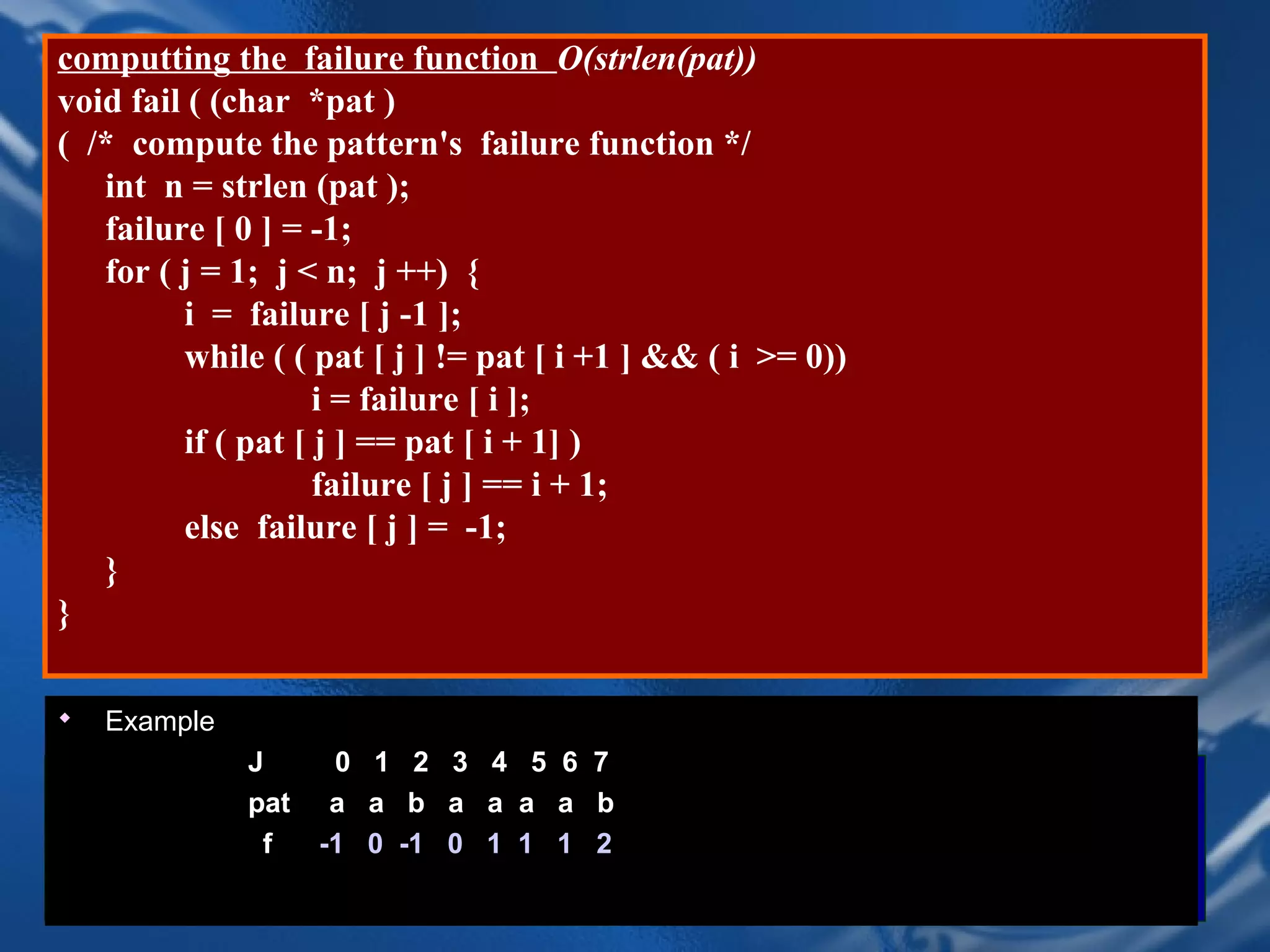

computting the failure function O(strlen(pat))
void fail ( (char *pat )
( /* compute the pattern's failure function */
int n = strlen (pat );
failure [ 0 ] = -1;
for ( j = 1; j < n; j ++) {
i = failure [ j -1 ];
while ( ( pat [ j ] != pat [ i +1 ] && ( i >= 0))
i = failure [ i ];
if ( pat [ j ] == pat [ i + 1] )
failure [ j ] == i + 1;
else failure [ j ] = -1;
}
}

 Example
J 0 1 2 3 4 5 6 7
Example
pat a a b a a a a b
J 0 1 2 3 4 5 6 7 8 9
f -1 0 -1 0 1 1 1 2
pat a b c a b c a c a b
f -1 -1 -1CHAPTER 20 1
0 1 2 3 -1 45

Arrays and structures

More Related Content

What's hot

Viewers also liked

Similar to Arrays and structures

More from Mohd Arif

Recently uploaded

Arrays and structures

Editor's Notes
