Arquitetando seu aplicativo Android com Jetpack

Arquitetando seu aplicativo
Android com o Jetpack
+Nelson Glauber
@nglauber 
www.nglauber.com.br 
youtube.com/nglauber

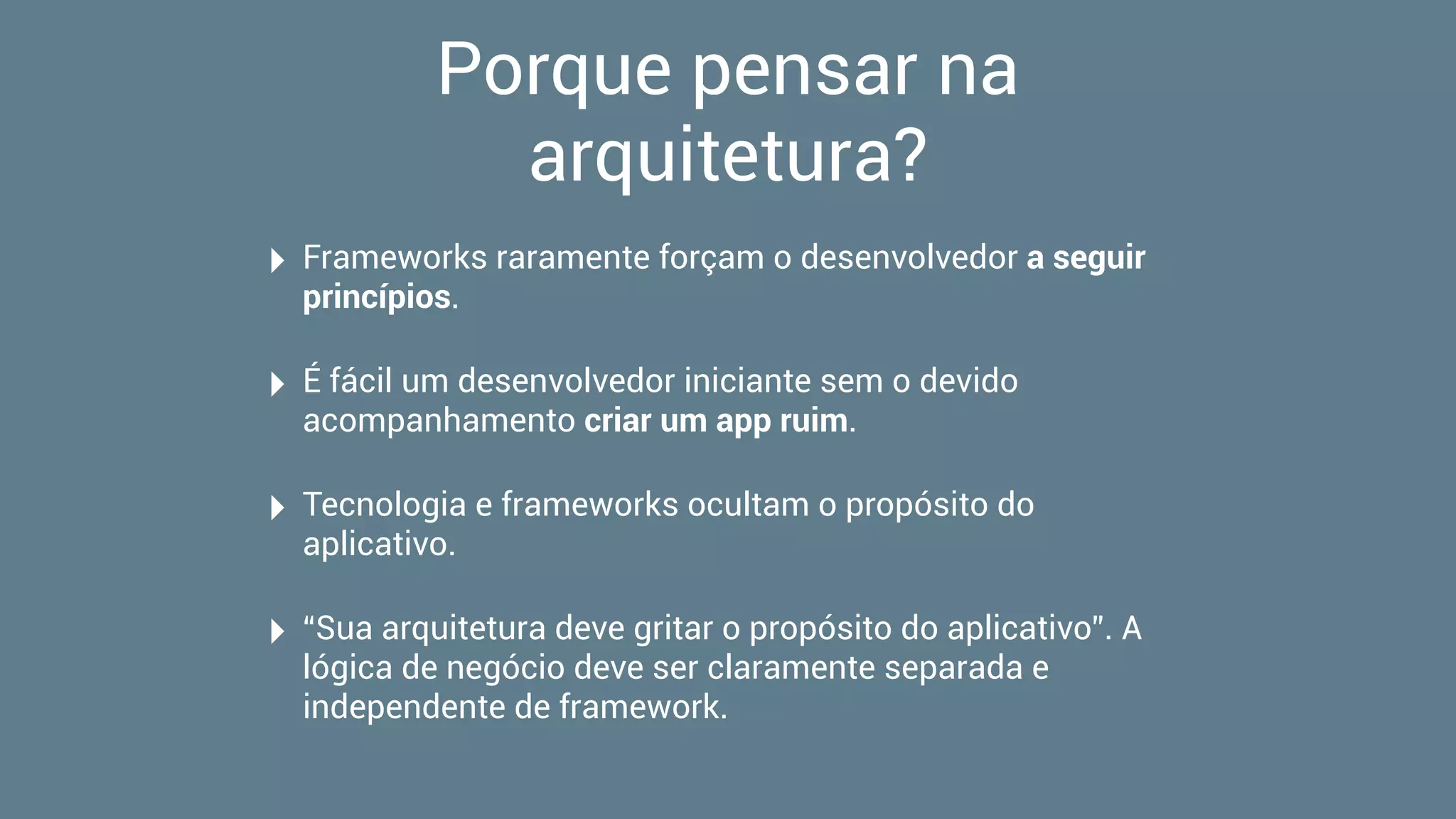

Porque pensar na
arquitetura?
‣ Frameworks raramente forçam o desenvolvedor a seguir
princípios.
‣ É fácil um desenvolvedor iniciante sem o devido
acompanhamento criar um app ruim.
‣ Tecnologia e frameworks ocultam o propósito do
aplicativo.
‣ “Sua arquitetura deve gritar o propósito do aplicativo”. A
lógica de negócio deve ser claramente separada e
independente de framework.

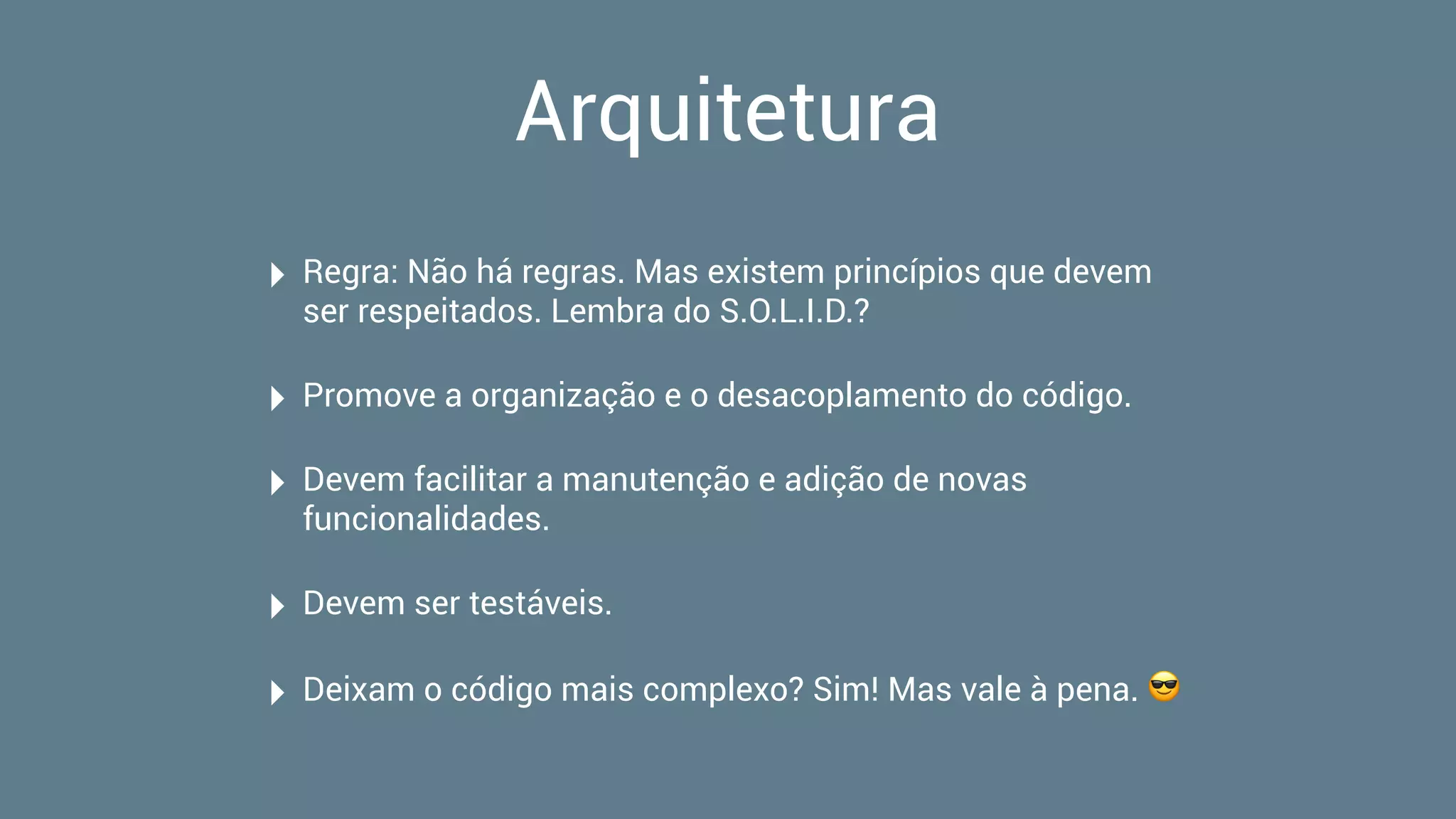

Arquitetura
‣ Regra: Não há regras. Mas existem princípios que devem
ser respeitados. Lembra do S.O.L.I.D.?
‣ Promove a organização e o desacoplamento do código.
‣ Devem facilitar a manutenção e adição de novas
funcionalidades.
‣ Devem ser testáveis.
‣ Deixam o código mais complexo? Sim! Mas vale à pena. 😎

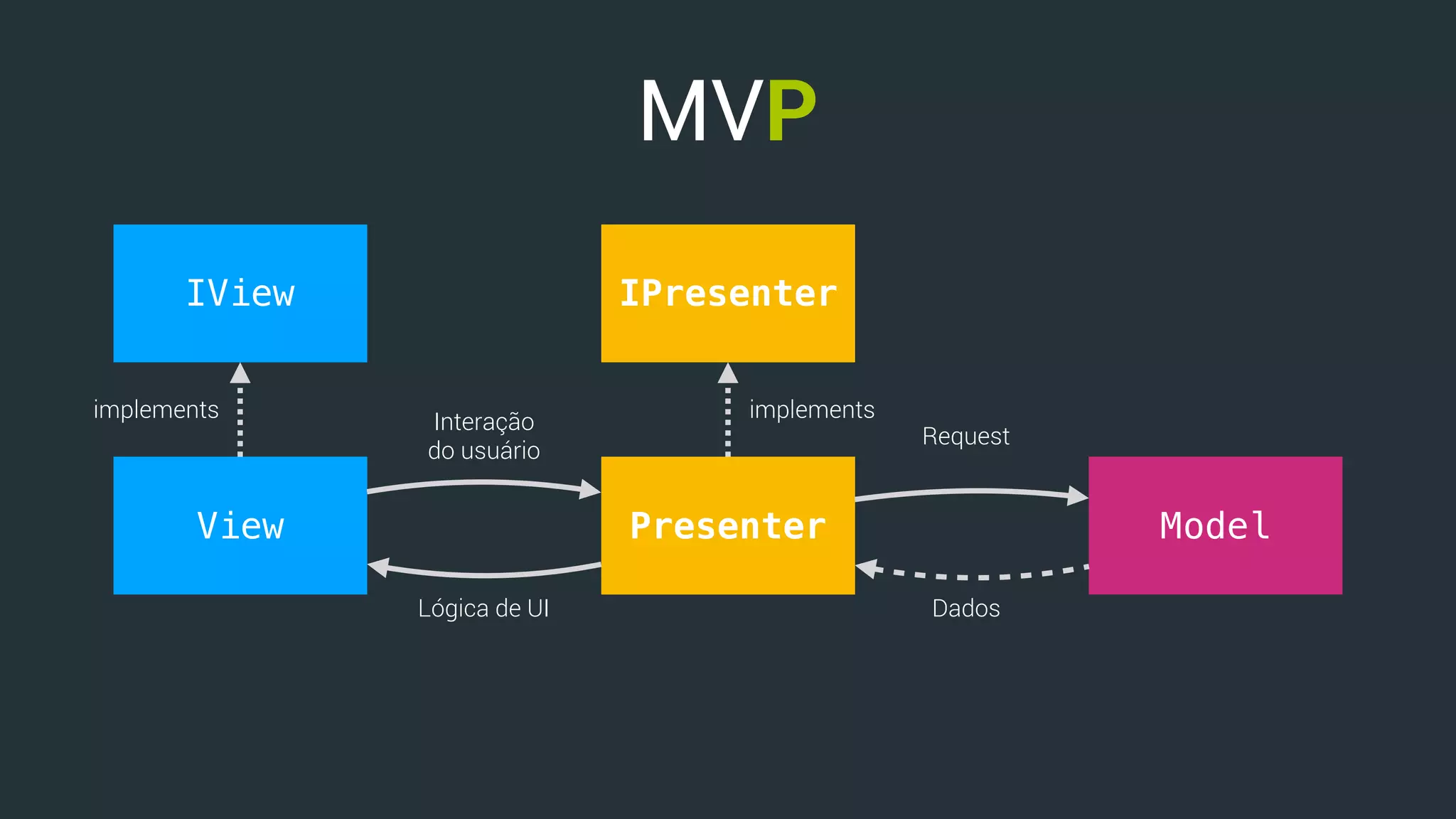

MVP
View
IView
Presenter Model
Interação  
do usuário
Request
DadosLógica de UI
implements
IPresenter
implements

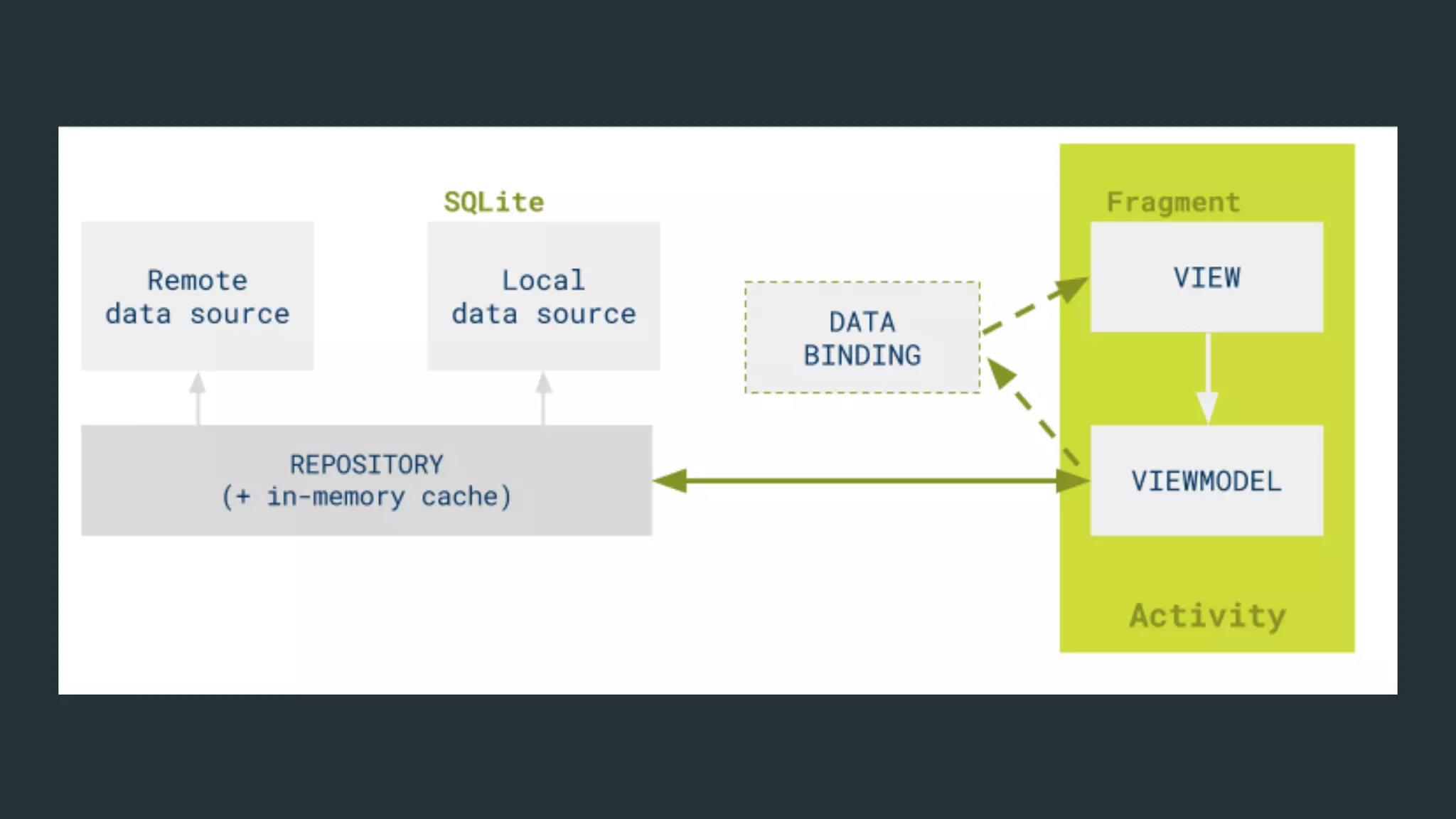

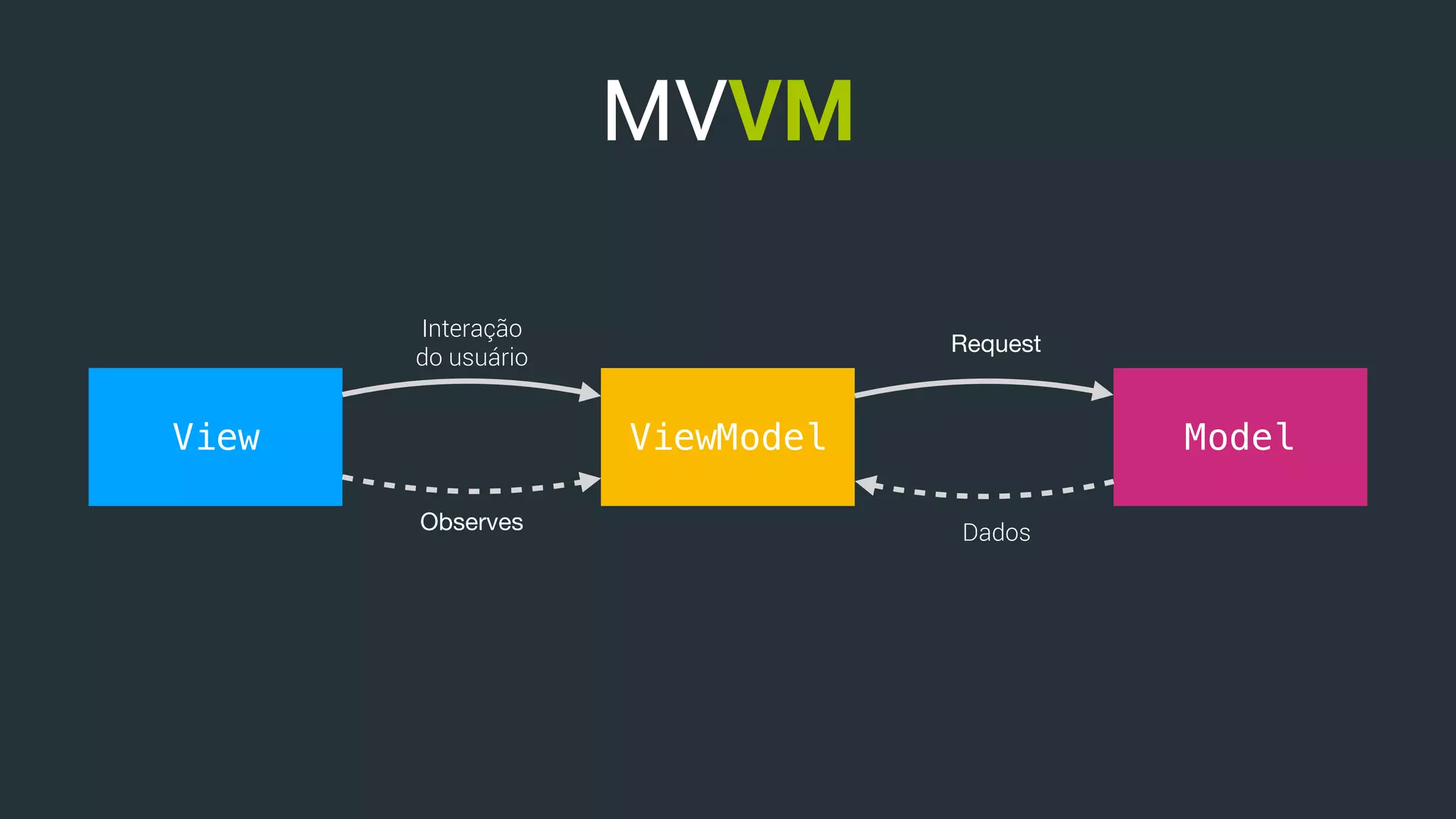

MVVM
View ViewModel Model
Observes
Interação  
do usuário
Dados
Request

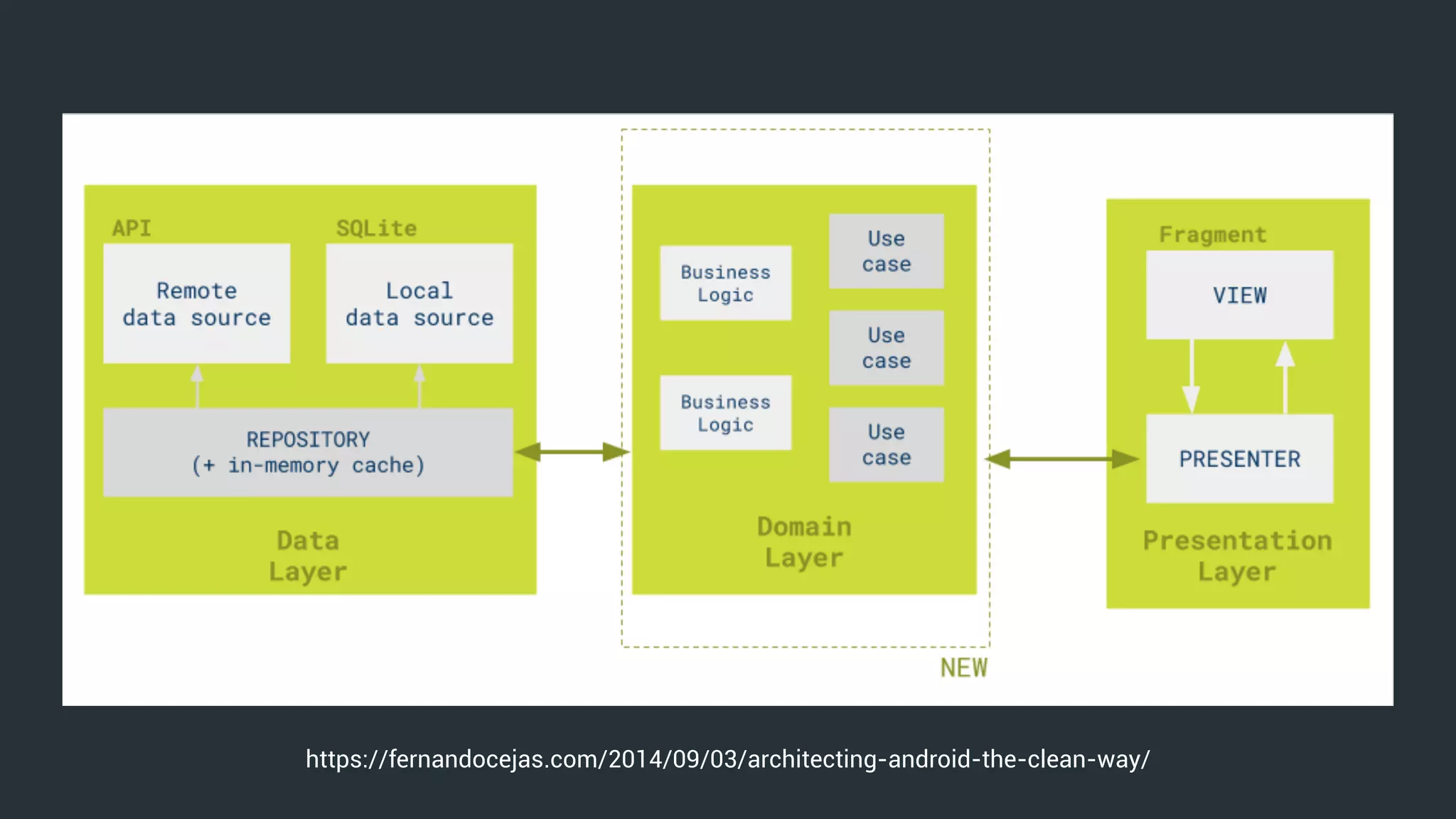

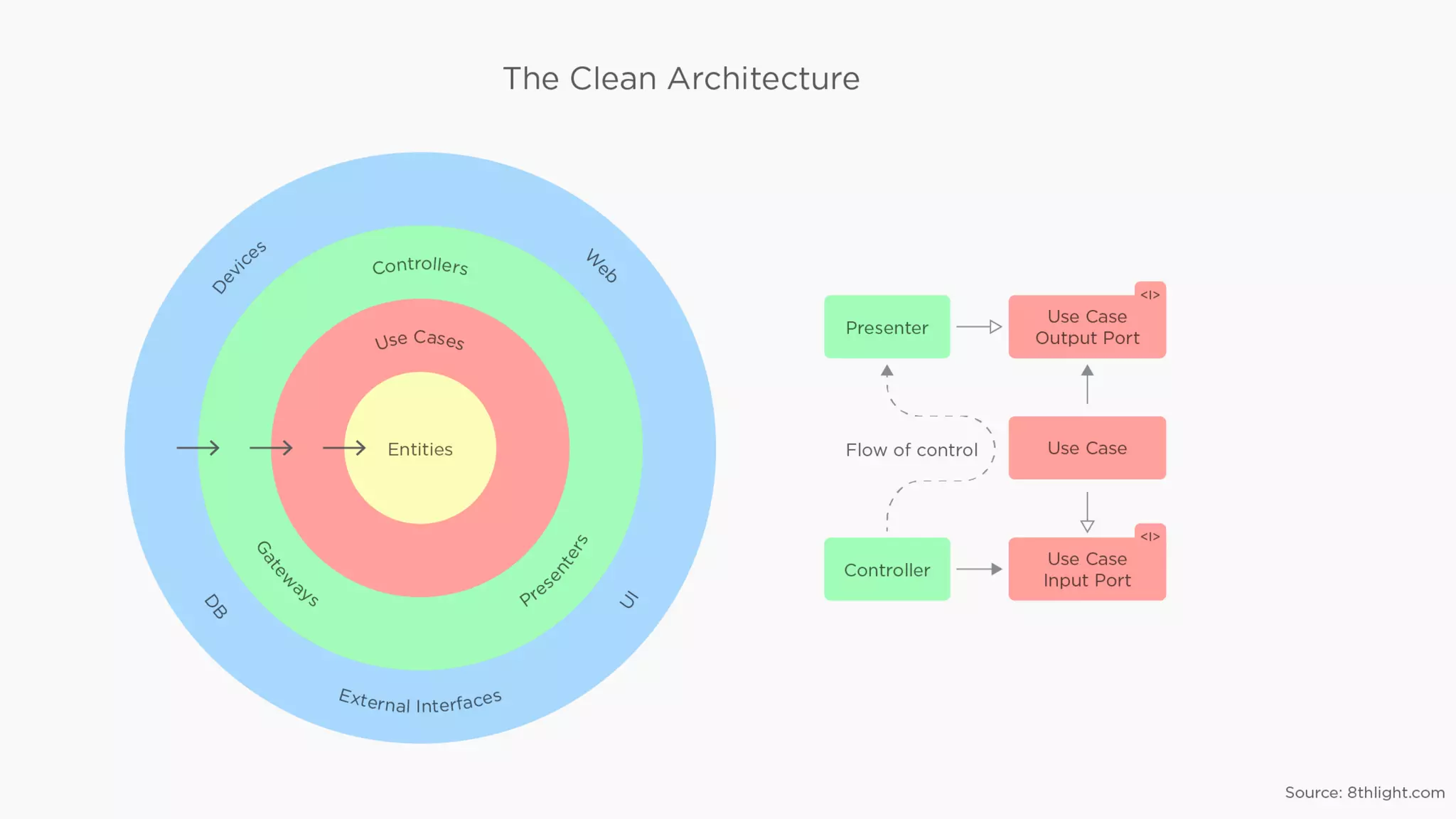

https://fernandocejas.com/2014/09/03/architecting-android-the-clean-way/

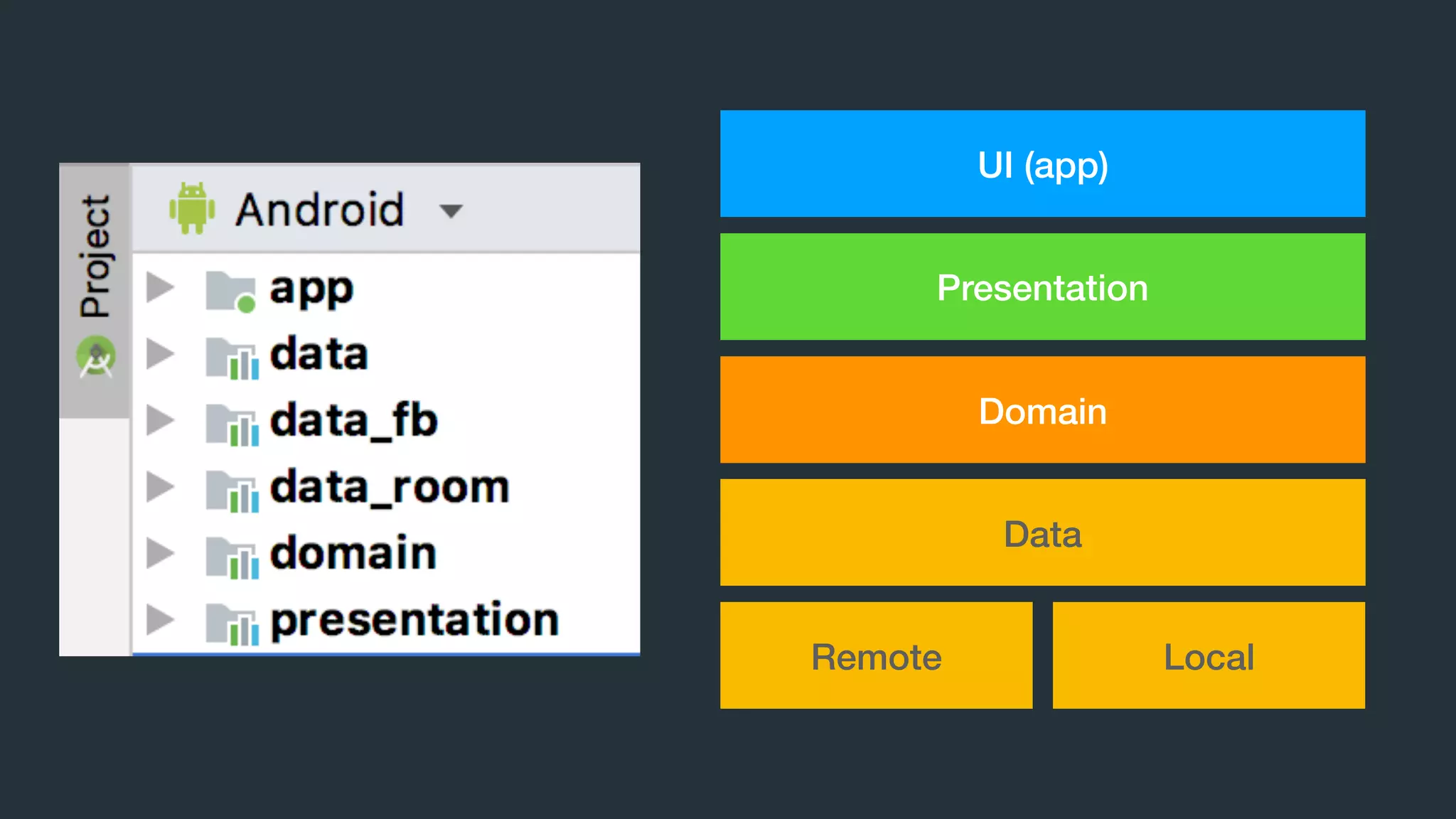

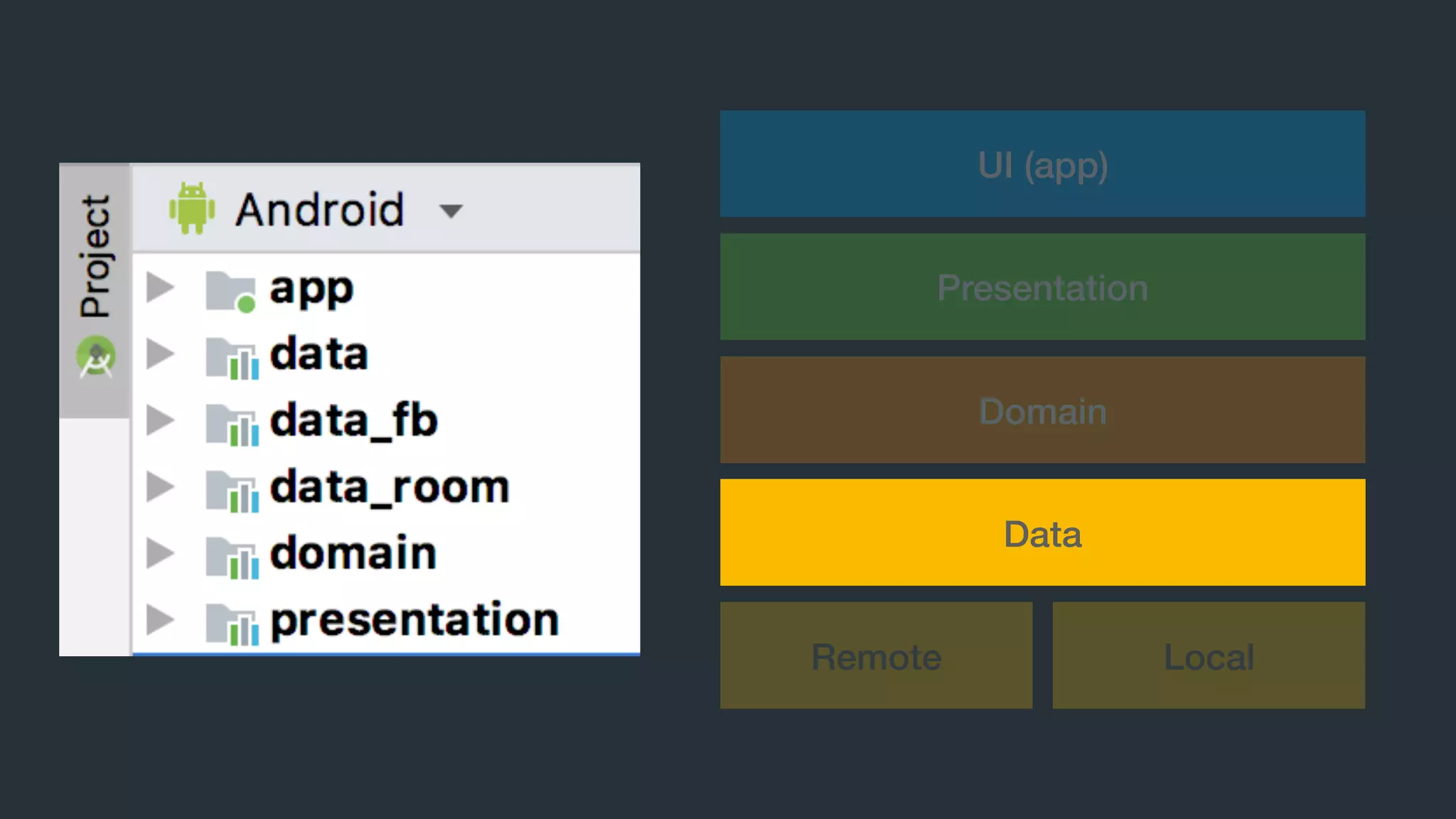

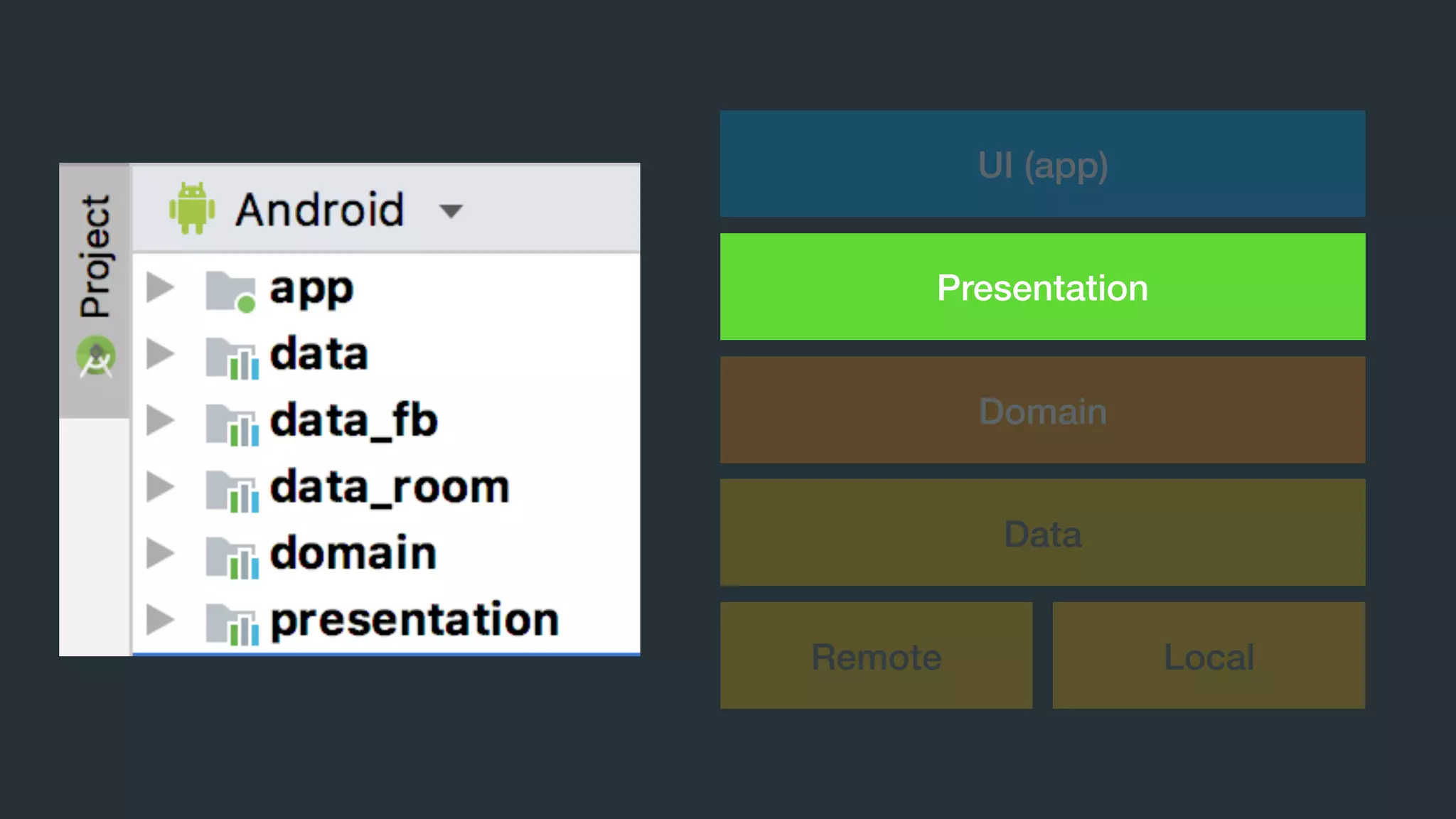

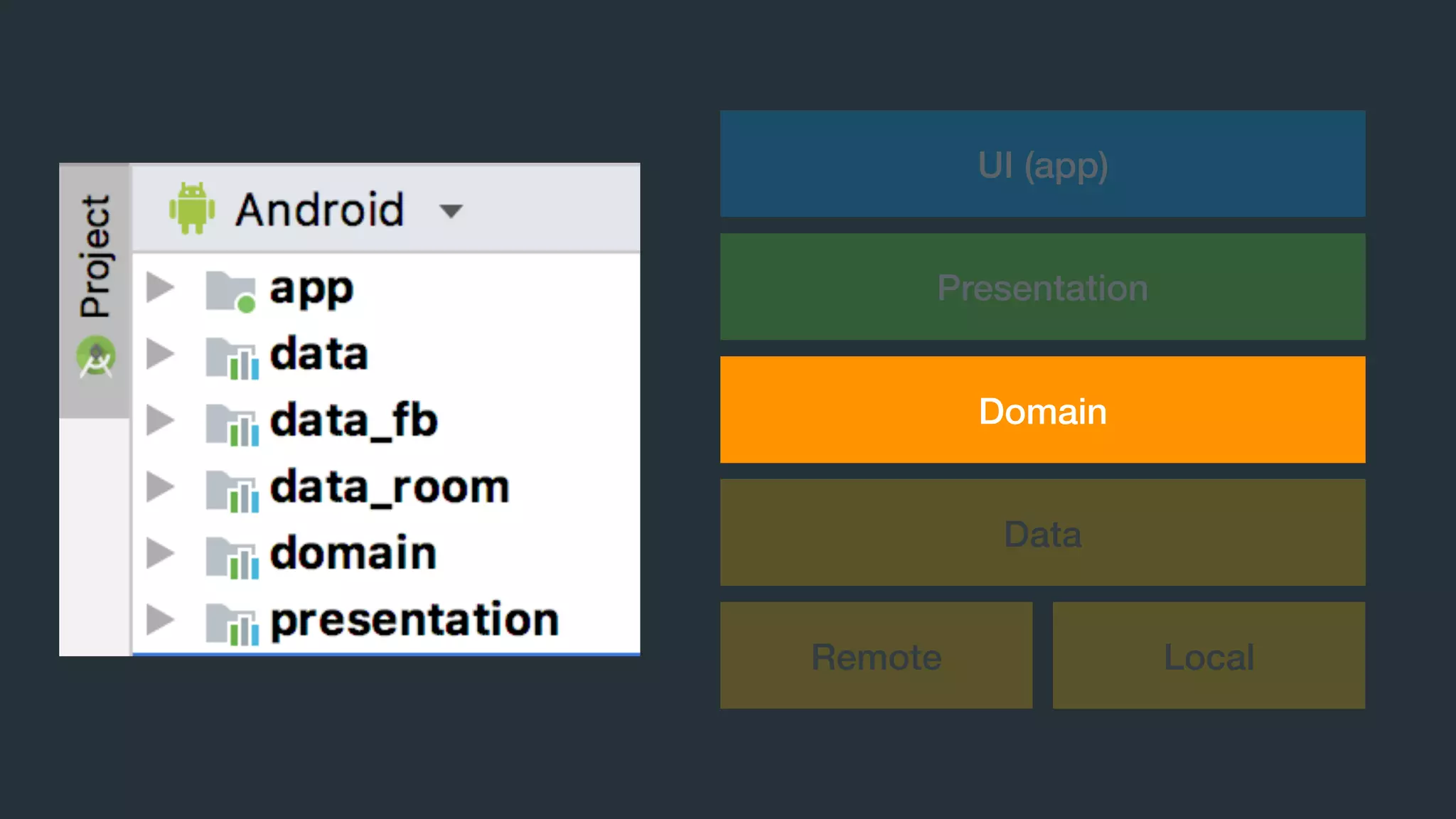

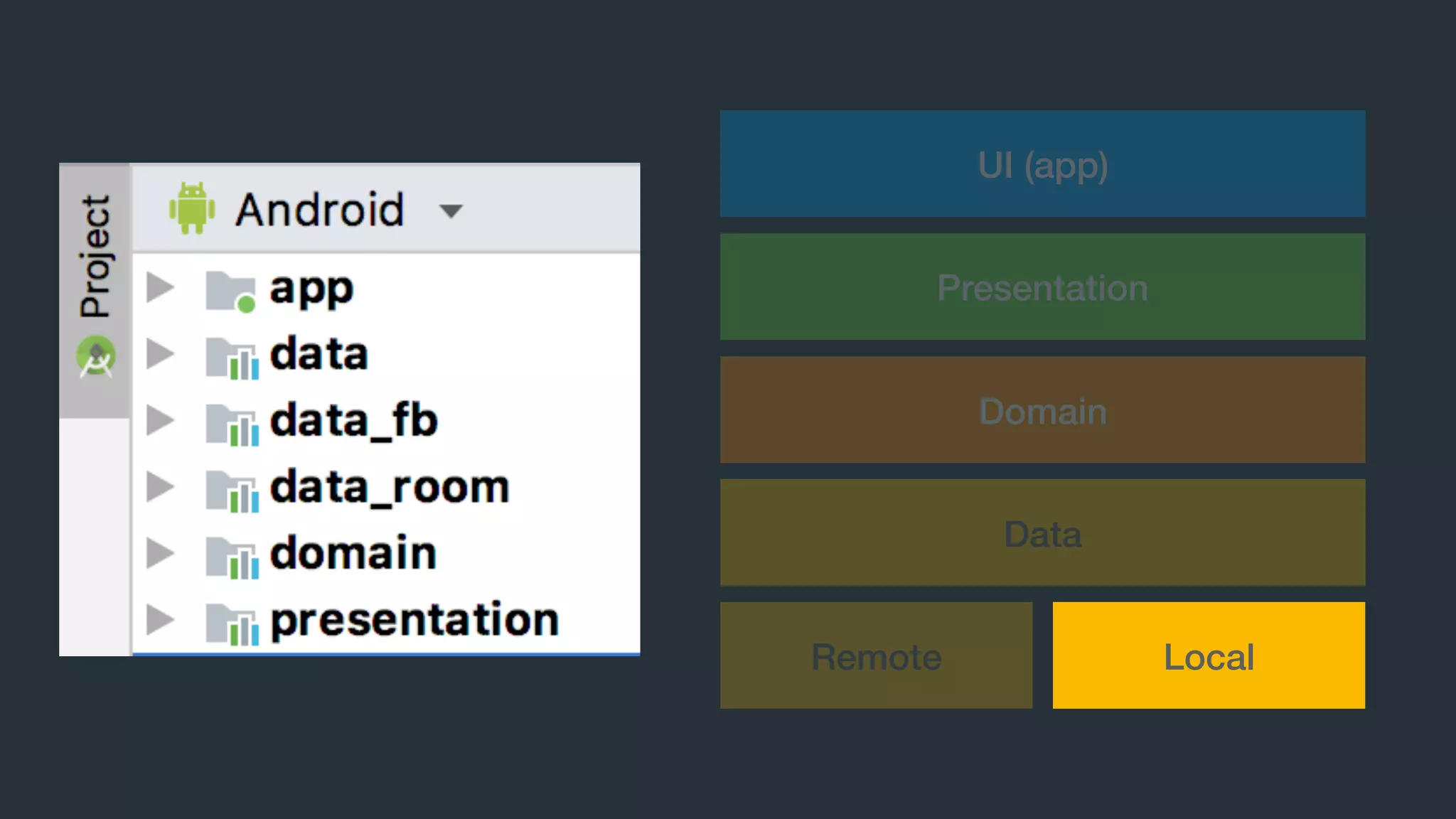

UI (app)
Presentation
Domain
Remote Local
Data

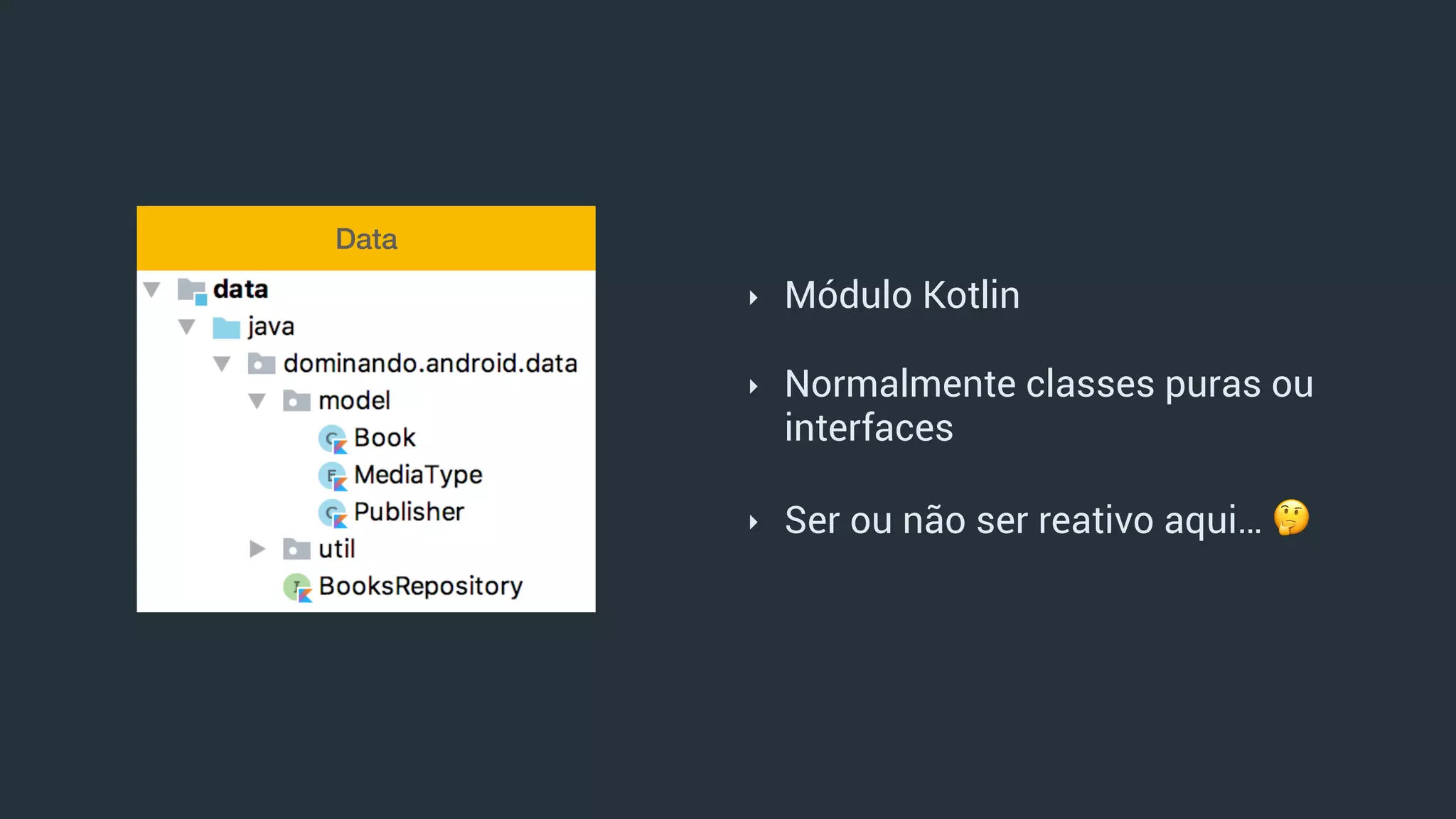

‣ Módulo Kotlin
‣ Normalmente classes puras ou
interfaces
‣ Ser ou não ser reativo aqui… 🤔
Data

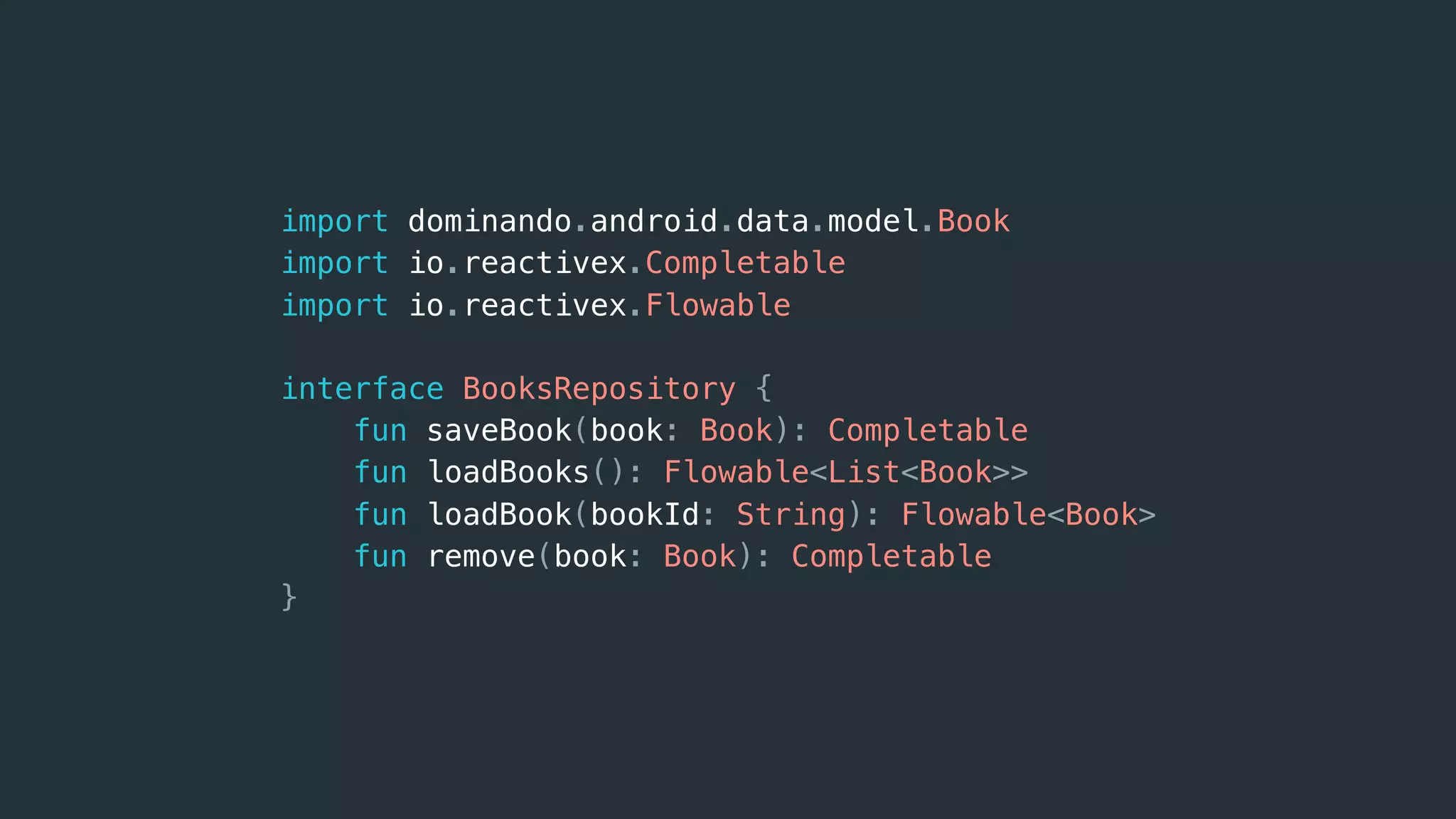

import dominando.android.data.model.Book
import io.reactivex.Completable
import io.reactivex.Flowable
interface BooksRepository {
fun saveBook(book: Book): Completable
fun loadBooks(): Flowable<List<Book>>
fun loadBook(bookId: String): Flowable<Book>
fun remove(book: Book): Completable
}

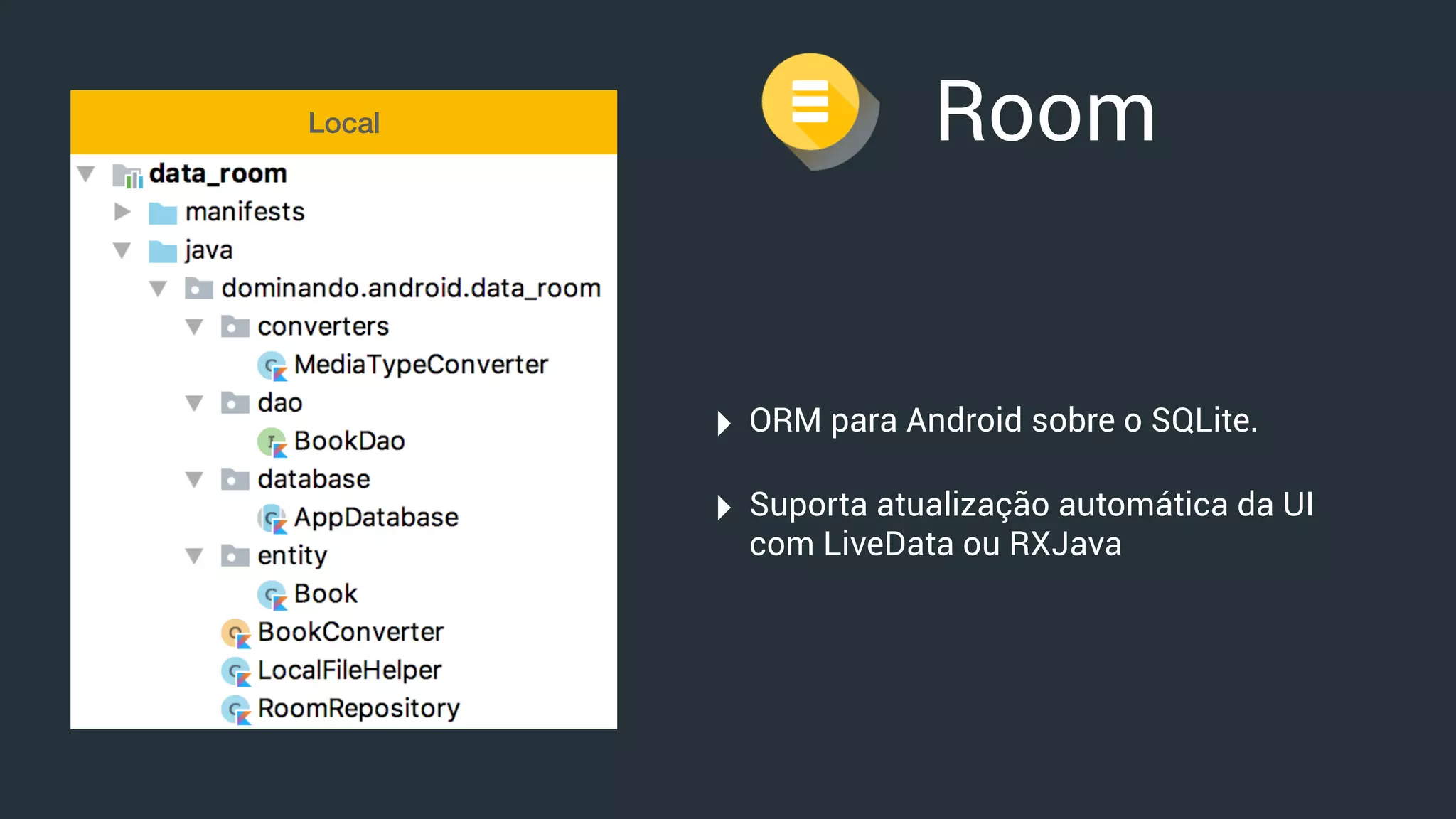

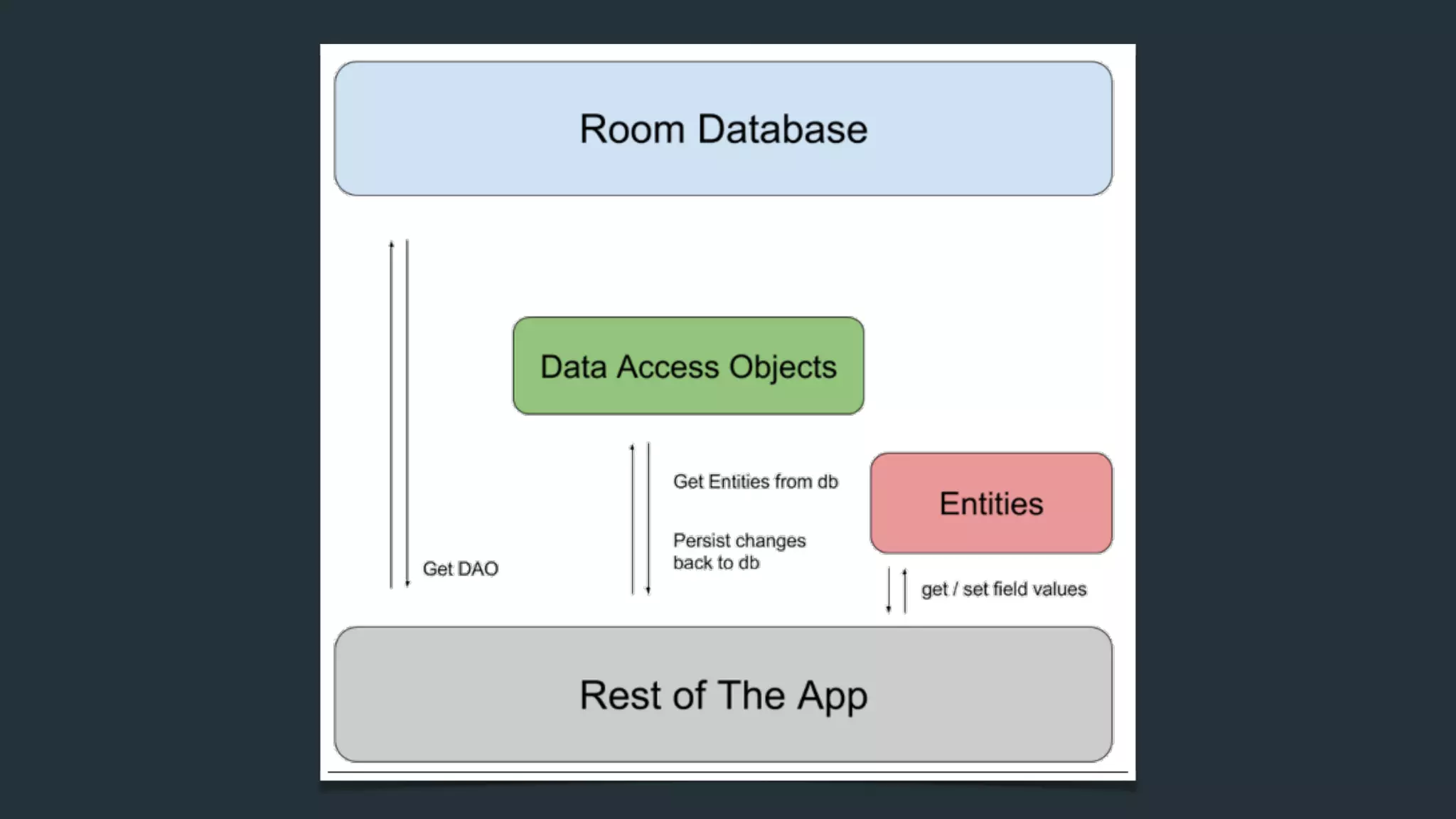

Room
‣ ORM para Android sobre o SQLite.
‣ Suporta atualização automática da UI
com LiveData ou RXJava

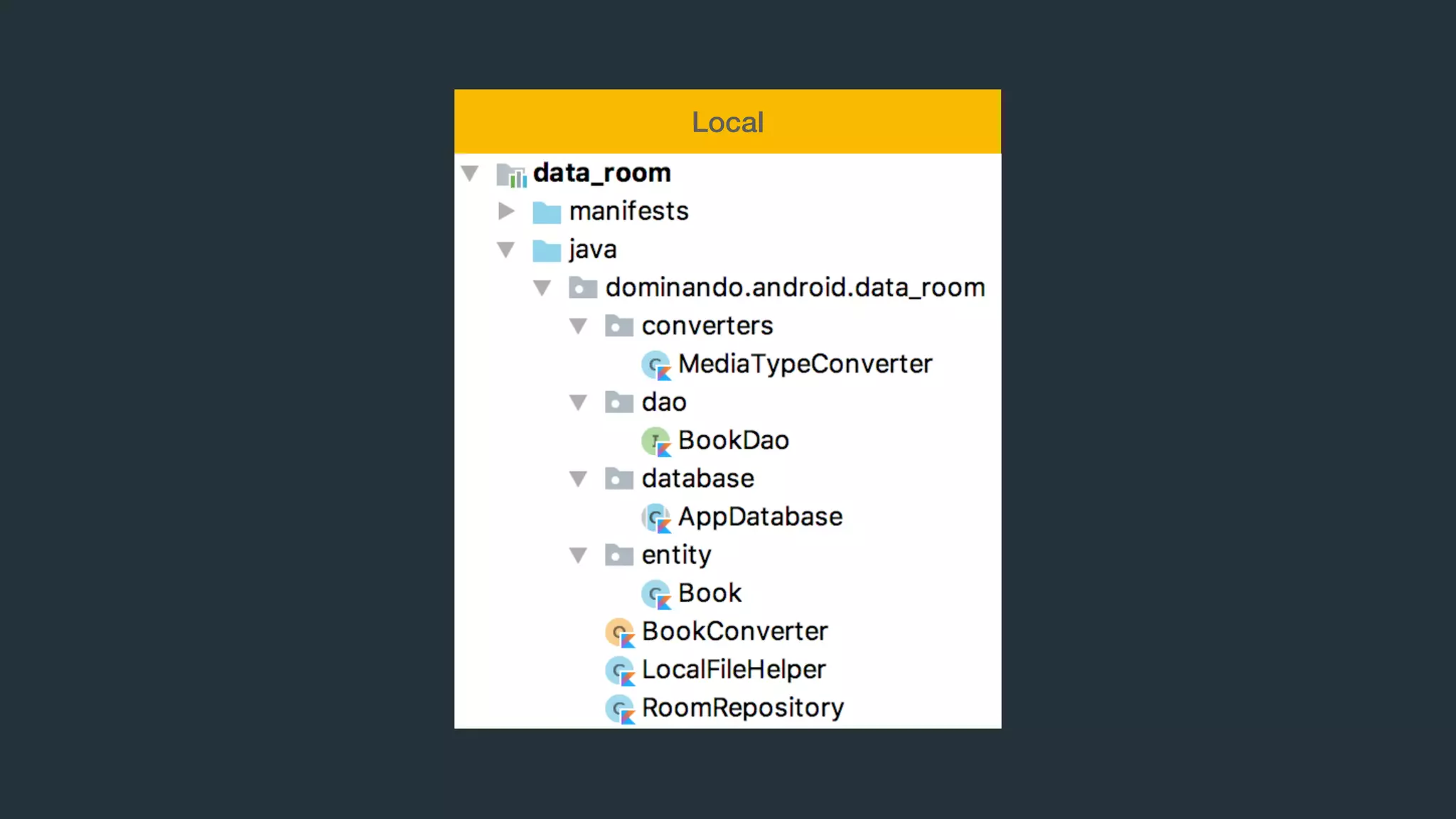

Local

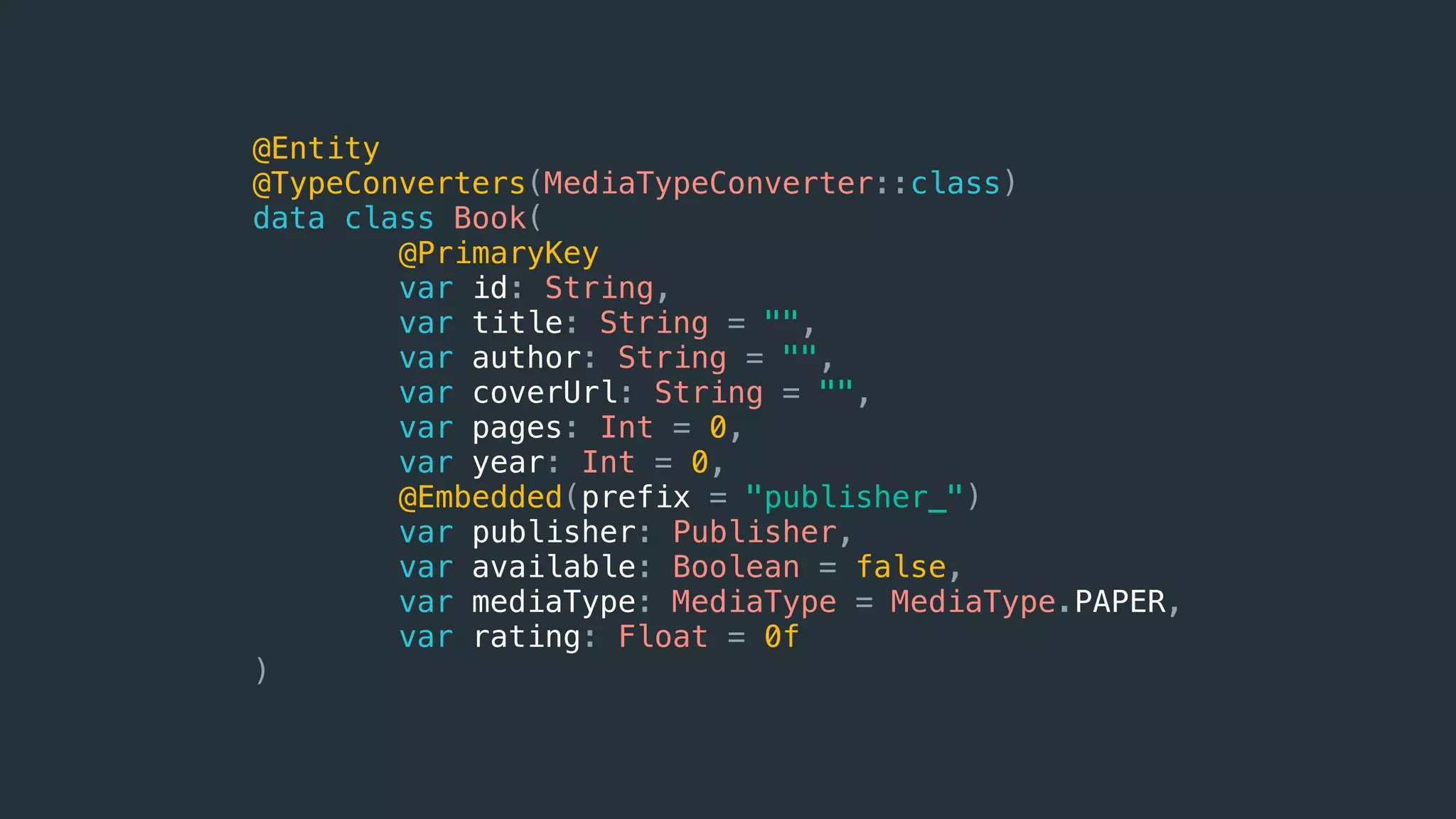

@Entity
@TypeConverters(MediaTypeConverter::class)
data class Book(
@PrimaryKey
var id: String,
var title: String = "",
var author: String = "",
var coverUrl: String = "",
var pages: Int = 0,
var year: Int = 0,
@Embedded(prefix = "publisher_")
var publisher: Publisher,
var available: Boolean = false,
var mediaType: MediaType = MediaType.PAPER,
var rating: Float = 0f
)

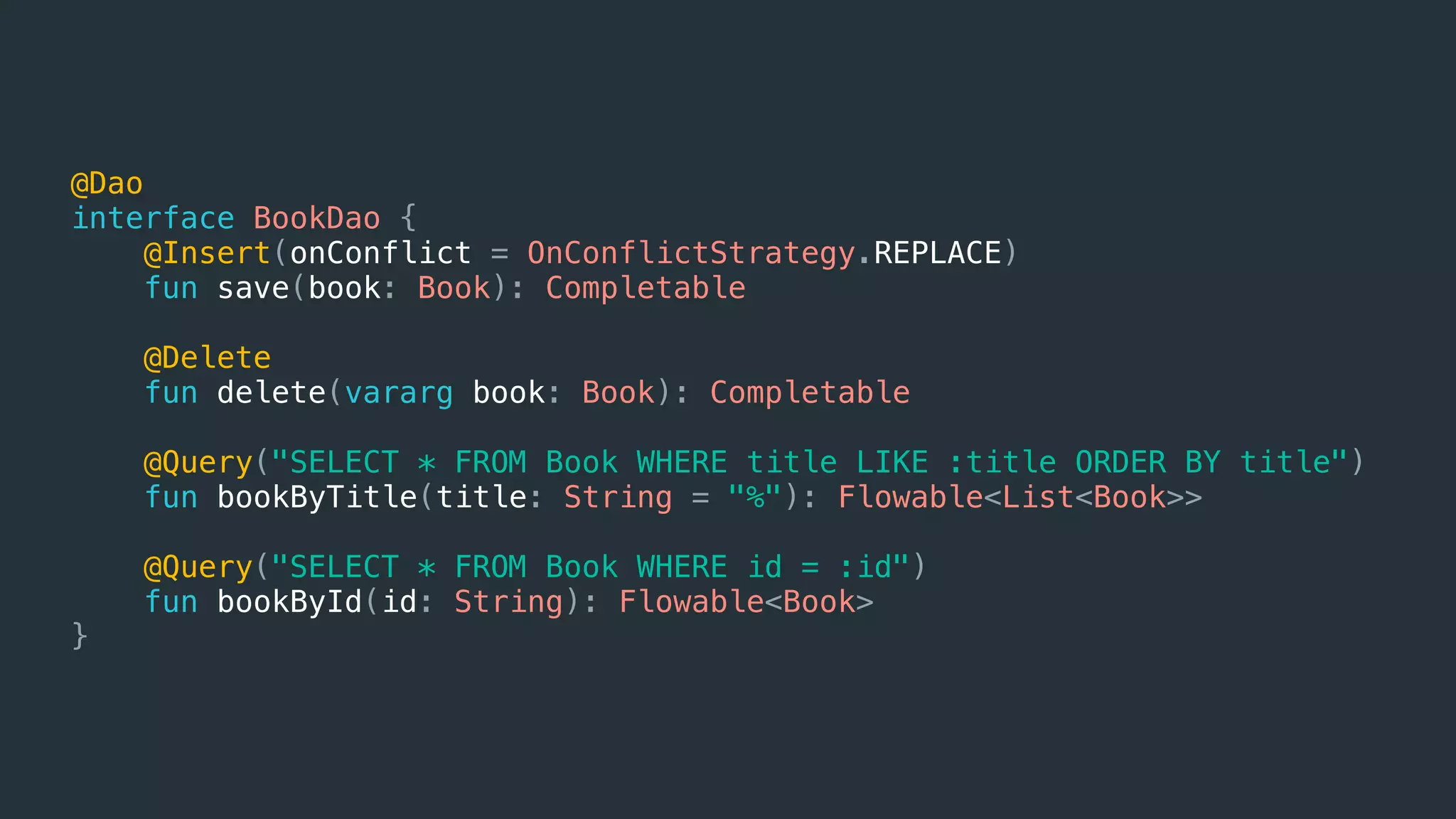

@Dao
interface BookDao {
@Insert(onConflict = OnConflictStrategy.REPLACE)
fun save(book: Book): Completable
@Delete
fun delete(vararg book: Book): Completable
@Query("SELECT * FROM Book WHERE title LIKE :title ORDER BY title")
fun bookByTitle(title: String = "%"): Flowable<List<Book>>
@Query("SELECT * FROM Book WHERE id = :id")
fun bookById(id: String): Flowable<Book>
}

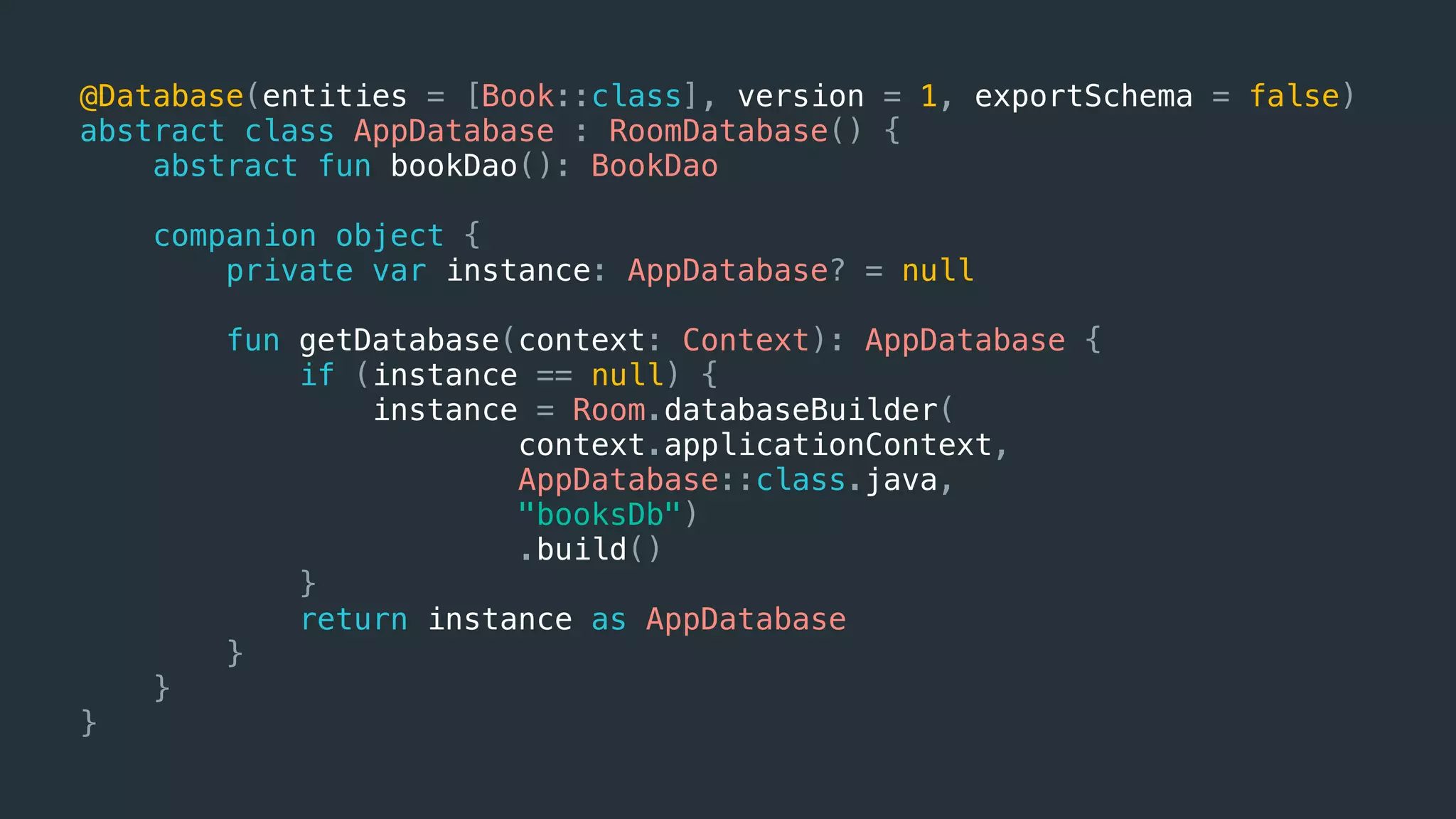

@Database(entities = [Book::class], version = 1, exportSchema = false)
abstract class AppDatabase : RoomDatabase() {
abstract fun bookDao(): BookDao
companion object {
private var instance: AppDatabase? = null
fun getDatabase(context: Context): AppDatabase {
if (instance == null) {
instance = Room.databaseBuilder(
context.applicationContext,
AppDatabase::class.java,
"booksDb")
.build()
}
return instance as AppDatabase
}
}
}

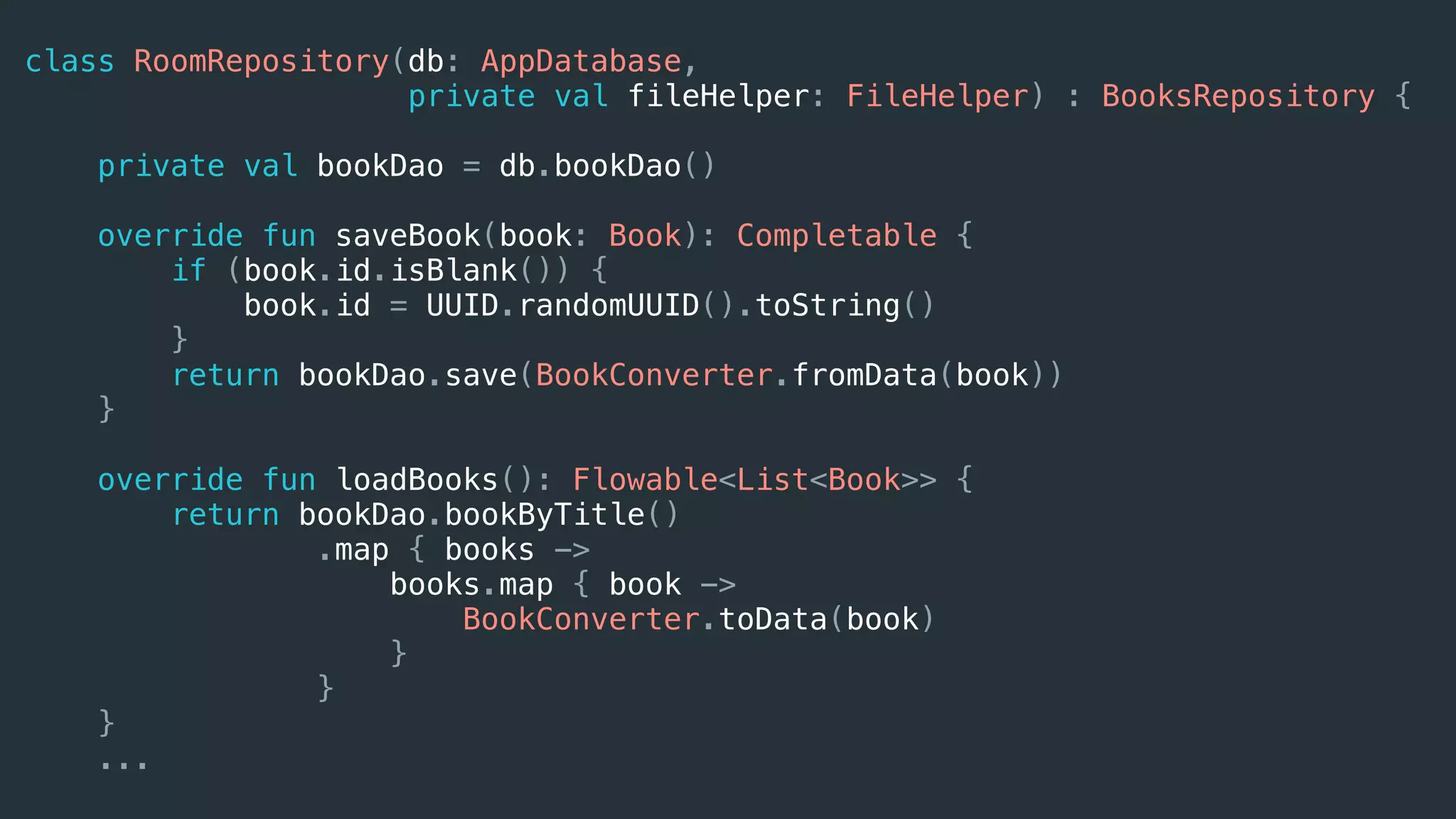

class RoomRepository(db: AppDatabase,
private val fileHelper: FileHelper) : BooksRepository {
private val bookDao = db.bookDao()
override fun saveBook(book: Book): Completable {
if (book.id.isBlank()) {
book.id = UUID.randomUUID().toString()
}
return bookDao.save(BookConverter.fromData(book))
}
override fun loadBooks(): Flowable<List<Book>> {
return bookDao.bookByTitle()
.map { books ->
books.map { book ->
BookConverter.toData(book)
}
}
}
...

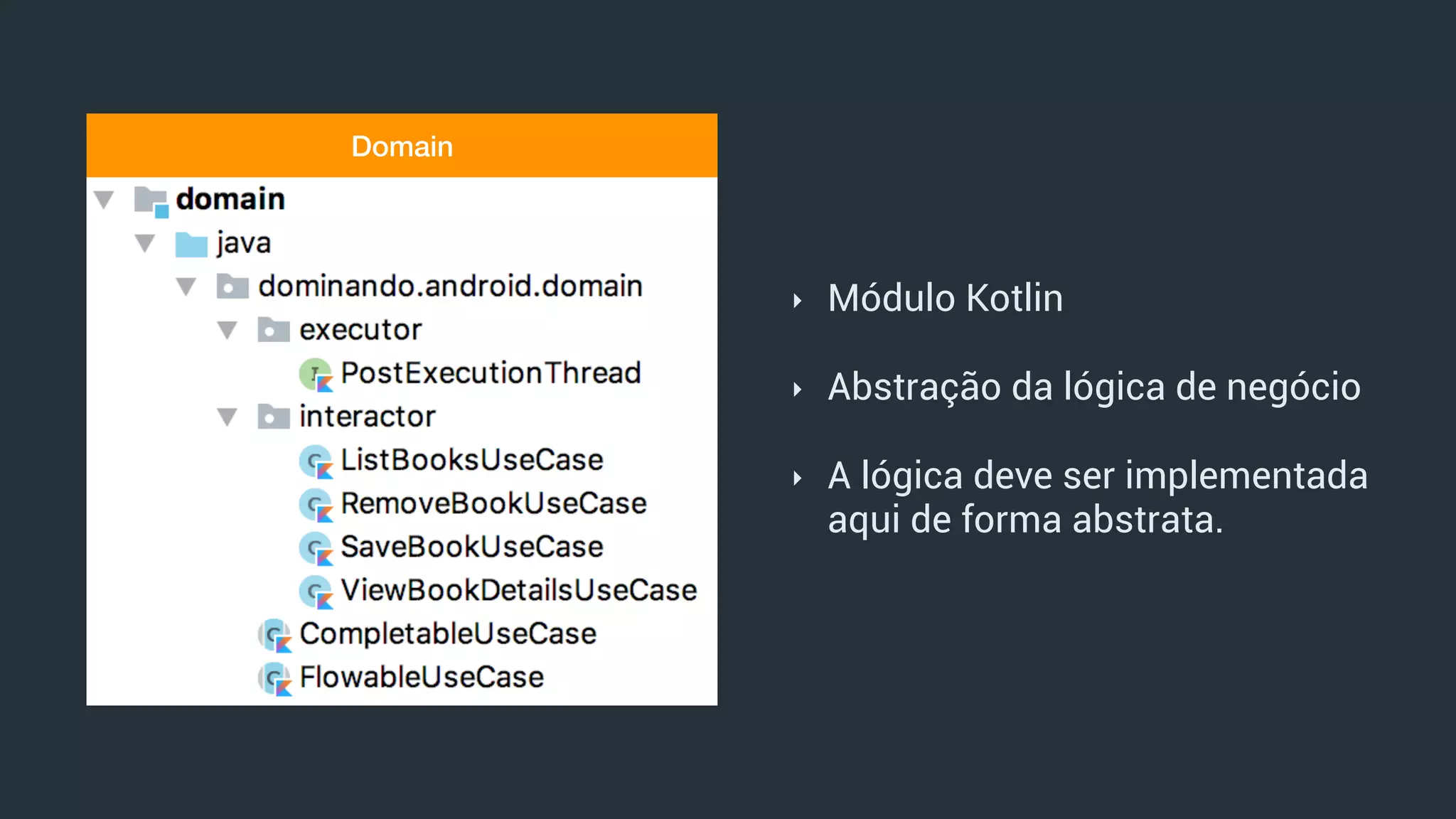

‣ Módulo Kotlin
‣ Abstração da lógica de negócio
‣ A lógica deve ser implementada
aqui de forma abstrata.
Domain

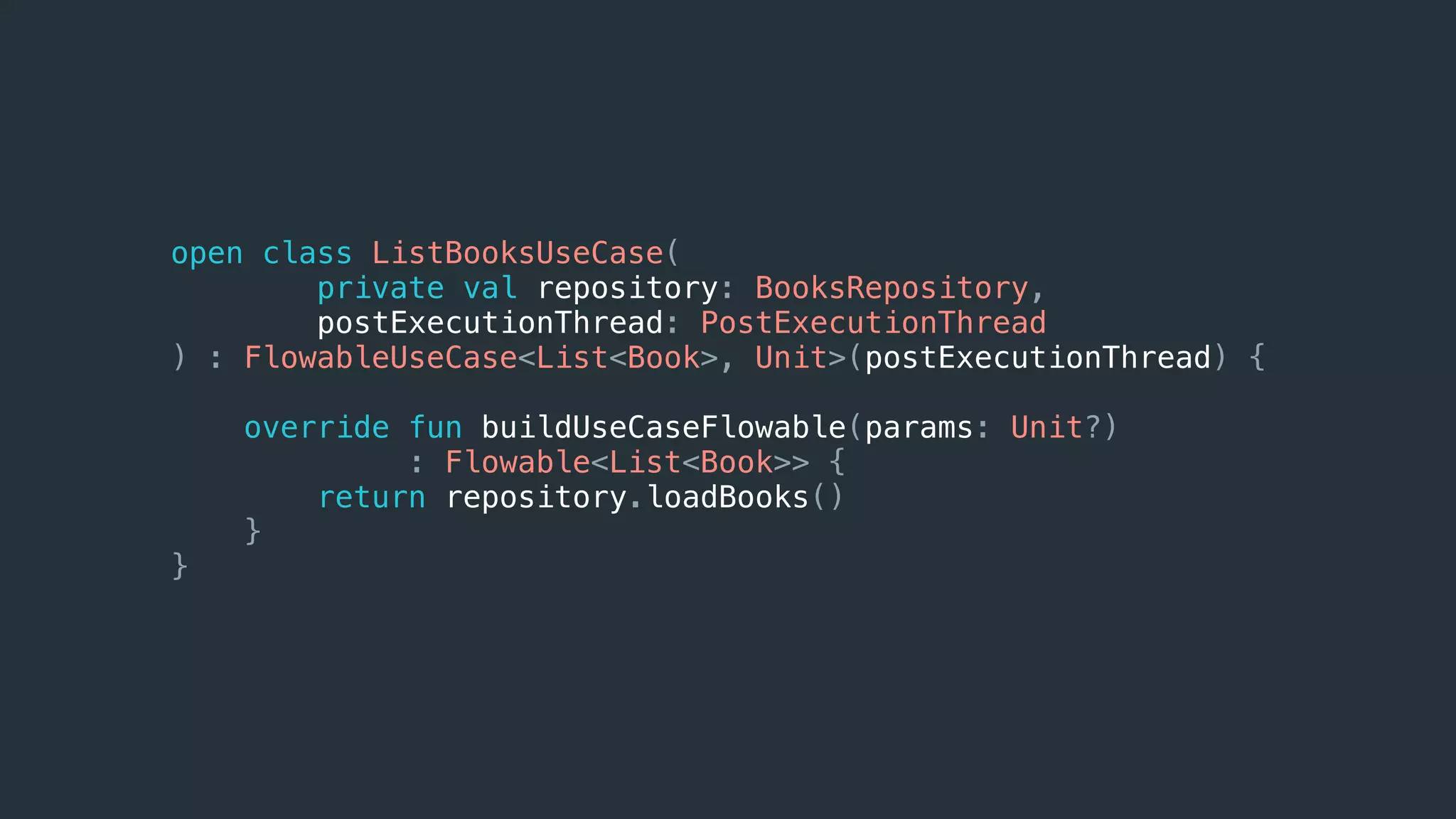

open class ListBooksUseCase(
private val repository: BooksRepository,
postExecutionThread: PostExecutionThread
) : FlowableUseCase<List<Book>, Unit>(postExecutionThread) {
override fun buildUseCaseFlowable(params: Unit?)
: Flowable<List<Book>> {
return repository.loadBooks()
}
}

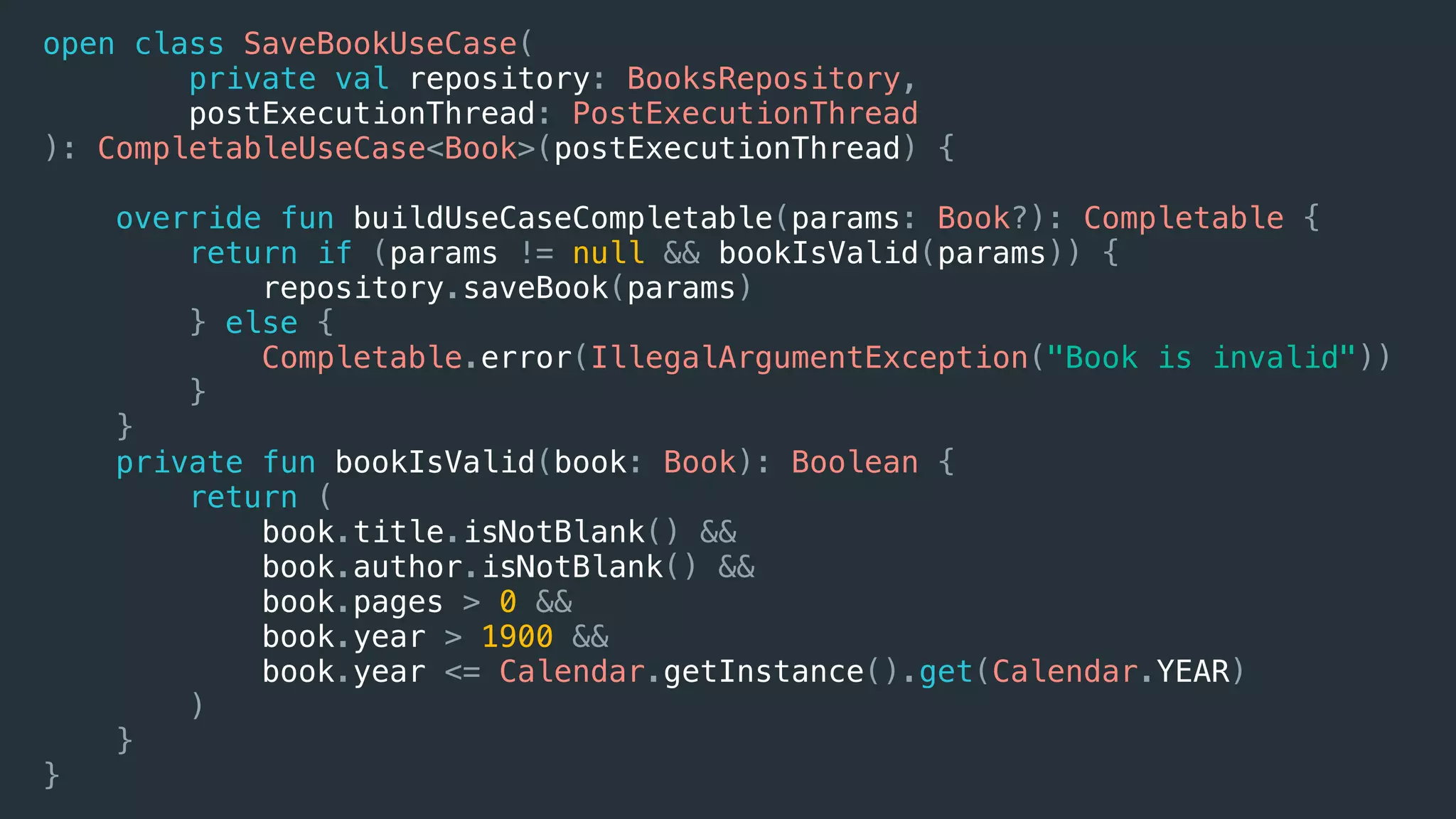

open class SaveBookUseCase(
private val repository: BooksRepository,
postExecutionThread: PostExecutionThread
): CompletableUseCase<Book>(postExecutionThread) {
override fun buildUseCaseCompletable(params: Book?): Completable {
return if (params != null && bookIsValid(params)) {
repository.saveBook(params)
} else {
Completable.error(IllegalArgumentException("Book is invalid"))
}
}
private fun bookIsValid(book: Book): Boolean {
return (
book.title.isNotBlank() &&
book.author.isNotBlank() &&
book.pages > 0 &&
book.year > 1900 &&
book.year <= Calendar.getInstance().get(Calendar.YEAR)
)
}
}

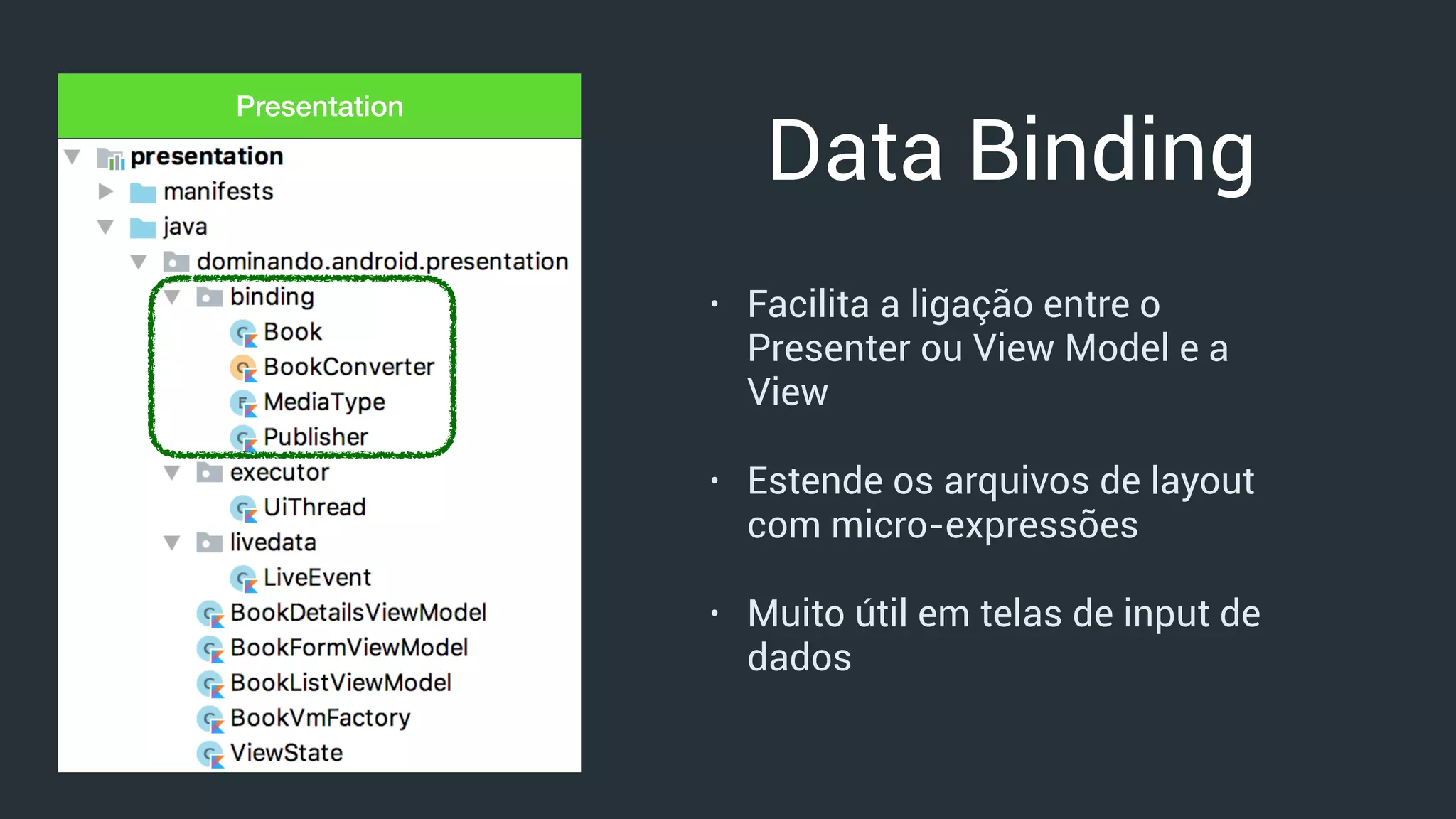

Presentation

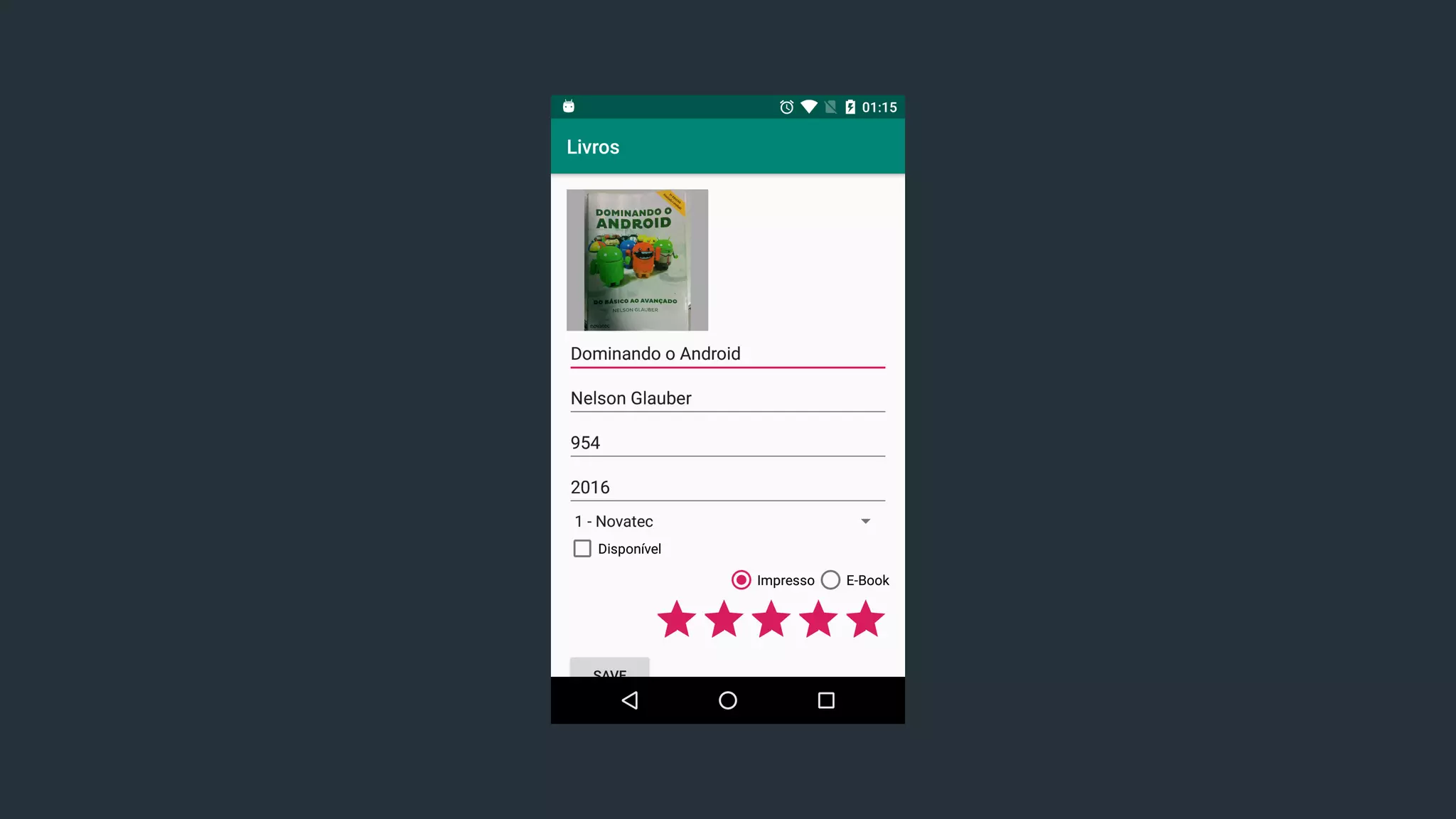

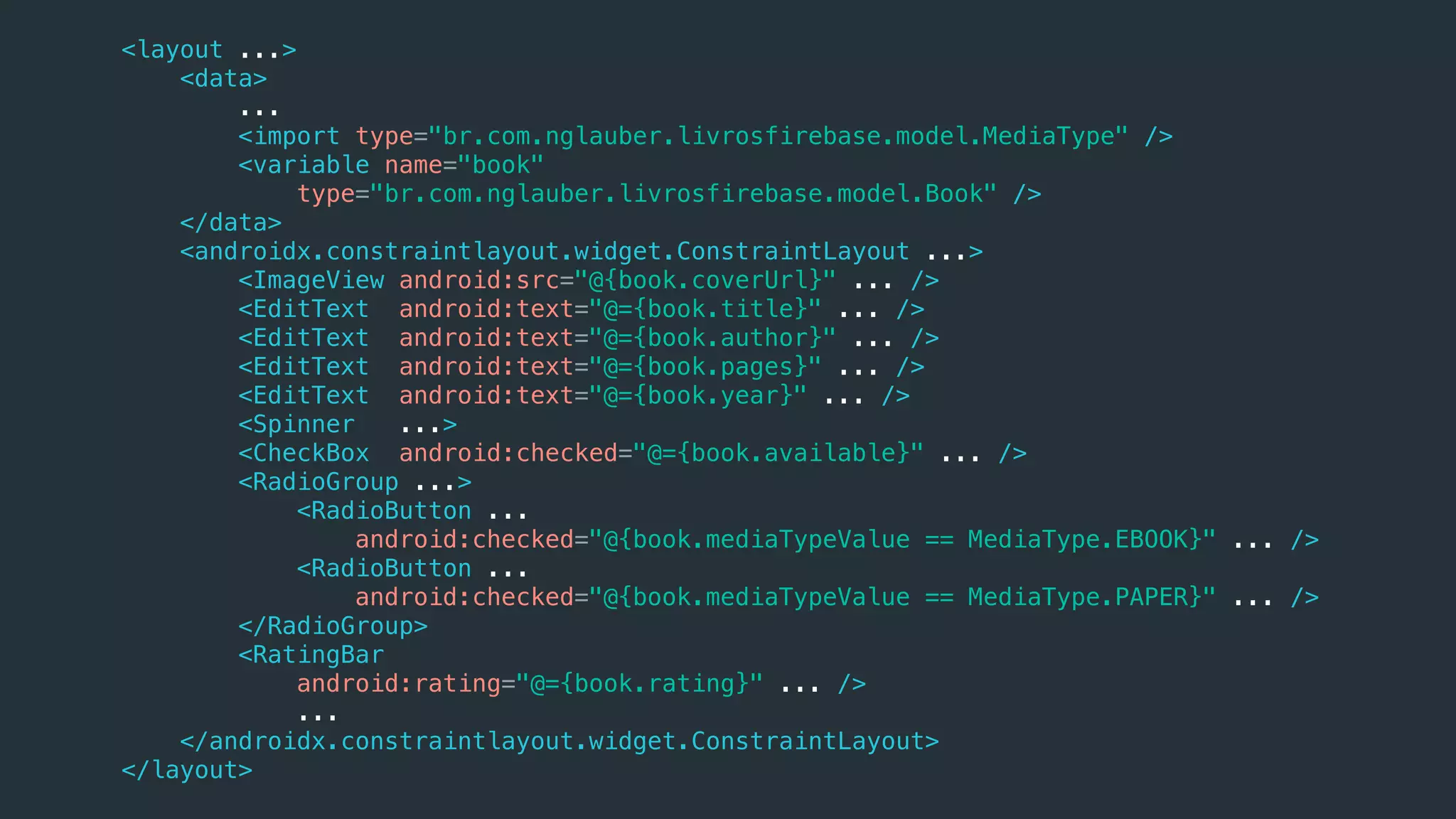

Data Binding
• Facilita a ligação entre o
Presenter ou View Model e a
View
• Estende os arquivos de layout
com micro-expressões
• Muito útil em telas de input de
dados

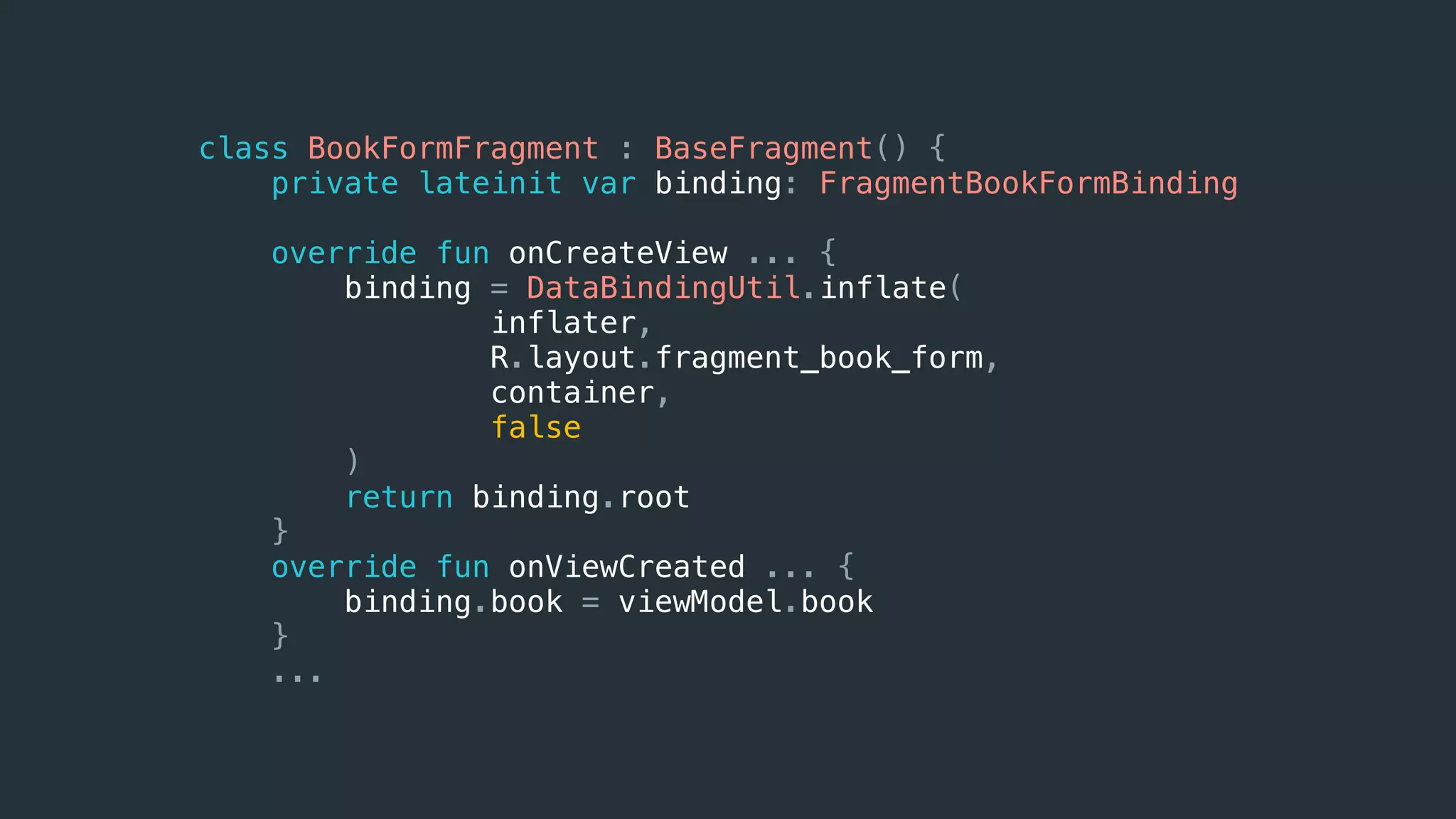

class BookFormFragment : BaseFragment() {
private lateinit var binding: FragmentBookFormBinding
override fun onCreateView ... {
binding = DataBindingUtil.inflate(
inflater,
R.layout.fragment_book_form,
container,
false
)
return binding.root
}
override fun onViewCreated ... {
binding.book = viewModel.book
}
...

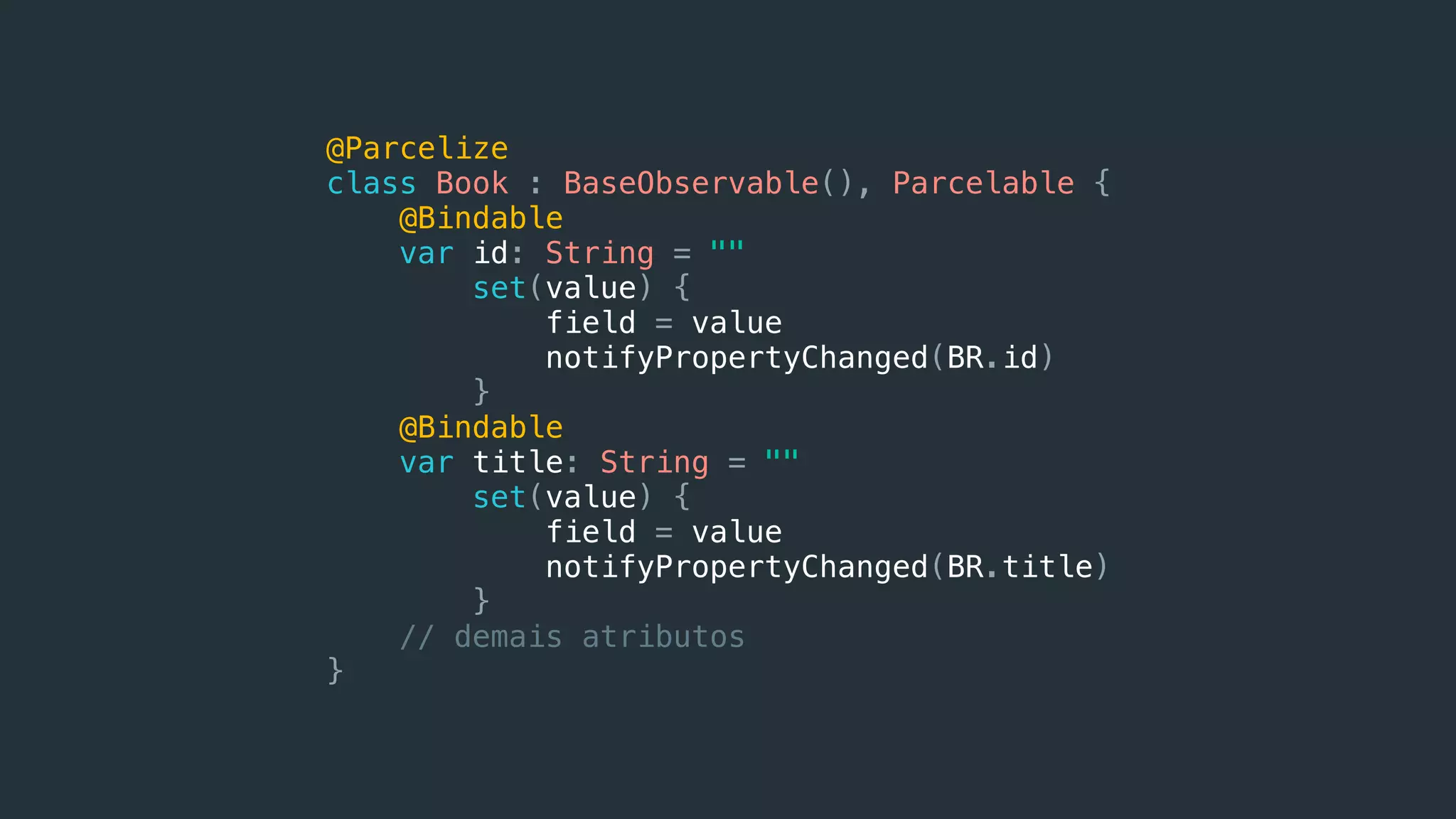

@Parcelize
class Book : BaseObservable(), Parcelable {
@Bindable
var id: String = ""
set(value) {
field = value
notifyPropertyChanged(BR.id)
}
@Bindable
var title: String = ""
set(value) {
field = value
notifyPropertyChanged(BR.title)
}
// demais atributos
}

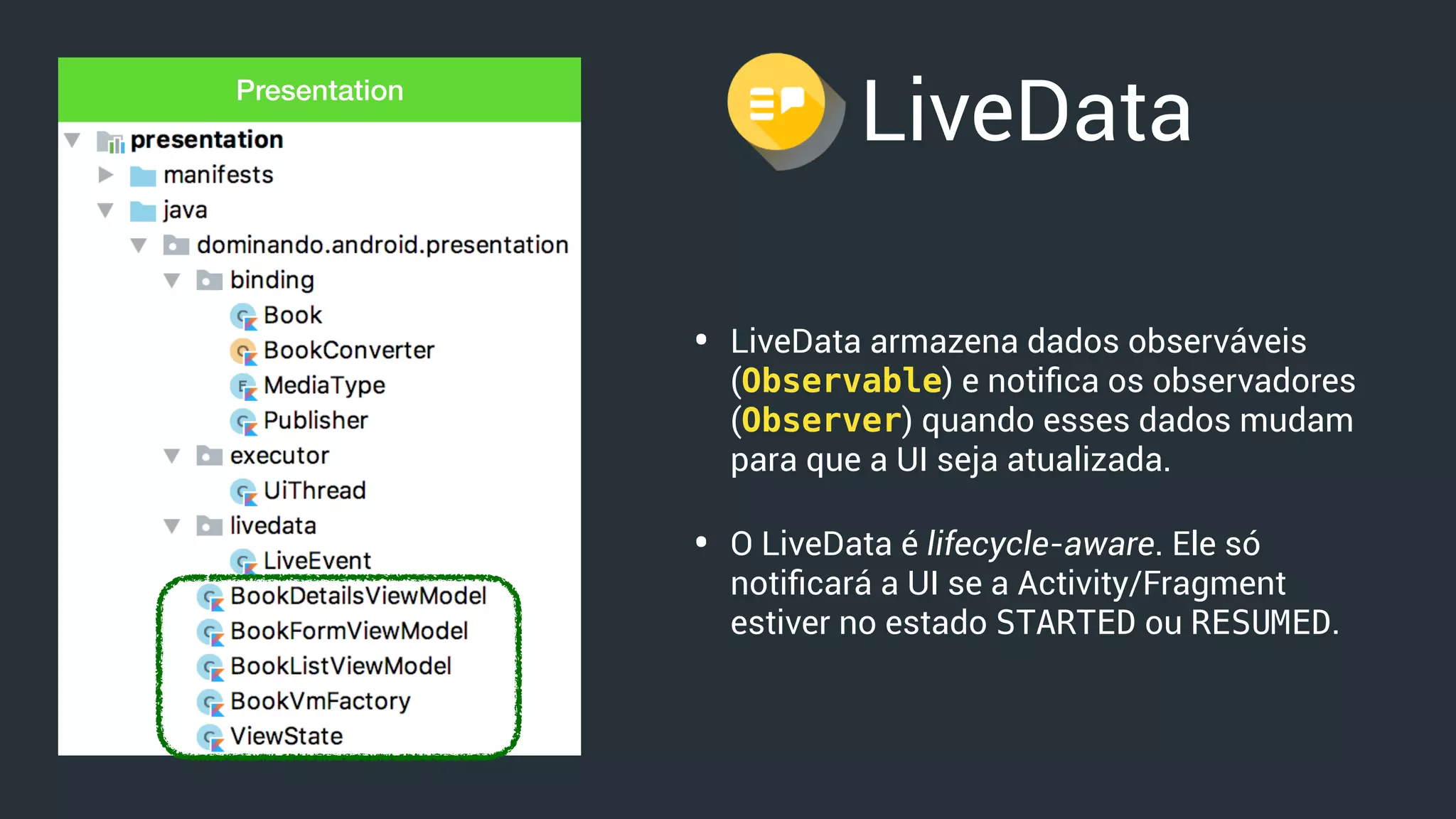

LiveData
• LiveData armazena dados observáveis
(Observable) e notiﬁca os observadores
(Observer) quando esses dados mudam
para que a UI seja atualizada.
• O LiveData é lifecycle-aware. Ele só
notiﬁcará a UI se a Activity/Fragment
estiver no estado STARTED ou RESUMED.

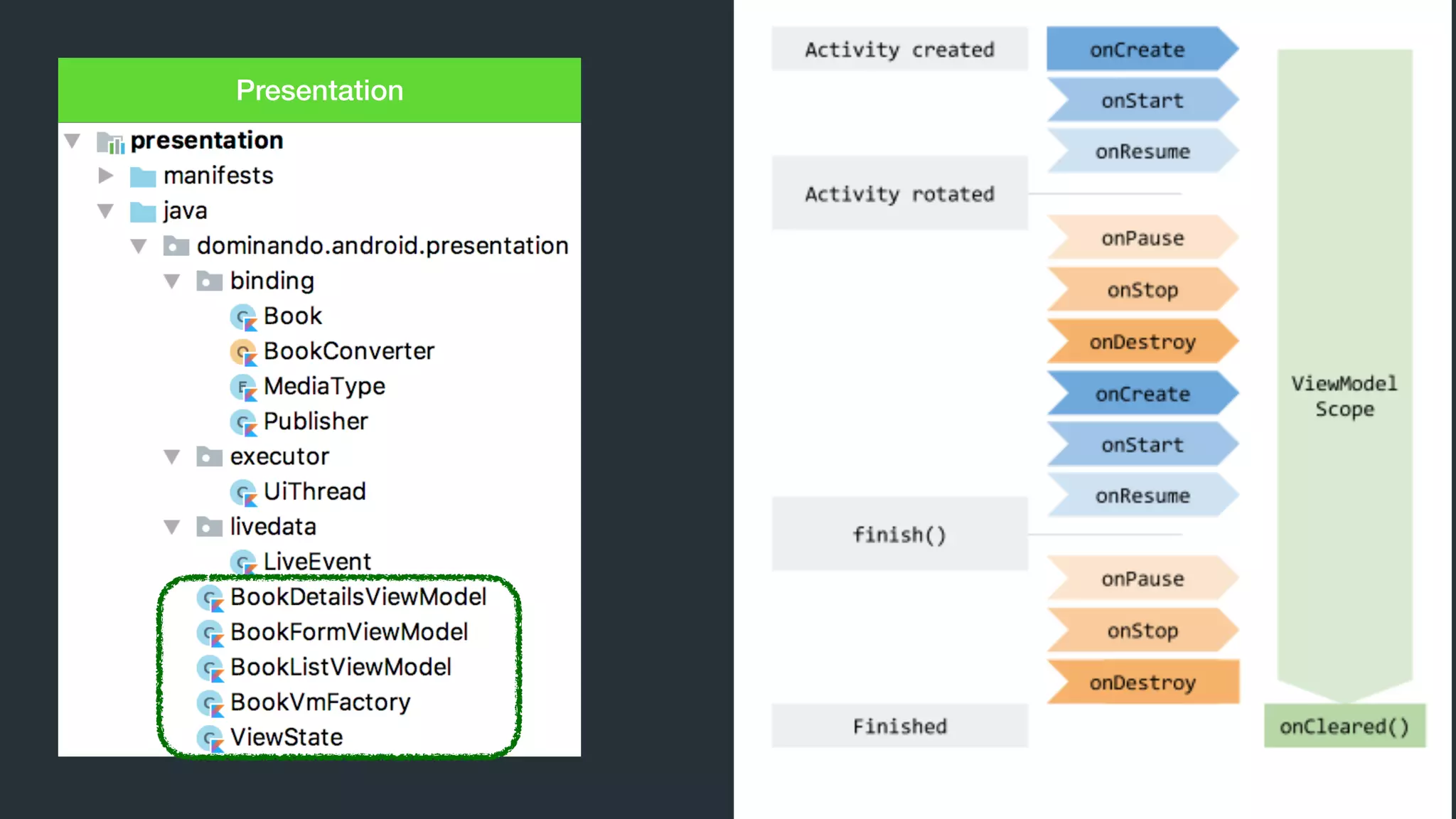

Presentation

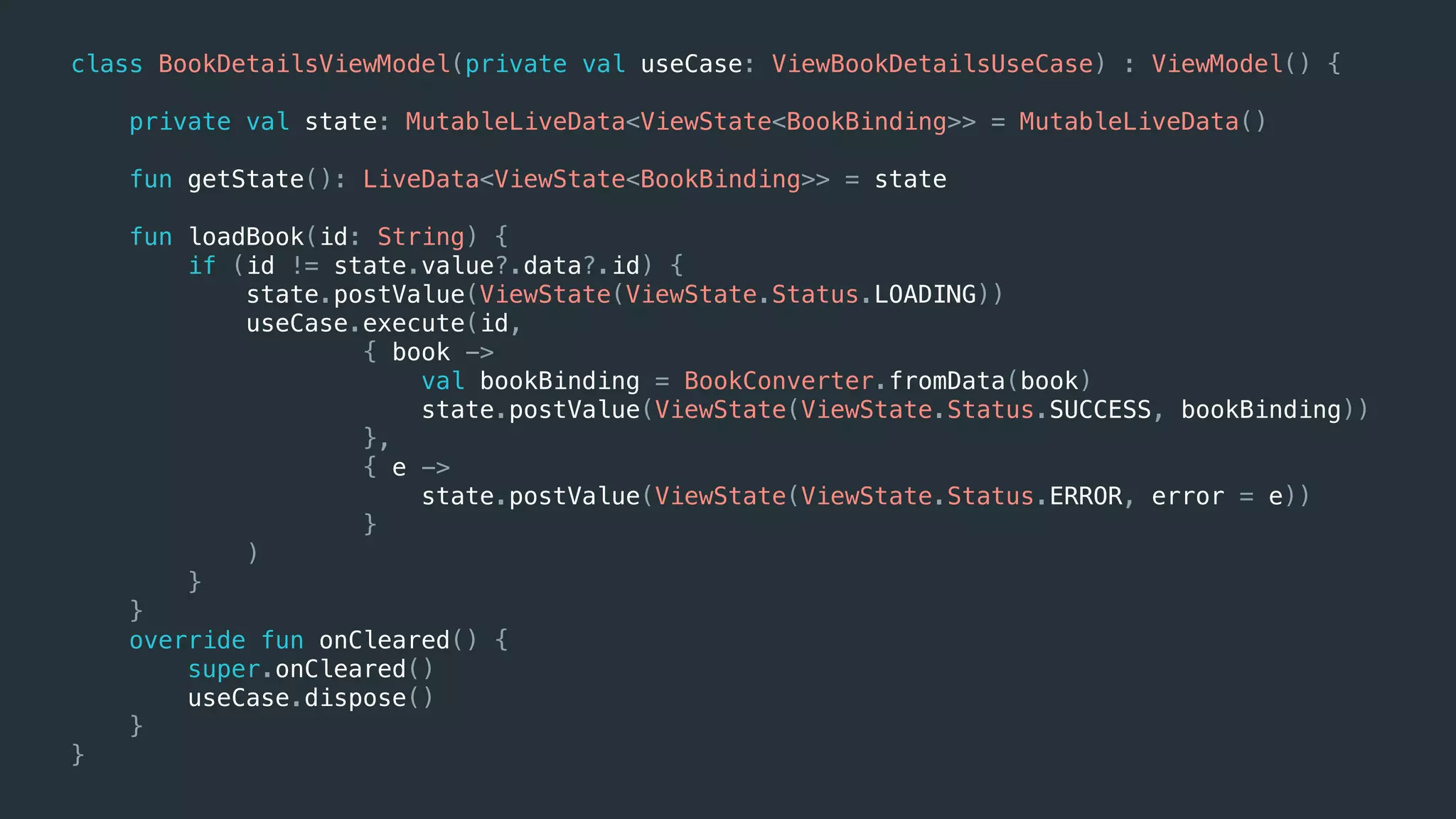

class BookDetailsViewModel(private val useCase: ViewBookDetailsUseCase) : ViewModel() {
private val state: MutableLiveData<ViewState<BookBinding>> = MutableLiveData()
fun getState(): LiveData<ViewState<BookBinding>> = state
fun loadBook(id: String) {
if (id != state.value?.data?.id) {
state.postValue(ViewState(ViewState.Status.LOADING))
useCase.execute(id,
{ book ->
val bookBinding = BookConverter.fromData(book)
state.postValue(ViewState(ViewState.Status.SUCCESS, bookBinding))
},
{ e ->
state.postValue(ViewState(ViewState.Status.ERROR, error = e))
}
)
}
}
override fun onCleared() {
super.onCleared()
useCase.dispose()
}
}

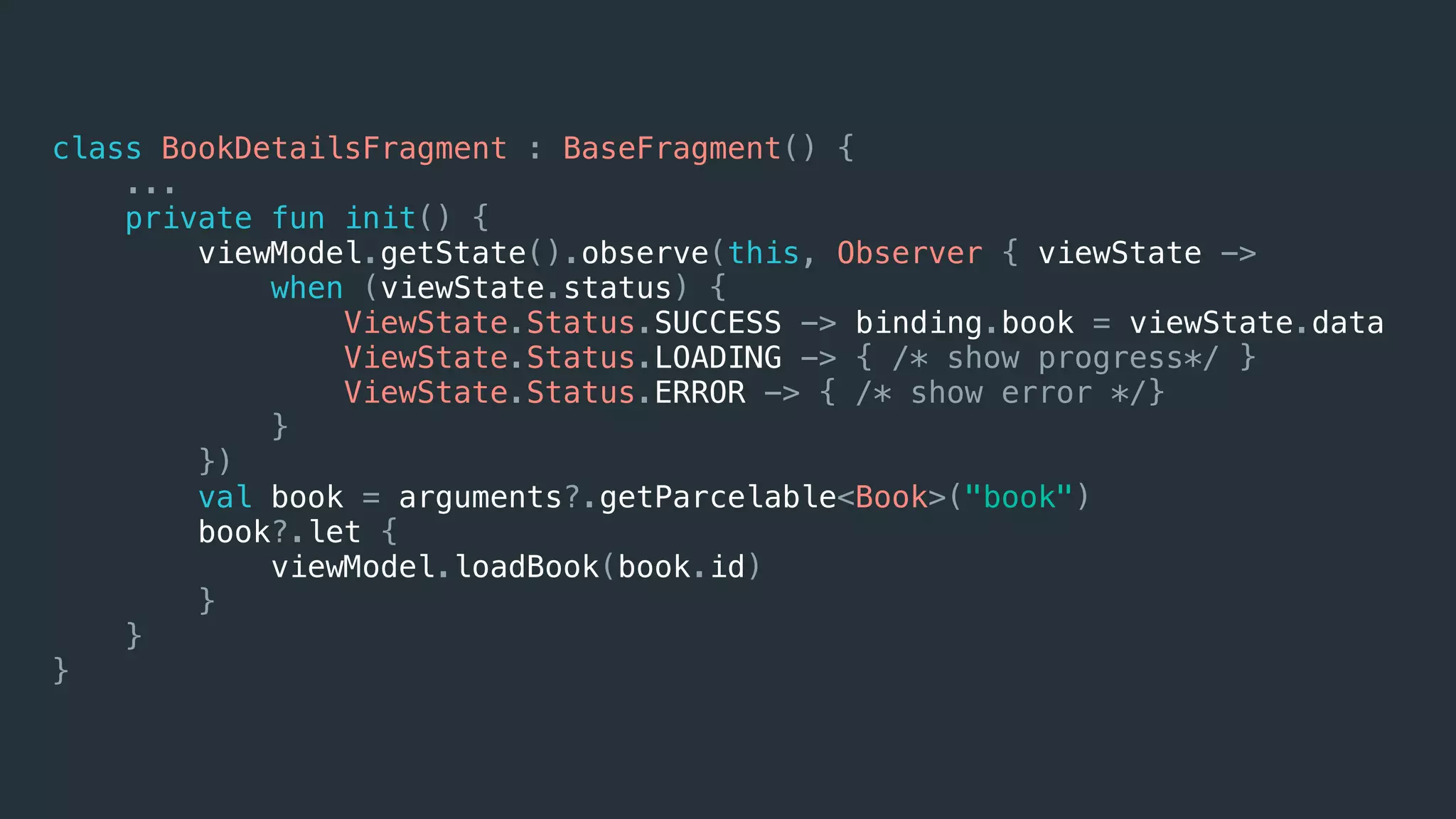

class BookDetailsFragment : BaseFragment() {
...
private fun init() {
viewModel.getState().observe(this, Observer { viewState ->
when (viewState.status) {
ViewState.Status.SUCCESS -> binding.book = viewState.data
ViewState.Status.LOADING -> { /* show progress*/ }
ViewState.Status.ERROR -> { /* show error */}
}
})
val book = arguments?.getParcelable<Book>("book")
book?.let {
viewModel.loadBook(book.id)
}
}
}

Presentation

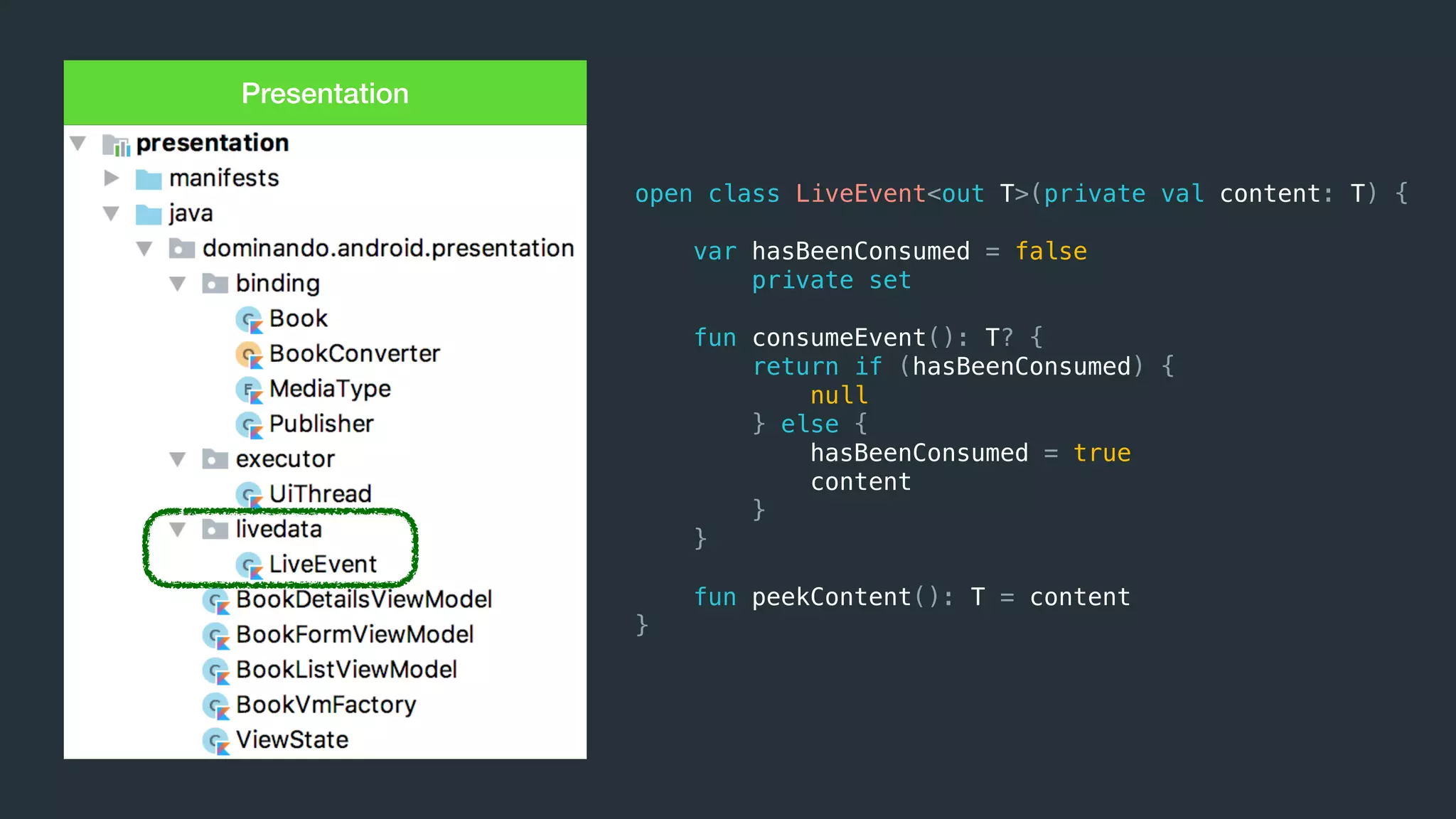

open class LiveEvent<out T>(private val content: T) {
var hasBeenConsumed = false
private set
fun consumeEvent(): T? {
return if (hasBeenConsumed) {
null
} else {
hasBeenConsumed = true
content
}
}
fun peekContent(): T = content
}

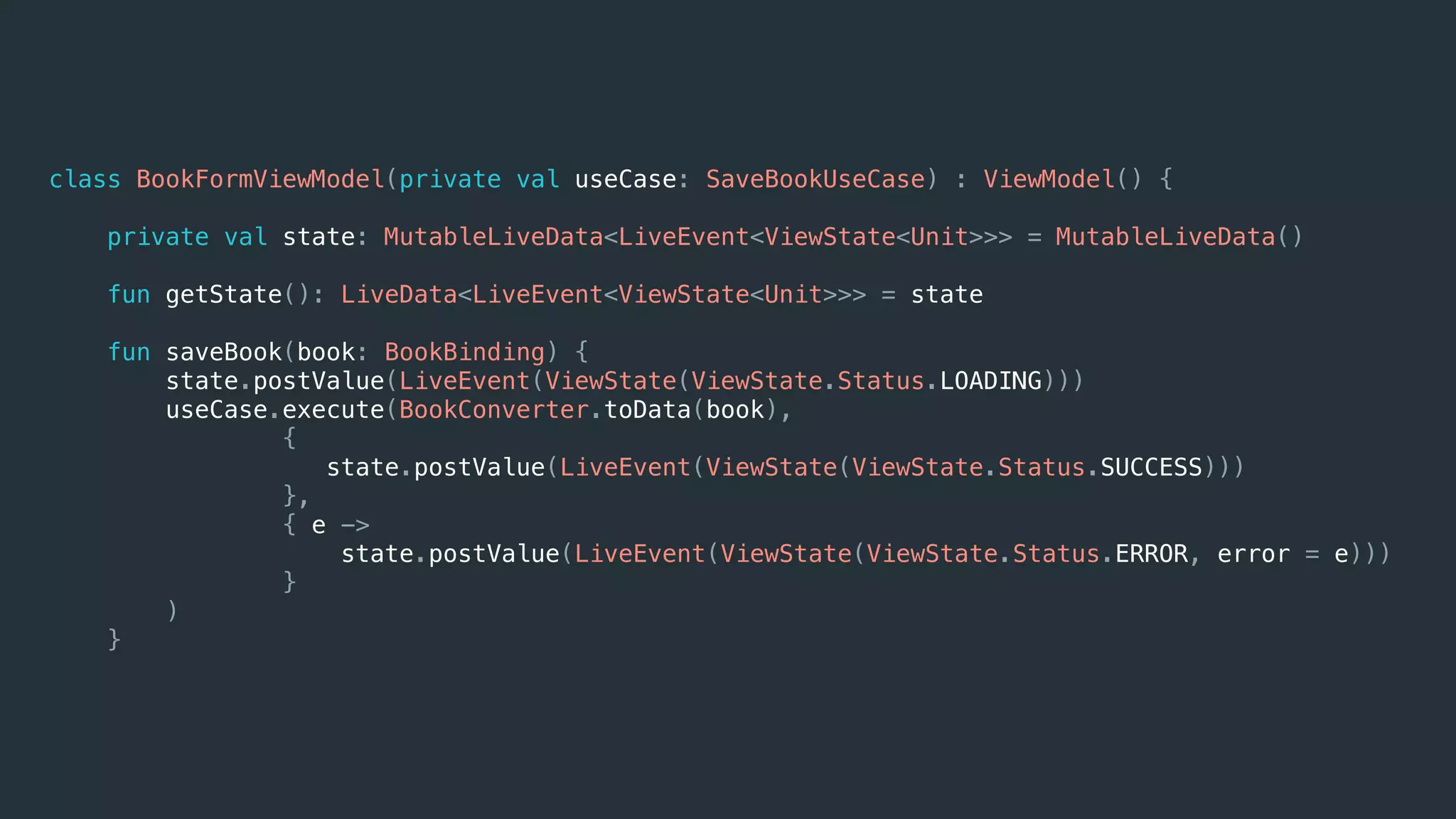

class BookFormViewModel(private val useCase: SaveBookUseCase) : ViewModel() {
private val state: MutableLiveData<LiveEvent<ViewState<Unit>>> = MutableLiveData()
fun getState(): LiveData<LiveEvent<ViewState<Unit>>> = state
fun saveBook(book: BookBinding) {
state.postValue(LiveEvent(ViewState(ViewState.Status.LOADING)))
useCase.execute(BookConverter.toData(book),
{
state.postValue(LiveEvent(ViewState(ViewState.Status.SUCCESS)))
},
{ e ->
state.postValue(LiveEvent(ViewState(ViewState.Status.ERROR, error = e)))
}
)
}

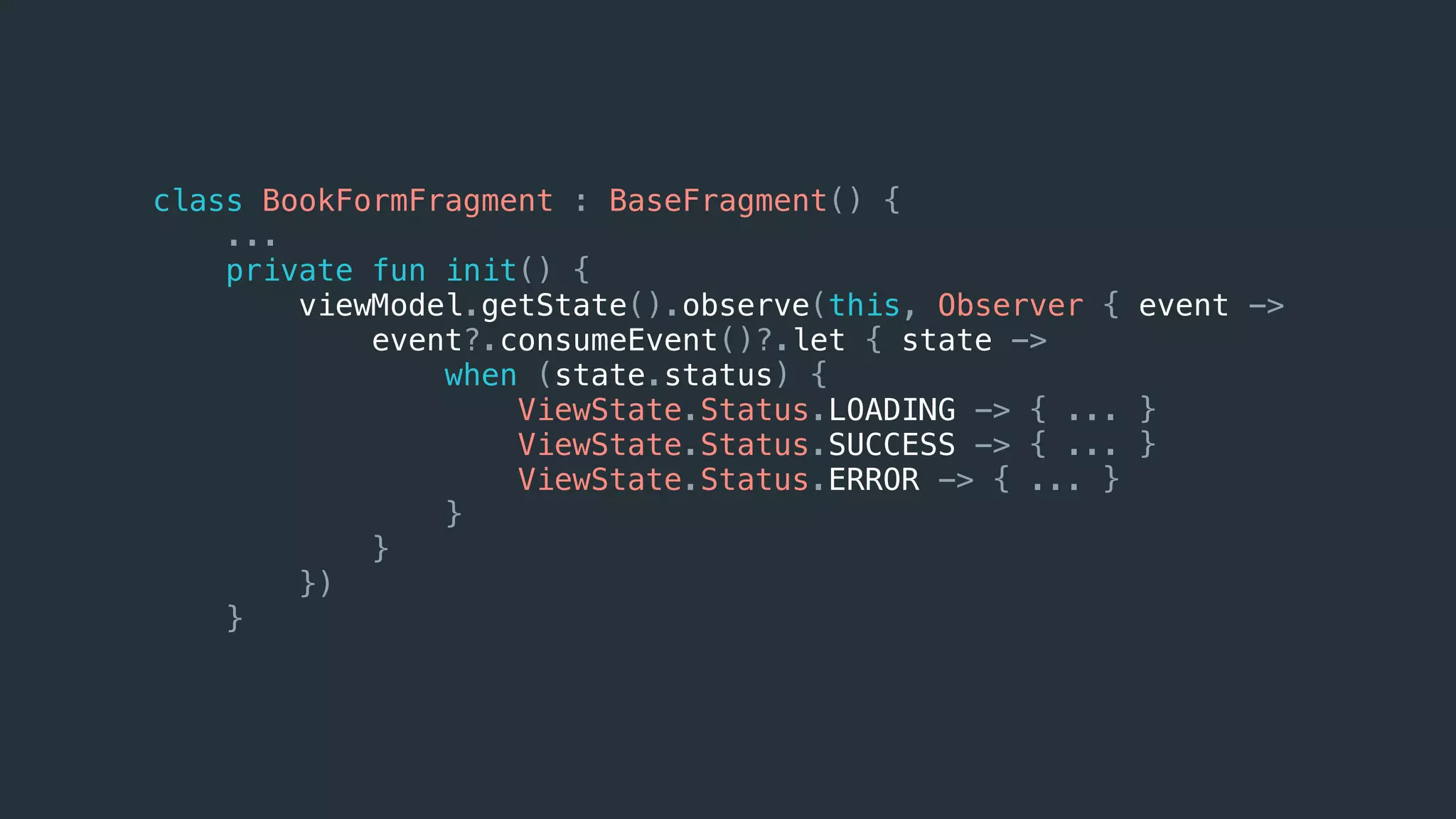

class BookFormFragment : BaseFragment() {
...
viewModel.getState().observe(this, Observer { event ->
event?.consumeEvent()?.let { state ->
when (state.status) {
ViewState.Status.LOADING -> { ... }
ViewState.Status.SUCCESS -> { ... }
ViewState.Status.ERROR -> { ... }
}
}
})
}

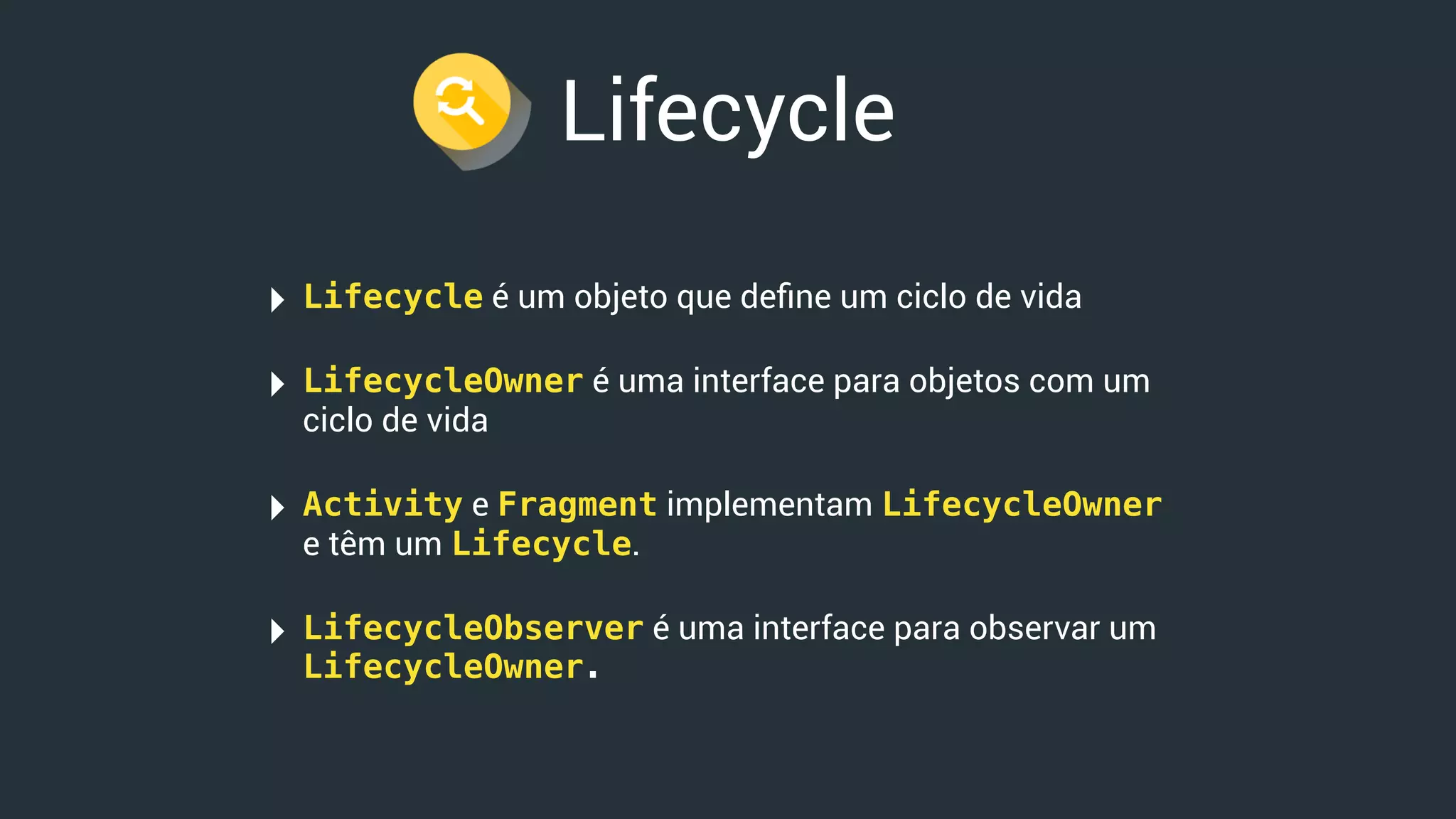

Lifecycle
‣ Lifecycle é um objeto que deﬁne um ciclo de vida
‣ LifecycleOwner é uma interface para objetos com um
ciclo de vida
‣ Activity e Fragment implementam LifecycleOwner
e têm um Lifecycle.
‣ LifecycleObserver é uma interface para observar um
LifecycleOwner.

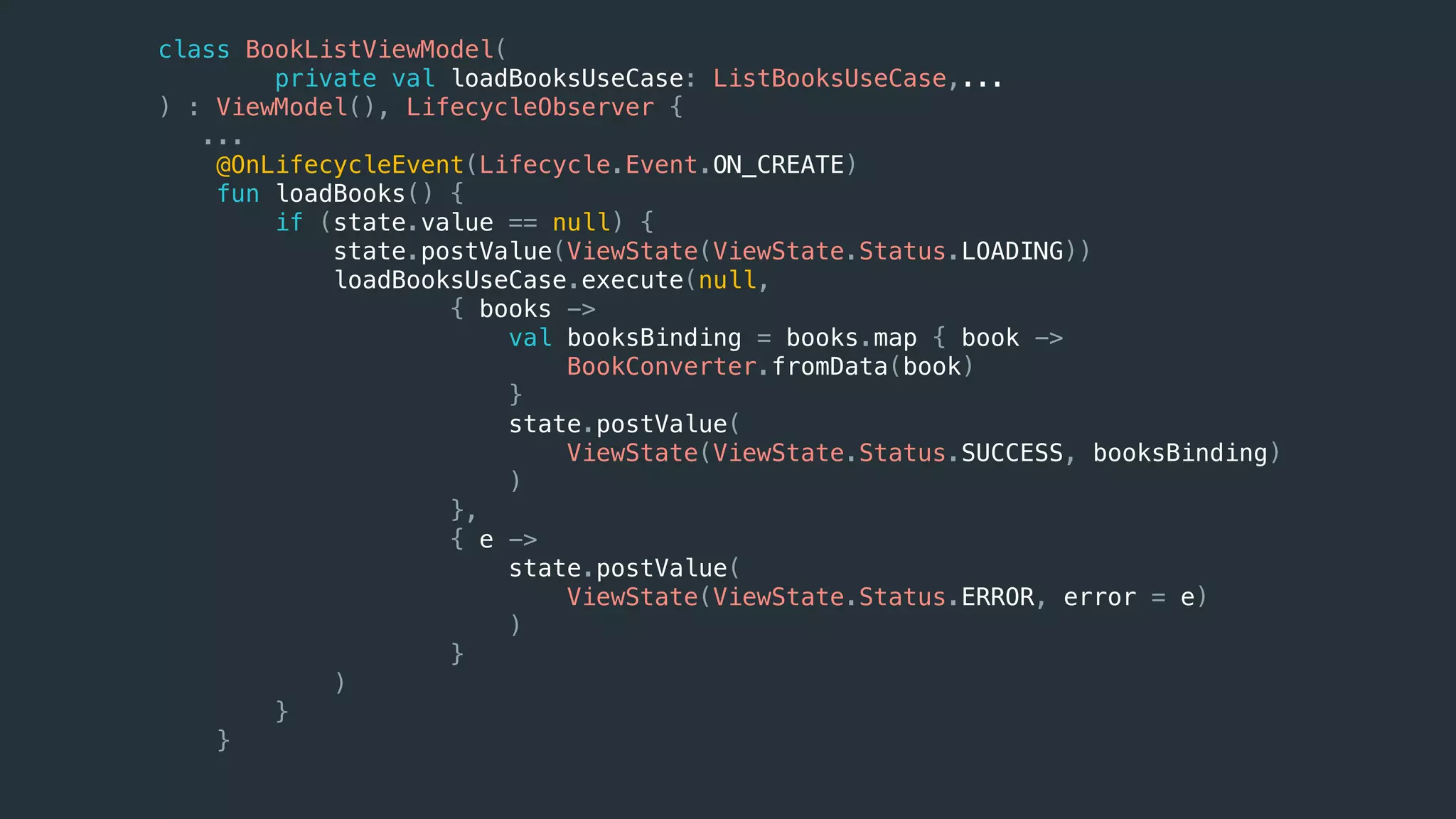

class BookListViewModel(
private val loadBooksUseCase: ListBooksUseCase,...
) : ViewModel(), LifecycleObserver {
...
@OnLifecycleEvent(Lifecycle.Event.ON_CREATE)
fun loadBooks() {
if (state.value == null) {
state.postValue(ViewState(ViewState.Status.LOADING))
loadBooksUseCase.execute(null,
{ books ->
val booksBinding = books.map { book ->
BookConverter.fromData(book)
}
state.postValue(
ViewState(ViewState.Status.SUCCESS, booksBinding)
)
},
{ e ->
state.postValue(
ViewState(ViewState.Status.ERROR, error = e)
)
}
)
}
}

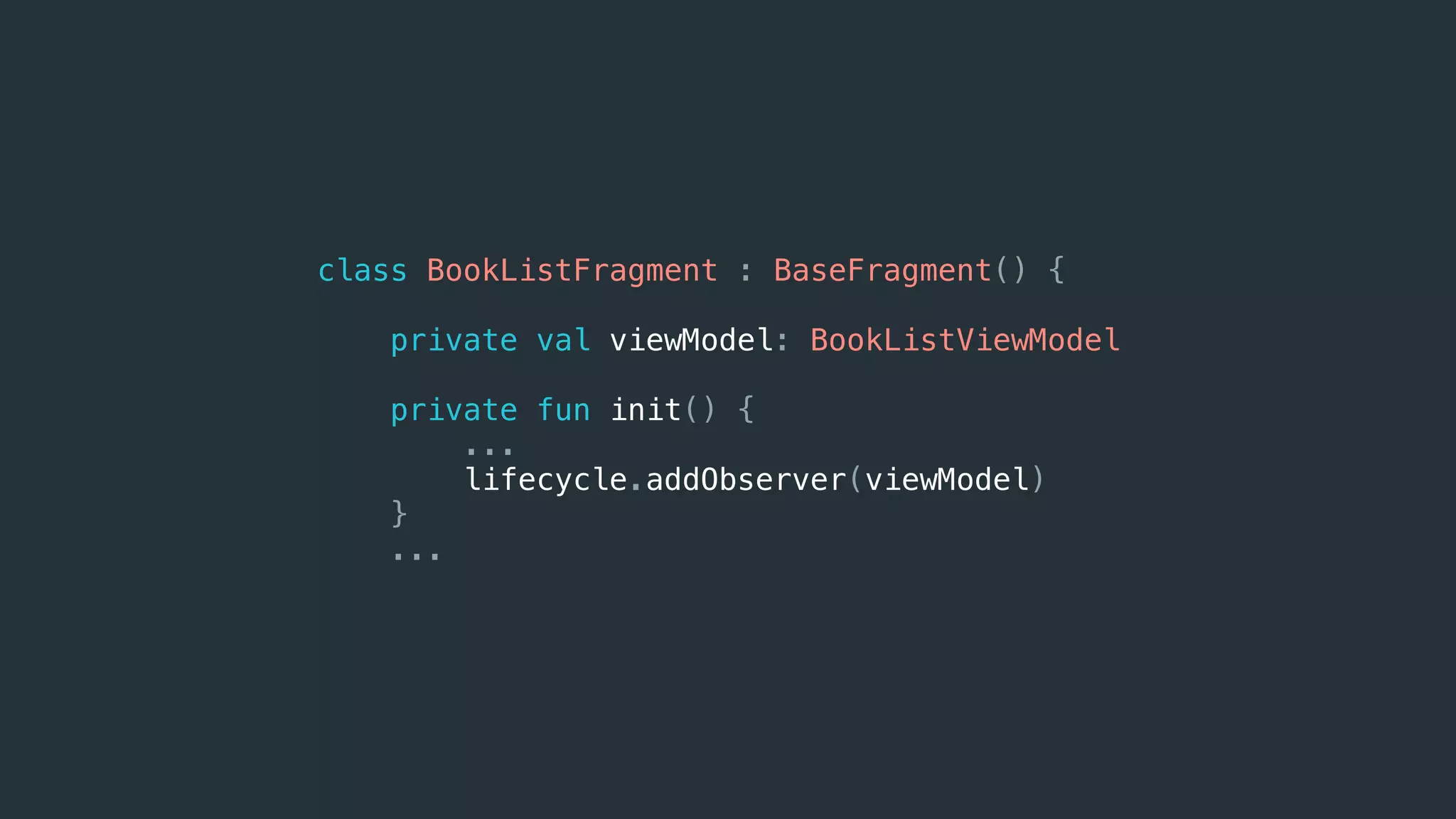

class BookListFragment : BaseFragment() {
private val viewModel: BookListViewModel
...
lifecycle.addObserver(viewModel)
}
...

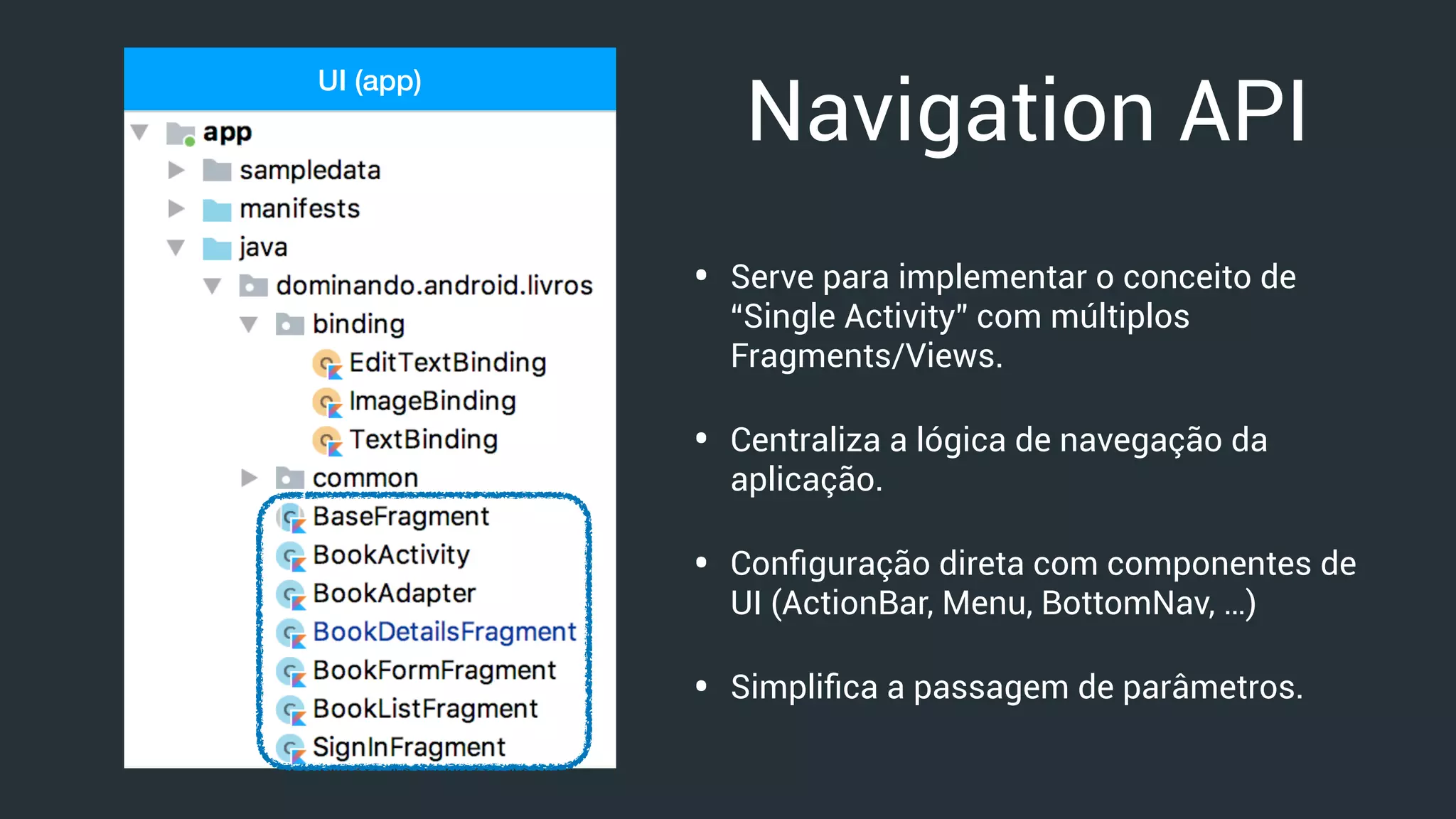

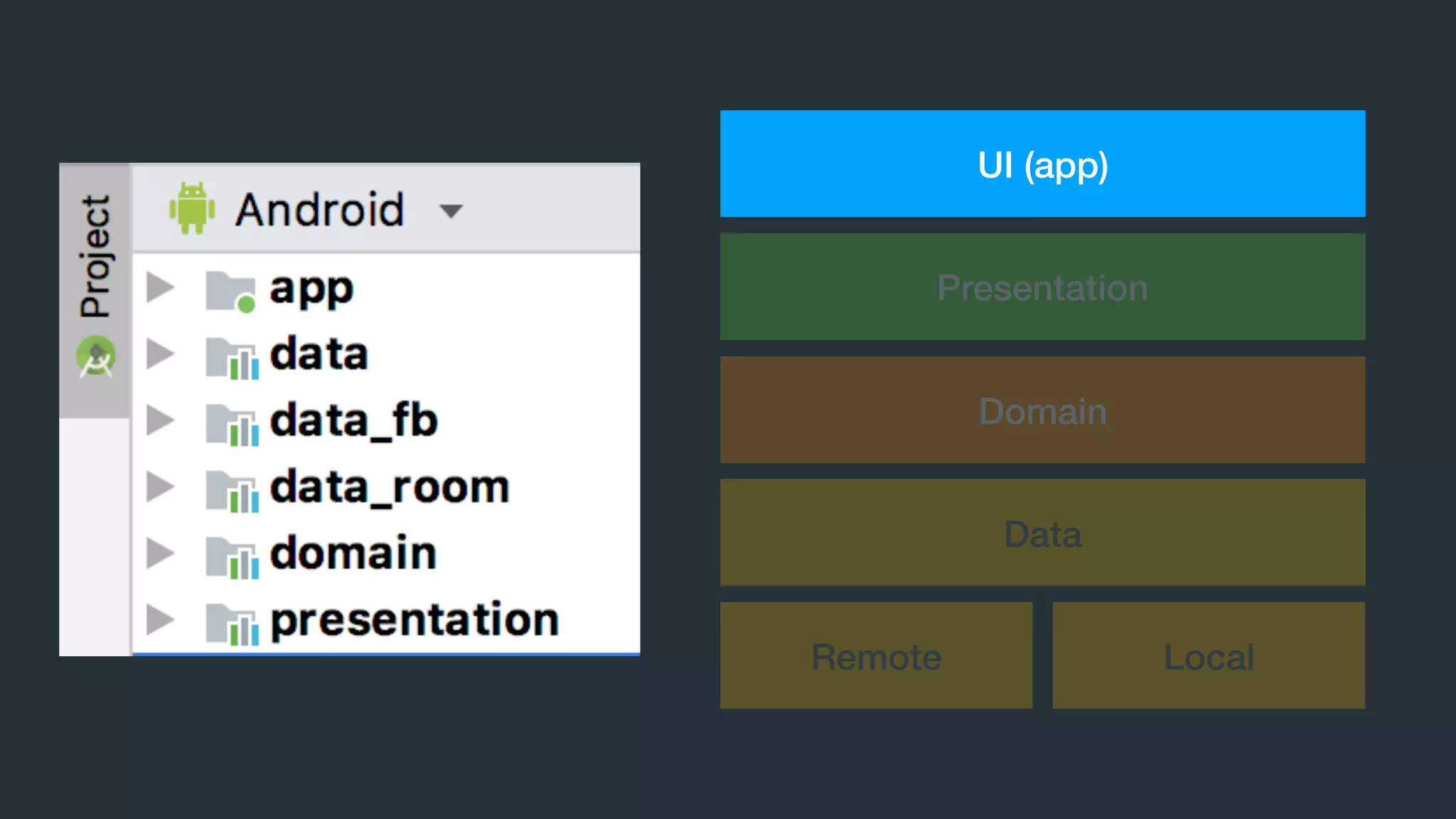

UI (app)

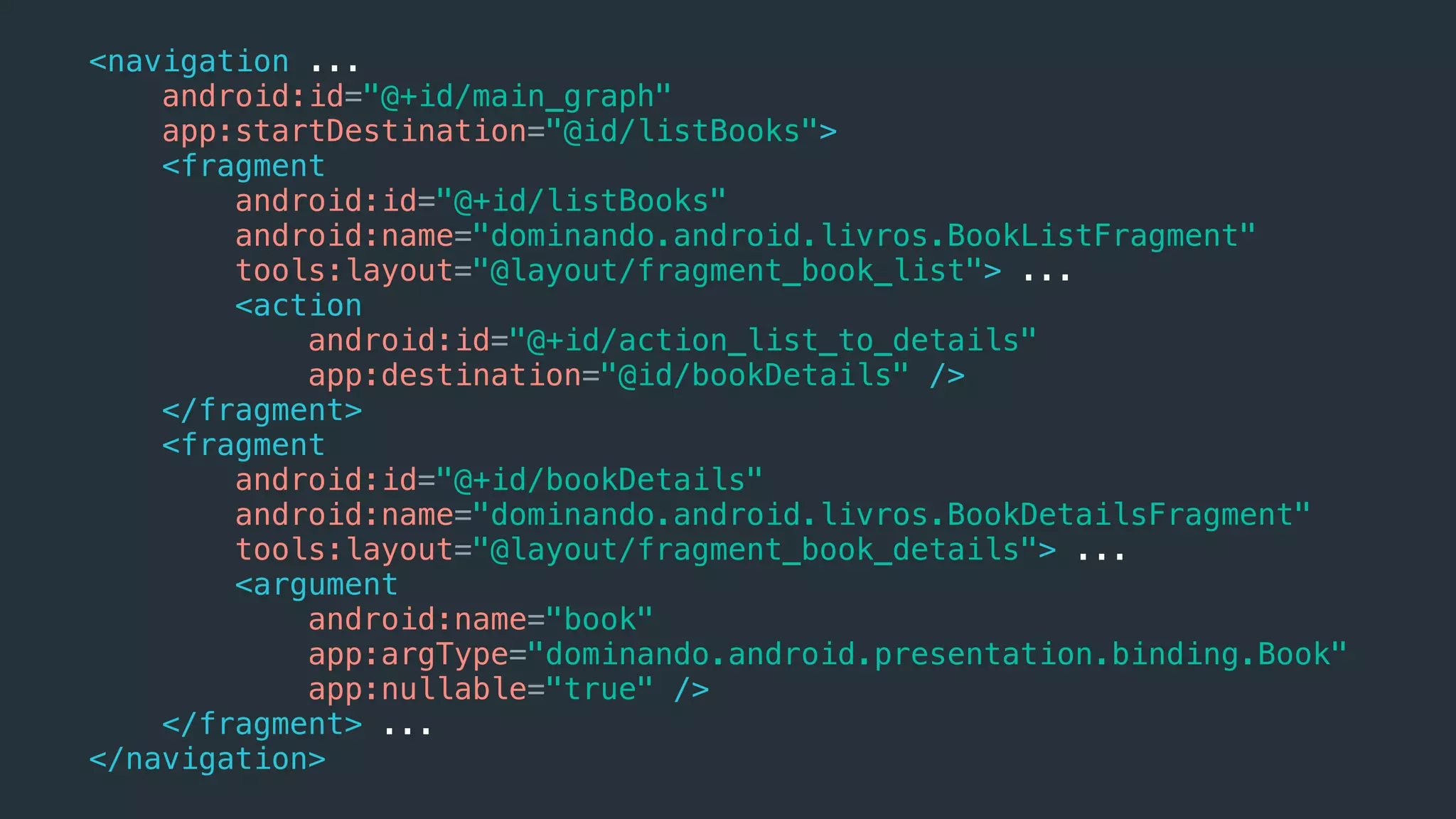

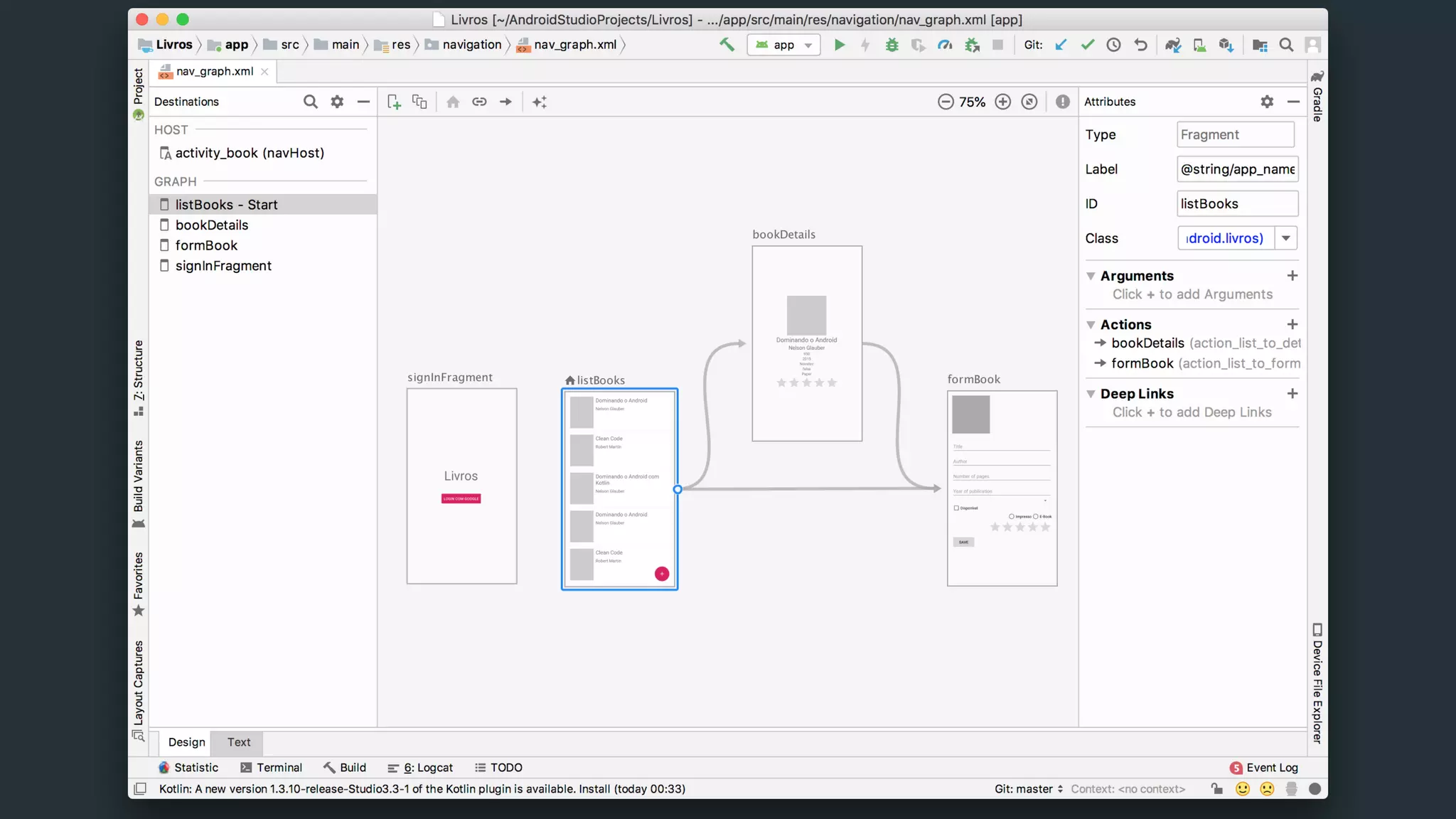

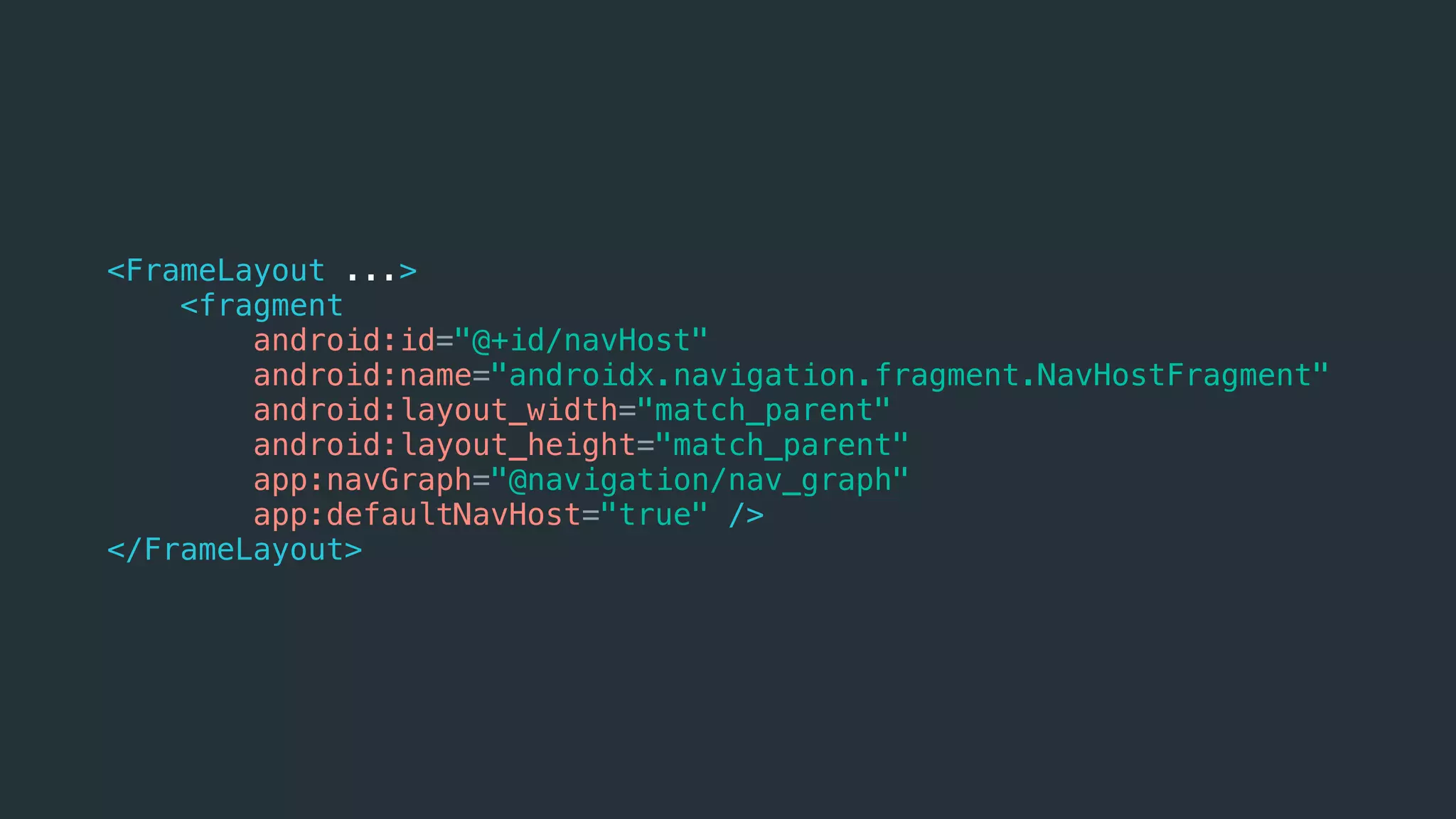

Navigation API
• Serve para implementar o conceito de
“Single Activity” com múltiplos
Fragments/Views.
• Centraliza a lógica de navegação da
aplicação.
• Conﬁguração direta com componentes de
UI (ActionBar, Menu, BottomNav, …)
• Simpliﬁca a passagem de parâmetros.

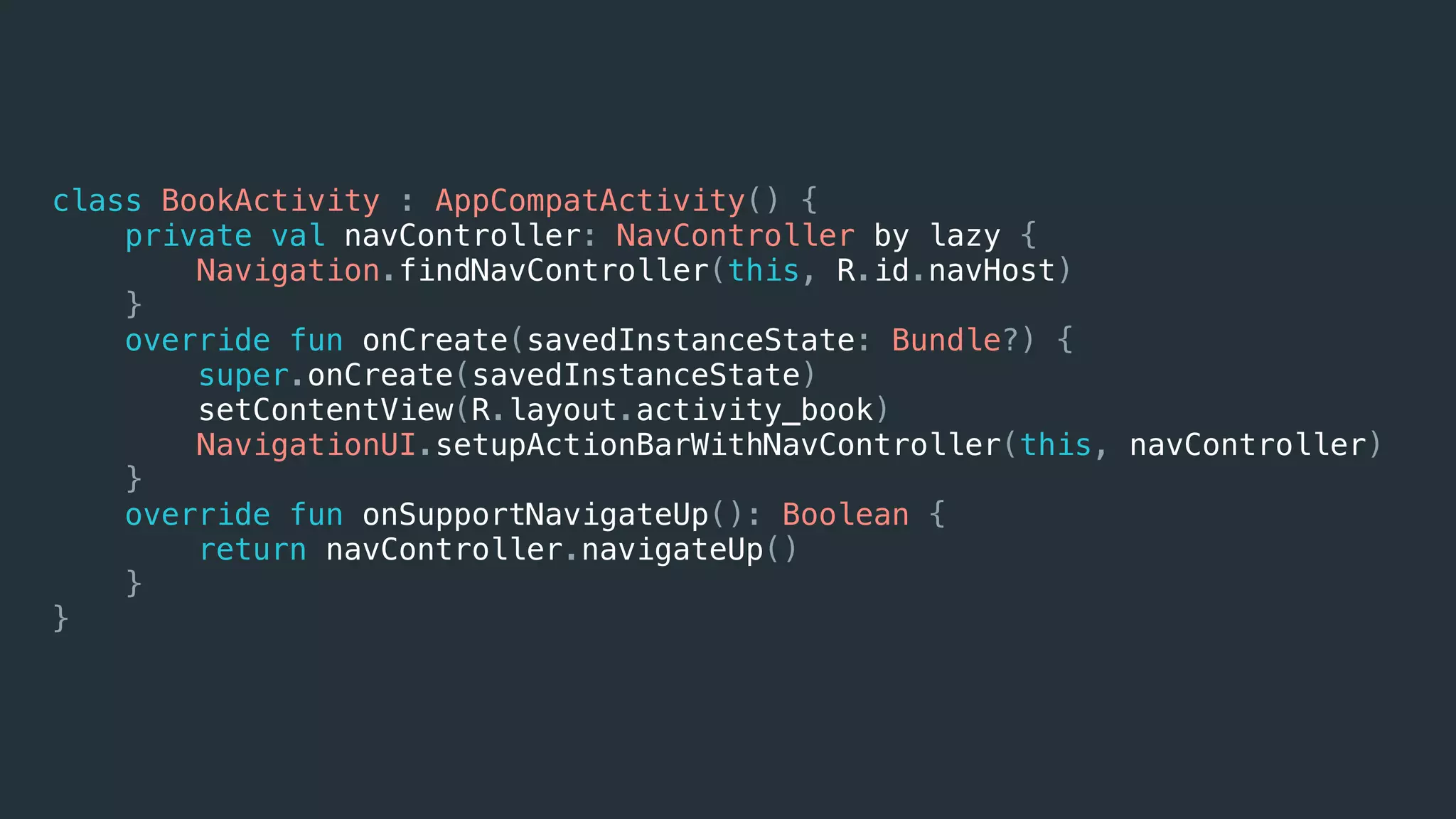

class BookActivity : AppCompatActivity() {
private val navController: NavController by lazy {
Navigation.findNavController(this, R.id.navHost)
}
override fun onCreate(savedInstanceState: Bundle?) {
super.onCreate(savedInstanceState)
setContentView(R.layout.activity_book)
NavigationUI.setupActionBarWithNavController(this, navController)
}
override fun onSupportNavigateUp(): Boolean {
return navController.navigateUp()
}
}

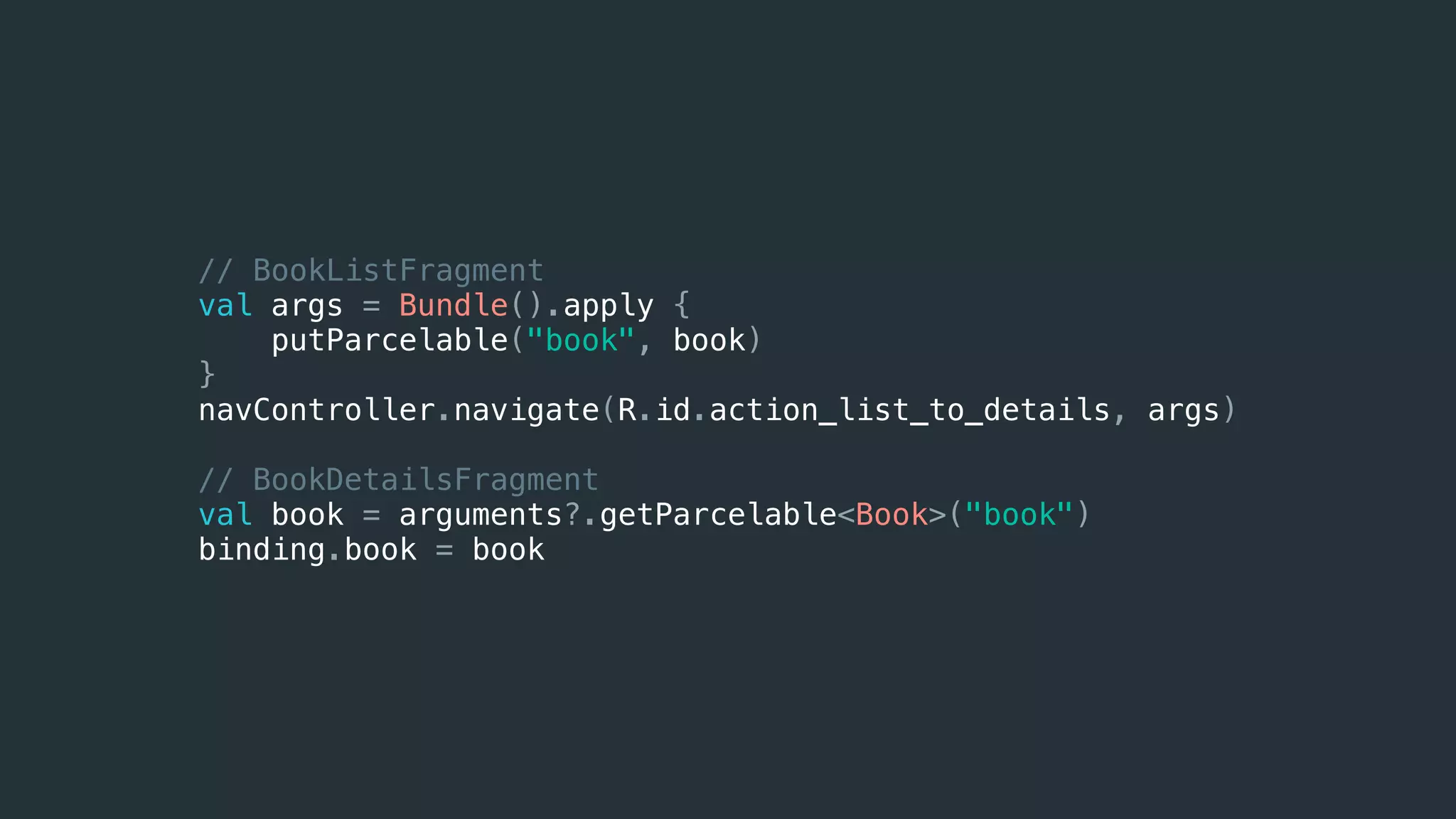

// BookListFragment
val args = Bundle().apply {
putParcelable("book", book)
}
navController.navigate(R.id.action_list_to_details, args)
// BookDetailsFragment
val book = arguments?.getParcelable<Book>("book")
binding.book = book

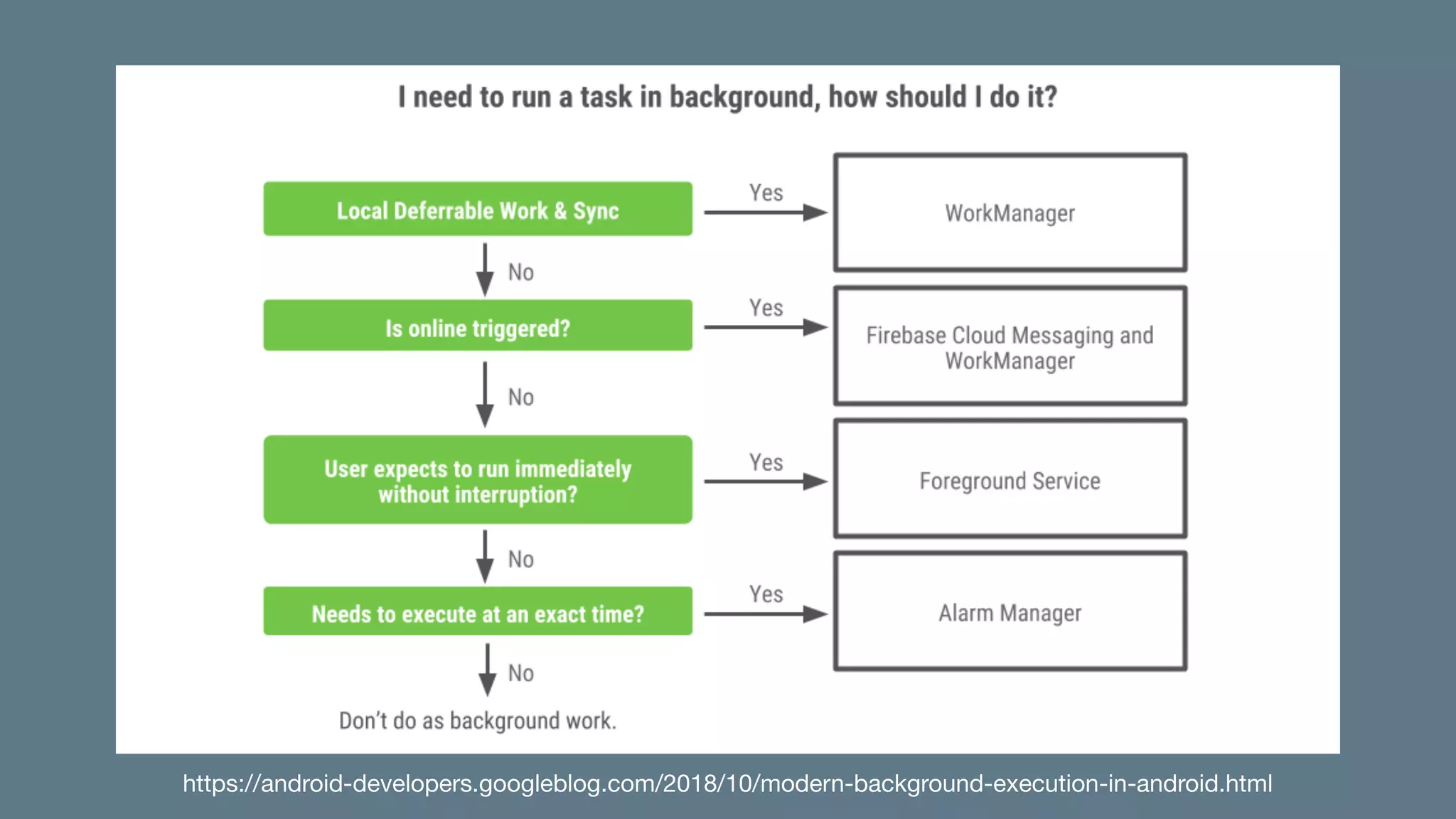

https://android-developers.googleblog.com/2018/10/modern-background-execution-in-android.html

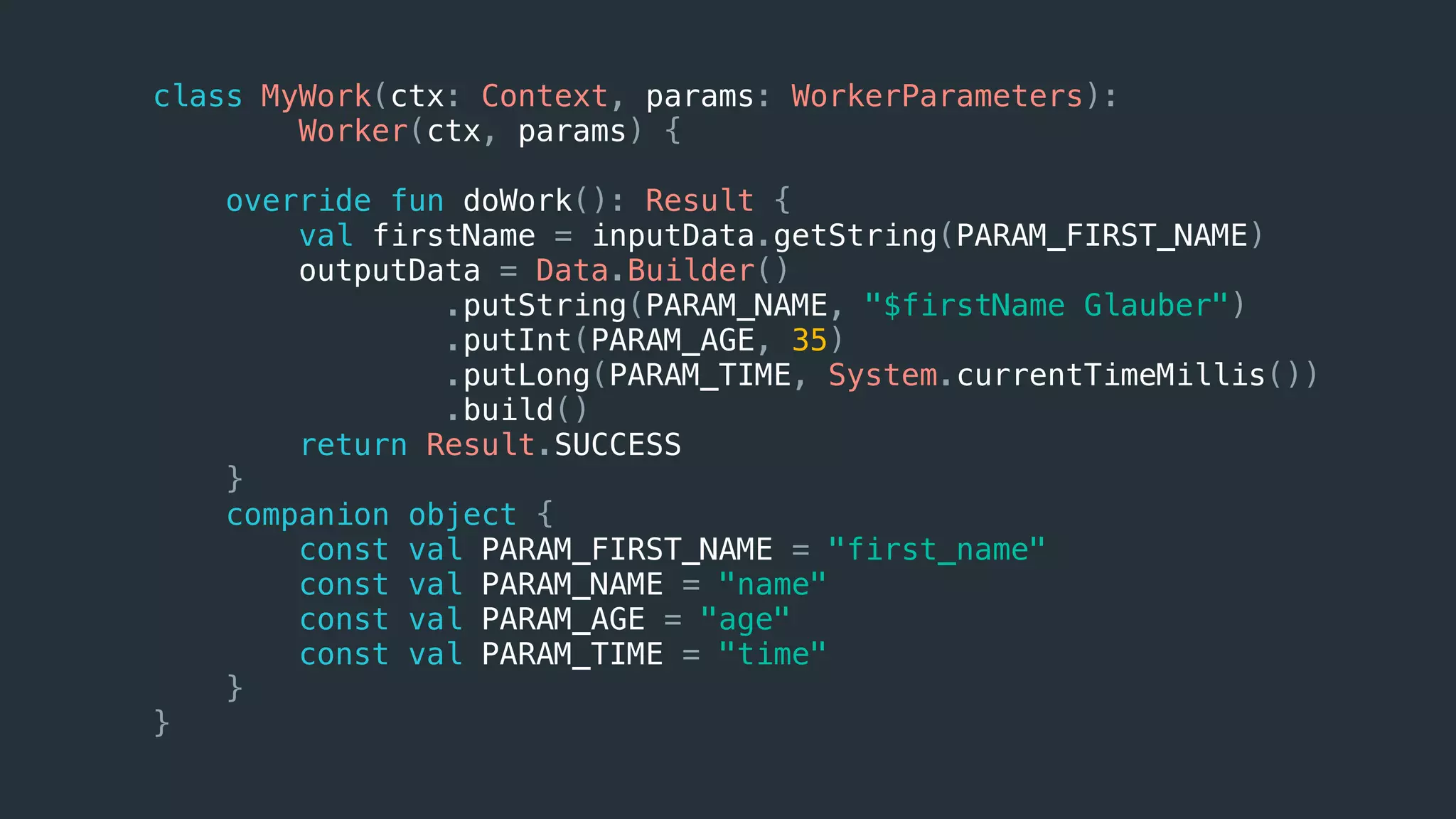

class MyWork(ctx: Context, params: WorkerParameters):
Worker(ctx, params) {
override fun doWork(): Result {
val firstName = inputData.getString(PARAM_FIRST_NAME)
outputData = Data.Builder()
.putString(PARAM_NAME, "$firstName Glauber")
.putInt(PARAM_AGE, 35)
.putLong(PARAM_TIME, System.currentTimeMillis())
.build()
return Result.SUCCESS
}
companion object {
const val PARAM_FIRST_NAME = "first_name"
const val PARAM_NAME = "name"
const val PARAM_AGE = "age"
const val PARAM_TIME = "time"
}
}

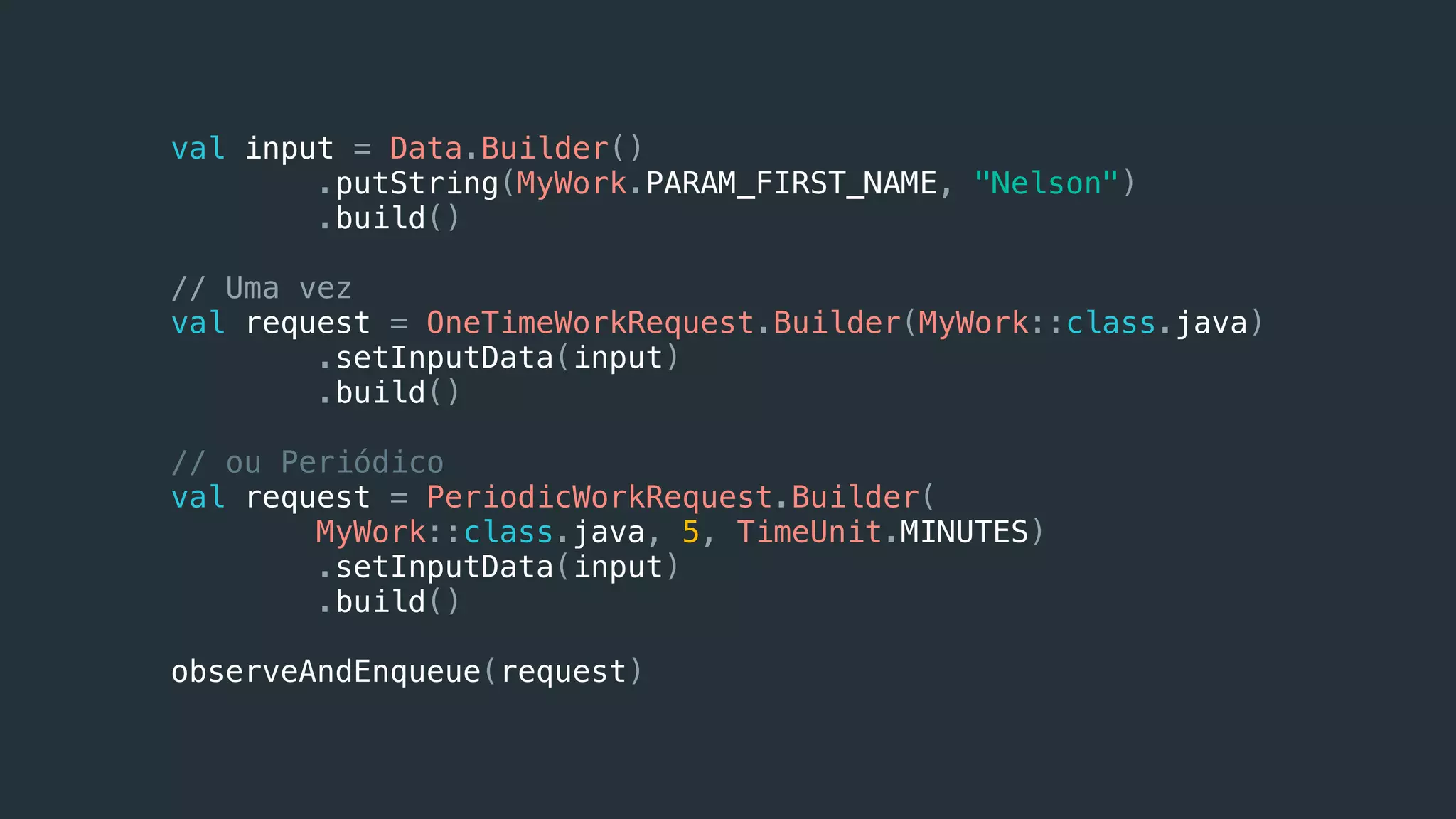

val input = Data.Builder()
.putString(MyWork.PARAM_FIRST_NAME, "Nelson")
.build()
// Uma vez
val request = OneTimeWorkRequest.Builder(MyWork::class.java)
.setInputData(input)
.build()
// ou Periódico
val request = PeriodicWorkRequest.Builder(
MyWork::class.java, 5, TimeUnit.MINUTES)
.setInputData(input)
.build()
observeAndEnqueue(request)

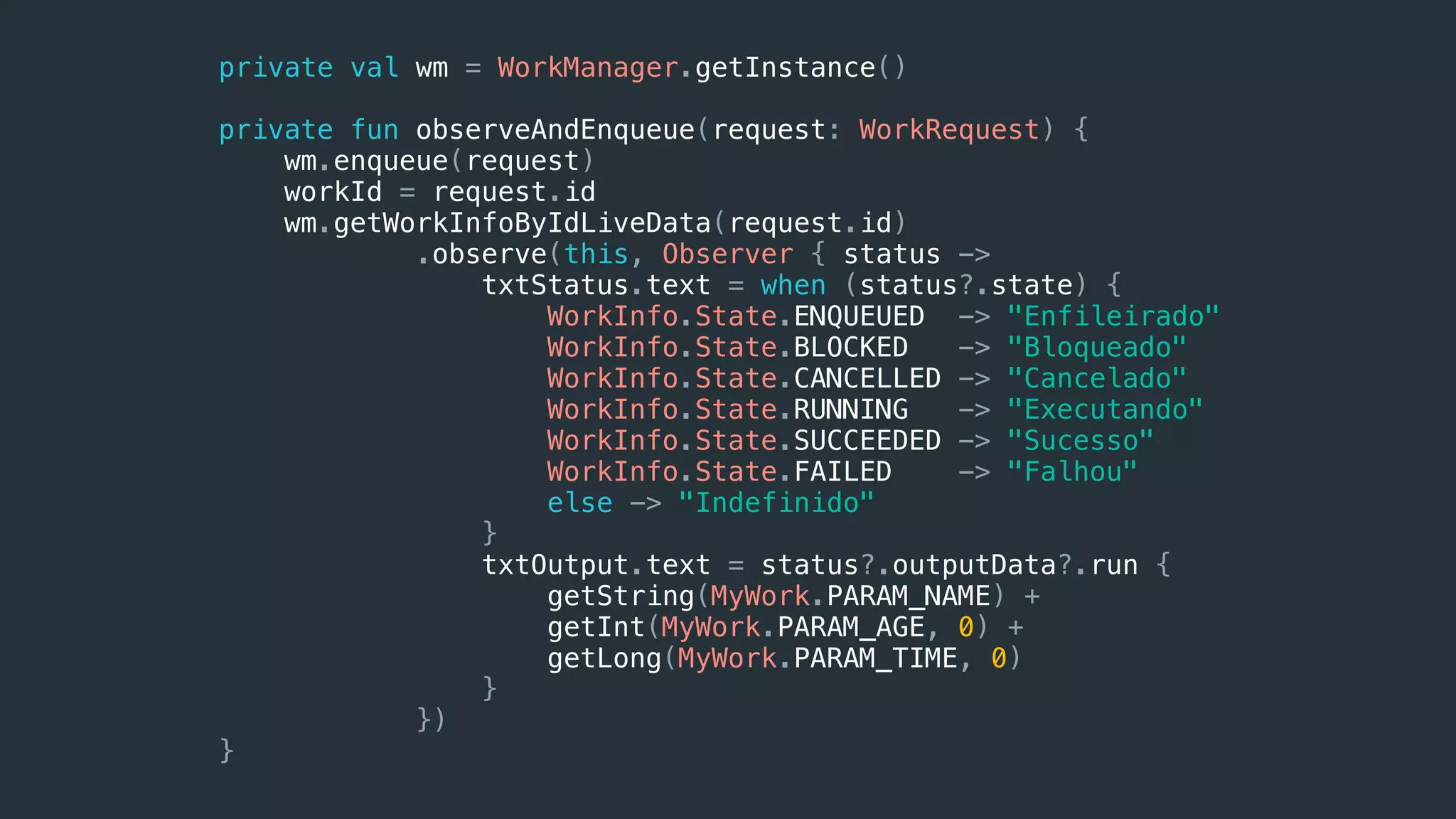

private val wm = WorkManager.getInstance()
private fun observeAndEnqueue(request: WorkRequest) {
wm.enqueue(request)
workId = request.id
wm.getWorkInfoByIdLiveData(request.id)
.observe(this, Observer { status ->
txtStatus.text = when (status?.state) {
WorkInfo.State.ENQUEUED -> "Enfileirado"
WorkInfo.State.BLOCKED -> "Bloqueado"
WorkInfo.State.CANCELLED -> "Cancelado"
WorkInfo.State.RUNNING -> "Executando"
WorkInfo.State.SUCCEEDED -> "Sucesso"
WorkInfo.State.FAILED -> "Falhou"
else -> "Indefinido"
}
txtOutput.text = status?.outputData?.run {
getString(MyWork.PARAM_NAME) +
getInt(MyWork.PARAM_AGE, 0) +
getLong(MyWork.PARAM_TIME, 0)
}
})
}

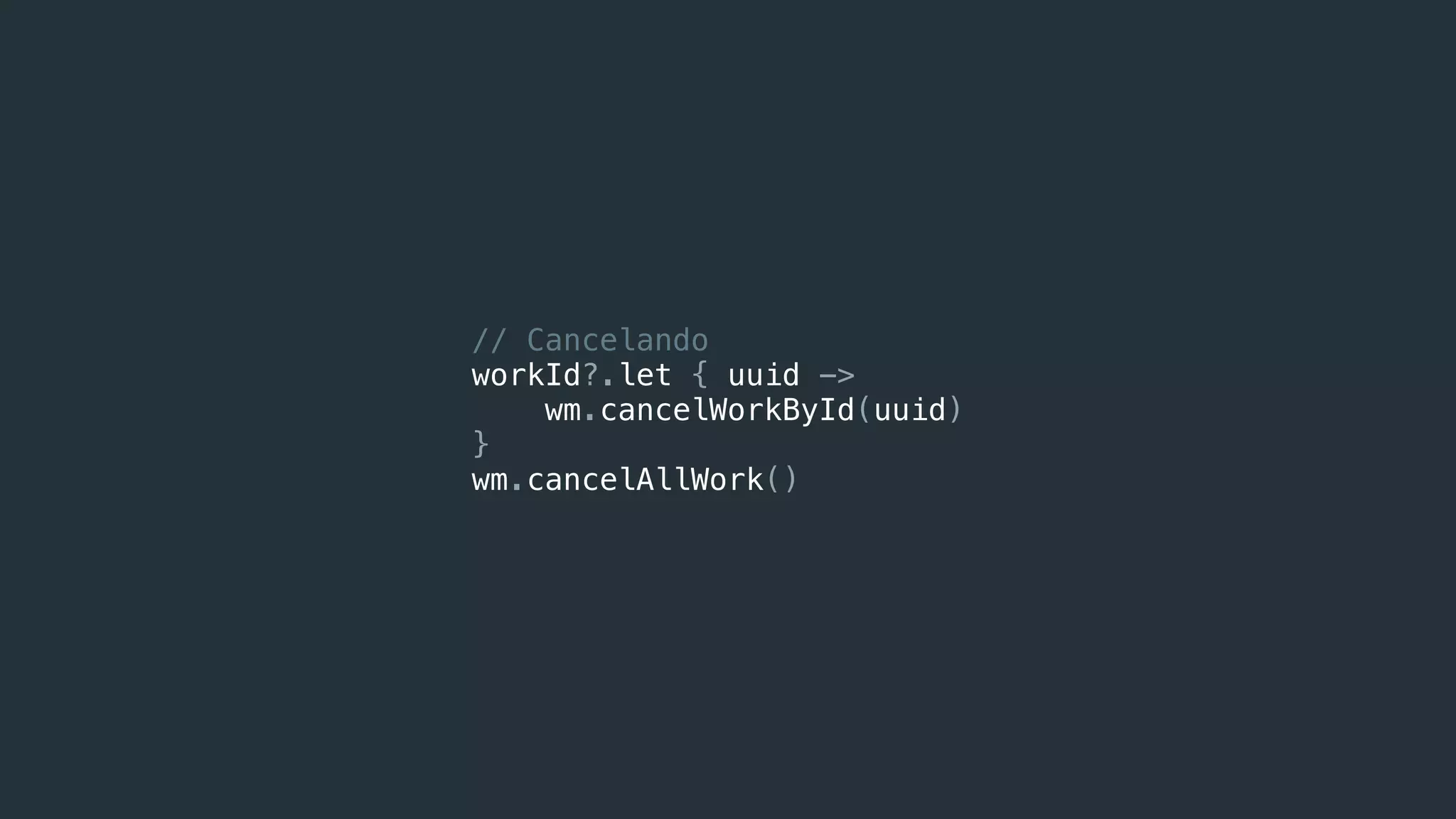

// Cancelando
workId?.let { uuid ->
wm.cancelWorkById(uuid)
}
wm.cancelAllWork()

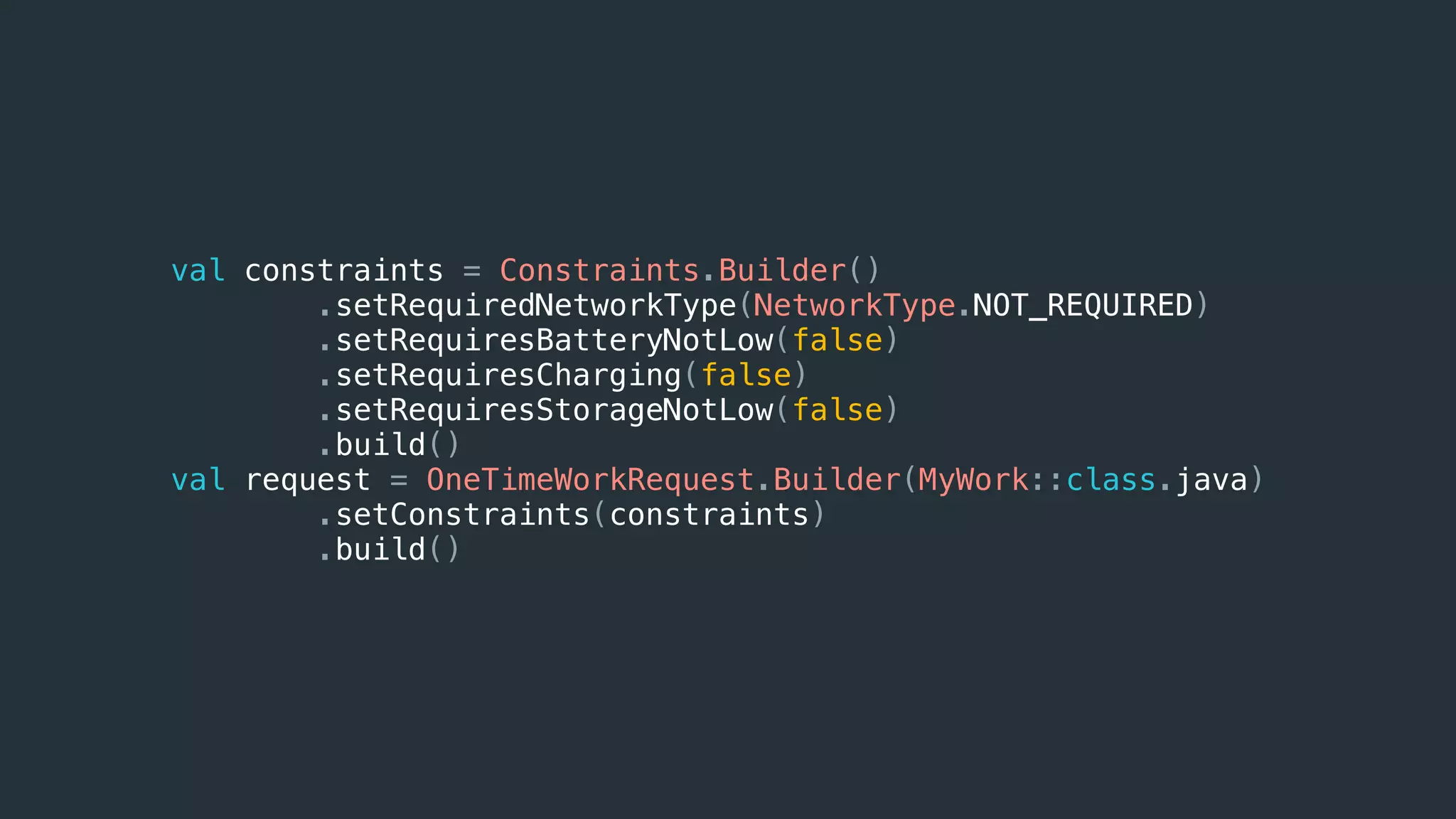

val constraints = Constraints.Builder()
.setRequiredNetworkType(NetworkType.NOT_REQUIRED)
.setRequiresBatteryNotLow(false)
.setRequiresCharging(false)
.setRequiresStorageNotLow(false)
.build()
val request = OneTimeWorkRequest.Builder(MyWork::class.java)
.setConstraints(constraints)
.build()

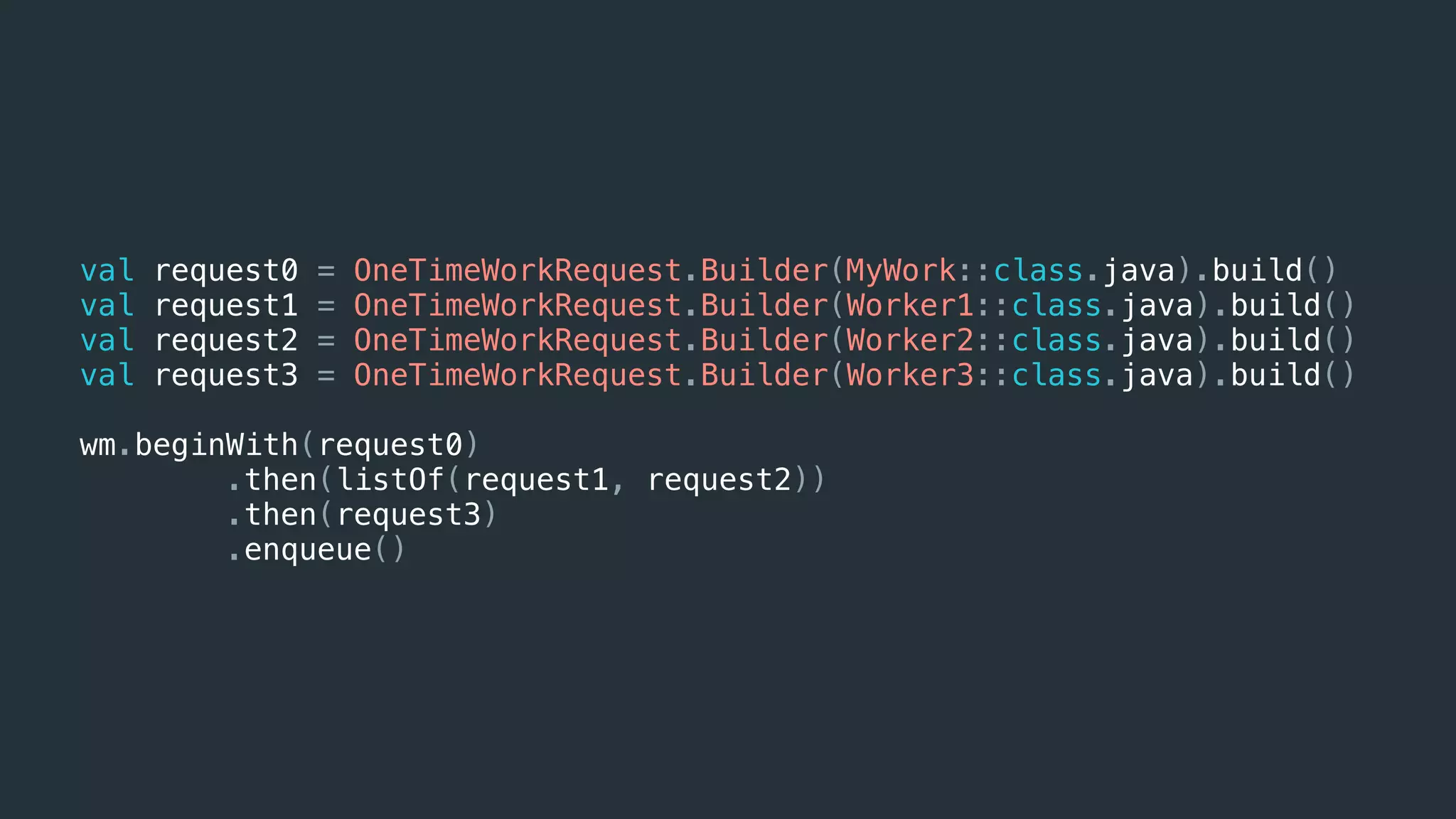

val request0 = OneTimeWorkRequest.Builder(MyWork::class.java).build()
val request1 = OneTimeWorkRequest.Builder(Worker1::class.java).build()
wm.beginWith(request0)
.then(listOf(request1, request2))
.then(request3)
.enqueue()

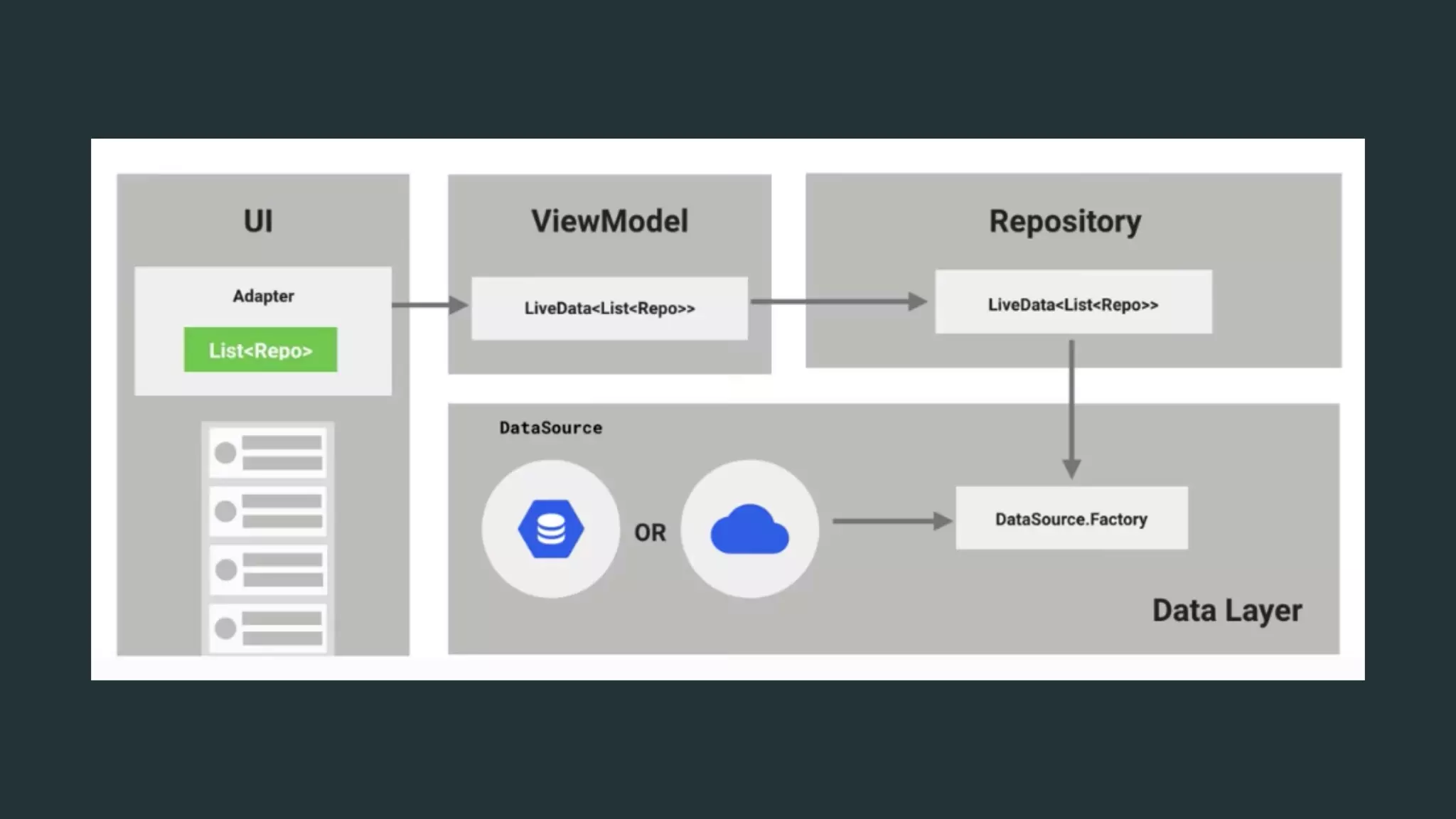

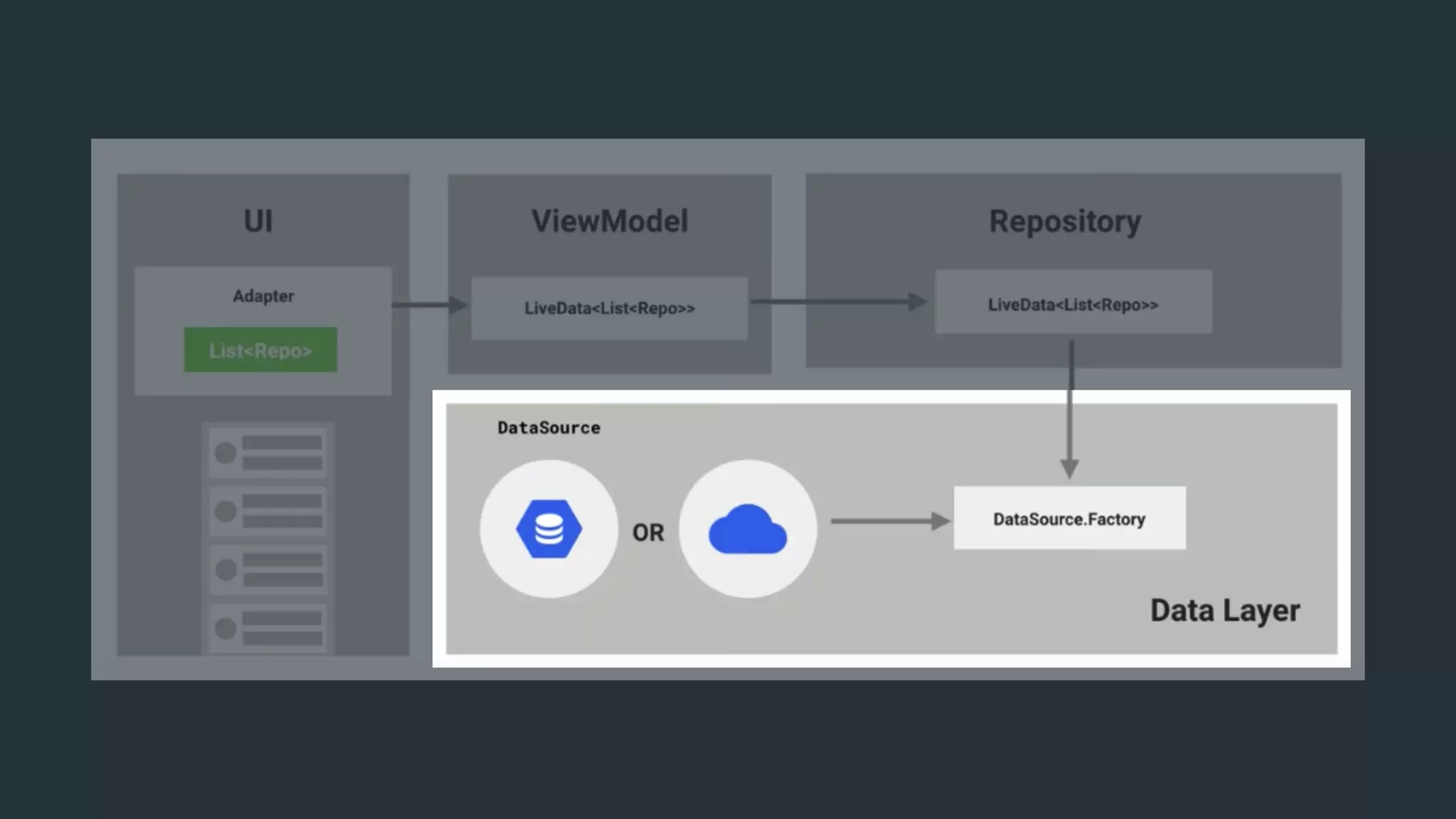

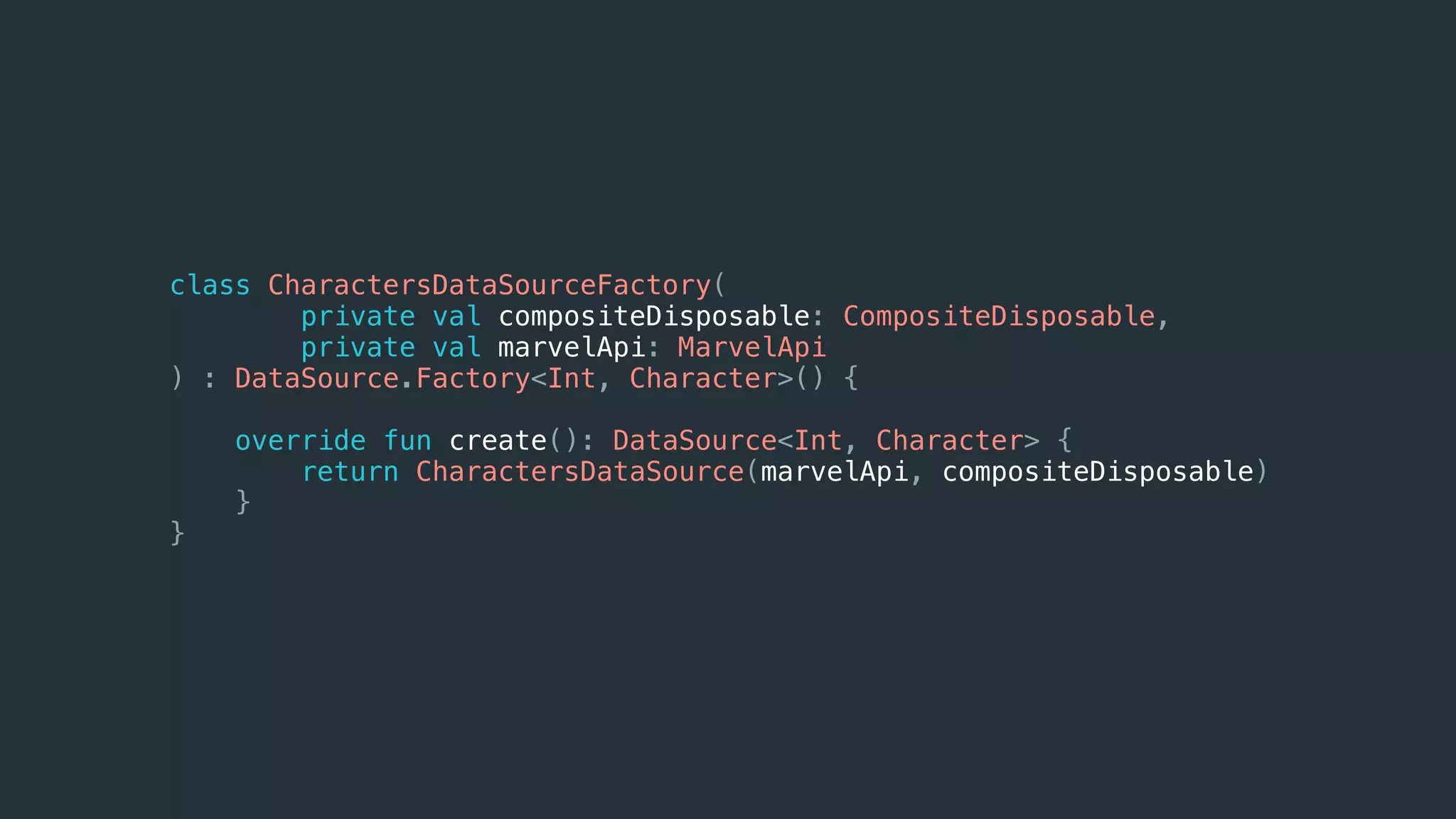

class CharactersDataSourceFactory(
private val compositeDisposable: CompositeDisposable,
private val marvelApi: MarvelApi
) : DataSource.Factory<Int, Character>() {
override fun create(): DataSource<Int, Character> {
return CharactersDataSource(marvelApi, compositeDisposable)
}
}

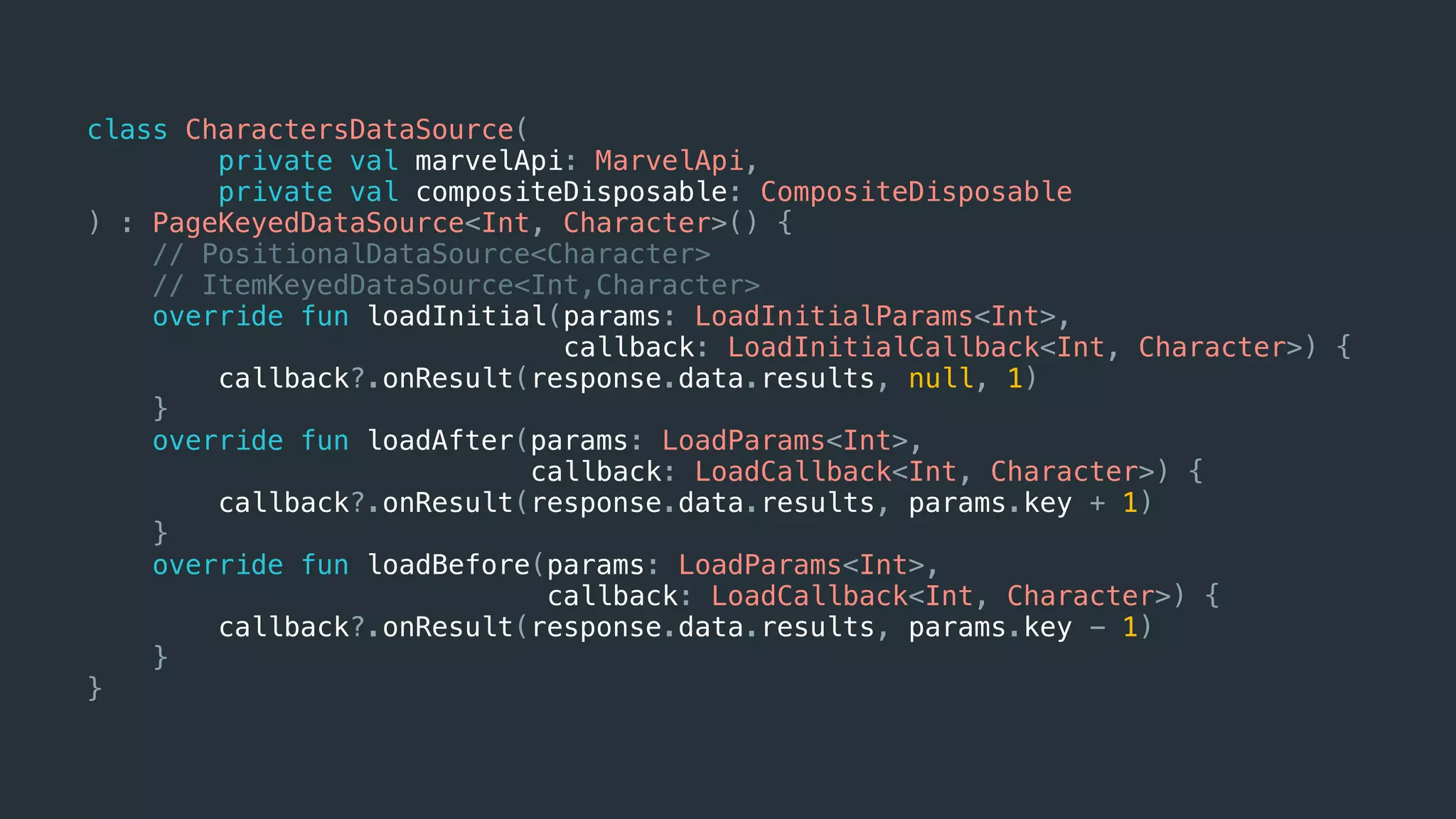

class CharactersDataSource(
private val marvelApi: MarvelApi,
private val compositeDisposable: CompositeDisposable
) : PageKeyedDataSource<Int, Character>() {
// PositionalDataSource<Character>
// ItemKeyedDataSource<Int,Character>
override fun loadInitial(params: LoadInitialParams<Int>,
callback: LoadInitialCallback<Int, Character>) {
callback?.onResult(response.data.results, null, 1)
}
override fun loadAfter(params: LoadParams<Int>,
callback: LoadCallback<Int, Character>) {
callback?.onResult(response.data.results, params.key + 1)
}
override fun loadBefore(params: LoadParams<Int>,
callback: LoadCallback<Int, Character>) {
callback?.onResult(response.data.results, params.key - 1)
}
}

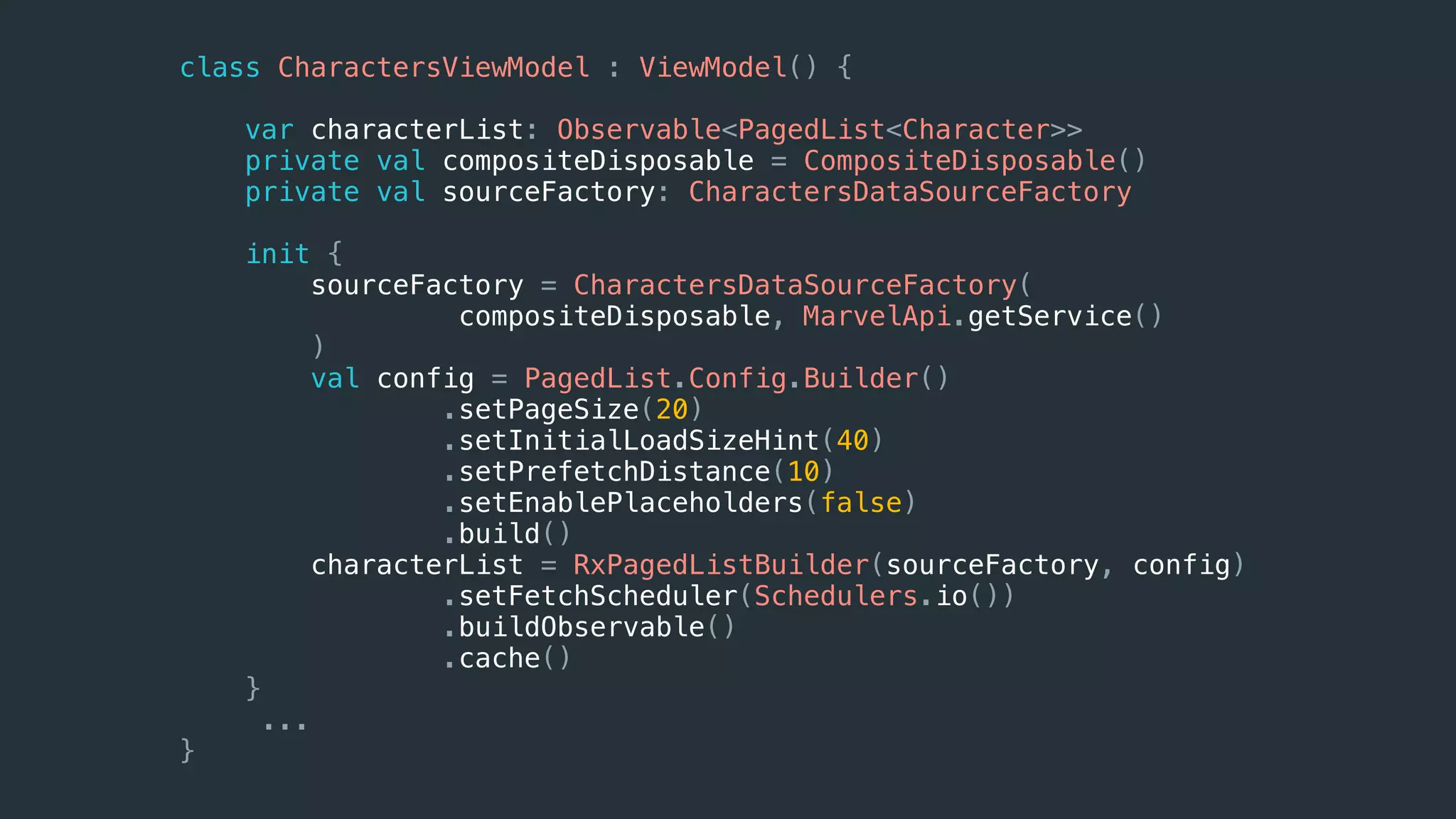

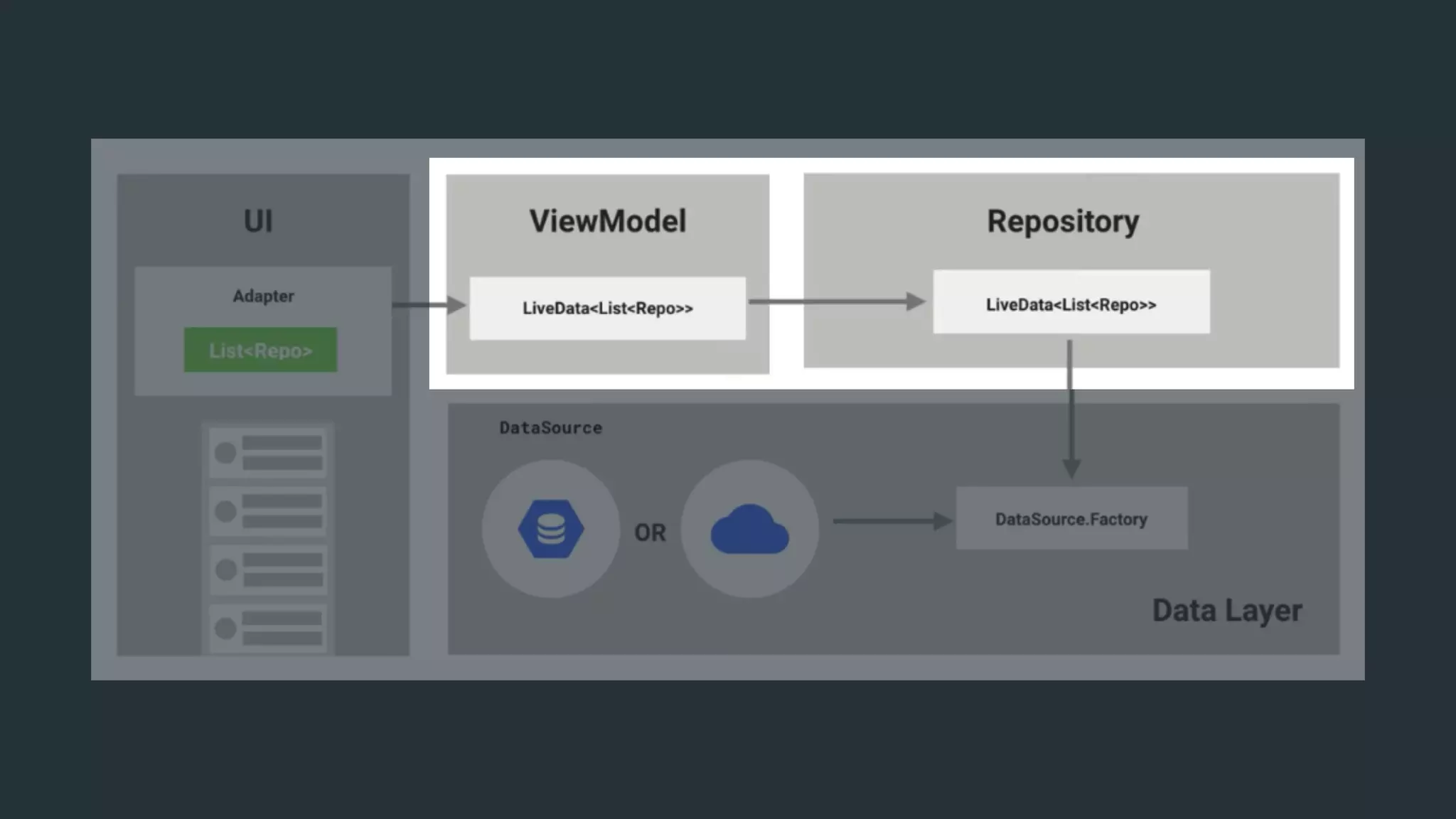

class CharactersViewModel : ViewModel() {
var characterList: Observable<PagedList<Character>>
private val compositeDisposable = CompositeDisposable()
private val sourceFactory: CharactersDataSourceFactory
init {
sourceFactory = CharactersDataSourceFactory(
compositeDisposable, MarvelApi.getService()
)
val config = PagedList.Config.Builder()
.setPageSize(20)
.setInitialLoadSizeHint(40)
.setPrefetchDistance(10)
.setEnablePlaceholders(false)
.build()
characterList = RxPagedListBuilder(sourceFactory, config)
.setFetchScheduler(Schedulers.io())
.buildObservable()
.cache()
}
...
}

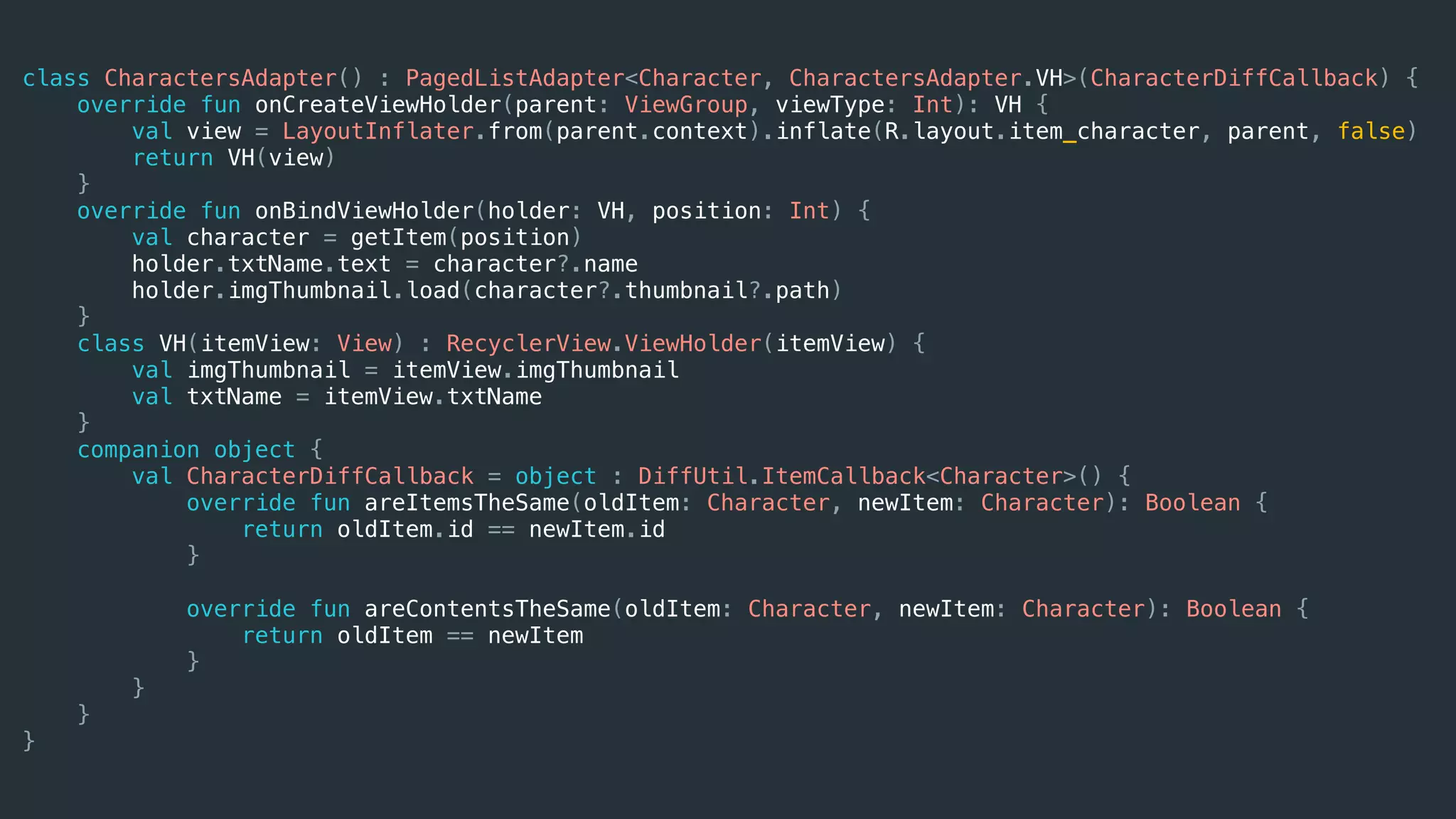

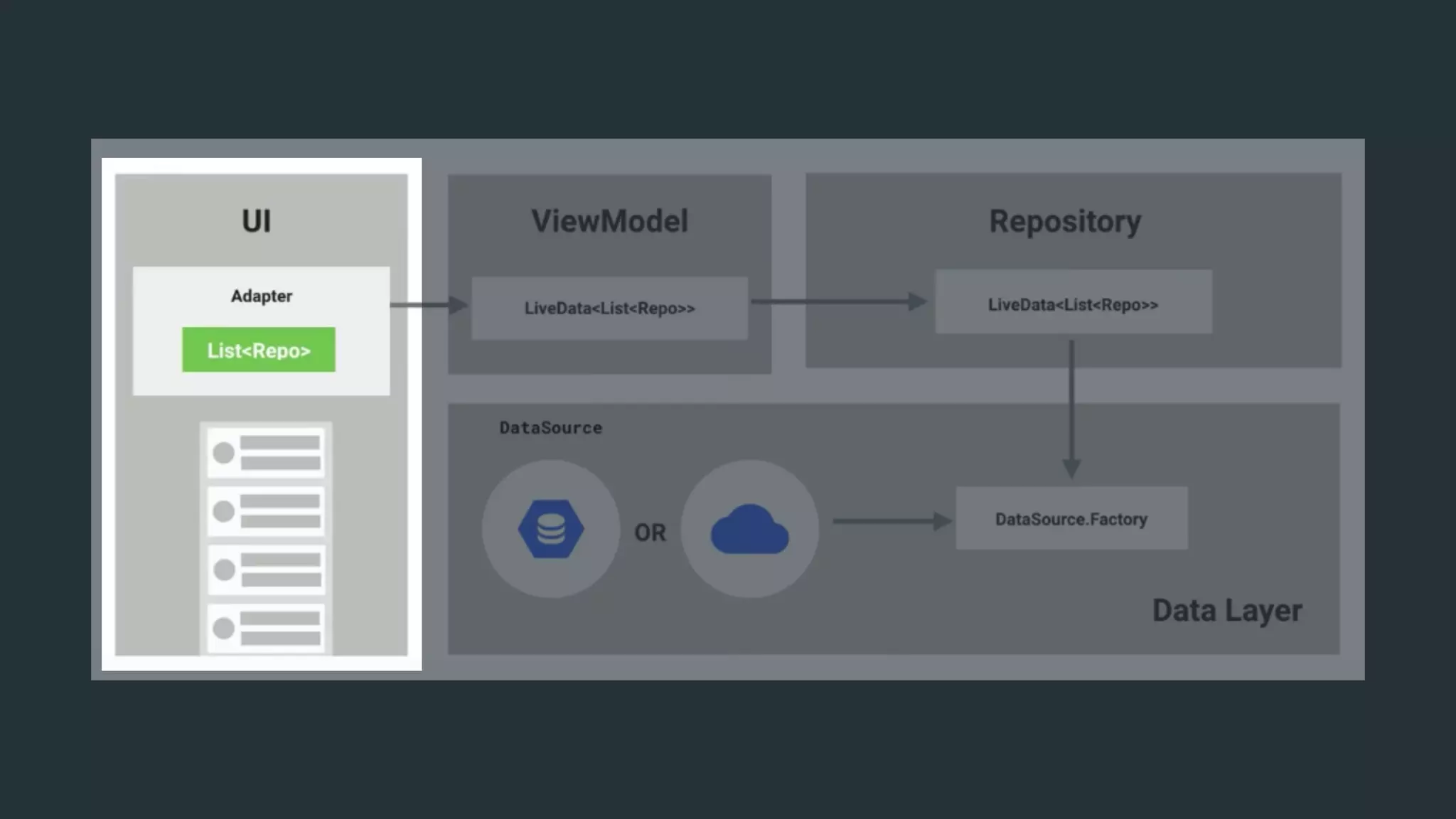

class CharactersAdapter() : PagedListAdapter<Character, CharactersAdapter.VH>(CharacterDiffCallback) {
override fun onCreateViewHolder(parent: ViewGroup, viewType: Int): VH {
val view = LayoutInflater.from(parent.context).inflate(R.layout.item_character, parent, false)
return VH(view)
}
override fun onBindViewHolder(holder: VH, position: Int) {
val character = getItem(position)
holder.txtName.text = character?.name
holder.imgThumbnail.load(character?.thumbnail?.path)
}
class VH(itemView: View) : RecyclerView.ViewHolder(itemView) {
val imgThumbnail = itemView.imgThumbnail
val txtName = itemView.txtName
}
companion object {
val CharacterDiffCallback = object : DiffUtil.ItemCallback<Character>() {
override fun areItemsTheSame(oldItem: Character, newItem: Character): Boolean {
return oldItem.id == newItem.id
}
override fun areContentsTheSame(oldItem: Character, newItem: Character): Boolean {
return oldItem == newItem
}
}
}
}

#
#
🧐 #
#
#
#
🧐 #
🧐 #

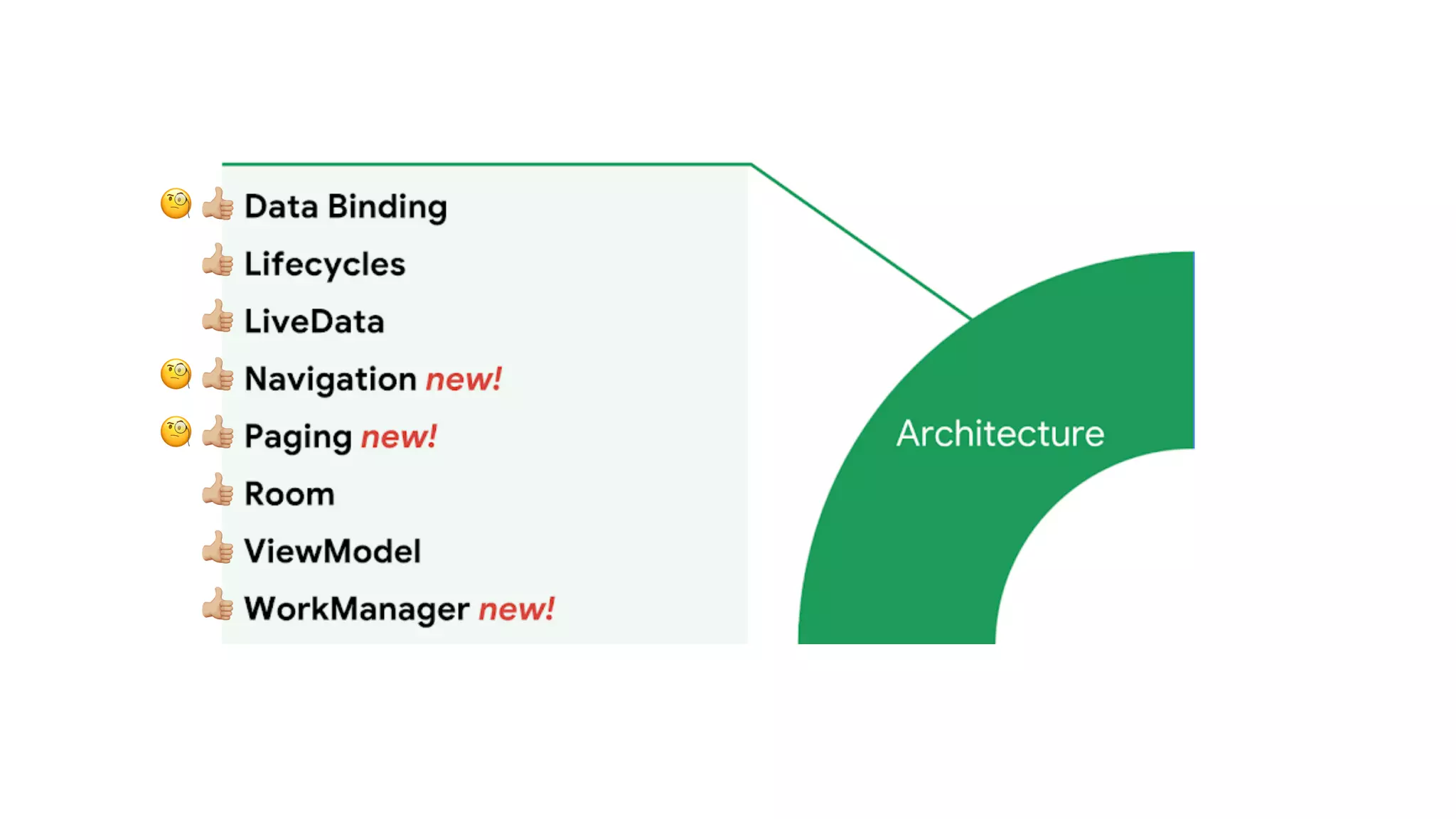

• Você não precisa usar todos esses
recursos no mesmo app…
• Na verdade, você não precisa usar
nenhum!
• Mais importante do que saber quando
USAR é saber quando NÃO USAR 😉
• Mas é essencial conhecer tópicos,
saber seus prós e contras e utilizá-los
adequadamente 💡

github.com/googlesamples/android-architecture

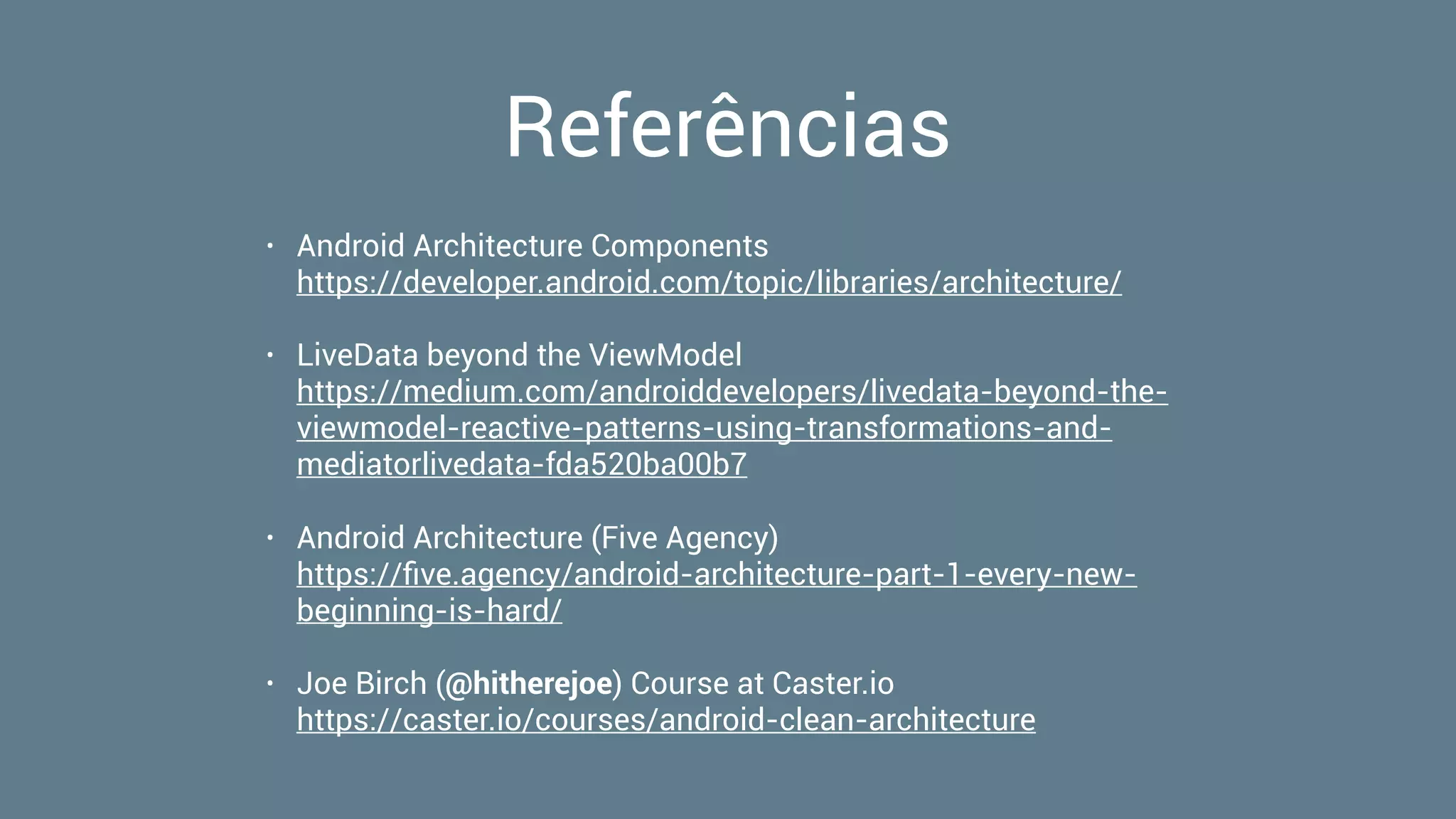

Referências
• Android Architecture Components 
https://developer.android.com/topic/libraries/architecture/
• LiveData beyond the ViewModel 
https://medium.com/androiddevelopers/livedata-beyond-the-
viewmodel-reactive-patterns-using-transformations-and-
mediatorlivedata-fda520ba00b7
• Android Architecture (Five Agency) 
https://ﬁve.agency/android-architecture-part-1-every-new-
beginning-is-hard/
• Joe Birch (@hitherejoe) Course at Caster.io 
https://caster.io/courses/android-clean-architecture

@nglauber
+NelsonGlauber
www.nglauber.com.br

Obrigado!
youtube.com/nglauber

Arquitetando seu aplicativo Android com Jetpack

More Related Content

What's hot

Similar to Arquitetando seu aplicativo Android com Jetpack

More from Nelson Glauber Leal

Arquitetando seu aplicativo Android com Jetpack
