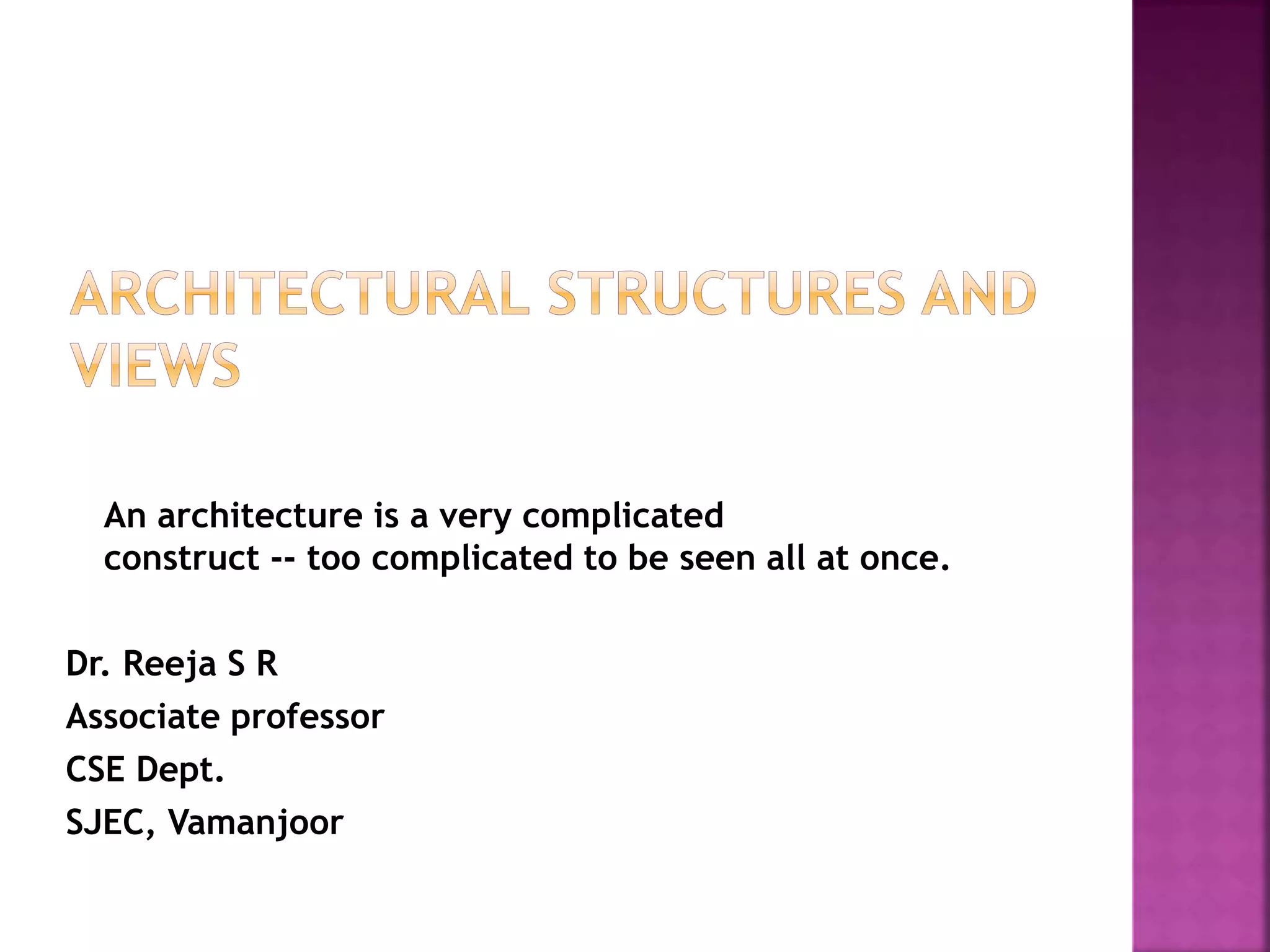

- 1. An architecture isa very complicated construct -- too complicated to be seen all at once. Dr. Reeja S R Associate professor CSE Dept. SJEC, Vamanjoor

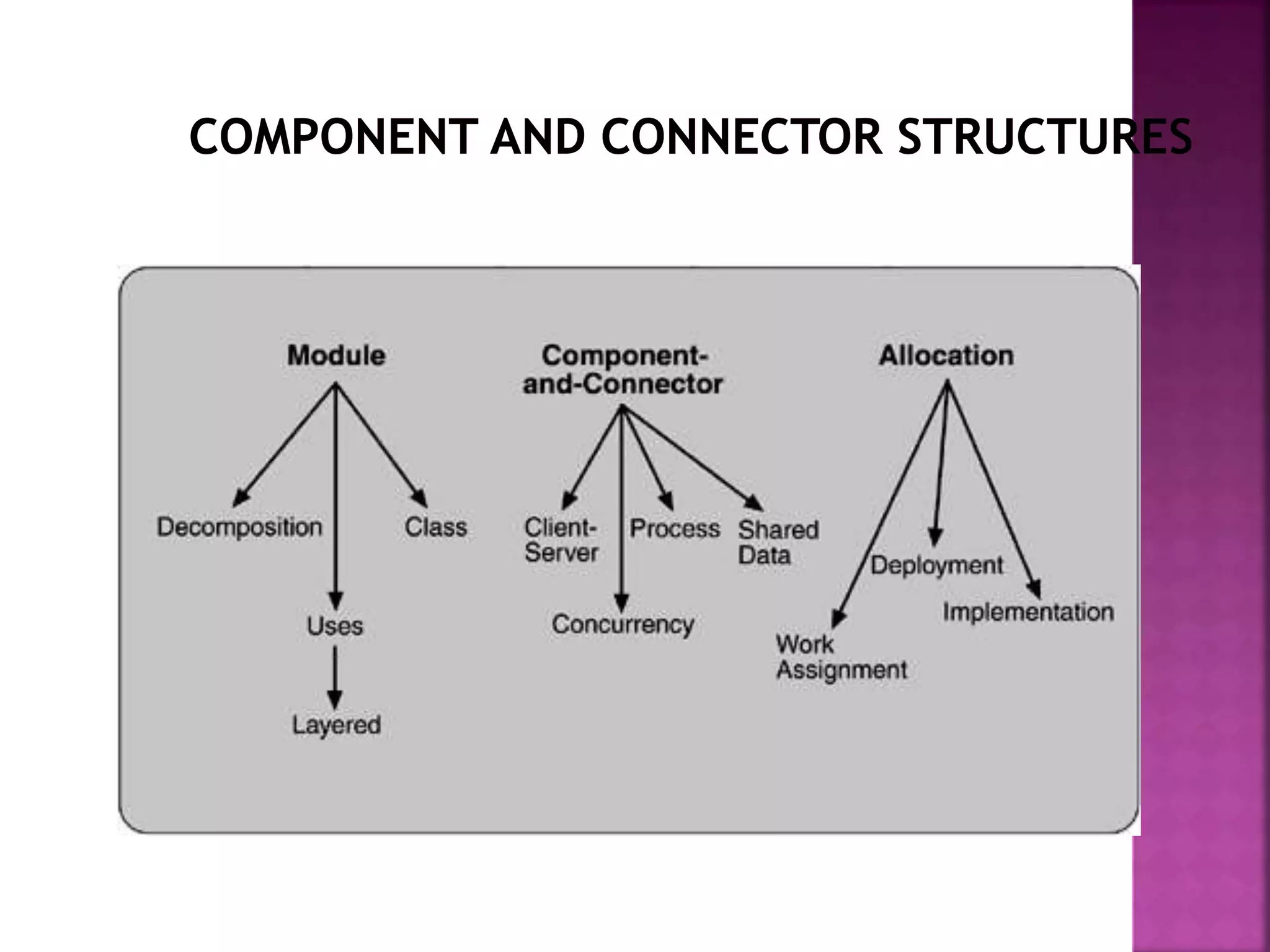

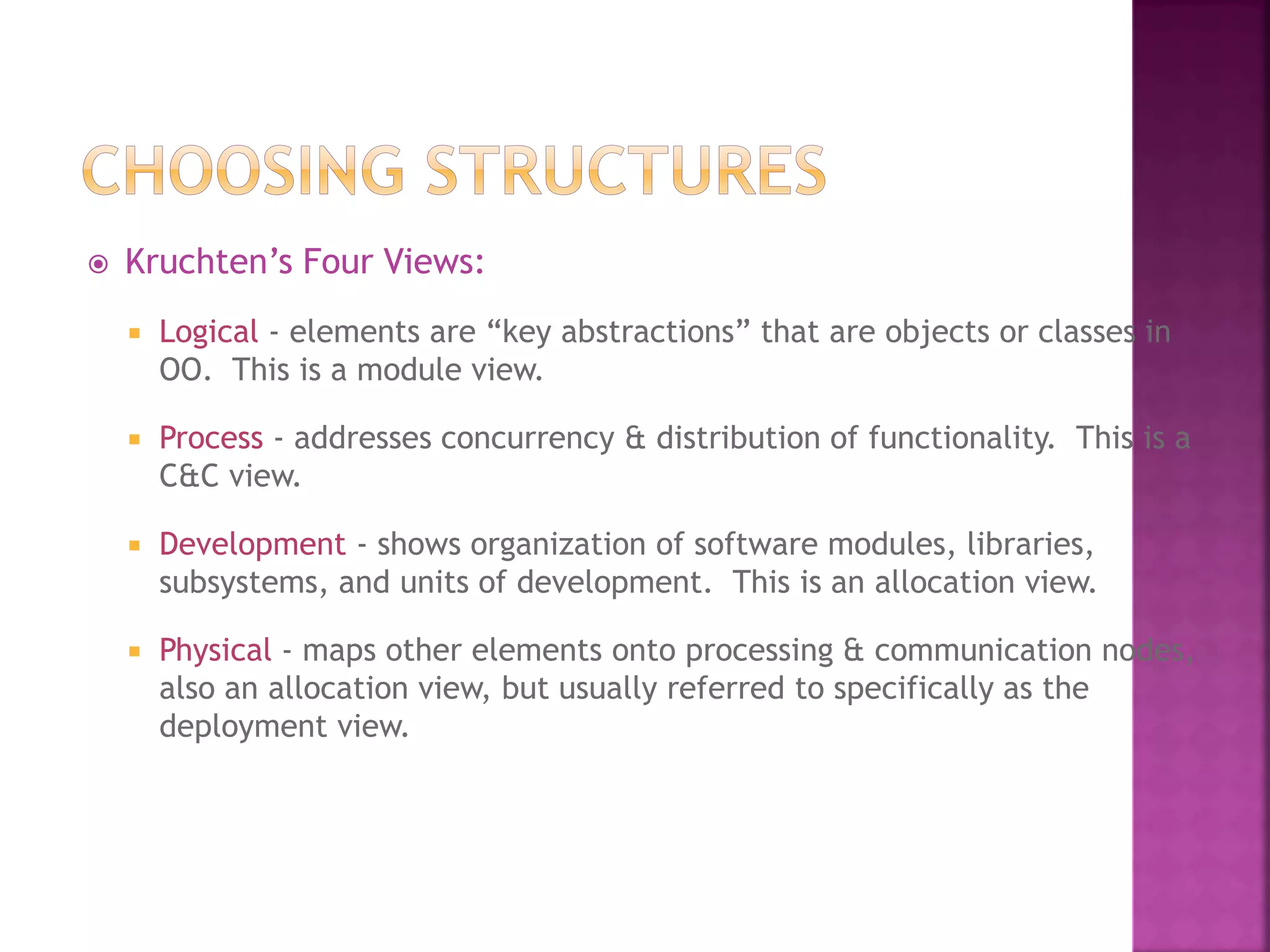

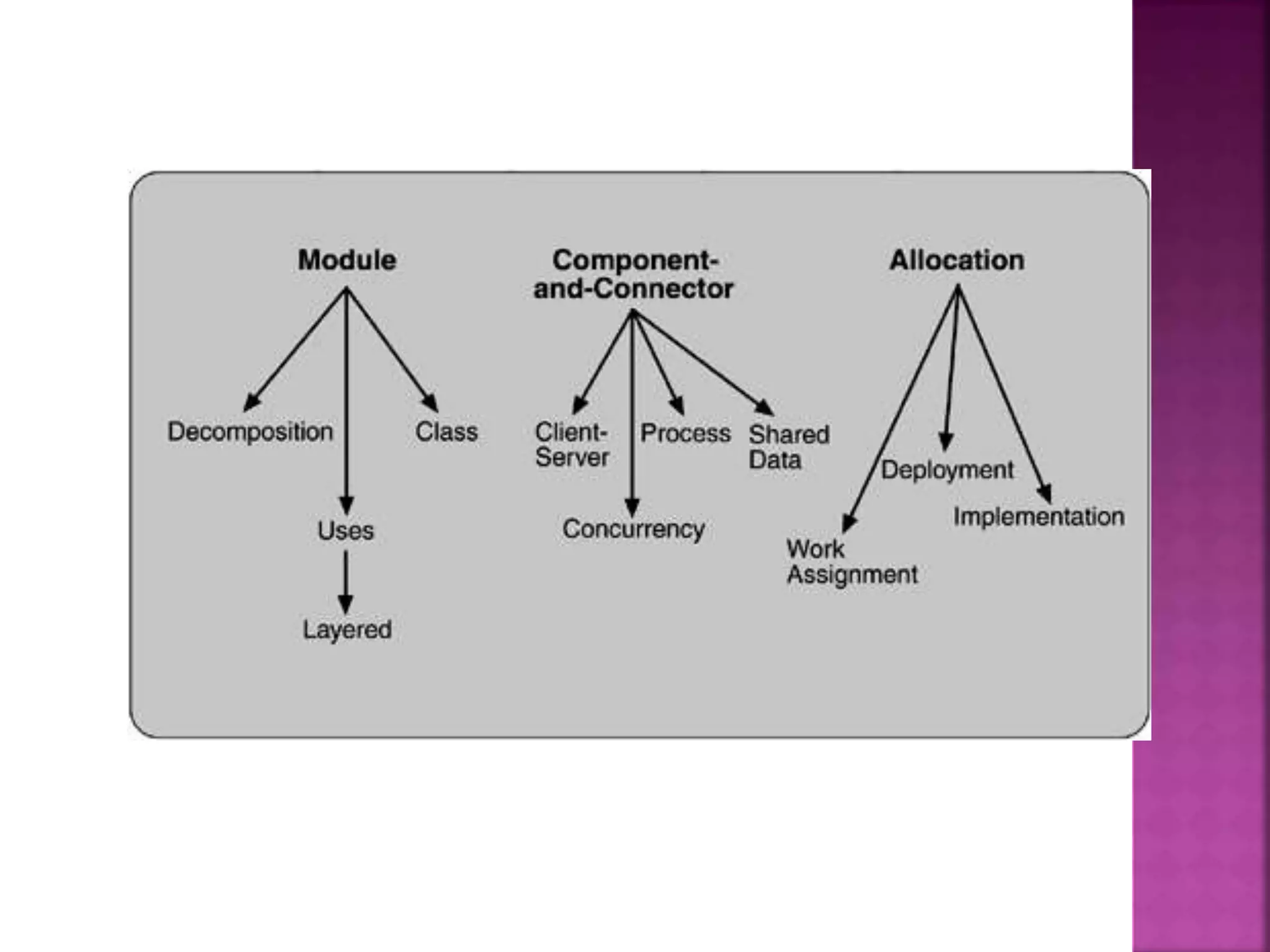

- 3. The 3 structurescorrespond to 3 broad types of decisions that an architectural design involves: How is the system to be structured as a set of code units? How is the system to be structured as a set of runtime components and interactions between them? How is the system to relate to non-software elements in its environment? (CPU, file systems, networks, development teams, etc)

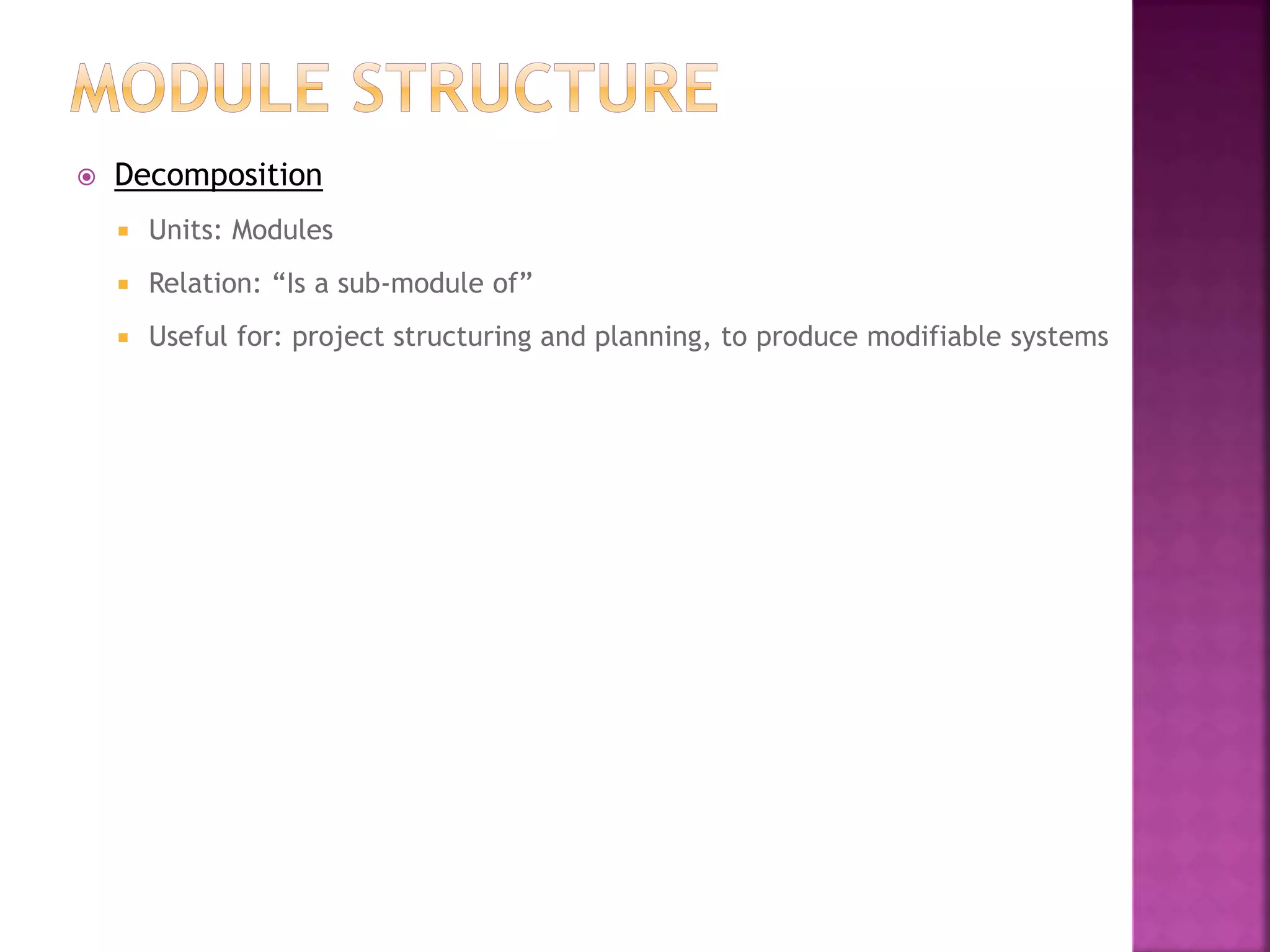

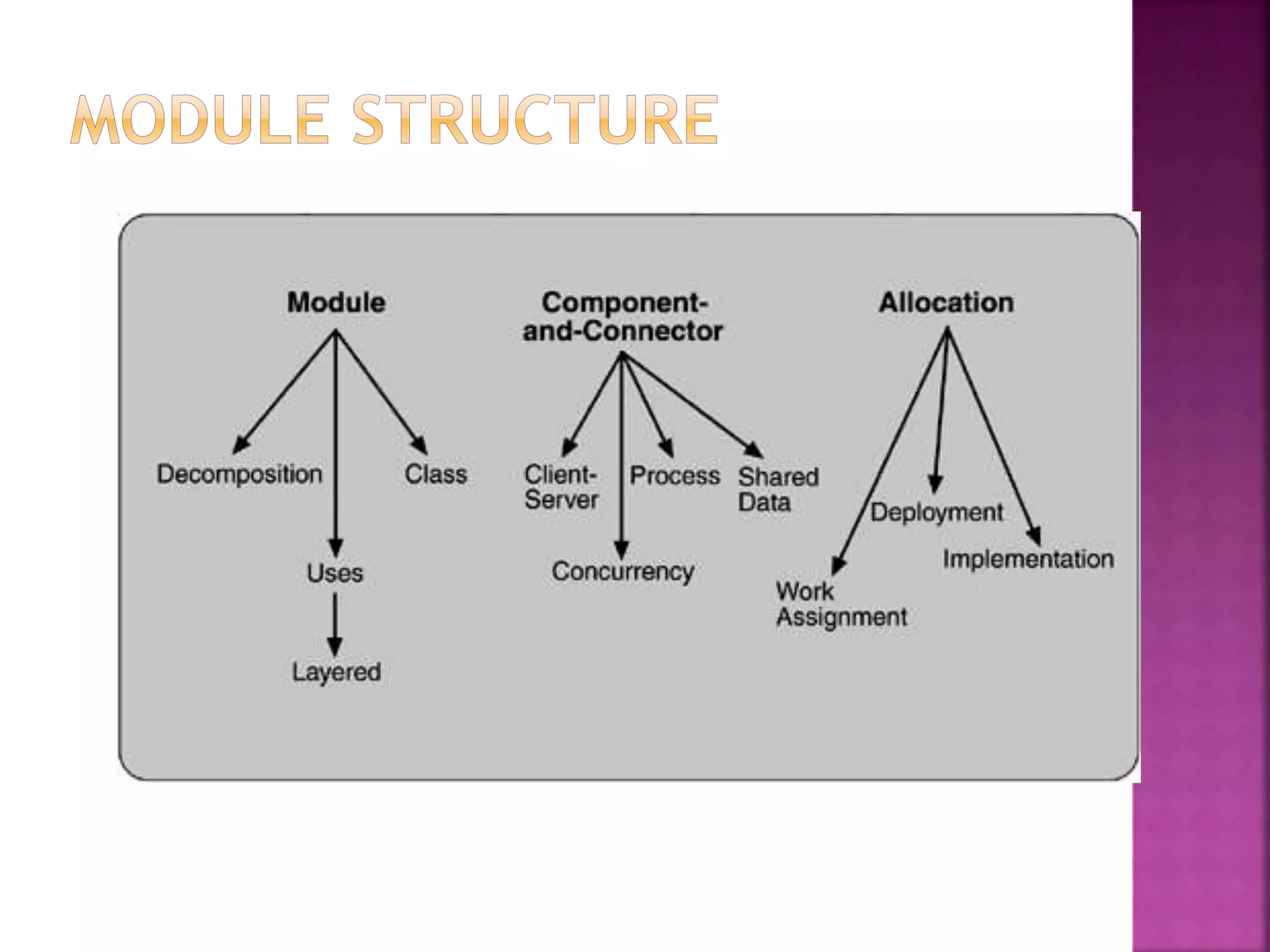

- 5. Decomposition Units:Modules Relation: “Is a sub-module of” Useful for: project structuring and planning, to produce modifiable systems

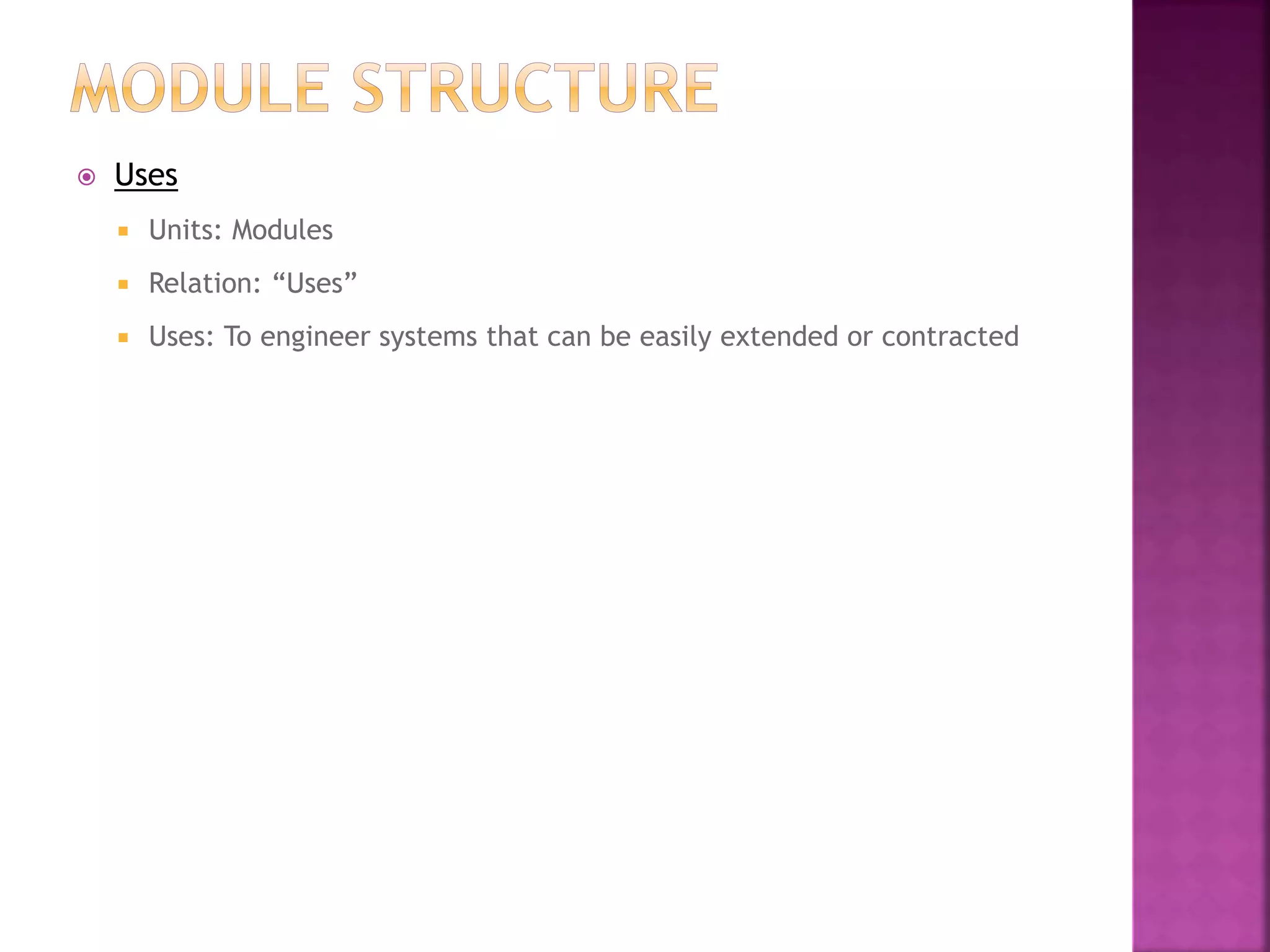

- 6. Uses Units:Modules Relation: “Uses” Uses: To engineer systems that can be easily extended or contracted

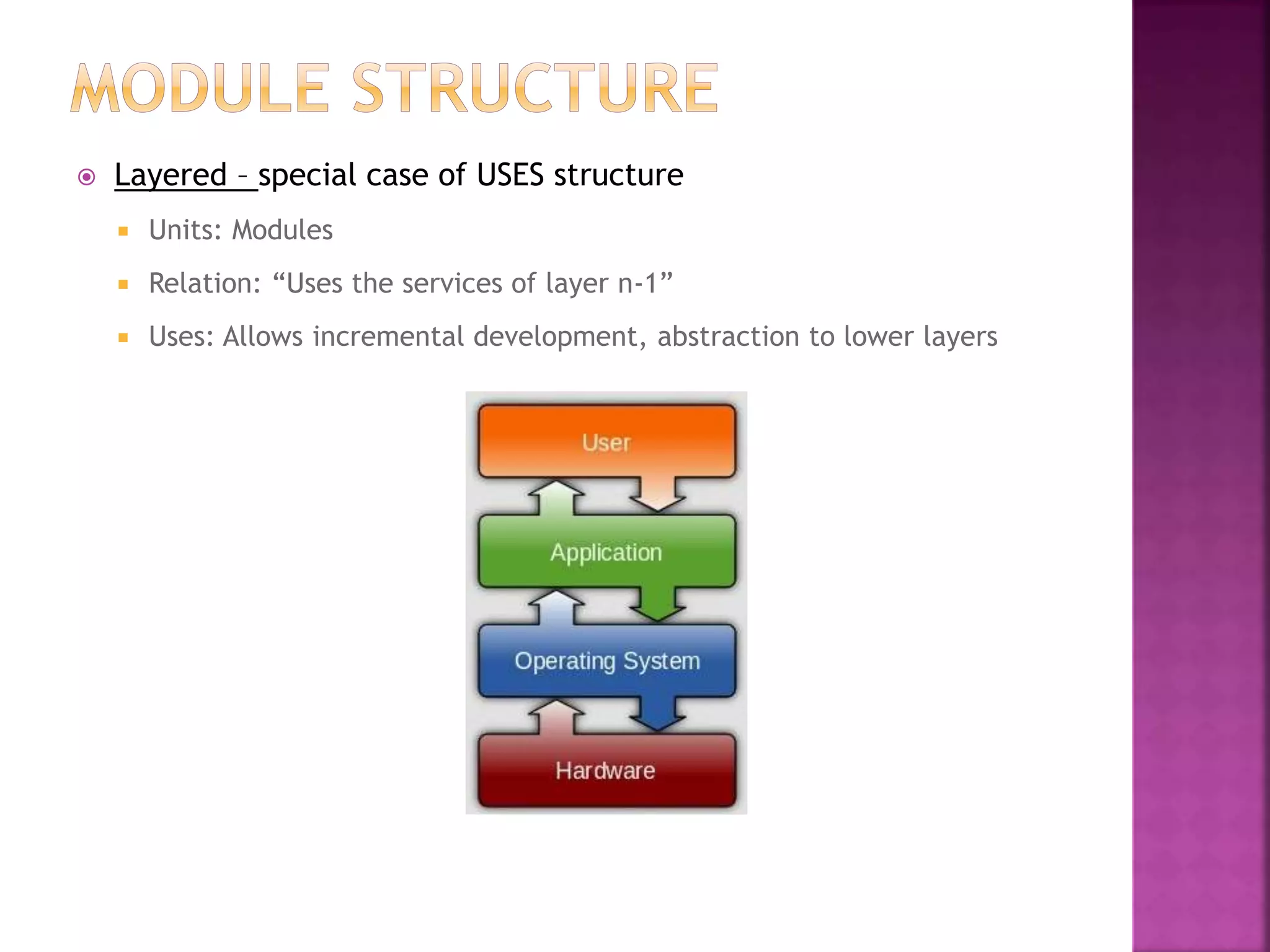

- 7. Layered –special case of USES structure Units: Modules Relation: “Uses the services of layer n-1” Uses: Allows incremental development, abstraction to lower layers

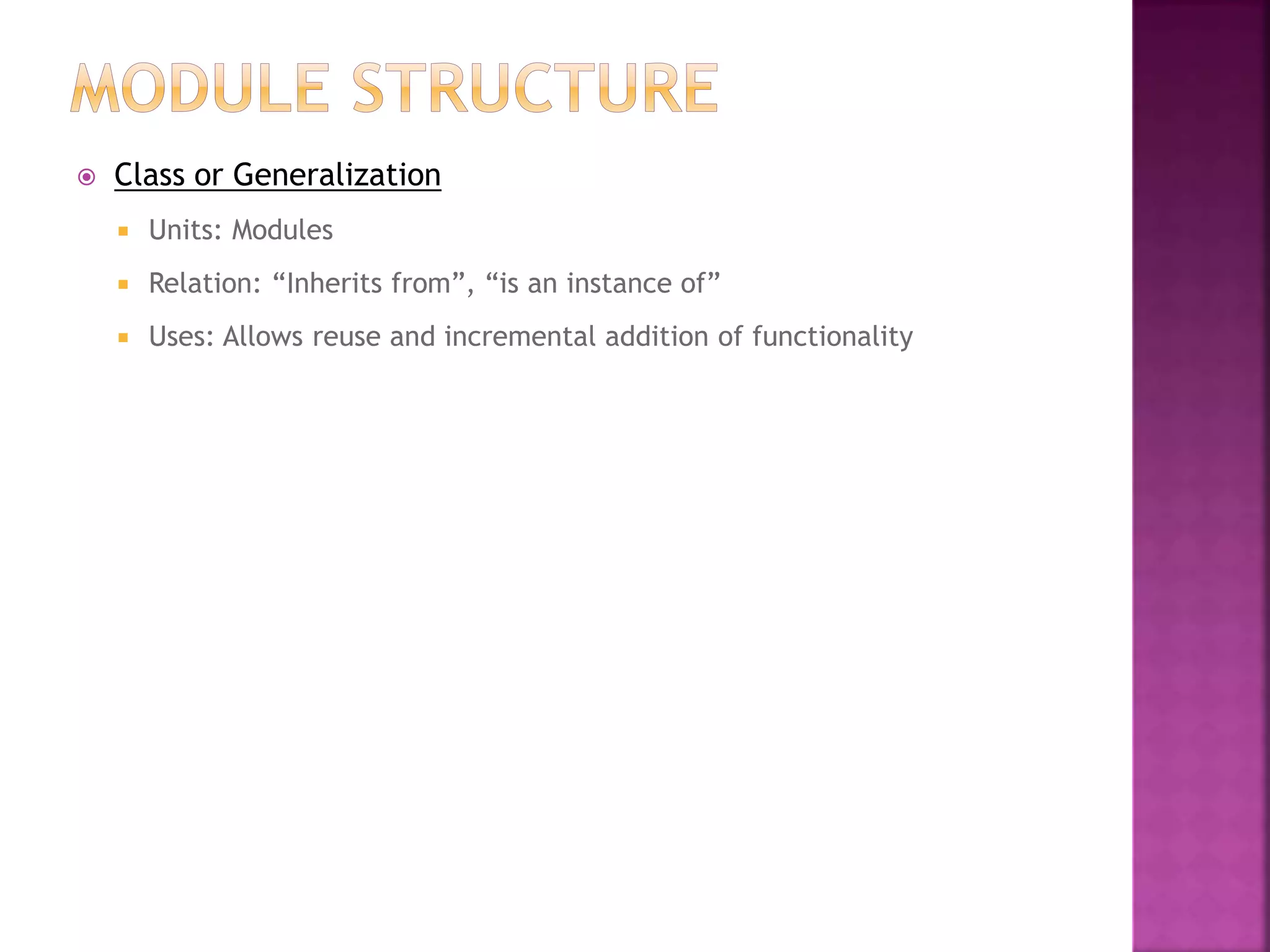

- 8. Class orGeneralization Units: Modules Relation: “Inherits from”, “is an instance of” Uses: Allows reuse and incremental addition of functionality

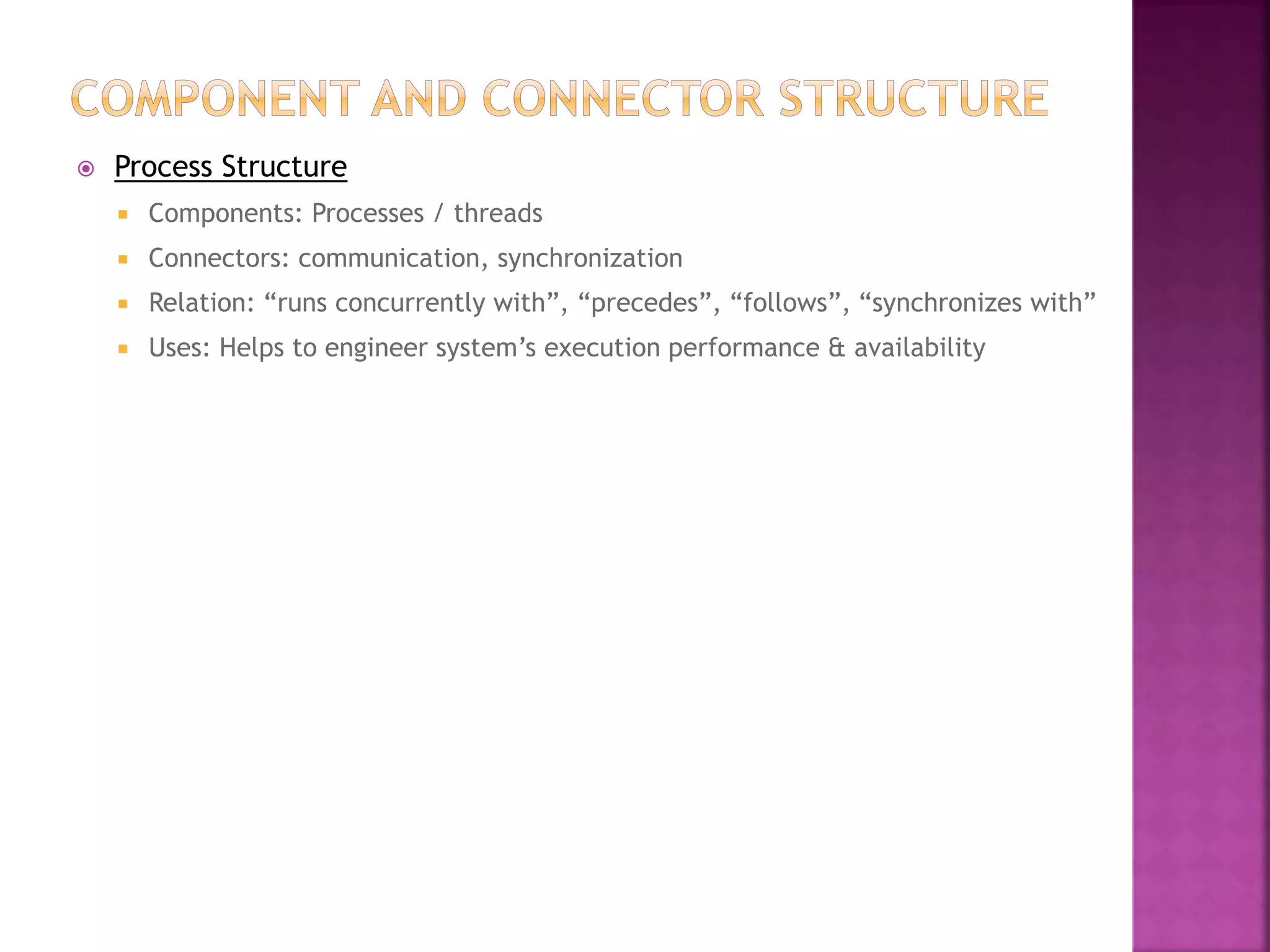

- 10. Process Structure Components: Processes / threads Connectors: communication, synchronization Relation: “runs concurrently with”, “precedes”, “follows”, “synchronizes with” Uses: Helps to engineer system’s execution performance & availability

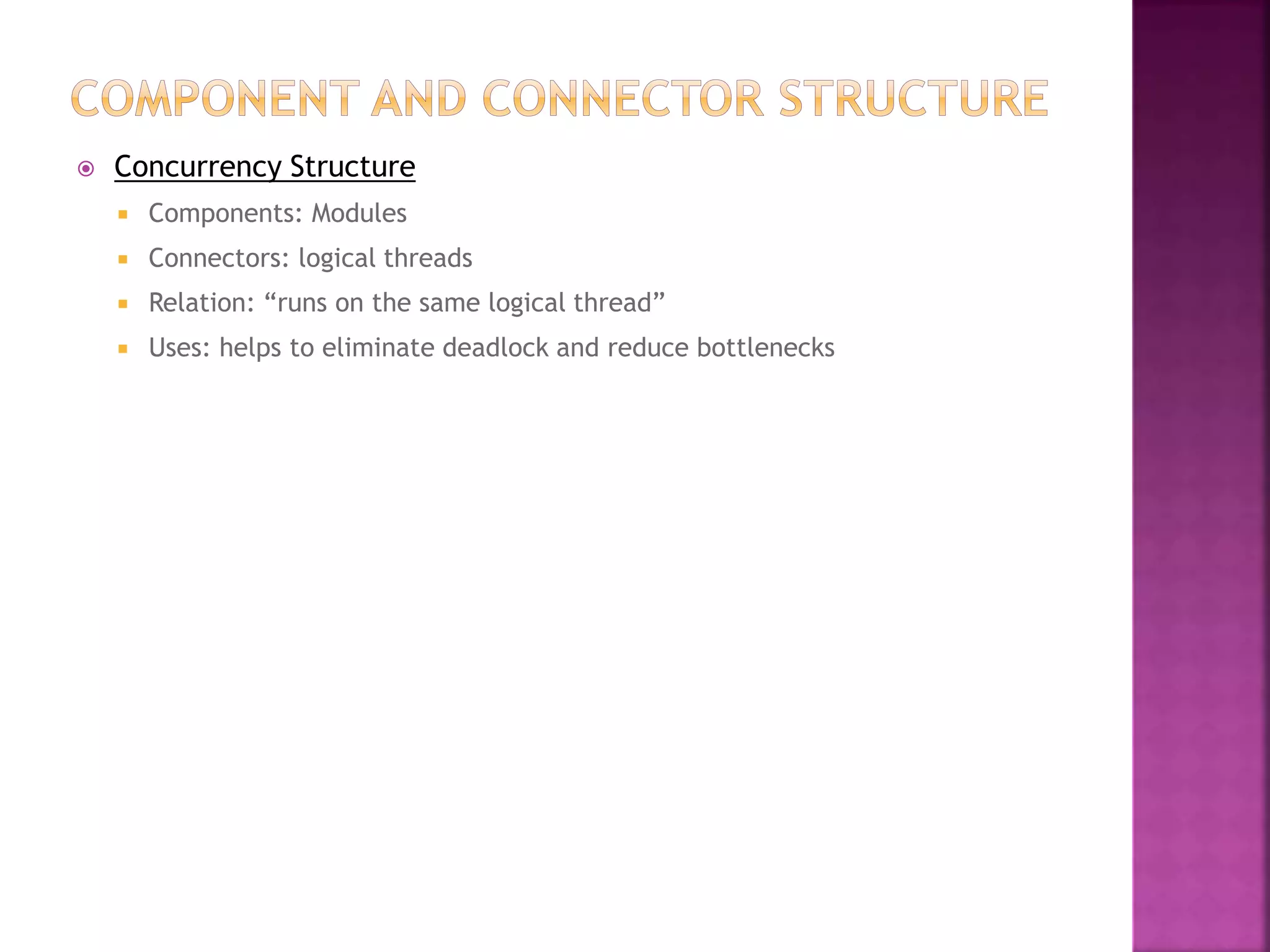

- 11. Concurrency Structure Components: Modules Connectors: logical threads Relation: “runs on the same logical thread” Uses: helps to eliminate deadlock and reduce bottlenecks

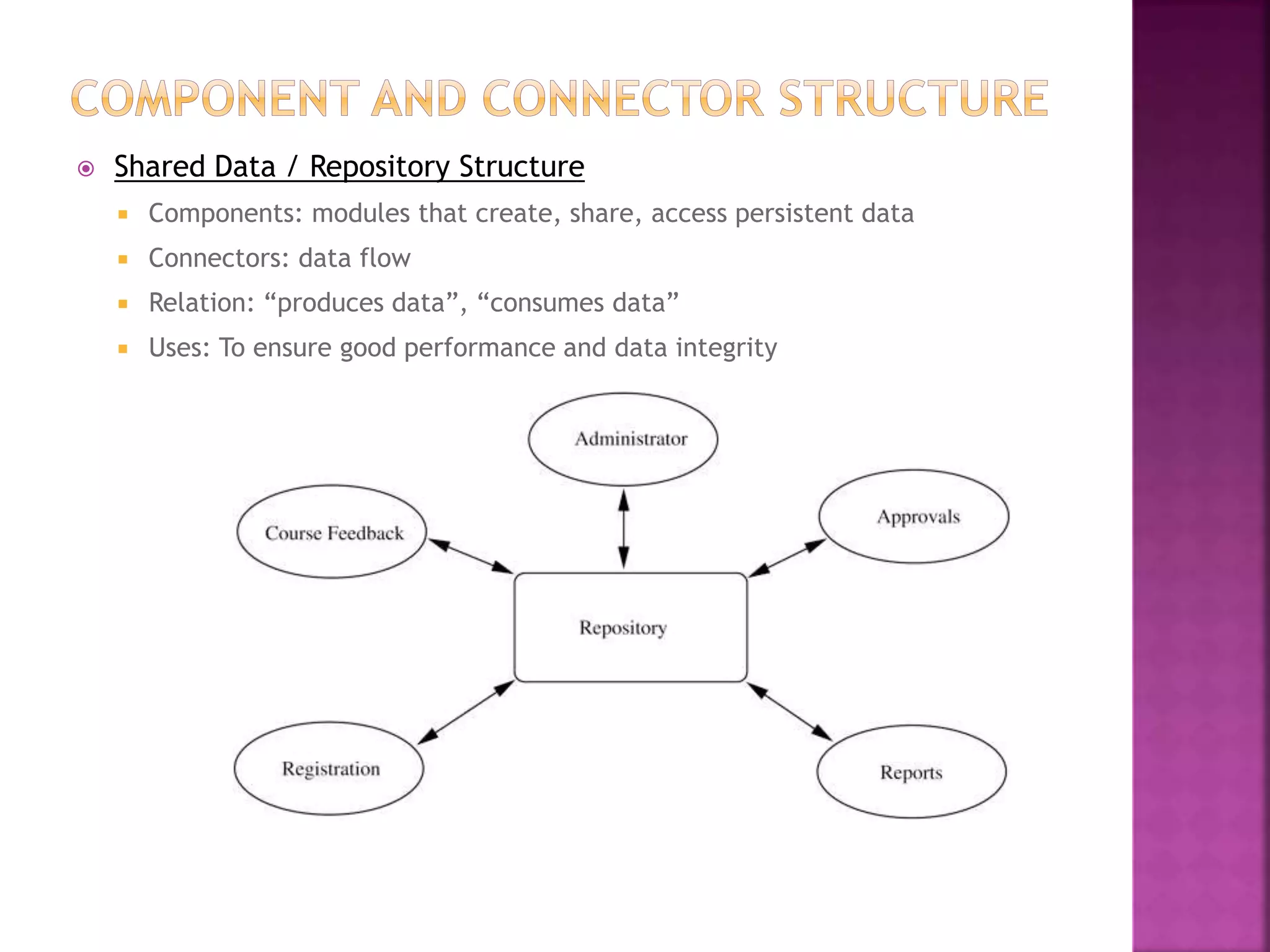

- 12. Shared Data/ Repository Structure Components: modules that create, share, access persistent data Connectors: data flow Relation: “produces data”, “consumes data” Uses: To ensure good performance and data integrity

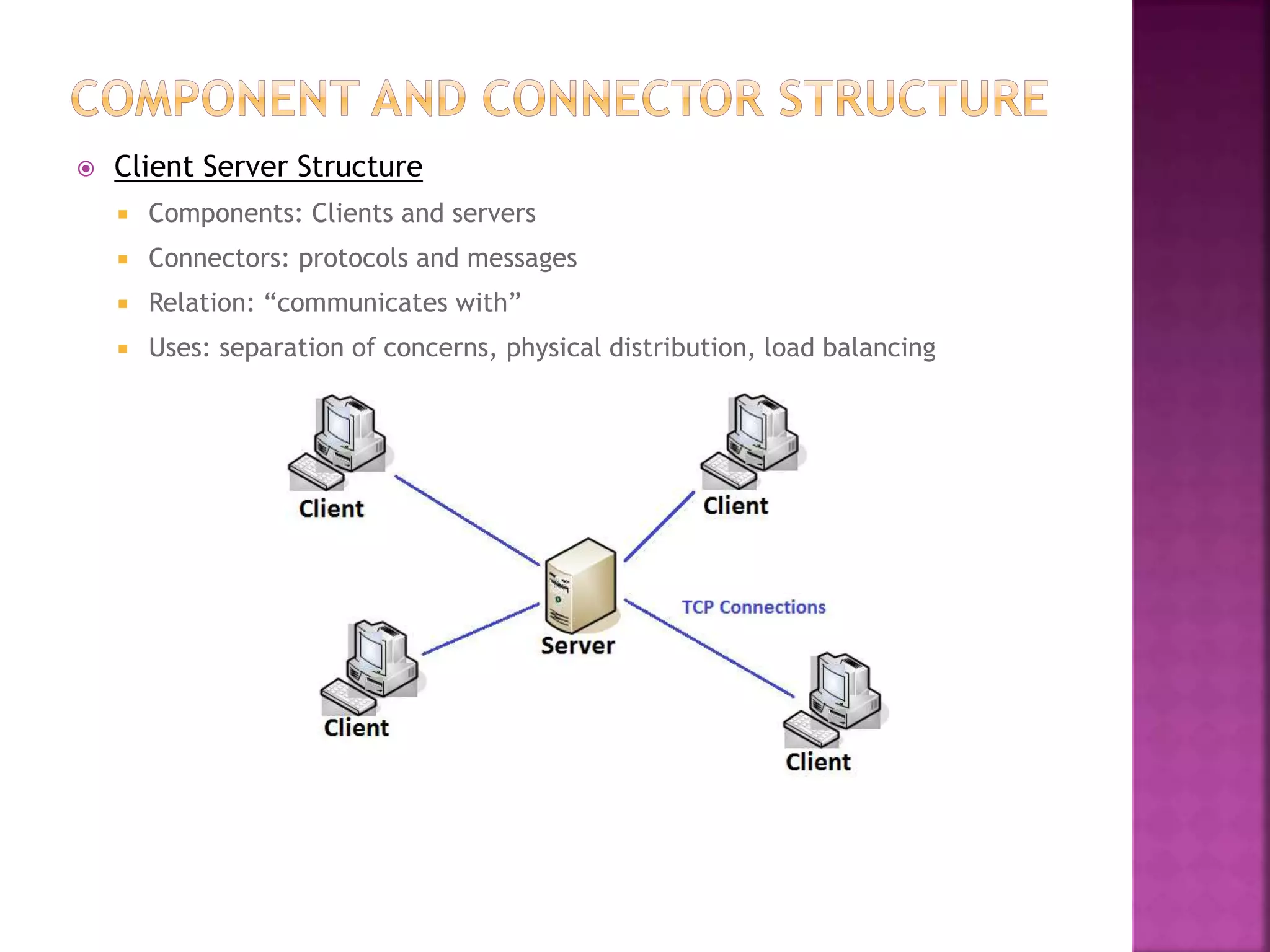

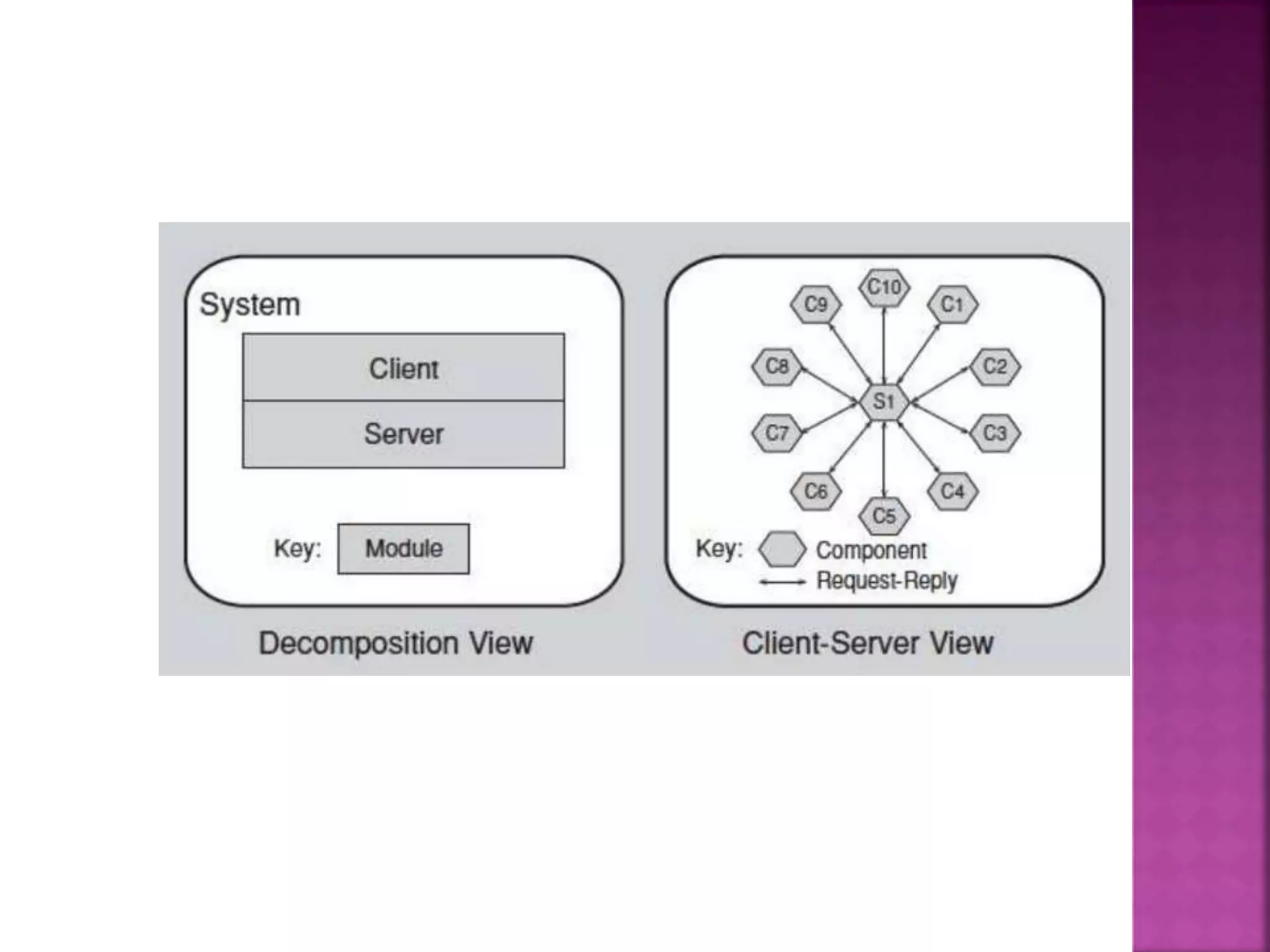

- 13. Client ServerStructure Components: Clients and servers Connectors: protocols and messages Relation: “communicates with” Uses: separation of concerns, physical distribution, load balancing

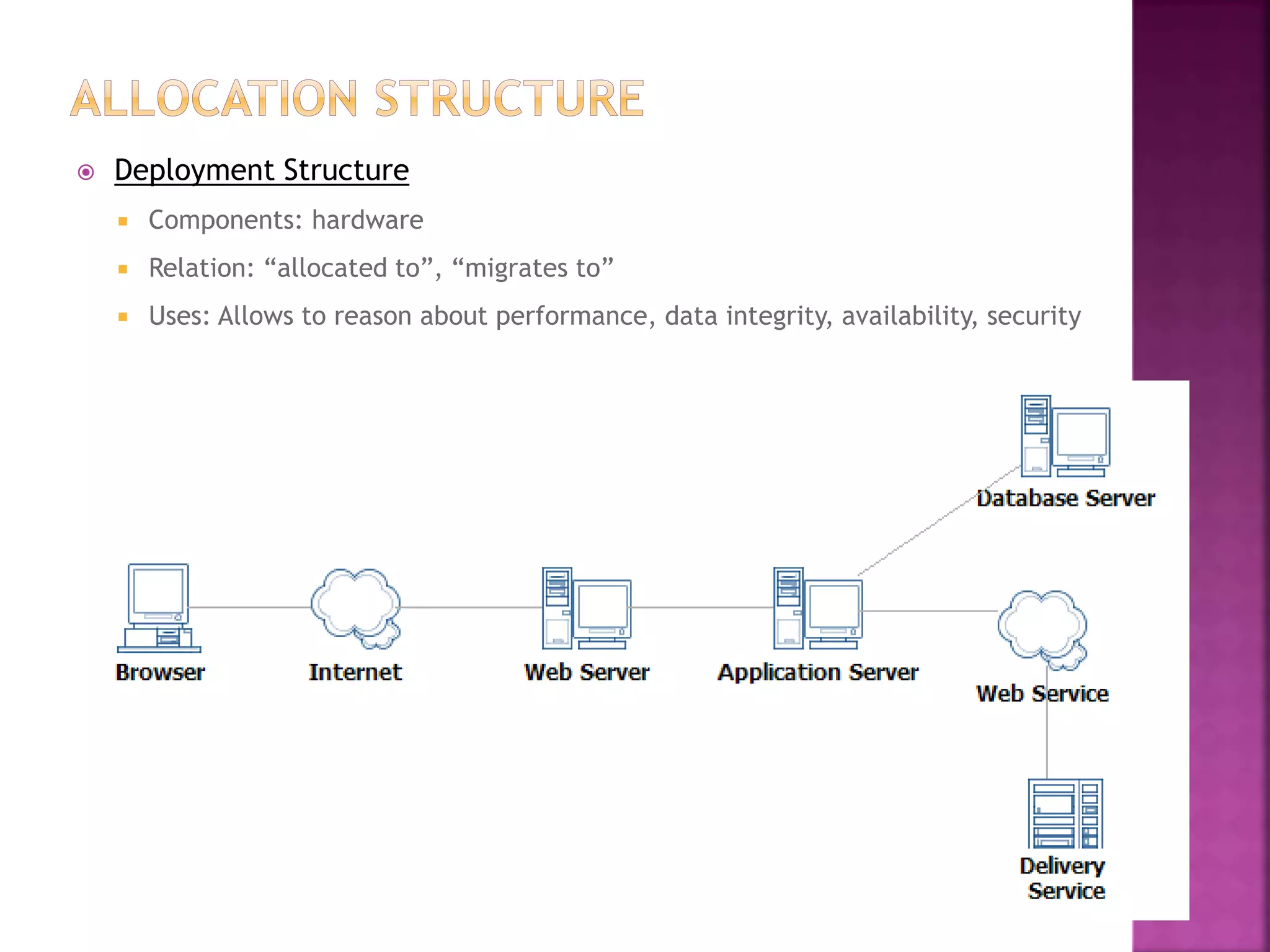

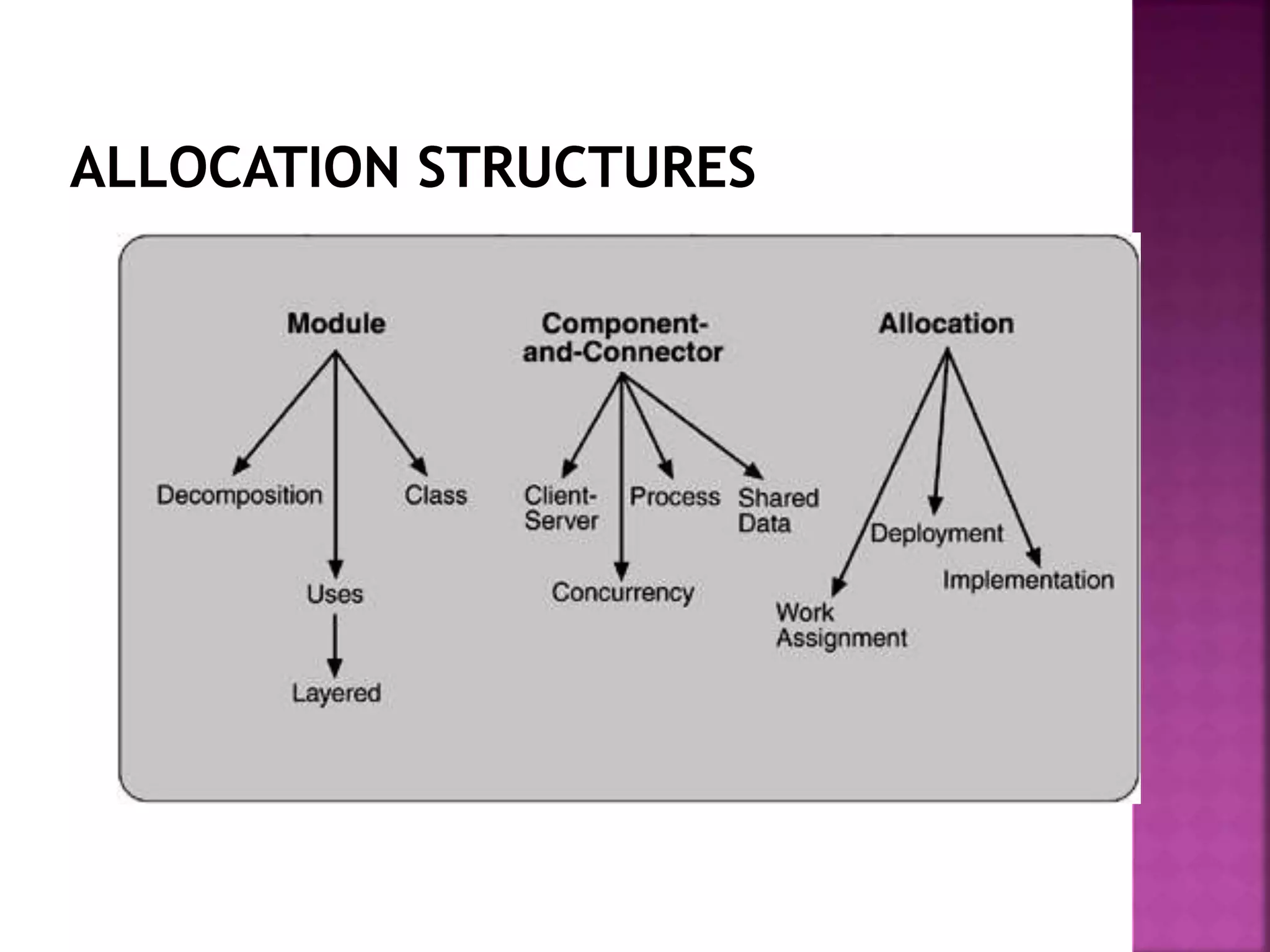

- 15. Deployment Structure Components: hardware Relation: “allocated to”, “migrates to” Uses: Allows to reason about performance, data integrity, availability, security

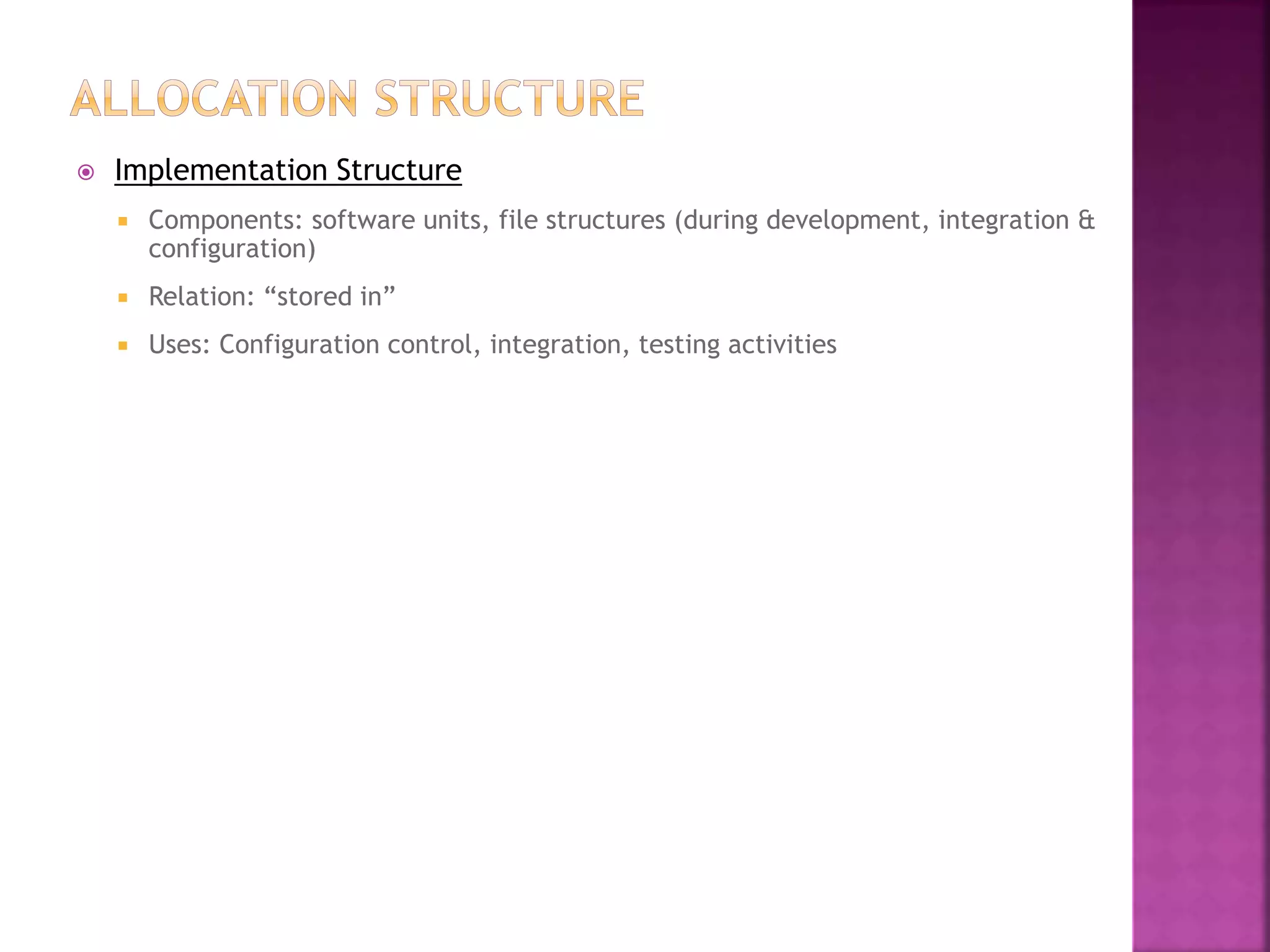

- 16. Implementation Structure Components: software units, file structures (during development, integration & configuration) Relation: “stored in” Uses: Configuration control, integration, testing activities

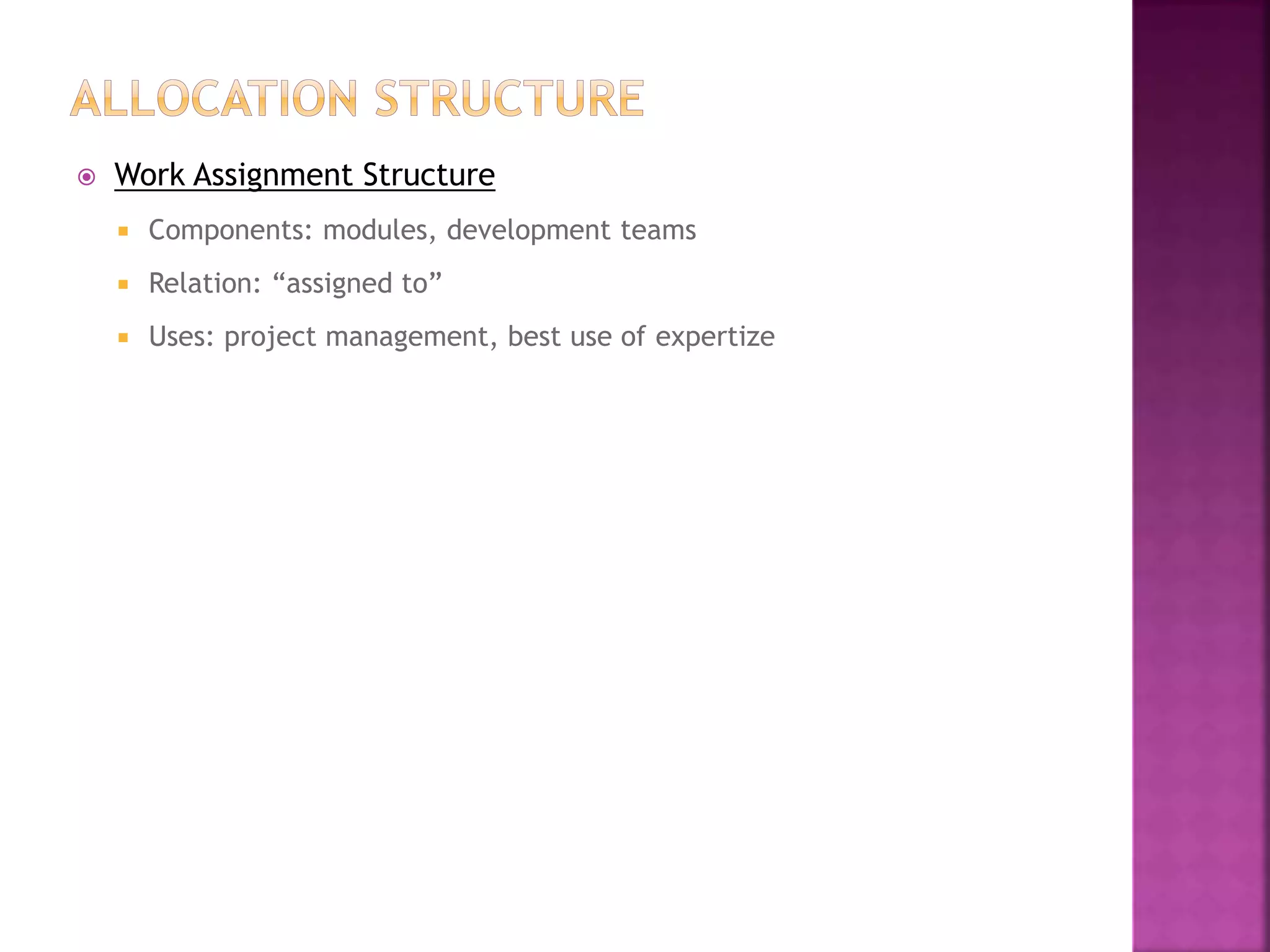

- 17. Work AssignmentStructure Components: modules, development teams Relation: “assigned to” Uses: project management, best use of expertize
