  Fun with Animation inSwift iOS Devs NYC, 12/15/14
• 2.
  About me Arun Nagarajan(@entaq) Currently Founding Engineer, funded stealth startup in NYC We are hiring! Email me at arun@isapp.com Previously 2 yrs at Google - Tech Lead, Developer Platform 9 yrs at Verivo Software (Boston) - VP of Architecture
• 3.
  Lets get started ●Swift o Awesome new language with power of Cocoa Touch ● XCode 6 o Playground is brand new feature to try out code
• 4.

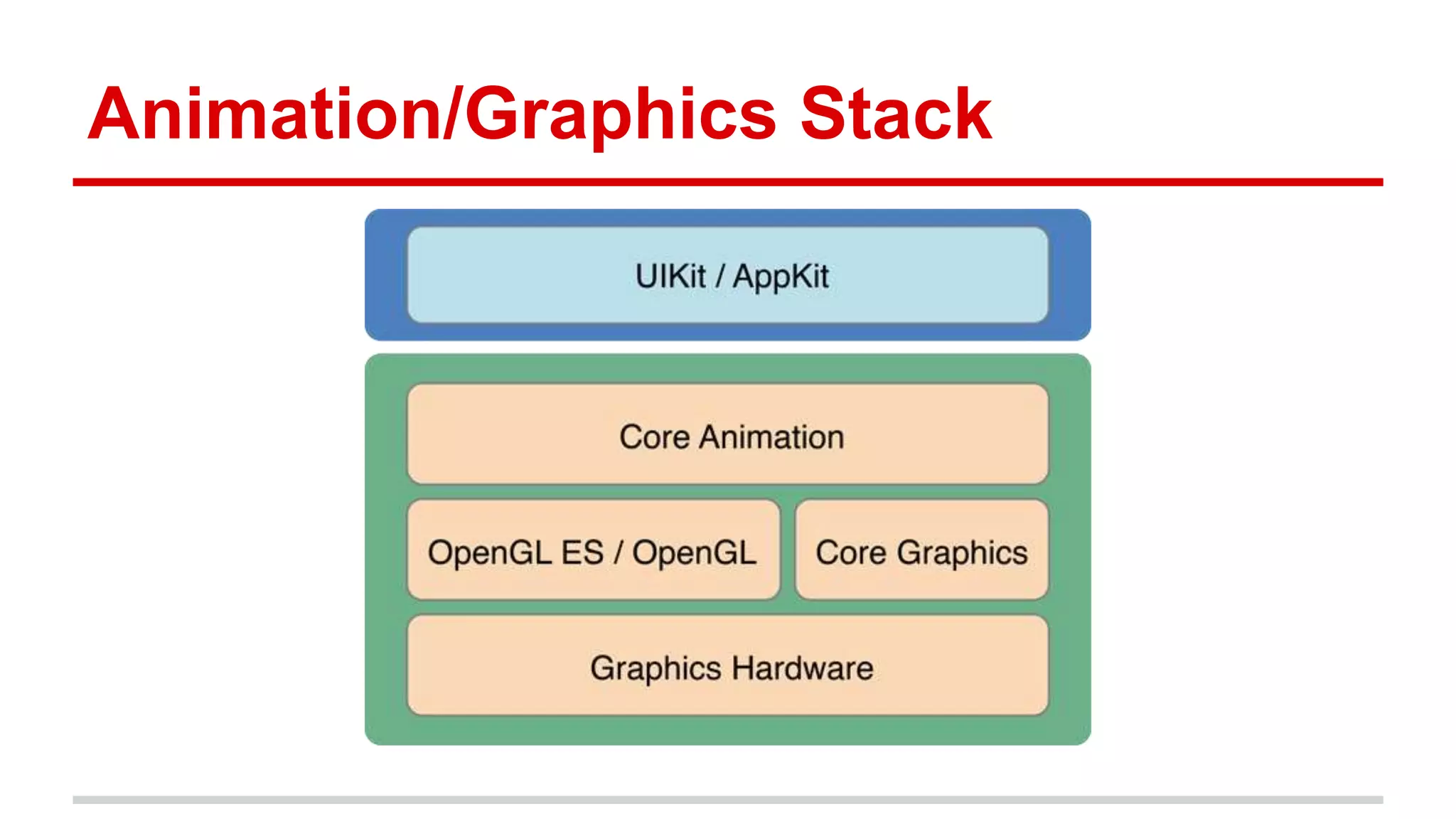

  Animation/Graphics Stack
• 5.

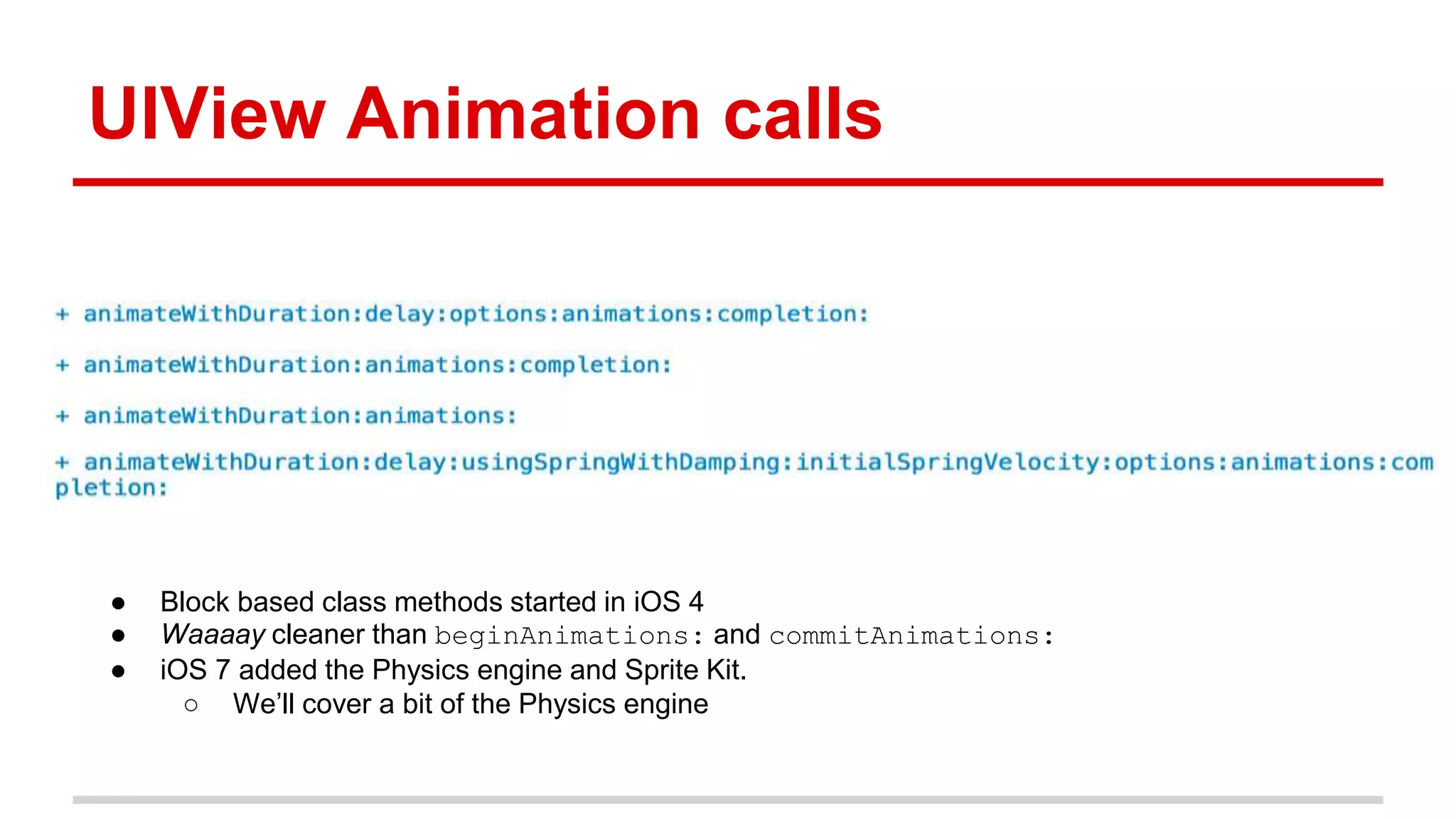

  UIView Animation calls ●Block based class methods started in iOS 4 ● Waaaay cleaner than beginAnimations: and commitAnimations: ● iOS 7 added the Physics engine and Sprite Kit. ○ We’ll cover a bit of the Physics engine
• 6.

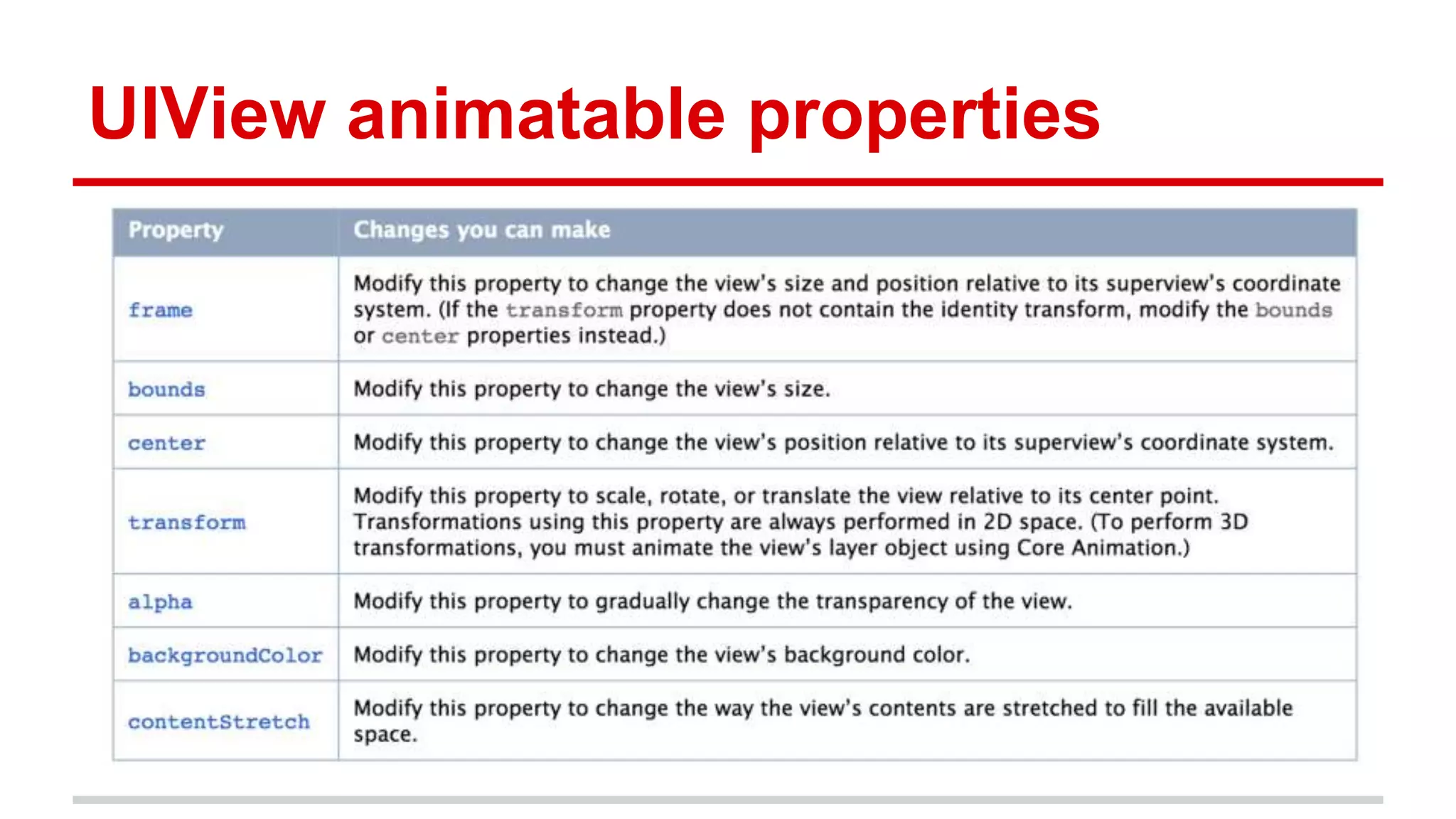

  UIView animatable properties
• 7.

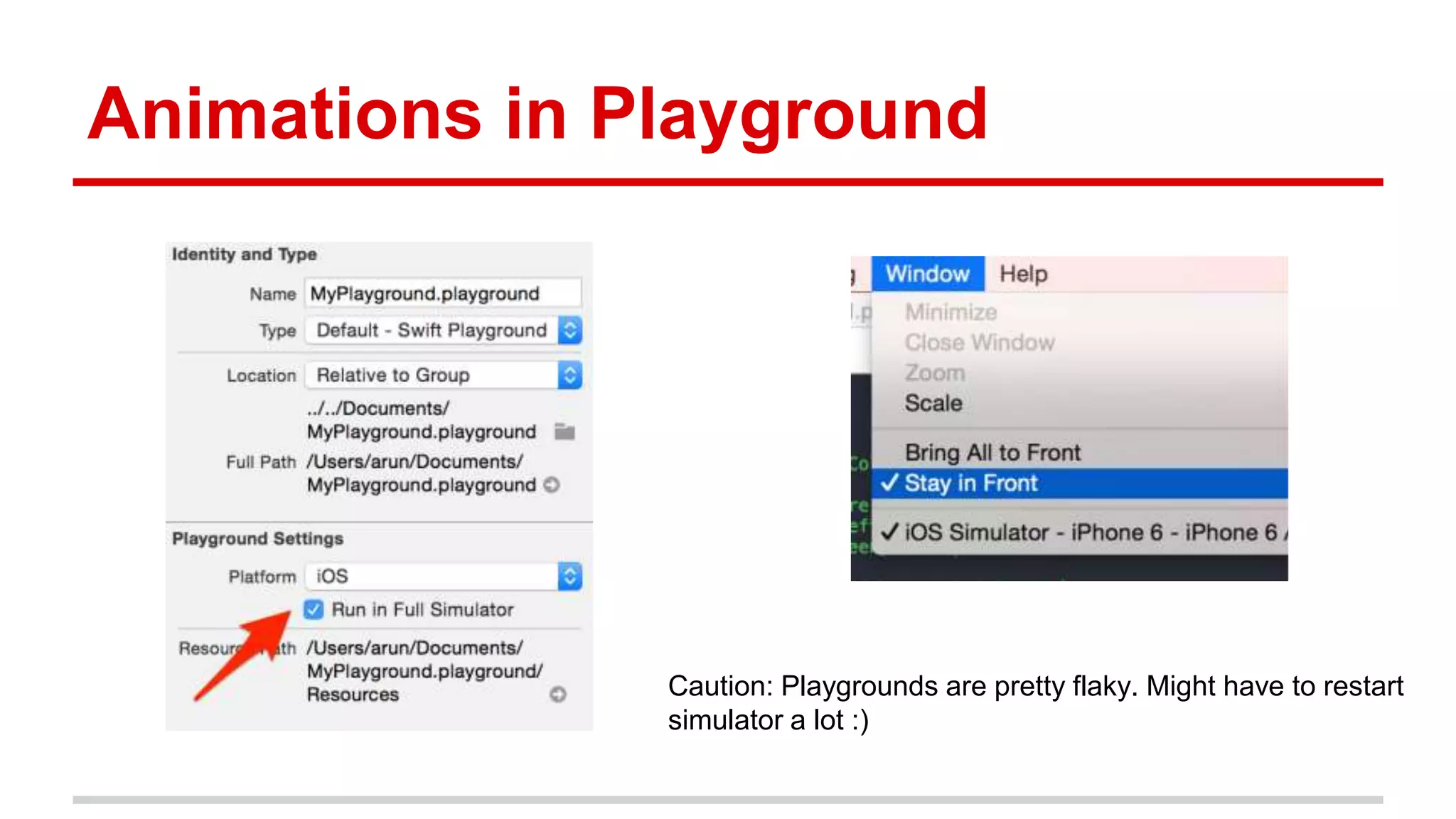

  Animations in Playground Caution:Playgrounds are pretty flaky. Might have to restart simulator a lot :)
• 8.

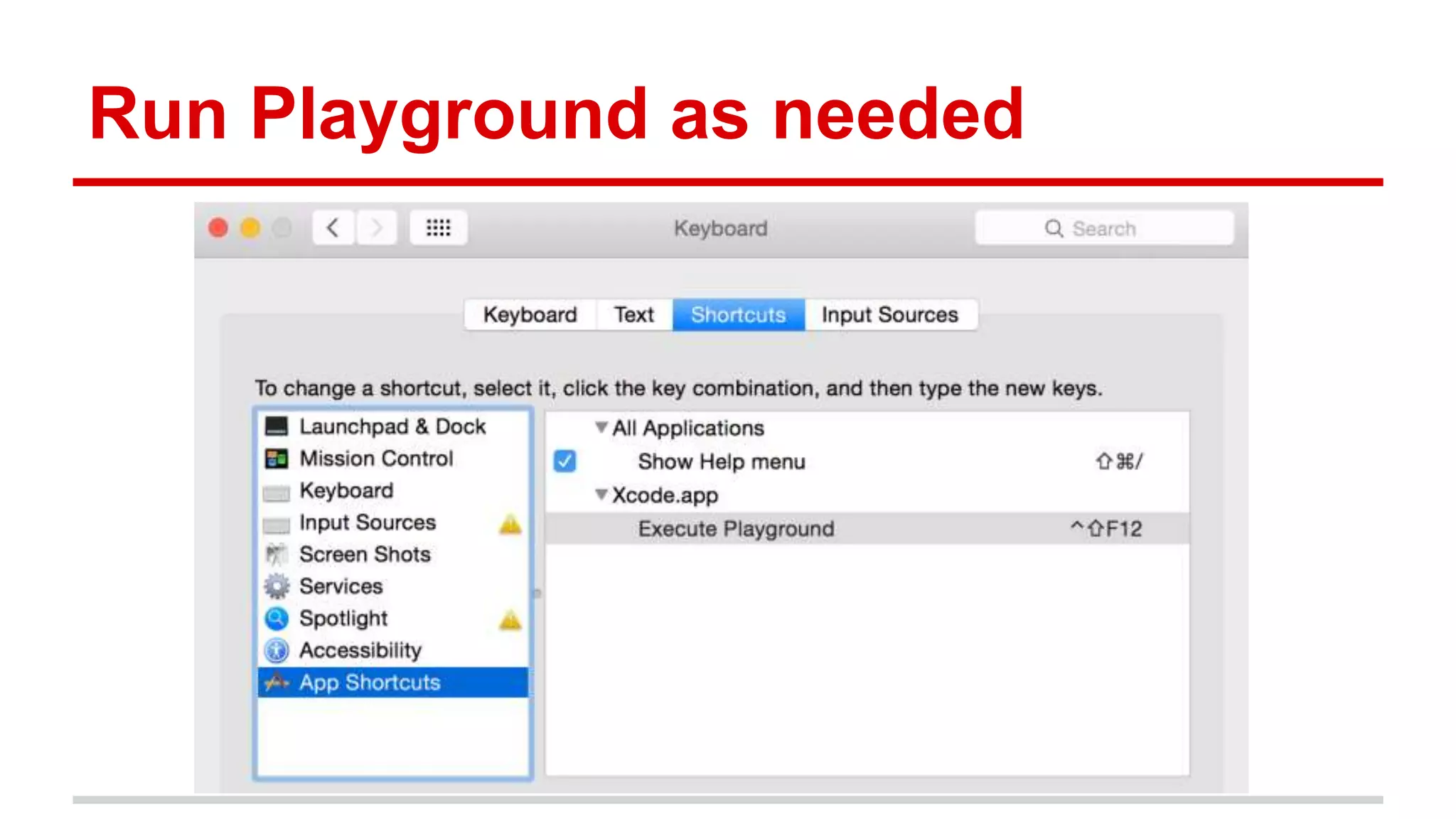

  Run Playground asneeded
• 9.

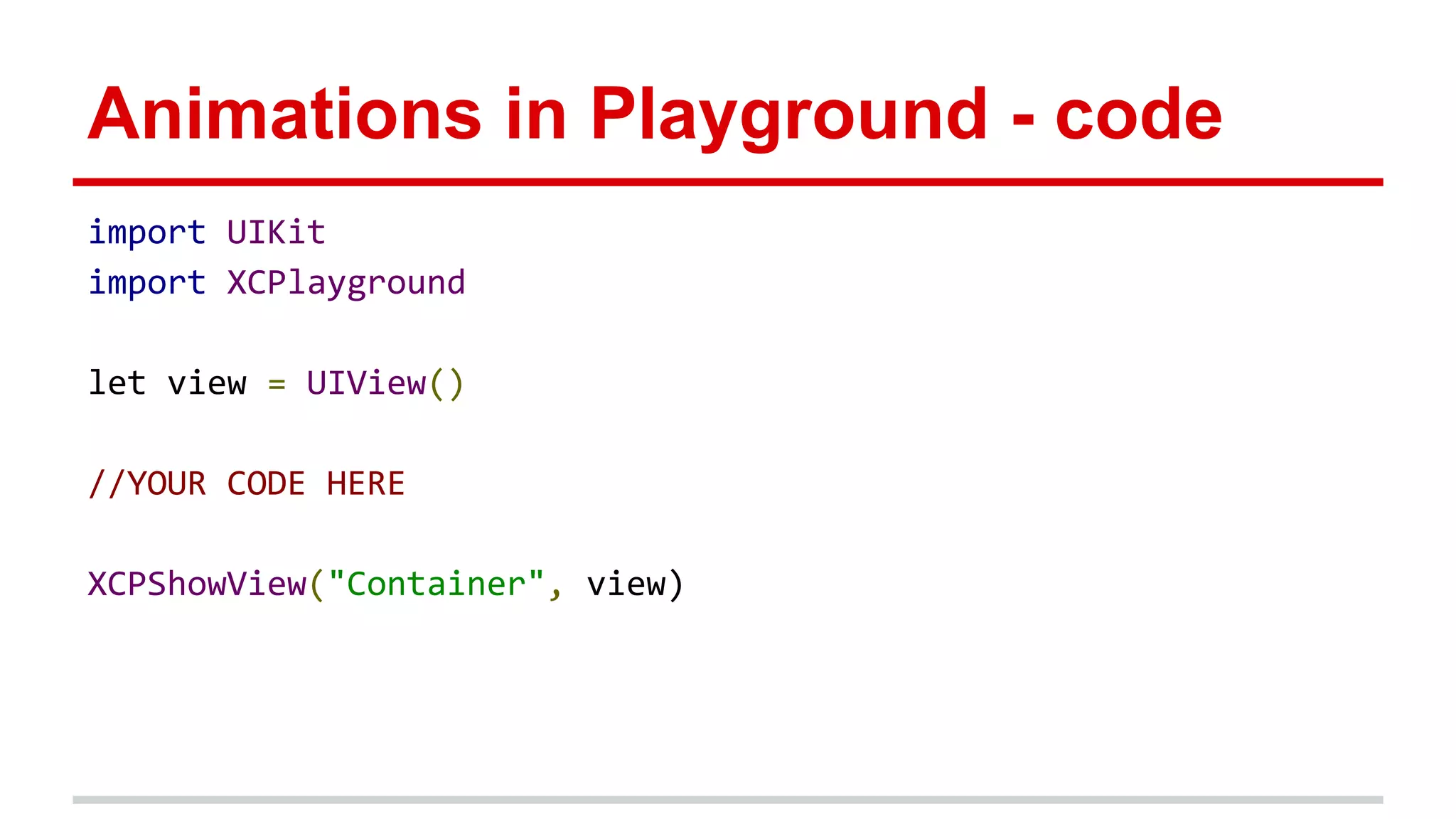

  Animations in Playground- code import UIKit import XCPlayground let view = UIView() //YOUR CODE HERE XCPShowView("Container", view)
• 10.

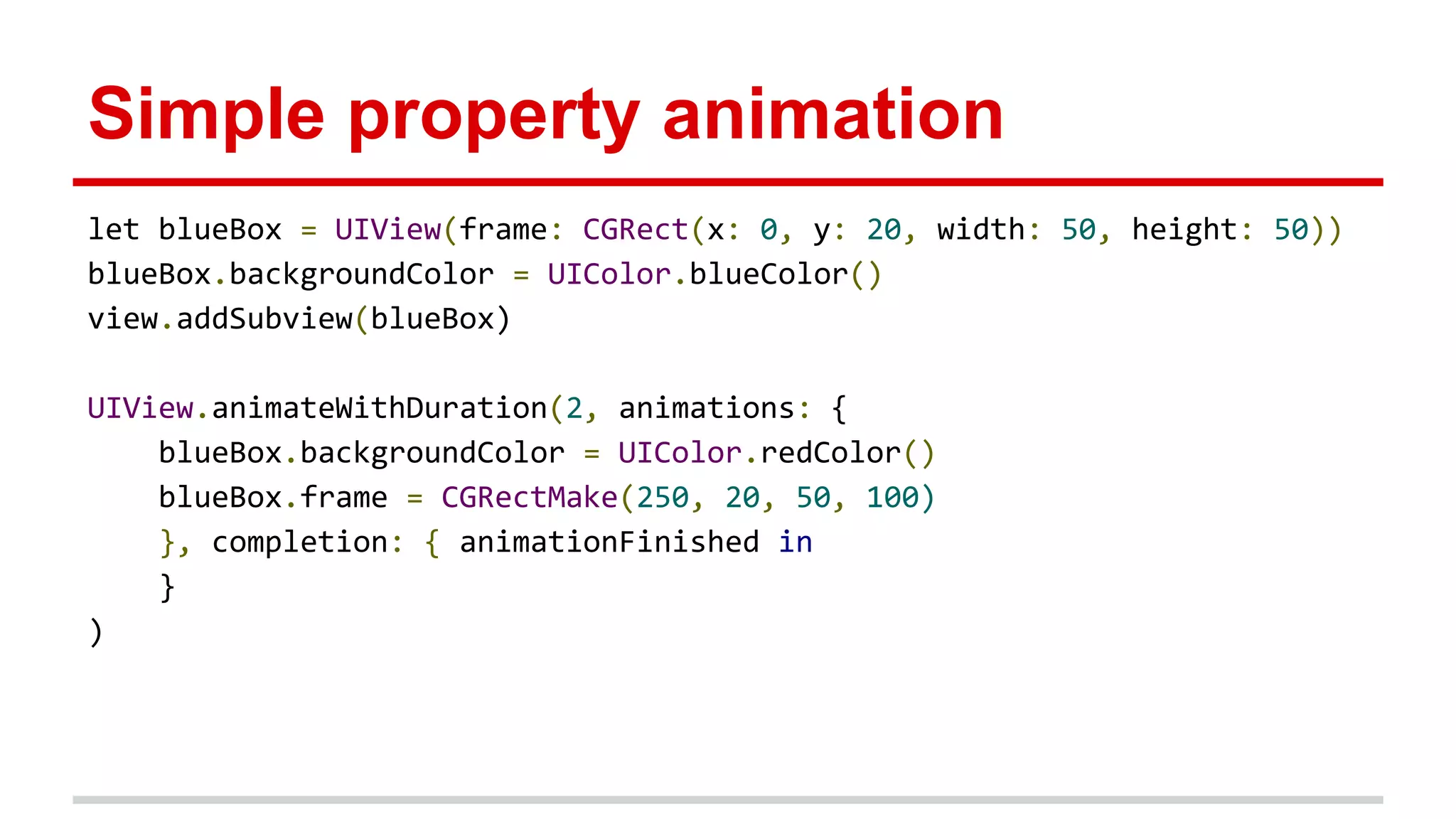

  Simple property animation letblueBox = UIView(frame: CGRect(x: 0, y: 20, width: 50, height: 50)) blueBox.backgroundColor = UIColor.blueColor() view.addSubview(blueBox) UIView.animateWithDuration(2, animations: { blueBox.backgroundColor = UIColor.redColor() blueBox.frame = CGRectMake(250, 20, 50, 100) }, completion: { animationFinished in } )
• 11.

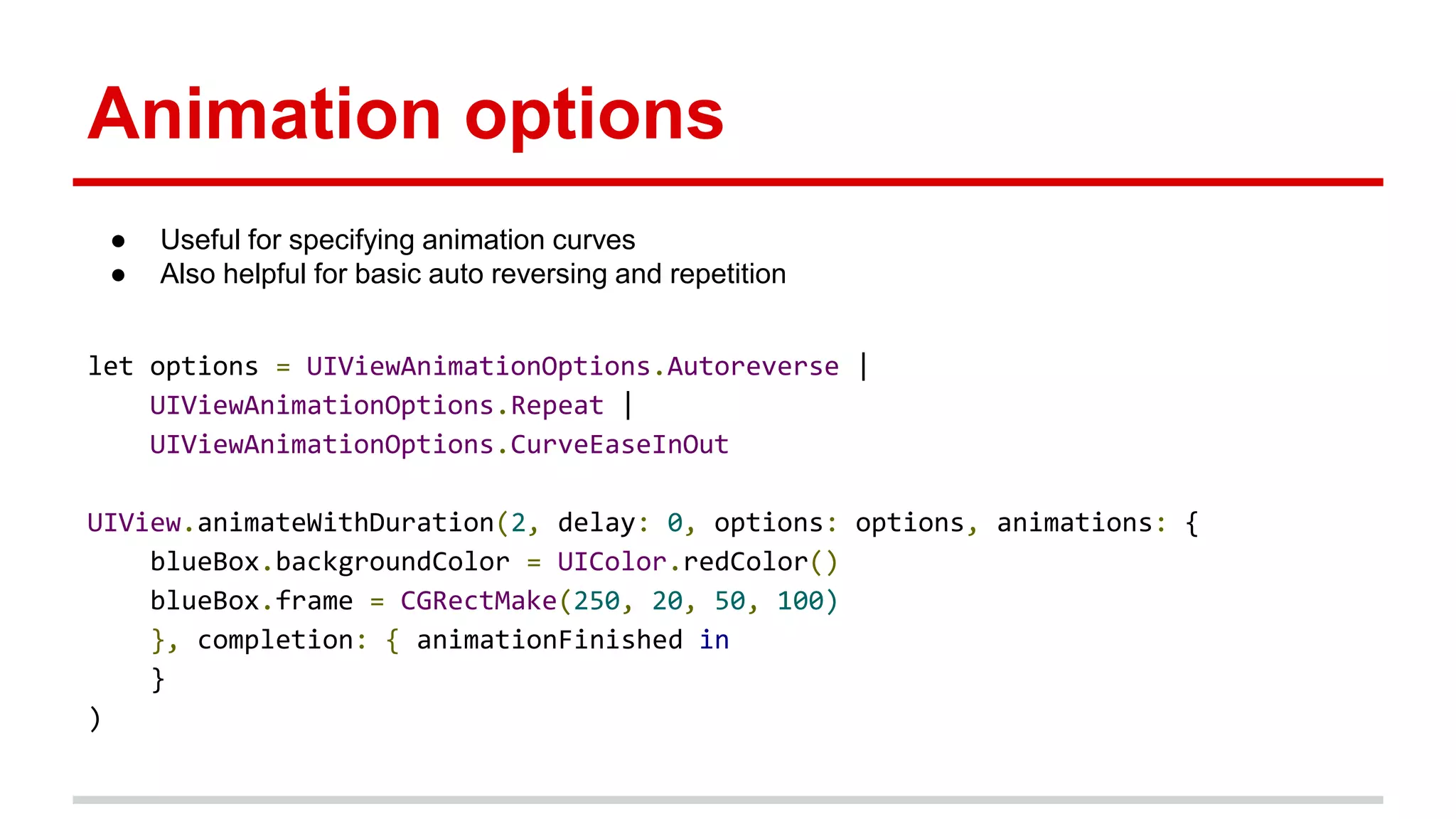

  Animation options let options= UIViewAnimationOptions.Autoreverse | UIViewAnimationOptions.Repeat | UIViewAnimationOptions.CurveEaseInOut UIView.animateWithDuration(2, delay: 0, options: options, animations: { blueBox.backgroundColor = UIColor.redColor() blueBox.frame = CGRectMake(250, 20, 50, 100) }, completion: { animationFinished in } ) ● Useful for specifying animation curves ● Also helpful for basic auto reversing and repetition
• 12.

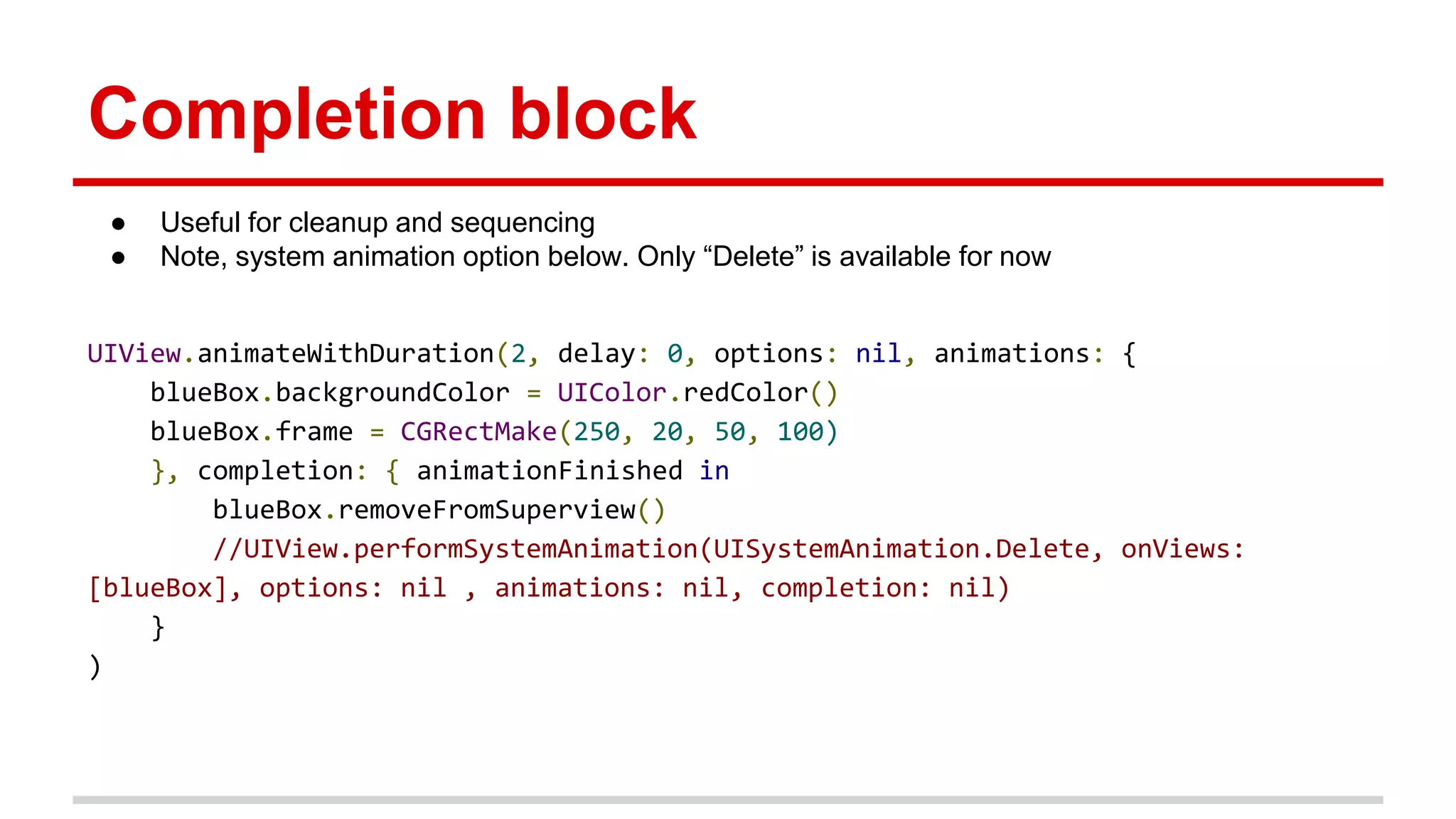

  Completion block ● Usefulfor cleanup and sequencing ● Note, system animation option below. Only “Delete” is available for now UIView.animateWithDuration(2, delay: 0, options: nil, animations: { blueBox.backgroundColor = UIColor.redColor() blueBox.frame = CGRectMake(250, 20, 50, 100) }, completion: { animationFinished in blueBox.removeFromSuperview() //UIView.performSystemAnimation(UISystemAnimation.Delete, onViews: [blueBox], options: nil , animations: nil, completion: nil) } )
• 13.

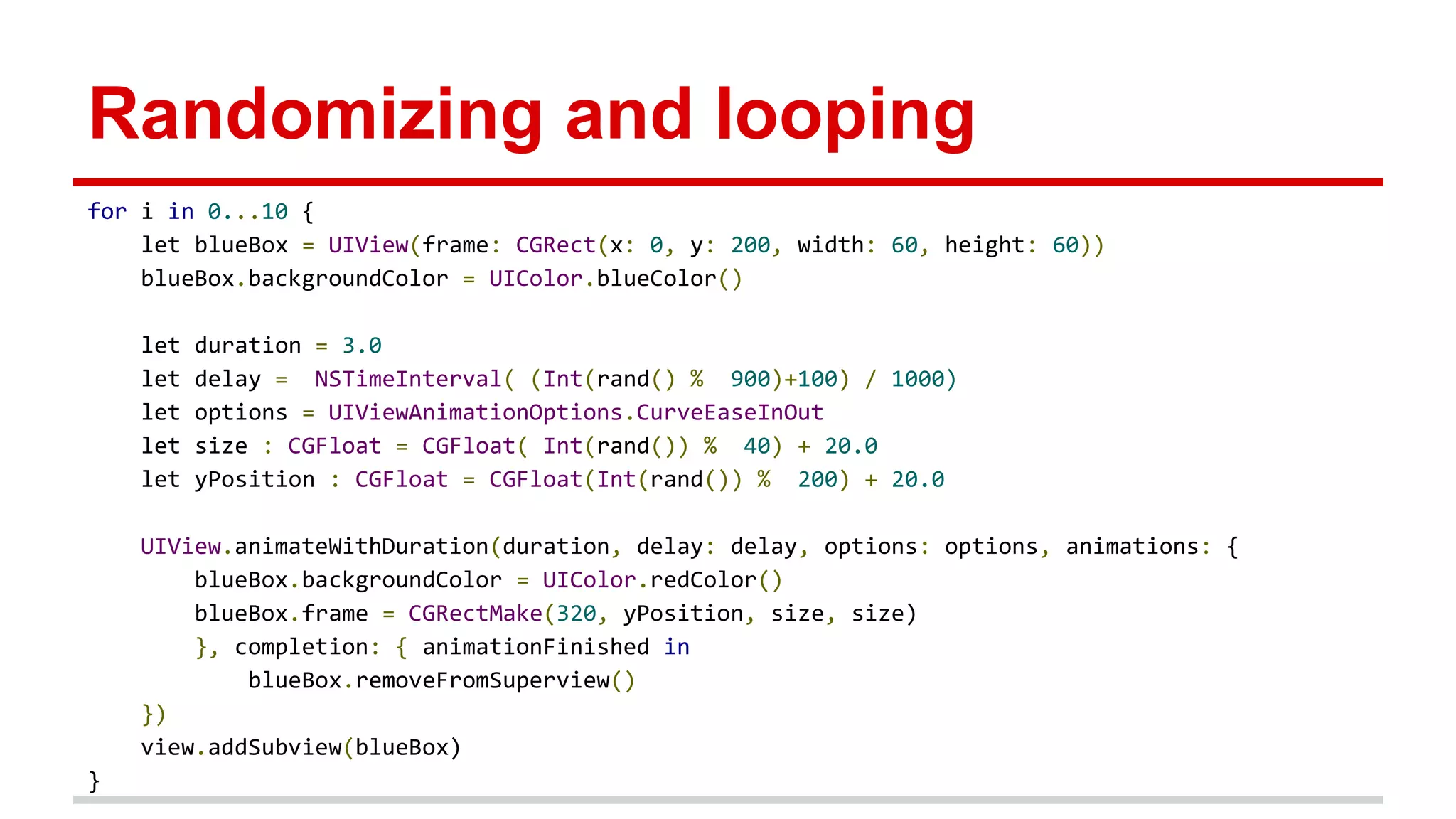

  Randomizing and looping fori in 0...10 { let blueBox = UIView(frame: CGRect(x: 0, y: 200, width: 60, height: 60)) blueBox.backgroundColor = UIColor.blueColor() let duration = 3.0 let delay = NSTimeInterval( (Int(rand() % 900)+100) / 1000) let options = UIViewAnimationOptions.CurveEaseInOut let size : CGFloat = CGFloat( Int(rand()) % 40) + 20.0 let yPosition : CGFloat = CGFloat(Int(rand()) % 200) + 20.0 UIView.animateWithDuration(duration, delay: delay, options: options, animations: { blueBox.backgroundColor = UIColor.redColor() blueBox.frame = CGRectMake(320, yPosition, size, size) }, completion: { animationFinished in blueBox.removeFromSuperview() }) view.addSubview(blueBox) }
• 14.

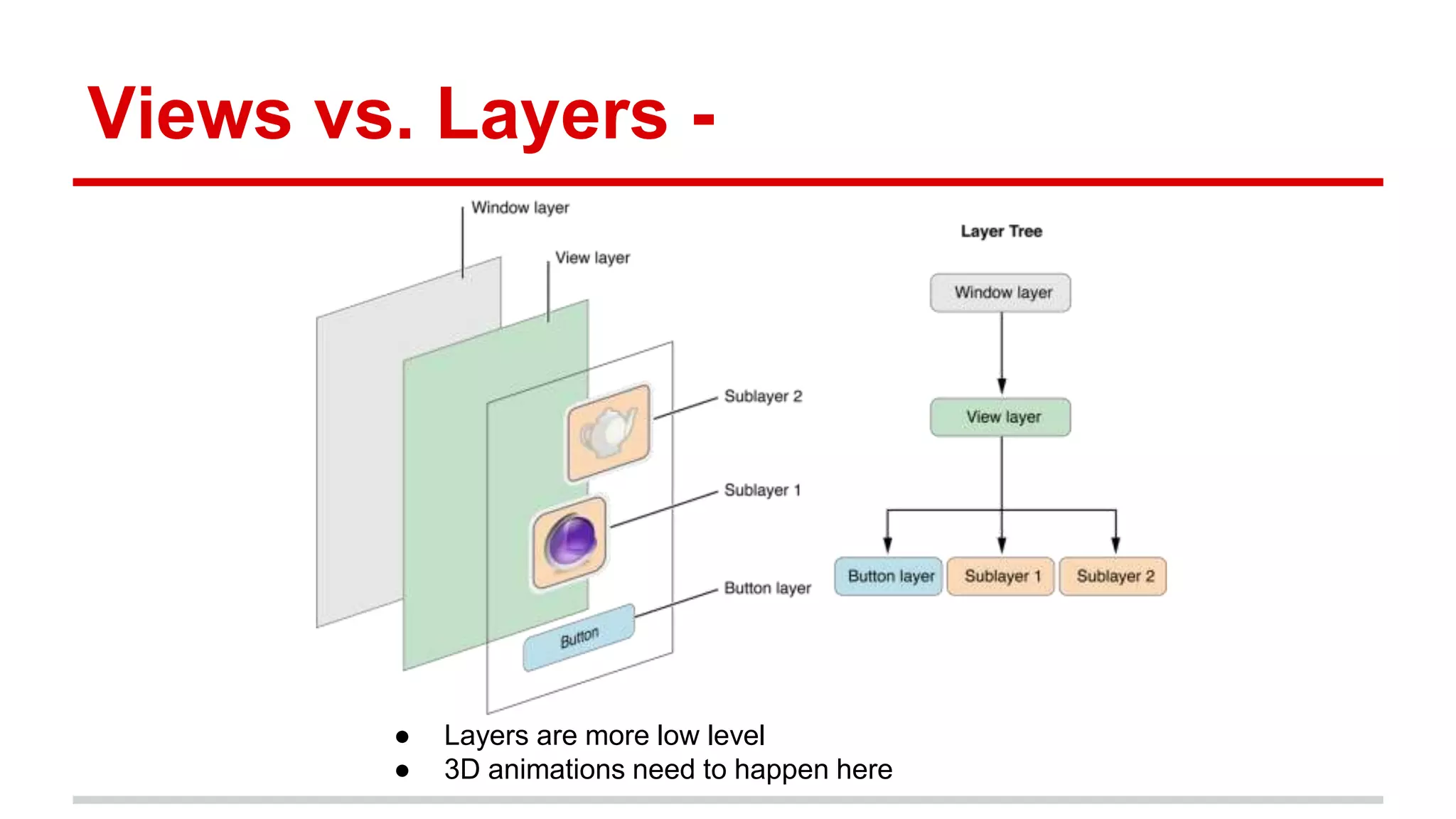

  Views vs. Layers- ● Layers are more low level ● 3D animations need to happen here
• 15.

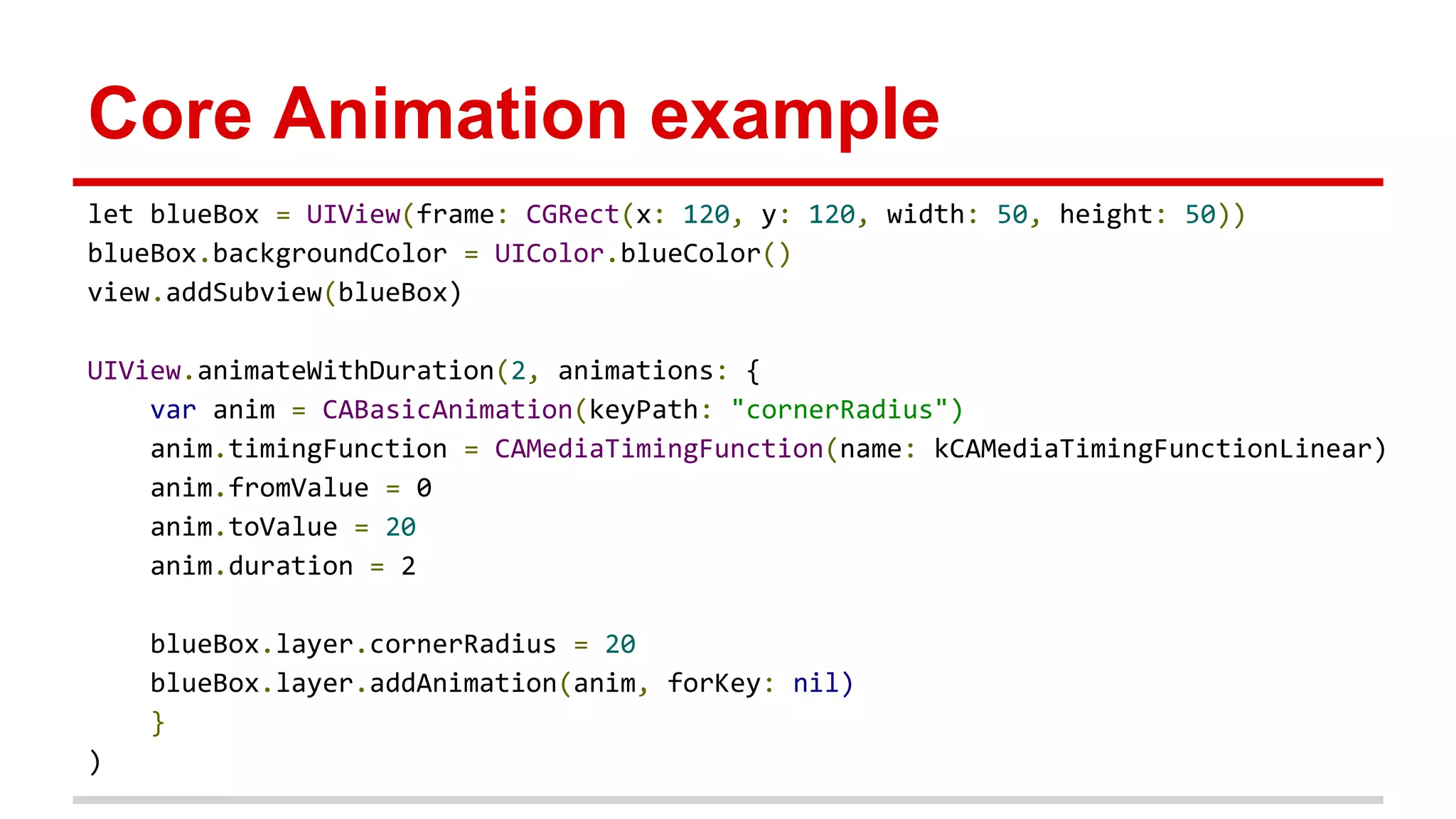

  Core Animation example letblueBox = UIView(frame: CGRect(x: 120, y: 120, width: 50, height: 50)) blueBox.backgroundColor = UIColor.blueColor() view.addSubview(blueBox) UIView.animateWithDuration(2, animations: { var anim = CABasicAnimation(keyPath: "cornerRadius") anim.timingFunction = CAMediaTimingFunction(name: kCAMediaTimingFunctionLinear) anim.fromValue = 0 anim.toValue = 20 anim.duration = 2 blueBox.layer.cornerRadius = 20 blueBox.layer.addAnimation(anim, forKey: nil) } )
• 16.

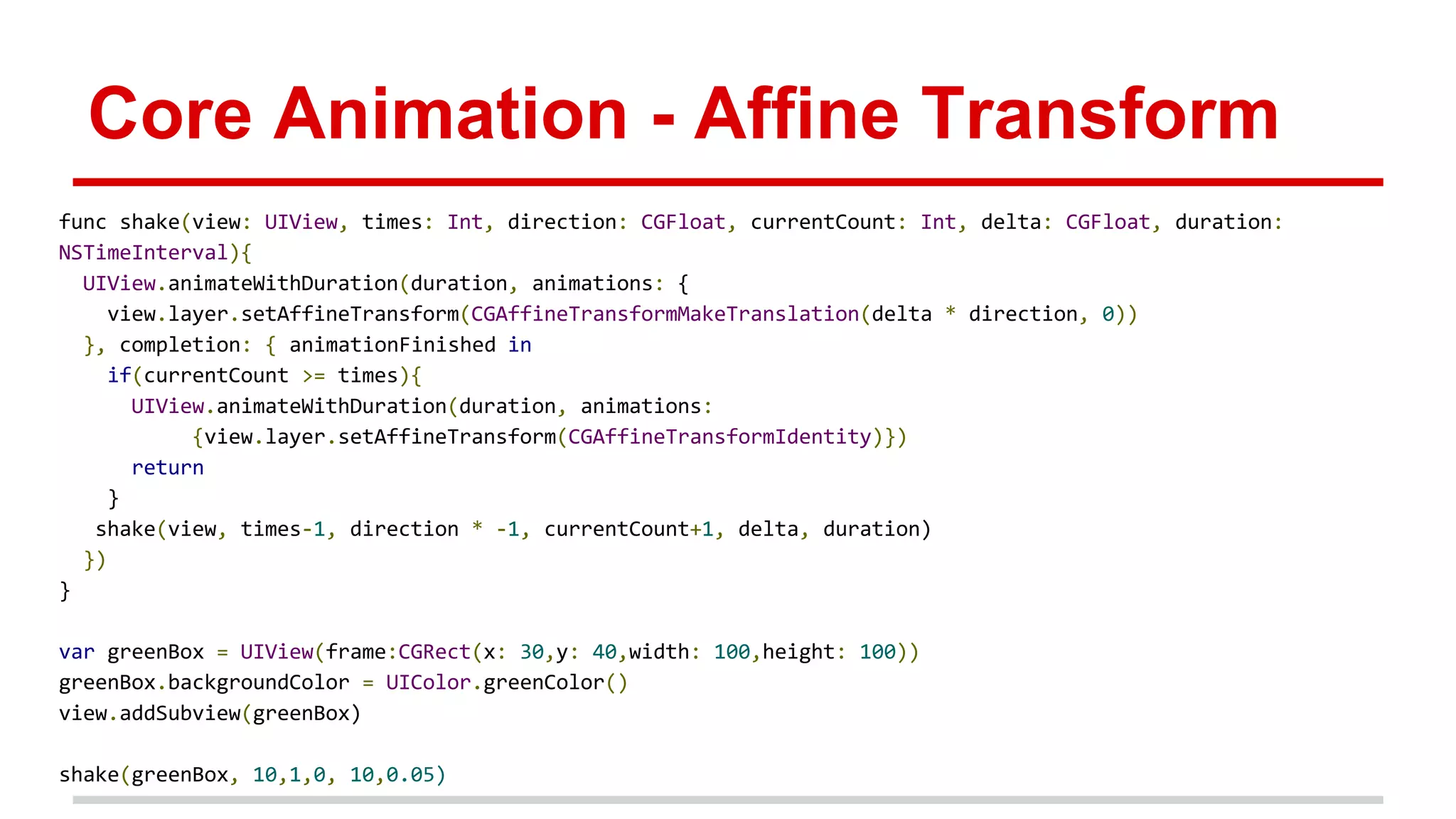

  Core Animation -Affine Transform func shake(view: UIView, times: Int, direction: CGFloat, currentCount: Int, delta: CGFloat, duration: NSTimeInterval){ UIView.animateWithDuration(duration, animations: { view.layer.setAffineTransform(CGAffineTransformMakeTranslation(delta * direction, 0)) }, completion: { animationFinished in if(currentCount >= times){ UIView.animateWithDuration(duration, animations: {view.layer.setAffineTransform(CGAffineTransformIdentity)}) return } shake(view, times-1, direction * -1, currentCount+1, delta, duration) }) } var greenBox = UIView(frame:CGRect(x: 30,y: 40,width: 100,height: 100)) greenBox.backgroundColor = UIColor.greenColor() view.addSubview(greenBox) shake(greenBox, 10,1,0, 10,0.05)
• 17.

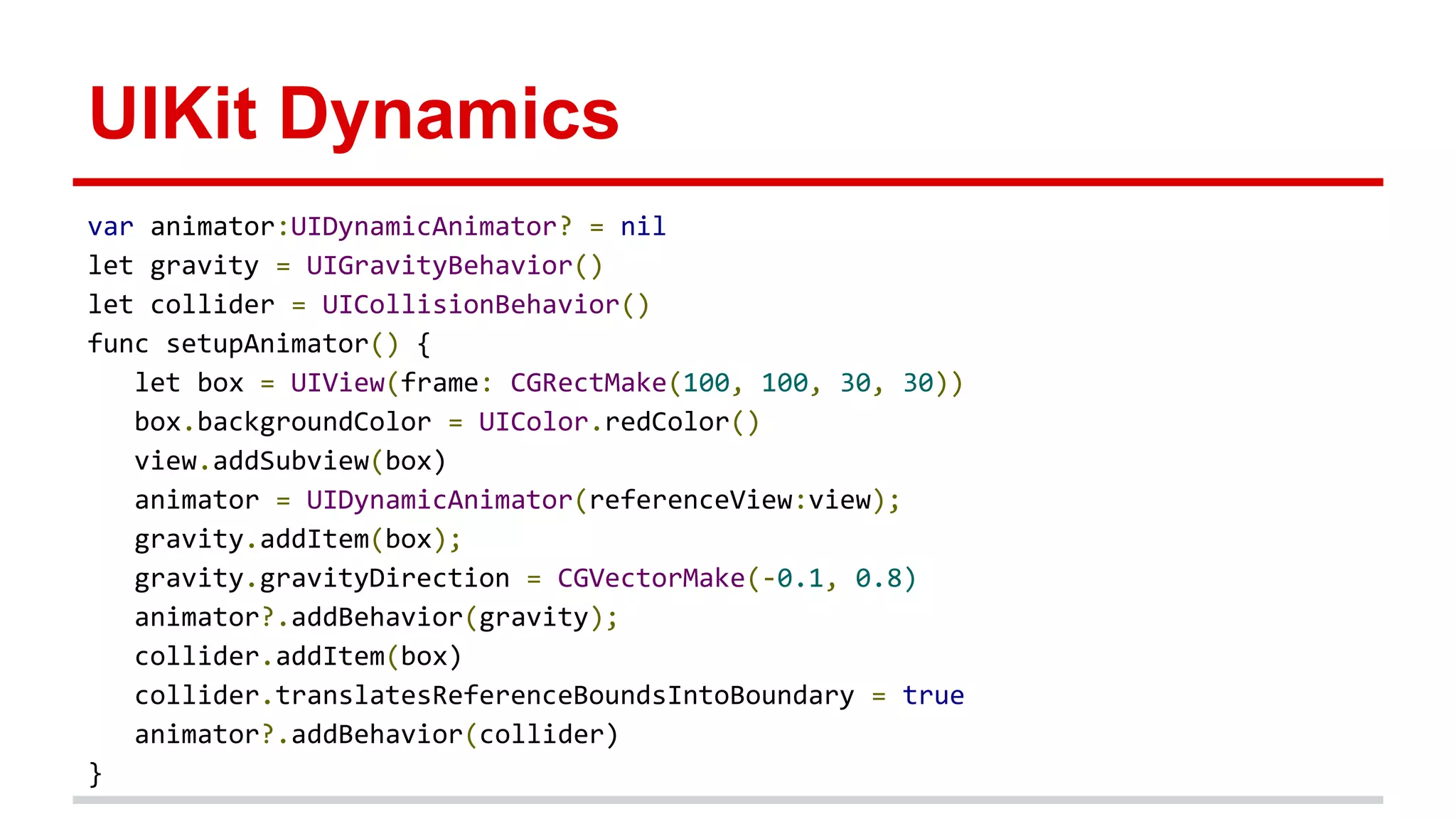

  UIKit Dynamics var animator:UIDynamicAnimator?= nil let gravity = UIGravityBehavior() let collider = UICollisionBehavior() func setupAnimator() { let box = UIView(frame: CGRectMake(100, 100, 30, 30)) box.backgroundColor = UIColor.redColor() view.addSubview(box) animator = UIDynamicAnimator(referenceView:view); gravity.addItem(box); gravity.gravityDirection = CGVectorMake(-0.1, 0.8) animator?.addBehavior(gravity); collider.addItem(box) collider.translatesReferenceBoundsIntoBoundary = true animator?.addBehavior(collider) }
• 18.

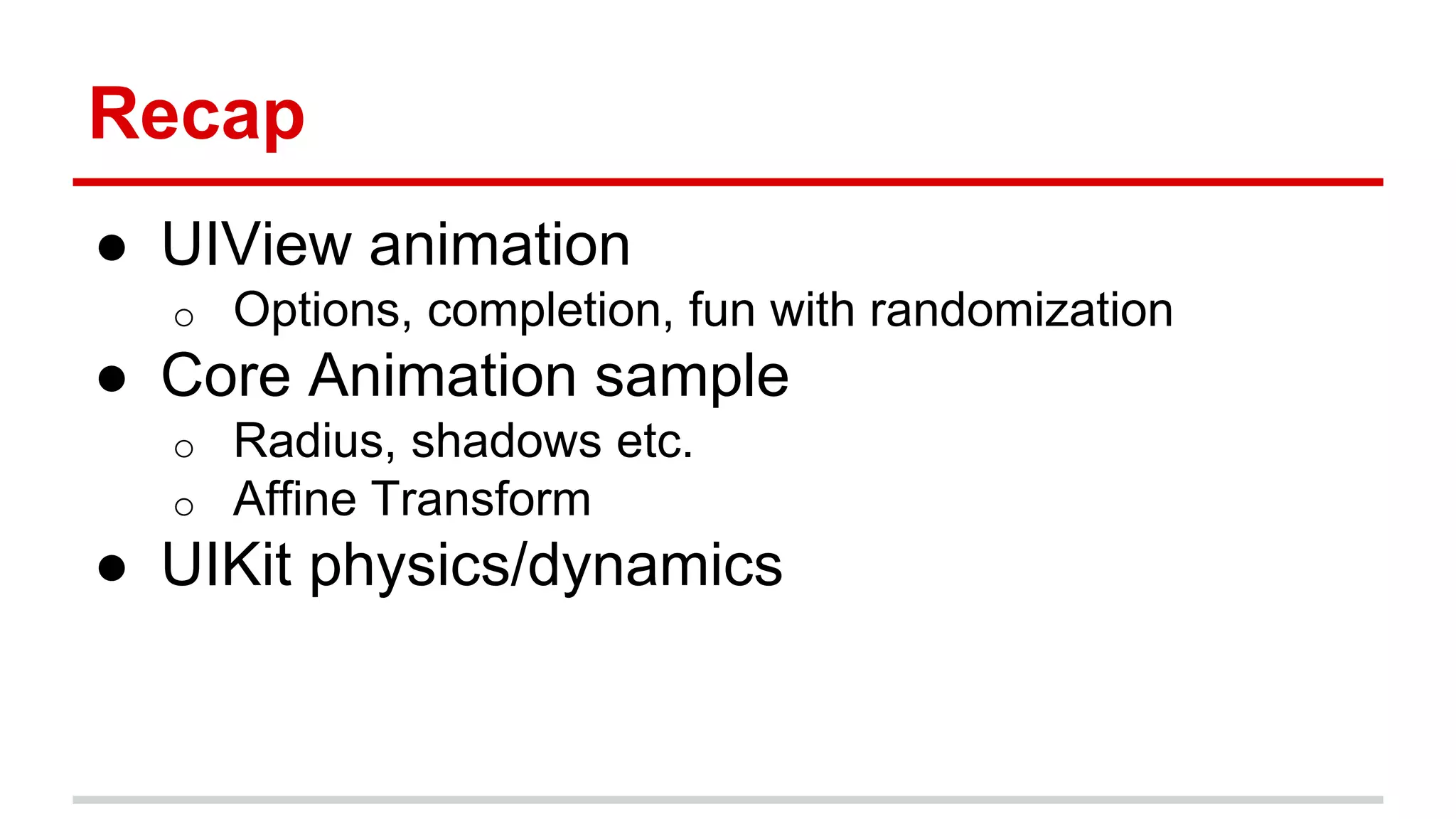

  Recap ● UIView animation oOptions, completion, fun with randomization ● Core Animation sample o Radius, shadows etc. o Affine Transform ● UIKit physics/dynamics
• 19.
  Thanks Questions? Arun Nagarajan arun@isapp.com
