07 data linkcontrol
- 1. Data and ComputerCommunications Eighth Edition by William Stallings Lecture slides by Lawrie Brown Chapter 7 – Data Link Control Protocols
- 2. Data LinkControl Protocols "Great and enlightened one," said Ten-teh, as soon as his stupor was lifted, "has this person delivered his message competently, for his mind was still a seared vision of snow and sand and perchance his tongue has stumbled?" "Bend your ears to the wall," replied the Emperor, "and be assured." — Kai Lung's Golden Hours , Earnest Bramah

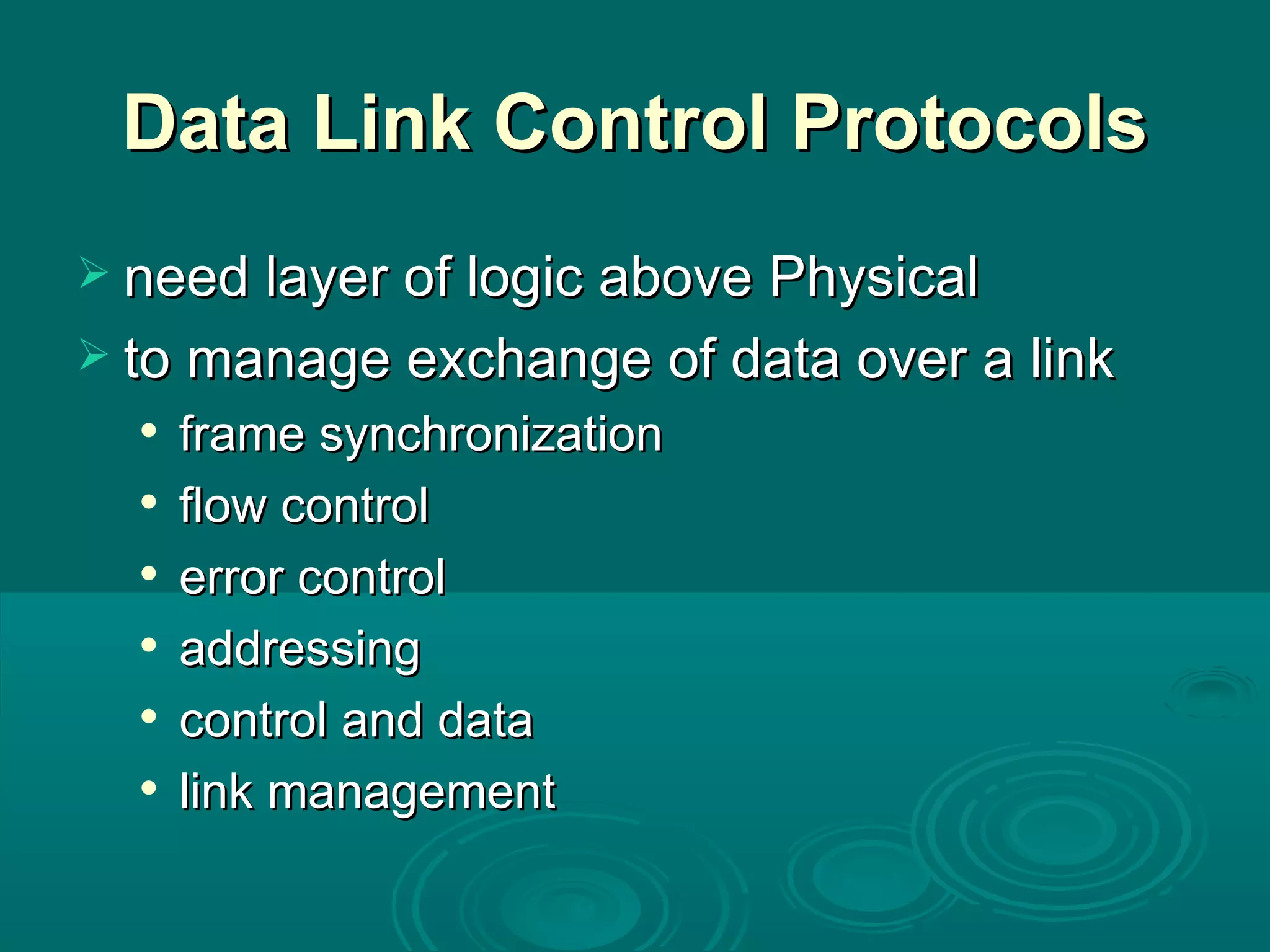

- 3. Data LinkControl Protocols need layer of logic above Physical to manage exchange of data over a link frame synchronization flow control error control addressing control and data link management

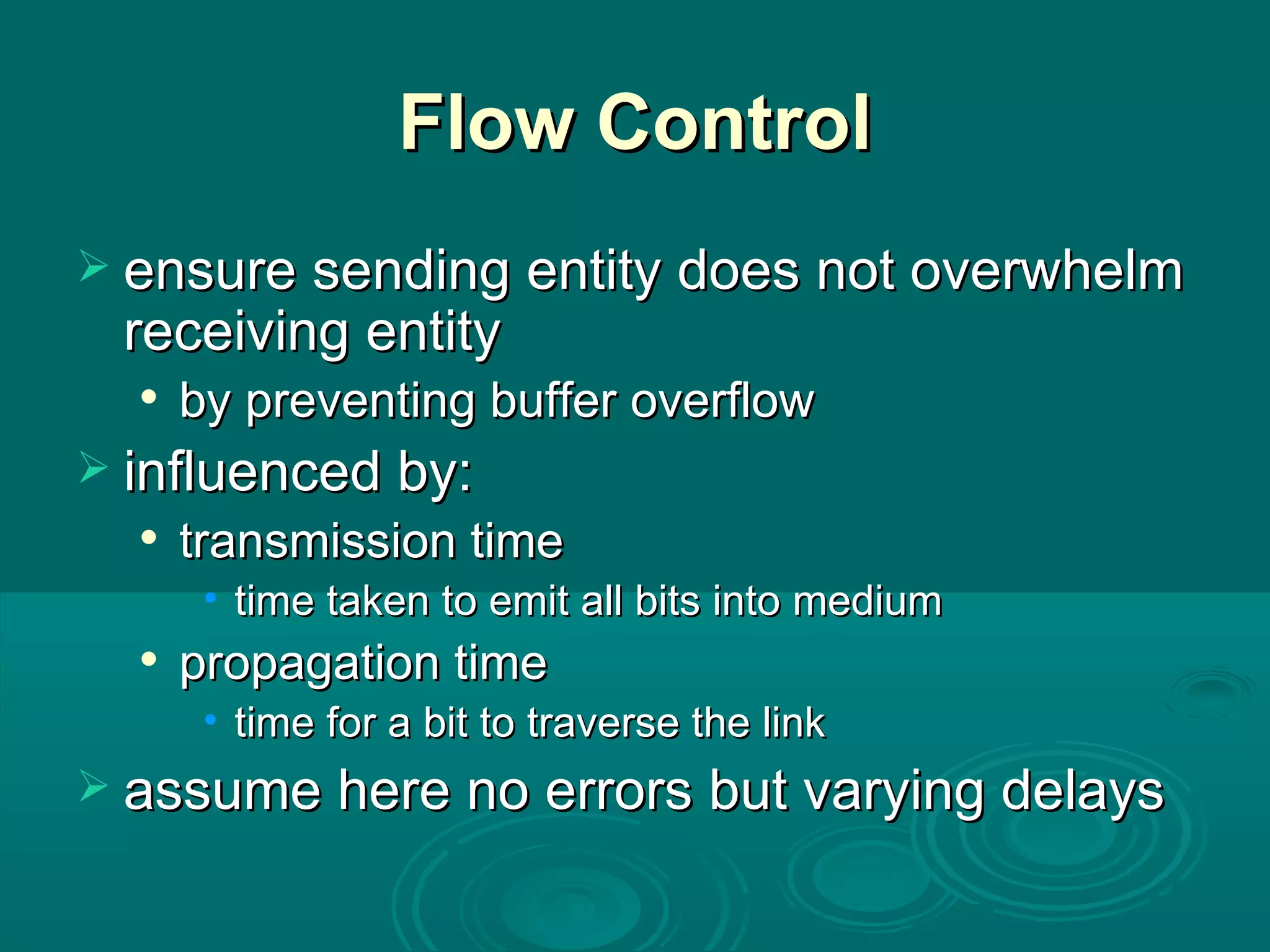

- 4. Flow Control ensuresending entity does not overwhelm receiving entity by preventing buffer overflow influenced by: transmission time time taken to emit all bits into medium propagation time time for a bit to traverse the link assume here no errors but varying delays

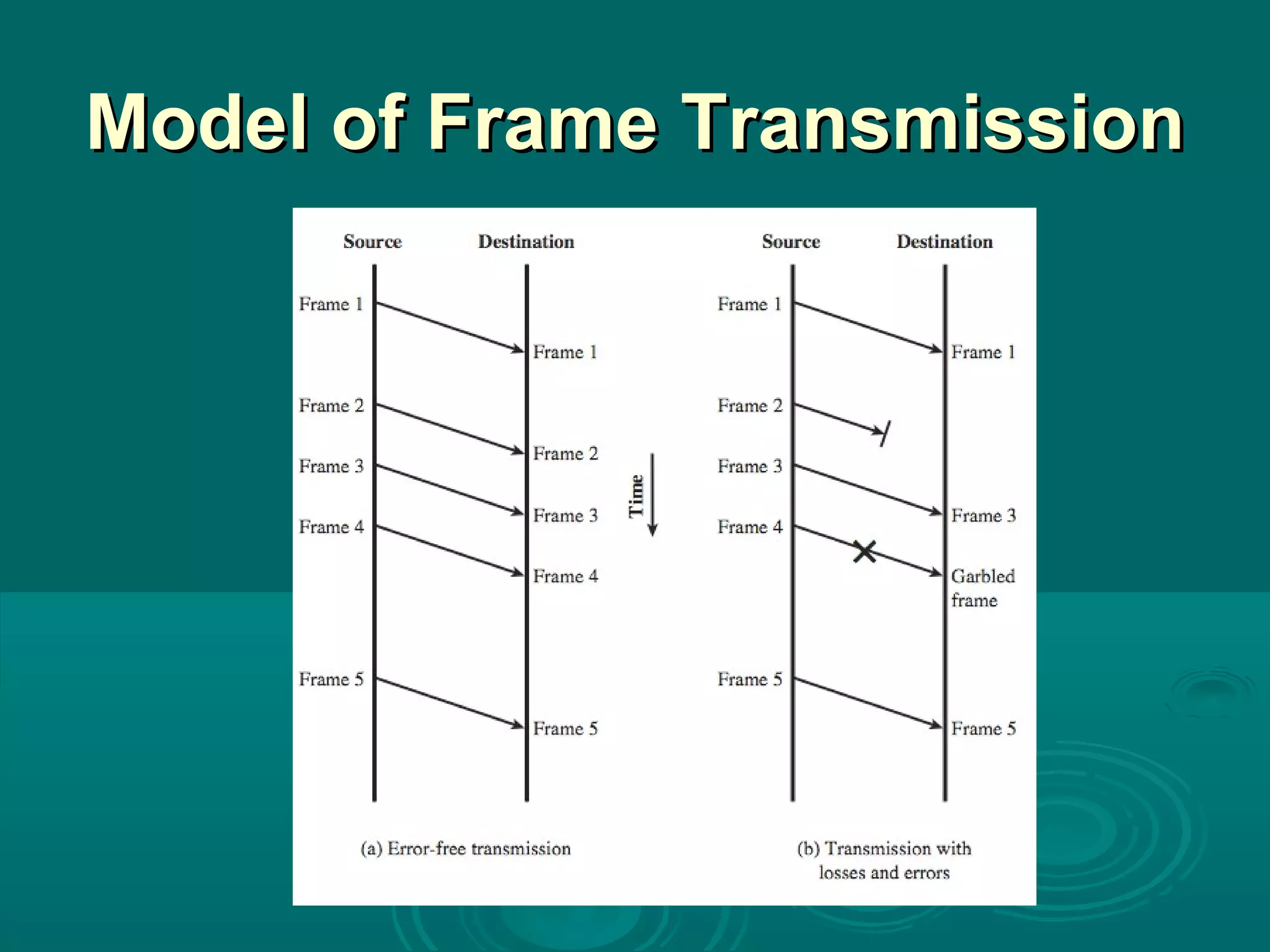

- 5. Model of FrameTransmission

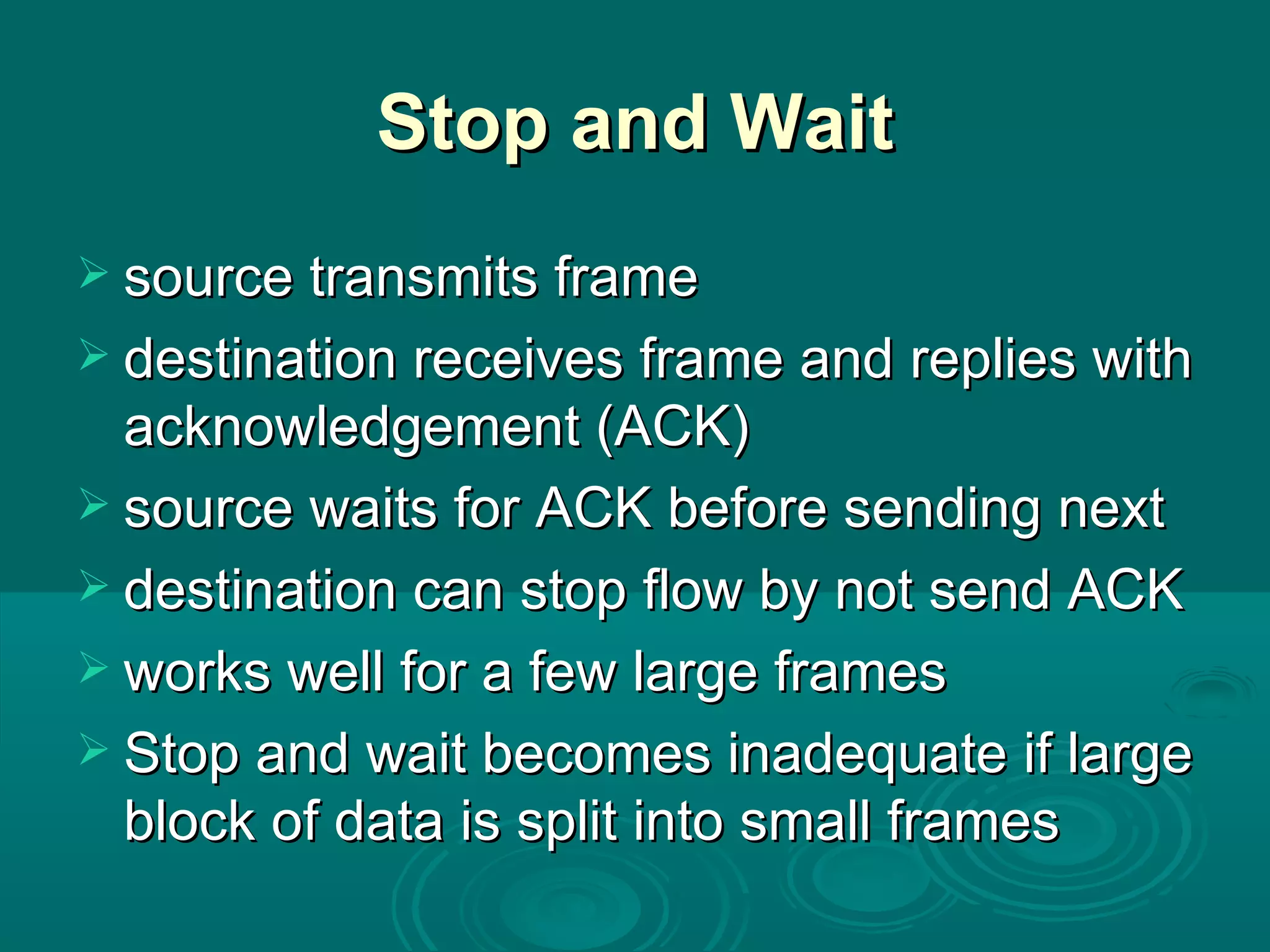

- 6. Stop and Waitsource transmits frame destination receives frame and replies with acknowledgement (ACK) source waits for ACK before sending next destination can stop flow by not send ACK works well for a few large frames Stop and wait becomes inadequate if large block of data is split into small frames

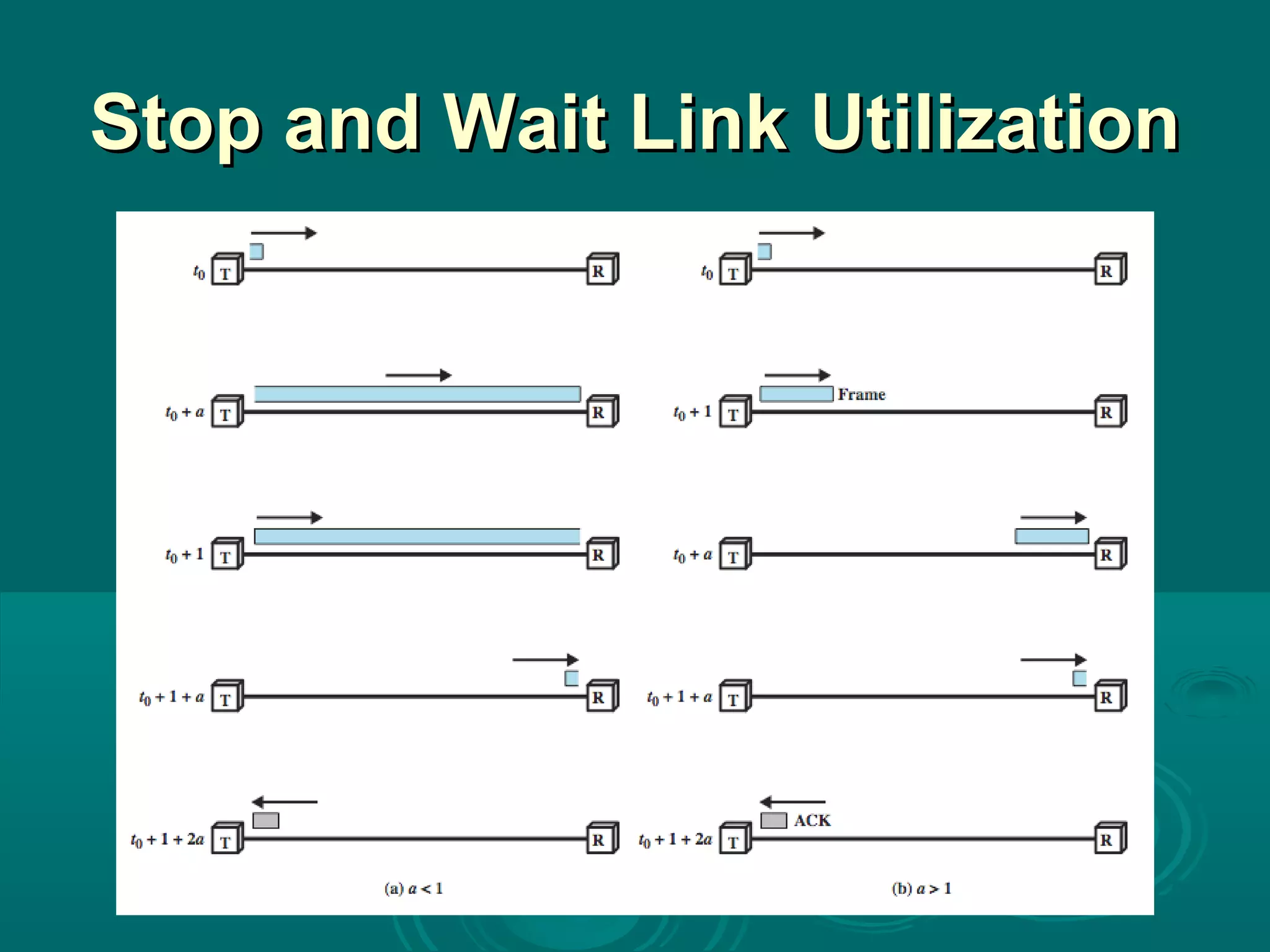

- 7. Stop and WaitLink Utilization

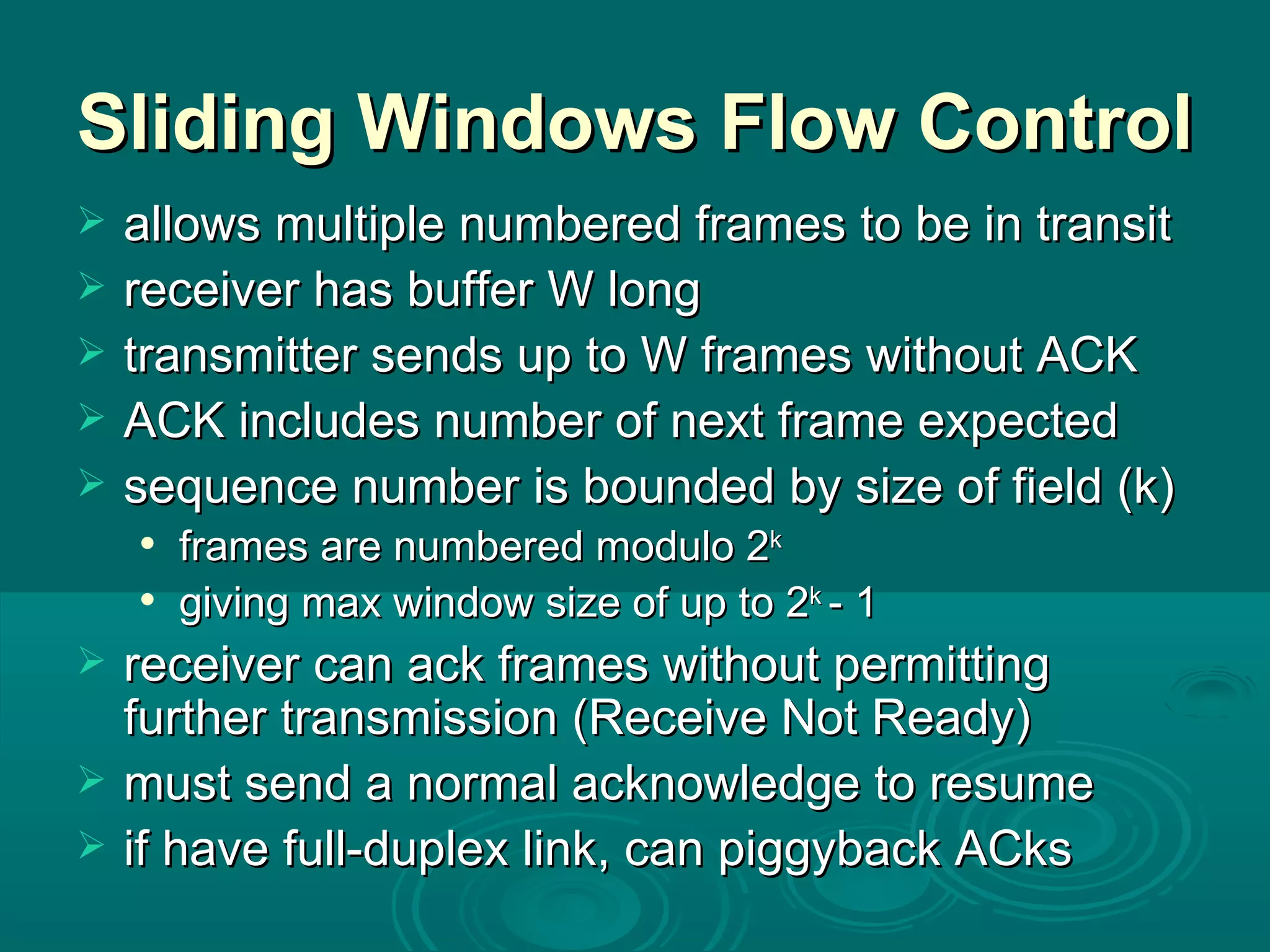

- 8. Sliding Windows FlowControl allows multiple numbered frames to be in transit receiver has buffer W long transmitter sends up to W frames without ACK ACK includes number of next frame expected sequence number is bounded by size of field (k) frames are numbered modulo 2 k giving max window size of up to 2 k - 1 receiver can ack frames without permitting further transmission (Receive Not Ready) must send a normal acknowledge to resume if have full-duplex link, can piggyback ACks
- 9.
- 10.

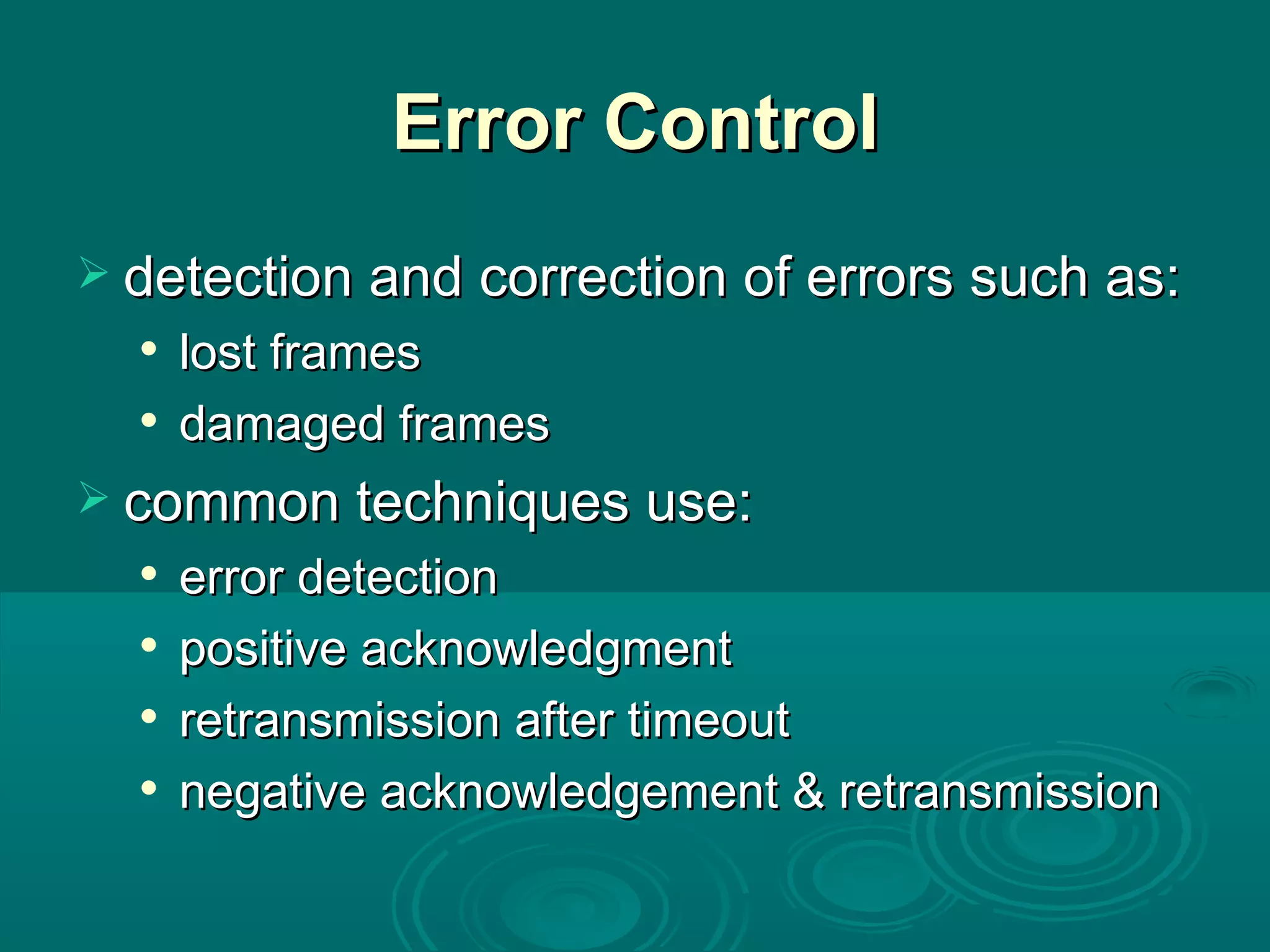

- 11. Error Control detectionand correction of errors such as: lost frames damaged frames common techniques use: error detection positive acknowledgment retransmission after timeout negative acknowledgement & retransmission

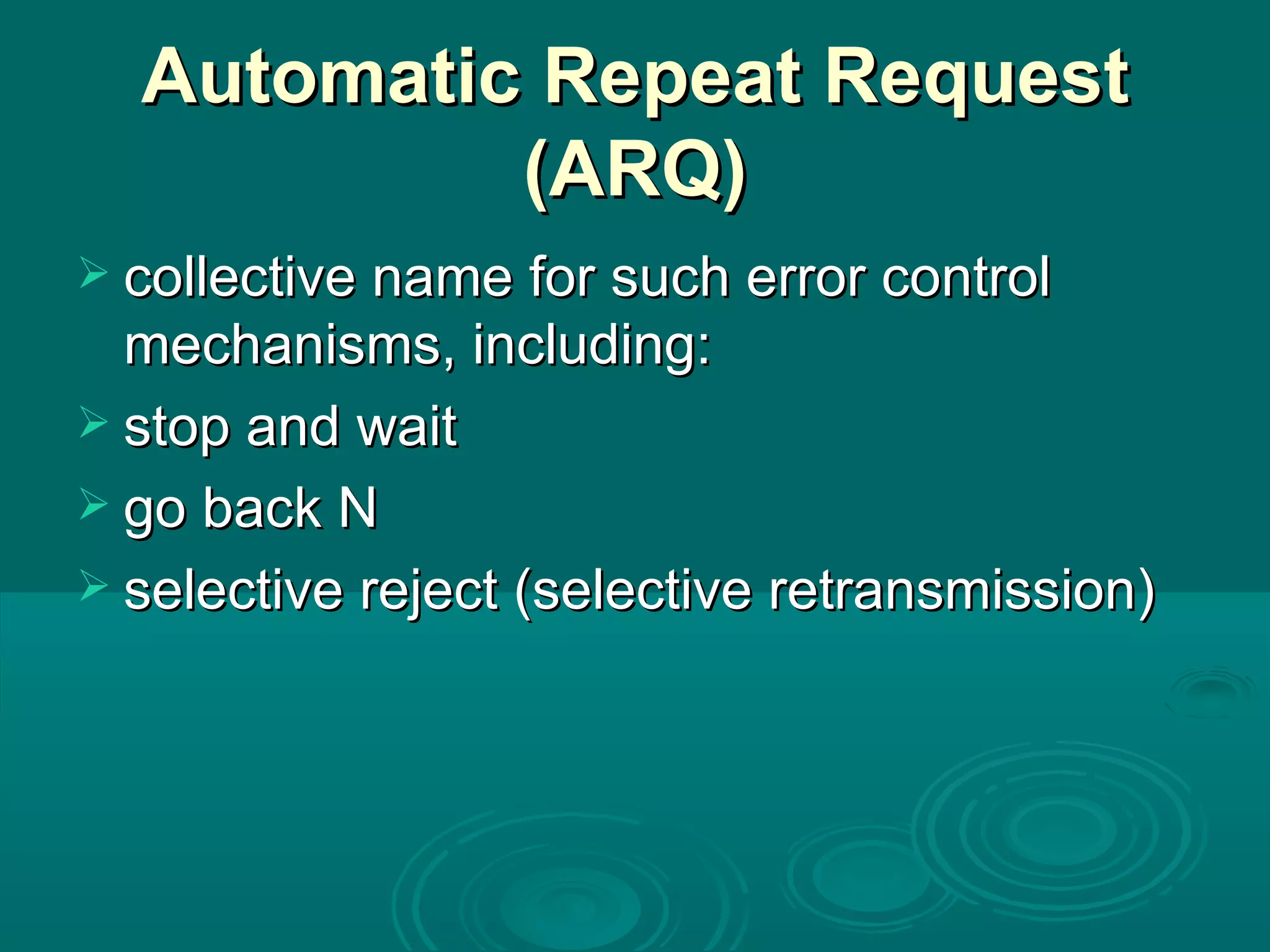

- 12. Automatic Repeat Request(ARQ) collective name for such error control mechanisms, including: stop and wait go back N selective reject (selective retransmission)

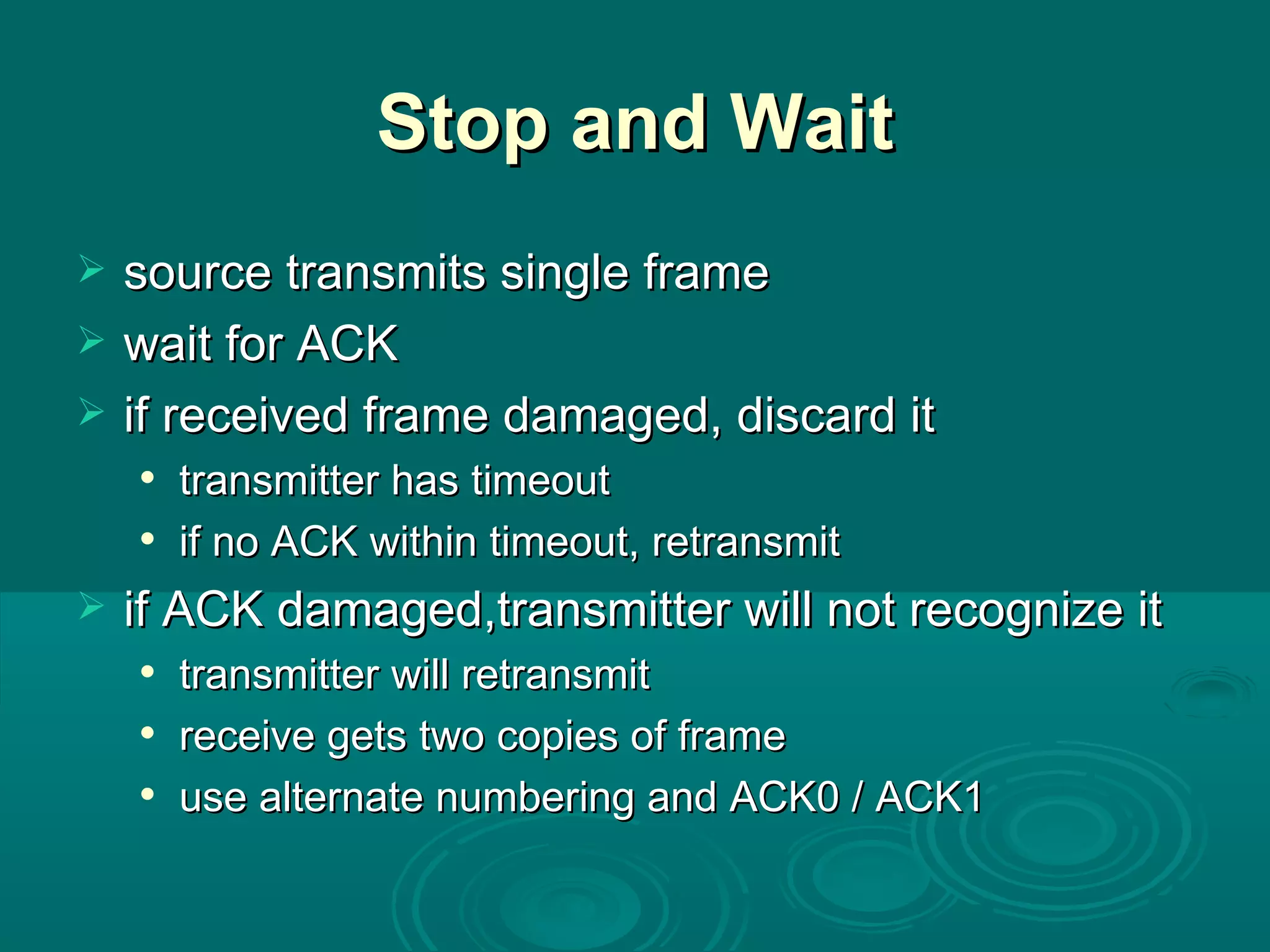

- 13. Stop and Waitsource transmits single frame wait for ACK if received frame damaged, discard it transmitter has timeout if no ACK within timeout, retransmit if ACK damaged,transmitter will not recognize it transmitter will retransmit receive gets two copies of frame use alternate numbering and ACK0 / ACK1

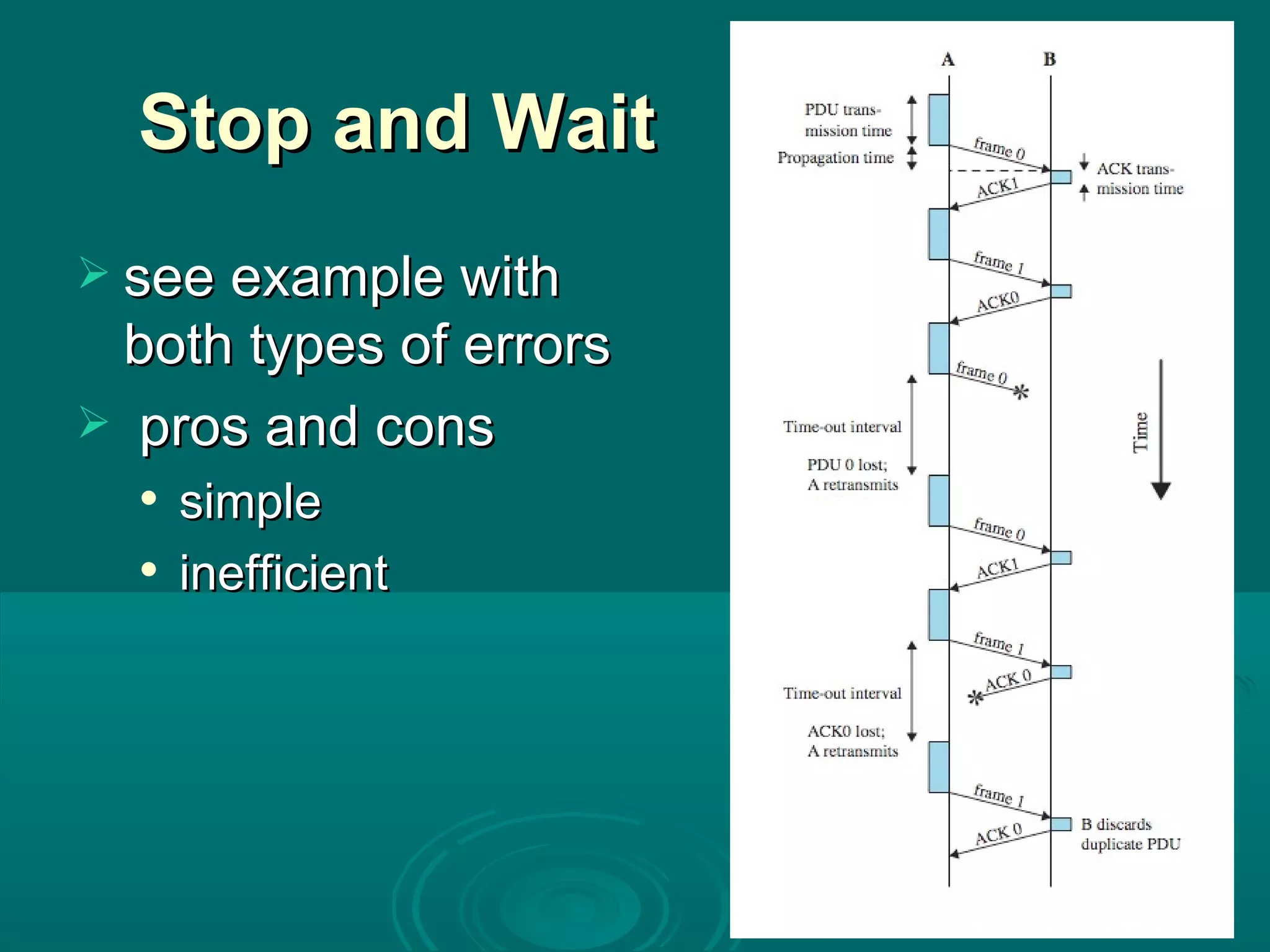

- 14. Stop and Waitsee example with both types of errors pros and cons simple inefficient

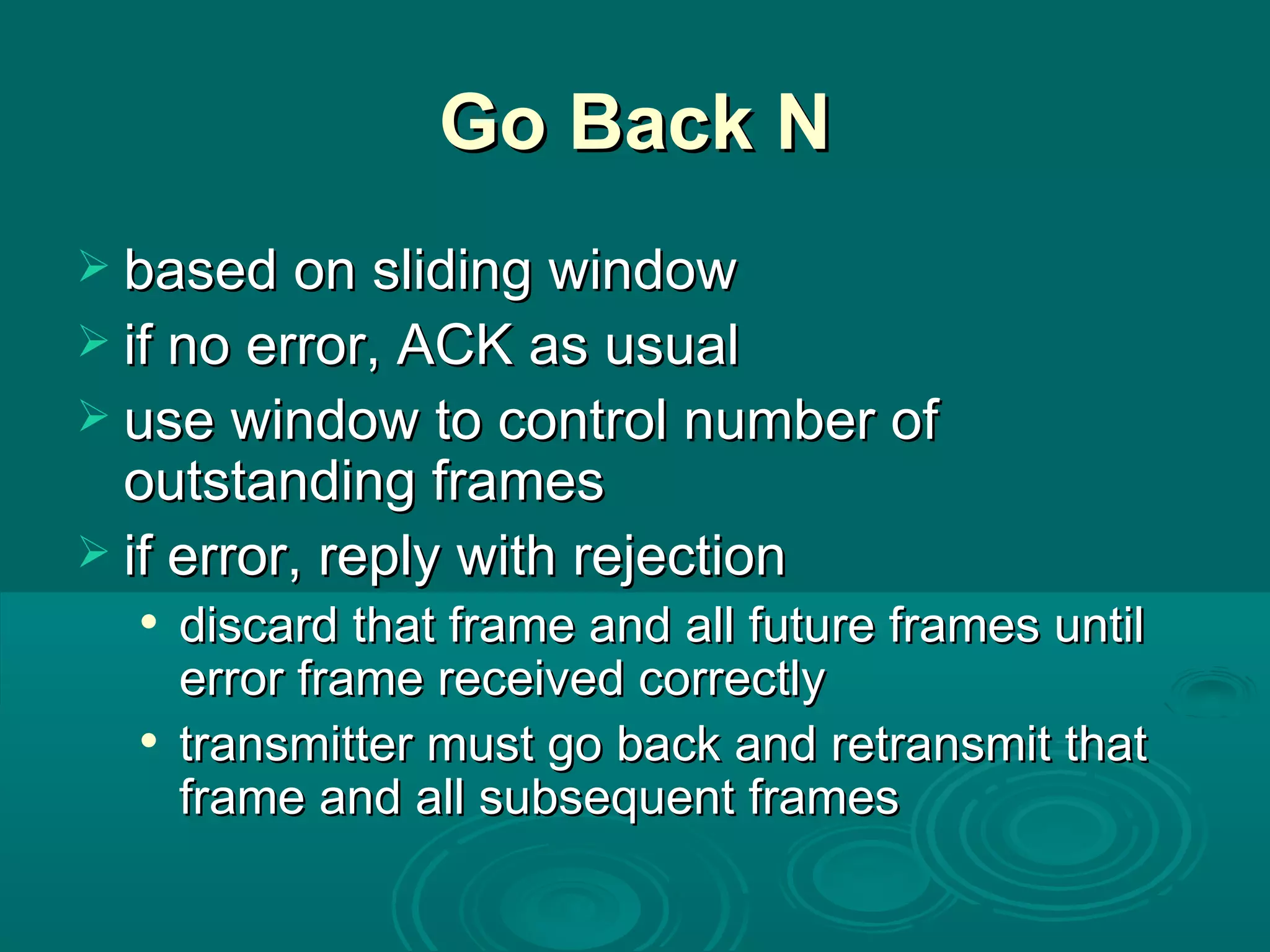

- 15. Go Back Nbased on sliding window if no error, ACK as usual use window to control number of outstanding frames if error, reply with rejection discard that frame and all future frames until error frame received correctly transmitter must go back and retransmit that frame and all subsequent frames

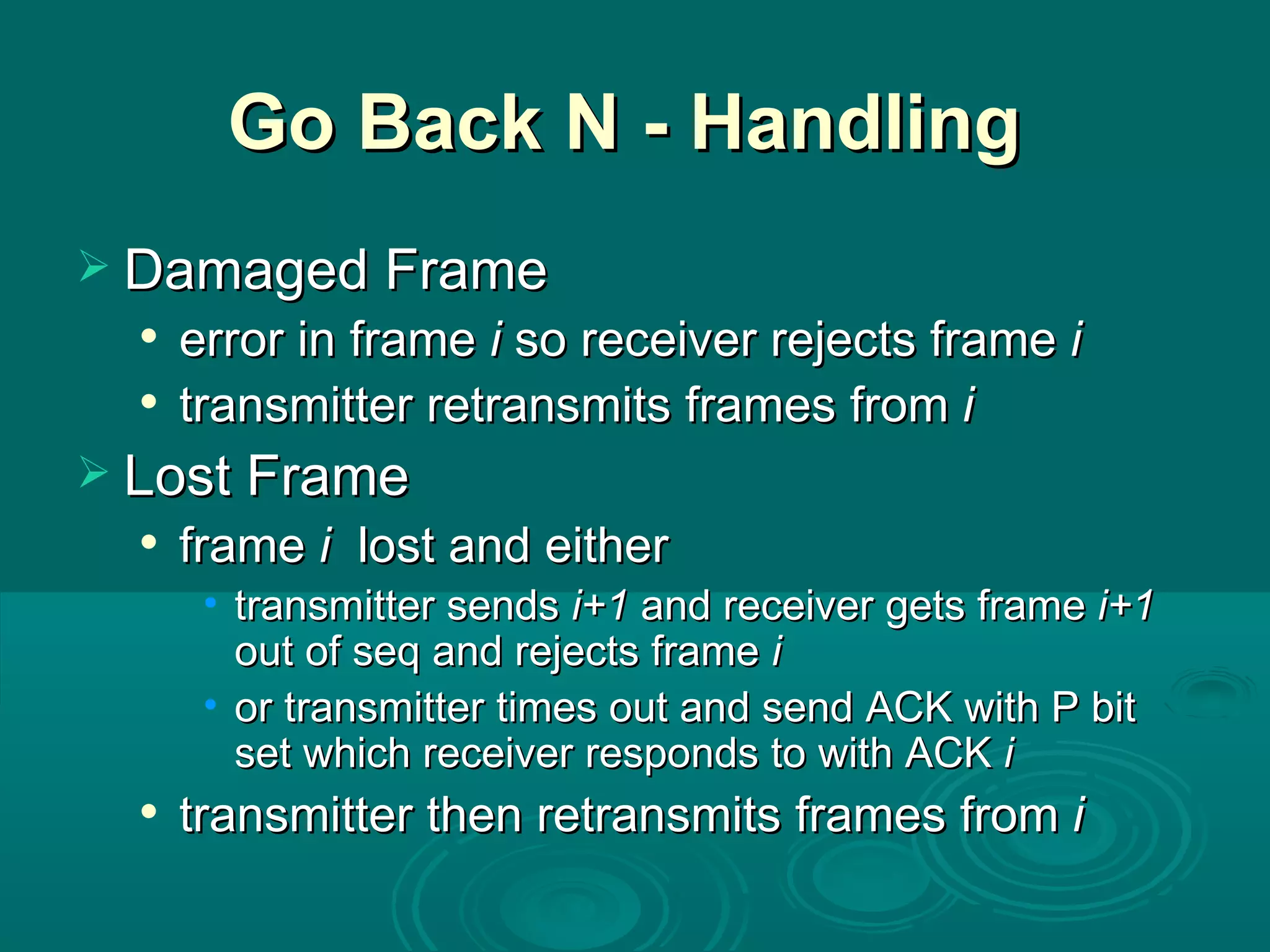

- 16. Go Back N- Handling Damaged Frame error in frame i so receiver rejects frame i transmitter retransmits frames from i Lost Frame frame i lost and either transmitter sends i+1 and receiver gets frame i+1 out of seq and rejects frame i or transmitter times out and send ACK with P bit set which receiver responds to with ACK i transmitter then retransmits frames from i

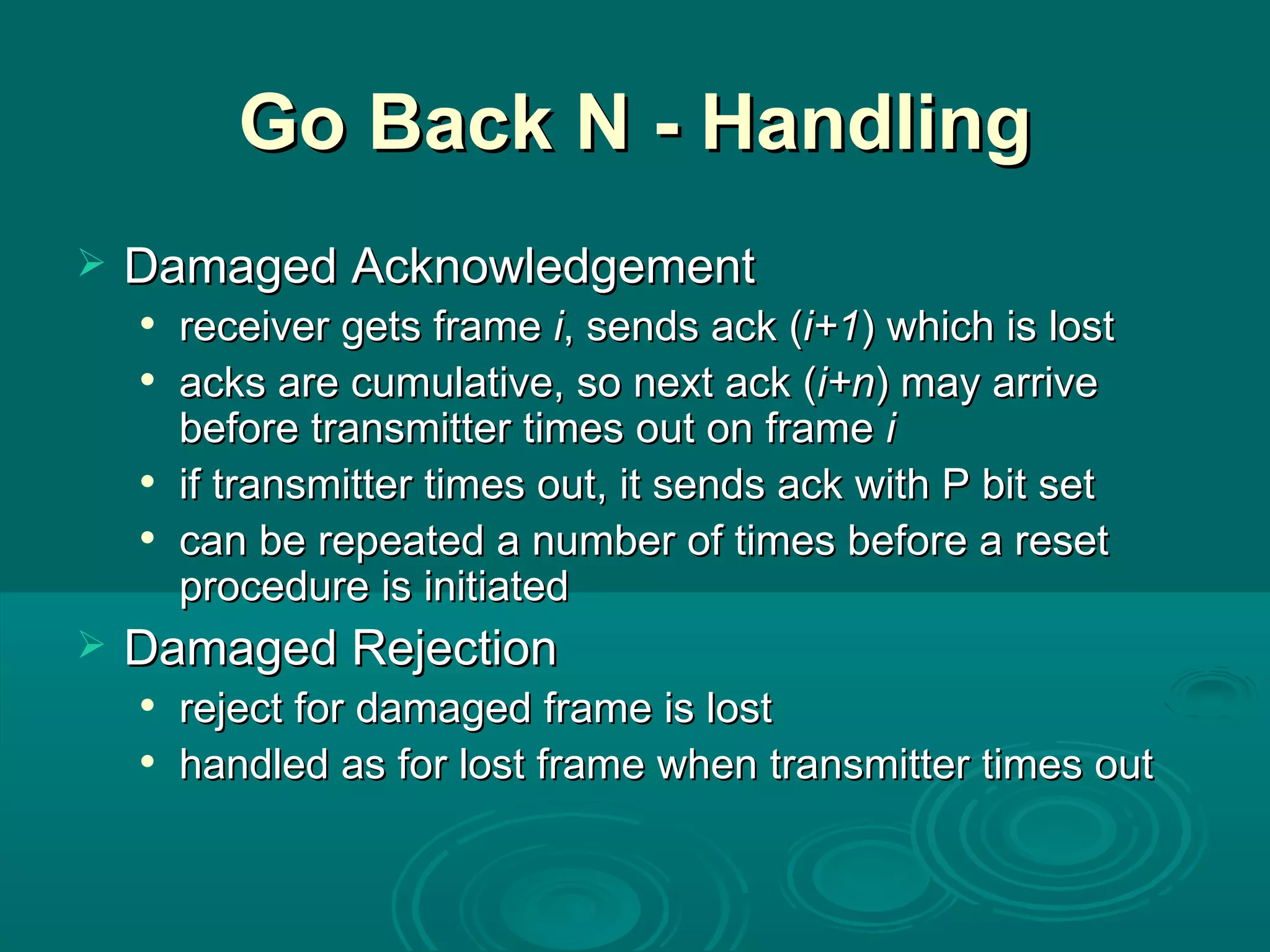

- 17. Go Back N- Handling Damaged Acknowledgement receiver gets frame i , sends ack ( i+1 ) which is lost acks are cumulative, so next ack ( i+n ) may arrive before transmitter times out on frame i if transmitter times out, it sends ack with P bit set can be repeated a number of times before a reset procedure is initiated Damaged Rejection reject for damaged frame is lost handled as for lost frame when transmitter times out

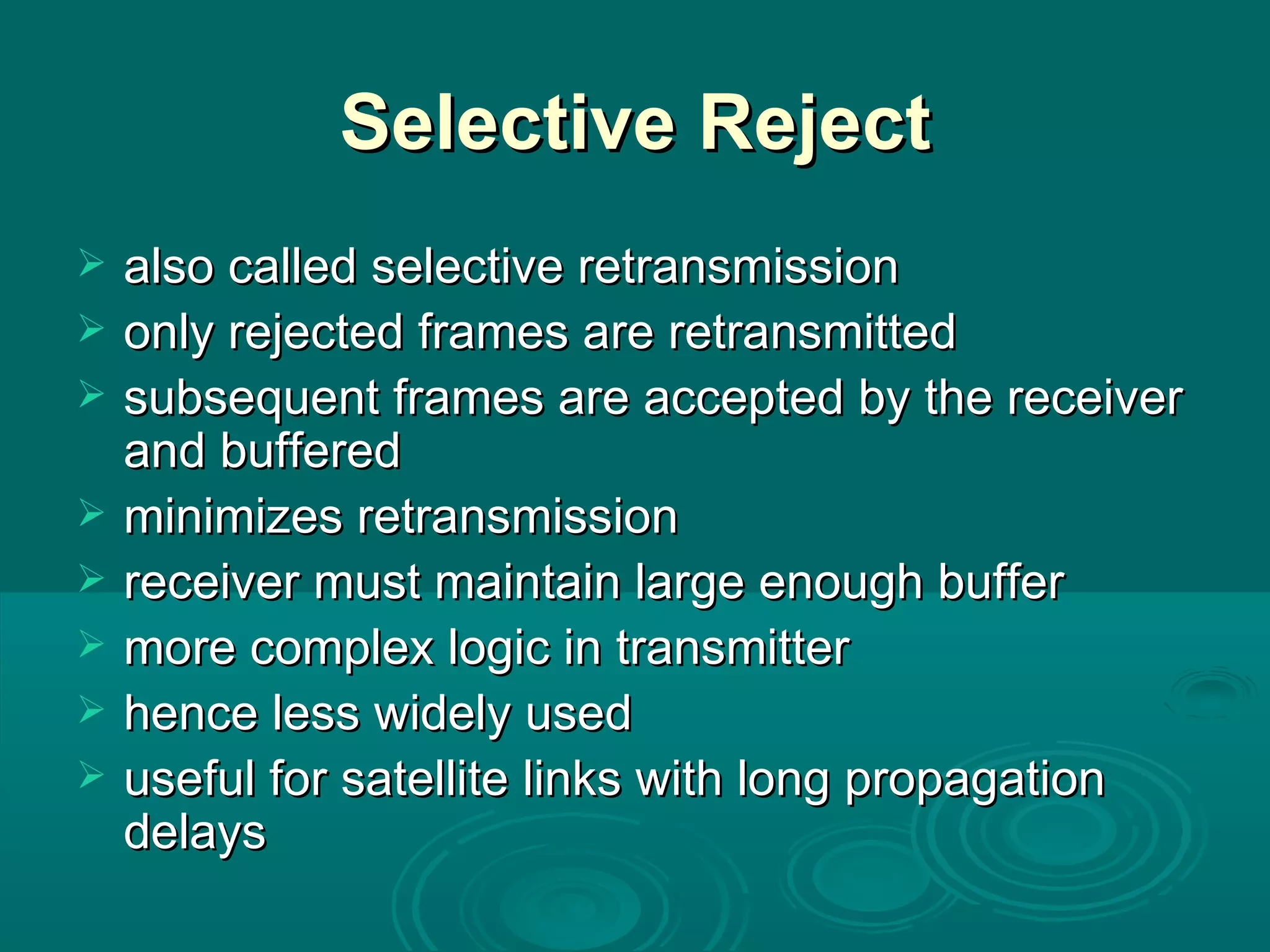

- 18. Selective Reject alsocalled selective retransmission only rejected frames are retransmitted subsequent frames are accepted by the receiver and buffered minimizes retransmission receiver must maintain large enough buffer more complex logic in transmitter hence less widely used useful for satellite links with long propagation delays

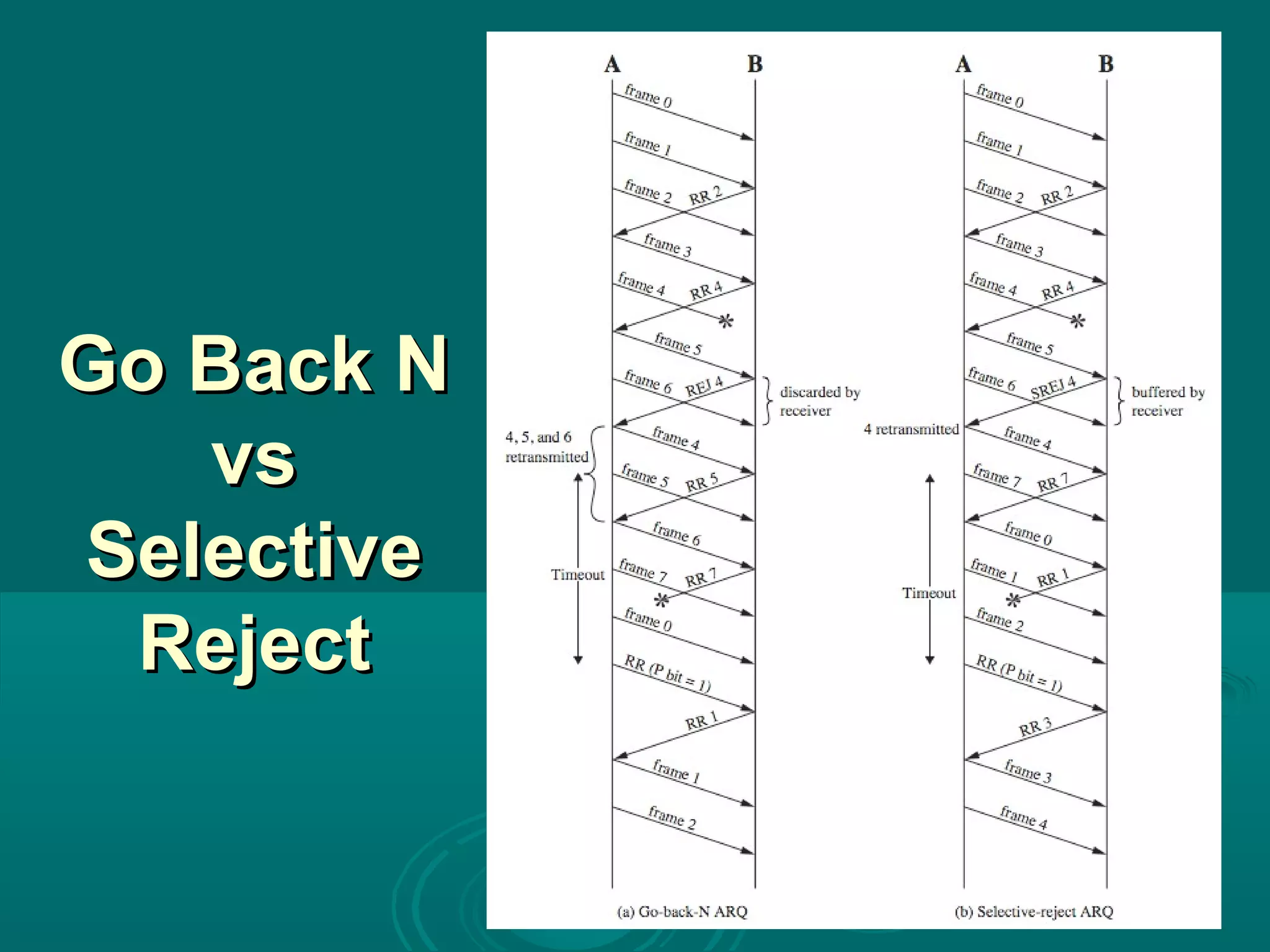

- 19. Go Back Nvs Selective Reject

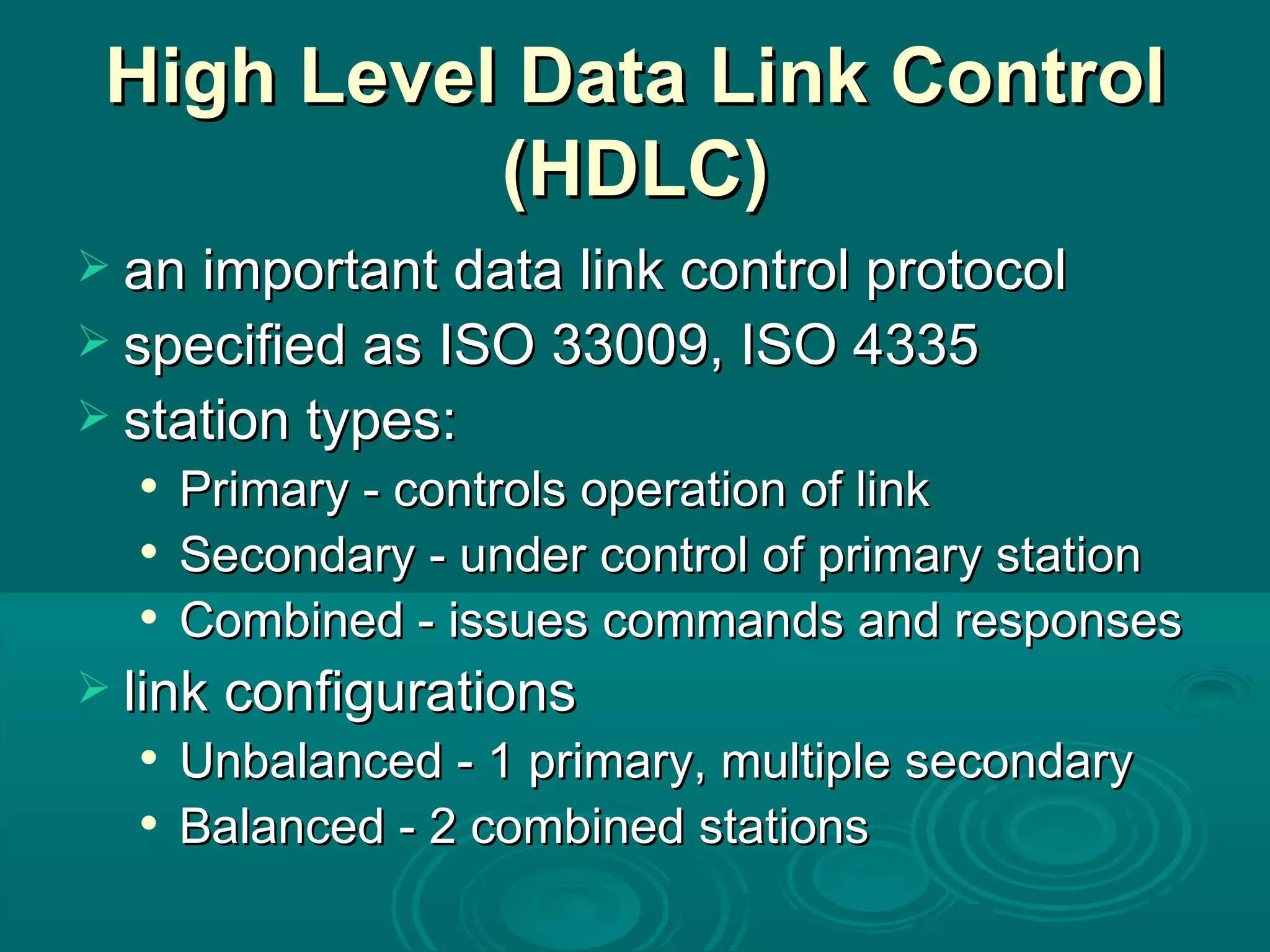

- 20. High Level DataLink Control (HDLC) an important data link control protocol specified as ISO 33009, ISO 4335 station types: Primary - controls operation of link Secondary - under control of primary station Combined - issues commands and responses link configurations Unbalanced - 1 primary, multiple secondary Balanced - 2 combined stations

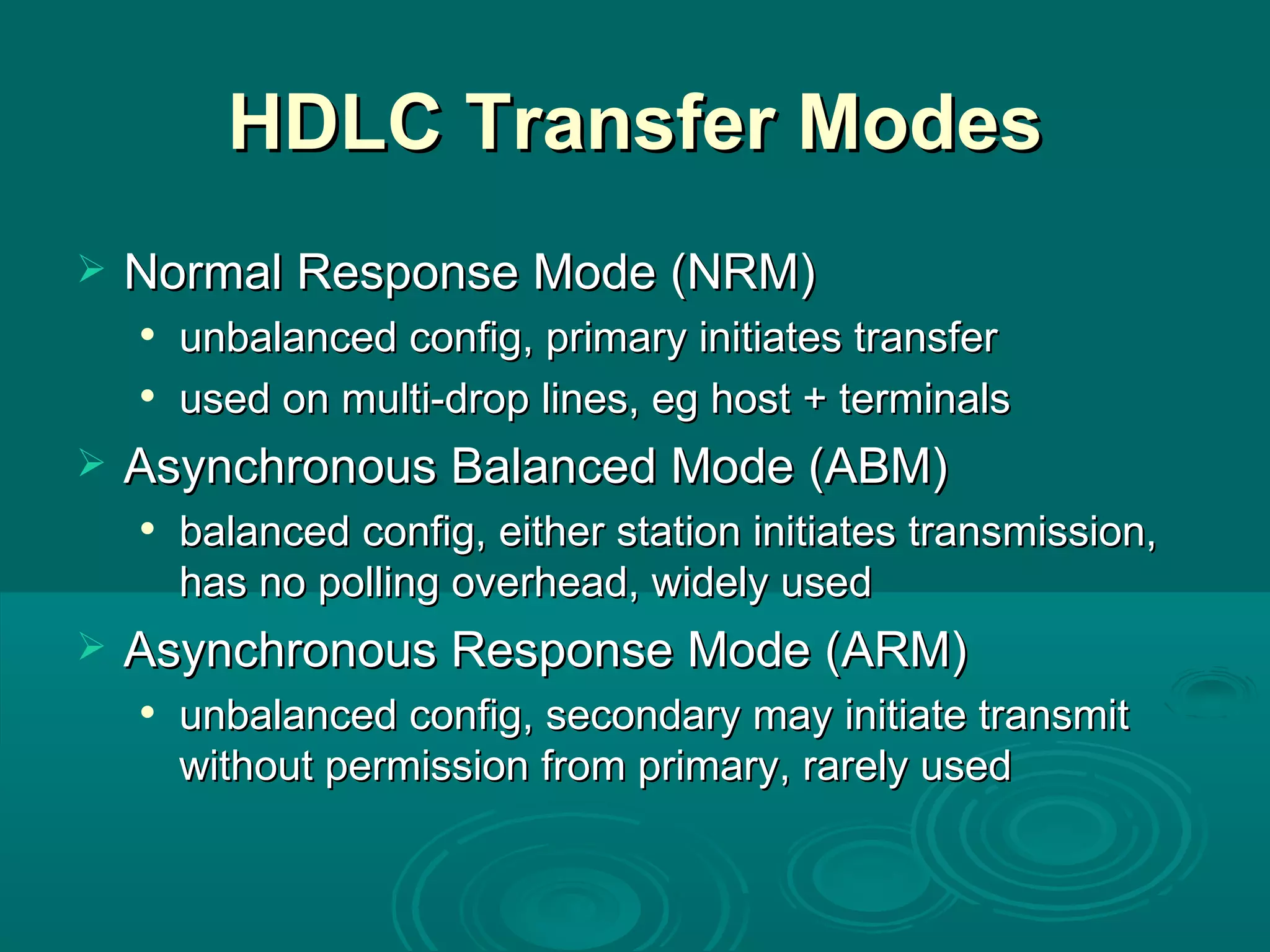

- 21. HDLC Transfer ModesNormal Response Mode (NRM) unbalanced config, primary initiates transfer used on multi-drop lines, eg host + terminals Asynchronous Balanced Mode (ABM) balanced config, either station initiates transmission, has no polling overhead, widely used Asynchronous Response Mode (ARM) unbalanced config, secondary may initiate transmit without permission from primary, rarely used

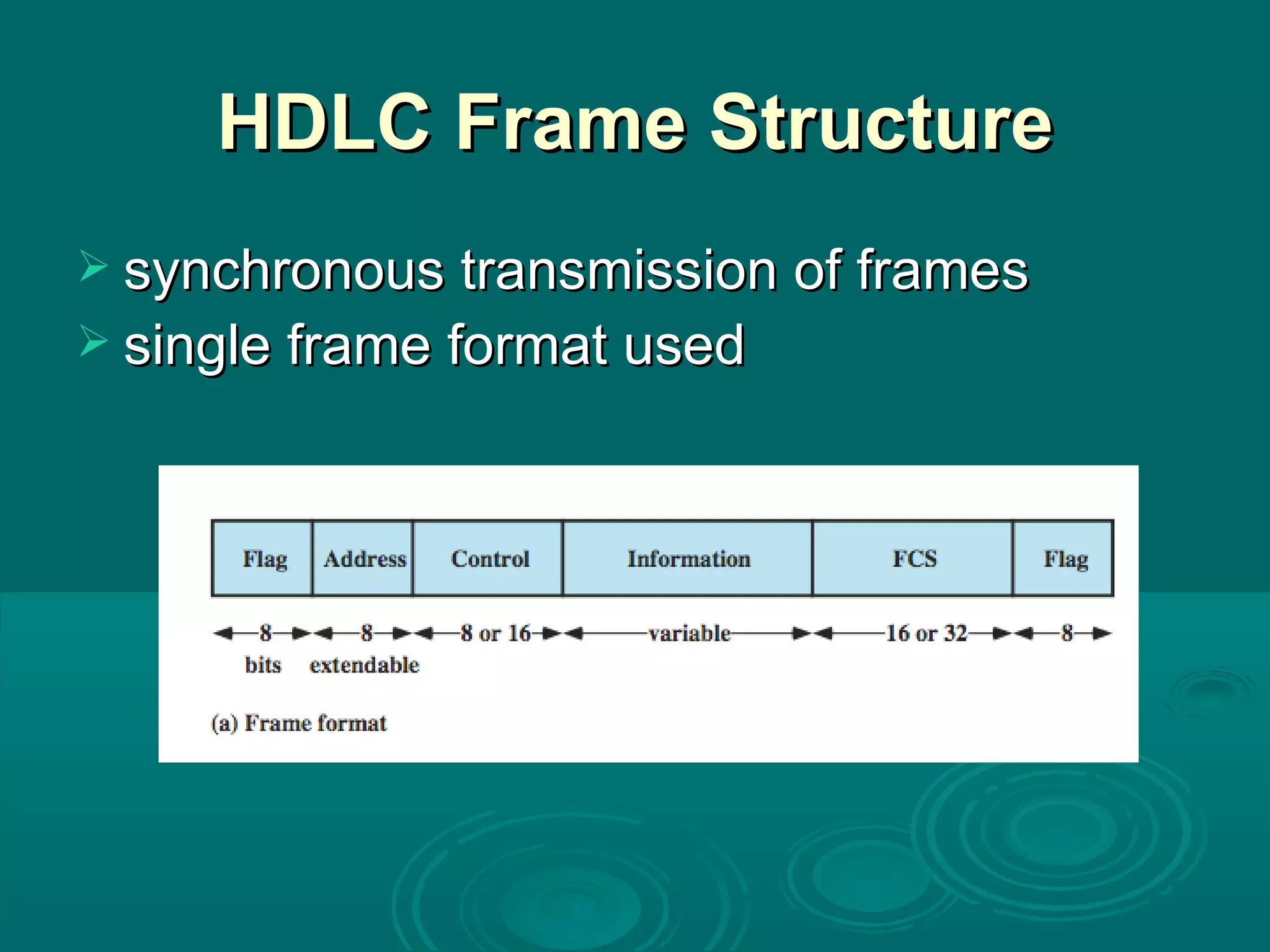

- 22. HDLC Frame Structuresynchronous transmission of frames single frame format used

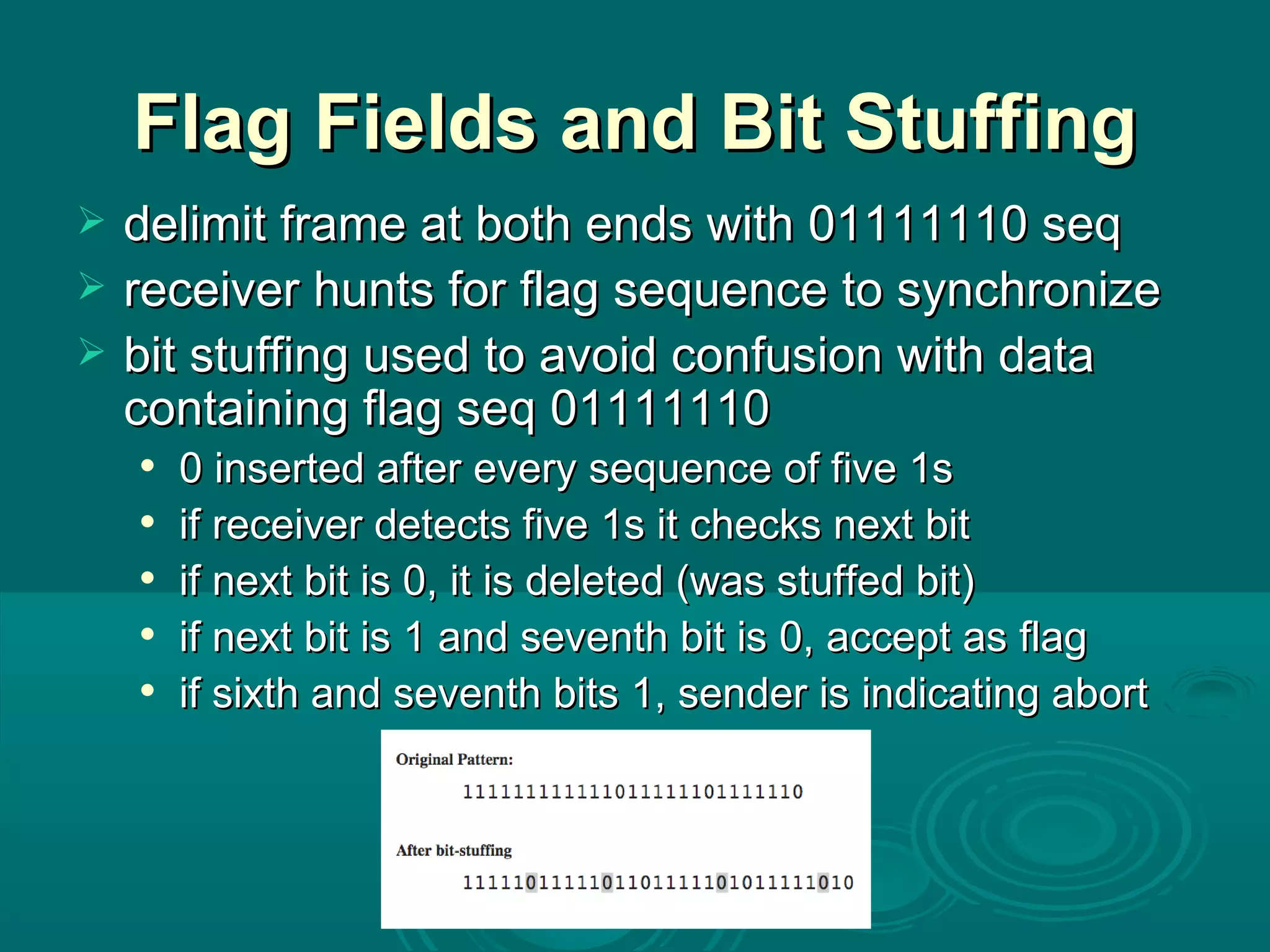

- 23. Flag Fields andBit Stuffing delimit frame at both ends with 01111110 seq receiver hunts for flag sequence to synchronize bit stuffing used to avoid confusion with data containing flag seq 01111110 0 inserted after every sequence of five 1s if receiver detects five 1s it checks next bit if next bit is 0, it is deleted (was stuffed bit) if next bit is 1 and seventh bit is 0, accept as flag if sixth and seventh bits 1, sender is indicating abort

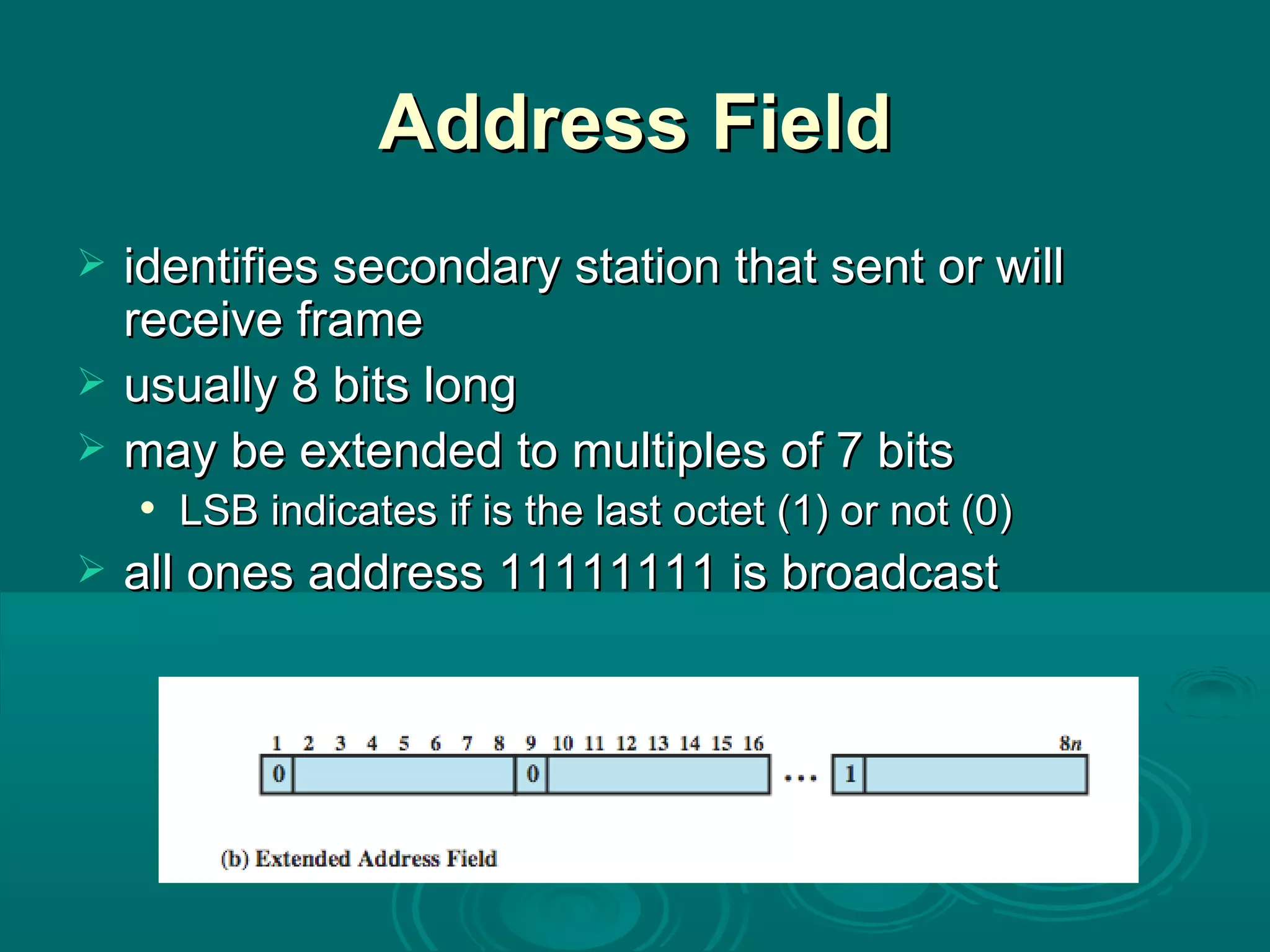

- 24. Address Field identifiessecondary station that sent or will receive frame usually 8 bits long may be extended to multiples of 7 bits LSB indicates if is the last octet (1) or not (0) all ones address 11111111 is broadcast

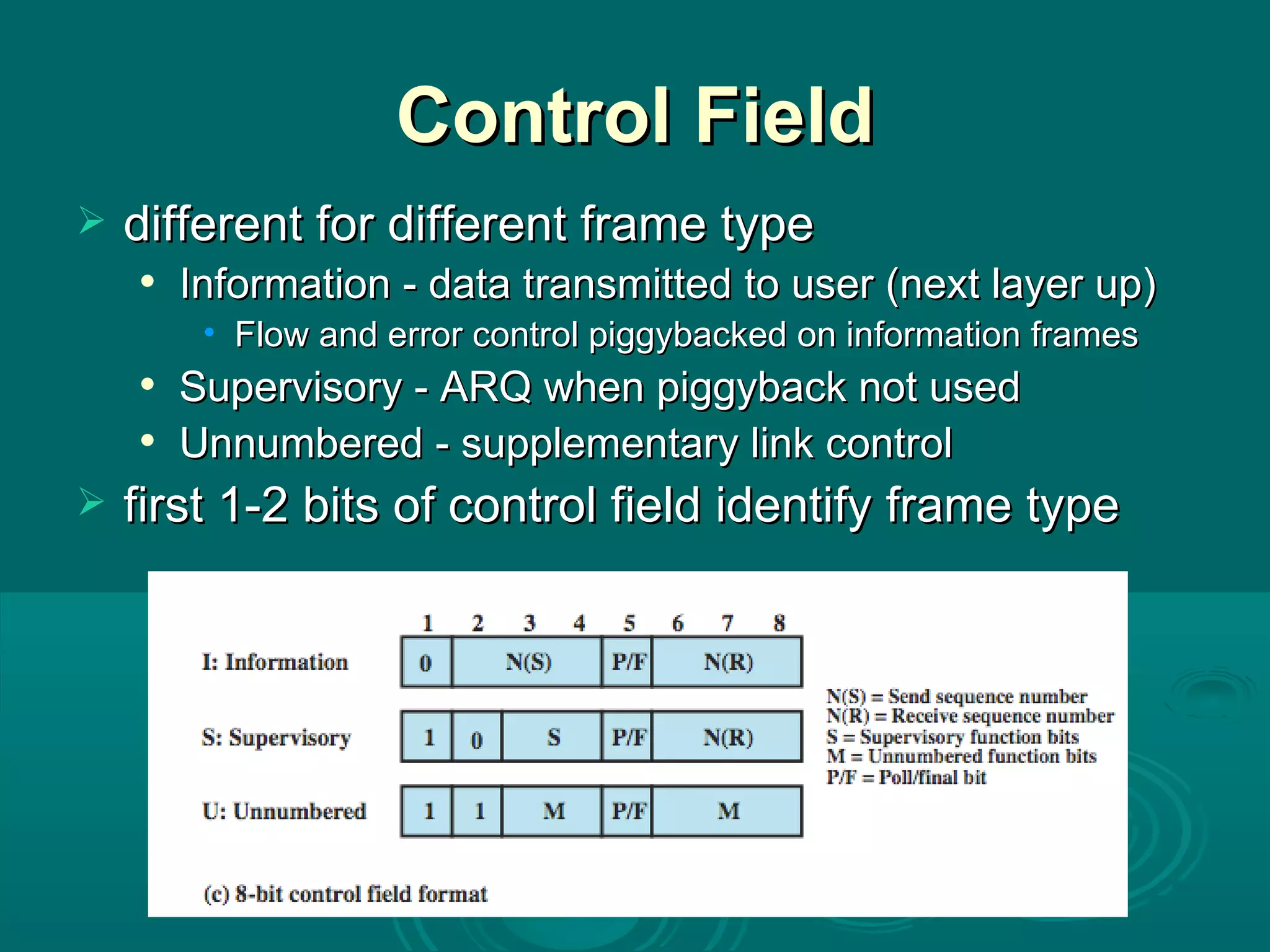

- 25. Control Field differentfor different frame type Information - data transmitted to user (next layer up) Flow and error control piggybacked on information frames Supervisory - ARQ when piggyback not used Unnumbered - supplementary link control first 1-2 bits of control field identify frame type

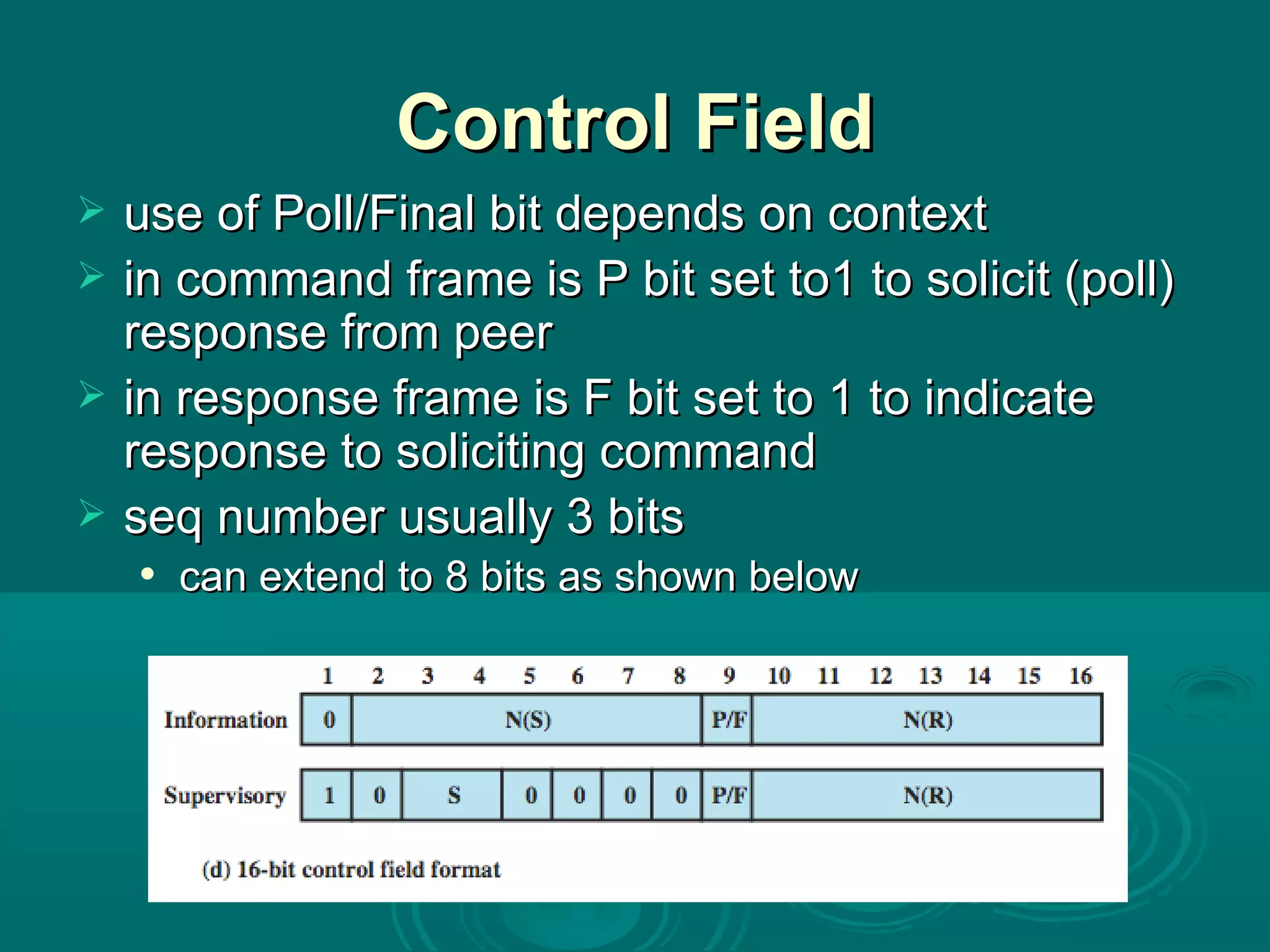

- 26. Control Field useof Poll/Final bit depends on context in command frame is P bit set to1 to solicit (poll) response from peer in response frame is F bit set to 1 to indicate response to soliciting command seq number usually 3 bits can extend to 8 bits as shown below

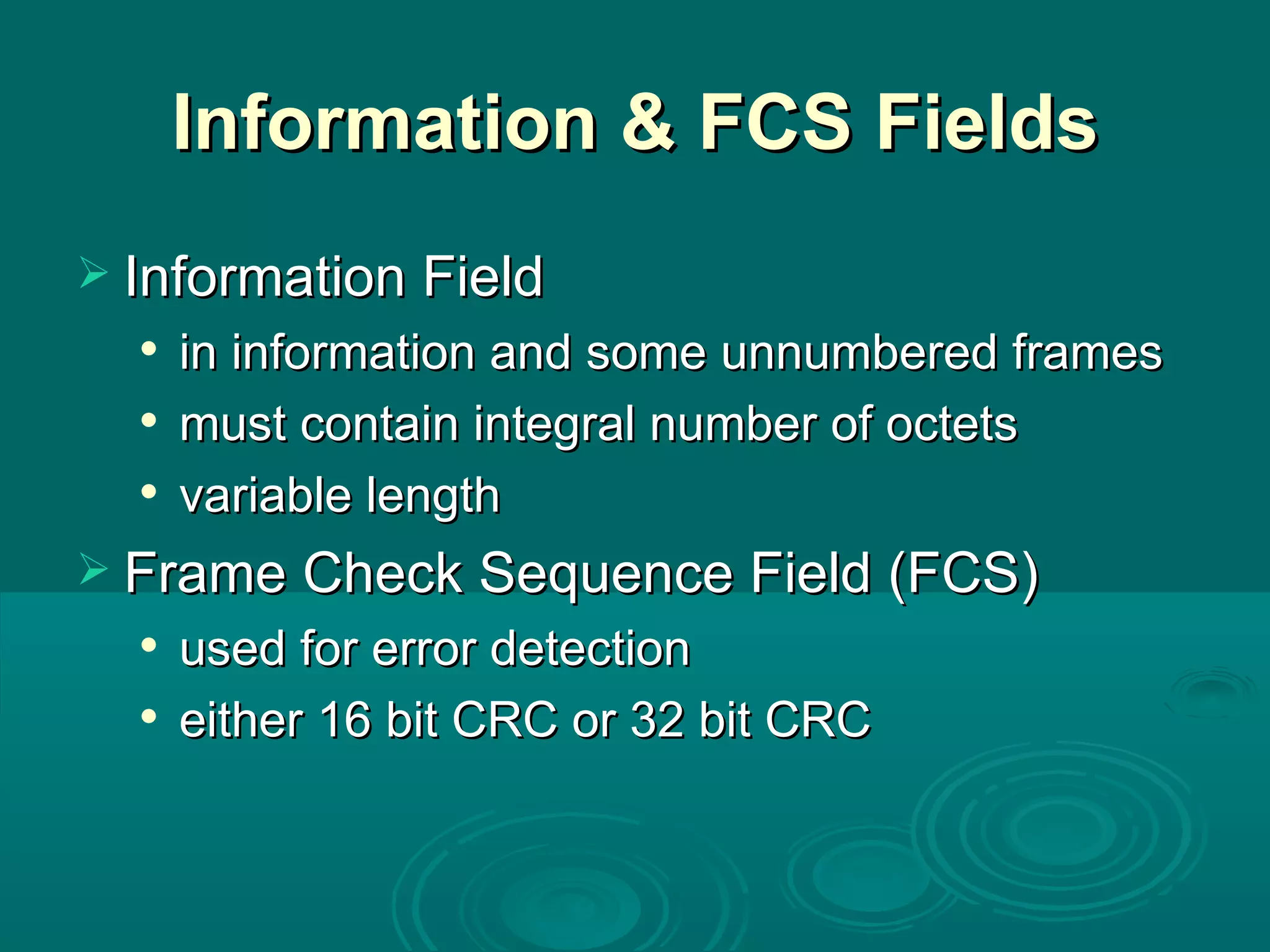

- 27. Information & FCSFields Information Field in information and some unnumbered frames must contain integral number of octets variable length Frame Check Sequence Field (FCS) used for error detection either 16 bit CRC or 32 bit CRC

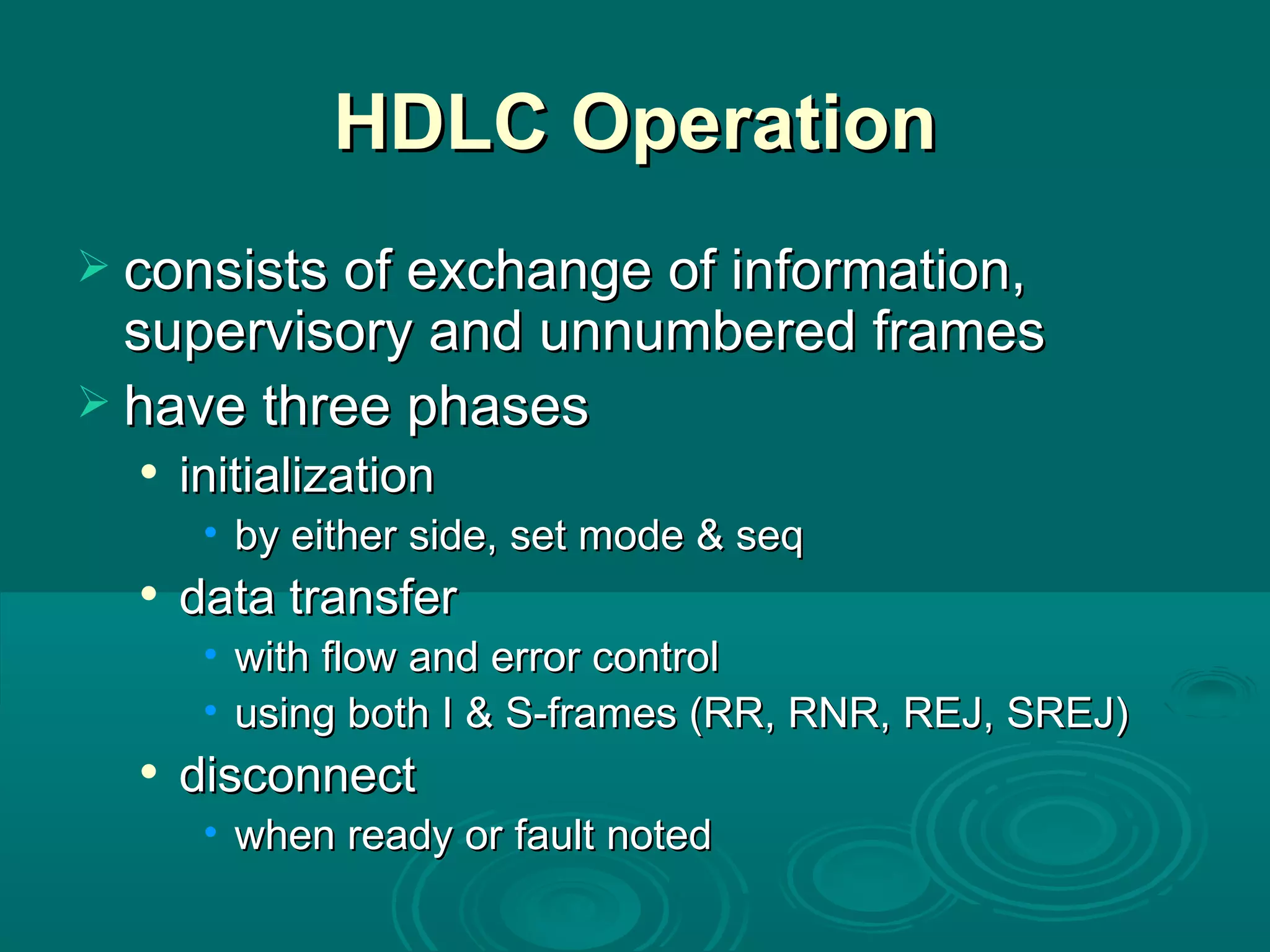

- 28. HDLC Operation consistsof exchange of information, supervisory and unnumbered frames have three phases initialization by either side, set mode & seq data transfer with flow and error control using both I & S-frames (RR, RNR, REJ, SREJ) disconnect when ready or fault noted
- 29.
- 30.

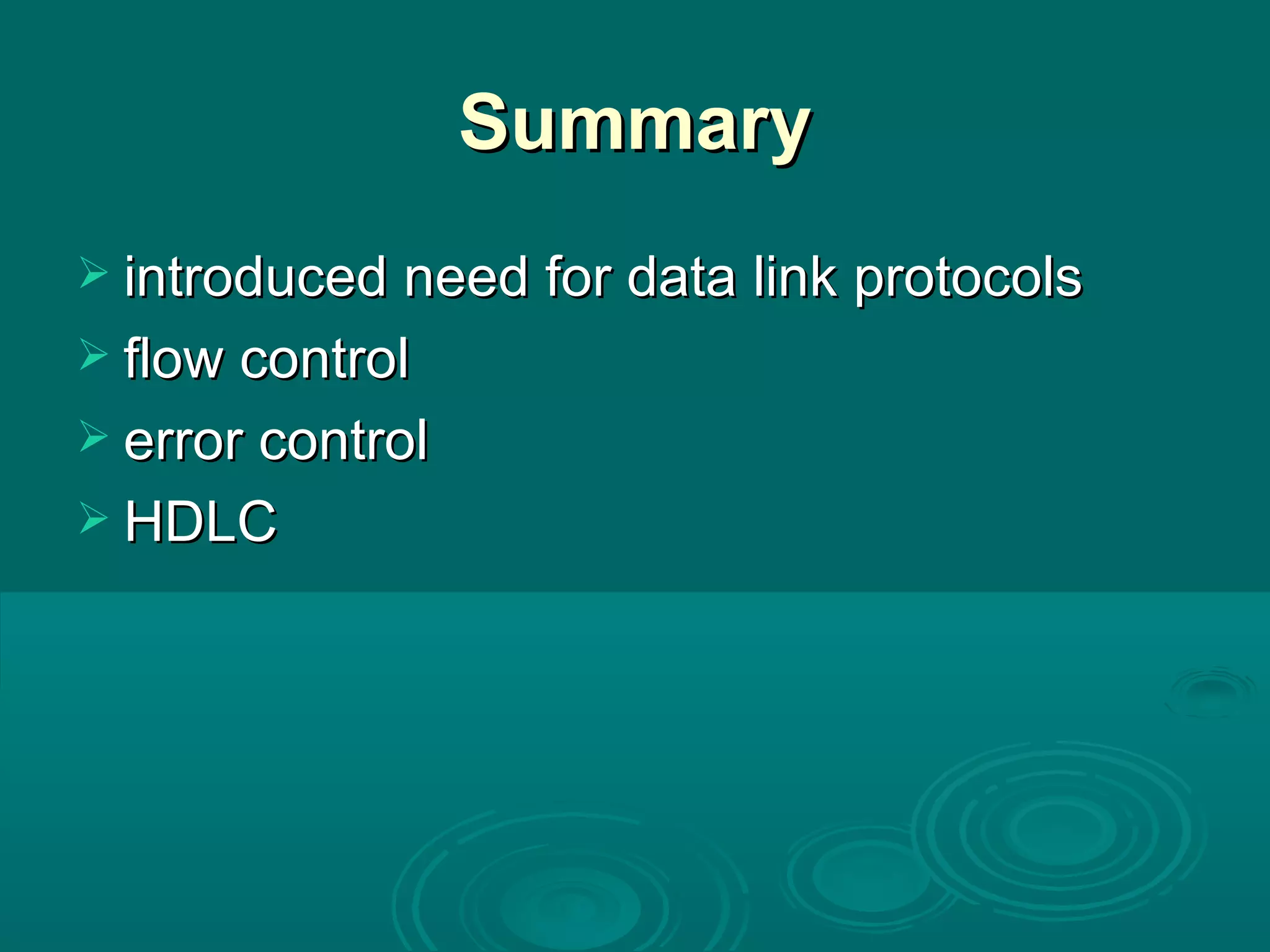

- 31. Summary introduced needfor data link protocols flow control error control HDLC
Editor's Notes
- #2 Lecture slides prepared by Dr Lawrie Brown (UNSW@ADFA) for “Data and Computer Communications”, 8/e, by William Stallings, Chapter 7 “Data Link Control Protocols”.
- #3 This quote from the start of Stallings DCC8e Ch7 raises the key issue which we wish to study in this chapter, where the focus shifts to that of sending data over a data communications link , needing a layer of logic is added above the physical layer.
- #4 In this chapter, we shift our emphasis to that of sending data over a data communications link . To achieve the necessary control, a layer of logic is added above the physical layer, referred to as data link control or a data link control protocol . Some of the requirements and objectives for effective data communication between two directly connected transmitting-receiving stations: • Frame synchronization: Data are sent in blocks called frames. The beginning and end of each frame must be recognizable. • Flow control: The sending station must not send frames at a rate faster than the receiving station can absorb them. • Error control: Bit errors introduced by the transmission system should be corrected. • Addressing: On a shared link, such as a local area network (LAN), the identity of the two stations involved in a transmission must be specified. • Control and data on same link: the receiver must be able to distinguish control information from the data being transmitted. • Link management: Procedures for the management of initiation, maintenance, and termination of a sustained data exchange over a link.
- #5 Flow control is a technique for assuring that a transmitting entity does not overwhelm a receiving entity with data. The receiving entity typically allocates a data buffer of some maximum length for a transfer. When data are received, the receiver must do a certain amount of processing before passing the data to the higher-level software. In the absence of flow control, the receiver's buffer may fill up and overflow while it is processing old data. Will assume data sent in a sequence of frames, with each frame containing a portion of the data and some control information. The time it takes for a station to emit all of the bits of a frame onto the medium is the transmission time; this is proportional to the length of the frame. The propagation time is the time it takes for a bit to traverse the link between source and destination. For this section, we assume that all frames that are transmitted are successfully received; no frames are lost, they arrive in order sent, and none arrive with errors. However, each transmitted frame suffers an arbitrary and variable amount of delay before reception.
- #6 To start will examine mechanisms for flow control in the absence of errors. The model we will use is depicted in Stallings DCC8e Figure 7.1a, which is a vertical-time sequence diagram. It has the advantages of showing time dependencies and illustrating the correct send-receive relationship. Each arrow represents a single frame transiting a data link between two stations. The data are sent in a sequence of frames, with each frame containing a portion of the data and some control information.
- #7 The simplest form of flow control, known as stop-and-wait flow control, works as follows. A source entity transmits a frame. After the destination entity receives the frame, it indicates its willingness to accept another frame by sending back an acknowledgment to the frame just received. The source must wait until it receives the acknowledgment before sending the next frame. The destination can thus stop the flow of data simply by withholding acknowledgment. This procedure works fine and, indeed, can hardly be improved upon when a message is sent in a few large frames. However, it is often the case that a source will break up a large block of data into smaller blocks and transmit the data in many frames (because of limited buffer size, errors detected sooner with less to resend, to prevent media hogging). With the use of multiple frames for a single message, the stop-and-wait procedure may be inadequate, mainly since only one frame at a time can be in transit.
- #8 With the use of multiple frames for a single message, the stop-and-wait procedure may be inadequate, mainly since only one frame at a time can be in transit. To show this, start by defining the bit length B of a link as the number of bits present on the link at an instance in time when a stream of bits fully occupies the link. In situations where the bit length of the link is greater than the frame length, serious inefficiencies result, as shown in Stallings DCC8e Figure 7.2. In the figure, the transmission time (the time it takes for a station to transmit a frame) is normalized to one, and the propagation delay (the time it takes for a bit to travel from sender to receiver) is expressed as the variable a = B / L (where L is the number of bits in the frame). When a is less than 1, the propagation time is less than the transmission time. In this case, the frame is sufficiently long that the first bits of the frame have arrived at the destination before the source has completed the transmission of the frame. When a is greater than 1, the propagation time is greater than the transmission time. In this case, the sender completes transmission of the entire frame before the leading bits of that frame arrive at the receiver. Both parts of Figure 7.2 (a and b) consist of a sequence of snapshots, the first four show the process of transmitting a data frame, and the last shows the return of a small acknowledgment frame. Note that for a > 1, the line is always underutilized and even for a < 1, the line is inefficiently utilized. In essence, for very high data rates, for very long distances between sender and receiver, stop-and-wait flow control provides inefficient line utilization.
- #9 The essence of the problem described so far is that only one frame at a time can be in transit. Efficiency can be greatly improved by allowing multiple frames to be in transit at the same time. Consider two stations, A and B, connected via a full-duplex link. Station B allocates buffer space for W frames. Thus, B can accept W frames, and A is allowed to send W frames without waiting for any acknowledgments. To keep track of which frames have been acknowledged, each is labeled with a a k -bit sequence number. This gives a range of sequence numbers of 0 through 2 k – 1, and frames are numbered modulo 2 k , with a maximum window size of 2 k – 1. The window size need not be the maximum possible size for a given sequence number length k. B acknowledges a frame by sending an acknowledgment that includes the sequence number of the next frame expected. This scheme can also be used to acknowledge multiple frames, and is referred to as sliding-window flow control . Most data link control protocols also allow a station to cut off the flow of frames from the other side by sending a Receive Not Ready (RNR) message, which acknowledges former frames but forbids transfer of future frames. At some subsequent point, the station must send a normal acknowledgment to reopen the window. If two stations exchange data, each needs to maintain two windows, one for transmit and one for receive, and each side needs to send the data and acknowledgments to the other. To provide efficient support for this requirement, a feature known as piggybacking is typically provided. Each data frame includes a field that holds the sequence number of that frame plus a field that holds the sequence number used for acknowledgment.

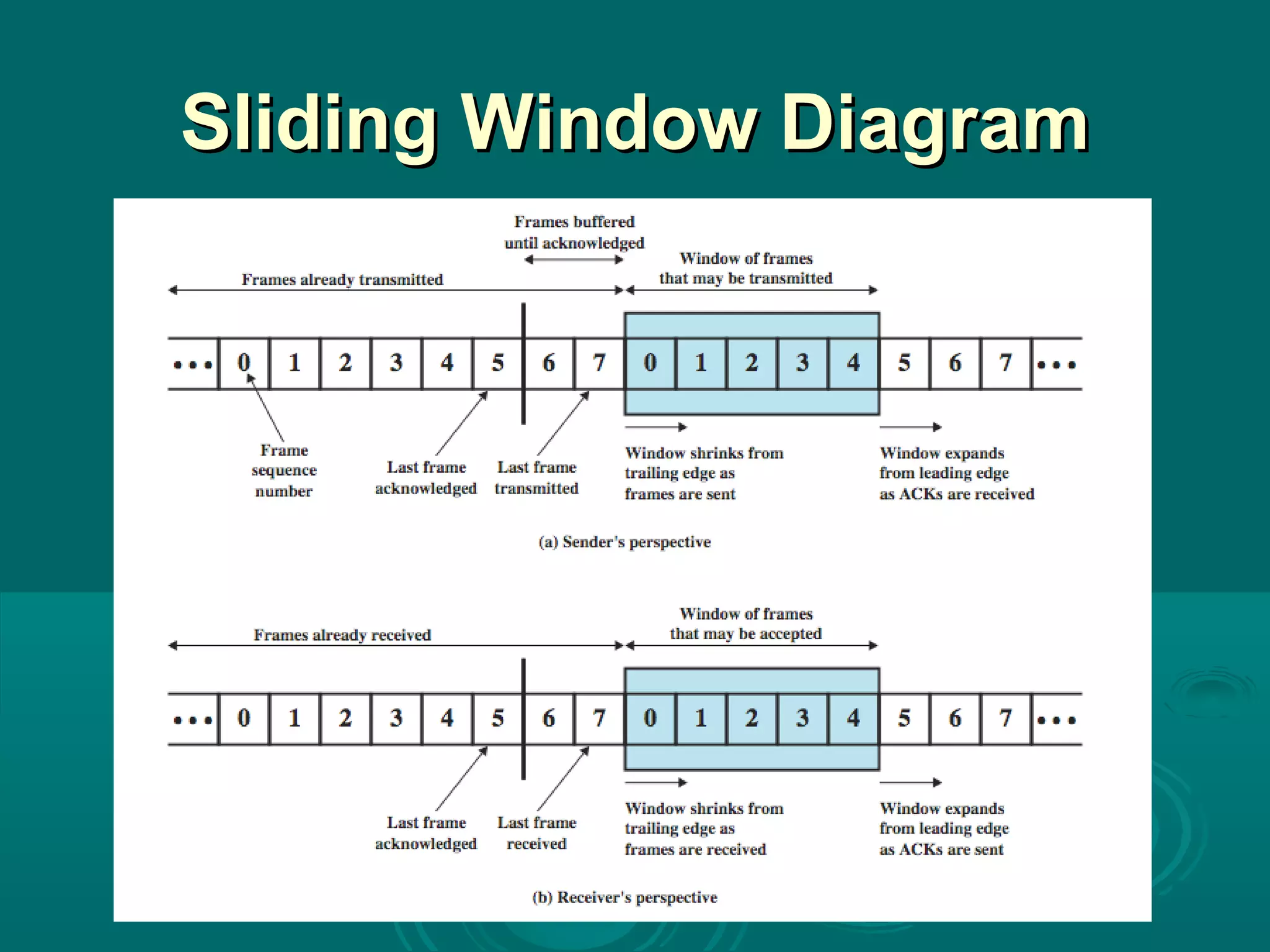

- #10 Stallings DCC8e Figure 7.3 depicts the sliding-window process. It assumes the use of a 3-bit sequence number, so that frames are numbered sequentially from 0 through 7, and then the same numbers are reused for subsequent frames. The shaded rectangle indicates the frames that may be sent; in this figure, the sender may transmit five frames, beginning with frame 0. Each time a frame is sent, the shaded window shrinks; each time an acknowledgment is received, the shaded window grows. Frames between the vertical bar and the shaded window have been sent but not yet acknowledged. As we shall see, the sender must buffer these frames in case they need to be retransmitted. Sliding-window flow control is potentially much more efficient than stop-and-wait flow control. The reason is that, with sliding-window flow control, the transmission link is treated as a pipeline that may be filled with frames in transit. In contrast, with stop-and-wait flow control, only one frame may be in the pipe at a time.

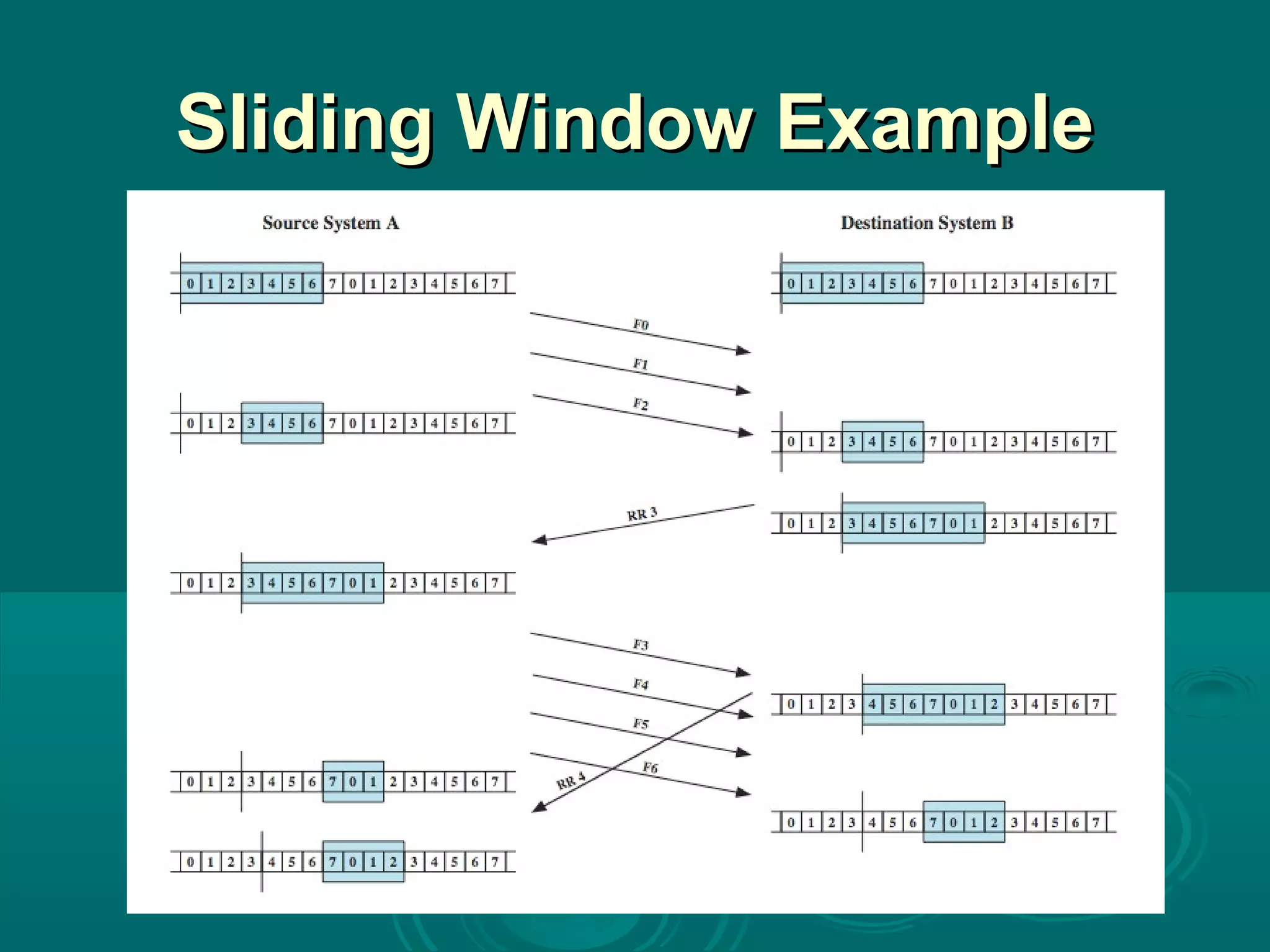

- #11 An example is shown in Stallings DCC8e Figure 7.4. The example assumes a 3-bit sequence number field and a maximum window size of seven frames. Initially, A and B have windows indicating that A may transmit seven frames, beginning with frame 0 (F0). After transmitting three frames (F0, F1, F2) without acknowledgment, A has shrunk its window to four frames and maintains a copy of the three transmitted frames. The window indicates that A may transmit four frames, beginning with frame number 3. B then transmits an RR (receive ready) 3, which means &quot;I have received all frames up through frame number 2 and am ready to receive frame number 3; in fact, I am prepared to receive seven frames, beginning with frame number 3.&quot; With this acknowledgment, A is back up to permission to transmit seven frames, still beginning with frame 3; also A may discard the buffered frames that have now been acknowledged. A proceeds to transmit frames 3, 4, 5, and 6. B returns RR 4, which acknowledges F3, and allows transmission of F4 through the next instance of F2. By the time this RR reaches A, it has already transmitted F4, F5, and F6, and therefore A may only open its window to permit sending four frames beginning with F7.
- #12 Error control refers to mechanisms to detect and correct errors that occur in the transmission of frames. The model that we will use, which covers the typical case, was illustrated earlier in Figure 7.1b. As before, data are sent as a sequence of frames; frames arrive in the same order in which they are sent; and each transmitted frame suffers an arbitrary and potentially variable amount of delay before reception. In addition, we admit the possibility of two types of errors: • Lost frame: frame fails to arrive at the other side, eg. because a noise burst damaged a frame so badly it is not recognized • Damaged frame: A recognizable frame does arrive, but some of the bits are in error (have been altered during transmission). The most common techniques for error control are based on some or all of the following ingredients: • Error detection: As discussed in the Chapter 6. • Positive acknowledgment: The destination returns a positive acknowledgment to successfully received, error-free frames. • Retransmission after timeout: The source retransmits a frame that has not been acknowledged after a predetermined amount of time. • Negative acknowledgment and retransmission: The destination returns a negative acknowledgment to frames in which an error is detected. The source retransmits such frames.
- #13 Collectively, these mechanisms are all referred to as automatic repeat request (ARQ); the effect of ARQ is to turn an unreliable data link into a reliable one. Three versions of ARQ have been standardized: Stop-and-wait ARQ Go-back-N ARQ Selective-reject ARQ All of these forms are based on the use of the flow control techniques discussed in Section 7.1. We examine each in turn.
- #14 Stop-and-wait ARQ is based on the stop-and-wait flow control technique outlined previously. The source station transmits a single frame and then must await an acknowledgment (ACK). No other data frames can be sent until the destination station's reply arrives at the source station. Two sorts of errors could occur. First, the frame that arrives at the destination could be damaged. The receiver detects this by using the error-detection technique referred to earlier and simply discards the frame. To account for this possibility, the source station is equipped with a timer. After a frame is transmitted, the source station waits for an acknowledgment. If no acknowledgment is received by the time that the timer expires, then the same frame is sent again. Note that this method requires that the transmitter maintain a copy of a transmitted frame until an acknowledgment is received for that frame. The second sort of error is a damaged acknowledgment, which is not recognizable by A, which will therefore time out and resend the same frame. This duplicate frame arrives and is accepted by B. B has therefore accepted two copies of the same frame as if they were separate. To avoid this problem, frames are alternately labeled with 0 or 1, and positive acknowledgments are of the form ACK0 and ACK1. In keeping with the sliding-window convention, an ACK0 acknowledges receipt of a frame numbered 1 and indicates that the receiver is ready for a frame numbered 0.
- #15 Stallings DCC8e Figure 7.5 gives an example of the use of stop-and-wait ARQ, showing the transmission of a sequence of frames from source A to destination B. The figure shows the two types of errors just described. The third frame transmitted by A is lost or damaged and therefore B does not return an ACK. A times out and retransmits the frame. Later, A transmits a frame labeled 1 but the ACK0 for that frame is lost. A times out and retransmits the same frame. When B receives two frames in a row with the same label, it discards the second frame but sends back an ACK0 to each. The principal advantage of stop-and-wait ARQ is its simplicity. Its principal disadvantage is that stop-and-wait is an inefficient mechanism.
- #16 The sliding-window flow control technique can be adapted to provide more efficient line use, sometimes referred to as continuous ARQ . The form of error control based on sliding-window flow control that is most commonly used is called go-back-N ARQ. In this method, a station may send a series of frames sequentially numbered modulo some maximum value. The number of unacknowledged frames outstanding is determined by window size, using the sliding-window flow control technique. While no errors occur, the destination will acknowledge incoming frames as usual (RR = receive ready, or piggybacked acknowledgment). If the destination station detects an error in a frame, it may send a negative acknowledgment (REJ = reject) for that frame, as explained in the following rules. The destination station will discard that frame and all future incoming frames until the frame in error is correctly received. Thus, the source station, when it receives a REJ, must retransmit the frame in error plus all succeeding frames that were transmitted in the interim.
- #17 Suppose that station A is sending frames to station B. After each transmission, A sets an acknowledgment timer for the frame just transmitted. Suppose that B has previously successfully received frame ( i – 1) and A has just transmitted frame i . The go-back-N technique takes into account the following contingencies: 1. Damaged frame. 2. Lost Frame 3. Damaged Ack 4. Damaged Reject
- #19 With selective-reject ARQ, the only frames retransmitted are those that receive a negative acknowledgment, in this case called SREJ, or those that time out. Selective reject would appear to be more efficient than go-back-N, because it minimizes the amount of retransmission. On the other hand, the receiver must maintain a buffer large enough to save post-SREJ frames until the frame in error is retransmitted and must contain logic for reinserting that frame in the proper sequence. The transmitter, too, requires more complex logic to be able to send a frame out of sequence. Because of such complications, select-reject ARQ is much less widely used than go-back-N ARQ. Selective reject is a useful choice for a satellite link because of the long propagation delay involved.
- #20 Stallings DCC8e Figure 7.6a is an example of the frame flow for go-back-N ARQ. Because of the propagation delay on the line, by the time that an acknowledgment (positive or negative) arrives back at the sending station, it has already sent at least one additional frame beyond the one being acknowledged. In this example, frame 4 is damaged. Frames 5 and 6 are received out of order and are discarded by B. When frame 5 arrives, B immediately sends a REJ 4. When the REJ to frame 4 is received, not only frame 4 but frames 5 and 6 must be retransmitted. Note that the transmitter must keep a copy of all unacknowledged frames. Figure 7.6a also shows an example of retransmission after timeout. No acknowledgment is received for frame 5 within the timeout period, so A issues an RR to determine the status of B. Stallings DCC8e Figure 7.6b illustrates selective-reject ARQ. When frame 5 is received out of order, B sends a SREJ 4, indicating that frame 4 has not been received. However, B continues to accept incoming frames and buffers them until a valid frame 4 is received. At that point, B can place the frames in the proper order for delivery to higher-layer software.
- #21 The most important data link control protocol is HDLC (ISO 3009, ISO 4335). Not only is HDLC widely used, but it is the basis for many other important data link control protocols, which use the same or similar formats and the same mechanisms as employed in HDLC. To satisfy a variety of applications, HDLC defines: three station types: • Primary station: Responsible for controlling the operation of the link. Frames issued by the primary are called commands. • Secondary station: Operates under the control of the primary station. Frames issued by a secondary are called responses. The primary maintains a separate logical link with each secondary station on the line. • Combined station: Combines the features of primary and secondary. A combined station may issue both commands and responses. It also defines two link configurations: • Unbalanced configuration: Consists of one primary and one or more secondary stations and supports both full-duplex and half-duplex transmission. • Balanced configuration: Consists of two combined stations and supports both full-duplex and half-duplex transmission.
- #22 HDLC defines three data transfer modes: • Normal response mode (NRM): Used with an unbalanced configuration. The primary may initiate data transfer to a secondary, but a secondary may only transmit data in response to a command from the primary. NRM is used on multi-drop lines, in which a number of terminals are connected to a host computer. • Asynchronous balanced mode (ABM): Used with a balanced configuration. Either combined station may initiate transmission without receiving permission from the other combined station. ABM is the most widely used of the three modes; it makes more efficient use of a full-duplex point-to-point link because there is no polling overhead. • Asynchronous response mode (ARM): Used with an unbalanced configuration. The secondary may initiate transmission without explicit permission of the primary. The primary still retains responsibility for the line, including initialization, error recovery, and logical disconnection. ARM is rarely used; it is applicable to some special situations in which a secondary may need to initiate transmission.
- #23 HDLC uses synchronous transmission. All transmissions are in the form of frames, and a single frame format suffices for all types of data and control exchanges. Stallings DCC8e Figure 7.7a depicts the structure of the HDLC frame. The flag, address, and control fields that precede the information field are known as a header . The FCS and flag fields following the data field are referred to as a trailer .
- #24 Flag fields delimit the frame at both ends with the unique pattern 01111110. A single flag may be used as the closing flag for one frame and the opening flag for the next. On both sides of the user-network interface, receivers are continuously hunting for the flag sequence to synchronize on the start of a frame. While receiving a frame, a station continues to hunt for that sequence to determine the end of the frame. Because the protocol allows the presence of arbitrary bit patterns, there is no assurance that the pattern 01111110 will not appear somewhere inside the frame, thus destroying synchronization. To avoid this problem, a procedure known as bit stuffing is used. For all bits between the starting and ending flags, the transmitter inserts an extra 0 bit after each occurrence of five 1s in the frame. After detecting a starting flag, the receiver monitors the bit stream. When a pattern of five 1s appears, the sixth bit is examined. If this bit is 0, it is deleted. If the sixth bit is a 1 and the seventh bit is a 0, the combination is accepted as a flag. If the sixth and seventh bits are both 1, the sender is indicating an abort condition. With the use of bit stuffing, arbitrary bit patterns can be inserted into the data field of the frame. This property is known as data transparency . Stallings DCC8e Figure 7.8 shows an example of bit stuffing. Note that in the first two cases, the extra 0 is not strictly necessary for avoiding a flag pattern but is necessary for the operation of the algorithm.
- #25 The address field identifies the secondary station that transmitted or is to receive the frame. This field is not needed for point-to-point links but is always included for the sake of uniformity. The address field is usually 8 bits long but, by prior agreement, an extended format may be used in which the actual address length is a multiple of 7 bits. The leftmost bit of each octet is 1 or 0 according as it is or is not the last octet of the address field. The remaining 7 bits of each octet form part of the address. The single-octet address of 11111111 is interpreted as the all-stations address in both basic and extended formats. It is used to allow the primary to broadcast a frame for reception by all secondaries.
- #26 HDLC defines three types of frames, each with a different control field format. Information frames (I-frames) carry the data to be transmitted for the user (the logic above HDLC that is using HDLC). Additionally, flow and error control data, using the ARQ mechanism, are piggybacked on an information frame. Supervisory frames (S-frames) provide the ARQ mechanism when piggybacking is not used. Unnumbered frames (U-frames) provide supplemental link control functions. The first one or two bits of the control field serves to identify the frame type. The remaining bit positions are organized into subfields as indicated in Figures 7.7c and d (next slide).
- #27 All of the control field formats contain the poll/final (P/F) bit. Its use depends on context. Typically, in command frames, it is referred to as the P bit and is set to 1 to solicit (poll) a response frame from the peer HDLC entity. In response frames, it is referred to as the F bit and is set to 1 to indicate the response frame transmitted as a result of a soliciting command. Note that the basic control field for S- and I-frames uses 3-bit sequence numbers, as shown on previous slide. With the appropriate set-mode command, an extended control field can be used for S- and I-frames that employs 7-bit sequence numbers. U-frames always contain an 8-bit control field.
- #28 The information field is present only in I-frames and some U-frames. The field can contain any sequence of bits but must consist of an integral number of octets. The length of the information field is variable up to some system-defined maximum. The frame check sequence (FCS) is an error-detecting code calculated from the remaining bits of the frame, exclusive of flags. The normal code is the 16-bit CRC-CCITT defined in Section 6.3. An optional 32-bit FCS, using CRC-32, may be employed if the frame length or the line reliability dictates this choice.
- #29 HDLC operation consists of the exchange of I-frames, S-frames, and U-frames between two stations. The various commands and responses defined for these frame types are listed in Stallings DCC8e Table 7.1. In describing HDLC operation, we will discuss these three types of frames. The operation of HDLC involves three phases: First, one side or another initializes the data link so that frames may be exchanged in an orderly fashion. During this phase, the options that are to be used are agreed upon, such as which of the three modes (NRM, ABM, ARM) is requested, and whether 3- or 7-bit sequence numbers are to be used. After initialization, the two sides exchange user data and the control information to exercise flow and error control. Both sides may begin to send user data in I-frames, starting with sequence number 0. The N(S) and N(R) fields of the I-frame are sequence numbers that support flow control and error control. S-frames are also used for flow control and error control. The receive ready (RR) frame acknowledges the last I-frame received. Receive not ready (RNR) acknowledges an I-frame, as with RR, but also asks the peer entity to suspend transmission of I-frames. When again ready, it sends an RR. REJ initiates the go-back-N ARQ. It indicates that the last I-frame received has been rejected and that retransmission of all I-frames beginning with number N(R) is required. Selective reject (SREJ) is used to request retransmission of just a single frame. Finally, one of the two sides signals the termination of the operation, either on its own initiative if there is some sort of fault, or at the request of its higher-layer user. HDLC issues a disconnect by sending a disconnect (DISC) frame.

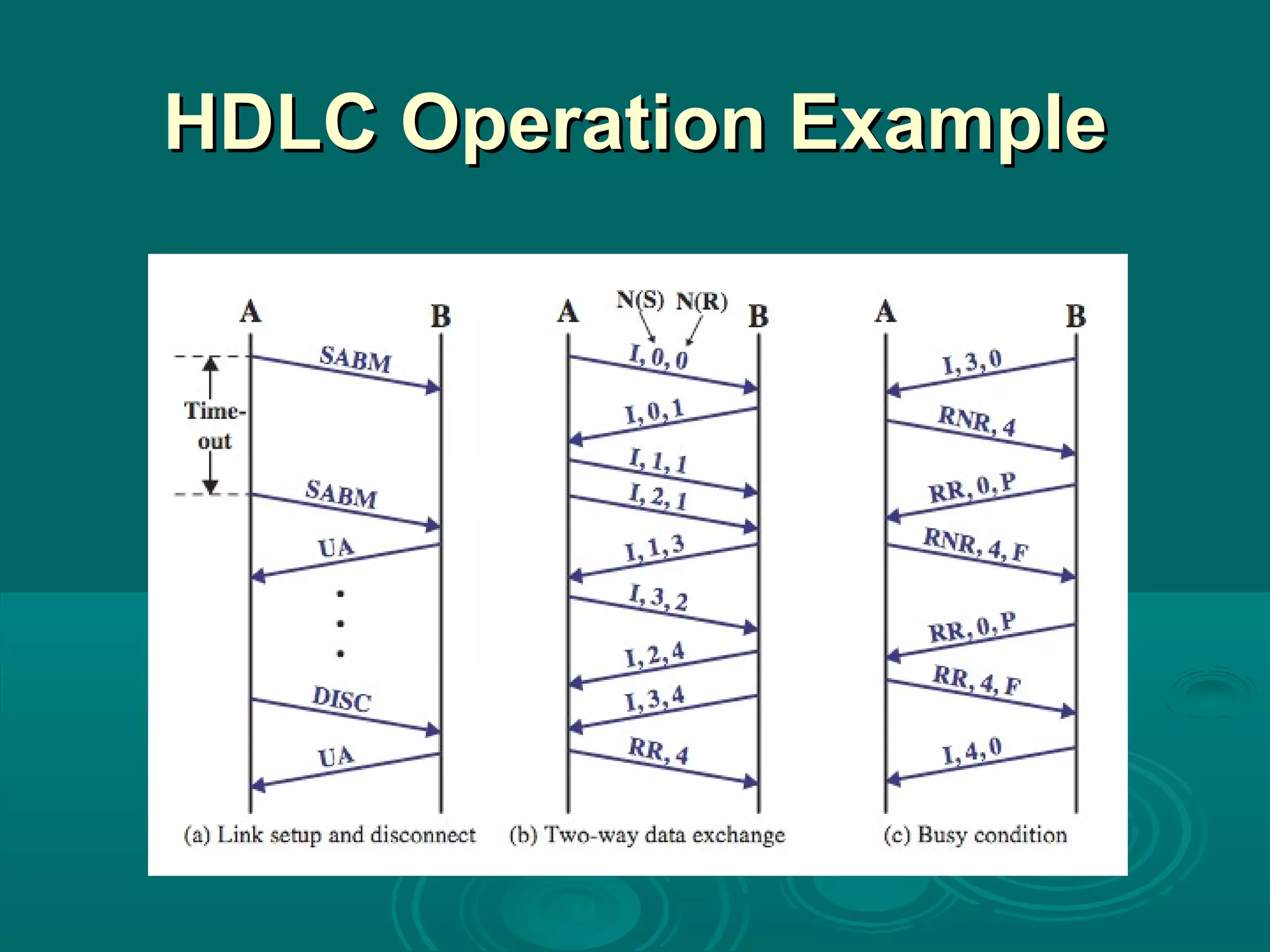

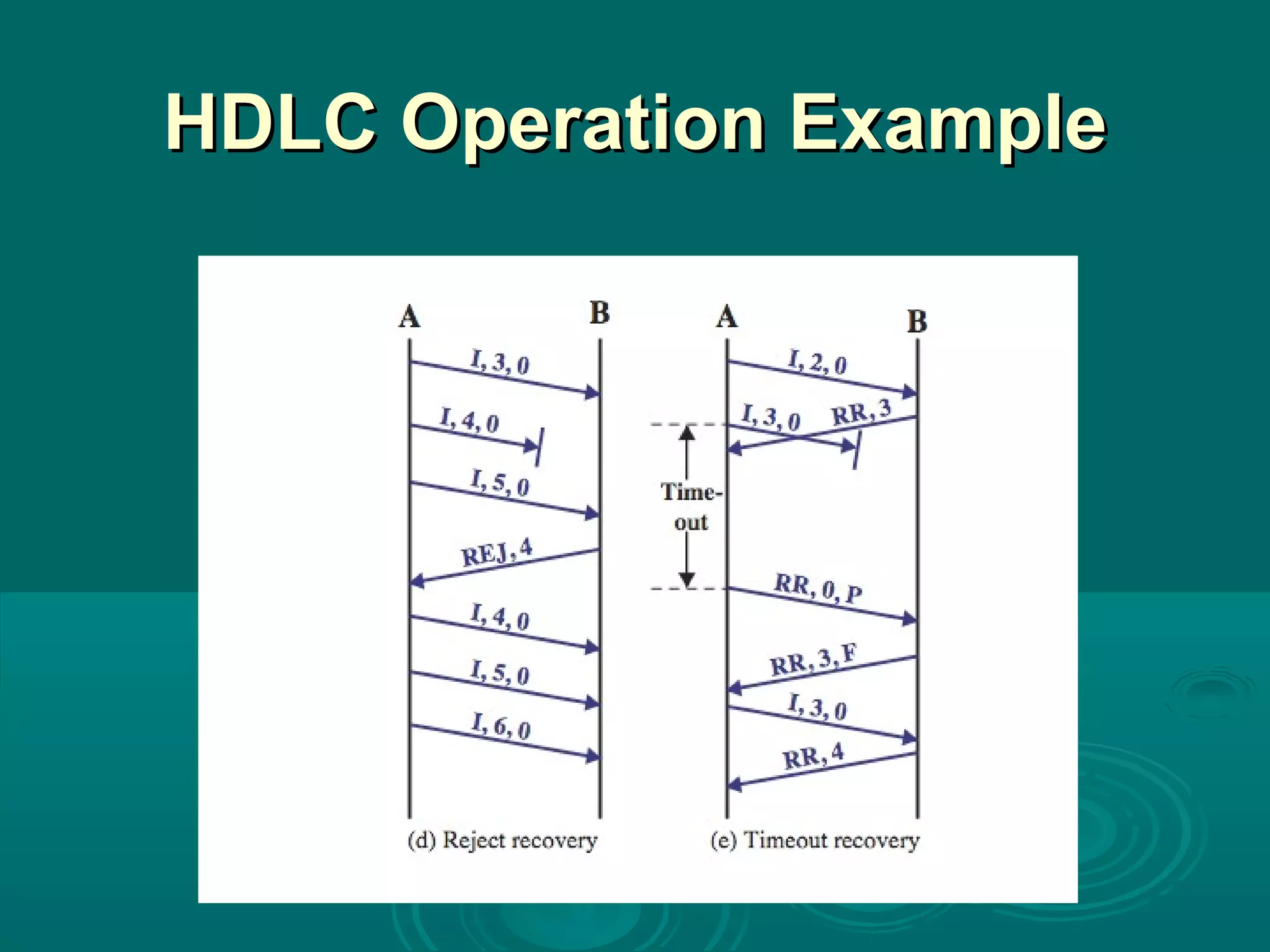

- #30 Examples of HDLC operation are shown here in Stallings DCC8e Figure 7.9. Figure 7.9a shows the frames involved in link setup and disconnect. One side issues an SABM command and starts a timer. Upon receiving the SABM,the recipient returns a UA response and sets local variables and counters to initial values. The initiating entity receives the UA response, sets its variables and counters, and stops the timer. The logical connection is now active, and both sides may begin transmitting frames. Should the timer expire without a response to an SABM, the originator will repeat the SABM, as illustrated. The same figure (Figure 7.9a) shows the disconnect procedure. One side issues a DISC command, and the other responds with a UA response. Figure 7.9b illustrates the full-duplex exchange of I-frames. When an entity sends a number of I-frames in a row with no incoming data, then the receive sequence number is simply repeated (e.g., I,1,1; I,2.1 in the A-to-B direction). When an entity receives a number of I-frames in a row with no outgoing frames, then the receive sequence number in the next outgoing frame must reflect the cumulative activity (e.g., I,1,3 in the B-to-A direction). Figure 7.9c shows an operation involving a busy condition, where the entity's receive buffer fills up and it must halt the incoming flow of I-frames, using an RNR command. In this example, A issues an RNR, which requires B to halt transmission of I-frames. The station receiving the RNR will usually poll the busy station at some periodic interval by sending an RR with the P bit set. This requires the other side to respond with either an RR or an RNR. When the busy condition has cleared, A returns an RR, and I-frame transmission from B can resume.
- #31 Figure 7.9d shows an example of error recovery using the REJ command. In this example, A transmits I-frames numbered 3, 4, and 5. Number 4 suffers an error and is lost. When B receives I-frame number 5, it discards this frame because it is out of order and sends an REJ with an N(R) of 4. This causes A to initiate retransmission of I-frames previously sent, beginning with frame 4. A may continue to send additional frames after the retransmitted frames. An example of error recovery using a timeout is shown in Figure 7.9e. In this example, A transmits I-frame number 3 as the last in a sequence of I-frames. The frame suffers an error. B detects the error and discards it. However, B cannot send an REJ, because there is no way to know if this was an I-frame. If an error is detected in a frame, all of the bits of that frame are suspect, and the receiver has no way to act upon it. A, however, would have started a timer as the frame was transmitted. This timer has a duration long enough to span the expected response time. When the timer expires, A initiates recovery action. This is usually done by polling the other side with an RR command with the P bit set, to determine the status of the other side. Because the poll demands a response, the entity will receive a frame containing an N(R) field and be able to proceed. In this case, the response indicates that frame 3 was lost, which A retransmits.
- #32 Chapter 7 summary.
