Audio: Copier: Add missing DMIC DAI index mapping to create_dai() #6668

singalsu · 2022-11-25T10:53:19Z

The PR contains two commits

Audio: Copier: Add missing DMIC DAI index mapping to create_dai()
Tools: Topology2: Add DMIC16k capture to cavs-nocodec topologies

Edit - I removed the second topology2 commit. Now this is only a FW patch.

singalsu · 2022-11-25T10:58:46Z

The built topology works with a hack in firmware src/lib/dai.c dai_get() to shift the index >> 5. The index from kernel is made with macro

#define SOF_IPC4_NODE_INDEX_INTEL_DMIC(x) (((x) & 0x7) << 5)
It needs to be addressed separately.

Edit: This problem is solved in the first commit.

singalsu · 2022-11-25T11:32:17Z

The built topology works with a hack in firmware src/lib/dai.c dai_get() to shift the index >> 5. The index from kernel is made with macro

#define SOF_IPC4_NODE_INDEX_INTEL_DMIC(x) (((x) & 0x7) << 5) It needs to be addressed separately.

Cool, @juimonen found a solution that copier uses for SSP dai_index. Adding similar handling for DMIC fixes the dai_index issue. It's in the second commit of this PR now.

tools/topology/topology2/cavs/cavs-nocodec.conf

singalsu · 2022-11-25T11:45:50Z

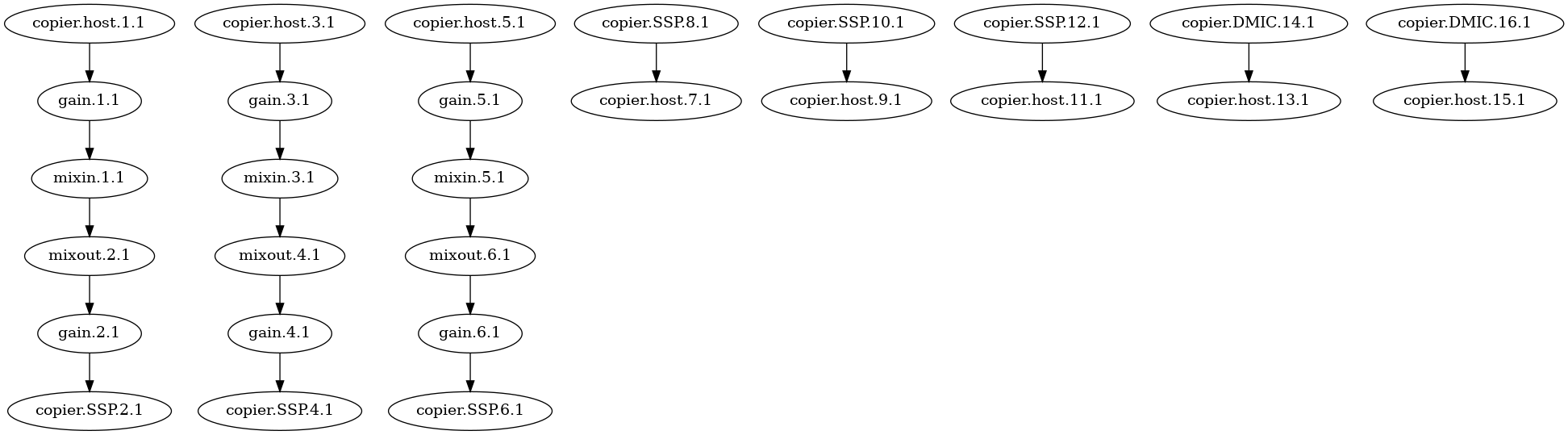

The modified topology:

tools/topology/topology2/cavs/cavs-nocodec.conf

tools/topology/topology2/cavs/platform/intel/dmic-generic-add-dmic1.conf

ranj063 · 2022-11-25T18:31:17Z

@singalsu can we please wait till #6592 is merged before you add the DMIC16K additions?

ranj063 · 2022-12-01T17:49:40Z

@singalsu my PR is merged. So this one is good for rebase

singalsu · 2022-12-02T10:08:28Z

@singalsu my PR is merged. So this one is good for rebase

Thanks! Done now. I kept the DMIC configuration as 4ch so now there's no change to copier.host.13.1, only add as 4ch copier.host.15.1 and copier.DMIC.16.1.

lgirdwood · 2022-12-02T15:58:58Z

src/audio/copier/copier.c

Good find here, I guess this is also needed for mtl-02. @marcinszkudlinski fyi

This fix is necessary. Maybe @singalsu can submit a separate PR for this fix to speed up merging this patch.

libinyang · 2022-12-13T11:55:39Z

src/audio/copier/copier.c

This fix is necessary. Maybe @singalsu can submit a separate PR for this fix to speed up merging this patch.

libinyang · 2022-12-13T11:57:10Z

tools/topology/topology2/cavs-nocodec.conf

The ppl15 is used by deep buffer in the latest code. We need to refresh the code.

libinyang · 2022-12-13T12:06:26Z

tools/topology/topology2/cavs-nocodec.conf

Maybe we can split DMIC0 and DMIC1 into 2 conf files, dmic0-generic.conf for dmic0 and dmic16k-generic.conf for dmic16k.
DMIC1 may be used by other purpose, such as WoV. If we split DMIC0/1 into different conf files. It will be easy to add such support. We just make some judgement in the top file, such as cavs-nocodec.conf to pick up the right configuration, like:

# If there is DMICs, DMIC0 is enabled by default IncludeByKey.NUM_DMICS { "[1-4]" "platform/intel/dmic-generic.conf" } # enable dmic16k if DMIC16 is defined IncludeByKey.DMIC16k { "1" "platform/intel/dmic16k.conf" } # enable dummy_wov if DUMMY_WOV is defined # DUMMY_WOV and DMIC16 are mutually exclusive IncludeByKey.DUMMY_WOV { "1" "platform/intel/dmic-wov.conf" }

Yep. I hope I can work in Q1 next year with tplg2. I would add topology and pipelines those enable testing of all playback and capture processing.

The dai_index needs to be mapped similarly as in kernel. The SSP type was handled correctly in the function but not DMIC. Signed-off-by: Jaska Uimonen <jaska.uimonen@linux.intel.com> Signed-off-by: Seppo Ingalsuo <seppo.ingalsuo@linux.intel.com>

singalsu · 2022-12-16T08:58:24Z

@libinyang I removed everything but the essential FW patch. The 16k DMIC DAI cannot work without it. Please review this.

libinyang

LGTM

kv2019i · 2022-12-16T13:43:07Z

@wszypelt This has failures as well, can you check?

wszypelt · 2022-12-16T14:05:32Z

@kv2019i I repeated the tests, 20 minutes and you should get the correct results

This is a fix for a regression introduced by thesofproject#6668. For an unknown reason (probably a bug) Linux and Windows hosts use different range of node_id for DMIC. The fix workarounds the problem adding support for both ranges. Signed-off-by: Serhiy Katsyuba <serhiy.katsyuba@intel.com>

This reverts commit 8d166a4. This restores working DMIC functionality on Windows platform broken by thesofproject#6668. ATTENTION: This will break DMIC1 (DMIC with DAI index 1) functionality on Linux platform, DMIC0 should still work fine! Non working DMIC1 should be fixed on Linux driver side, not this firmware. Signed-off-by: Serhiy Katsyuba <serhiy.katsyuba@intel.com>

This reverts commit 8d166a4. This restores working DMIC functionality on Windows platform broken by #6668. ATTENTION: This will break DMIC1 (DMIC with DAI index 1) functionality on Linux platform, DMIC0 should still work fine! Non working DMIC1 should be fixed on Linux driver side, not this firmware. Signed-off-by: Serhiy Katsyuba <serhiy.katsyuba@intel.com>
