Use `@primer/octicons-react` icons #3227

FloEdelmann · 2020-06-12T19:18:27Z

I've tried to use the official @primer/octicons-react package, as suggested in #3147 (comment).

I think this is not possible, at least not for now. (Or I am not skilled enough in TypeScript / JSX / React / dom-chef.)

The default props are not applied.

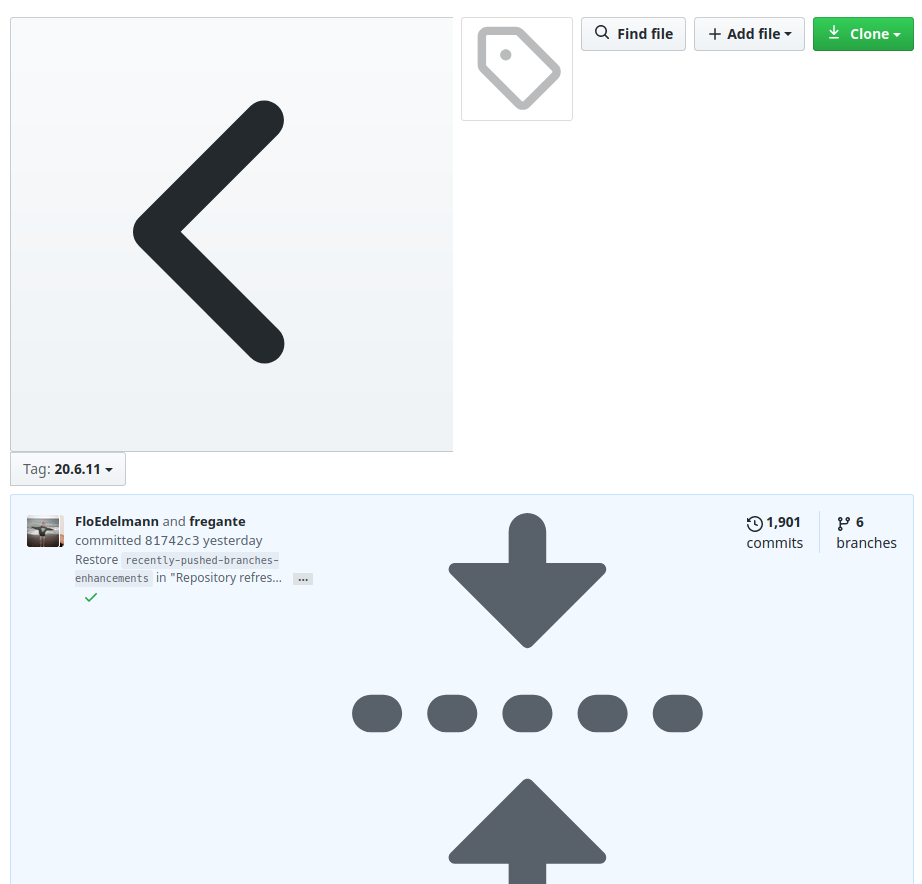

In particular the size prop is missing, so all the icons are huge.

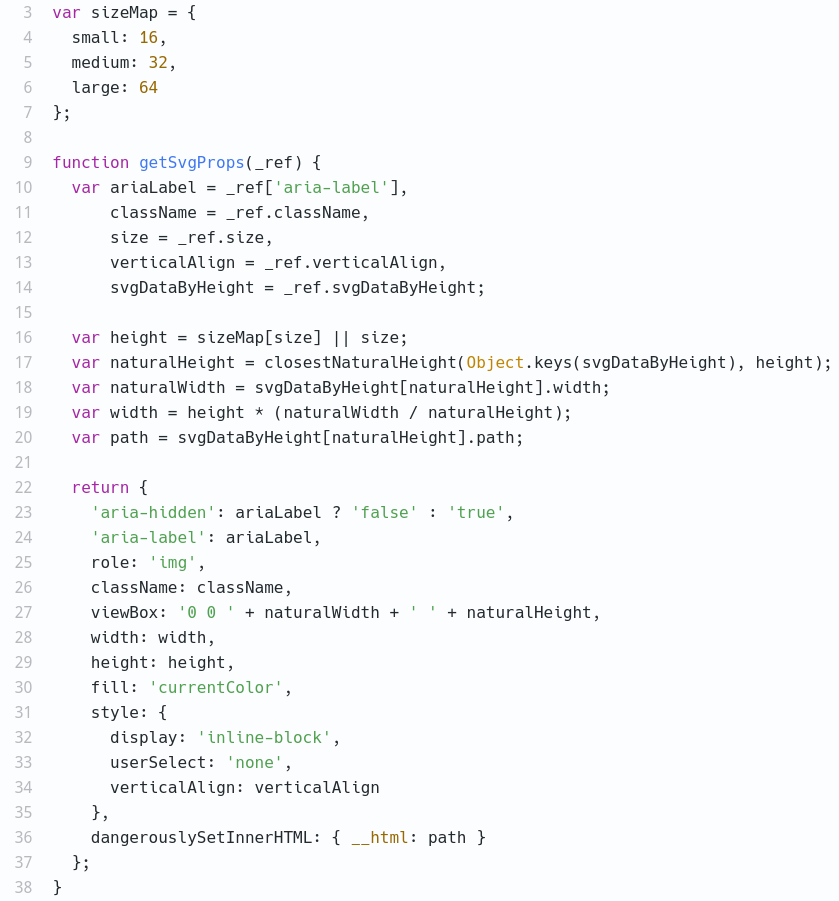

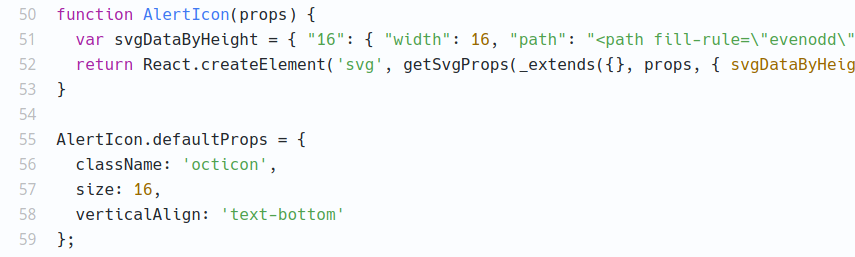

Relevant code snippets in octicons-react/dist/index.esm.js:
There is no nice way to pass props to an icon function in dom-chef, as <SomeIcon some-prop="foo"/> is compiled to createElement(SomeIcon(), {someProp: 'foo'}) instead of createElement(SomeIcon({someProp: 'foo'})).
The icons don't have specific classes, i.e. we have to add the classes manually where we need it. E.g. this selector will break:

https://github.com/sindresorhus/refined-github/blob/4dabb8ce0539222101d39c5329857dafb88327b6/source/features/toggle-files-button.css#L11-L12

Nevertheless, I wanted to share my progress, maybe someone else can figure out how to fix those issues 🤞

fregante · 2020-06-12T21:22:20Z

3. The icons don't have specific classes, i.e. we have to add the classes manually where we need it. E.g. this selector will break:

Yeah not worth it then. If we make this change, it should make things easier during development, not harder/more verbose.

Those classes are important because sometimes we just add sections and those classes just pick up the existing styles that GitHub put in place. The less CSS we have, the less we have to update when the move things by 3px.

FloEdelmann · 2020-06-14T16:26:39Z

I created two PRs in upstream repos:

Pass defaultProps to element function vadimdemedes/dom-chef#63 to support defaultProps in dom-chef → resolves problem 1
Add icon-specific className to React default props primer/octicons#453 to add icon-specific classes to the components' defaultProps → resolves problem 3

That would leave us with just problem 2, but we could still override the resulting attributes manually instead of passing custom props, like mentioned in the suggested dom-chef readme update:

<SomeIcon width={32} height={32} /> // <svg … width="32" height="32">
<SomeIcon size={32} /> // <svg … width="16" height="16" size="32">

Now let's see if those PRs get merged 😄

fregante · 2020-09-21T16:49:28Z

Thank you for working on this! I hope primer/octicons#453 can be resolved soon

fregante · 2020-11-28T01:03:46Z

Let's get this over with:

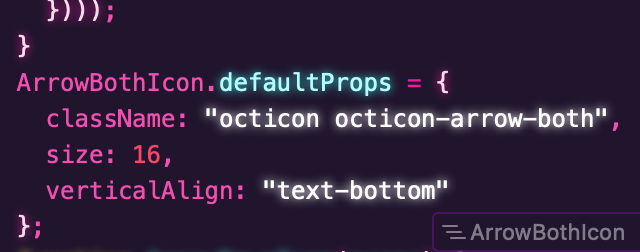

I added a webpack loader to take care of this without having to wait forever for Octicons.

Please check, speak now or forever hold your peace.

I think the last step is to make sure that the icons are tree shaken: primer/octicons#405

webpack.config.ts

yakov116

Co-authored-by: Flo Edelmann <florian-edelmann@online.de>

fregante · 2020-11-29T06:29:30Z

@yakov116 that was due to the broken regex suggested by the linter, probably

This reverts commit 8c7b457.

fregante · 2020-11-29T06:38:25Z

❯ nr build

        background.js ⏤  18 kB
  browser-polyfill.js ⏤  3.93 kB
          options.css ⏤  1.78 kB
           options.js ⏤  32.5 kB
   refined-github.css ⏤  11.6 kB (+4 B)
    refined-github.js ⏤  168 kB (+44.2 kB)
 resolve-conflicts.js ⏤  1.03 kB

[webpack-cli] Compilation finished

Given the file increase, the icons are definitely not being tree-shaken 😬

Hopefully the beautifier is enough for AMO reviewers. If not, I have to figure out which Terser compress flag actually tree shakes

fregante · 2020-11-29T07:10:01Z

❯ nr build

        background.js ⏤  17.2 kB (-806 B)
  browser-polyfill.js ⏤  3.9 kB (-34 B)
          options.css ⏤  1.78 kB
           options.js ⏤  31.7 kB (-799 B)
   refined-github.css ⏤  11.6 kB (+4 B)
    refined-github.js ⏤  110 kB (-12.9 kB)
 resolve-conflicts.js ⏤  1.04 kB (+12 B)

[webpack-cli] Compilation finished

source/features/forked-to.tsx

fregante · 2020-11-30T05:48:26Z

source/globals.d.ts

+declare module 'react' {
+	const FC = (): JSX.Element => JSX.Element;
+	const React = {FC};
+	export default React;


I think this isn't needed, right? Doesn't the module already export the correct types?

In the react module, the return type of functional components is ReactElement, not JSX.Element (which is of course not actually true for us because not dom-chef is used instead of react). So when I remove the type declaration, I get errors like this:

source/github-widgets/notice-bar.tsx:17:6 - error TS2786: 'XIcon' cannot be used as a JSX component. Its return type 'ReactElement<any, any> | null' is not a valid JSX element. Type 'ReactElement<any, any>' is not assignable to type 'Element'. 17 <XIcon/>

fregante · 2020-11-30T20:05:16Z

Yessss 🙌

yakov116 · 2020-12-18T16:53:49Z

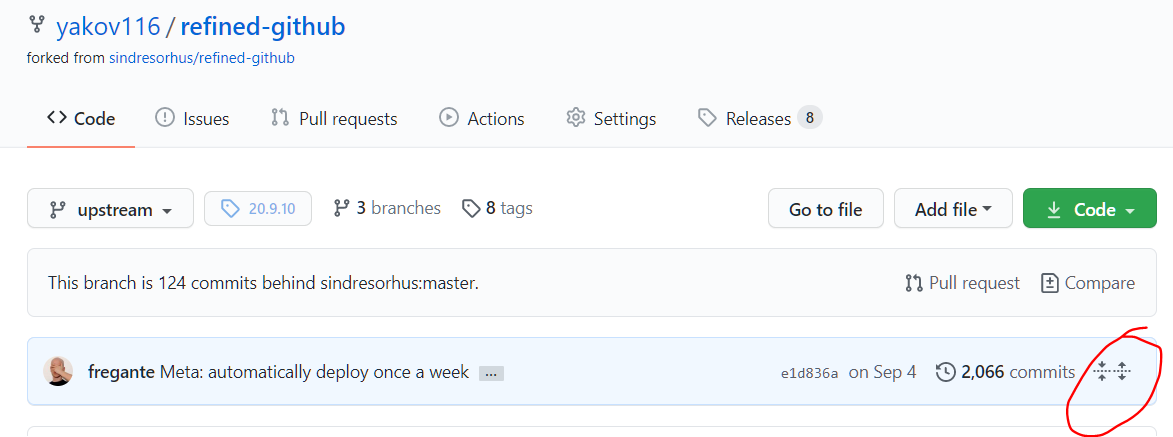

I still have this when building local. Any idea why?

FloEdelmann · 2020-12-18T18:24:49Z

@yakov116 npm i maybe?

yakov116 · 2020-12-18T19:17:02Z

I tried everything I delete node modules, npm update etc
