Here's the control flow for the rendering pipeline

1. a declaration is rendered via renderDeclaration
2. the info part of the docs is rendered via a couple of parts:
   1. Convert the args back into a P.Type' via typeApp. We definitely can't add role information here.
   2. Convert P.Type' into PrettyPrintType via convertPrettyPrintType.
   3. Convert PrettyPrintType into a RenderedCode value, which consists of a list of RenderedCodeElement values, via combination of renderType', matchType, matchTypeAtom, and typeLiterals.
3. Convert the RenderedCode value into its corresponding HTML via the convertToHtml function

If we updated PrettyPrintType's TypeVar to include a Maybe P.Role arg (or something like that) and used Nothing for that arg's value by default, then we could add a pass between 2.ii and 2.iii that would insert the corresponding role there. If we're using the subscript idea, then I believe we need to add a new data constructor for RenderedCodeElement, so that it renders that content using subscripts.

However, there are multiple uses of mintersperse sp throughout this code. We might need to adjust parts of that, so that we don't get a space between the type parameter and the role (e.g. data Map k nominal v).

Finally getting back to this. I believe the final HTML and CSS we'll use will look like this (except all one one line rather than multiple lines like the example below). Here's a breakdown of what's happening:

• The clickable a tag would link to a help page in the documentation repo that explains a bit more about what roles are.
• The abbr enables the not-styleable-but-accessible tooltip to provide a small amount of context on hover
• the sub tag will enable us to display the role next to its corresponding type parameter while making it clear that this is not part of the PureScript syntax
• the ::after CSS ensures the role isn't selectable if one should want to copy/paste the declaration into source code:

<a href="#">
  <abbr title="The 'nominal' role means this type cannot be safely coerced into another type">
    <sub class="role__nominal"></sub>
  </abbr>
</a>

.role__nominal::after {
  content: "nominal";
}
.role__phantom::after {
  content: "phantom";
}

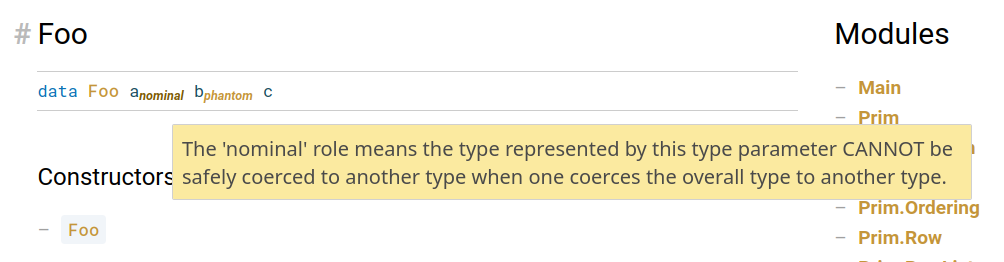

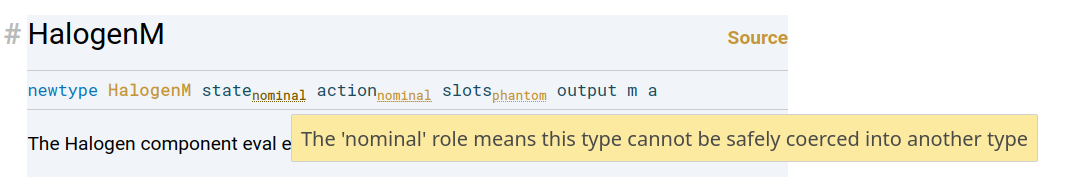

Below is a screenshot of HalogenM with a few roles added ad-hoc where I'm hovering over the first one. Do we want to style the role annotations differently than what I'm showing below?

Looks good to me! I would only suggest for wording: “… this type argument cannot be safely coerced into another type”, so it’s clear we are talking about the arguments, not actual types. Maybe there’s even a clearer way to phrase it to show the relationship of type arguments/roles to coercing the entire type.

Re wording: how about: ‘... means this argument may not change when coercing this type’ and ‘... means this argument can change freely when coercing this type’ for nominal and phantom respectively?

Re style: this is all highly subjective, but I propose:

• using the sans-serif proportional font family used by documentation body text, instead of the fixed-width family used for code
• italicizing the role
• hiding the underline, like with other links

I think maintaining the convention that fixed-width means code is important, and I think the italics help visually clarify the distinction when fixed-width and proportional fonts are mixed.

For wording, I went with this before I saw @rhendric's comment above:

describeNominal = fold
          [ "The 'nominal' role means the type represented by this type "
          , "parameter CANNOT be safely coerced to another type when one "
          , "coerces the overall type to another type. For example, given "
          , "`data Foo a` where `a` has the nominal role, the type, "
          , "`Foo Age`, cannot be safely coerced to the type, "
          , "`Foo Int`."
          ]

describePhantom = fold
          [ "The 'phantom' role means the type represented by this type "
          , "parameter CAN be safely coerced to any other type when one "
          , "coerces the overall type to another type. For example, given "
          , "`data Foo a` where `a` has the phantom role, the type, "
          , "`Foo Age`, can be safely coerced to the type, "
          , "`Foo Int`, or even a non-sensical type like, "
          , "`Foo (Foo (Foo String))`."
          ]

Re style: this is all highly subjective, but I propose:

While it is subjective, I agree with your idea. Part of the reason why I asked was I, too, thought the underline unneeded.

I don't think we need ‘for example’s in the tooltips. They're already links; if a quick reminder isn't sufficient, the user can click.

Given

module Main where

data Foo :: Type -> Type -> Type -> Type
data Foo a b c = Foo

type role Foo nominal phantom representational

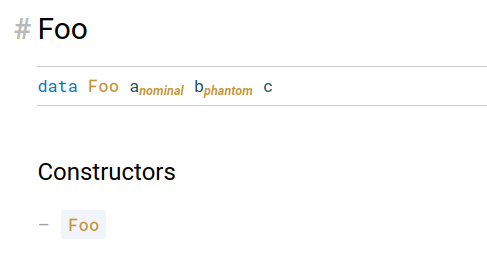

the output of spago docs -S produces the following:

Also, I'm currently linking to Roles.md. Is that the URL we want to use?

Oops, sorry, also I think the roles should be normal weight and not bold. (It was much less obvious that they were bold in the other font!)

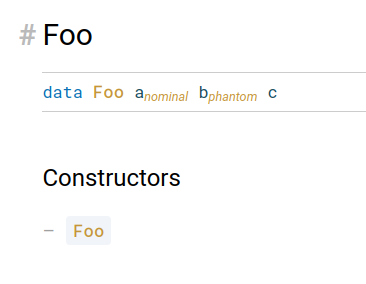

No worries. Latest screenshot:

So, this PR is about ready for review. There's a few remaining questions:

• any changes requested on the abbr title content (i.e. what appears when you hover over a nominal/phantom role)?
• the tests currently prove that the roles are added to the Docs.Declaration. However, there's nothing testing that the rendering of those docs is accurate. What do we need to do to test that (e.g. golden test or something)?
• looking at declName, there are only four other usages of it. Once in IDE.State.hs, twice in Linter.hs (first and second), and once in Sugar.Names.hs. Should I refactor declName to export RoleDeclaration names?

CI started hanging due to an internal error. Getting #4126 in will stop that.

CI passes now.

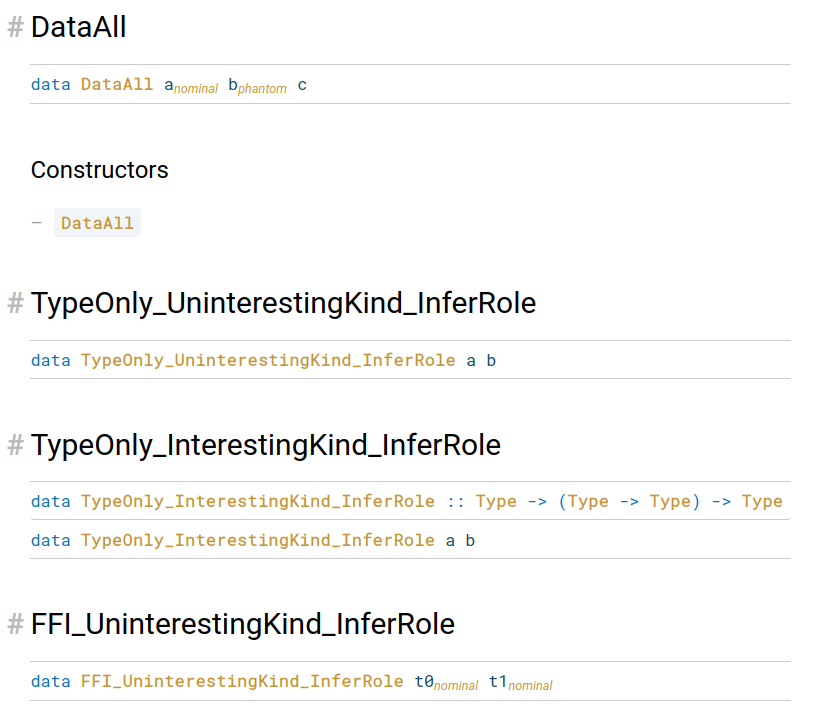

Given the below code...

module Main where

data DataAll :: Type -> Type -> Type -> Type
data DataAll a b c = DataAll
type role DataAll nominal phantom representational

data TypeOnly_UninterestingKind_InferRole :: Type -> Type -> Type
data TypeOnly_UninterestingKind_InferRole a b

data TypeOnly_InterestingKind_InferRole :: Type -> (Type -> Type) -> Type
data TypeOnly_InterestingKind_InferRole a b

foreign import data FFI_UninterestingKind_InferRole :: Type -> Type -> Type

foreign import data FFI_InterestingKind_InferRole :: forall k. k -> Symbol -> Type

foreign import data FFI_UninterestingKind_ExplicitRole :: Type -> Type -> Type
type role FFI_UninterestingKind_ExplicitRole phantom nominal

foreign import data FFI_InterestingKind_ExplicitRole :: forall k. k -> Symbol -> Type
type role FFI_InterestingKind_ExplicitRole phantom phantom

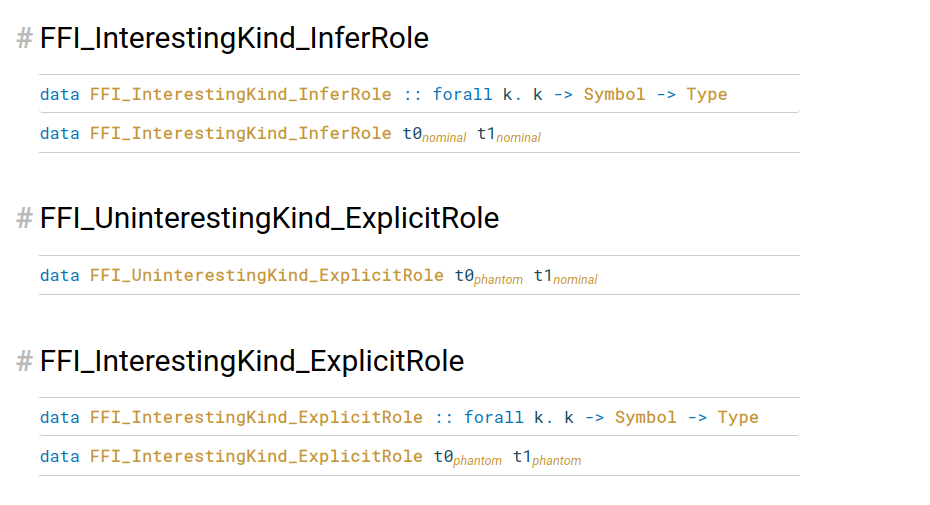

I realized I was only inserting the inferred roles for FFI declarations. Latest commit also inserts inferred roles into data declarations.

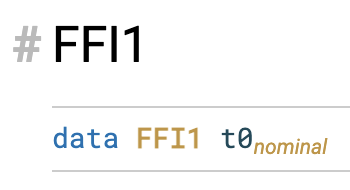

Synonyms are not supported in foreign data types kinds: we render

for

foreign import data FFI1 :: (Function Type) Type

but

for

type To = Function
foreign import data FFI1 :: (To Type) Type

This is perhaps too uncommon to be dealt with in this pull request but we could do so by building a SynonymMap, like we do when desugaring instances, and then call Language.PureScript.TypeChecker.Synonyms.replaceAllTypeSynonymsM in convertFFIDecl.

@kl0tl The "sort annotations are only dropped for inferred kind signatures" issue you described here has been addressed in latest commits here. Not sure whether it's sensible to add it in this PR. However, the advantage of doing so here means I can add FFI declaration tests here, too.

This is perhaps too uncommon to be dealt with in this pull request but we could do so by building a SynonymMap, like we do when desugaring instances, and then call Language.PureScript.TypeChecker.Synonyms.replaceAllTypeSynonymsM in convertFFIDecl.

Yeah... that sounds like it should be in its own PR.

With #4160 being resolved, is there any other work to do here besides waiting for #4157 to get merged and then adding additional tests?

@kl0tl I generated markdown docs to see whether the role annotations are rendered correctly. Looks like we can't use the HTML tags where I put them because the entire declaration is wrapped in a code block.

Given

module Main where


data Foo a = Foo a
type role Foo nominal

we get (horizontal lines added to clearly indicate start/finish of docs):

Module Main

Foo

data Foo a<sub title="The 'nominal' role means this argument may not change when coercing the type."><em><a href="https://github.com/purescript/documentation/blob/master/language/Roles.md">nominal</a></em></sub>
  = Foo a

The markdown docs commit has been reverted and I fixed the typo you found.

CI passes.

If no one has any further feedback on this, I'm going to merge this in two days.
