FIX: make MaxNLocator only follow visible ticks for order of magnitude#12086

Merged
NelleV merged 2 commits into
matplotlib:masterfrom
jklymak:fix-changing-orderofmagnitude
Sep 14, 2018
Merged

FIX: make MaxNLocator only follow visible ticks for order of magnitude#12086
NelleV merged 2 commits into
matplotlib:masterfrom
jklymak:fix-changing-orderofmagnitude

Conversation

@jklymak

@jklymak jklymak commented Sep 10, 2018

Copy link
Copy Markdown
Member

PR Summary

Closes #12072

Order of magnitude for tick formatting in ScalarFormatter was using invisible ticks. This changes to just use visible.

Probably obviated by #11004 but won't hurt anything.

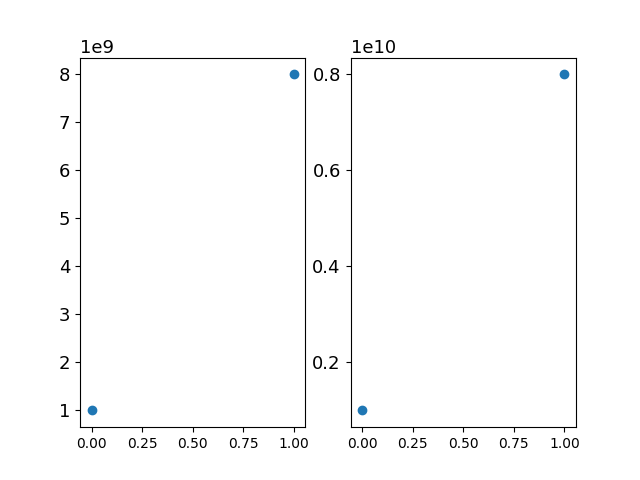

Before:

figure_2

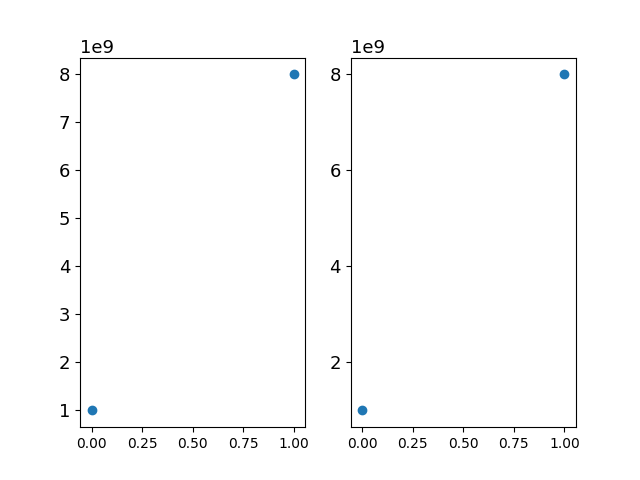

After

figure_1

Code

import matplotlib.pyplot as plt
import matplotlib.ticker as ticker

sci_nums = [10**9, 8*10**9]
plt.rcParams['ytick.labelsize'] = 13
fig, ax = plt.subplots(1, 2)
ax[0].scatter(range(len(sci_nums)), sci_nums)
ax[1].scatter(range(len(sci_nums)), sci_nums)

ax[1].yaxis.set_major_locator(ticker.MaxNLocator(4))
plt.show()

PR Checklist

  • Has Pytest style unit tests
  • Code is Flake 8 compliant
  • New features are documented, with examples if plot related
  • Documentation is sphinx and numpydoc compliant
  • Added an entry to doc/users/next_whats_new/ if major new feature (follow instructions in README.rst there)
  • Documented in doc/api/api_changes.rst if API changed in a backward-incompatible way

@QuLogic

QuLogic commented Sep 11, 2018

Copy link
Copy Markdown
Member

Seems to have broken some docs when there are no visible ticks.

@jklymak

jklymak commented Sep 11, 2018

Copy link
Copy Markdown
Member Author

Ha, it passes all of test_axes and test_ticker...

@jklymak jklymak force-pushed the fix-changing-orderofmagnitude branch from fc00626 to ed1c830 Compare September 11, 2018 00:12
@anntzer

anntzer commented Sep 11, 2018

Copy link
Copy Markdown
Contributor

Modulo the docs...

@jklymak

jklymak commented Sep 11, 2018

Copy link
Copy Markdown
Member Author

@anntzer I think the docs are OK (they say it'll just key off the data, not the data plus one tick on either side). It does need tests, which I'll do now. I actually don't understand why test_ticker passes all the tests... It should have failed some of them. Of course the test for this is all parameterized etc, so it'll take me a bit to grok what is going on..

@jklymak

jklymak commented Sep 11, 2018

Copy link
Copy Markdown
Member Author

Added test that fails master but passes this PR...

@jklymak jklymak force-pushed the fix-changing-orderofmagnitude branch from 3183f78 to 9a23d6d Compare September 11, 2018 17:41
@NelleV

NelleV commented Sep 14, 2018

Copy link
Copy Markdown
Member

Thanks @jklymak !
I agree that the docs don't need changing on that one, so I'll go ahead and merge.

@NelleV NelleV merged commit afda25a into matplotlib:master Sep 14, 2018
@QuLogic QuLogic added this to the v3.1 milestone Sep 18, 2018
