Matplotlib colorbar moves second x axis drawn with twiny #5904

New issue
New issue
Closed
Closed
Matplotlib colorbar moves second x axis drawn with twiny#5904
Labels
Difficulty: Easyhttps://matplotlib.org/devdocs/devel/contribute.html#good-first-issuesstatus: has patchpatch suggested, PR still needed🌱 Good first issueOpen a pull request against these issues if there are no active ones!

Description

@Gabriel-p
Gabriel-p
opened on Jan 24, 2016

Bug report originated in SO post here: http://stackoverflow.com/q/34979781/1391441

I'm trying to add a second x axis to the top of a plot using twiny.

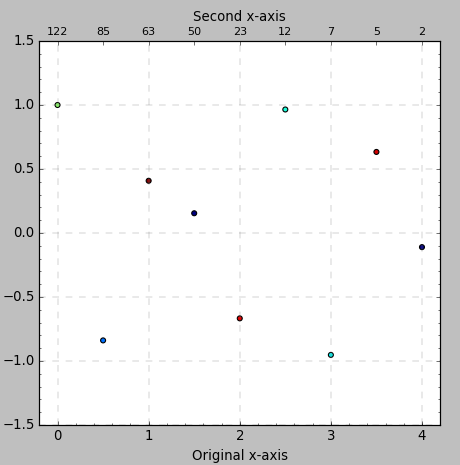

If I make a simple scatter plot with no colorbar, the top x axis is correctly aligned with the bottom x axis (MWE is below):

enter image description here

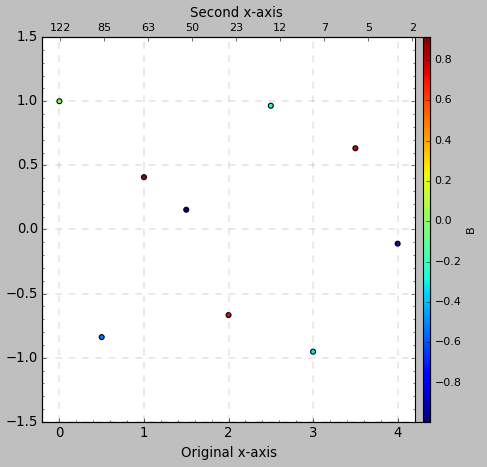

If I add a colorbar though, the top x axis is displaced:

enter image description here

MWE

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import matplotlib.gridspec as gridspec


X = np.array([0., 0.5, 1., 1.5, 2., 2.5, 3., 3.5, 4.])
X2 = np.array([122, 85, 63, 50, 23, 12, 7, 5, 2])
Y = np.cos(X*20)
Z = np.sin(X*20)

fig = plt.figure()
gs = gridspec.GridSpec(1, 2)
ax1 = plt.subplot(gs[1])
ax2 = ax1.twiny()

ax1.set_xlim(-0.2, max(X)+0.2)
plt.tick_params(axis='both', which='major', labelsize=10)
ax1.minorticks_on()
ax1.grid(b=True, which='major', color='gray', linestyle='--', lw=0.3)

SC = ax1.scatter(X, Y, c=Z)
ax1.set_xlabel("Original x-axis")

ax2.set_xlim(ax1.get_xlim())
ax2.set_xticks(X)
ax2.set_xticklabels(X2)
ax2.set_xlabel("Second x-axis")

# Colorbar.
the_divider = make_axes_locatable(ax1)
color_axis = the_divider.append_axes("right", size="2%", pad=0.1)
cbar = plt.colorbar(SC, cax=color_axis)
cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
cbar.ax.tick_params(labelsize=10)

plt.show()

Activity

  1. tacaswell
    added this to the milestone on Jan 25, 2016
  2. QuLogic
    modified the milestones: , on May 3, 2017
  3. tacaswell
    modified the milestones: , on Oct 9, 2017

  4. QuLogic commented on Jul 21, 2020

    @QuLogic
    QuLogic
    on Jul 21, 2020
    Member

    This works properly on master if you a) use constrained layout and b) use a normal colorbar Axes:

    import numpy as np
import matplotlib.pyplot as plt


X = np.array([0., 0.5, 1., 1.5, 2., 2.5, 3., 3.5, 4.])
X2 = np.array([122, 85, 63, 50, 23, 12, 7, 5, 2])
Y = np.cos(X*20)
Z = np.sin(X*20)

fig = plt.figure(constrained_layout=True)
gs = fig.add_gridspec(1, 2)
ax1 = plt.subplot(gs[1])
ax2 = ax1.twiny()

ax1.set_xlim(-0.2, max(X)+0.2)
plt.tick_params(axis='both', which='major', labelsize=10)
ax1.minorticks_on()
ax1.grid(b=True, which='major', color='gray', linestyle='--', lw=0.3)

SC = ax1.scatter(X, Y, c=Z)
ax1.set_xlabel("Original x-axis")

ax2.set_xlim(ax1.get_xlim())
ax2.set_xticks(X)
ax2.set_xticklabels(X2)
ax2.set_xlabel("Second x-axis")

# Colorbar.
cbar = fig.colorbar(SC, ax=ax1, aspect=100, pad=0)
cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
cbar.ax.tick_params(labelsize=10)

plt.show()

    Screenshot from 2020-07-21 01-13-00

  5. QuLogic commented on Jul 21, 2020

    @QuLogic
    QuLogic
    on Jul 21, 2020
    Member

    In fact, it works on 3.3 as well using the above changes. I don't think there's any way to make this work without constrained layout. @jklymak ?

  6. jklymak commented on Jul 21, 2020

    @jklymak
    jklymak
    on Jul 21, 2020
    Member

    You can also use secondary_axis. Or manually make the twin the same size as the parent. But in general the colorbar steals from the parent and the second axes here is not the parent.

  7. anntzer commented on Jul 21, 2020

    @anntzer
    anntzer
    on Jul 21, 2020
    Contributor

    I don't think this is related to constrained_layout, isn't it just that make_axes_locatable doesn't interact properly with twinning? ... which appears to be relatively easily fixed with

    diff --git i/lib/matplotlib/axes/_base.py w/lib/matplotlib/axes/_base.py
index 327198596..d11d472c3 100644
--- i/lib/matplotlib/axes/_base.py
+++ w/lib/matplotlib/axes/_base.py
@@ -4265,6 +4265,13 @@ class _AxesBase(martist.Artist):
         self.yaxis.tick_left()
         ax2.xaxis.set_visible(False)
         ax2.patch.set_visible(False)
+
+        @ax2.set_axes_locator
+        def axes_locator(_, renderer):
+            self_locator = self.get_axes_locator()
+            if self_locator is not None:
+                return self_locator(self, renderer)
+
         return ax2

     def twiny(self):
@@ -4294,6 +4301,13 @@ class _AxesBase(martist.Artist):
         self.xaxis.tick_bottom()
         ax2.yaxis.set_visible(False)
         ax2.patch.set_visible(False)
+
+        @ax2.set_axes_locator
+        def axes_locator(_, renderer):
+            self_locator = self.get_axes_locator()
+            if self_locator is not None:
+                return self_locator(self, renderer)
+
         return ax2

     def get_shared_x_axes(self):

  8. QuLogic commented on Jul 29, 2020

    @QuLogic
    QuLogic
    on Jul 29, 2020
    Member

    That seems pretty reasonable, actually.

  9. QuLogic
    added
    status: has patchpatch suggested, PR still needed
    Difficulty: Easyhttps://matplotlib.org/devdocs/devel/contribute.html#good-first-issues
    🌱 Good first issueOpen a pull request against these issues if there are no active ones!
    on Jul 29, 2020

  10. QuLogic commented on Jul 29, 2020

    @QuLogic
    QuLogic
    on Jul 29, 2020
    Member

    I marked this as a good first issue, since there's a patch available, and I think it should be easy as it's a matter of applying the patch and coming up with a test. The original post is maybe a bit too much for a test, so a possible test is creating an Axes, twinning it, and then modifying its position (Axes.set_position), then seeing that the twin is correctly moved as well.

  11. anntzer commented on Jul 29, 2020

    @anntzer
    anntzer
    on Jul 29, 2020
    Contributor

    (Probably(?) this should actually be done using _InsetLocator instead (locating to [0, 0, 1, 1]) for picklability, but the idea is the same.)

  12. tacaswell commented on Nov 15, 2020

    @tacaswell
    tacaswell
    on Nov 15, 2020
    Member

    The bug only happens if you use both gridspec and make_axes_locatable.

    import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import matplotlib.gridspec as gridspec


X = np.array([0., 0.5, 1., 1.5, 2., 2.5, 3., 3.5, 4.])
X2 = np.array([122, 85, 63, 50, 23, 12, 7, 5, 2])
Y = np.cos(X*20)
Z = np.sin(X*20)

fig = plt.figure()
gs = gridspec.GridSpec(1, 2)
ax1 = plt.subplot(gs[1])
ax2 = ax1.twiny()

ax1.set_xlim(-0.2, max(X)+0.2)

plt.tick_params(axis='both', which='major', labelsize=10)
ax1.minorticks_on()
ax1.grid(b=True, which='major', color='gray', linestyle='--', lw=0.3)

SC = ax1.scatter(X, Y, c=Z)
ax1.set_xlabel("Original x-axis")

ax2.set_xlim(ax1.get_xlim())
ax2.set_xticks(X)
ax2.set_xticklabels(X2)
ax2.set_xlabel("Second x-axis")

# Colorbar.
# the_divider = make_axes_locatable(ax1)
# color_axis = the_divider.append_axes("right", size="2%", pad=0.1)
# cbar = plt.colorbar(SC, cax=color_axis)
# cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
# cbar.ax.tick_params(labelsize=10)

cbar = fig.colorbar(SC, ax=ax1)
cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
cbar.ax.tick_params(labelsize=10)

plt.show()

    and

    import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
import matplotlib.gridspec as gridspec


X = np.array([0., 0.5, 1., 1.5, 2., 2.5, 3., 3.5, 4.])
X2 = np.array([122, 85, 63, 50, 23, 12, 7, 5, 2])
Y = np.cos(X*20)
Z = np.sin(X*20)

fig, ax1 = plt.subplots()
# fig = plt.figure()
# gs = gridspec.GridSpec(1, 2)
# ax1 = plt.subplot(gs[1])

ax2 = ax1.twiny()

ax1.set_xlim(-0.2, max(X)+0.2)

plt.tick_params(axis='both', which='major', labelsize=10)
ax1.minorticks_on()
ax1.grid(b=True, which='major', color='gray', linestyle='--', lw=0.3)

SC = ax1.scatter(X, Y, c=Z)
ax1.set_xlabel("Original x-axis")

ax2.set_xlim(ax1.get_xlim())
ax2.set_xticks(X)
ax2.set_xticklabels(X2)
ax2.set_xlabel("Second x-axis")

# Colorbar.
the_divider = make_axes_locatable(ax1)
color_axis = the_divider.append_axes("right", size="2%", pad=0.1)
cbar = plt.colorbar(SC, cax=color_axis)
cbar.set_label('B', fontsize=10, labelpad=4, y=0.5)
cbar.ax.tick_params(labelsize=10)

plt.show()

    @kir0ul worked on this during the pydata global sprint and while the patch does fix the bug, the naive testing approach I suggested (checking ax1.get_position() == ax2.get_position()) did not work as the reported position seems to never change and always be equal to each other.

  13. jklymak commented on Nov 15, 2020

    @jklymak
    jklymak
    on Nov 15, 2020
    Member

    I'm not fully parsing this, but what is the modern reason for needing make_axes_locatable ?

    EDIT: I guess if the axes changes aspect ratio...

  14. jklymak commented on Mar 29, 2022

    @jklymak
    jklymak
    on Mar 29, 2022
    Member

    I'm going to close this. Yes if you use make_axes_locatable to make your Colorbar, you may have problems, but there are a number of ways to get around this using the main library. If someone wants to re-open, please include a modern self-contained example that is broken.

  15. jklymak
    closed this as completedon Mar 29, 2022
  16. story645
    removed this from the future releases milestone on Oct 6, 2022
