fix: #4997 give icon-only controls accessible names - #5739

Closes #4997

Summary

Icon-only controls across the editor and Preferences windows had no accessible name, and most of them could only be used with a mouse. With NVDA or VoiceOver running, the find bar's four buttons were read as "button" or "image button" with no name. Tab skipped the title bar, the side bar icons, the tab strip and the case/word/regex toggles entirely, because they were <div>s, <span>s and <i>s with click handlers. Nearly every switch and select in Preferences was announced as just "switch" or "combobox".

This PR fixes that for every icon-only control in the desktop renderer, following WCAG 2.2 AA:

• Real buttons with names (1.1.1, 4.1.2, 2.1.1). Clickable <div>/<span>/<i> icons are now <button type="button"> with a translated aria-label. This covers the title bar (app menu, minimize, maximize/restore, close), the side bar icons, Save All / Close All, the close buttons in the tab strip and the opened-files list, New Tab, the find bar, the editor notification bar, the rename dialog, toast notifications, and the Preferences title bar. Close buttons include the file name ("Close notes.md"), so a list of them is not ten identical "Close" buttons.
• State (4.1.2). The side bar icons and the case/word/regex toggles expose aria-pressed. The find bar's replace chevron exposes aria-expanded, and the app menu button aria-haspopup="menu".
• Visible focus (2.4.7, 1.4.11). The global :focus { outline: none } stays. The new buttons get a 2px :focus-visible ring instead, drawn in --sideBarTitleColor. I didn't use --focusColor because it is 2.4–2.8:1 against the background in the default, Ayu Light and Everforest Light themes, under the 3:1 a focus indicator needs. The title colour is at least 3.1:1 in all 33 bundled themes, and a unit test checks that.
• Hover-only buttons are reachable. Save All / Close All and the opened-file close button used display: none until hover, so Tab could never reach them. They are now clipped (clip-path: inset(50%)) instead, and show on hover or keyboard focus. The tab strip's close and New Tab buttons also show on :focus-visible.
• Tooltips. title attributes on these controls are replaced by a small IconTooltip wrapper around el-tooltip, the same pattern as the media viewer (Add a zoom/pan viewer and image export for rendered diagrams #5554). It fixes two things I ran into: el-tooltip calls preventDefault on Enter/Space keydown of its trigger, which cancels the button's click (so trigger-keys is cleared), and it now closes on Escape (1.4.13).
• Preferences form controls (4.1.2, 2.5.3). bool, select, range, textBox and fontTextBox pass their visible description as aria-label, so the name matches the label on screen. The "learn more" link icons are buttons named "Learn more about {setting}", and the keybindings docs link is a button instead of an <a> without href.
• Target size (2.5.8). The keybinding table's edit/reset/unbind buttons and the case/word/regex toggles are now 24×24. Their icons stay where they were.
• Focus order (2.4.3). The window controls were laid out with row-reverse, so Tab went close → maximize → minimize. They are now in DOM order, left to right.

New strings: titleBar.* (application menu, minimize, maximize, restore, close), editor.tabs.close ("Close {name}") and preferences.learnMore, added to all 12 locales. Minimize and Close reuse each locale's existing translations.

Screen reader results

Same keyboard walk through the window, before and after. The NVDA output is from its speech log, and the VoiceOver output is from its "last phrase".

One design note: the tooltips open on hover only, not on keyboard focus. I tried focus first, but while open el-tooltip points the trigger's aria-describedby at itself, so NVDA read every label twice ("Files, toggle button, pressed … Files"). Keyboard users get the focus ring, and screen reader users get the name.

axe-core 4.13 (WCAG 2.0–2.2 A/AA rules) on the same states: button-name in the find bar goes from 4 to 0, label across the seven Preferences pages goes from 56 to 0 (57 on Windows, which has one extra setting), and target-size on the keybindings page goes from 45 to 0. The remaining findings are pre-existing and out of scope here (see below).

Screenshots

Windows 11, default light theme, reached with Tab. Before this change none of these controls could take keyboard focus, so there was no "before" state to capture.

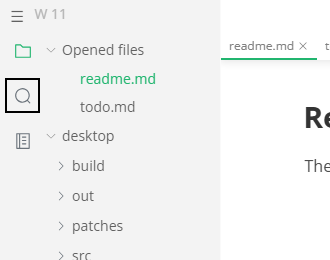

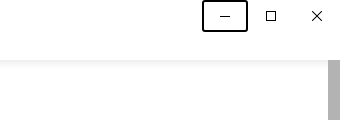

Side bar icon	Window controls

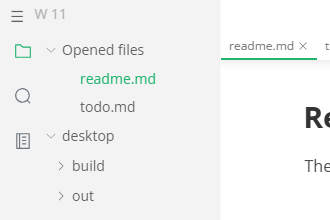

Close button revealed on focus	New Tab

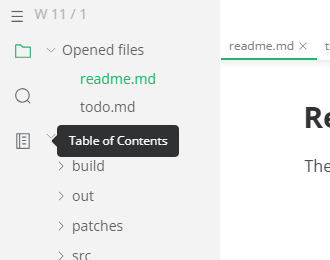

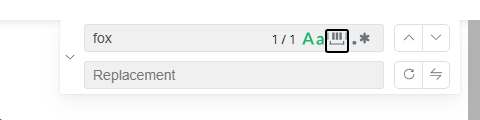

Find bar toggles (24px targets, icons unmoved)	Hover tooltip

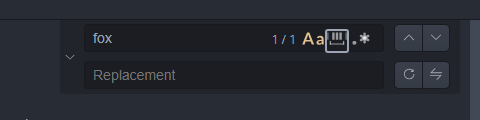

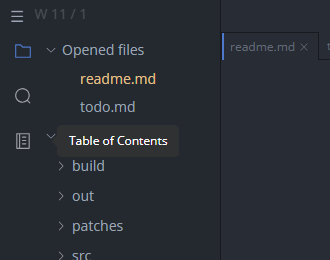

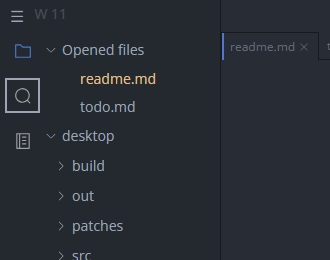

One Dark, to show the ring follows the theme:

Type of change

• Bug fix (non-breaking, fixes an issue)
• New feature (non-breaking, adds functionality)
• Breaking change (causes existing functionality to change)
• Documentation update

Test plan

• New tests added
  • test/unit/specs/icon-button-a11y.spec.ts parses every renderer template and fails if a <button>/<el-button> without text has no aria-label, if an IconTooltip wraps a control labelled differently from the tooltip, or if it wraps a control that needs aria-expanded/aria-haspopup. It also checks the focus ring is at least 3:1 against the side bar, editor and floating surfaces in every theme. On develop the first check lists 12 unnamed buttons.
  • test/e2e/issue-4997-icon-button-names.spec.ts drives the built app: names and pressed state on the side bar, Enter/Space activating a tooltip-wrapped button, hover tooltip + Escape, no tooltip or aria-describedby on keyboard focus, focus ring, Tab reaching New Tab and opening a tab, find bar names/state, window control names and order, and an accessible name for every visible control on all seven Preferences pages.
  • search-prefill.spec.ts gets a stub for the new import.
• Manually tested on: macOS 27 (VoiceOver) and Windows 11 25H2 (NVDA 2026.2)
• pnpm run lint, pnpm run typecheck and the unit suite pass on both machines. On Windows the new e2e spec passes in full (16/16), along with find-replace, media-viewer, media-viewer-modal and diagram-viewer. On macOS the window-controls case skips because there are no custom window controls there.
• Full e2e suite, this branch against unmodified develop on the same machines: Windows fails the same 11 specs on both (353 passed on the branch, 341 on develop; the difference is the new spec). macOS fails 9 on develop and the same 9 plus three hover-tooltip cases on the branch, which pass on Windows (see the VoiceOver note below). On macOS: external-reload-undo (source-mode scrollTop) and issue-5394-image-resize-reload. On Windows: image-relative-path, issue-2245-window-menu-bar, issue-3020-second-instance-args, issue-3148-sidebar-delete-key, issue-5344-image-content-hash, search-prefill-from-selection and sidebar-auto-reveal-528. Hover-tooltip specs (media-viewer, diagram-viewer and two of mine) also fail on my Mac only because VoiceOver is running there with "mouse pointer follows VoiceOver cursor", which moves the real pointer; they pass on Windows. source-toc-scroll and titlebar-selection-word-count were intermittent on my Mac on both branches. I didn't touch those areas.

Notes for reviewers

• IconTooltip keeps the <button> in the caller's template, so the caller's scoped styles still reach it. Its comment documents the two el-tooltip constraints (Enter/Space and the ARIA attributes it overwrites). The find bar chevron and the app menu button are not wrapped for that reason.
• .plain-button in index.css only strips the browser's button chrome and adds the focus ring. Each component keeps its own sizing and colours.
• Out of scope, and happy to open issues for them: keyboard navigation inside the file tree and tab strip (role="tree"/tablist), the side bar resize handle, <html lang>, pre-existing colour-contrast findings, Element Plus's unlabelled autocomplete wrapper, and Muya's floating toolbars (they need a keyboard path before naming them helps).
