Use tokens to extend CodeMirror editors #13639

fcollonval · 2022-12-21T13:07:23Z

References

Follow-up of #12861 (review)
Fixes #13362
Fixes #12886
Fixes #9124
Fixes #13206
Fixes #13162
Fixes #13199
Fixes #14011
Fixes #10486

Code changes

CodeMirror 6 can conform to the Token based approach of JupyterLab instead of using globals. The new tokens are:

@jupyterlab/codemirror:IEditorExtensionRegistry: Provide the CodeMirror editor extensions - default extensions are provided in a static method and loaded in the plugin providing the token.
@jupyterlab/codemirror:IEditorLanguageRegistry: Provide the languages for the editors - default languages are provided in a static method and loaded in the plugin providing the token. This allows to override the plugin with much less language for small application for example. A single default language for text/plain is provided.
@jupyterlab/codemirror:IEditorThemeRegistry: Provide the theme for the editors - default themes are provided in a static method and loaded in the plugin providing the token. This allows to override the plugin with less themes if required. A single default theme based on jupyter theme CSS variable is provided.

InputArea.defaultContentFactory and all its extensions (for Cell and Notebook) have been removed. The editor factory requires tokens. Hence we cannot provide a global default. This is similar to the evolution of the sanitizer.

TextModelFactory.preferredLanguage(path: string) is now a no-op (return '' for any path) as the languages are not available globally and as kernel language for text model makes no sense without more context.

Create a new Language for text/plain that parses nothing. This allows for a better retro-compatibility as well as a default display without syntax highlighting that is confusing for now on master (see for instance the console header).

Mode editor has been renamed to language to align with CodeMirror 6 naming and to clarify the meaning.

Drop configuration not supported in CodeMirror 6 - electricChars, coverGutterNextToScrollbar, scrollbarStyle, styleSelectedText and selectionPointer.
Add extensions to support cursorBlinkRate, rulers, showTrailingSpaces, scrollPastEnd.
lineWrap is now a simple boolean and wordWrapColumn is removed.

All configurable listed in #12812 are handled (= restored, changed or removed).

Improve code highlight style to be closer to 3.x.

The ipython CodeMirror language is for now identical to the Python language (as highlighting the ? is a minor feature compare to having code folding).

Upgrade all @codemirror and @lezer packages

Main point missing from #12812 is LaTeX highlighting in Markdown cell.

User-facing changes

None

Backwards-incompatible changes

Break API for CodeMirror Mode (compare to 3.x)

jupyterlab-probot · 2022-12-21T13:07:25Z

Thanks for making a pull request to jupyterlab!
To try out this branch on binder, follow this link:

JohanMabille · 2022-12-22T07:50:31Z

packages/codemirror/src/codemirror-ipythongfm.ts

-    );
-  }
-});
-


Why not removing the file?

I would say we should bring LaTeX highlighting back for ipythongfm mode, as this is feature parity with Notebook v6 and Lab < 4.

I agree, but I think it deserves a dedicated PR, syntax highlighting for CM6 is very different from CM5 and requires a complete rewriting.

I kept the file as it may be useful when working to restore syntax highlighting for CM6.

krassowski

This is amazing 🚀

Highlighting some integration-level issues from local testing:

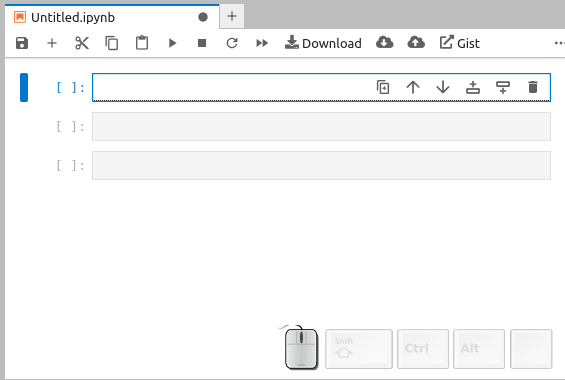

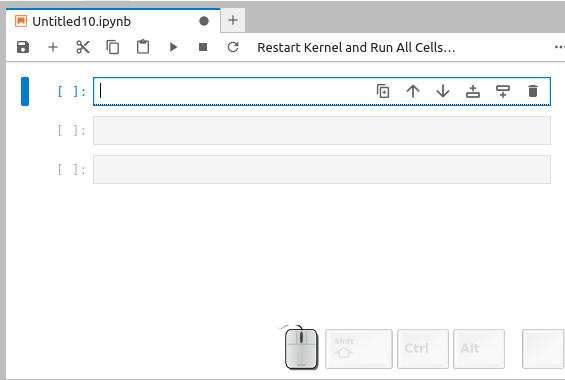

I can no longer navigate cells with the cursor (using up and down keys), whereas it works on 4.0.0a34 (and tip of the master branch)

4.0.0a34 this PR

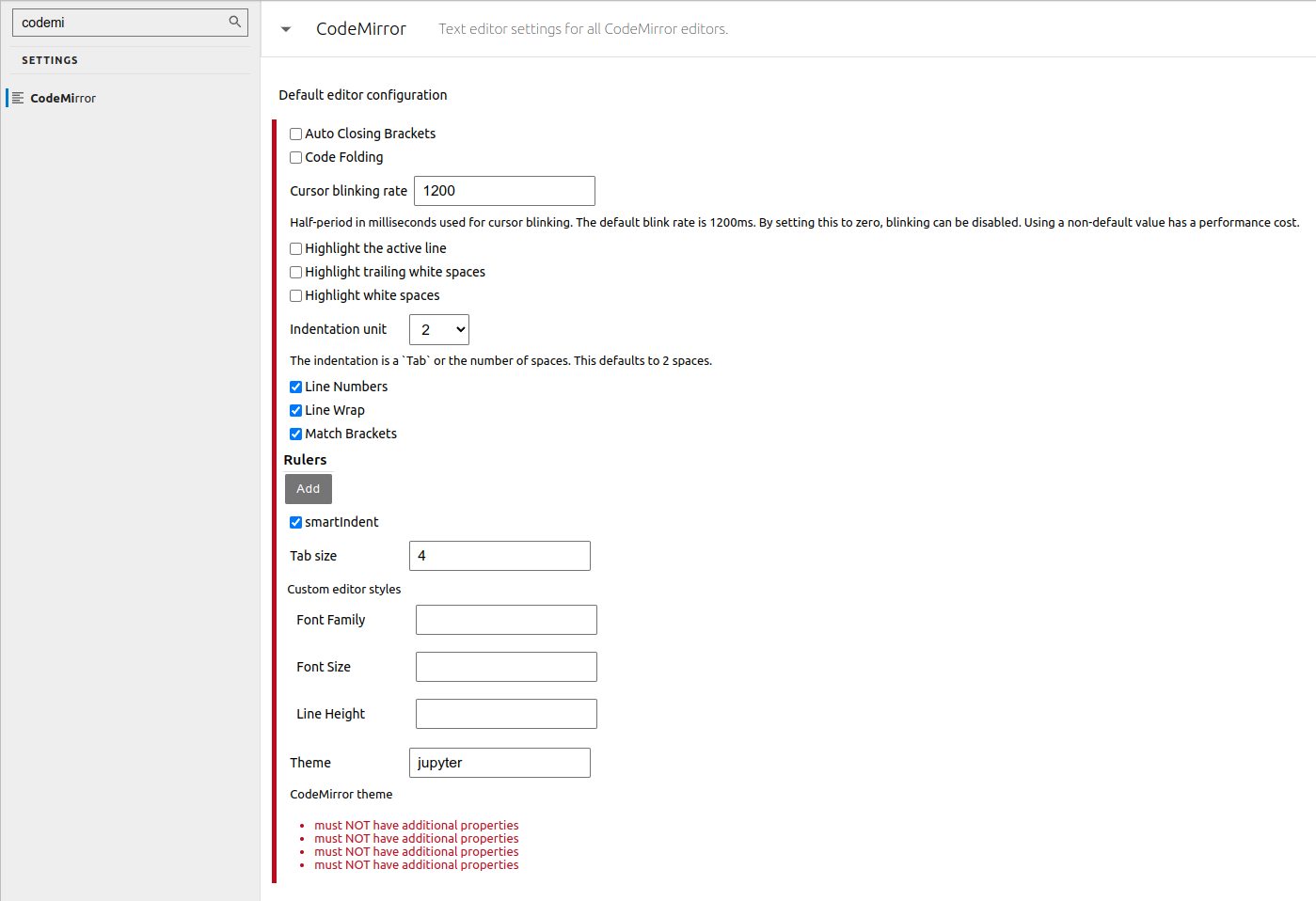

the CodeMirror UI settings shows validation error for me (I would love to double check this on binder but #14033)
- it is still an improvement compared to the state of things on master (#14011; I edited the description of the PR to link this PR to that issue)
smartIndent does not have a label

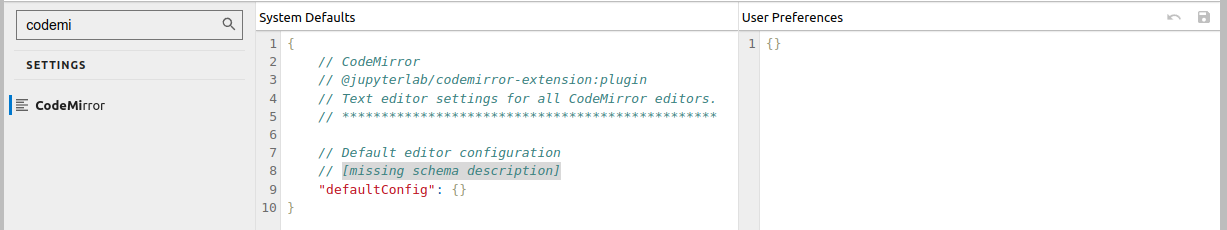

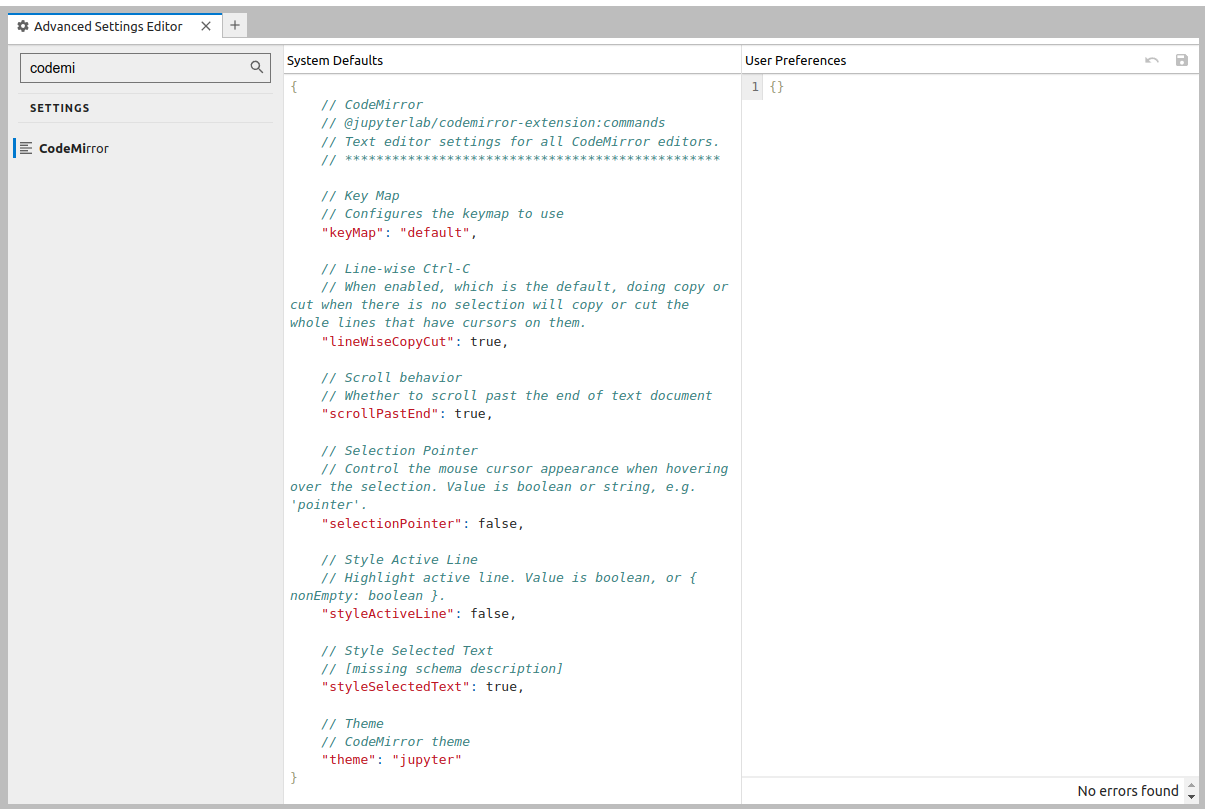

the CodeMirror JSON settings shows "missing schema description"; this is a regression compared to 4.0.0a34 but I am not sure if this works on tip of master branch (again would need a check in a clean environment, #14033):

4.0.0a34 this PR

If you believe that some of the above should be tackled as a follow-up I am happy to approve once these were extracted to separate issues (please ping me for review). Ideally we would add galata tests for the things flagged above.

packages/codemirror/src/extension.ts

fcollonval · 2023-02-22T08:08:05Z

bot please update snapshots

github-actions · 2023-02-22T08:49:55Z

Documentation snapshots updated.

github-actions · 2023-02-22T09:13:48Z

Galata snapshots updated.

krassowski · 2023-02-25T15:00:52Z

Is this ready to merge?

bot please update playwright snapshots

schmidi314 · 2023-02-25T22:39:52Z

I'm very much looking forward to this merge. But I just noticed that there are some strange defaults set in the code cell settings: Indentation unit is 2 spaces and line numbers are switched on. I'm fine with the line numbers (though it might unnecessarily break user experience) but two-spaces indentation for python is weird.

I tried this on binder. It might be related to notebook-extension/schema/tracker.json. It seems the settings have been deleted from there?

krassowski · 2023-02-25T23:13:47Z

Good catch, thank you @schmidi314. I would add two observations that can be moved to a separate issue and addressed in a follow up PR:

When switching between tab sizing options the "Default:" shown below appears random:
The "Default:" often gets lost for some reason but it does not happen for other groups of settings I tested:

Implementation of the new token interfaces First refactoring of codemirror pkg Don't get languagePreference in `TextModelFactory` Remove `Mode` usage Fix integrity default content factory is not possible Extract default extensions to use extensible API More refactoring Remove not applicable configuration in CM6 Fix build Fix tests Fix handling of language Update codemirror Use default python LanguageSupport for `ipython` Activate more features than using the legacy stream parser Fix codemirror tests Fix integrity Automatic application of license header Add note in migration guide Improve CodeMirror default theme Build dynamically the editor themes menu Simplify API for extension based on DynamicSetting See https://github.com/ChromeDevTools/devtools-frontend/blob/e813f07e6a47b39c04c64a409dd08be294432490/front_end/ui/components/text_editor/config.ts#L35 Add cursor blinking rate Restore custom paste event and D&D on md and raw cells Add rulers Rename handler to registry to align with other JLab API Automatic application of license header Fix registry rename Translate default elements CodeMirror settings Use the custom settings editor for all editors Bump minimal codemirror packages Fix integrity More fix following rebase Use displayName for syntax status Progress towards better configuration Improve setting editor Rename EditorLanguageRegistry.parse to highlight Set up configuration for console Refactor file editor feature in fileeditor-extension Automatic application of license header Fix following rebase Change default for markdown cell settings Restore keymap as extension Move translation to extension factory Clean binding API Introduce a extensions registry Editor binding as immutable extension Rename `Configuration` in `EditorExtensionRegistry` Drop themes from factory Language source of truth is model.mimeType not an option Restore custom styling Drop word wrap column Fix keymap Remove `CodeEditor.addKeydownHandler` Explicitly introduce CodeMirror in CodeEditor Allow providing configuration in `InputArea` Incidentally allow it in `CodeEditorWrapper` and `CodeEditorViewer` First self review Fix syntax status item Fix indentation status widget Fix CM unit tests One more self review Add test for EditorExtension Registry Add test for `ExtensionsHandler` Fix unit tests Update migration notes Fix unused Fix following rebase Fix the example Fix integrity check Fix console tests Fix examples Fix missing label Fix default settings for cells Fix python * operator [skip ci] Fix yarn.lock Update Playwright Snapshots Update Playwright Snapshots Fix overflow for raw settings editor Fix file editor and menus Fix galata tests Remove CM keymap from documentation Update Playwright Snapshots Update Playwright Snapshots Fix toggle editor theme Fix PR following upgrade to rjsf v5 Fix integrity More update of the migration guide Fix integrity Rename `Cell.setEditorConfig` to `Cell.updateEditorConfig` Improve typing Easier selector Fix settings bugs Fix edge requested Internalize Yjs binding Remove unused `documentType` Fix unit tests Update Playwright Snapshots Update snapshots Improve test robustness Lint code

fcollonval · 2023-02-27T08:02:27Z

bot please update snapshots

github-actions · 2023-02-27T09:02:55Z

Galata snapshots updated.

fcollonval · 2023-02-27T09:12:55Z

Kicking the CI

fcollonval · 2023-02-27T09:16:50Z

@schmidi314 and @krassowski thanks for the comments - as we are reaching API freezing day, I'll merge this as is. And I opened #14097 as follow-up from your comments
