More advanced original source scopes mapping. by yurydelendik · Pull Request #4521 · firefox-devtools/debugger

yurydelendik · 2017-10-27T21:14:22Z

Associated Issue: Display synthesized scopes (e.g. ES6) instead of transpiled

Test case:

Open https://yurydelendik.github.io/old-man-sandbox/sorted-es6/test.html in debugger
Set breakpoint at webpack/sorted.js line 9 (return na < nb ? -1 : na > nb ? 1 : 0;)
Reload the page

jasonLaster

The next step is to add some unit tests, which will help us refactor more confidently and not regress w/ this complicated logic.

I think that these utils might be happier in the mappings library where they can take advantage of the other utils to get good input: i.e.

describe("synthesizeScopes", () => {

  it("basic", () => {
     const fixture = getFixture("sum")
     const mappings ..
     const scopes ...

    // we'll need to fake the frame and pause packets, but we don't have a good mechanism to do that in dbg.html either

    expect(synthesizeScopes(scope, frame, pause)).toMatchSnapshot();
  })

})

jasonLaster

left some style comments…

jasonLaster · 2017-11-07T14:39:23Z

src/actions/sources.js


    await dispatch(loadSourceText(generatedSource));
    originalSources.forEach(async source => {
+      await dispatch(loadSourceText(source));


why is this necessary? It could be a very expensive operation

jasonLaster · 2017-11-07T14:39:23Z

src/utils/scopes.js

+        : L10N.getStr("anonymous");
+  } else {
+    title = L10N.getStr("scopes.block");
+  }


perhaps a small helper for getting the scope title

function getScopeTitle(...) { if (type === "function") { // FIXME Use original function name here const lastGeneratedScope = generatedScopes[generatedScopes.length - 1]; const isLastGeneratedScopeFn = lastGeneratedScope && lastGeneratedScope.type === "function"; title = isLastGeneratedScopeFn && lastGeneratedScope.function.displayName ? simplifyDisplayName(lastGeneratedScope.function.displayName) : L10N.getStr("anonymous"); } else { title = L10N.getStr("scopes.block"); } }

jasonLaster · 2017-11-07T14:39:23Z

src/utils/scopes.js

+    scopeIndex,
+    lastScopeIndex: syntheticScopes.scopes.length - 1,
+    generatedScopes,
+    foundGeneratedNames: Object.create(null),


style nit: foundGeneratedNames: {}

jasonLaster · 2017-11-07T14:39:23Z

src/utils/scopes.js

+      path: `${key}/${generatedName}`,
+      contents: { value: { type: "undefined" } }
+    });
+  });


can we move this to a small helper:

function findOriginalBindings(...) { let vars = []; bindingsNames.forEach(name => { // Find binding name in the original source bindings const generatedScope = generatedScopes.find( gs => gs.sourceBindings && name in gs.sourceBindings ); if (!generatedScope || !generatedScope.sourceBindings) { return; } // .. and map it to the generated name const generatedName = generatedScope.sourceBindings[name]; // Skip if we already use the generated name if (generatedName && !foundGeneratedNames[generatedName]) { if (generatedScope.bindings.variables[generatedName]) { vars.push({ name, generatedName, path: `${key}/${generatedName}`, contents: generatedScope.bindings.variables[generatedName] }); foundGeneratedNames[generatedName] = true; return; } const arg = generatedScope.bindings.arguments.find( arg_ => arg_[generatedName] ); if (arg) { vars.push({ name, generatedName, path: `${key}/${generatedName}`, contents: arg[generatedName] }); foundGeneratedNames[generatedName] = true; return; } } vars.push({ name, generatedName, path: `${key}/${generatedName}`, contents: { value: { type: "undefined" } } }); }); }

jasonLaster · 2017-11-07T14:39:23Z

src/utils/scopes.js

+    });
+  }
+  return acc;
+}


synthesize scope is complicated enough where it takes some time to see what it is trying to do. I think it would be nice to extract the "real" work so that the code flow is more readable.

function synthesizeScope( acc: SynthesizeScopeContext, syntheticScope: SyntheticScope, index: number ): SynthesizeScopeContext { let bindings = findOriginalBindings(...) if (isLast) { bindings = [...bindings, ...findUnusedBindings(...)] } if (isFirst) { bindings = [...bindings, ...getSpecialVariables(...)] // ... } if (bindings.length > 0) { const title = getScopeTitle(...); result.push({ name: title, path: key, contents: vars }); } return acc }

jasonLaster · 2017-11-07T14:39:23Z

src/utils/scopes.js

+    s = s.parent;
+  }
+
+  const { result } = syntheticScopes.scopes.reduce(synthesizeScope, {


I think the fact that synthesizeScope is mutating makes synthesize a bit more complicated... perhaps, we could have it return the bindings...

const { result } = syntheticScopes.scopes.reduce((bloby, syntheticScope, index) => { const bindings = getBindingsFromScope(bloby,..) // it's tempting to update foundGeneratedNames here too so that `getBindingsFromScope` is pure, // but not sure if that is needed... if (bindings.length) { const title = getScopeTitle(...); blob.result.push({ name: title, path: key, contents: vars }); } }, blobOStuff)

jasonLaster · 2017-11-07T18:00:54Z

src/utils/scopes.js

+    });
+  }
+  return acc;
+}


It would be nice to create the synthetic scope bindings in the map-bindings space. This would be closer to the data structure we'd get from source-maps

we can add the special vars in the debugger side

jasonLaster

This is looking really good

jasonLaster · 2017-11-08T23:12:53Z

src/utils/pause.js

+      return generatedScopes;
+    },
+    async getOriginalSourceScopes(location) {
+      return getScopes(location);


lets first load the source here...

How can we track if we already loaded the source?

we can call await loadSourceText and if it is loaded it will come back quickly

jasonLaster · 2017-11-08T23:12:53Z

src/actions/pause/fetchScopes.js

    );

-    if (sourceRecord.get("isWasm")) {
+    if (generatedSourceRecord.get("isWasm")) {


should we move this down below add_scopes. can we move this to a different PR? b/c wasm is different and scary for some :)

ryanjduffy · 2017-11-10T00:48:03Z

I ran a quick test with this and wanted to verify what I'm seeing.

ES6 Source:

function test () {
	let a = 1;
	if (a) {
	  const b = 2;
	}
}

document.addEventListener('click', test);

Transpiled source:

'use strict';

function test() {
	var a = 1;
	if (a) {
		var b = 2;
	}
}

document.addEventListener('click', test);

//# sourceMappingURL=scopes-compiled.js.map

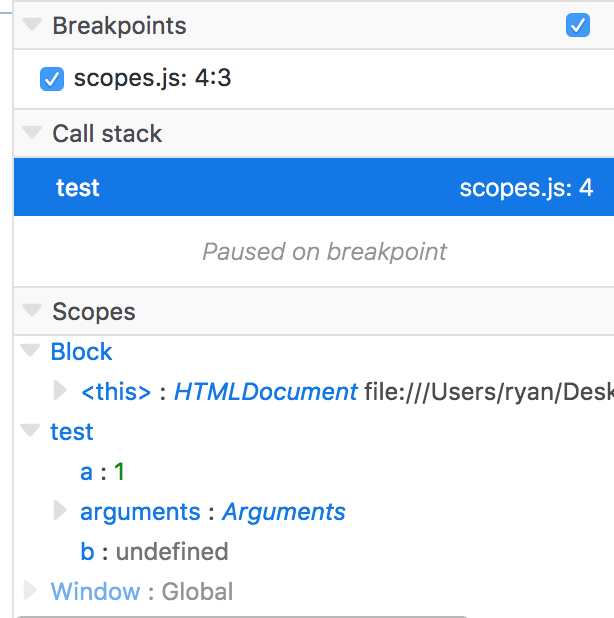

When pausing on line 4, const b = 2;, both a and b show within the test scope and only <this> within the if block.

I expected <this> to be restricted to function scope and b to be within the block scope.

Thoughts?

jasonLaster · 2017-11-10T01:15:11Z

@ryanjduffy could you "remix" the dbg example: http://dbg.glitch.me/ or... if it is using babel, publish the example somewhere else...

maybe devtools-examples.

yurydelendik · 2017-11-10T13:43:56Z

maybe devtools-examples.

I would rather to see it as a complete example online with source maps. I wonder if babel spits out names.

jasonLaster · 2017-11-10T14:07:46Z

i'll look for a codepen that has babel

yurydelendik · 2017-11-10T15:21:45Z

I expected to be restricted to function scope and b to be within the block scope.

Based on debugger.html logic at https://github.com/devtools-html/debugger.html/blob/60c59811df6e82ab7831d8faab4cee23ec48bd63/src/utils/scopes.js#L173-L179 we place <this> on the selected scope.

ryanjduffy · 2017-11-10T17:14:21Z

Here's a live version of the sample: https://ryanjduffy.github.io/debugger-examples/scopes/

yurydelendik · 2017-11-10T21:17:26Z

(The devtools/client/shared/source-map/worker.js needs to be updated to address the issue above, works in debugger.html now)

yurydelendik · 2017-11-10T21:29:01Z

Here's a live version of the sample: https://ryanjduffy.github.io/debugger-examples/scopes/

@ryanjduffy the names section is empty at https://ryanjduffy.github.io/debugger-examples/scopes/scopes-compiled.js.map , what did you use to generate the .map file?

ryanjduffy · 2017-11-11T07:29:15Z

Babel cli

jasonLaster · 2017-11-14T00:26:36Z

src/utils/pause/scopes/translateScope.js

+  return L10N.getStr("scopes.block");
+}
+
+export function translateScope(


does the name translate mean anything special?

would getScope, which is parallel to getScopes work?
