(This doc is being actively edited, check back for updates)

This cookbook is here to provide SIMPLE examples of how to do common things when making apps with Qt in Python. Qt is extremely flexible and powerful, but that sometimes means that it can be complicated or cumbersome to do certain things.

The cookbook aims to cover a lot of common tasks, and demonstrate concepts that are useful for Python Qt developers to know. This README provides descriptions of all the code in this repo (below), along with some high level overviews of Qt concepts and common gotchas/issues.

There are a few different Python Qt libraries (PySide, PyQt), and while these libraries are nearly identical, some minor differences exist. The app_simple examples provide working sample code for all of the major libraries. The rest of the examples target PySide6. It should be easy to use any of the examples, whether you're using PySide6, PySide2, or PyQt5.

See the setup section below if you need help getting set up running the examples here.

Lightning summary/bullet points:

• Basic app initialization and startup
• Layouts
• Custom widgets
• Many standard widgets and controls
• Signals/slots
• Model/view features (tables, lists, etc.)
• Common gotchas/issues

As noted above, basic app initialization and startup, custom widgets, layouts, and many common standard widgets and controls are covered here. There are also samples of the Qt model/view features, which are typically used to display tables and lists of data.

Right now, the demos in this repo use the programmatic API (meaning you write code to define the look and logic of your app). Qt also has its own declarative UI language called QML that can potentially make it easier to read and understand the layout of an application. Some QML samples should be coming in the future.

Check back for more details later, this section is being actively developed.

(This section is not finished)

Qt's layout system is unique. Qt uses a collaborative layout philosophy, where child widgets in a layout ask for space, and the layout tries to accommodate each of them as best it can. This can lead to some frustrating behaviors, as seemingly bizarre widget spacing or alignment problems can pop up if you don't have a good grasp of how things work.

Widgets can compete for space, like unruly children, so a problem with one widget might actually have its root cause in another competing widget in the layout. When widgets have competing goals, the layout, like a patient parent, will try to compromise and satisfy both of them as best it can.

For example, if two widgets in a layout have a "take all available vertical space" behavior (if both have a vertical sizePolicy of minimumExpanding, for example), the layout will first try to give all children at least as much space as their sizeHint() suggests, and any leftover space will generally be split between the two greedy widgets.

If you find yourself with large, unwanted space between your widgets, a good way to solve that is to add a stretchable space in the layout to push your widgets up/down or left/right.

Code for the left layout:

  layout = QVBoxLayout()

  push_a = QPushButton('Run A')
  layout.addWidget(push_a)

  push_b = QPushButton('Run B')
  layout.addWidget(push_b)

  push_c = QPushButton('Run C')
  layout.addWidget(push_c)

  push_d = QPushButton('Run D')
  layout.addWidget(push_d)

  push_e = QPushButton('Run E')
  layout.addWidget(push_e)

Code for the middle layout:

  layout = QVBoxLayout()
  layout.addStretch()

  push_a = QPushButton('Run A')
  layout.addWidget(push_a)

  push_b = QPushButton('Run B')
  layout.addWidget(push_b)

  push_c = QPushButton('Run C')
  layout.addWidget(push_c)

  push_d = QPushButton('Run D')
  layout.addWidget(push_d)

  push_e = QPushButton('Run E')
  layout.addWidget(push_e)

Code for the right layout:

  layout = QVBoxLayout()

  push_a = QPushButton('Run A')
  layout.addWidget(push_a)

  push_b = QPushButton('Run B')
  layout.addWidget(push_b)

  push_c = QPushButton('Run C')
  layout.addWidget(push_c)
  layout.addStretch()

  push_d = QPushButton('Run D')
  layout.addWidget(push_d)

  push_e = QPushButton('Run E')
  layout.addWidget(push_e)

You're not really aligning your widgets to the top/bottom, in reality, addStretch() adds a QSpacerItem that requests/consumes extra vertical space from the layout in the example above. This reflects Qt's collaborative layout philosophy, where each widget tells the layout how much space it wants. The buttons above don't want any extra vertical space, but a QSpacerItem will request as much space as it can get, so it takes any extra space that's left over after the buttons take up what little vertical space they need.

(This section is not finished)

Signals and slots are used to pass data around between different places in your Qt applications.

You can browse the source code files above, or clone the repository to download and run them yourself. See the Setup section if you need more details.

Covered in app_simple_*.py modules:

• Basic app startup
• Simple nested layouts
• Custom widgets
• Standard widgets/controls
• A basic signal/slot example

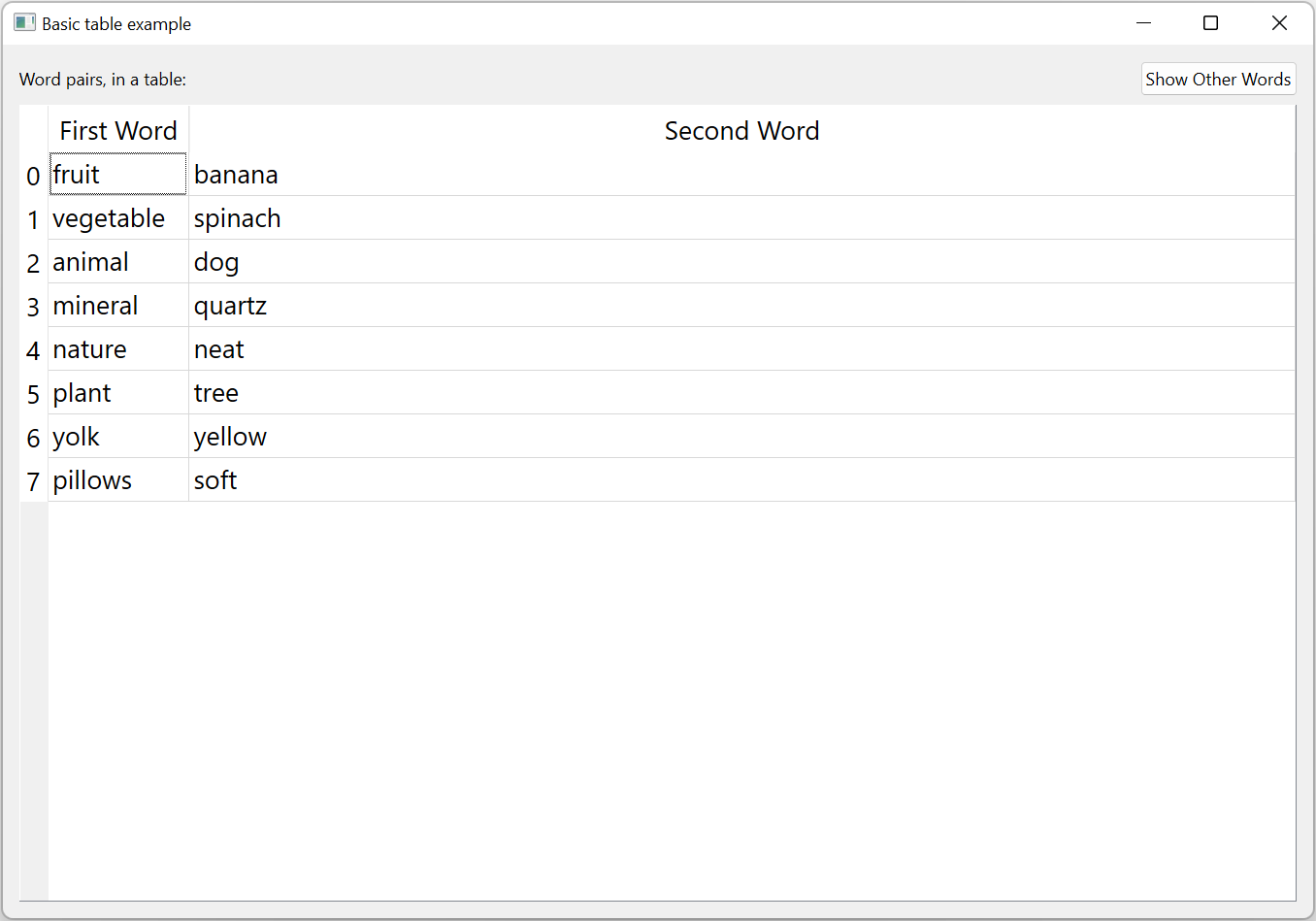

Covered in app_table_word_pairs.py:

• Basic table display (display/read-only)
• QAbstractTableModel
• QTableView

This module provides a minimal example of how to display custom data in a table using the model/view classes QAbstractTableModel and QTableView. This simple example only covers basic display (a read-only table, no editing features). Check the other samples if you want model/view editing features.

Covered in app_table_people.py:

• An editable table
• QAbstractTableModel
• QTableView
• QStyledItemDelegate

This module displays a list of people (Person objects) with a variety of attributes, with different types, each of which can be edited.

This is a very tiny app skeleton.

Full coverage of install/setup issues is not practical here, but this should cover the basics

As noted above, you can browse the source code files on github, or clone the repository to download and run them yourself.

You'll need to install Python (or install Miniconda, Anaconda is not compatible with PySide6 as of this writing), download one of the Qt libraries, and clone or download this repository to run the examples yourself.

To run each of the different demo modules, just python app_table_people.py (python followed by the name of the py file you want to run).

Once you've installed Python, you can run pip install PySide6 to install Qt. If you see an error about the command not being found, you'll need to fix your PATH environment variable (if install succeeded, you may just need to close and reopen your terminal), or specify the full path to pip (not preferable).

Once you've installed Miniconda, you can conda create -n appdemos pip to create an environment with pip, conda activate appdemos to activate it, then pip install PySide6 to install Qt. If you see an error about the command not being found, you'll need to fix your PATH environment variable (if install succeeded, you may just need to close and reopen your terminal), or specify the full path to the conda executable (not preferable).

Submit an issue to the repo if you want to suggest a change or have a question or bug report.
