SettleMaker

Generate settlement maps. Bring your own world.

Development preview: the shared physical planner, shared themes and explicit engine selection below are unreleased. npm 3.0.1 and the release gallery images still show the previous behaviour. See appearance and engine selection for the new controls and a local visual comparison.

SettleMaker is a procedural map engine for Node.js and browsers. Give it a settlement's population, roads, terrain and seed; get an SVG map, local GeoJSON and a model you can inspect. The new physical planner combines dispersed village plots and dense city blocks with shared landscape, rendering, resident accounting and GeoJSON in metres. Legacy entry points remain available.

The bundled artwork depicts medieval settlements. Portable skins can replace buildings, vegetation, field textures and material colours for your own setting, without forking the engine. Copperline includes industrial, steampunk and modern examples. The city generator builds on watabou's TownGeneratorOS.

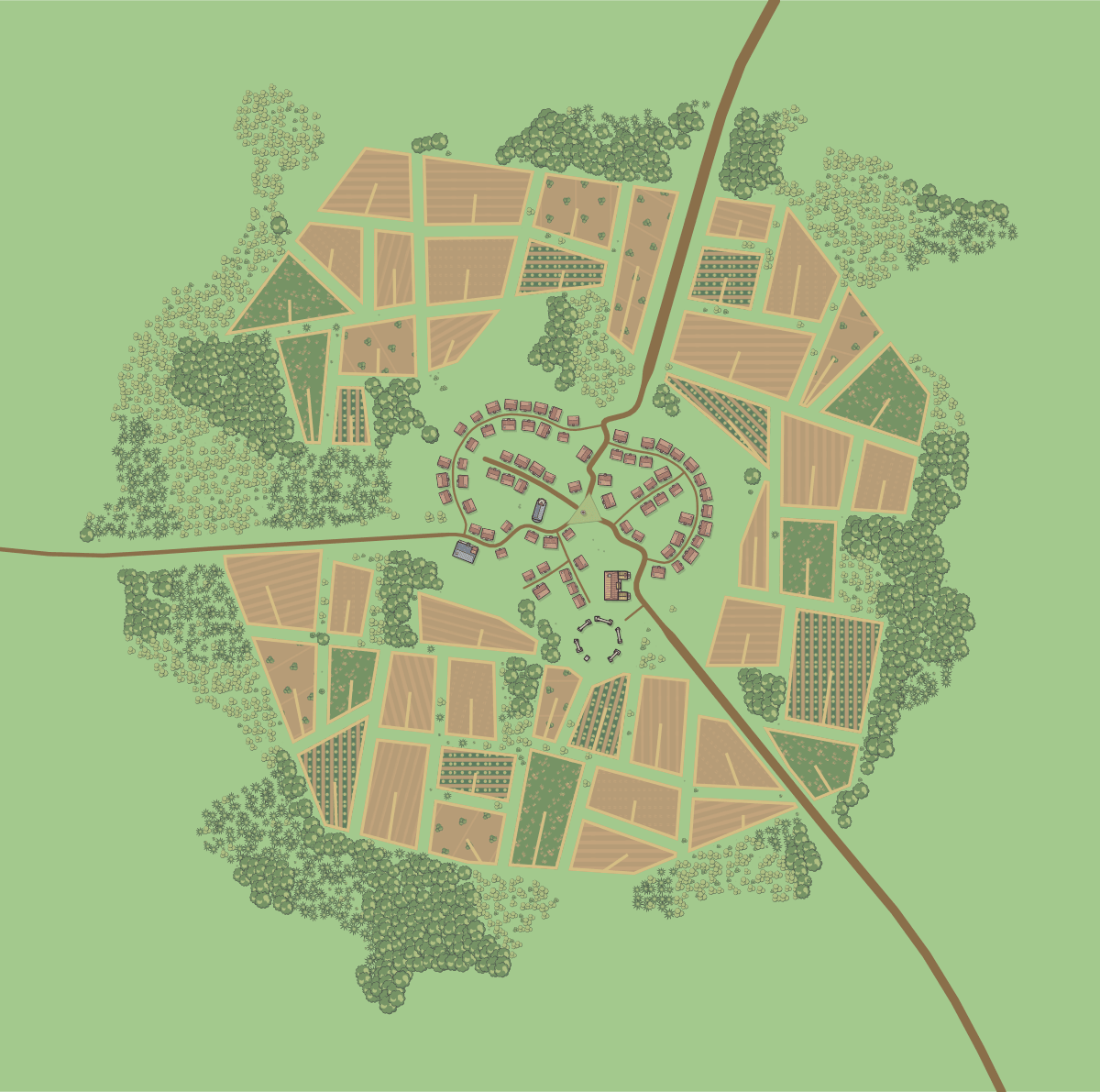

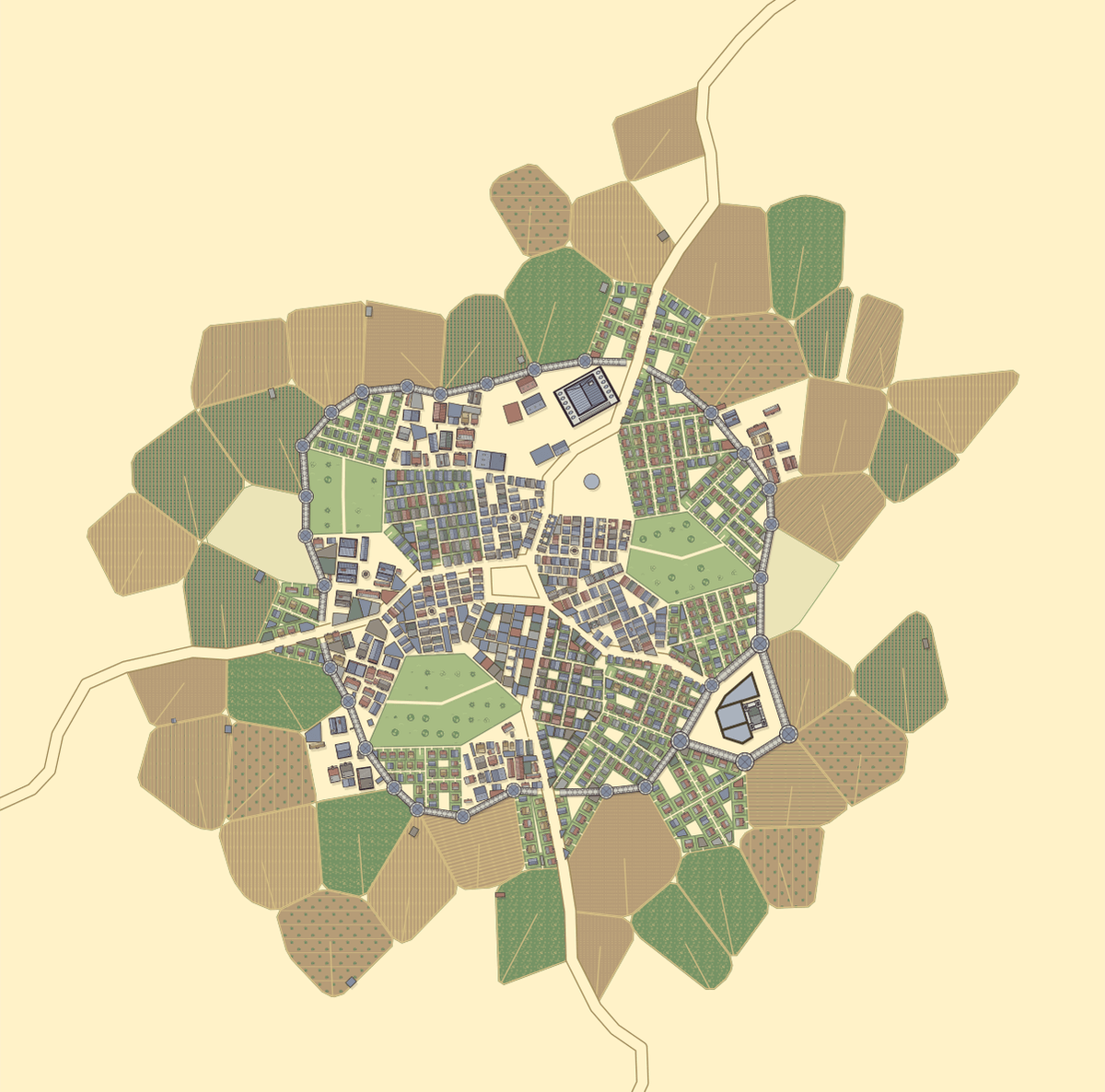

Ashford, population 300, and Thornwall, population 10,000. Both are real generateSettlement outputs, seed 2. Click an image for the full SVG. Explore the gallery and exact inputs.

npm install settlemaker

The package uses ES modules and includes TypeScript declarations. Save this as generate.mjs and run node generate.mjs:

import { writeFile } from 'node:fs/promises';
import { generateSettlement } from 'settlemaker';

const burg = {
  name: 'Ashford',
  population: 300,
  biome: 'temperate',
  port: false,
  citadel: false,
  walls: false,
  plaza: true,
  temple: true,
  shanty: false,
  capital: false,
  roadBearings: [
    { bearing_deg: 18, kind: 'main', route_id: 'north-road' },
    { bearing_deg: 142, kind: 'town', route_id: 'south-road' },
    { bearing_deg: 267, kind: 'local', route_id: 'west-road' },
  ],
};

const result = generateSettlement(burg, { seed: 2 });
await writeFile('ashford.svg', result.svg);
await writeFile('ashford.geojson', JSON.stringify(result.geojson, null, 2));
console.log(result.kind); // 'village'

For a city of any size, set engine: 'city' on the burg. Set engine: 'village' to keep a large settlement rural. Omitting it retains automatic selection at 1,000 people. walls, citadel, plaza and temple describe requested features; their treatment depends on the planner and available geometry. Use generateSettlement as your normal entry point. generateFromBurg explicitly invokes the city planner, even for a small population.

CommonJS callers can use await import('settlemaker') inside an async function. In a browser app, import from settlemaker through your bundler, or serve the standalone ESM file node_modules/settlemaker/dist/settlemaker.browser.js yourself. The engine needs no rendering service or runtime artwork downloads.

Node, browser and TypeScript setup

With engine: 'auto' (the default), population 1–1,000 selects the village planner; larger populations select the city planner. Explicit selection removes that boundary: villages build roads, lots, dwellings, greens and landscape in metres, while cities build wards, fortifications and outskirts in mesh units. Both return SVG and GeoJSON, but their feature sets, IDs and model types differ.

Layouts and SVGs are repeatable for the same inputs, seed, rendering options and package version. GeoJSON includes a changing generated_at timestamp. Save the input, seed, package version and any skin alongside output you want to reproduce.

API and input reference · GeoJSON, scale and identity

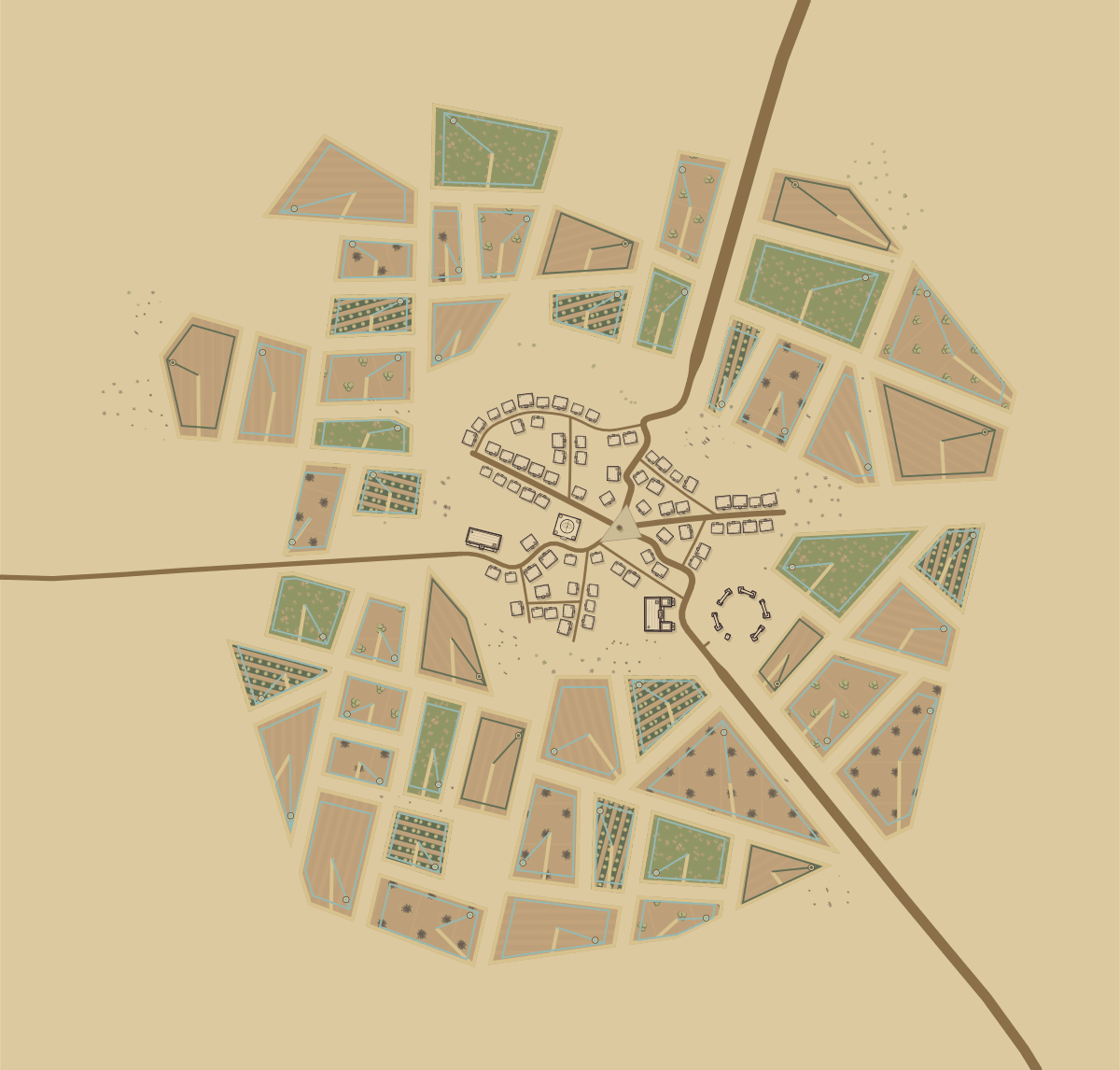

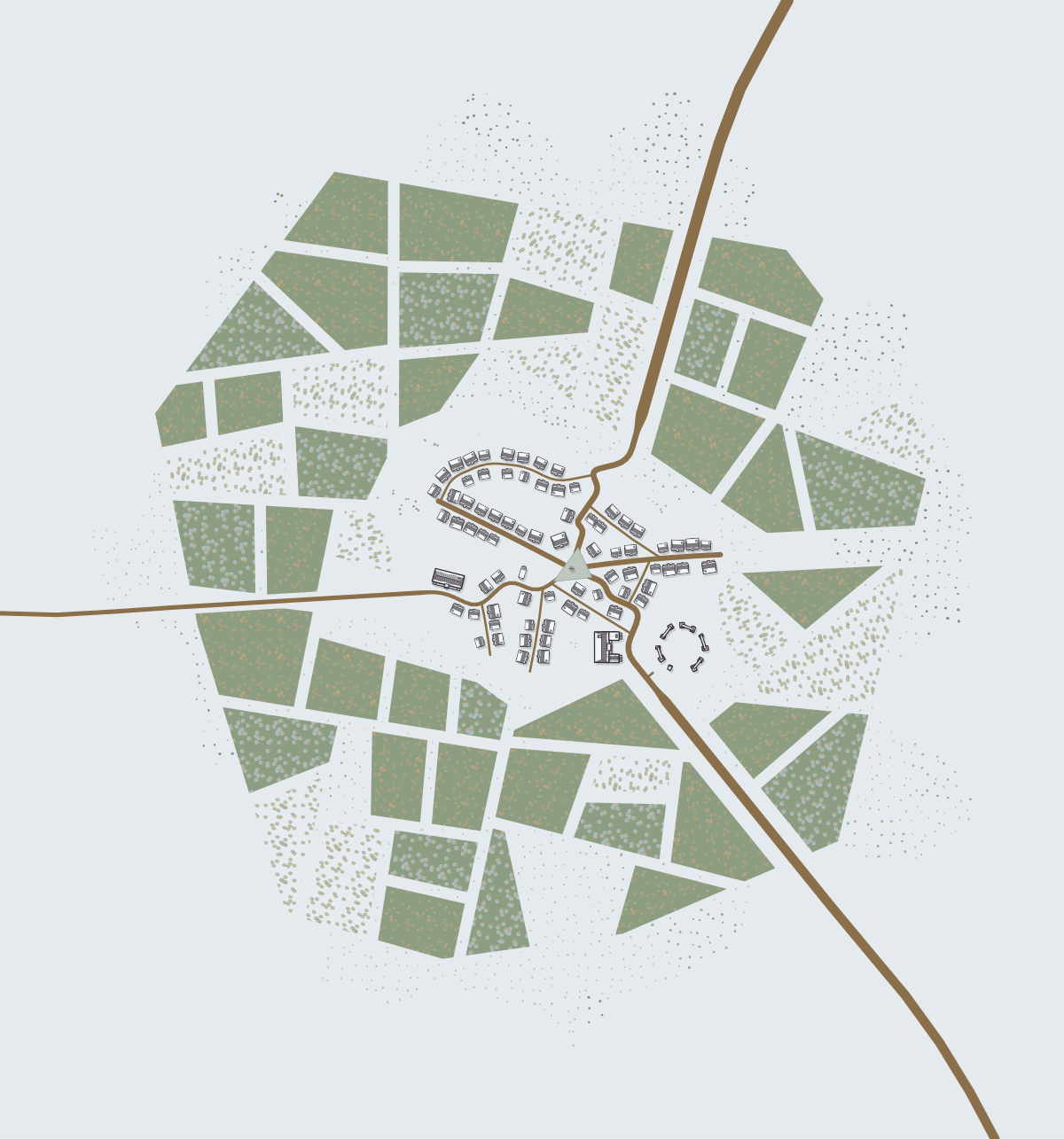

The default artwork covers temperate, desert, tundra, tropical and coastal settlements. These select different buildings, vegetation and landscape rules; changing a biome can change the generated layout. A coastal artwork choice alone does not supply a shoreline: provide water geometry or oceanBearing.

Supply every real road approach independently, using clockwise bearings from north. through: true describes a continuing route; it does not create an opposite exit. Use route IDs to retain provenance through shared streets and city gates.

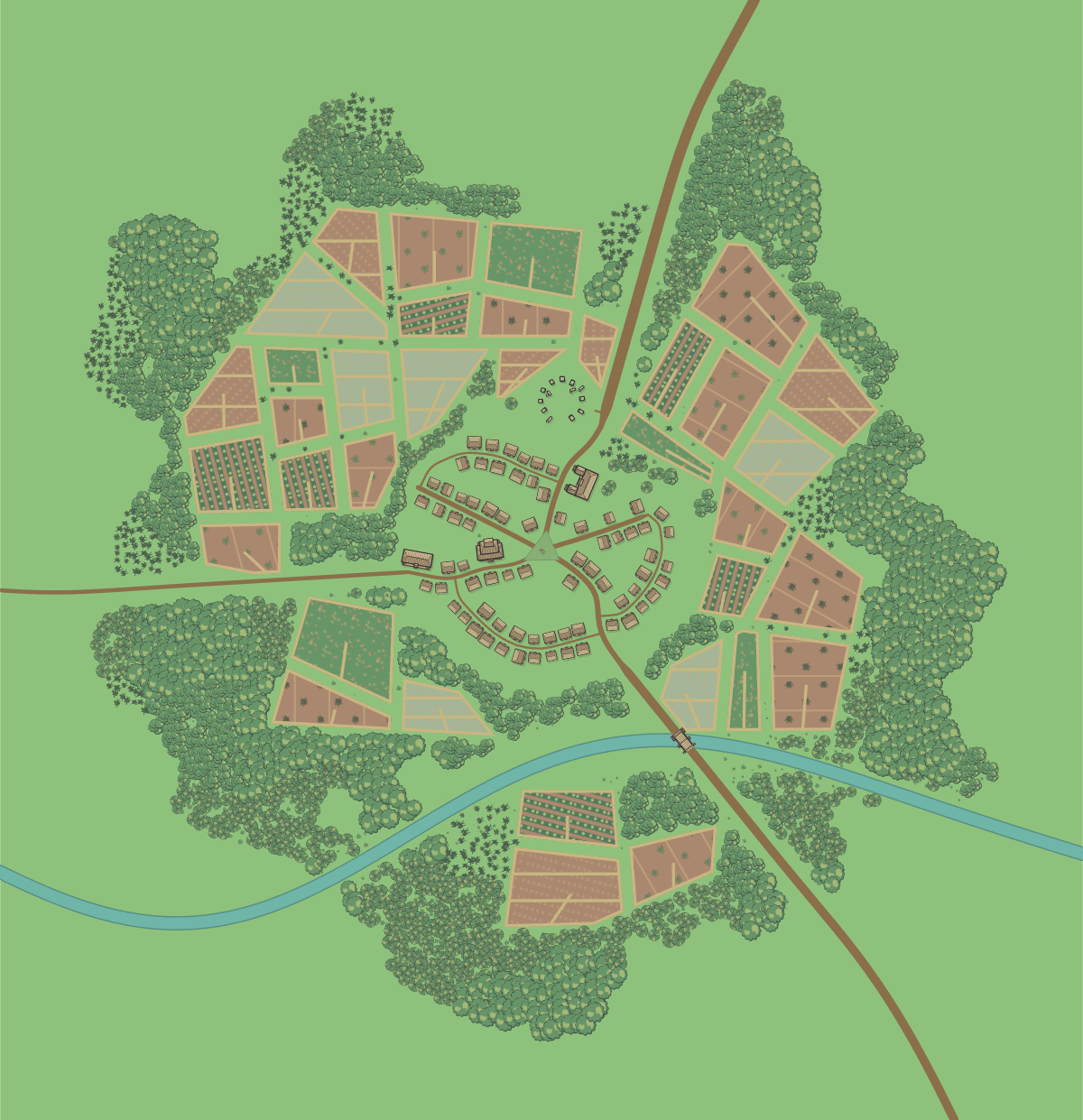

Water can come from filled polygons, village river centrelines, or a generated coast from oceanBearing. The measured waterContext contract is supported only by the village planner. Cities reject that mode; their legacy polygon input uses city-local units. port requests infrastructure, rather than controlling whether water is visible.

Road and water inputs · Measured-water contract

Using burg from the first example:

const largeVillage = generateSettlement(
  { ...burg, population: 2000, engine: 'village', biome: 'desert' },
  { seed: 2, theme: 'blueprint' },
);
const smallCity = generateSettlement(
  { ...burg, population: 800, engine: 'city', biome: 'desert' },
  { seed: 2, theme: 'blueprint' },
);

Both planners use the same regional ground, water and material colours. Omit theme for natural biome colours, or choose night, blueprint, parchment, classic, bw, ink, ancient, colour or simple. default is an alias for parchment. Themes recolour the artwork without changing settlement geometry; biomes can change both artwork and planning. Skins replace artwork for your setting.

A skin is a JSON document loaded with createSkin. It can replace exact SVG slots, set material tokens and define named biomes that inherit existing terrain behaviour. Partial skins inherit any artwork they omit.

Using burg from the first example:

import { createSkin } from 'settlemaker';

const skin = createSkin({
  version: 1,
  id: 'moon-glass',
  name: 'Moon Glass',
  tokens: { '--sm-stone': '#badcea' },
  biomes: {
    lunar: {
      base: 'tundra',
      village: { ground: '#68748c' },
      city: { paper: '#68748c' },
    },
  },
});

const moonVillage = generateSettlement(
  { ...burg, biome: 'lunar' },
  { seed: 2, skin },
);
await writeFile('moon-village.svg', moonVillage.svg);

For artwork replacement, SKIN_SLOTS supplies the supported IDs, view boxes, anchors and placement constraints. Skin format 1 exposes 693 runtime slots. The downloadable default artwork contains 852 drawings; catalogue drawings and runtime slots serve different purposes.

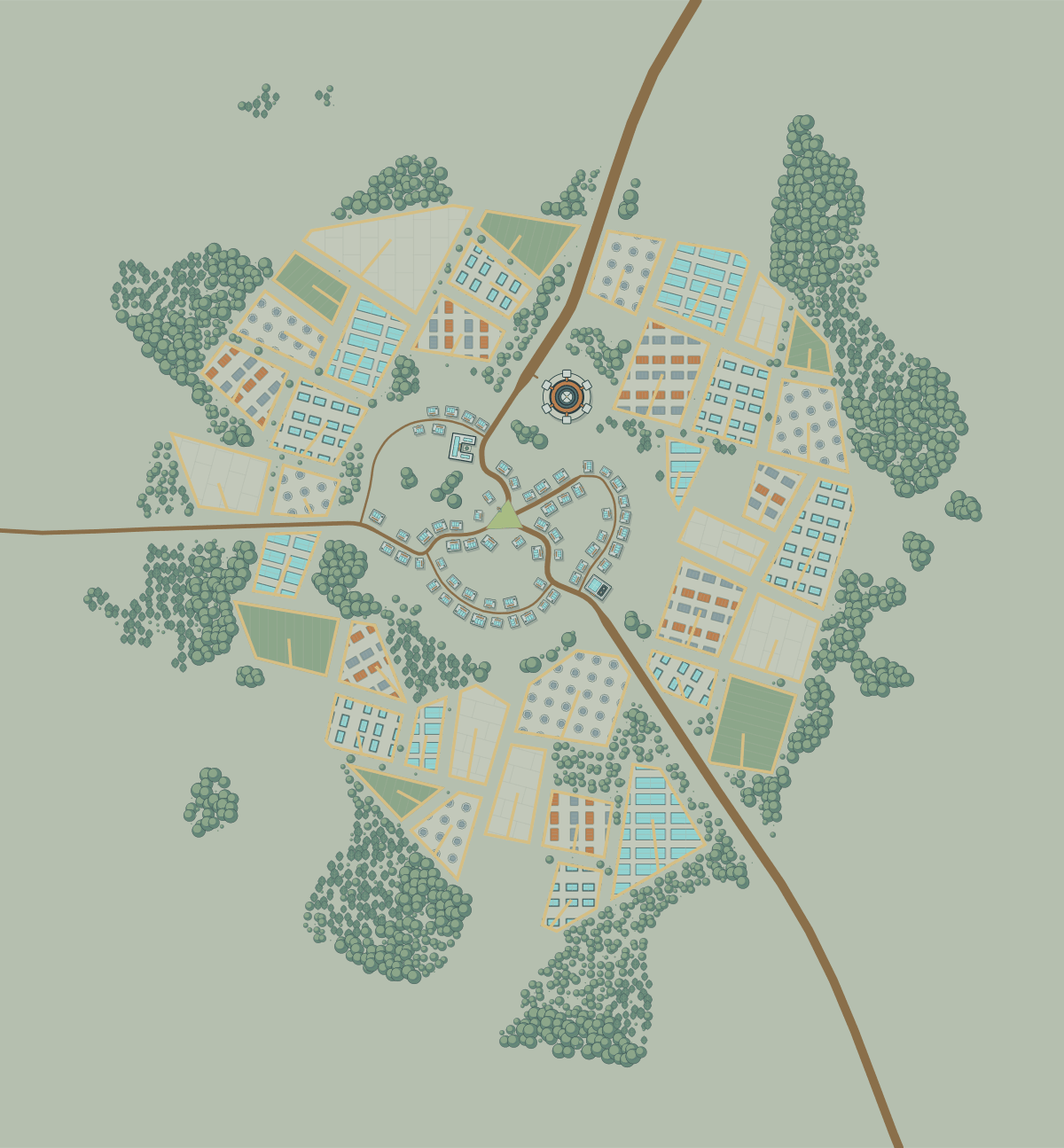

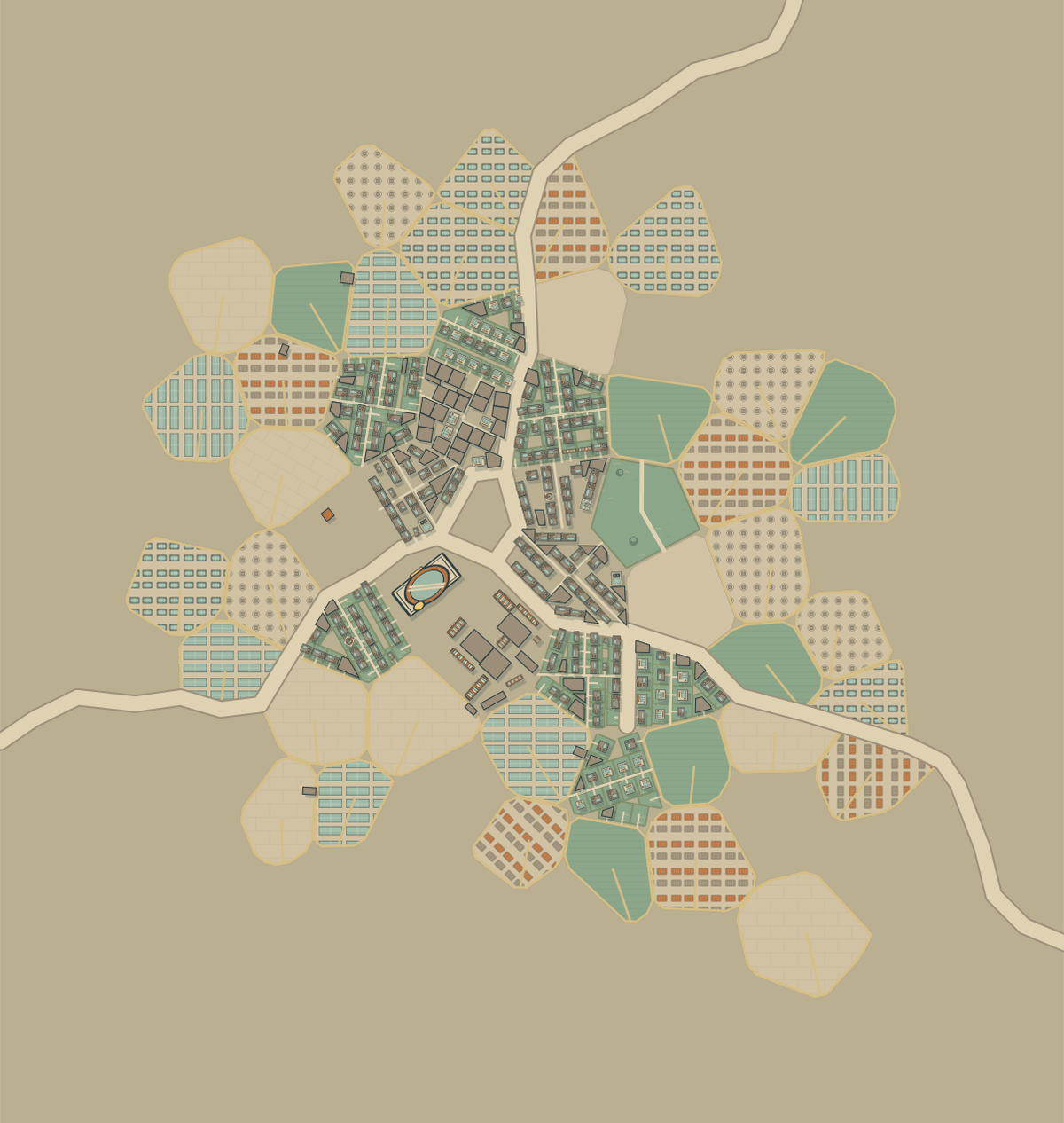

Copperline covers all runtime slots and supplies industrial, steampunk and modern presets. Skins change presentation and select an existing biome base; they do not add new planning algorithms, occupancy rules or GeoJSON categories. Some roads, walls and bridges are generated geometry rather than replaceable SVG slots. Read the authoring guide for the supported controls and limits.

Create a skin · JSON schema · Copperline · Artwork catalogue

The npm library runs in your application. The website at settlemaker.com is a separate application with its own deployment cycle. Publishing an npm release does not update that site. The URL codec does not transport skins or fetch arbitrary skin files.

The engine is GPL-3.0-only. See LICENSE and NOTICE for the terms, upstream attribution and dependency notices.

The six default artwork collections are distributed under CC BY 4.0 with a rendered-output exception, described in symbols/LICENSE. Their credits ship with the package. Copperline is GPL-3.0-only and is outside that artwork exception. Keep each collection's terms with redistributed artwork.
