Improving code related to the Agent properties #6348

paulazomig · 2022-05-02T19:29:47Z

Description

The classes AgentProperties and AgentPropertiesFileHandler were previously created to map the existing properties of the agent.properties file to facilitate their use; however, only a few properties were mapped at the time.

This PR aims to build on those changes. All of the properties of the agent.properties file were mapped in the AgentProperties class.
While executing the mapping, I found some properties that were used in the code, but were not documented in the "agent.properties" file. These properties were also documented, and registered accordingly in the properties file.

The way the properties were accessed in the code was changed, and now the values are obtained through the AgentPropertiesFileHandler class. Also, Unit Tests were added and modified according to necessity.

Types of changes

Breaking change (fix or feature that would cause existing functionality to change)
New feature (non-breaking change which adds functionality)
Bug fix (non-breaking change which fixes an issue)
Enhancement (improves an existing feature and functionality)
Cleanup (Code refactoring and cleanup, that may add test cases)

Feature/Enhancement Scale or Bug Severity

Feature/Enhancement Scale

Major
Minor

Bug Severity

Screenshots (if appropriate):

How Has This Been Tested?

This was manually tested in a local lab, by altering properties and performing main actions: creating and deleting VMs, creating new Volumes and snapshots, etc.

acs-robot · 2022-05-02T20:28:26Z

PR Analysis

https://sonarcloud.io/summary/new_code?id=apachecloudstack&pullRequest=6348

PR Coverage Report

CLASS	INSTRUCTION MISSED	INSTRUCTION COVERED	BRANCH MISSED	BRANCH COVERED	LINE MISSED	LINE COVERED
BridgeVifDriver	1116	125	151	17	222	29
IvsVifDriver	812	0	106	0	162	0
LibvirtComputingResource	8573	2026	1026	144	1899	452
OvsVifDriver	643	135	82	12	106	34
KVMStorageProcessor	5982	498	446	22	1236	71

DaanHoogland

good enhancement/cleanup

agent/src/main/java/com/cloud/agent/AgentShell.java

rohityadavcloud · 2022-05-04T06:25:47Z

@paulazomig can you merge the latest main to your PR branch?

agent/src/main/java/com/cloud/agent/properties/AgentPropertiesFileHandler.java

...ypervisors/kvm/src/main/java/com/cloud/hypervisor/kvm/resource/LibvirtComputingResource.java

github-actions · 2022-05-12T12:33:44Z

This pull request has merge conflicts. Dear author, please fix the conflicts and sync your branch with the base branch.

DaanHoogland · 2022-05-16T08:06:40Z

@paulazomig youĺl need to solve a conflict

…agent-properties

sonarqubecloud · 2022-05-19T19:23:34Z

SonarCloud Quality Gate failed.

0 Bugs
0 Vulnerabilities
1 Security Hotspot
98 Code Smells

19.3% Coverage
0.0% Duplication

github-actions · 2022-05-23T13:05:47Z

This pull request has merge conflicts. Dear author, please fix the conflicts and sync your branch with the base branch.

…agent-properties

…esource#configure

acs-robot · 2022-06-24T14:46:53Z

Found UI changes, kicking a new UI QA build
@blueorangutan ui

blueorangutan · 2022-06-24T14:48:03Z

@acs-robot a Jenkins job has been kicked to build UI QA env. I'll keep you posted as I make progress.

blueorangutan · 2022-06-24T14:54:41Z

UI build: ✔️
Live QA URL: http://qa.cloudstack.cloud:8080/client/pr/6348 (SL-JID-1838)

DaanHoogland · 2022-06-27T13:47:43Z

SonarCloud Quality Gate failed.

0 Bugs 0 Vulnerabilities 1 Security Hotspot 100 Code Smells

20.8% Coverage 0.0% Duplication

please have a look at these @paulazomig . There are certainly some that can be improved.

GutoVeronezi · 2022-11-15T02:15:26Z

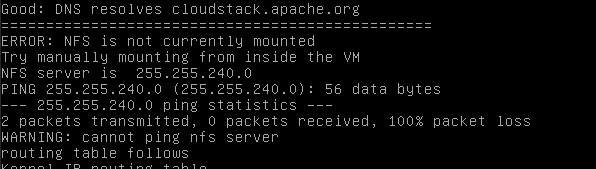

@GutoVeronezi the ssvm still won't come up with this message:

@DaanHoogland, that message is printed when the secondary storage is not mounted in the SSVM; then, the script ssvm-check.sh tries to ping the "NFS server" to validate the connectivity. For some reason it infers that the NFS server is the seventeenth element of file /var/cache/cloud/cmdline; however, the index of the elements will vary according to some configurations. I created PR #6900 to handle this situation, could you take a loot at it?

Although the script problem, the main situation is that the secondary storage is not being mounted in the SSVM. Would it be possible for you to share the SSVM logs? This way we would have a better understanding of why the storage is not being mounted.

DaanHoogland · 2022-11-15T07:57:01Z

Although the script problem, the main situation is that the secondary storage is not being mounted in the SSVM. Would it be possible for you to share the SSVM logs? This way we would have a better understanding of why the storage is not being mounted.

I am building an environment for this again. I take it it isn´t happening in your environment?

blueorangutan · 2022-11-15T08:39:01Z

Trillian Build Failed (tid-81)

DaanHoogland · 2022-11-15T15:46:52Z

Tue 15 Nov 2022 08:15:53 AM UTC Starting guest services for kvm
Tue 15 Nov 2022 08:15:54 AM UTC acpiphp and pci_hotplug module already compiled in
Tue 15 Nov 2022 08:15:55 AM UTC Received a new non-empty cmdline file from qemu-guest-agent
Tue 15 Nov 2022 08:15:55 AM UTC Booting from cloudstack, remove old configuration files in /etc/cloudstack/
Tue 15 Nov 2022 08:15:55 AM UTC Applying iptables rules
Tue 15 Nov 2022 08:15:55 AM UTC Setting up interface: eth0
Tue 15 Nov 2022 08:15:55 AM UTC Setting up interface: eth1
Tue 15 Nov 2022 08:15:55 AM UTC Setting up interface: eth2
Tue 15 Nov 2022 08:15:55 AM UTC Received mgmt cidr : 10.1.32.0/20
Tue 15 Nov 2022 08:15:55 AM UTC Configuring sshd
Tue 15 Nov 2022 08:15:56 AM UTC Executing cloud-early-config
Tue 15 Nov 2022 08:15:56 AM UTC Scripts checksum detected: oldmd5=5158db51564e4825302ad52d2b4c2a69 newmd5=5158db51564e4825302ad52d2b4c2a69
Tue 15 Nov 2022 08:15:58 AM UTC Could not find patch file, retrying
Tue 15 Nov 2022 08:16:00 AM UTC Could not find patch file, retrying
Tue 15 Nov 2022 08:16:02 AM UTC Could not find patch file, retrying
Tue 15 Nov 2022 08:16:05 AM UTC Could not find patch file, retrying
Tue 15 Nov 2022 08:16:05 AM UTC Scripts checksum detected: oldmd5=5158db51564e4825302ad52d2b4c2a69 newmd5=daf7cd26e817274a0b57dde2d447be02
Tue 15 Nov 2022 08:16:05 AM UTC Patched scripts using /var/cache/cloud/cloud-scripts.tgz
Tue 15 Nov 2022 08:16:05 AM UTC Bootstrapping systemvm appliance
Tue 15 Nov 2022 08:16:08 AM UTC Configuring systemvm type=secstorage
Tue 15 Nov 2022 08:16:09 AM UTC Setting up secondary storage system vm
Tue 15 Nov 2022 08:16:09 AM UTC Incompleted parameters STORAGE_IP:, STORAGE_NETMASK:, STORAGE_CIDR:. Cannot setup storage network
Tue 15 Nov 2022 08:16:09 AM UTC Not setting up route of RFC1918 space to 10.1.32.1 because 10.1.55.41 is RFC1918.
Tue 15 Nov 2022 08:16:09 AM UTC Setting up entry in hosts
Tue 15 Nov 2022 08:16:09 AM UTC Applying iptables rules
Tue 15 Nov 2022 08:16:09 AM UTC Configuring apache2
Tue 15 Nov 2022 08:16:09 AM UTC Setting up apache web server
Tue 15 Nov 2022 08:16:09 AM UTC Setting up apache2 for post upload of volume/template
Tue 15 Nov 2022 08:16:10 AM UTC cloud: disable rp_filter
Tue 15 Nov 2022 08:16:10 AM UTC disable rpfilter
Tue 15 Nov 2022 08:16:10 AM UTC cloud: enable_fwding = 0
Tue 15 Nov 2022 08:16:10 AM UTC enable_fwding = 0
Tue 15 Nov 2022 08:16:10 AM UTC Processors = 1  Enable service  = 0
Tue 15 Nov 2022 08:16:10 AM UTC Setting up NTP
Tue 15 Nov 2022 08:16:11 AM UTC Finished setting up systemvm
Tue 15 Nov 2022 08:16:11 AM UTC Finished setting up systemvm
2022-11-15 08:16:17,460 INFO  [cloud.agent.AgentShell] (main:null) Agent started
2022-11-15 08:16:17,470 INFO  [cloud.agent.AgentShell] (main:null) Implementation Version is 4.18.0.0-SNAPSHOT
2022-11-15 08:16:17,474 INFO  [cloud.agent.AgentShell] (main:null) agent.properties found at /usr/local/cloud/systemvm/conf/agent.properties
2022-11-15 08:16:17,501 INFO  [cloud.agent.AgentShell] (main:null) Defaulting to using properties file for storage
2022-11-15 08:16:17,503 INFO  [cloud.agent.AgentShell] (main:null) Defaulting to the constant time backoff algorithm
2022-11-15 08:16:17,546 INFO  [cloud.utils.LogUtils] (main:null) log4j configuration found at /usr/local/cloud/systemvm/conf/log4j-cloud.xml
2022-11-15 08:16:17,546 INFO  [cloud.agent.AgentShell] (main:null) Using default Java settings for IPv6 preference for agent connection
2022-11-15 08:16:17,764 INFO  [cloud.agent.Agent] (main:null) id is
2022-11-15 08:16:17,842 INFO  [resource.consoleproxy.ConsoleProxyResource] (main:null) Receive proxyVmId in ConsoleProxyResource configuration as 0
2022-11-15 08:16:17,870 INFO  [cloud.agent.Agent] (main:null) Agent [id = new : type = ConsoleProxyResource : zone = 1 : pod = 1 : workers = 10 : host = 10.1.32.133 : port = 8250
2022-11-15 08:16:17,906 INFO  [utils.nio.NioClient] (main:null) Connecting to 10.1.32.133:8250
2022-11-15 08:16:17,914 INFO  [utils.nio.Link] (main:null) Conf file found: /usr/local/cloud/systemvm/conf/agent.properties
2022-11-15 08:16:18,955 INFO  [utils.nio.NioClient] (main:null) SSL: Handshake done
2022-11-15 08:16:18,957 INFO  [utils.nio.NioClient] (main:null) Connected to 10.1.32.133:8250
2022-11-15 08:16:19,054 INFO  [cloud.serializer.GsonHelper] (Agent-Handler-1:null) Default Builder inited.
2022-11-15 08:16:19,138 INFO  [cloud.agent.Agent] (Agent-Handler-2:null) Process agent startup answer, agent id = 0
2022-11-15 08:16:19,142 INFO  [cloud.agent.Agent] (Agent-Handler-2:null) Set agent id 0
2022-11-15 08:16:19,181 INFO  [cloud.agent.Agent] (Agent-Handler-2:null) Startup Response Received: agent id = 0
2022-11-15 08:16:19,186 INFO  [cloud.agent.Agent] (agentRequest-Handler-2:null) Processing agent ready command, agent id = 4
2022-11-15 08:16:19,194 INFO  [cloud.agent.Agent] (agentRequest-Handler-2:null) Set agent id 4
2022-11-15 08:16:19,195 INFO  [cloud.agent.Agent] (agentRequest-Handler-2:null) Ready command is processed for agent id = 4
2022-11-15 08:16:19,195 INFO  [resource.consoleproxy.ConsoleProxyResource] (agentRequest-Handler-2:null) Receive ReadyCommand, response with ReadyAnswer
2022-11-15 08:16:19,249 INFO  [cloud.agent.Agent] (agentRequest-Handler-3:null) Processing agent ready command, agent id = 4
2022-11-15 08:16:19,250 INFO  [cloud.agent.Agent] (agentRequest-Handler-3:null) Set agent id 4
2022-11-15 08:16:19,257 INFO  [cloud.agent.Agent] (agentRequest-Handler-3:null) Processed new management server list: 10.1.32.133@static
2022-11-15 08:16:19,258 INFO  [cloud.agent.Agent] (agentRequest-Handler-3:null) Ready command is processed for agent id = 4
2022-11-15 08:16:19,258 INFO  [resource.consoleproxy.ConsoleProxyResource] (agentRequest-Handler-3:null) Receive ReadyCommand, response with ReadyAnswer

I think I need to find time to enable debug logging and retry, @GutoVeronezi . I see nothing of interest there.

GutoVeronezi · 2022-11-16T13:17:41Z

I am building an environment for this again. I take it it isn´t happening in your environment?

@DaanHoogland

Yes, perhaps due to divergent configurations or something I am missing. I will review the code and analyze the logs you shared (thanks, though). Maybe the message Tue 15 Nov 2022 08:16:09 AM UTC Incompleted parameters STORAGE_IP:, STORAGE_NETMASK:, STORAGE_CIDR:. Cannot setup storage network can lead to somewhere.

github-actions · 2022-12-05T18:53:58Z

This pull request has merge conflicts. Dear author, please fix the conflicts and sync your branch with the base branch.

sonarqubecloud · 2022-12-12T21:59:23Z

SonarCloud Quality Gate failed.

0 Bugs
0 Vulnerabilities
1 Security Hotspot
0 Code Smells

43.7% Coverage
0.0% Duplication

GutoVeronezi · 2022-12-15T14:44:45Z

@blueorangutan package

blueorangutan · 2022-12-15T14:45:03Z

@GutoVeronezi a Jenkins job has been kicked to build packages. It will be bundled with KVM, XenServer and VMware SystemVM templates. I'll keep you posted as I make progress.

blueorangutan · 2022-12-15T15:33:20Z

Packaging result: ✔️ el7 ✔️ el8 ✔️ debian ✔️ suse15. SL-JID 4966

GutoVeronezi · 2022-12-15T17:53:21Z

@DaanHoogland I think I found out what was happening. When patching the system VMs, the file systemvm/agent/conf/agent.properties is copied to them. This file contains two hardcoded properties:

instance=ConsoleProxy
resource=com.cloud.agent.resource.consoleproxy.ConsoleProxyResource

As AgentShell was changed to use the configurations from agent.properties instead of the parameters passed in the command line, the SSVM was being started with the hardcoded property resource (com.cloud.agent.resource.consoleproxy.ConsoleProxyResource) and trying to start as a CPVM.

I made a change to remove those hardcoded properties when the system VM is a SSVM and to copy the content of file /var/cache/cloud/cmdline to agent.properties during the bootstrap, making AgentShell use the proper properties.

Following there is the content of the agent.properties of both system VMs after the change:

For SSVM

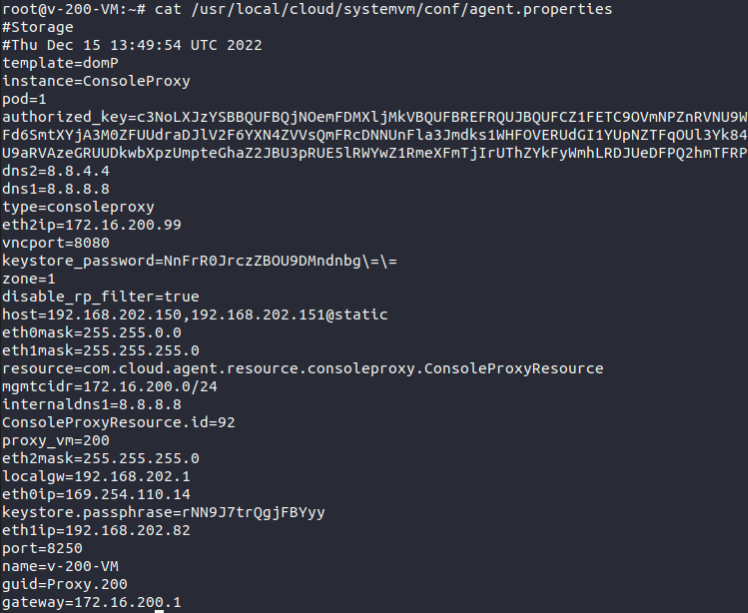

For CPVM

@DaanHoogland, can we run the tests again?

DaanHoogland · 2022-12-16T12:40:31Z

@blueorangutan test

blueorangutan · 2022-12-16T12:41:03Z

@DaanHoogland a Trillian-Jenkins test job (centos7 mgmt + kvm-centos7) has been kicked to run smoke tests

blueorangutan · 2022-12-17T00:12:49Z

Trillian test result (tid-5522)
Environment: kvm-centos7 (x2), Advanced Networking with Mgmt server 7
Total time taken: 40069 seconds
Marvin logs: https://github.com/blueorangutan/acs-prs/releases/download/trillian/pr6348-t5522-kvm-centos7.zip
Smoke tests completed. 105 look OK, 0 have errors, 0 did not run
Only failed and skipped tests results shown below:

Test	Result	Time (s)	Test File

DaanHoogland · 2022-12-19T09:57:39Z

@GutoVeronezi @JoaoJandre @nvazquez are we alright with this now?

GutoVeronezi · 2022-12-19T16:00:38Z

@DaanHoogland, I think that, with the last commit, we have all the cases addressed. If there is something I am missing, please, let me know.

nvazquez · 2022-12-20T11:52:35Z

@DaanHoogland @GutoVeronezi I couldn't finish my review yet but it looks good so far! I would like to double check the agent.properties refactor so we don't miss any existing property

DaanHoogland · 2022-12-20T11:54:51Z

@DaanHoogland @GutoVeronezi I couldn't finish my review yet but it looks good so far! I would like to double check the agent.properties refactor so we don't miss any existing property

thanks @nvazquez , let us know your verdict ;)

nvazquez

Code LGTM

Improving code related to the Agent properties

0105ec0

boring-cyborg bot added component:agent component:kvm labels May 2, 2022

DaanHoogland approved these changes May 3, 2022

View reviewed changes

agent/src/main/java/com/cloud/agent/AgentShell.java Outdated Show resolved Hide resolved

agent/src/main/java/com/cloud/agent/AgentShell.java Show resolved Hide resolved

Paula Zomignani Oliveira added 2 commits May 4, 2022 13:42

Merge branch 'main' into map-agent-properties

4f0aece

Specify exception and remove unnecessary print

ad0f150

GutoVeronezi reviewed May 11, 2022

View reviewed changes

github-actions bot added the status:has-conflicts label May 12, 2022

Paula Zomignani Oliveira added 2 commits May 19, 2022 14:34

Merge branch 'main' of https://github.com/apache/cloudstack into map-…

6d96c9e

…agent-properties

fixing indentation

48c3957

github-actions bot removed the status:has-conflicts label May 19, 2022

nvazquez self-requested a review May 20, 2022 16:07

nvazquez added this to the 4.18.0.0 milestone May 20, 2022

github-actions bot added the status:has-conflicts label May 23, 2022

Merge branch 'main' of https://github.com/apache/cloudstack into map-…

4304412

…agent-properties

github-actions bot removed the status:has-conflicts label May 24, 2022

nvazquez force-pushed the main branch from c56220f to 0f4c3af Compare June 6, 2022 15:14

Paula Zomignani Oliveira added 2 commits June 20, 2022 14:31

Merge branch 'main' of https://github.com/apache/cloudstack into map-…

0f61a34

…agent-properties

Pass public and private interface to super class on LibvirtComputingR…

ca80585

…esource#configure

github-actions bot added the status:has-conflicts label Jun 28, 2022

github-actions bot added the status:has-conflicts label Dec 5, 2022

GutoVeronezi added 3 commits December 12, 2022 12:10

Merge remote-tracking branch 'apache-github/main' into HEAD

37ad4e8

Fix call to method

57adcb6

Remove duplicated import

c03dc60

github-actions bot removed the status:has-conflicts label Dec 12, 2022

Parse cmdline to agent.properties in system VMs bootstrap

ad94cb3

boring-cyborg bot added component:networking component:virtual-router labels Dec 15, 2022

DaanHoogland mentioned this pull request Dec 19, 2022

Externalize KVM HA heartbeat frequency #6892

Merged

7 tasks

nvazquez approved these changes Dec 22, 2022

View reviewed changes

DaanHoogland merged commit 0fe2e69 into apache:main Dec 22, 2022

weizhouapache mentioned this pull request Aug 30, 2023

kvm: fix error when enable SSL for kvm agent #7923

Merged

12 tasks

Improving code related to the Agent properties #6348

Improving code related to the Agent properties #6348

Uh oh!

Conversation

paulazomig commented May 2, 2022

Description

Types of changes

Feature/Enhancement Scale or Bug Severity

Feature/Enhancement Scale

Bug Severity

Screenshots (if appropriate):

How Has This Been Tested?

Uh oh!

acs-robot commented May 2, 2022

PR Analysis

PR Coverage Report

Uh oh!

DaanHoogland left a comment

Choose a reason for hiding this comment

Uh oh!

Uh oh!

Uh oh!

rohityadavcloud commented May 4, 2022

Uh oh!

Uh oh!

Uh oh!

Uh oh!

github-actions bot commented May 12, 2022

Uh oh!

DaanHoogland commented May 16, 2022

Uh oh!

sonarqubecloud bot commented May 19, 2022

Uh oh!

github-actions bot commented May 23, 2022

Uh oh!

acs-robot commented Jun 24, 2022

Uh oh!

blueorangutan commented Jun 24, 2022

Uh oh!

blueorangutan commented Jun 24, 2022

Uh oh!

DaanHoogland commented Jun 27, 2022

Uh oh!

GutoVeronezi commented Nov 15, 2022

Uh oh!

DaanHoogland commented Nov 15, 2022

Uh oh!

blueorangutan commented Nov 15, 2022

Uh oh!

DaanHoogland commented Nov 15, 2022

Uh oh!

GutoVeronezi commented Nov 16, 2022

Uh oh!

github-actions bot commented Dec 5, 2022

Uh oh!

sonarqubecloud bot commented Dec 12, 2022

Uh oh!

GutoVeronezi commented Dec 15, 2022

Uh oh!

blueorangutan commented Dec 15, 2022

Uh oh!

blueorangutan commented Dec 15, 2022

Uh oh!

GutoVeronezi commented Dec 15, 2022 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

DaanHoogland commented Dec 16, 2022

Uh oh!

blueorangutan commented Dec 16, 2022

Uh oh!

blueorangutan commented Dec 17, 2022

Uh oh!

DaanHoogland commented Dec 19, 2022

Uh oh!

GutoVeronezi commented Dec 19, 2022

Uh oh!

nvazquez commented Dec 20, 2022

Uh oh!

DaanHoogland commented Dec 20, 2022

Uh oh!

GutoVeronezi commented Dec 15, 2022 •

edited

Loading
