Core/Player: Prevent Forced UpdateObjectVisibility Before in World - #27914

Closed
HelloKitty wants to merge 1 commit into
TrinityCore:3.3.5from
HelloKitty:patch-5
Closed

HelloKitty wants to merge 1 commit into
TrinityCore:3.3.5from
HelloKitty:patch-5

Conversation

@HelloKitty

@HelloKitty HelloKitty commented Apr 14, 2022

Copy link
Copy Markdown
Contributor

It's critical for the client to not recieve SMSG_UPDATE_OBJECT object create blocks before the world is loaded. It can cause some very mind boggling and subtle bugs.

Changes proposed:

  • Preventing immediate handling for Player::UpdateObjectVisibility when not in world

Issues addressed:

This partially addresses this 2 year old issue I raised: #24846

#20401

Tests performed:

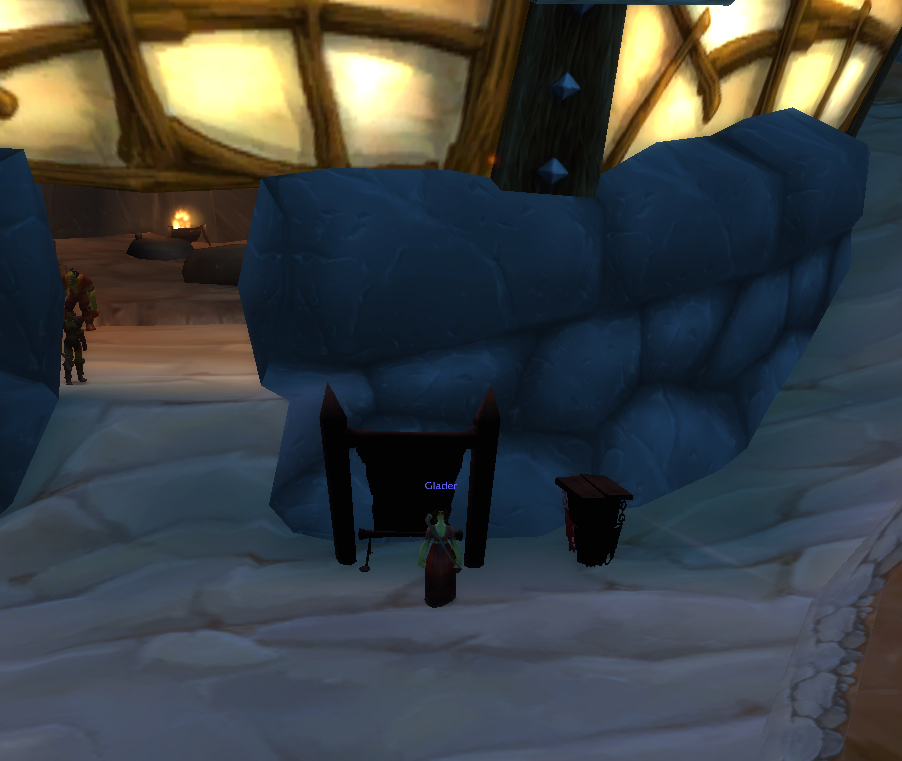

One of the most obvious examples of bugs this issue causes is strange lighting/coloring/rendering of GameObjects that initially spawn on your client. See the below:

6998ccec695abe606631fc73bf07a9c5.mp4

af12a39067285dbcc34aa7c891581317

After this commit these objects no longer appear incorrectly colored. This probably fixes other subtle bugs too that happen around logging in or worldporting.

Known issues and TODO list: (add/remove lines as needed)

Obviously this change is a very low level Core change. I will have trouble fully testing the impact, sorry. Maybe this negatively affects something.

It's critical for the client to not recieve SMSG_UPDATE_OBJECT object create blocks before the world is loaded. It can cause some very mind boggling and subtle bugs.
@HelloKitty

Copy link
Copy Markdown
Contributor Author

I encountered this during testing the PR, possibly a regression? But I'm not really sure if it is or not. Let me revert and test to find out: https://i.gyazo.com/4005455bf9415b742af342207e394e94.mp4

@jackpoz

jackpoz commented Apr 14, 2022

Copy link
Copy Markdown
Member

is that method used to tell the player to refresh how the objects around look, or is it used to tell other objects around to refresh how the player looks ?

@HelloKitty

Copy link
Copy Markdown
Contributor Author

is that method used to tell the player to refresh how the objects around look, or is it used to tell other objects around to refresh how the player looks ?

Afaik it basically takes the player as a reference point (if force it used) and iterates the cells nearby and calls UpdateVisibilityOf on nearby players. Otherwise they're scheduled for relocation notifying.

template<class T>
inline void Trinity::VisibleNotifier::Visit(GridRefManager<T> &m)
{
    for (typename GridRefManager<T>::iterator iter = m.begin(); iter != m.end(); ++iter)
    {
        vis_guids.erase(iter->GetSource()->GetGUID());
        i_player.UpdateVisibilityOf(iter->GetSource(), i_data, i_visibleNow);
    }
}

Are you familiar with this bug or is this a regression https://i.gyazo.com/4005455bf9415b742af342207e394e94.mp4 ? I haven't been able to reproduce it more than once.

@HelloKitty

Copy link
Copy Markdown
Contributor Author

Tbh running in place could have been because of breakpoints/debugger. I find it impossible to reproduce it a second time.

@Ovahlord

Copy link
Copy Markdown
Contributor

I wonder if this can be connected to cmsg_loading_screen_notify, which might be used to inform the server that the client is ready

@CraftedRO

Copy link
Copy Markdown
Contributor

Sigh...

@HelloKitty

HelloKitty commented Apr 14, 2022

Copy link
Copy Markdown
Contributor Author

Sigh...

Ohhh, thank you for linking. I didn't know the issue was reported. That issue as well as "Out of Order Packets on Login" are definitely related! Dang, 2017 is quite a long while ago.

As for cmsg_loading_screen_notify @Ovahlord mentioned I am not sure. That is from a version of WoW I have never worked on.

@Takenbacon

Copy link
Copy Markdown
Contributor

I wonder if this can be connected to cmsg_loading_screen_notify, which might be used to inform the server that the client is ready

I don't believe such an opcode exists in WoTLK. If I recall right during initial login loading screen there is no client acks, it just waits for server data.

For map changes I did one day accidentally learn it's super important to wait for MSG_MOVE_WORLDPORT_ACK before sending any map object related data.

@jackpoz

jackpoz commented Apr 27, 2022

Copy link
Copy Markdown
Member

Is there still some research going on for this PR and should it be changed to draft or is it ready to be merged ?

@HelloKitty

Copy link
Copy Markdown
Contributor Author

Is there still some research going on for this PR and should it be changed to draft or is it ready to be merged ?

I consider it complete, nothing left for me to do. Though I've not tested it on live servers I haven't personally encountered any regressions on my fork.

@qyh214

qyh214 commented Apr 29, 2022

Copy link
Copy Markdown

I use nVidia 2080, I thought it was the graphics driver issue,so it is server issue?
and also npc sometimes also shows black. but switch map will show normal.

@CraftedRO

Copy link
Copy Markdown
Contributor

I use nVidia 2080, I thought it was the graphics driver issue,so it is server issue? and also npc sometimes also shows black. but switch map will show normal.

No dude it never was a gpu or windows issue , but some people just prefer to close valid issues when they doesn't understand what's about.

@kaytotes

kaytotes commented Apr 30, 2022

Copy link
Copy Markdown
Contributor

Is there still some research going on for this PR and should it be changed to draft or is it ready to be merged ?

I have a few users on a TS-WoW based server that could reproduce this often enough to be a nuisance.

I've deployed a build today with these changes applied and will do some rudimentary testing.

@kaytotes

kaytotes commented May 6, 2022

Copy link
Copy Markdown
Contributor

So far so good. For the users who could pretty consistently reproduce this it hasn't happened again. Haven't noticed any weird after effects or stability issues.

@Shauren

Shauren commented May 9, 2022

Copy link
Copy Markdown
Member

Alright, I finally had time to look at this and compare code between 3.3.5 and master branches. Turns out master branch already had this fixed over 7 years ago in 3ec88b7

In my opinion that old commit is actually a better fix - we don't want to move those visibility updates after login is completed but skip them entirely. That is because the last step of logging in is Map::AddPlayerToMap, which sends all the neccessary (and up-to-date) data

@HelloKitty

HelloKitty commented May 9, 2022

Copy link
Copy Markdown
Contributor Author

Alright, I finally had time to look at this and compare code between 3.3.5 and master branches. Turns out master branch already had this fixed over 7 years ago in 3ec88b7

In my opinion that old commit is actually a better fix - we don't want to move those visibility updates after login is completed but skip them entirely. That is because the last step of logging in is Map::AddPlayerToMap, which sends all the neccessary (and up-to-date) data

I was unaware that someone else noticed this years ago. Seems like someone came to a similar conclusion back then but I'm not sure they realized that it fixes afew odd bugs. Either way works, the behavior should be the same. Up to you which version you want in the 3.3.5 branch. I initially wrote it that way too but decided to change the behavior as minimally as possible. Setting visibility/notify bits to be handled later seemed like the minimal change.

Shauren pushed a commit that referenced this pull request May 9, 2022
@github-actions

github-actions Bot commented May 9, 2022

Copy link
Copy Markdown

38dc566
