Rid of TypeResolver.ResolveType() call from Process_Types_Ps1Xml() #16349

iSazonov · 2021-11-01T17:17:34Z

PR Summary

Rid of TypeResolver.ResolveType() call from Process_Types_Ps1Xml().

Perf win at startup scenario is ~9%.

All static methods from SecurityDescriptorCommandsBase class are moved to new SecurityDescriptorCommandsHelperBase class in SMA. This allows to directly reference the static methods from Process_Types_Ps1Xml().

PR Context

I was very surprised to discover that there is only one call of TypeResolver.ResolveType() in Process_Types_Ps1Xml which does the huge delay at startup scenario.

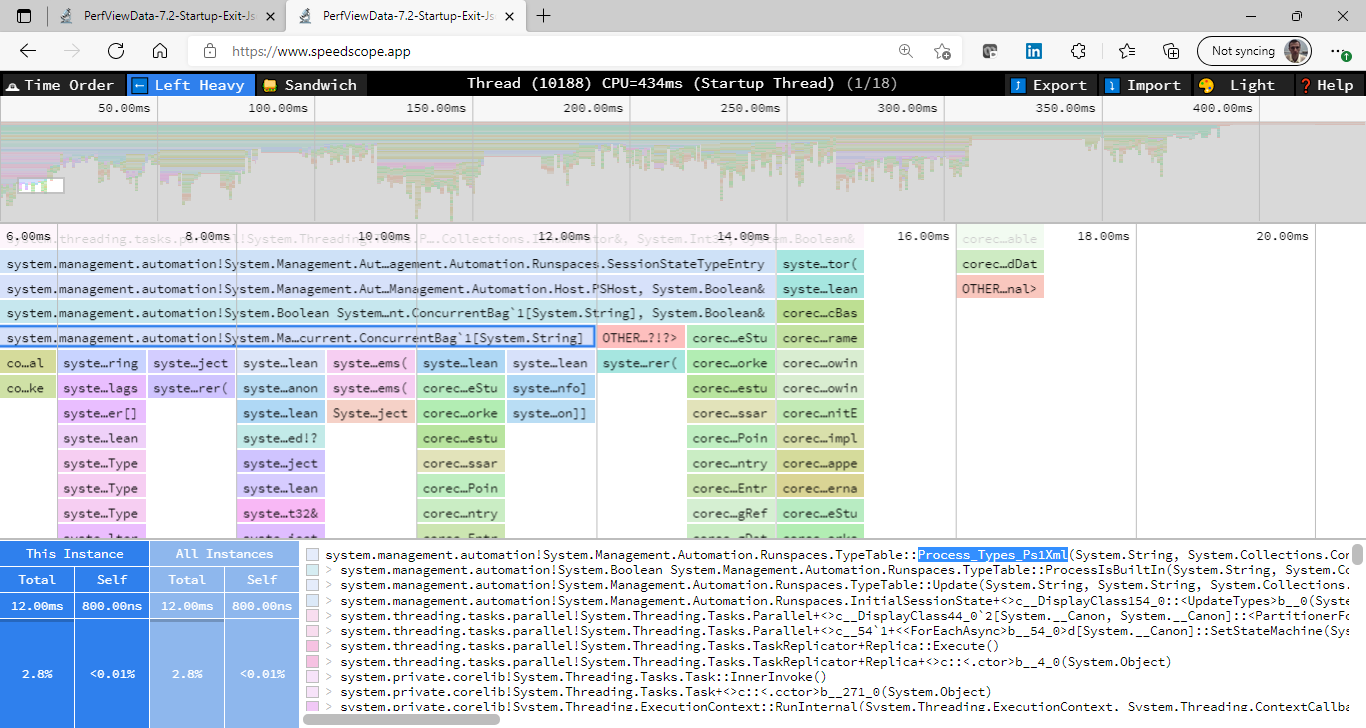

Before the PR:

After the PR:

In future I think it makes sense to improve a performance of TypeResolver.ResolveType() itself. While a cache is empty the method does very expensive assembly enumeration. I guess we could pre-build the cache at compile time for well-known assemblies and get perf wins for some scenarios.

PR Checklist

iSazonov · 2021-11-01T17:19:32Z

src/System.Management.Automation/engine/SecurityDescriptorCommandsHelperBase.cs

+            try
+            {
+                IdentityReference? ir = sd.GetOwner(typeof(NTAccount));
+                return ir?.ToString();


Now it can return a null instead of null reference exception. What is original design here?

iSazonov · 2021-11-01T17:20:23Z

src/System.Management.Automation/engine/SecurityDescriptorCommandsHelperBase.cs

+            try
+            {
+                IdentityReference? ir = sd.GetGroup(typeof(NTAccount));
+                return ir?.ToString();


Now it can return a null instead of null reference exception. What is original design here?

iSazonov · 2021-11-01T17:21:26Z

src/System.Management.Automation/engine/SecurityDescriptorCommandsHelperBase.cs

+            }
+        }
+
+#if !CORECLR


Makes sense to remove the code?

Or enable for IsWindowsDesktop?

The code shouldn't be removed. It was enclosed by CORECLR because the Win32 API LsaQueryCAPs was not available on NanoServer. Now it should be enabled in theory. I think we need @TravisEz13 or @PaulHigin to take a look.

Thanks! Docs say the API is on Windows 8/2012+ desktop apps only.
https://docs.microsoft.com/en-us/windows/win32/api/ntlsa/nf-ntlsa-lsaquerycaps

daxian-dbw · 2021-11-01T17:36:20Z

I don't think this is what we want. We want to split S.M.A, instead of moving more stuff to it. Resolving types and thus loading an assembly like this is inevitable when getting S.M.A.dll leaner.

iSazonov · 2021-11-01T17:42:07Z

This is the easiest thing I could do quickly with hope to get this in 7.2. :-)
It's more of a workaround. These classes are hardly a public contract and since the gain is very significant, it could have been taken until more complex fix is made in TypeResolver.ResolveType()

pull-request-quantifier-deprecated · 2021-11-01T17:44:21Z

This PR has 451 quantified lines of changes. In general, a change size of upto 200 lines is ideal for the best PR experience!

Quantification details

Label      : Extra Large
Size       : +229 -222
Percentile : 81.7%

Total files changed: 5

Change summary by file extension:
.cs : +229 -221
.ps1 : +0 -1

Change counts above are quantified counts, based on the PullRequestQuantifier customizations.

Why proper sizing of changes matters

Optimal pull request sizes drive a better predictable PR flow as they strike a
balance between between PR complexity and PR review overhead. PRs within the
optimal size (typical small, or medium sized PRs) mean:

Fast and predictable releases to production:
- Optimal size changes are more likely to be reviewed faster with fewer
  iterations.
- Similarity in low PR complexity drives similar review times.
Review quality is likely higher as complexity is lower:
- Bugs are more likely to be detected.
- Code inconsistencies are more likely to be detetcted.
Knowledge sharing is improved within the participants:
- Small portions can be assimilated better.
Better engineering practices are exercised:
- Solving big problems by dividing them in well contained, smaller problems.
- Exercising separation of concerns within the code changes.

What can I do to optimize my changes

Use the PullRequestQuantifier to quantify your PR accurately
- Create a context profile for your repo using the context generator
- Exclude files that are not necessary to be reviewed or do not increase the review complexity. Example: Autogenerated code, docs, project IDE setting files, binaries, etc. Check out the Excluded section from your prquantifier.yaml context profile.
- Understand your typical change complexity, drive towards the desired complexity by adjusting the label mapping in your prquantifier.yaml context profile.
- Only use the labels that matter to you, see context specification to customize your prquantifier.yaml context profile.
Change your engineering behaviors
- For PRs that fall outside of the desired spectrum, review the details and check if:
  - Your PR could be split in smaller, self-contained PRs instead
  - Your PR only solves one particular issue. (For example, don't refactor and code new features in the same PR).

How to interpret the change counts in git diff output

One line was added: +1 -0
One line was deleted: +0 -1
One line was modified: +1 -1 (git diff doesn't know about modified, it will
interpret that line like one addition plus one deletion)
Change percentiles: Change characteristics (addition, deletion, modification)
of this PR in relation to all other PRs within the repository.

Was this comment helpful? 👍 :ok_hand: :thumbsdown: (Email)
Customize PullRequestQuantifier for this repository.

daxian-dbw · 2021-11-01T17:58:10Z

Performance changes won't meet the bar to be ported to the 7.2 GA release branch at this point. Only fix to regressions or build-n-packaging will be considered.

iSazonov · 2021-11-04T05:45:12Z

@daxian-dbw Could you please look my questions above for the old code? Makes sense to fix this?

Rid of TypeResolver.ResolveType() call from Process_Types_Ps1Xml()

45e737f

iSazonov added the CL-Performance Indicates that a PR should be marked as a performance improvement in the Change Log label Nov 1, 2021

iSazonov assigned daxian-dbw Nov 1, 2021

pull-request-quantifier-deprecated bot added the Extra Large label Nov 1, 2021

iSazonov commented Nov 1, 2021

View reviewed changes

iSazonov requested a review from SteveL-MSFT November 1, 2021 17:24

Fix test

492f2e1

iSazonov mentioned this pull request Nov 2, 2021

Move psxml type definitions from SMA to Security module #16355

Merged

22 tasks

daxian-dbw closed this Nov 2, 2021
