Add advection operator convergence test #583

vanroekel · 2020-06-01T20:41:26Z

Adds the Skamarock and Gassmann cosine bell test case and a regression
suite across resolutions to test operator convergence

Reference: Section 2a in Skamarock, W.C. and A. Gassmann, 2011: Conservative Transport Schemes for Spherical Geodesic Grids: High-Order Flux Operators for ODE-Based Time Integration. Mon. Wea. Rev., 139, 2962–2975, https://doi.org/10.1175/MWR-D-10-05056.1

vanroekel · 2020-06-01T20:42:16Z

@mark-petersen and @xylar here is my WIP advection operator convergence for the global advective test case. If you have some time, I'd greatly appreciate your comments.

vanroekel · 2020-06-01T20:42:36Z

also tagging @jamilgafur

xylar · 2020-06-01T20:46:14Z

testing_and_setup/compass/ocean/jigsaw_to_MPAS/build_mesh.py

-    write_netcdf(convert(xarray.open_dataset('mesh_triangles.nc')),
-                 'base_mesh.nc')
+    write_netcdf(convert(xarray.open_dataset('mesh_triangles.nc'),
+                    graphInfoFileName='graph.info'),'base_mesh.nc')


Perfect! My only comment here would be to indent another 5 spaces so the formatting follows the PEP8 convention.

Just so I'm clear, indent the second line 5 more spaces? Is this so it is easier to see it is part of the convert function?

If you load e3sm_unified you can run

autopep8 --in-place --aggressive --aggressive foo.py

on your python files for automatic pep8 spacing.

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/config_driver.xml

xylar · 2020-06-01T20:51:04Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+            ii = line.find('=')+1
+            pd = float(line[ii:])
+
+    init = xr.open_dataset('../../'+resTag+'/default/init_step/initial_state.nc')


I really prefer people alter strings with .format() instead of string "addition". This may be may own prejudice but I don't see string addition used by seasoned python programmers.

Suggested change

init = xr.open_dataset('../../'+resTag+'/default/init_step/initial_state.nc')

init = xr.open_dataset('../../{}/default/init_step/initial_state.nc'.format(resTag))

xylar · 2020-06-01T20:51:22Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+
+    init = xr.open_dataset('../../'+resTag+'/default/init_step/initial_state.nc')
+    #find time since the beginning of run
+    ds = xr.open_dataset('../../'+resTag+'/default/forward/output/output.0001-01-01_00.00.00.nc')


Similar to above, maybe use .format().

xylar · 2020-06-01T20:53:56Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+    for i in range(len(latC)):
+        temp = R*np.arccos(np.sin(latCent)*np.sin(latC[i]) + np.cos(latCent)*np.cos(latC[i])*np.cos(lonC[i] - newLon))
+        if temp < radius:
+            tracer[i] = psi0 / 2.0 * (1.0 + np.cos(3.1415926*temp/radius))


Never loop if you don't have to in python.

Suggested change

for i in range(len(latC)):

temp = R*np.arccos(np.sin(latCent)*np.sin(latC[i]) + np.cos(latCent)*np.cos(latC[i])*np.cos(lonC[i] - newLon))

if temp < radius:

tracer[i] = psi0 / 2.0 * (1.0 + np.cos(3.1415926*temp/radius))

temp = R*np.arccos(np.sin(latCent)*np.sin(latC) + np.cos(latCent)*np.cos(latC)*np.cos(lonC - newLon))

mask = temp < radius

tracer[mask] = psi0 / 2.0 * (1.0 + np.cos(numpy.py*temp[mask]/radius))

that's nice! thanks for the suggestion

xylar · 2020-06-01T20:57:20Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+import matplotlib.pyplot as plt
+import os
+
+%matplotlib inline


I haven't seen this one before.

this was an error in importing from jupyter notebook to python script. It's ipython magic. I've removed this.

xylar · 2020-06-01T20:58:54Z

@vanroekel, most of my comments are just little things that you're free to take or leave. Looks like a decent approach to me. Happy to do some testing once the time comes.

vanroekel

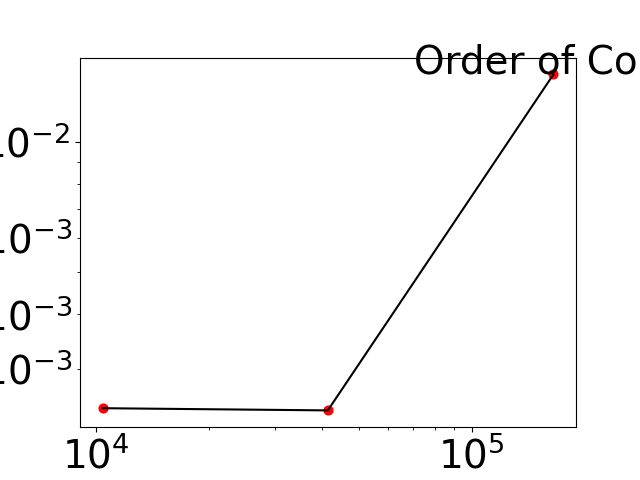

Thanks @xylar I will make the changes. As I test this, I'm having a hard time controlling the plot size and position of the convergence label (annotate) command. Do you have any suggestions? Here is what a plot looks like right now

xylar · 2020-06-01T21:04:08Z

Thanks @xylar I will make the changes. As I test this, I'm having a hard time controlling the plot size and position of the convergence label (annotate) command. Do you have any suggestions? Here is what a plot looks like right now

Oh, yeah, that doesn't look great. Let me see what I can figure out.

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

xylar · 2020-06-01T21:07:00Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+matplotlib.rcParams['figure.figsize'] = (16, 16) # Large figures
+dpi=200;
+
+### axis_font = {'fontname':'Arial', 'size':'18'}
+title_font = {'fontname':'Arial', 'size':'32', 'color':'black', 'weight':'normal'}
+matplotlib.rc('xtick', labelsize=28)
+matplotlib.rc('ytick', labelsize=28)


I think this is the stuff that's causing your figure to look bad. Try taking it out. I'll make a few recommendations below once you do that.

xylar · 2020-06-01T21:08:24Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+p = np.polyfit(np.log10(xdata),np.log10(ydata),1)
+conv = abs(p[0])
+
+plt.loglog(xdata,ydata,'k')


If the figure isn't the size you want, set the size here:

plt.figure(figsize=[<width>, <height>])

where width and height are in inches.

xylar · 2020-06-01T21:09:09Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+plt.loglog(xdata,ydata,'k')
+plt.scatter(xdata,ydata,s=40,c='r')
+plt.annotate('Order of Convergence = {}'.format(np.round(conv,2)),xy=((xdata[-1]+xdata[0])*0.4,ydata[0]),fontsize=28)
+plt.savefig('convergence.png')


If the png is low resolution, set dpi=200 here. I wouldn't bother doing that earlier unless you're going to use plt.show().

xylar · 2020-06-01T21:13:30Z

testing_and_setup/compass/ocean/cosine_bell/RMSE/default/compute_rmse.py

+
+plt.loglog(xdata,ydata,'k')
+plt.scatter(xdata,ydata,s=40,c='r')
+plt.annotate('Order of Convergence = {}'.format(np.round(conv,2)),xy=((xdata[-1]+xdata[0])*0.4,ydata[0]),fontsize=28)


28 is a big font size. And it might work better to just put it in the upper left corner or something. There are probably other tricks for putting it "where it fits bets" like is done for legends. If you want that, I can look into it.

vanroekel · 2020-06-01T21:53:15Z

thanks @xylar! Your comments have been extremely helpful. Here is an updated plot

vanroekel · 2020-06-02T05:05:40Z

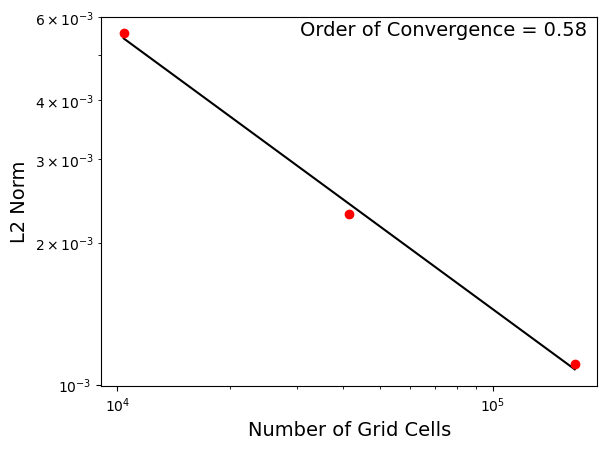

@mark-petersen I've run through the advection test and here is the result

The convergence order is much lower than expected. When you have a chance could you look through this test and see if I have an error?

mark-petersen · 2020-06-02T12:26:06Z

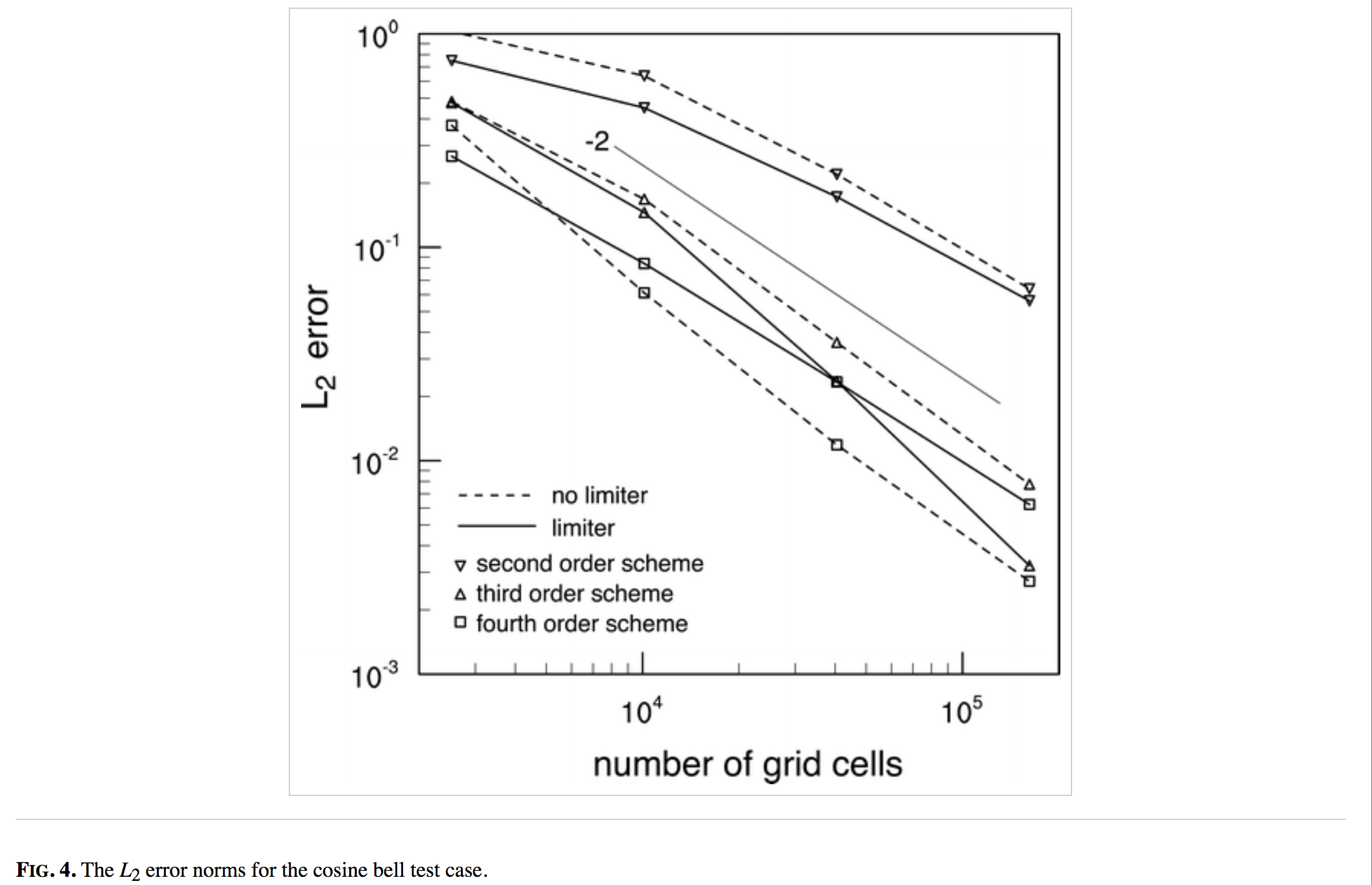

@vanroekel thanks for your work on this. The low order of convergence is certainly surprising. The direct comparison is Skamarock and Gassmann figure 4:

They don't give numbers for the computed order on this plot, but everything is at least 2. MPAS-Ocean should be using the fourth order scheme. I would expect that limiting is not turning on, but we could check that.

vanroekel · 2020-06-02T13:29:28Z

@mark-petersen monotone is on here. We also are using the blended 3rd/4th order scheme (coeff3rdOrder =0.25). I've tried for various values of that coefficient and it doesn't help convergence order. I've also tried with non monotone and the order is roughly the same.

vanroekel · 2020-06-02T15:20:43Z

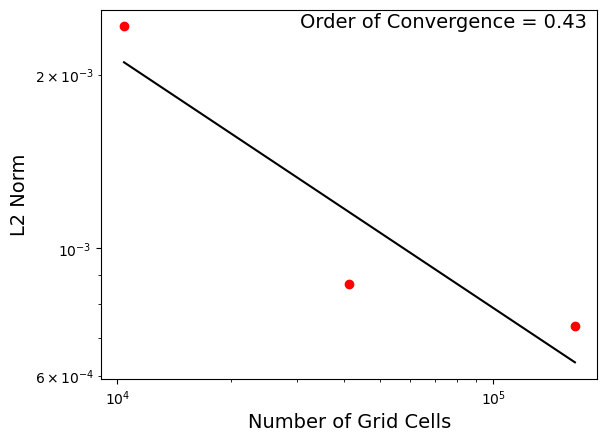

One other thing, there is a pretty strong time step sensitivity. Cutting dt to 1 min changes convergence strongly (not for the better). I'll add some plots of the tracer vs exact solution shortly

vanroekel · 2020-06-03T20:31:15Z

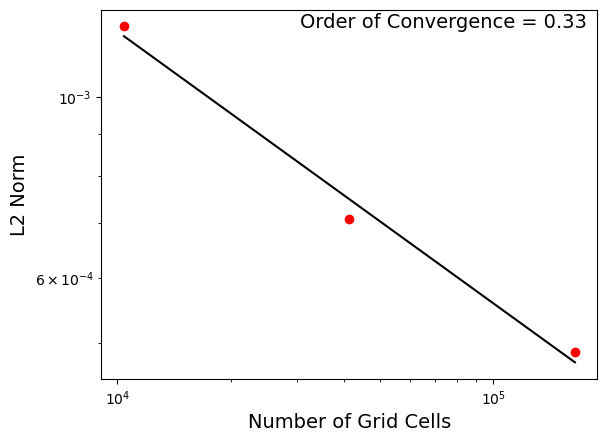

a quick update, using RK4 improves convergence, but only slightly

jamilgafur · 2020-06-08T18:57:52Z

src/core_ocean/mode_init/Makefile

             mpas_ocn_init_hurricane.o \
-             mpas_ocn_init_tidal_boundary.o
+             mpas_ocn_init_tidal_boundary.o \
+						 mpas_ocn_init_cosine_bell.o


Small edit, but spacing here is weird.

mark-petersen · 2020-09-16T14:31:56Z

Rebased, compiled and tested with gnu and intel debug for initial condition. Ran QU240 test through forward.

mark-petersen

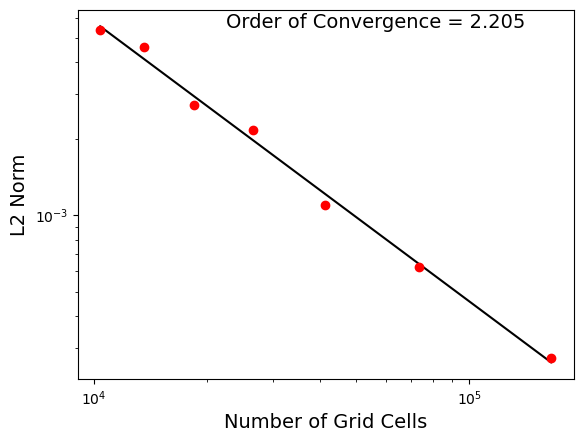

This looks great! Thanks for your work @vanroekel. I cleaned up the COMPASS files so they are linked to templates rather than a bunch of individual files. Then it was very easy to add more resolutions in between. This still spans QU60 to QU240:

This is beautiful! The extra test cases give us more confidence in the slope.

I also was able to clean up the simulations. It had been writing output and restart files very frequently. It now can run all seven cases in 12 minutes on 4 nodes on grizzly with gnu.

mark-petersen · 2020-09-16T23:52:06Z

@jonbob This one is ready to merge when we have an open E3SM slot. It changes both COMPASS and init mode Fortran code.

xylar · 2020-11-06T12:41:02Z

I have a draft PR for moving the COMPASS changes from this PR to the new COMPASS repo: MPAS-Dev/compass#8

Once MPAS-Dev/compass#2 has been merged, we need to:

rebase Add advection operator convergence test compass#8
remove COMPASS changes from this PR
Re-test within the new COMPASS branch, pointing to a built of MPAS-Ocean from this PR
Remove the COMPASS label

xylar · 2020-11-14T19:52:28Z

remove COMPASS changes from this PR

@vanroekel, would you like to remove the COMPASS changes from this PR, or would you prefer I do it? Here is a link that I think describes the approach we would use: https://stackoverflow.com/a/17824718/7728169

xylar · 2020-11-14T21:56:58Z

@vanroekel, I went ahead and tried the rebase. The link I posted above wasn't much help, I just needed to keep deleting modified contents in testing_and_setup/compass. Here's my version of the branch, which just has 2 commits:
https://github.com/xylar/MPAS-Model/tree/ocean/addCosineBellTest
I think the second commit could be squashed with the first.

vanroekel · 2020-11-15T05:24:40Z

@xylar thanks for taking the time to pull the COMPASS changes out of that branch. It looks good to me.

xylar · 2020-11-15T08:38:18Z

@vanroekel, I'm going to take that as tacit permission to alter your branch to update this PR.

xylar · 2020-11-15T08:41:33Z

@mark-petersen, please merge this when it is convenient for E3SM. Then, we can update the ocean/develop submodule in MPAS-Dev/compass#8 and merge that PR.

mark-petersen · 2020-11-15T16:19:35Z

@xylar, thanks for rebasing. Hopefully we can continue to merge these peripheral PRs during the mushy freeze.

Adds the Skamarock and Gassmann cosine bell test case and a regression suite across resolutions to test operator convergence

mark-petersen · 2021-01-15T14:18:16Z

Rebased. Corrected author and test case names. Tested successfully using COMPASS case, which is here: MPAS-Dev/compass#8, with gnu optimized and debug.

Merge PR #583 'vanroekel/ocean/addCosineBellTest' into ocean/develop

mark-petersen · 2021-01-15T21:42:13Z

Rebased version passes nightly regression suite with gnu debug. Ran convergence test here: MPAS-Dev/compass#8 with gnu debug an optimized, produces same plot as above. Takes 12 minutes on grizzly with 4 nodes.

Add cosine bell advection test case This PR brings in a new mpas-source submodule with changes only to the ocean core. It adds initial condition for cosine bell test case, used for converge test of tracer advection. See MPAS-Dev/MPAS-Model#583 and MPAS-Dev/compass#8. [BFB]

Merge PR MPAS-Dev#583 'vanroekel/ocean/addCosineBellTest' into ocean/develop
