Fix masking for initial state plotting #512
Conversation

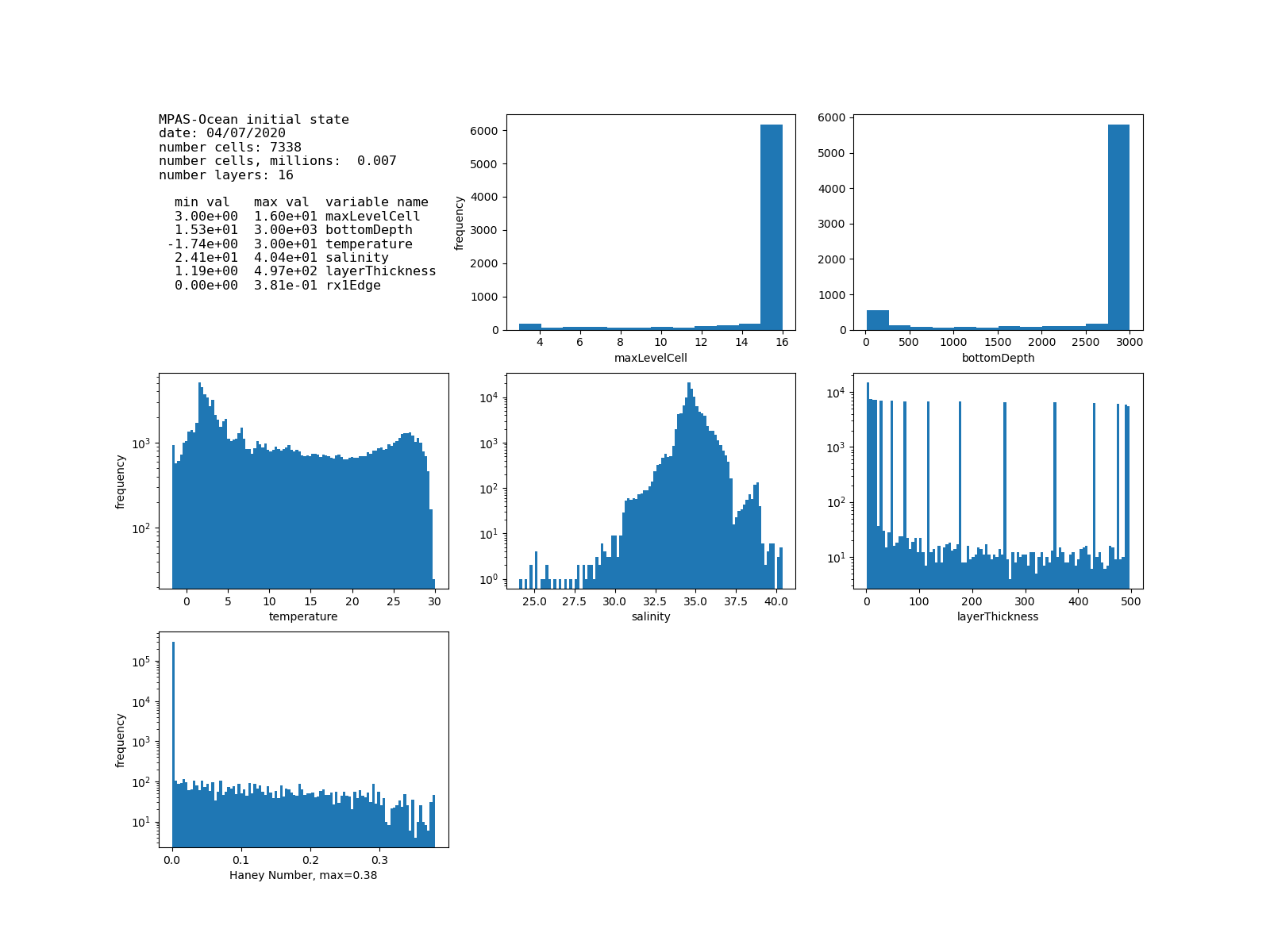

Cells below maxLevelCell are no longer included.
|
I also switched the text with max/min in the plot to a monospace font so the columns align better. |
|
|
| import matplotlib | ||
| matplotlib.use('Agg') | ||
| import matplotlib.pyplot as plt | ||
| from matplotlib.font_manager import FontProperties |
There was a problem hiding this comment.
Usually, you need to switch to the Agg backend before importing plt. I guess that isn't required in the most recent matplotlib but it's still safer to do it in this order. PEP8 will complain about imports not being at the top but it is necessary in this case.
| plt.subplot(3, 3, 4) | ||
| varName = 'temperature' | ||
| var = ncfile.variables[varName] | ||
| plt.hist(np.ndarray.flatten(var[:]), bins=100, log=True) |
There was a problem hiding this comment.
The mask takes care of of flattening the array in this case but a more efficient way of flattening a typical numpy array is to call its ravel method: var[:].ravel()
| txt = txt + ' {:9.2e}'.format(np.min(var)) + \ | ||
| ' {:9.2e}'.format(np.max(var)) + ' ' + varName + '\n' |
There was a problem hiding this comment.
I didn't have the energy to change all the formatting, but I would not use str addition like this. For example, here, I would do:
| txt = txt + ' {:9.2e}'.format(np.min(var)) + \ | |
| ' {:9.2e}'.format(np.max(var)) + ' ' + varName + '\n' | |
| txt = '{}{:9.2e} {:9.2e} {}\n'.format(txt, np.amin(var), np.amax(var), varName) |
I think amin and amax are considered to be the better than the aliases min and max because it clarifies that you want the min/max over the array vs. minimum and maximum, which give the element-wise min/max between two arrays.
| font = FontProperties() | ||
| font.set_family('monospace') | ||
| font.set_size(12) | ||
| print(txt) | ||
| plt.subplot(3, 3, 1) | ||
| plt.text(0, 1, txt, fontsize=12, verticalalignment='top') | ||
| plt.text(0, 1, txt, verticalalignment='top', fontproperties=font) |
There was a problem hiding this comment.
Apparently, this is how you change fonts. Never had to do this before.
|
@xylar you are too good! Thanks for the changes. I appreciate the python improvements as well! |
3 participants
Cells below
maxLevelCellare no longer included.
