Adds drying slope wetting and drying above land #456

pwolfram merged 1 commit into from
Mar 2, 2020

Conversation

@pwolfram
Copy link
Contributor

@pwolfram pwolfram commented Feb 26, 2020

Refractors the zstar test case to allow for above-land wetting/drying in a new test case.

@pwolfram
Adds drying slope wetting and drying above land
8a904e1
Refractors the zstar test case to allow for above-land wetting/drying.
@pwolfram
Copy link
Contributor Author

pwolfram commented Feb 26, 2020

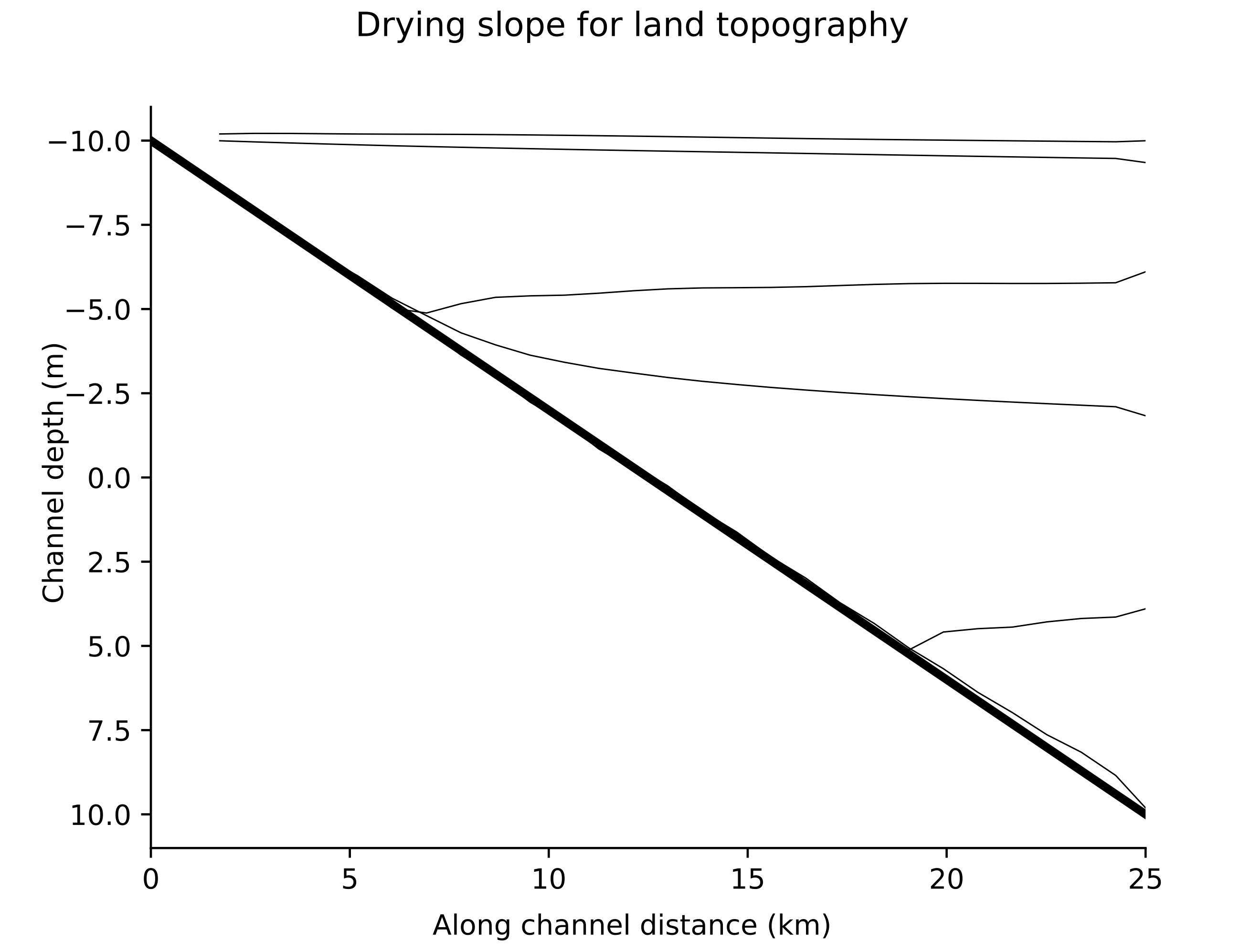

Testing of compass/ocean/drying_slope/zstar_above_land/1km:


This is a simple hello-world for testing of bottomDepth < 0:

cd forward
ncdump -v bottomDepth output.nc | tail -n 40
		:config_tidal_boundary_plug_width_frac = 0.1 ;
		:config_tidal_forcing_left_Cd_or_n = 0.001 ;
		:config_tidal_forcing_right_Cd_or_n = 0.001 ;
		:file_id = "movf4xncje" ;
data:

 bottomDepth = -8.6, -8.6, -8.6, -8.6, -8.6, -8.6, -7.8, -7.8, -7.8, -7.8,
    -7.8, -7.8, -7.2, -7.2, -7.2, -7.2, -7.2, -7.2, -6.4, -6.4, -6.4, -6.4,
    -6.4, -6.4, -5.8, -5.8, -5.8, -5.8, -5.8, -5.8, -5, -5, -5, -5, -5, -5,
    -4.4, -4.4, -4.4, -4.4, -4.4, -4.4, -3.6, -3.6, -3.6, -3.6, -3.6, -3.6,
    -3, -3, -3, -3, -3, -3, -2.2, -2.2, -2.2, -2.2, -2.2, -2.2, -1.6, -1.6,
    -1.6, -1.6, -1.6, -1.6, -0.799999999999995, -0.799999999999995,
    -0.799999999999995, -0.799999999999995, -0.799999999999995,
    -0.799999999999995, -0.199999999999994, -0.199999999999994,
    -0.199999999999994, -0.199999999999994, -0.199999999999994,
    -0.199999999999994, 0.400000000000006, 0.400000000000006,
    0.400000000000006, 0.400000000000006, 0.400000000000006,
    0.400000000000006, 1.20000000000001, 1.20000000000001, 1.20000000000001,
    1.20000000000001, 1.20000000000001, 1.20000000000001, 1.80000000000001,
    1.80000000000001, 1.80000000000001, 1.80000000000001, 1.80000000000001,
    1.80000000000001, 2.60000000000001, 2.60000000000001, 2.60000000000001,
    2.60000000000001, 2.60000000000001, 2.60000000000001, 3.20000000000001,
    3.20000000000001, 3.20000000000001, 3.20000000000001, 3.20000000000001,
    3.20000000000001, 4.00000000000001, 4.00000000000001, 4.00000000000001,
    4.00000000000001, 4.00000000000001, 4.00000000000001, 4.60000000000001,
    4.60000000000001, 4.60000000000001, 4.60000000000001, 4.60000000000001,
    4.60000000000001, 5.40000000000001, 5.40000000000001, 5.40000000000001,
    5.40000000000001, 5.40000000000001, 5.40000000000001, 6.00000000000001,
    6.00000000000001, 6.00000000000001, 6.00000000000001, 6.00000000000001,
    6.00000000000001, 6.80000000000001, 6.80000000000001, 6.80000000000001,
    6.80000000000001, 6.80000000000001, 6.80000000000001, 7.40000000000001,
    7.40000000000001, 7.40000000000001, 7.40000000000001, 7.40000000000001,
    7.40000000000001, 8.20000000000001, 8.20000000000001, 8.20000000000001,
    8.20000000000001, 8.20000000000001, 8.20000000000001, 8.80000000000001,
    8.80000000000001, 8.80000000000001, 8.80000000000001, 8.80000000000001,
    8.80000000000001, 9.40000000000001, 9.40000000000001, 9.40000000000001,
    9.40000000000001, 9.40000000000001, 9.40000000000001, 10.091789367799,
    10.091789367799, 10.091789367799, 10.091789367799, 10.091789367799,
    10.091789367799 ;
}

ncdump -v ssh init.nc | tail -n 50

 ssh =
  8.607000007, 8.607000007, 8.607000007, 8.607000007, 8.607000007,
    8.607000007, 7.811000011, 7.811000011, 7.811000011, 7.811000011,
    7.811000011, 7.811000011, 7.214000014, 7.214000014, 7.214000014,
    7.214000014, 7.214000014, 7.214000014, 6.418000018, 6.418000018,
    6.418000018, 6.418000018, 6.418000018, 6.418000018, 5.821000021,
    5.821000021, 5.821000021, 5.821000021, 5.821000021, 5.821000021,
    5.025000025, 5.025000025, 5.025000025, 5.025000025, 5.025000025,
    5.025000025, 4.428000028, 4.428000028, 4.428000028, 4.428000028,
    4.428000028, 4.428000028, 3.632000032, 3.632000032, 3.632000032,
    3.632000032, 3.632000032, 3.632000032, 3.035000035, 3.035000035,
    3.035000035, 3.035000035, 3.035000035, 3.035000035, 2.239000039,
    2.239000039, 2.239000039, 2.239000039, 2.239000039, 2.239000039,
    1.642000042, 1.642000042, 1.642000042, 1.642000042, 1.642000042,
    1.642000042, 0.846000045999995, 0.846000045999995, 0.846000045999995,
    0.846000045999995, 0.846000045999995, 0.846000045999995,
    0.249000048999994, 0.249000048999994, 0.249000048999994,
    0.249000048999994, 0.249000048999994, 0.249000048999994,
    -0.347999948000006, -0.347999948000006, -0.347999948000006,
    -0.347999948000006, -0.347999948000006, -0.347999948000006,
    -1.14399994400001, -1.14399994400001, -1.14399994400001,
    -1.14399994400001, -1.14399994400001, -1.14399994400001,
    -1.74099994100001, -1.74099994100001, -1.74099994100001,
    -1.74099994100001, -1.74099994100001, -1.74099994100001,
    -2.53699993700001, -2.53699993700001, -2.53699993700001,
    -2.53699993700001, -2.53699993700001, -2.53699993700001,
    -3.13399993400001, -3.13399993400001, -3.13399993400001,
    -3.13399993400001, -3.13399993400001, -3.13399993400001,
    -3.92999993000001, -3.92999993000001, -3.92999993000001,
    -3.92999993000001, -3.92999993000001, -3.92999993000001,
    -4.52699992700001, -4.52699992700001, -4.52699992700001,
    -4.52699992700001, -4.52699992700001, -4.52699992700001,
    -5.32299992300001, -5.32299992300001, -5.32299992300001,
    -5.32299992300001, -5.32299992300001, -5.32299992300001,
    -5.91999992000001, -5.91999992000001, -5.91999992000001,
    -5.91999992000001, -5.91999992000001, -5.91999992000001,
    -6.71599991600001, -6.71599991600001, -6.71599991600001,
    -6.71599991600001, -6.71599991600001, -6.71599991600001,
    -7.31299991300001, -7.31299991300001, -7.31299991300001,
    -7.31299991300001, -7.31299991300001, -7.31299991300001,
    -8.10899990900001, -8.10899990900001, -8.10899990900001,
    -8.10899990900001, -8.10899990900001, -8.10899990900001,
    -8.70599990600001, -8.70599990600001, -8.70599990600001,
    -8.70599990600001, -8.70599990600001, -8.70599990600001,
    -9.30299990300001, -9.30299990300001, -9.30299990300001,
    -9.30299990300001, -9.30299990300001, -9.30299990300001,
    -9.99178926779897, -9.99178926779897, -9.99178926779897,
    -9.99178926779897, -9.99178926779897, -9.99178926779897 ;
}

@pwolfram
Copy link
Contributor Author

pwolfram commented Feb 26, 2020

@mark-petersen, this was the test case we discussed in person a few weeks ago following your fix in #317

@pwolfram
Copy link
Contributor Author

pwolfram commented Mar 2, 2020

@mark-petersen, can you please review so that we can merge?

mark-petersen
mark-petersen approved these changes Mar 2, 2020
View reviewed changes
Copy link
Contributor

@mark-petersen mark-petersen left a comment

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

Yes, these are all just for test cases, so is fine, based on your posted results. Please merge. Sorry for the delay.

@pwolfram pwolfram merged commit db21064 into MPAS-Dev:ocean/coastal Mar 2, 2020
@pwolfram pwolfram deleted the coastal/wetting_drying_above_land branch March 2, 2020 20:26
@pwolfram
Copy link
Contributor Author

pwolfram commented Mar 2, 2020

Thanks @mark-petersen!

@pwolfram pwolfram mentioned this pull request Apr 2, 2020
Closed
@pwolfram pwolfram mentioned this pull request Apr 14, 2020
Merged
pwolfram added a commit to pwolfram/MPAS-Model that referenced this pull request Jun 4, 2020
@pwolfram
Fixes vertical mesh error for surface_waves case
b1fc468
Fixes bug introduced in MPAS-Dev#456
where vertical mesh incorrectly assumes on-land and below-water slopes
between left and right boundary
@pwolfram pwolfram mentioned this pull request Jun 4, 2020
Merged
sbrus89 pushed a commit to sbrus89/MPAS-Model that referenced this pull request Jul 29, 2020
@pwolfram
Fixes vertical mesh error for surface_waves case
12654b5
Fixes bug introduced in MPAS-Dev#456
where vertical mesh incorrectly assumes on-land and below-water slopes
between left and right boundary
sbrus89 pushed a commit to sbrus89/MPAS-Model that referenced this pull request Aug 14, 2020
@pwolfram
Fixes vertical mesh error for surface_waves case
d9a4dc7
Fixes bug introduced in MPAS-Dev#456
where vertical mesh incorrectly assumes on-land and below-water slopes
between left and right boundary
sbrus89 pushed a commit that referenced this pull request Aug 19, 2020
@pwolfram
Fixes vertical mesh error for surface_waves case
cecd13a
Fixes bug introduced in #456
where vertical mesh incorrectly assumes on-land and below-water slopes
between left and right boundary
mark-petersen pushed a commit to mark-petersen/MPAS-Model that referenced this pull request Jan 11, 2021
@pwolfram
Fixes vertical mesh error for surface_waves case
25226d1
Fixes bug introduced in MPAS-Dev#456
where vertical mesh incorrectly assumes on-land and below-water slopes
between left and right boundary
jonbob pushed a commit to E3SM-Project/E3SM that referenced this pull request Jun 22, 2021
@pwolfram
Fixes vertical mesh error for surface_waves case
b5f71cd
Fixes bug introduced in MPAS-Dev/MPAS-Model#456
where vertical mesh incorrectly assumes on-land and below-water slopes
between left and right boundary
