Make an ASCII ART image viewer

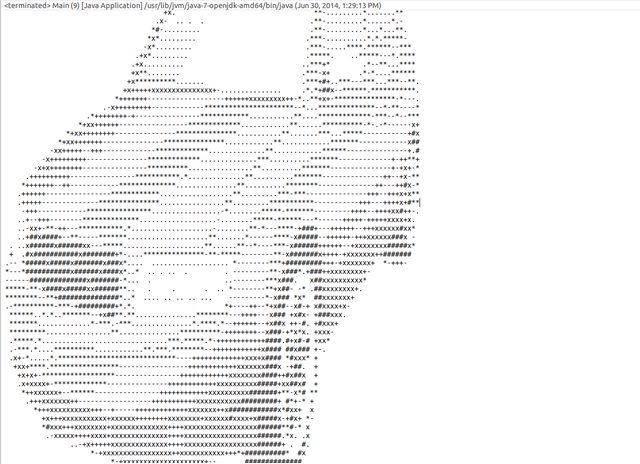

example

You are on the console. Again. You've reinstalled your linux n times, but your video driveres can't seem to work properly.
You've installed the proprietary ones, but then gnome 3 does not seem to like them and crashes with SEGFAULT... somewhere, because of reasons.

A friend of yours has just send you some cool picture link, and you've downloaded it using wget or curl...but you can't open them.

You'd really, really like to see what the laugh is all about. Something about a horse biting a player? Wtf...

Create yourself your very own ASCII viewer - an application that opens image files and turns them into an ASCII art (prints the ASCII art on the console). The algorithm for creating ASCII art from images is very simple

for each pixel in image
    if intensity(pixel) > 240 put ' ' on console
    if intensity(pixel) between 200 and 240 put '.' on console
    if intensity(pixel) between 160 and 200 put '*' on console
    if intensity(pixel) between 120 and ....
    if intensity(pixel) between 40 and 80 put '#' on console

where intensity is the average of the red, green and blue components of the pixel's color. The idea here is that the closer the color is to black (black is of intesity 0), the darker character you should type on console.

Your application should take the first argument args[0] and interpret it as a file path to the image you want to represent in ASCII art.

Afterwards, you should read the image to a BufferedImage using the ImageIO.read method. Once that you have a reference to a BufferedImage, you should check out the getRGB(x, y) method. Using this method, you can get the color of a pixel.

You will see that getRGB actually returns an integer. Turn it into a Color using new Color(int rgba, boolean hasAlpha) method. Ignore alpha for now (use false as a second argument)

Now that you have a Color, you can get the red, green, and blue components using the color.getRed(), color.getGreen(), etc. methods.
Intensity is simply (red + green + blue)/3.

Test this problem with small images. No more than 300x200 in resolution. Once you've made the above algorithm work, come back here.

Additional (not mandatory)

Now, we want to load bigger images. The problem here is that most consoles do not have 1920 character columns. A standart monospace console is something like 160 characters. Check how much characters your console supports using echo $COLUMNS. Mine supports for instance 204 per line.

Once you know how much characters they are in a console, you need to scale down the output image. (Don't print a character for every pixel, print a character for every block of pixels).

For instance: You are given an 800x600 image. You know you can show a maximum of 204 pixels (this number will be different for you), so you calculate that you should scale it down 4 times, and give me a 200x150 image. So your block length is 4.

The algorithm now is almost the same:

for y from 0 to numberOfBlocksWidth(image)
    for y from 0 to numberOfBlocksHeight(image)
        avgIntensity = getAvgIntensityForBock(x,y, blockLength);
        if avgIntensity > 240 put ' ' on cosnole
        if avgIntensity > 200 put '*" on console
        ... and so on

For every block of size blockLength x blockLength, you output one pixel. That's the idea. P.S. You don't need to keep the blocks in fields. P.S.2 Do not upscale. Only downscale, if necessary.

The first team that implements the additional scaling part gets a free beer for every member.

GIF Support

Now imagine that you are on the console and you'd like to check the hilarrious gif about Luiz Suarez your mate just send you. Not having a graphical environment should not be a stopper!

How do we play gifs in the console? Simple. We draw a frame, we wait a little bit, then we clear the console and draw the next frame.

Use the JLine library to clear the console. See ConsoleReader#clearScreen()

Use Kevin Weiner's Gif Decoder class to help you decode the gif frames. Make sure you leave the copyright/author information intact when using the class!

Use the GifDecoder 's read, getFrameCount getFrame(int) methods in order to play the gif.

In summary: Modify your application, so that if the file given in args[0] is a gif file:

  • args[1] will be the gif playing speed (delay between frames drawing). Assume 50 milliseconds if not given.
  • read all the frames from the gif.
  • Show the ascii art for the first frame (print it in the console)
  • Wait a little bit (50 milliseconds if not given from args[1] - utilise the Thread.sleep() method)
  • Clear the console using Jline's ConsoleReader#clearScreen.
  • Draw the ascii art for the next frame (in the console)

Do this until you are out of frames to draw. Make an ASCII representation of every frame.

Video Support

Come on, let's support video, shall we?

Use the jcodec java library for video frame fetching. Focus on the class FrameGrab and look around its methods to see how you can use it to gain a frame from a video. Use and support .mp4 for videos - we'd like to avoid any decoding issues.

1 video plays (averagely) around 25 frames per second. Once more, implement the following flow:

  • args[1] will be the speed (delay between frames) given. Experiment and set a nice default value if the user does not provide a args[1]. It will be different for every laptop, as it is based on decoding speed.
  • read the next frame using FrameGrab
  • print the ascii ART on the console.
  • Wait a little bit using Thread.sleep()
  • Clear the console using Jline's ConsoleReader#clearScreen.
  • Draw the ascii art for the next frame.

Do this until you are out of frames to draw. Make an ASCII representation of every video frame.

BufferedImage frame = null;
while ((image = frameGrab.getFrame())!=null){
    ...
}

You can get an instance of FrameGrab using the below sinppet:

FileInputStream fileInputStream = new FileInputStream(file);
FileChannelWrapper wrapper = new FileChannelWrapper(fileInputStream.getChannel());
FrameGrab frameGrab = new FrameGrab(wrapper);

Details, hints

For both gif and video, you will need to clear the console. Use the JLine library - http://jline.sourceforge.net/, and ConsoleReader#clearScreen method.

You have to clear the screen before drawing the next frame. Your video/gif player should do something like the following

while hasFramesToPlay
    String asciiArt = getAsciiRepresentation(frame);
    print(asciiArt);
    Thread.sleep(50); //sleep a little bit
    clearConsole();

0c7676878dca720a7065eed41348a6db16c8e0a1

Implement MS paint in java

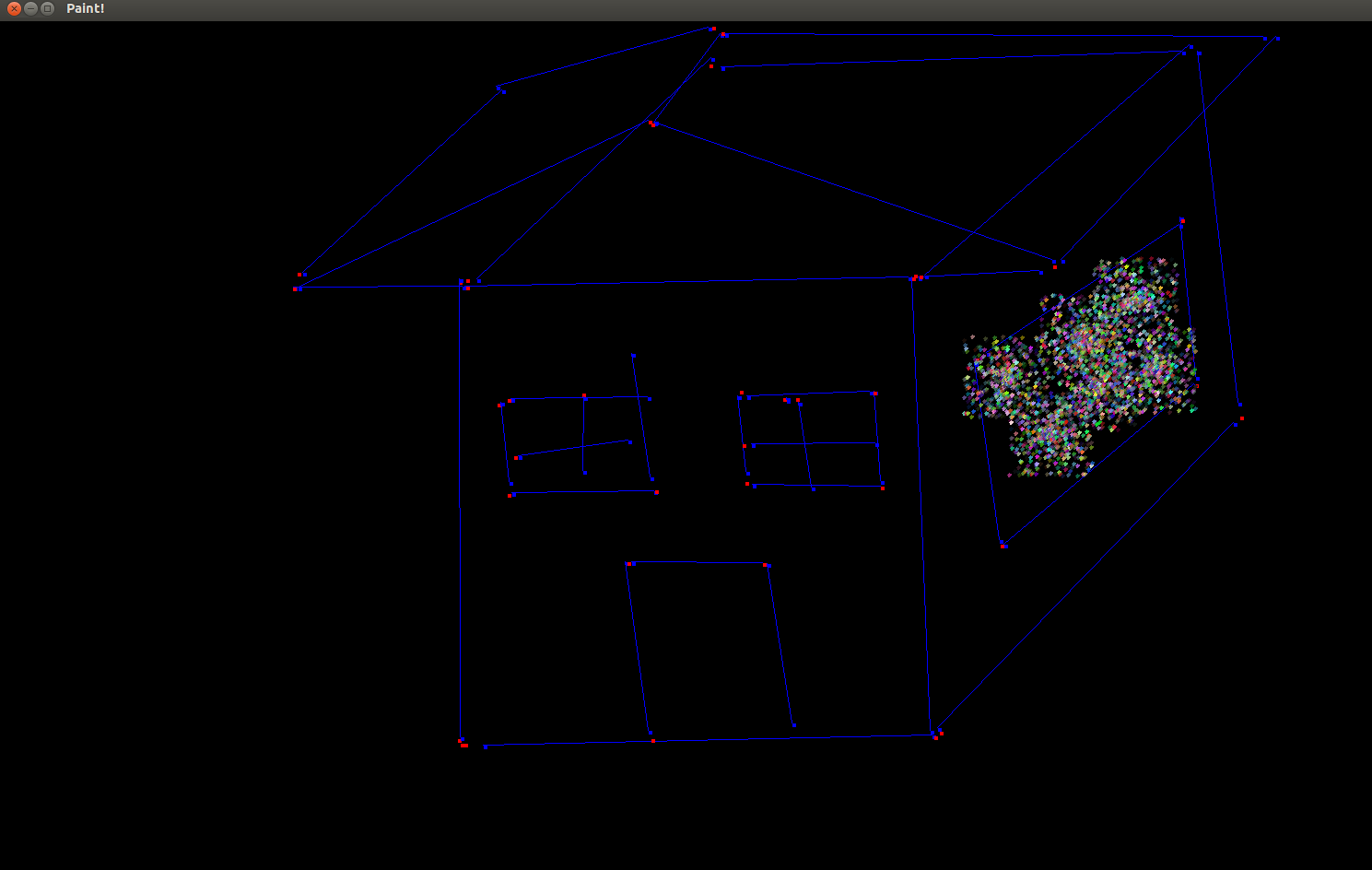

Create an MS-Paint fullscreen equivallent in java. Implementing only a small subset of the features, of course. example

Project setup
  • Create a new java project named 'Paint'
  • Create 5 packages:
com.hackbulgaria.corejava.paint
com.hackbulgaria.corejava.paint.controller
com.hackbulgaria.corejava.paint.sprites
com.hackbulgaria.corejava.paint.view
com.hackbulgaria.corejava.paint.tools
  • Craete a class Main, residing in com.hackbulgaria.corejava.paint (the main package).
  • Now create a class PaintWindow, extending JFrame.It should reside in com.hackbulgaria.corejava.paint.view
  • Create a class PaintController in com.hackbulgaria.corejava.paint.controller
  • Create an abstract class Sprite in com.hackbulgaria.corejava.paint.sprites. It should have these protected fields:
int x;
int y; //position
int size; //in pixels
Color color; //By default this should be Color.RED;
    • Create getters and setters for all of them. Please use the IDE to achieve that.
    • Declare a constructor in Sprite, which accepts all of the 4 arguments described above. Please use the IDE to achieve that.
    • Sprite should also have a public abstract void draw(Graphics graphics) method. //java.awt.Graphics
    • Create a DotSprite class that extends the Sprite class. Override the draw method with the following:
	@Override
	public void draw(Graphics graphics) {
		if (color != null) {
			graphics.setColor(color); //set Color to use for FUTURE draw and fill calls
		}
		graphics.fillOval(x, y, size, size);
	}
    • Create a constructor in DotSprite with the following declaration:
	public DotSprite(int x, int y, Color c) {
		super(x, y, 5, c); //We decide how big a DotSprite will be if we are not given an argument.
	}
    • You have a good and complete Sprite and DotSprite classes? Great!
  • Now go to your PaintWindow class
    • Add a private List member like this: private final List<Sprite> sprites = new ArrayList<>();
    • Override the paint method like this:
	@Override
	public void paint(Graphics g) {
		g.setColor(Color.BLACK); //set color
		g.fillRect(0, 0, getWidth(), getHeight()); //fill the whole window with black

		for (Sprite sprite : sprites) {
			sprite.draw(g);
		}
	}
  • Create an enum Tool in your com.hackbulgaria.corejava.paint.tools package. The Enum should have two entries (for now): DOT, SPRAY;
  • Go to your PaintController class. Add a private final PaintWindow window; member. Add a private Tool currentTool; member.
    • Override the default constructor like that:
	public PaintController() {
		this.window = new PaintWindow();
		window.setTitle("Paint!");
		currentTool = Tool.DOT;
		window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
		window.setFocusable(true);
		window.setVisible(true);
                window.setSize(800,600);
         }
  • Go to your main class and your main method. Just create a new instance of PaintController like that: new PaintController().
  • Run your application. You should see a window with a 'Paint!' title and black frame.

So far so good? (Whew), okay. Now, the fun starts here.

Get fullscreen mode for your application.

We want to make our paint in fullscreen. See http://docs.oracle.com/javase/tutorial/extra/fullscreen/exclusivemode.html to check how can you get a full screen exclusive mode. You've made paint full screen? Excellent.

Set a mouse listener (Create an inner class extending MouseAdapter)

Your inner class should reside in the 'PaintController' top-level class. Override the mousePressed method and print 'Mouse click!' at the console to know you've got there.

Once you have this class, in the PaintController constructor, using window.addMouseListener(anInstanceOfYourMouseListenerClass); Run your application. Do you see your message when you click on the mouse? Splendid.

Draw a point on mouse click.

In your mousePressed method, create a new dot sprite with the x and y of the event received in the method. Once you have it, you have to add it the List in your PaintWindow class (your window field). Create an appropriate addSprite method in the PaintWindow class in order to able to add the Sprite you created to the list of sprites that are to be drawn.
Call window.repaint() right after you add the Sprite.

Draw a line between two points

Create a LineSprite class. Add your mouse listener insance as a motion listener to the window. See http://docs.oracle.com/javase/7/docs/api/java/awt/event/MouseListener.html methods. Override the appropriate MouseListener methods in order to detect a 'Click, Move, Release' motion and draw a line from mouse 'Click' location to mouse 'Release' location.

Clear the screen on right mouse button click

In your mousePressed method, check e.getButton() and if the event received is for a right mouse button click, clear the screen. Any idea how can you do that? No graphics/framebuffer/low-level hacking is allowed.

Create a 'spray' tool

Remember the old 'Spray' tool in MSPaint? Make one like it. Extend the Sprite class:

  • Draw a point at x, y
  • If we have a point at x,y, its neighbours are the points {x+1, y+1} {x-1, y-1} {x+1, y-1} {x-1, y+1} {x, y+1} {x, y-1} and so on... let's call them level-1 neighbours.
  • Choose an n, which will be our spray-radius. For every neighbour of {x,y}, from level-1, to level-n neighbour, use java.util.Random to decide whether or not you should draw a point there.
  • Make the probability for the point depend on the distance from the center. The farther it is from the center, the less chance it should have of being drawn.
Change active tools on a mousewheel

Add a MouseWheelListener to the window, so when a mouse wheel event occurs, the currentTool gets changed. Implement mouse-wheel switch between drawing a dot and drawing with the spray tool.

Implement a 'undo' functionality on right mouse click.

When I click accidentally the right mouse button, baaam, my drawing is gone. This sucks. Make it to just undo the last modification.
